Fluentd v0.14 Plugin API Details

1. Fluentd v0.14 Plugin API Details Fluentd meetup 2016 Summer Jun 1, 2016 Satoshi "Moris" Tagomori (@tagomoris)

2. Satoshi "Moris" Tagomori (@tagomoris) Fluentd, MessagePack-Ruby, Norikra, ... Treasure Data, Inc.

3. Topics • Why Fluentd v0.14 has a new API set for plugins • Compatibility of v0.12 plugins/conﬁgurations • Plugin APIs: Input, Filter, Output & Buffer • Storage Plugin, Plugin Helpers • New Test Drivers for plugins • Plans for v0.14.x & v1

4. Why Fluentd v0.14 has a New API set for plugins?

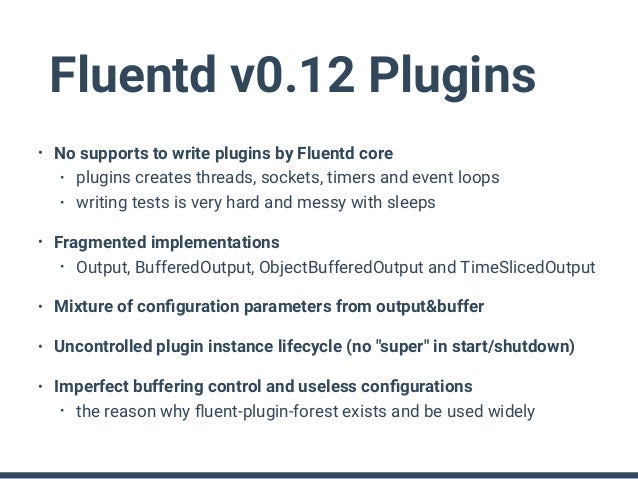

5. Fluentd v0.12 Plugins • No supports to write plugins by Fluentd core • plugins creates threads, sockets, timers and event loops • writing tests is very hard and messy with sleeps • Fragmented implementations • Output, BufferedOutput, ObjectBufferedOutput and TimeSlicedOutput • Mixture of configuration parameters from output&buffer • Uncontrolled plugin instance lifecycle (no "super" in start/shutdown) • Imperfect buffering control and useless configurations • the reason why fluent-plugin-forest exists and be used widely

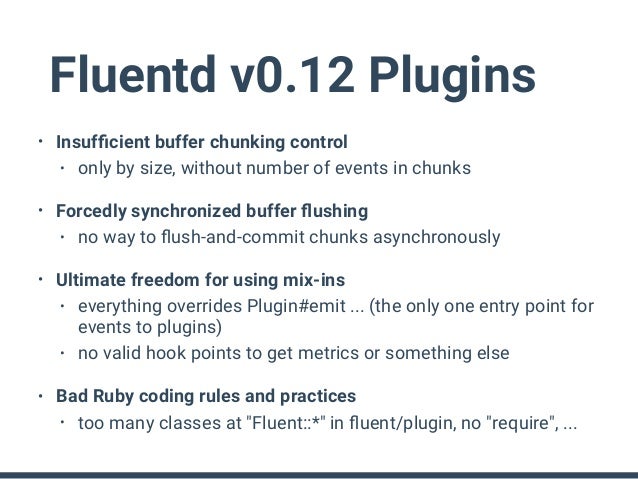

6. Fluentd v0.12 Plugins • Insufficient buffer chunking control • only by size, without number of events in chunks • Forcedly synchronized buffer flushing • no way to flush-and-commit chunks asynchronously • Ultimate freedom for using mix-ins • everything overrides Plugin#emit ... (the only one entry point for events to plugins) • no valid hook points to get metrics or something else • Bad Ruby coding rules and practices • too many classes at "Fluent::*" in fluent/plugin, no "require", ...

7. And many others!

8. Compatibility of v0.12 plugins/conﬁgurations

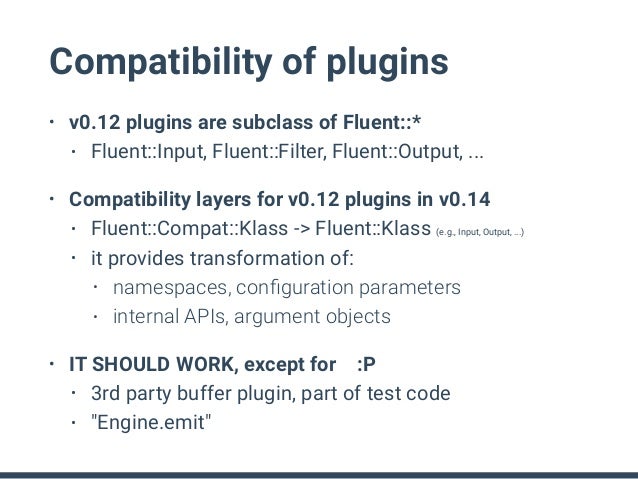

9. Compatibility of plugins • v0.12 plugins are subclass of Fluent::* • Fluent::Input, Fluent::Filter, Fluent::Output, ... • Compatibility layers for v0.12 plugins in v0.14 • Fluent::Compat::Klass -> Fluent::Klass (e.g., Input, Output, ...) • it provides transformation of: • namespaces, conﬁguration parameters • internal APIs, argument objects • IT SHOULD WORK, except for :P • 3rd party buffer plugin, part of test code • "Engine.emit"

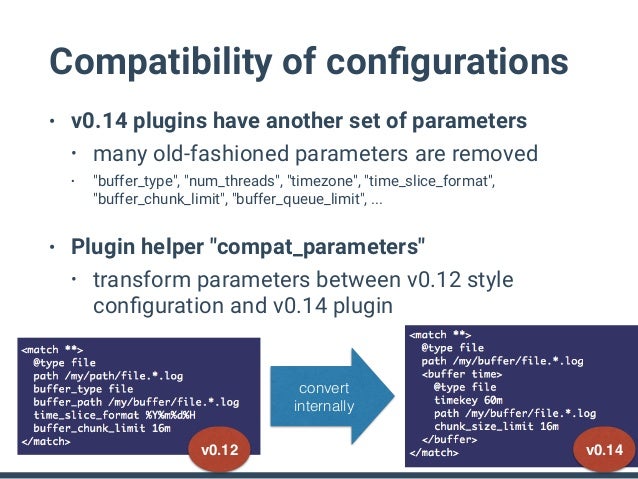

10. Compatibility of conﬁgurations • v0.14 plugins have another set of parameters • many old-fashioned parameters are removed • "buffer_type", "num_threads", "timezone", "time_slice_format", "buffer_chunk_limit", "buffer_queue_limit", ... • Plugin helper "compat_parameters" • transform parameters between v0.12 style conﬁguration and v0.14 plugin v0.12 v0.14 convert internally

11. FAQ: Can we create plugins like this? * it uses v0.14 API * it runs on Fluentd v0.12 Impossible :P

12. Overview of v0.14 Plugin classes

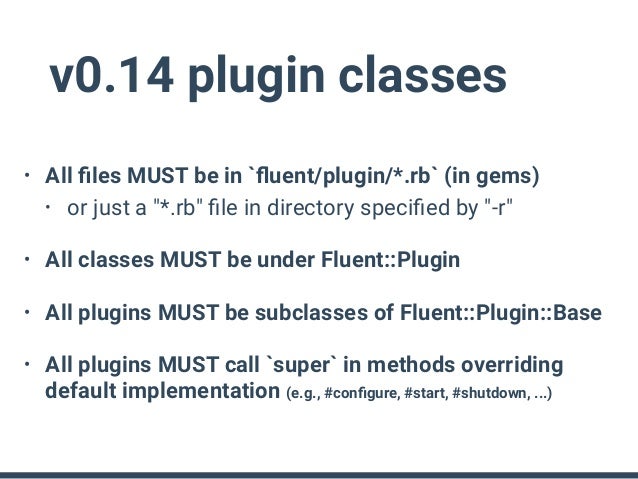

13. v0.14 plugin classes • All files MUST be in `fluent/plugin/*.rb` (in gems) • or just a "*.rb" file in directory specified by "-r" • All classes MUST be under Fluent::Plugin • All plugins MUST be subclasses of Fluent::Plugin::Base • All plugins MUST call `super` in methods overriding default implementation (e.g., #configure, #start, #shutdown, ...)

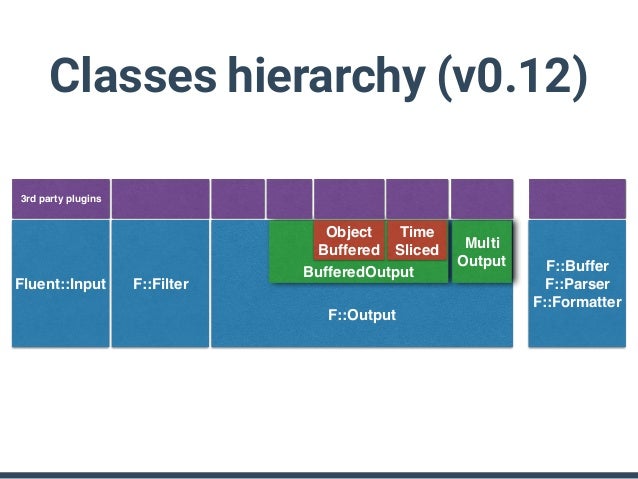

14. Classes hierarchy (v0.12) Fluent::Input F::Filter F::Output BufferedOutput Object Buffered Time Sliced Multi Output F::Buffer F::Parser F::Formatter 3rd party plugins

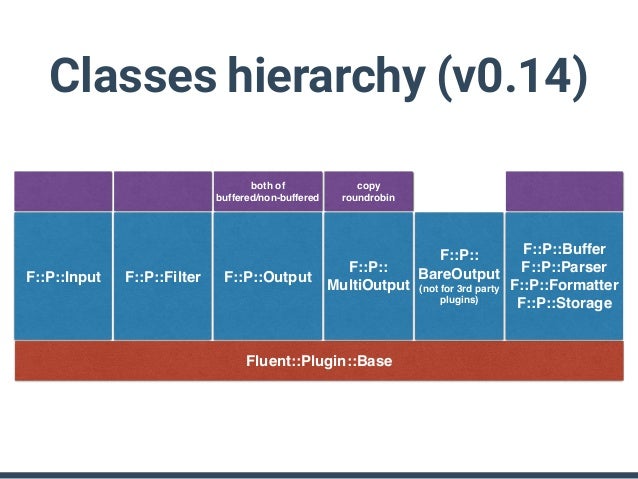

15. Classes hierarchy (v0.14) F::P::Input F::P::Filter F::P::Output Fluent::Plugin::Base F::P::Buffer F::P::Parser F::P::Formatter F::P::Storage both of buffered/non-buffered F::P:: BareOutput (not for 3rd party plugins) F::P:: MultiOutput copy roundrobin

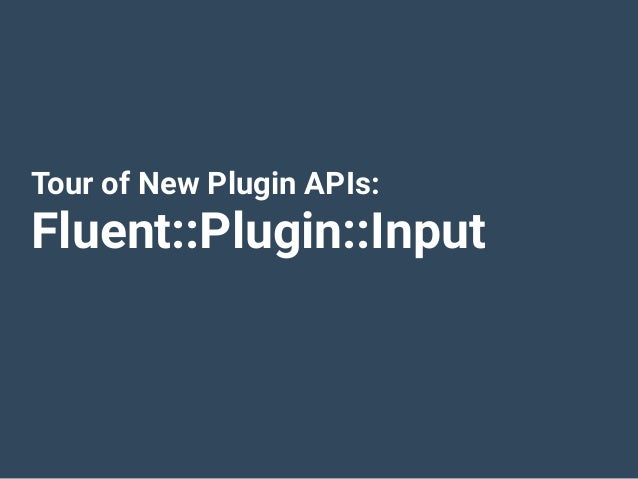

16. Tour of New Plugin APIs: Fluent::Plugin::Input

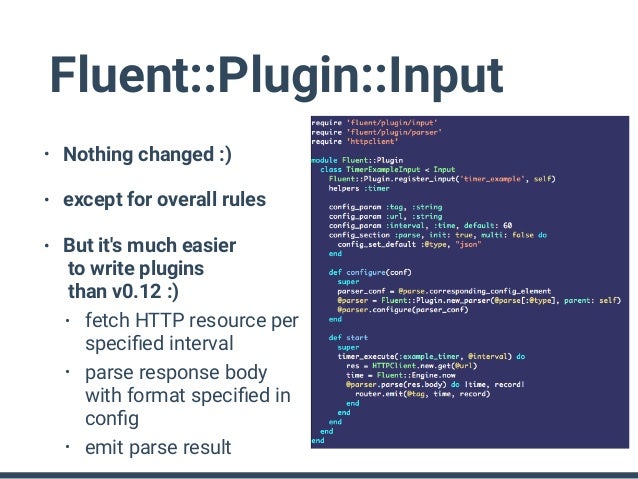

17. Fluent::Plugin::Input • Nothing changed :) • except for overall rules • But it's much easier  to write plugins  than v0.12 :) • fetch HTTP resource per specified interval • parse response body with format specified in config • emit parse result

18. Fluent::Plugin::Input

19. Tour of New Plugin APIs: Fluent::Plugin::Filter

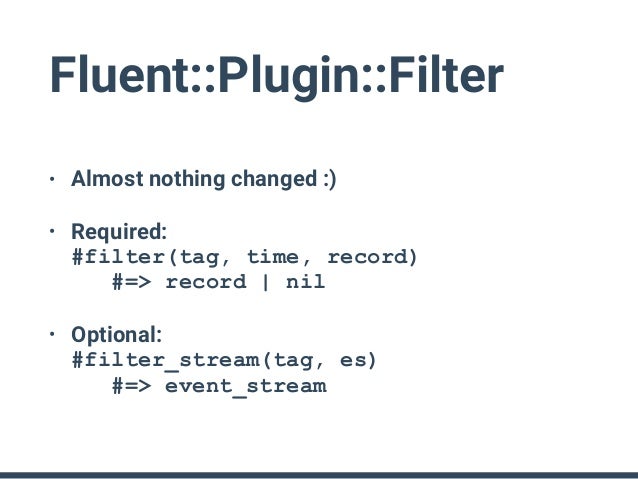

20. Fluent::Plugin::Filter • Almost nothing changed :) • Required:  #filter(tag, time, record)  #=> record | nil • Optional:  #filter_stream(tag, es)  #=> event_stream

21. Tour of New Plugin APIs: Fluent::Plugin::Output

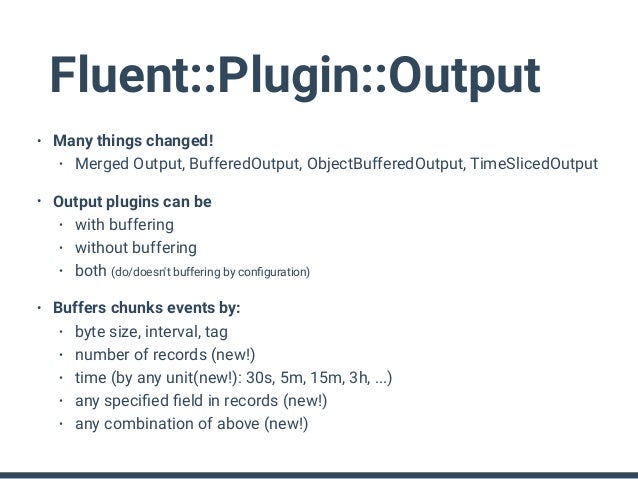

22. Fluent::Plugin::Output • Many things changed! • Merged Output, BufferedOutput, ObjectBufferedOutput, TimeSlicedOutput • Output plugins can be • with buffering • without buffering • both (do/doesn't buffering by configuration) • Buffers chunks events by: • byte size, interval, tag • number of records (new!) • time (by any unit(new!): 30s, 5m, 15m, 3h, ...) • any specified field in records (new!) • any combination of above (new!)

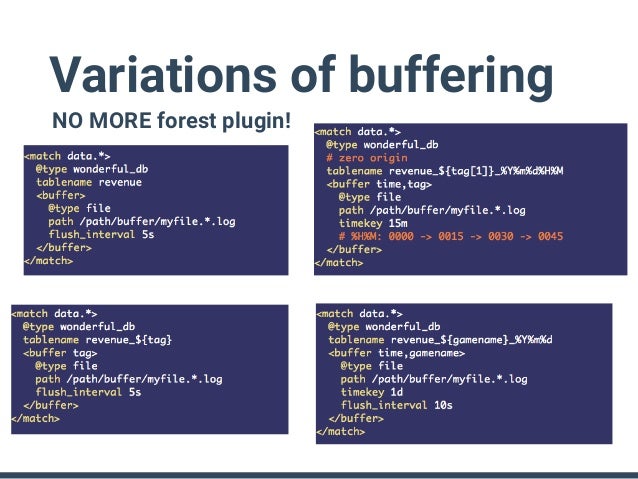

23. Variations of buffering NO MORE forest plugin!

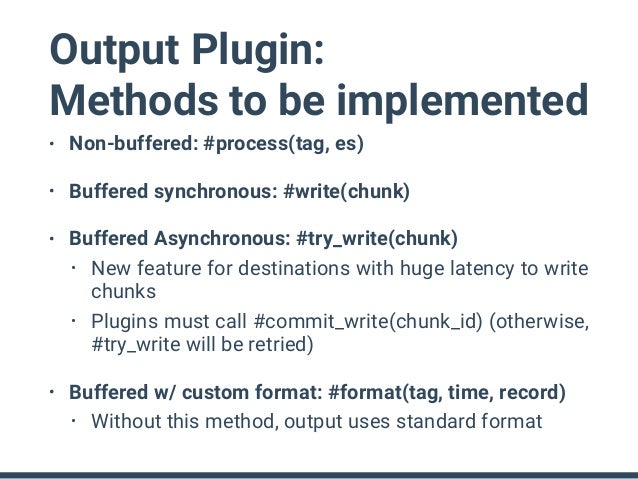

24. Output Plugin: Methods to be implemented • Non-buffered: #process(tag, es) • Buffered synchronous: #write(chunk) • Buffered Asynchronous: #try_write(chunk) • New feature for destinations with huge latency to write chunks • Plugins must call #commit_write(chunk_id) (otherwise, #try_write will be retried) • Buffered w/ custom format: #format(tag, time, record) • Without this method, output uses standard format

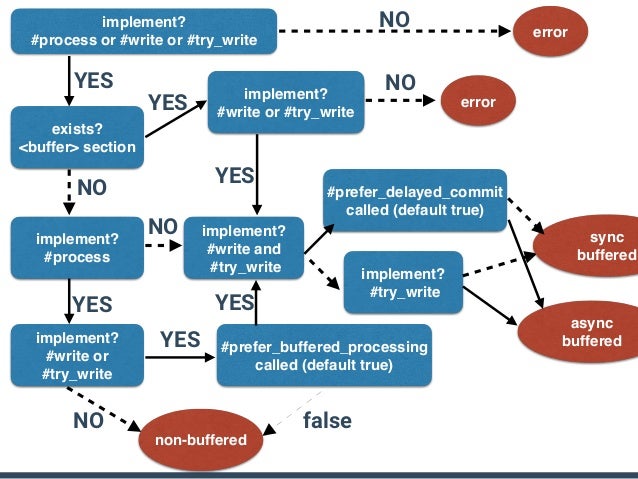

25. implement? #process implement? #process or #write or #try_write NO error YES #prefer_buffered_processing called (default true) NO non-buffered YES exists? <buffer> section YES implement? #write or #try_write error NO YES implement? #write or #try_write NO NO YES false implement? #write and #try_write YES #prefer_delayed_commit called (default true) implement? #try_write sync buffered async buffered

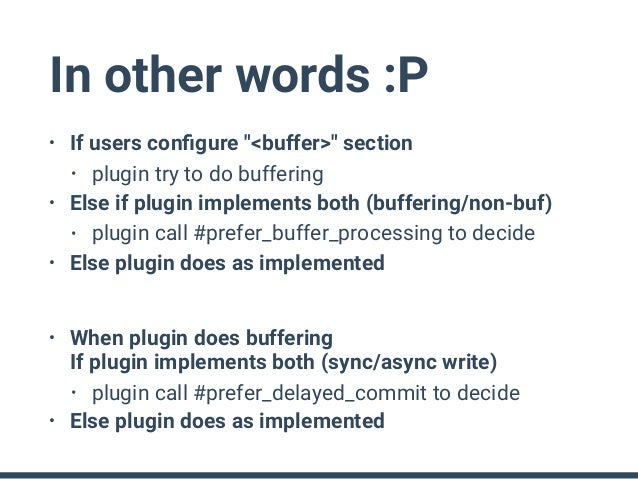

26. In other words :P • If users conﬁgure "<buffer>" section • plugin try to do buffering • Else if plugin implements both (buffering/non-buf) • plugin call #prefer_buffer_processing to decide • Else plugin does as implemented • When plugin does buffering  If plugin implements both (sync/async write) • plugin call #prefer_delayed_commit to decide • Else plugin does as implemented

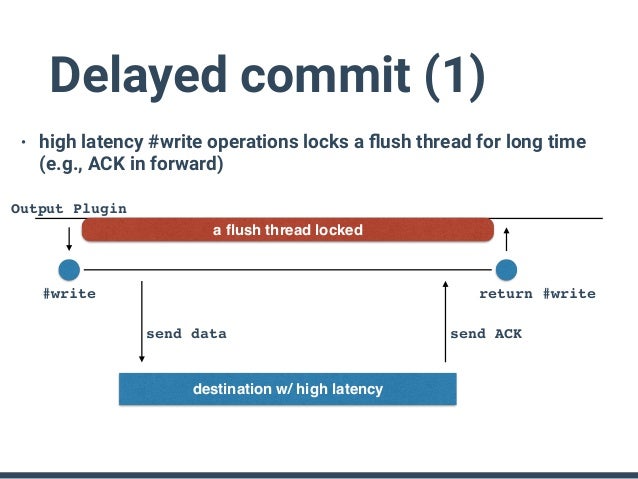

27. Delayed commit (1) • high latency #write operations locks a ﬂush thread for long time  (e.g., ACK in forward) destination w/ high latency #write Output Plugin send data send ACK return #write a ﬂush thread locked

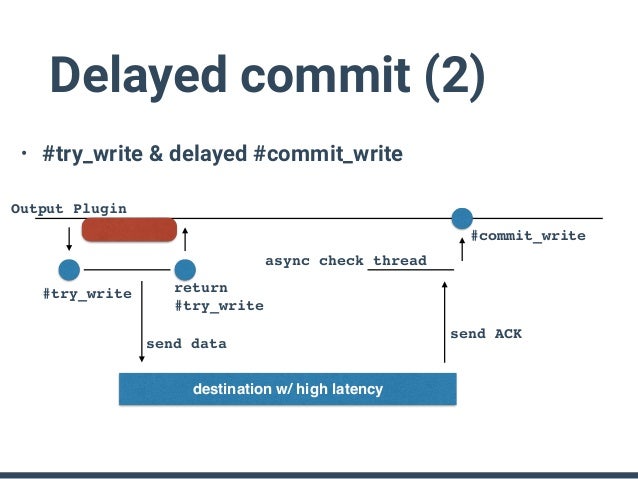

28. Delayed commit (2) • #try_write & delayed #commit_write destination w/ high latency #try_write Output Plugin send data send ACK return #try_write async check thread #commit_write

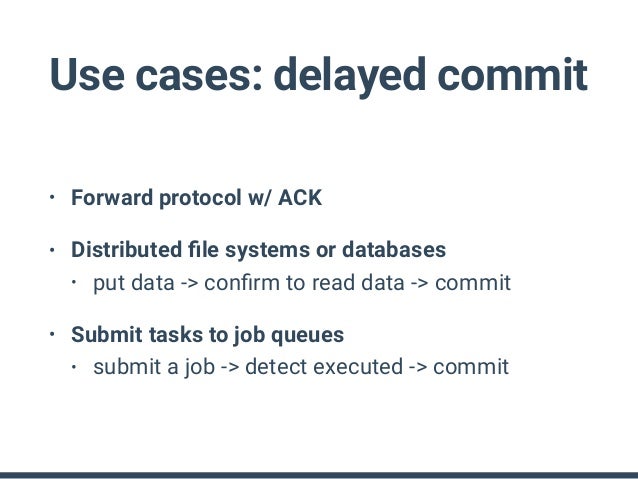

29. Use cases: delayed commit • Forward protocol w/ ACK • Distributed ﬁle systems or databases • put data -> conﬁrm to read data -> commit • Submit tasks to job queues • submit a job -> detect executed -> commit

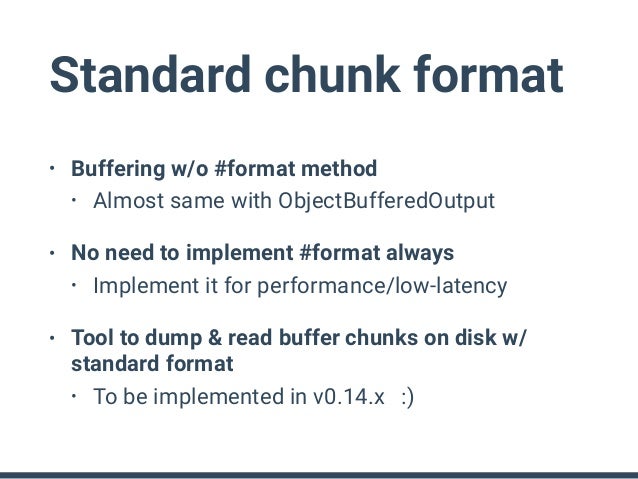

30. Standard chunk format • Buffering w/o #format method • Almost same with ObjectBufferedOutput • No need to implement #format always • Implement it for performance/low-latency • Tool to dump & read buffer chunks on disk w/ standard format • To be implemented in v0.14.x :)

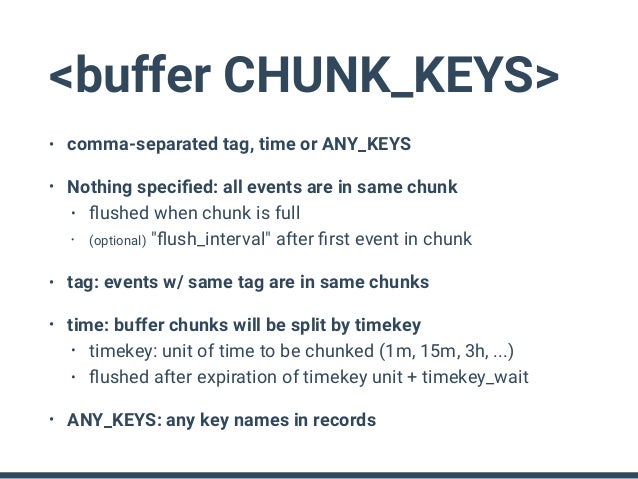

31. <buffer CHUNK_KEYS> • comma-separated tag, time or ANY_KEYS • Nothing specified: all events are in same chunk • flushed when chunk is full • (optional) "flush_interval" after first event in chunk • tag: events w/ same tag are in same chunks • time: buffer chunks will be split by timekey • timekey: unit of time to be chunked (1m, 15m, 3h, ...) • flushed after expiration of timekey unit + timekey_wait • ANY_KEYS: any key names in records

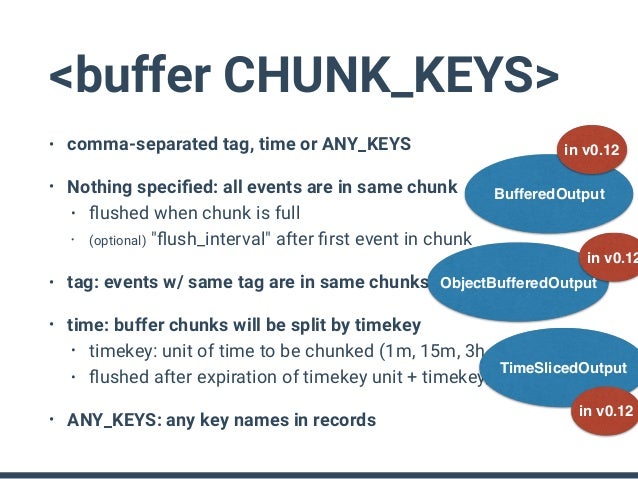

32. • comma-separated tag, time or ANY_KEYS • Nothing specified: all events are in same chunk • flushed when chunk is full • (optional) "flush_interval" after first event in chunk • tag: events w/ same tag are in same chunks • time: buffer chunks will be split by timekey • timekey: unit of time to be chunked (1m, 15m, 3h, ...) • flushed after expiration of timekey unit + timekey_wait • ANY_KEYS: any key names in records <buffer CHUNK_KEYS> BufferedOutput TimeSlicedOutput ObjectBufferedOutput in v0.12 in v0.12 in v0.12

33. configurations:  flushing buffers • flush_mode: lazy, interval, immediate • default: lazy if "time" specified, otherwise interval • flush_interval, flush_thread_count • flush_thread_count: number of threads for flushing • delayed_commit_timeout • output plugin will retry #try_write when expires

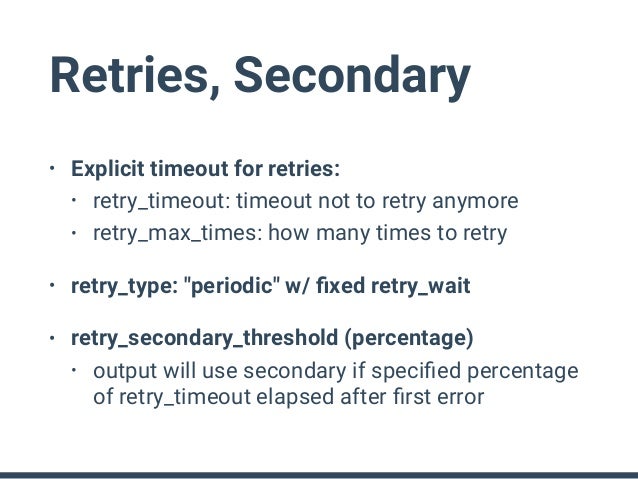

34. Retries, Secondary • Explicit timeout for retries: • retry_timeout: timeout not to retry anymore • retry_max_times: how many times to retry • retry_type: "periodic" w/ fixed retry_wait • retry_secondary_threshold (percentage) • output will use secondary if specified percentage of retry_timeout elapsed after first error

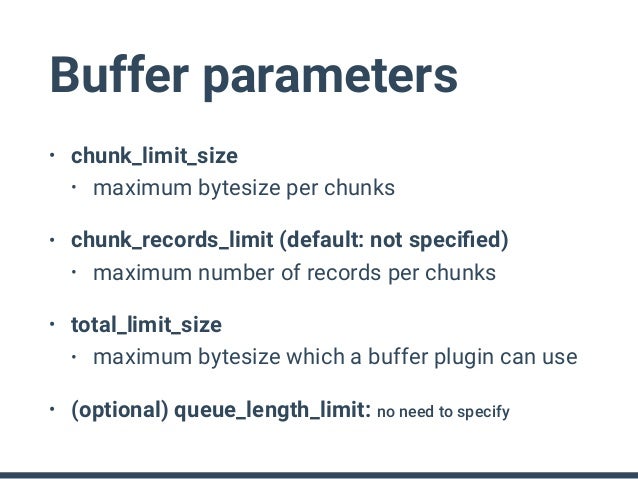

35. Buffer parameters • chunk_limit_size • maximum bytesize per chunks • chunk_records_limit (default: not speciﬁed) • maximum number of records per chunks • total_limit_size • maximum bytesize which a buffer plugin can use • (optional) queue_length_limit: no need to specify

36. Chunk metadata • Stores various information of buffer chunks • key-values of chunking unit • number of records • created_at, modiﬁed_at • `chunk.metadata` • extract_placeholders(@path, chunk.metadata)

37. Tour of New Plugin APIs: Other plugin types

38. Classes hierarchy (v0.14) F::P::Input F::P::Filter F::P::Output Fluent::Plugin::Base F::P::Buffer F::P::Parser F::P::Formatter F::P::Storage both of buffered/non-buffered F::P:: BareOutput (not for 3rd party plugins) F::P:: MultiOutput copy roundrobin

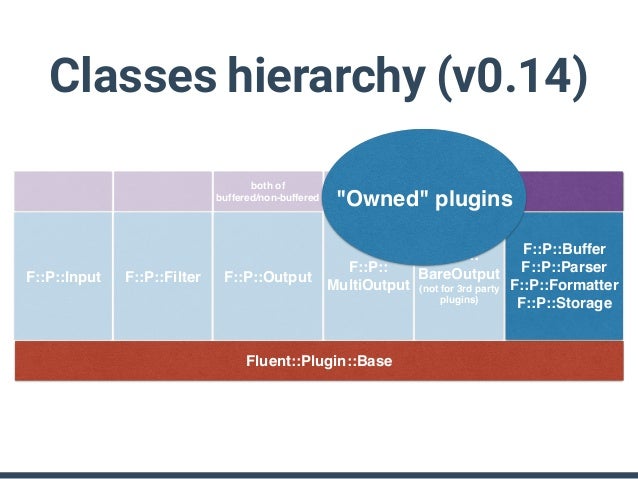

39. Classes hierarchy (v0.14) F::P::Input F::P::Filter F::P::Output Fluent::Plugin::Base F::P::Buffer F::P::Parser F::P::Formatter F::P::Storage both of buffered/non-buffered F::P:: BareOutput (not for 3rd party plugins) F::P:: MultiOutput copy roundrobin"Owned" plugins

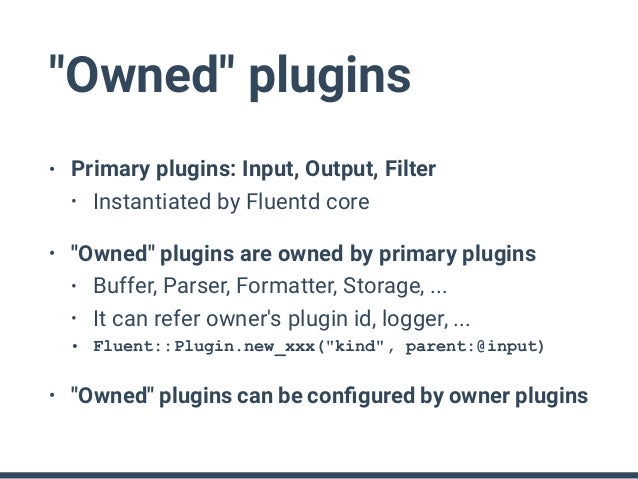

40. "Owned" plugins • Primary plugins: Input, Output, Filter • Instantiated by Fluentd core • "Owned" plugins are owned by primary plugins • Buffer, Parser, Formatter, Storage, ... • It can refer owner's plugin id, logger, ... • Fluent::Plugin.new_xxx("kind", parent:@input) • "Owned" plugins can be conﬁgured by owner plugins

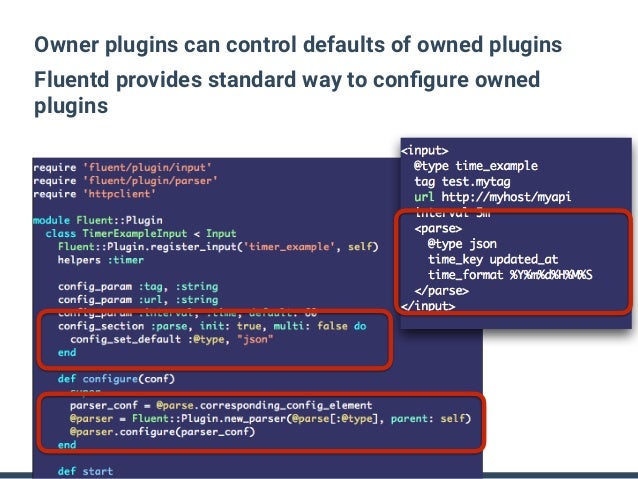

41. Owner plugins can control defaults of owned plugins Fluentd provides standard way to conﬁgure owned plugins

42. Tour of New Plugin APIs: Fluent::Plugin::Storage

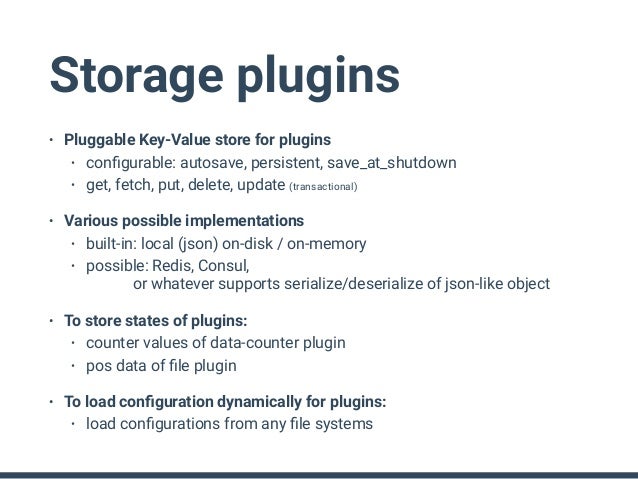

43. Storage plugins • Pluggable Key-Value store for plugins • configurable: autosave, persistent, save_at_shutdown • get, fetch, put, delete, update (transactional) • Various possible implementations • built-in: local (json) on-disk / on-memory • possible: Redis, Consul,  or whatever supports serialize/deserialize of json-like object • To store states of plugins: • counter values of data-counter plugin • pos data of file plugin • To load configuration dynamically for plugins: • load configurations from any file systems

44. Tour of New Plugin APIs: Plugin Helpers

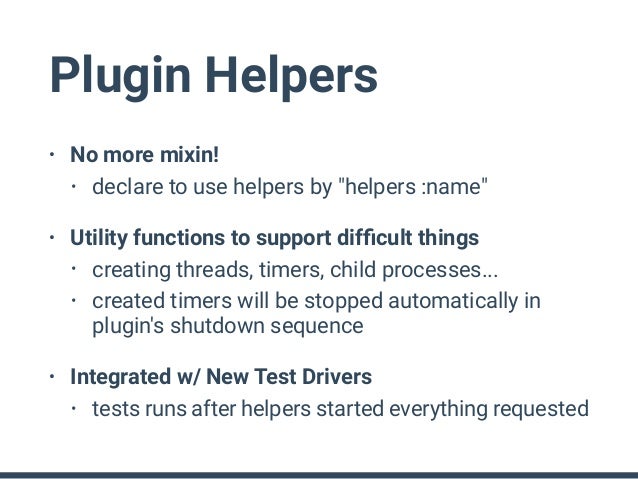

45. Plugin Helpers • No more mixin! • declare to use helpers by "helpers :name" • Utility functions to support difﬁcult things • creating threads, timers, child processes... • created timers will be stopped automatically in plugin's shutdown sequence • Integrated w/ New Test Drivers • tests runs after helpers started everything requested

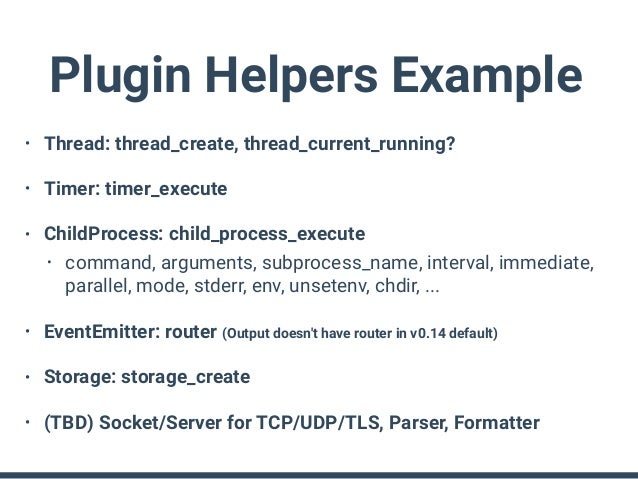

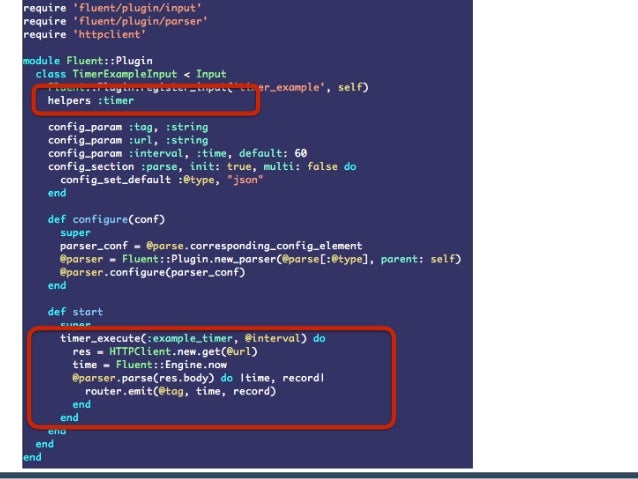

46. Plugin Helpers Example • Thread: thread_create, thread_current_running? • Timer: timer_execute • ChildProcess: child_process_execute • command, arguments, subprocess_name, interval, immediate, parallel, mode, stderr, env, unsetenv, chdir, ... • EventEmitter: router (Output doesn't have router in v0.14 default) • Storage: storage_create • (TBD) Socket/Server for TCP/UDP/TLS, Parser, Formatter

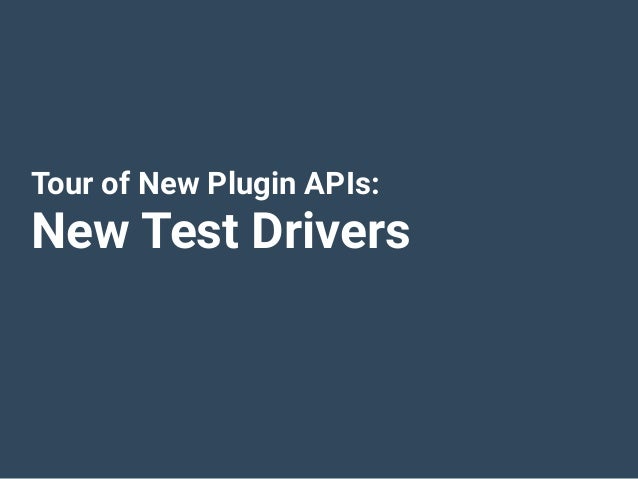

47. Tour of New Plugin APIs: New Test Drivers

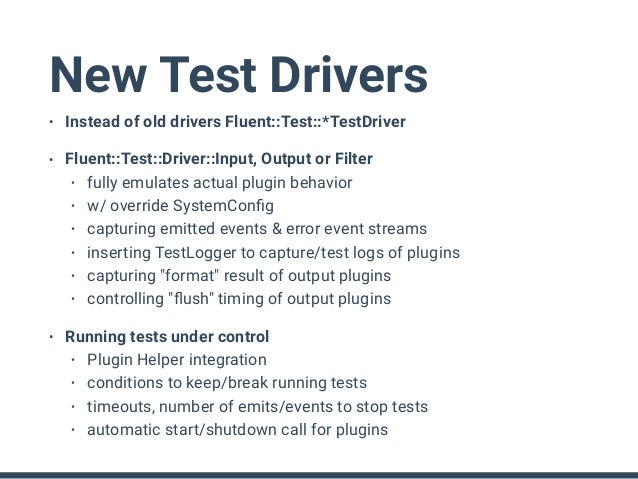

48. New Test Drivers • Instead of old drivers Fluent::Test::*TestDriver • Fluent::Test::Driver::Input, Output or Filter • fully emulates actual plugin behavior • w/ override SystemConﬁg • capturing emitted events & error event streams • inserting TestLogger to capture/test logs of plugins • capturing "format" result of output plugins • controlling "ﬂush" timing of output plugins • Running tests under control • Plugin Helper integration • conditions to keep/break running tests • timeouts, number of emits/events to stop tests • automatic start/shutdown call for plugins

49. Plans for v0.14.x

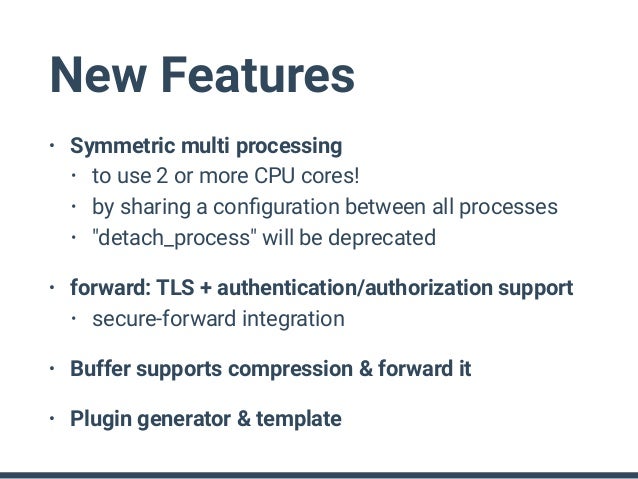

50. New Features • Symmetric multi processing • to use 2 or more CPU cores! • by sharing a conﬁguration between all processes • "detach_process" will be deprecated • forward: TLS + authentication/authorization support • secure-forward integration • Buffer supports compression & forward it • Plugin generator & template

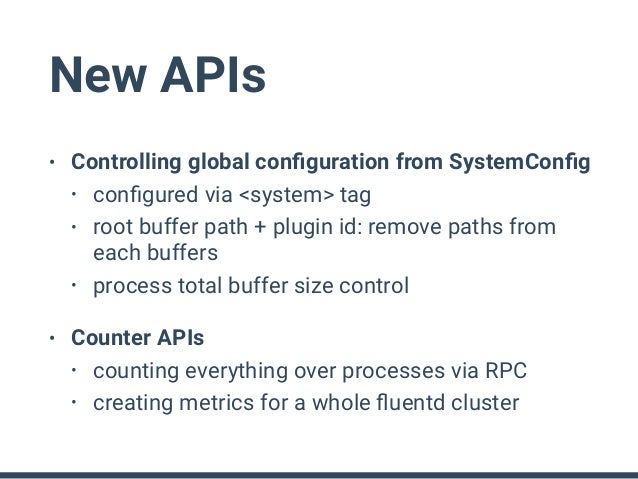

51. New APIs • Controlling global configuration from SystemConfig • configured via <system> tag • root buffer path + plugin id: remove paths from each buffers • process total buffer size control • Counter APIs • counting everything over processes via RPC • creating metrics for a whole fluentd cluster

52. For v1

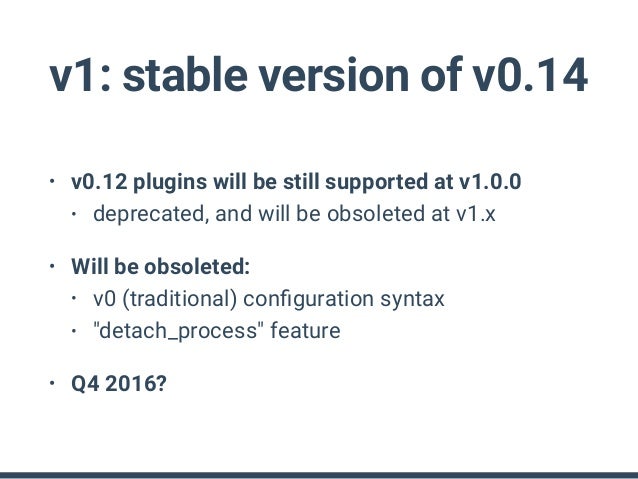

53. v1: stable version of v0.14 • v0.12 plugins will be still supported at v1.0.0 • deprecated, and will be obsoleted at v1.x • Will be obsoleted: • v0 (traditional) conﬁguration syntax • "detach_process" feature • Q4 2016?

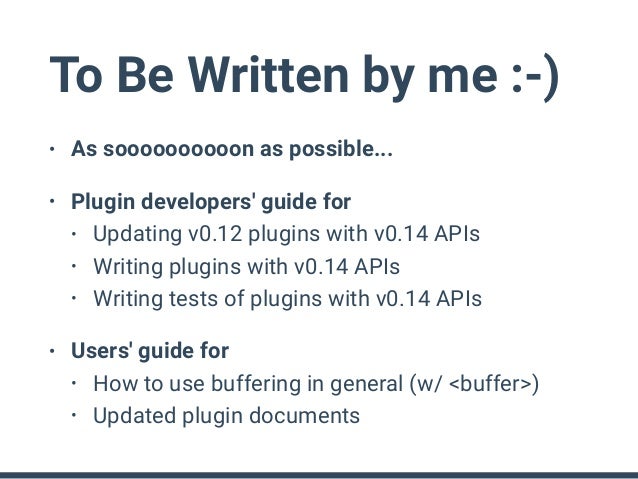

54. To Be Written by me :-) • As soooooooooon as possible... • Plugin developers' guide for • Updating v0.12 plugins with v0.14 APIs • Writing plugins with v0.14 APIs • Writing tests of plugins with v0.14 APIs • Users' guide for • How to use buffering in general (w/ <buffer>) • Updated plugin documents

55. Enjoy logging!
