18m ST to LC Aqua OM4 Duplex OFNR (Riser-Rated) TAA MMF Fiber Patch Cable
SKU: ADD-ST-LC-18M5OM4-TAA
North America: 0 in stock
Available from the following dealers:

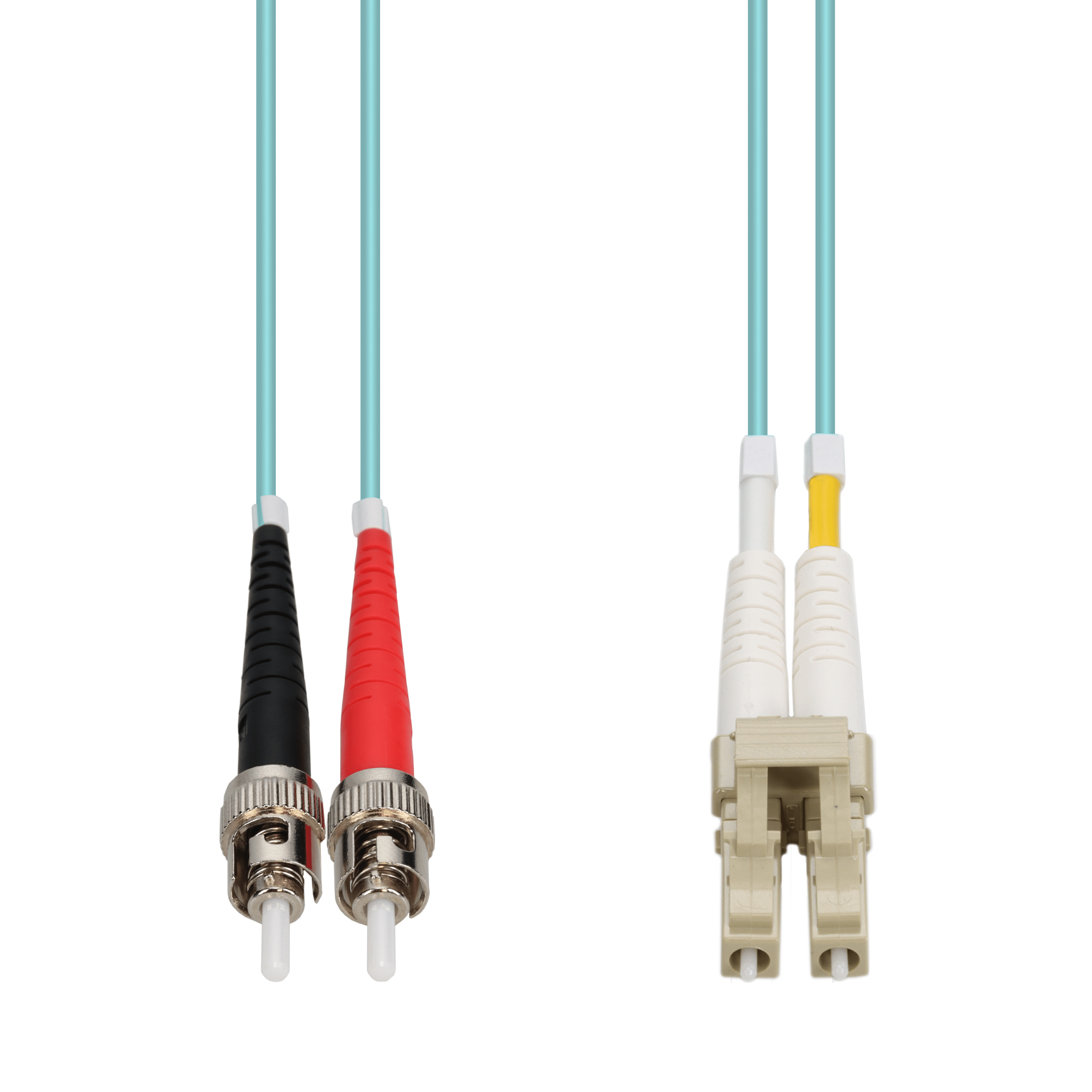

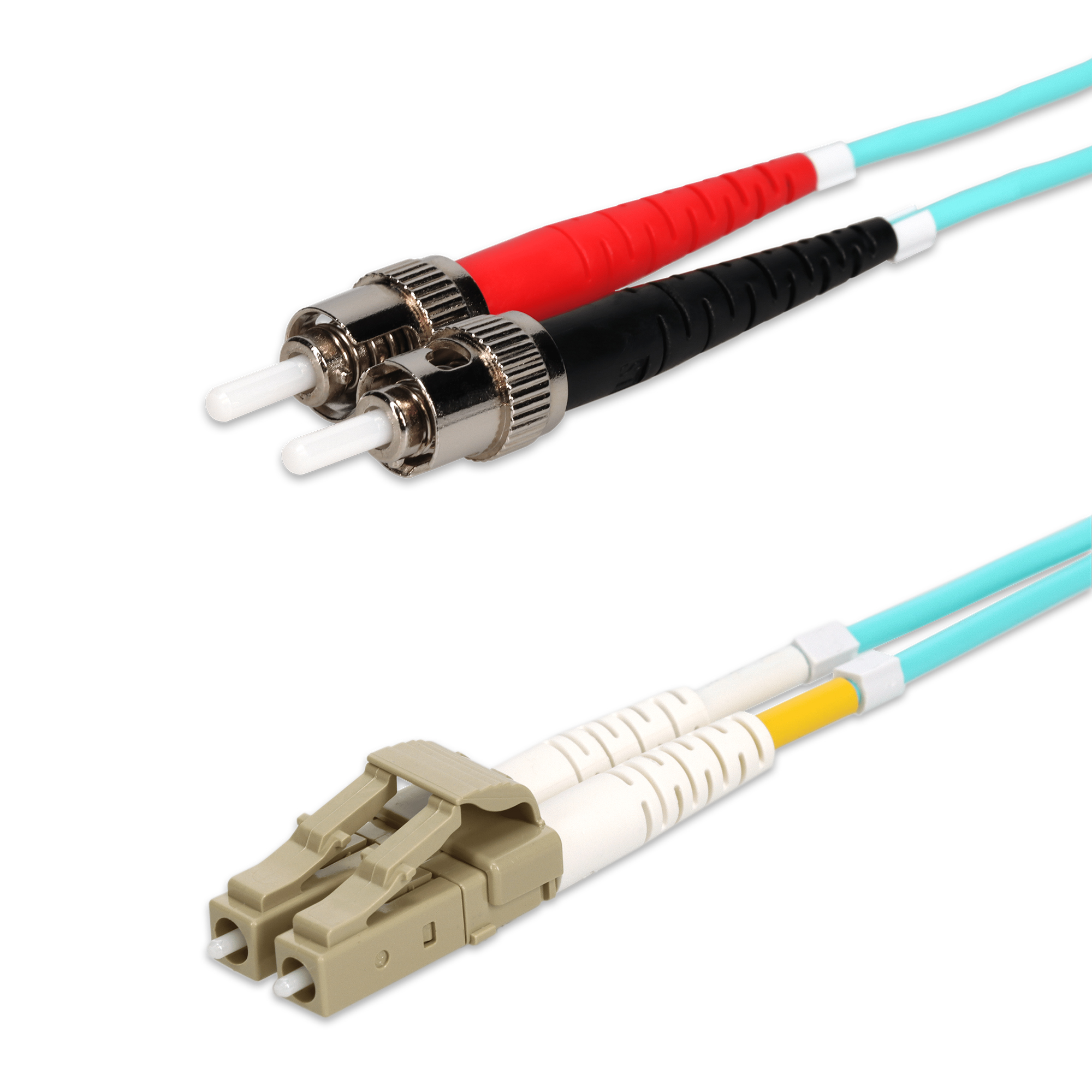

This is an 18.0m (59.1ft) LC (male) to ST (male) aqua OM4 duplex riser-rated patch straight cable that is used for high speed data transfer. An OM4 cable has a core size of 50m microns that supports 10 Gigabit Ethernet at lengths measuring up to 550 meters , and 100 Gigabit Ethernet measuring up to 150 meters and is reverse compatible with OM3. This riser (OFNR) cable is best suited for use in interior fiber-optic applications. Duplex cabling provides two-strands of fiber and is most commonly used in applications that utilize one lane to transmit and one lane to receive. Our patch cables are 100% compliant for all of your networking needs and are guaranteed by federal law to not affect or void OEM warranties.
Technical Specification
| Compatible OEM | Industry Standard |
| Environment | Indoor |
| Standard | OM4 |
| Fiber Type | MMF |
| Connector | LC (Male) to ST (Male) |
| Color | Aqua |
| Shielded | No |
| Strand Count | 2 |
| Cable Mode | Duplex |
| Jacket Type | Riser |
| Termination Type | Crossover |
| Core/Cladding | 50/125µm |
| Fiber Termination | PC - Physical Contact |
| Length (m) | 18 |
| Length (ft) | 59.06 |
| Polarity | Type A-B |
| Cable Type | OM4 |
| Cable Length | 18m |
| Armored | No |
| Bend Insensitivity | G.657.A1 |
| Connector 1 Ferrule Polish | UPC (Ultra Physical Contact) |
| Connector 2 Ferrule Polish | UPC (Ultra Physical Contact) |
| Insertion Loss Grade | Grade C |
| Fire Rating | Riser (OFNR) |
| Outer Diameter | 2.0mm |
| Connector 1 Boot Style | Standard Boot |
| Connector 2 Boot Style | Standard Boot |
| Connector 1 Color | Black |
| Connector 2 Color | Beige |
Physical Specification
| Product Shipping Dimension(HxWxD) | 5 in. x 2.75 in. x 4.75 in. |
| Product Shipping Weight(LB) | 0.6 |
| Kit | No Kit - 1 Piece |
Miscellaneous
| Country Of Origin | USA |
| ECCN | EAR99 |
| HTS-Harmonized Code (UK) | 85447000 |
| HTS-Harmonized Code (US) | 8544.70.0000 |
| TAA Compliant | Yes |
| UNSPSC Code | 26121609 |
| UPC Code | 195285656155 |
| What's In The Box | 1x patch cable |
| AddOn Part# | ADD-ST-LC-18M5OM4-TAA |
| Insight Electronics® | ADD-ST-LC-18M5OM4-TAA |
| TD Synnex US | 6752746 |
Limited Lifetime
