Acoustic Monitoring of Railway Defects Using Deep Learning with Audio to Spectrogram Conversion

  • Original Paper
  • Published:
Journal of Vibration Engineering & Technologies Aims and scope Submit manuscript

Abstract

Purpose

A railway vehicle traveling on a stable rail line has a fixed amplitude and frequency, and hence it has constant sound values. However, line defects on the rail line alter this constant sound. Related to this, each defect type varies the reference sound value in a different way. In this study, audio signals originating from the three most common structural defects in rail systems were investigated with a deep neural network using audio to spectrogram conversion.

Method

Short-term Fourier transform (STFT) was applied to sound signals collected from the rails and a convolutional neural network (CNN) model was developed to be able to acoustically detect the three most common types of defects (rail surface deformations, joint deformations, rail corrugations) in the railway superstructure at an early stage. The model learned five different classes, which are stable joint, stable rail surface, rail surface deformation, joint deformation, and rail corrugation with a train set (5000 observations).

Results

The model obtained 89.37% accuracy with the validation data set (1000 observations). Finally, we evaluated the model with the test data (1000 observations) set that showed 87.3% accuracy.

Conclusion

In rail transportation systems, high-frequency sound and vibration energy are formed by wheel–rail interaction. This study, which is easy to implement and shows the traceability of the changes occurring directly at the source of the noise, will provide a smart structural health monitoring way for rail systems in the future. For the next study, the data will be collected on the rail vehicle. A complete real-time system is a part of our ongoing research.

This is a preview of subscription content, log in via an institution to check access.

Access this article

Log in via an institution

Subscribe and save

Springer+ Basic
¥17,985 /Month
  • Get 10 units per month
  • Download Article/Chapter or eBook
  • 1 Unit = 1 Article or 1 Chapter
  • Cancel anytime
Subscribe now

Buy Now

Price includes VAT (Japan)

Instant access to the full article PDF.

Institutional subscriptions

Fig. 1
Fig. 2
Fig. 3

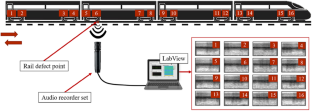

Fig. 4
Fig. 5

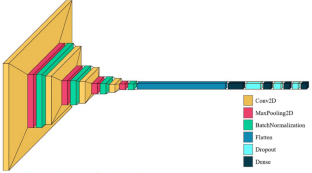

Fig. 6

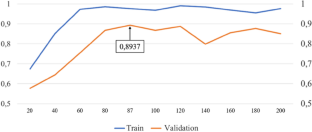

Fig. 7

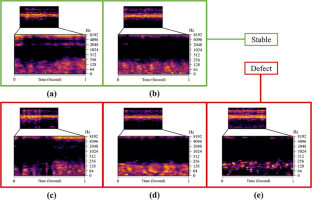

Fig. 8

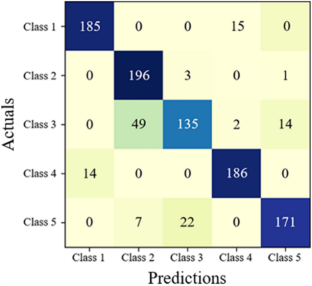

Fig. 9

Similar content being viewed by others

Explore related subjects

Discover the latest articles, news and stories from top researchers in related subjects.

Data availability

The datasets generated during and/or analysed during the current study are not publicly available but are available from the corresponding author on reasonable request.
