NUC BOX-J6412 Fanned BOX

Intel^® ElkHart Lake SoC Processors
2 x 260-pin SO-DIMM up to 32GB DDR4 3200 MHz
4 x USB 3.2 Gen2, 1 x USB 2.0, 1 x M.2 Key M, 1 x M.2 Key E, 1 x SATA3
2 x Realtek 1 Gigabit LAN
Supports Dual display, 1 x HDMI 2.0b, 1 x DP 1.2
TPM 2.0 onboard IC
19V/65W Power Adapter
110.0 x 117.5 x 47.85mm, Fanned Barebone

Overview

Specification

Form Factor

Dimensions	110.0 x 117.5 x 47.85mm

Processor System

CPU	Intel^® ElkHart Lake SoC Processors NUC BOX-J6412 (J6412, QC, Max Speed up to 2.6GHz, 10W
Chipset	SoC
BIOS	AMI SPI 256 Mbit

Memory

Technology	Dual Channel DDR4 3200 MHz
Capacity	32GB (16 GB per DIMM)
Socket	2 x 260-pin SO-DIMM

Graphics

Controller	Intel^® Gen 10 Graphics
HDMI	HDMI 2.0b Max resolution up to 4096x2160@60Hz
DisplayPort	DisplayPort 1.2, DP++ Max resolution up to 4096x2160@60Hz
MultiDisplay	Dual-Display

Expansion Slot

M.2/WLAN	1 x 802.11ac (433 Mbps) + BT 4.2 (M.2 Key E, 2230 PCIe x1, USB 2.0 for Wireless)

Audio

Interface	Realtek ALC233, High Definition Audio.

Ethernet

Controller/ Speed	Realtek RTL8111G-CG/RTL8111H-CG with 10/100/1000 Mbps
Connector	2 x RJ-45

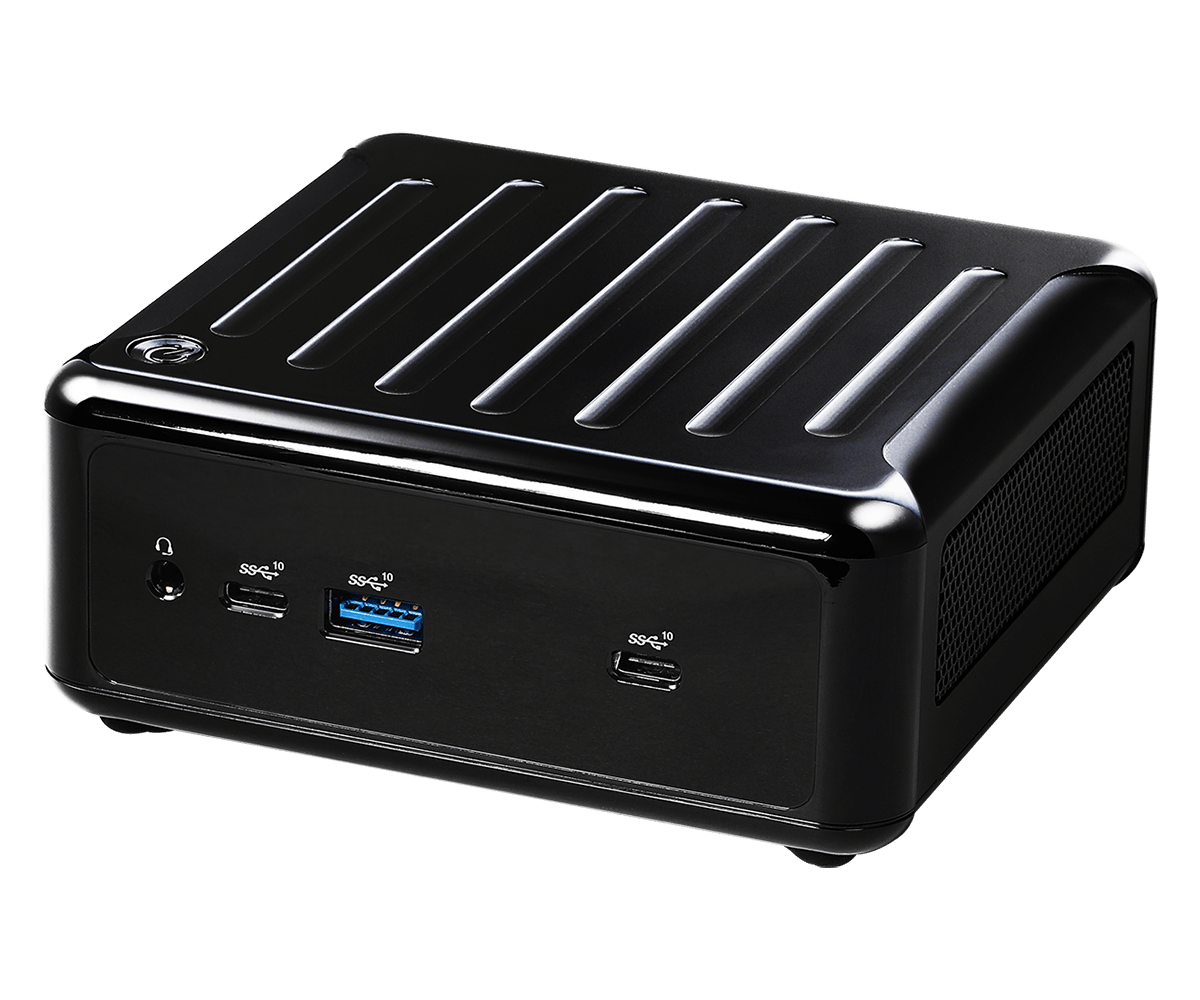

Front I/O

USB	1 x USB 3.2 Gen2 (Type-A) 2 x USB 3.2 Gen2 (Type-C)
Audio	1 (headphone & microphone jack)

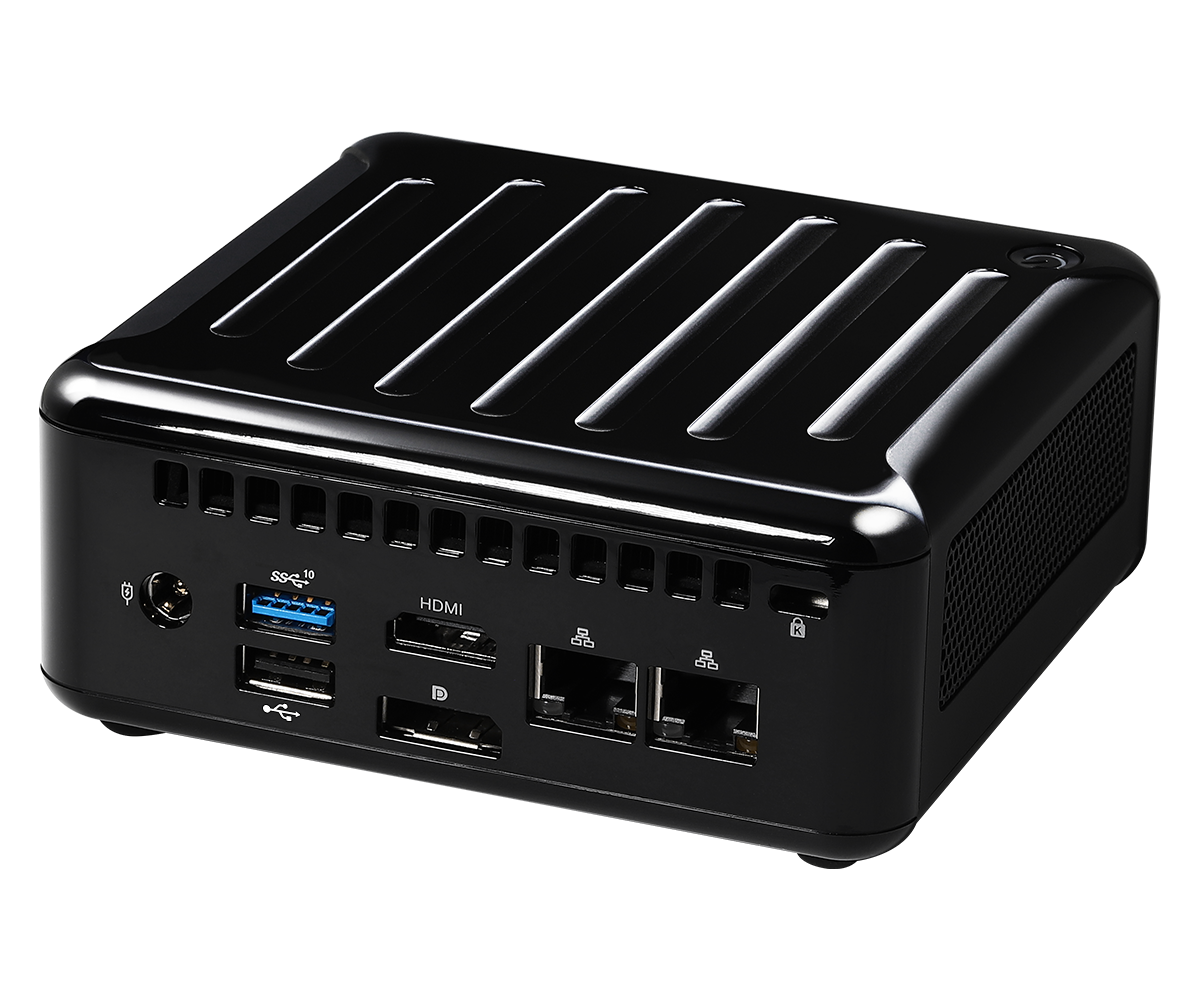

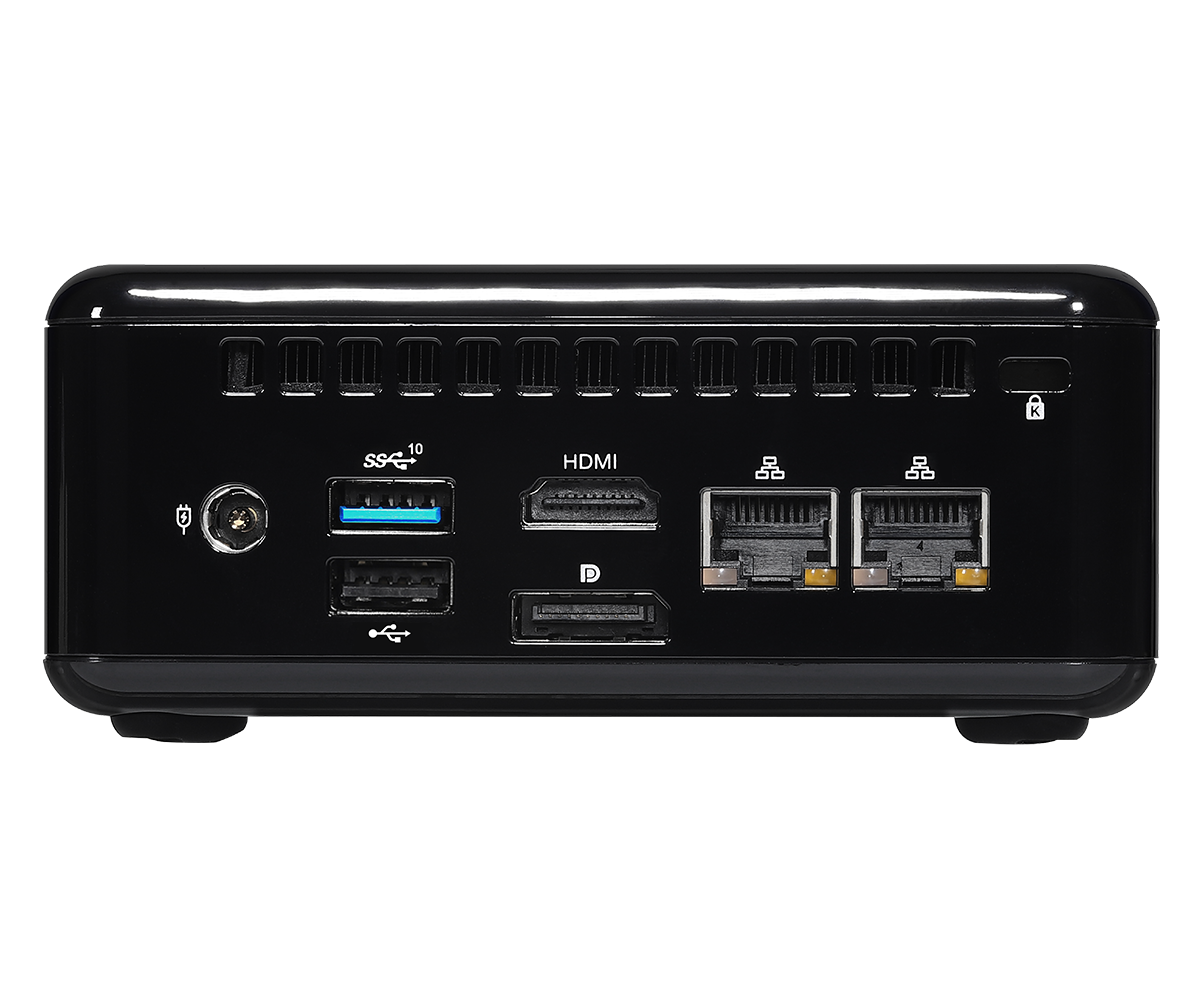

Rear I/O

HDMI	1 x HDMI 2.0b
DisplayPort	1 x DP 1.2
Ethernet	2 x 1 Gigabit LAN
USB	1 x USB 2.0 1 x USB 3.2 Gen2 (Type-A)
DC Jack	1

Storage

M.2	1 x M.2(KEY M, 2242/2260/2280) with PCIe x1 and SATA3 for SSD *M.2 Key M 2280(Supported by bracket)
SATA	1 x SATA3.0 (6.0 Gb/s)

Watchdog Timer

Output	From Super I/O to drag RESETCON#
Interval	256 Segments, 0, 1, 2, ...255sec

Power Requirements

Input PWR	1 x 19V/65W Power Adapter
Power On	AT/ATX Supported - AT : Directly PWR on as power input ready - ATX : Press button to PWR on after power input ready

Environment

Operating Temp	0ºC ~ 40ºC
Storage Temp	-40° C – 85° C
Operating Humidity	5% ~ 90%
Storage Humidity	5% ~ 90%

Mechanical

Construction	Plastic
Mounting	VESA mounting
Dimensions (W x H x D)	110.0 x 117.5 x 47.85mm
Weight	Net Weight:1.0Kg

Others

OS Support	Windows 10
Certifications	CE, FCC Class A
Packing List	1 x 19V/65W Power Adapter 1 x Screw Package 1 x VESA mounting bracket
Longivity Support	No
TPM	TPM 2.0 onboard IC

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

Support

Drivers
BIOS

OS:

Description	OS	Date	Download
Description	VGA Driver ver:27.20.100.9079.2	OS	Win 10 x 64	Date	2021-08-23	Download	Global China
Description	Intel Management Engine driver ver:15.40.10.2252_PV_SW_DCH	OS	Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7	Date	2021-08-23	Download	Global China
Description	INF driver ver:10.1.18634.8254_Public	OS	Win 10 x 64	Date	2021-08-23	Download	Global China
Description	Realtek Lan driver ver:10047_02232021	OS	Win 10 x 64	Date	2021-08-23	Download	Global China
Description	Realtek Teaming driver ver:2.0.4.0	OS	Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7	Date	2021-08-23	Download	Global China
Description	Realtek high definition audio driver ver:9116_FF00	OS	Win 10 x 64 , Win 10 , Win 8.1 x 64 , Win 8.1 , Win 8 x 64 , Win 8 , Win 7 x 64 , Win 7	Date	2021-08-23	Download	Global China

Version	Update BIOS Under / How to Update	Description	Date	Download
Version	1.50	Update BIOS Under / How to Update	BIOS	Description	1. Enhance system compatibility 2. Optimize system fan control	Date	2021-10-08	Download	Global China
Version	1.50	Update BIOS Under / How to Update	DOS	Description	1. Enhance system compatibility 2. Optimize system fan control	Date	2021-10-08	Download	Global China
Version	1.50	Update BIOS Under / How to Update	Windows	Description	1. Enhance system compatibility 2. Optimize system fan control	Date	2021-10-08	Download	Global China
Version	1.10	Update BIOS Under / How to Update	BIOS	Description	First release	Date	2021-07-30	Download	Global China
Version	1.10	Update BIOS Under / How to Update	DOS	Description	First release	Date	2021-07-30	Download	Global China
Version	1.10	Update BIOS Under / How to Update	Windows	Description	First release	Date	2021-07-30	Download	Global China
