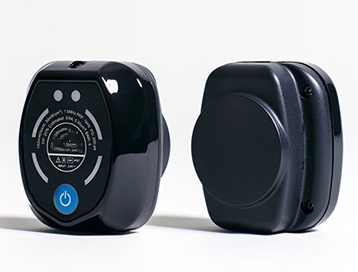

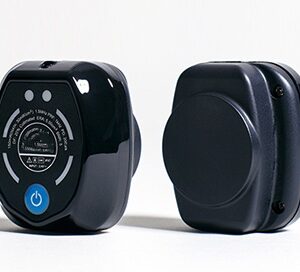

Ultrasound Bone Healing System SIFBONE-1.0

Ultrasound Bone Healing System SIFBONE-1.0



The Ultrasound Bone Healing System SIFBONE-1.0 is a revolutionary bone regeneration stimulator, suitable for different types of bone fractures.

The Bone Regeneration Stimulator SIFBONE-1.0 uses a Low-Intensity Pulsed Ultrasound, also knows as LIPUS, offering painless and insensible ultrasound waves, accompanied by an output checker.

This device provides the user with a 20-minute treatment per day, along with a treatment tracking manager that can take into account the Date, Time, and Number of treatments.

Ultrasound Bone Healing is a therapeutic approach using low-intensity, high frequency, pulse ultrasound to accelerate the fractures bone treatment.
This Treatment is based on the “Wolff’s Law” which states that bone will adapt to the loads under which it is placed, and it will remodel itself over time to become stronger to resist that sort of loading.

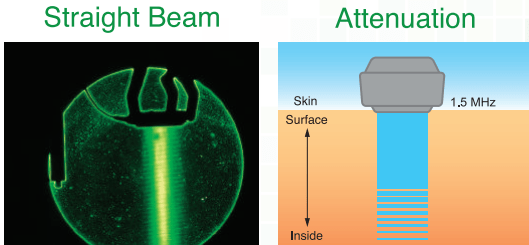

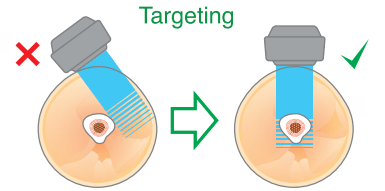

The Transducer needs to be placed on the correct position and angle to gain the effective treatment. Since ultrasound signal is delivered only in a straight direction, incorrect postion or angle of the transducer may result in not reaching the targeted fracture site.



       Features:

• Bone Healing System Using LIPUS (Low Intensity Pulsed Ultrasound) To Accelerate New Bone Forming.
• The World’s 1st Wireless LIPUS Device With Compact Design For Comfortable Treatment.
• Only 20 Minutes Of Treatment Per Day.
• Cradle For Recharging The Device & Checking The Ultrasound Output.
• Safe & Non-invasive LIPUS.
• Easy Application.
• Easy Charging: 30 to 150 Minutes.
• Multiple Uses: Can Be Used For 4 Or 5 Times After Charging.
• Treatment Tracking Manager: Can Save The Date, Time, Number Of Treatments…



       Operation Steps:

    1. Step One:

Wrap the Silicon strap around the fracture site and position the holder over the site.
Wrap the strap securely using the fastening band located near the holder.

    2. Step Two:

Place a moderate amount of Ultrasound Gel on the Transducer surface of the Ultrasound Device.

    3. Step Three:

Put the device on the holde facing the transducer surface down on the skin.
Make sure you place the transducer surface right on the fracture site.
The Built in magnets in the silicon strap holder with stabilize the device and the holder.

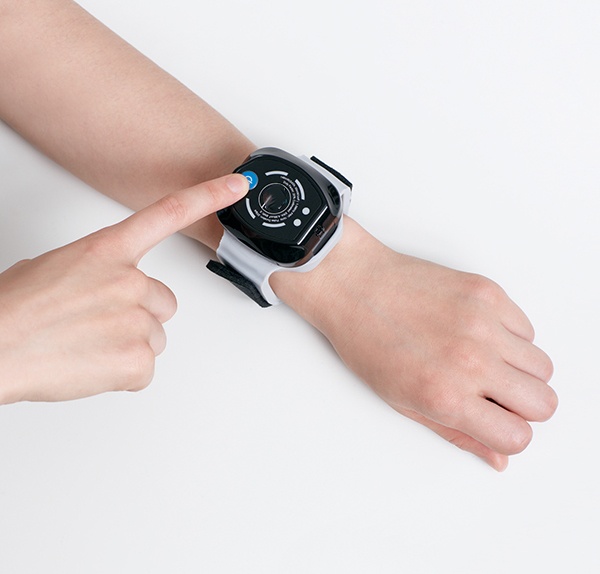

    4. Step Four:

Press the Power Button to start the 20 Minute treatment.
When the treatment is done, it will automatically stop the radiation and announce it by vibration.

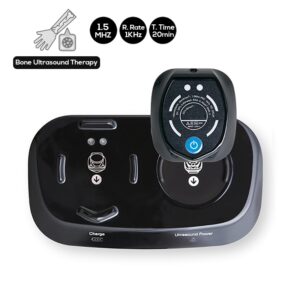

       Charging Steps:

1.  Plug the end of the battery charger into an elecrical outlet. Then LED light on the cradle turns on.
2.  Put the Logo surface of the device on the charger side of the cradle.
3.  Changing status LED lightens up while chargin, and it will automatically turn off when it’s fully charged.

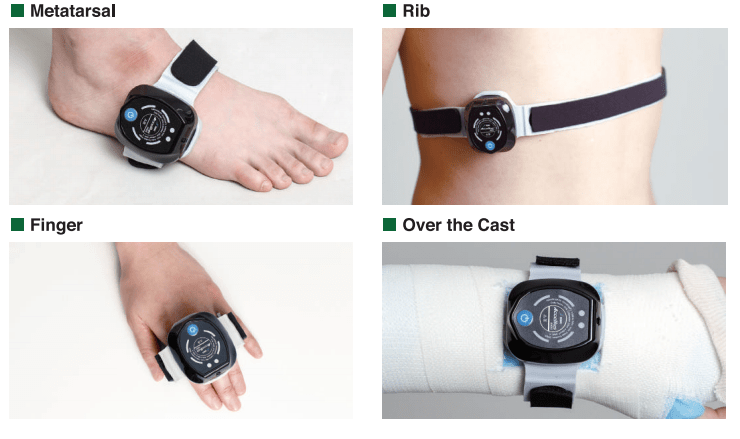

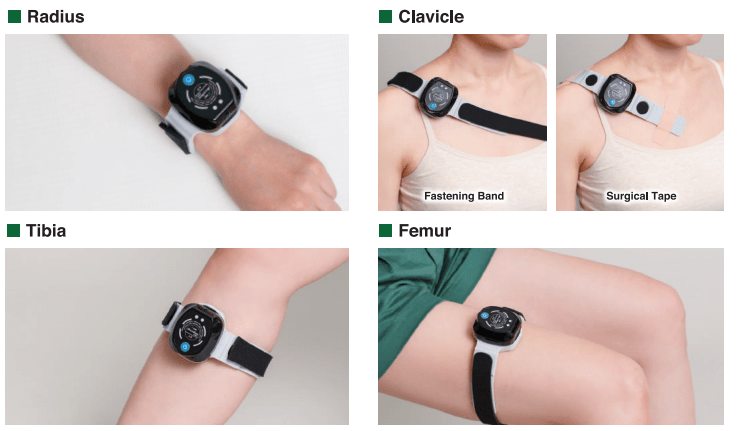

       Areas Of Application:



       Specifications Ultrasound Bone Healing System:

• Ultrasound Intensity: 30m W/Square Centimeter.
• Frequency: 1.5 MHz.
• Repitition Rate: 1 KHz.
• Treatment Time: 20 Minutes.
• Pulse Width: 200 µs.
• Duty Factor: 20%.
• Effective Radiating Area: 5.30 Square Centimeters.
• Size: 35 x 50 x 33mm.
• Weight: 81g.
• Power Supply: DC 2.4 V, 650 mAh.
• Classification: Internally Powered Equipement, Type BF Applied Part.



       Certifications:

CE.

ISO.

This product is not to be used in the US.

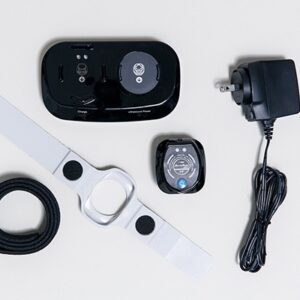

Ultrasound Bone Healing System SIFBONE-1.0 + Charger.

12 Months Warranty.
