PC Mouse Made With Arduino Uno and Joystick

Hi! Welcome to my first Instructable.

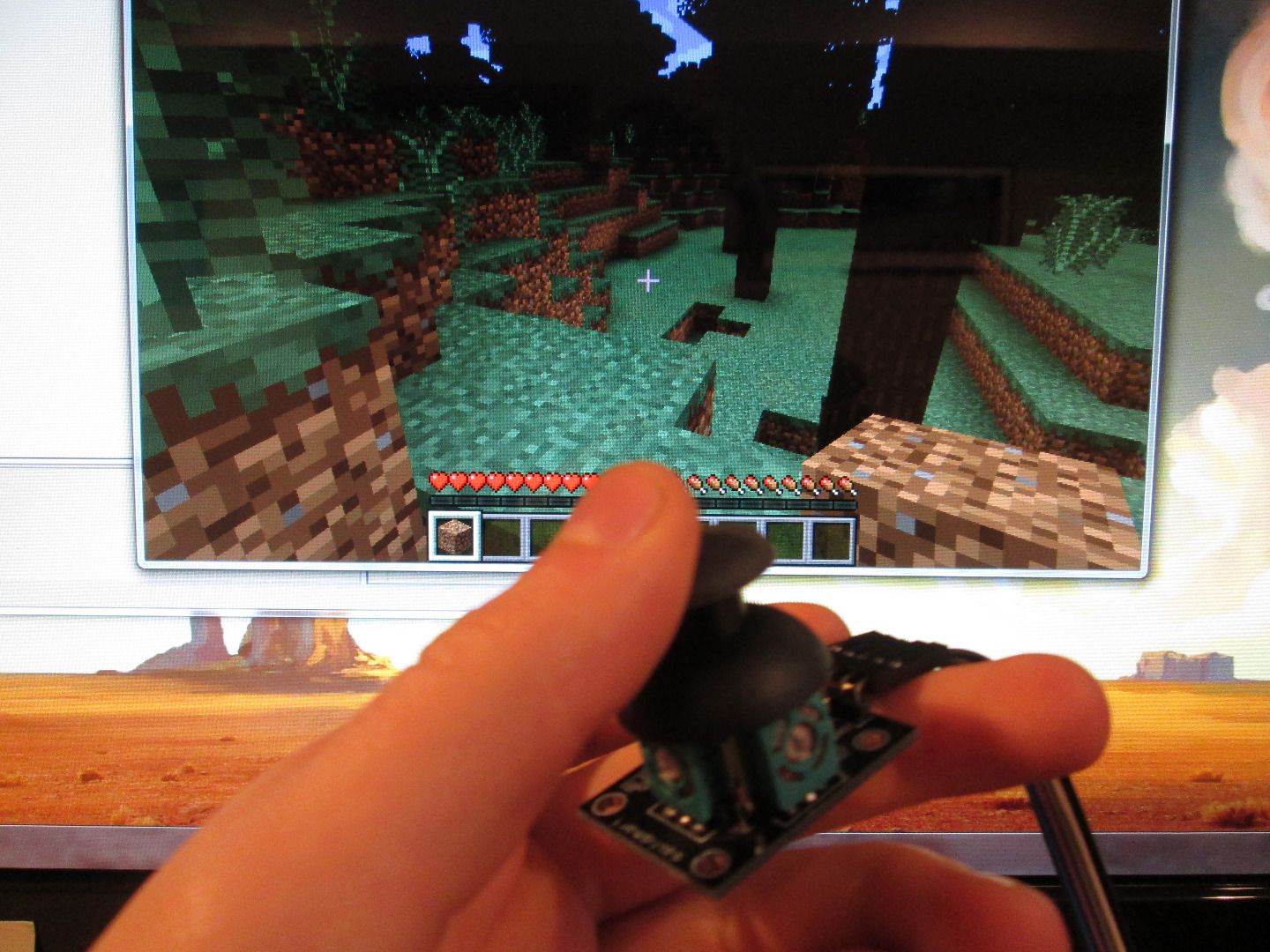

I recently began tinkering with my new Arduino Uno and decided to find an application for a PS2 joystick module. I thought it would be nifty to turn my Arduino into a joystick controlled mouse for my PC.

I must confess: I thought the task would be easy using the "mouse" library I found online, little did I realize that this class only works with Arduino Leonard and Micro (and perhaps a few others), but not the ubiquitous Uno. I was discouraged, but I decided to use the Uno's serial communication as well as my rudimentary Java abilities to "hack" the Uno into a functional mouse for Windows. It surprisingly worked! Here's how:

This project does not require many materials:

1 Arduino Uno

5 male to male wires

5 female to female wires (to connect to joystick module and to add extension length for joystick.

1 Joystick (I used the SainSmart PS2 joystick module and would recommend it)

The setup of the Uno can be seen in the materials picture, and here's the instructions:

Connect the five female to female wires to the pins of the joystick module. Now, connect five male to male wires into the ends of the female wires and connect them to the Arduino in this way:

1. The Ground on the joystick to Arduino Gnd

2. The +5V on the joystick to Arduino 5V

3. The UPx on the joystick to A0 on the Arduino

4. The UPy on the joystick to A1

5. The SW pin (the digital click switch) to digital pin 7 on the Arduino

Connect the Uno to your PC and upload the joystick code seen here (please note I did not create this code originally):

int pushPin = 7;       	// potentiometer wiper (middle terminal) connected to analog pin 3
int xPin = 0;
int yPin = 1;
int xMove = 0;
int yMove = 0;
			// outside leads to ground and +5V
int valPush = HIGH;     // variable to store the value read
int valX = 0;
int valY = 0;
void setup()
{
	pinMode(pushPin,INPUT);
	Serial.begin(9600);         //  setup serial
	digitalWrite(pushPin,HIGH);
}

void loop()
{
	valX = analogRead(xPin);    // read the x input pin
	valY = analogRead(yPin);    // read the y input pin
	valPush = digitalRead(pushPin); // read the push button input pin

	Serial.println(String(valX) + " " + String(valY) + " " + valPush);    //output to Java program
}

Now that the Uno is set up, we need to connect it to my Java program which is capable of taking the Uno's serial output values with the special library RxTx and moving the mouse with the library collection JNA. Both of these libraries are included for download at the end of this step. Please note that the only part of the code I changed from the example RxTx was adding the method that moves the mouse in a way that I calibrated for my joystick. It's a bit crude, but it served my purposes.

I used BlueJ as my IDE, but whichever Java IDE you use, install RxTx and JNA libraries for this project, which I named "Mouse". Once that's done, created a project and include this code:

import java.awt.*;
import java.awt.event.InputEvent;
import java.io.BufferedReader;
import java.io.InputStreamReader;
import java.io.OutputStream;
import gnu.io.CommPortIdentifier;
import gnu.io.SerialPort;
import gnu.io.SerialPortEvent;
import gnu.io.SerialPortEventListener;
import java.util.Enumeration;


public class Mouse implements SerialPortEventListener {
    SerialPort serialPort;
        /** The port we're normally going to use. */
    private static final String PORT_NAMES[] = {
            "/dev/tty.usbserial-A9007UX1", // Mac OS X
                        "/dev/ttyACM0", // Raspberry Pi
            "/dev/ttyUSB0", // Linux
            "COM4", // Windows**********(I changed)
    };
    /**
    * A BufferedReader which will be fed by a InputStreamReader
    * converting the bytes into characters
    * making the displayed results codepage independent
    */
    private BufferedReader input;
    /** The output stream to the port */
    private OutputStream output;
    /** Milliseconds to block while waiting for port open */
    private static final int TIME_OUT = 2000;
    /** Default bits per second for COM port. */
    private static final int DATA_RATE = 9600;

    int buttonOld = 1;

    public void initialize() {
                // the next line is for Raspberry Pi and
                // gets us into the while loop and was suggested here was suggested  http://www.raspberrypi.org/phpBB3/viewtopic.php?f...
                //System.setProperty("gnu.io.rxtx.SerialPorts", "/dev/ttyACM0"); I got rid of this
        CommPortIdentifier portId = null;
        Enumeration portEnum = CommPortIdentifier.getPortIdentifiers();
        //First, Find an instance of serial port as set in PORT_NAMES.
        while (portEnum.hasMoreElements()) {
            CommPortIdentifier currPortId = (CommPortIdentifier) portEnum.nextElement();
            for (String portName : PORT_NAMES) {
                if (currPortId.getName().equals(portName)) {
                    portId = currPortId;
                    break;
                }
            }
        }
        if (portId == null) {
            System.out.println("Could not find COM port.");
            return;
        }
        try {
            // open serial port, and use class name for the appName.
            serialPort = (SerialPort) portId.open(this.getClass().getName(),
                    TIME_OUT);
            // set port parameters
            serialPort.setSerialPortParams(DATA_RATE,
                    SerialPort.DATABITS_8,
                    SerialPort.STOPBITS_1,
                    SerialPort.PARITY_NONE);
            // open the streams
            input = new BufferedReader(new InputStreamReader(serialPort.getInputStream()));
            output = serialPort.getOutputStream();
            // add event listeners
            serialPort.addEventListener(this);
            serialPort.notifyOnDataAvailable(true);
        } catch (Exception e) {
            System.err.println(e.toString());
        }
    }
     /**
     * This should be called when you stop using the port.
     * This will prevent port locking on platforms like Linux.
     */
    public synchronized void close() {
        if (serialPort != null) {
            serialPort.removeEventListener();
            serialPort.close();
        }
    }
    /**
     * Handle an event on the serial port. Read the data and print it. In this case, it calls the mouseMove method.
     */
    public synchronized void serialEvent(SerialPortEvent oEvent) {
        if (oEvent.getEventType() == SerialPortEvent.DATA_AVAILABLE) {
            try {
                String inputLine=input.readLine();
                mouseMove(inputLine);
                System.out.println("********************");
                //System.out.println(inputLine);
            } catch (Exception e) {
                System.err.println(e.toString());
            }
        }
        // Ignore all the other eventTypes, but you should consider the other ones.
    }
public static void main(String[] args) throws Exception     {
        Mouse main = new Mouse();
        main.initialize();
        Thread t=new Thread() {
            public void run() {
                //the following line will keep this app alive for 1000 seconds,
                //waiting for events to occur and responding to them (printing incoming messages to console).
                try {Thread.sleep(1000000);} catch (InterruptedException ie) {}
            }
        };
        t.start();
        System.out.println("Started");
    }

    // My method mouseMove, takes in a string containing the three data points and operates the mouse in turn
    public void mouseMove(String data) throws AWTException
    {
        int index1 = data.indexOf(" ", 0);
        int index2 = data.indexOf(" ", index1+1);
        int yCord = Integer.valueOf(data.substring(0, index1));
        int xCord = Integer.valueOf(data.substring(index1 + 1 , index2));
        int button = Integer.valueOf(data.substring(index2 + 1));
        Robot robot = new Robot();

        int mouseY = MouseInfo.getPointerInfo().getLocation().y;
        int mouseX = MouseInfo.getPointerInfo().getLocation().x;

        if (button == 0)
        {
            if (buttonOld == 1)
            {
                robot.mousePress(InputEvent.BUTTON1_DOWN_MASK);
                robot.delay(10);
            }
        }
        else
        {
            if (buttonOld == 0)
                robot.mouseRelease(InputEvent.BUTTON1_DOWN_MASK);
        }

        if (Math.abs(xCord - 500) > 5)
            mouseX = mouseX + (int)((500 - xCord) * 0.02);
        if (Math.abs(yCord - 500) > 5)
            mouseY = mouseY - (int)((500 - yCord) * 0.02);

        robot.mouseMove(mouseX, mouseY);

        buttonOld = button;
        System.out.println(xCord + ":" + yCord + ":" + button + ":" + mouseX + ":" + mouseY);
        return;
    }
}

Getting the Java program to work may be difficult. I've got some tips if you're stuck:

-Change the "Com4" string in the PORT_NAMES[] to the port your arduino Uno is connected to. (I changed to Com4 from the default Com3 in my Java program)

-Comment out the line relating to Raspberry Pi (if you copied my program, I already did this)

-Click "Rebuild Package" or your IDEs equivalent

-Reset the Java Virtual Machine in your IDE. Maybe even reset the program before using the mouse the first time.

I hope this project works for you and that you can improve upon it. Ultimately, the easiest solution is to use an Arduino Leonard or Mini that can function as a system device for mouse inputs, but I found it fun to make the Uno function in a way it was not designed--a mouse--by using my limited Java knowledge.

I learned a lot alone the way and hope to add several features in the future:

-Right Click button. The joystick has one button which I reserved for the left click.

-Real device driver for this project. I'm not sure if this is possible, maybe someone can enlighten me on the subject!

Thanks for reading!
