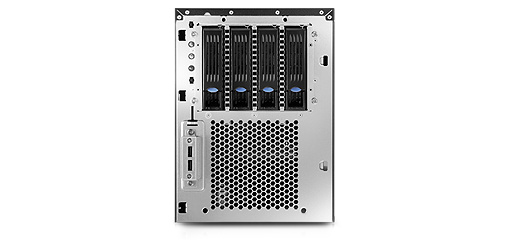

SR301 Series
Compact, Silent and Powerful
Supports the mini-ITX M/B and built-in 12Gb/s 4-port SATA/SAS backplane to provide up-to-date disk I/O performance.
Compare
Features & Benefits
  • Built-in 4-port 12Gb/s backplane for SAS and SATA drives
  • Built-in two internal 2.5" drive bays
  • Padlock loop, Kensington slot and intrusion switch
  • Front bezel lock to prevent unauthorized access
  • Optimized hard drive intervals to deliver the best cooling performance
  • Maximum venting area on front bezel and side-venting holes for add-on cards
  • Fully utilizes 120mm fan of PS/2 PSU to exhaust heat
  • Balanced thermal and acoustic performance technology
  • Specification
  • Download
  • Accessory
  • Compatibility
  • Order Information
  • M/B Form Factor Mini-ITX (6.7"x 6.7")
    Dimensions (D x W x H) 310 x 200 x 270(mm)
    12.2" x 7.87" x10.63"
    Drive Bay Internal 2.5":2
    3.5" Hot-swap:4
    Storage Backplane 12Gb/s SATA & SAS
    PSU Form Factor PS/2 Single
    Indicator 1 x Power Status
    1 x HDD Activity
    1 x Warning LED
    Front Control 1 x Power On/Off
    1 x System Reset
    2 x USB2.0/ USB3.0 (Option)
    Cooling Fan Front: 1 x 120mm
    System Security Padlock Loop, Kensington slot, Intrusion switch
    Expansion Slot Opening 1 x Low Profile
    Net Weight 5.2kg
    Gross Weight 7.0kg
    Cubic Feet 1.85
    Container Loading 20’:564
    40’:1134
    40’HQ:1284
