1. 1. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Keisuke Suzuki Software engineer PlazmaDB ペタバイトオーダのデータ分析 基盤を支える分散ストレージの アーキテクチャとその運用
2. 2. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Who am I? Keisuke Suzuki • Backend Engineer @ Treasure Data KK – Ex. Fujitsu • DB / Distributed system / Performance optimization • Twitter: @yajilobee
3. 3. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Treasure Data & PlazmaDB

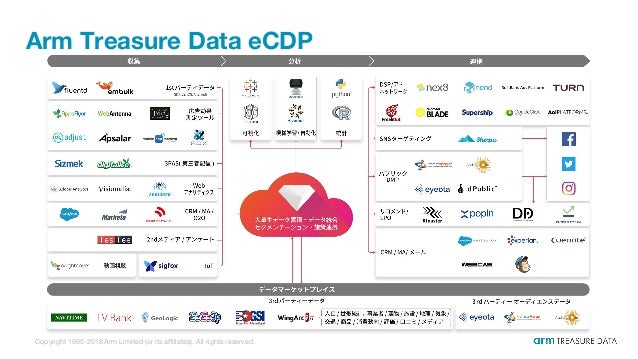

4. 4. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Arm Treasure Data eCDP
5. 5. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. PlazmaDB Streaming data Bulk load PlazmaDB Metadata (PostgreSQL) AWS S3 / Riak CS

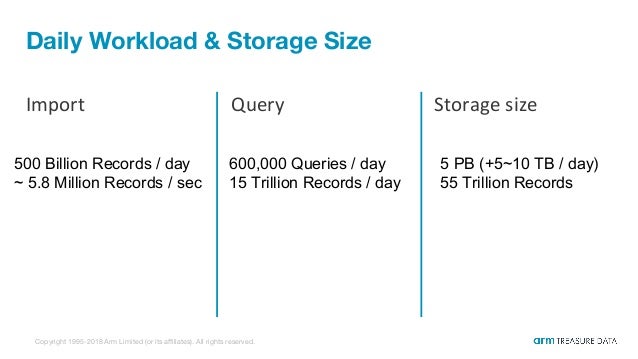

6. 6. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Daily Workload & Storage Size Import Query Storage size 500 Billion Records / day ~ 5.8 Million Records / sec 5 PB (+5~10 TB / day) 55 Trillion Records 600,000 Queries / day 15 Trillion Records / day

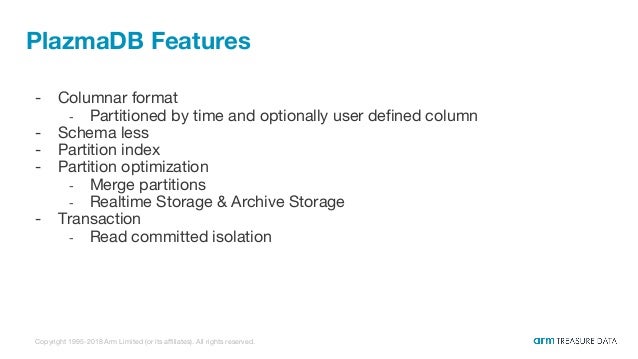

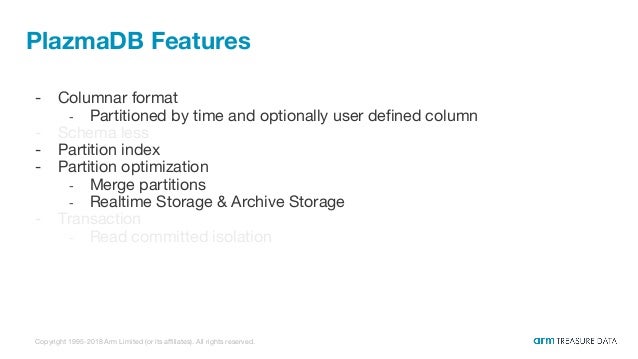

7. 7. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. PlazmaDB Features - Columnar format - Partitioned by time and optionally user defined column - Schema less - Partition index - Partition optimization - Merge partitions - Realtime Storage & Archive Storage - Transaction - Read committed isolation
8. 8. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. PlazmaDB Features - Columnar format - Partitioned by time and optionally user defined column - Schema less - Partition index - Partition optimization - Merge partitions - Realtime Storage & Archive Storage - Transaction - Read committed isolation

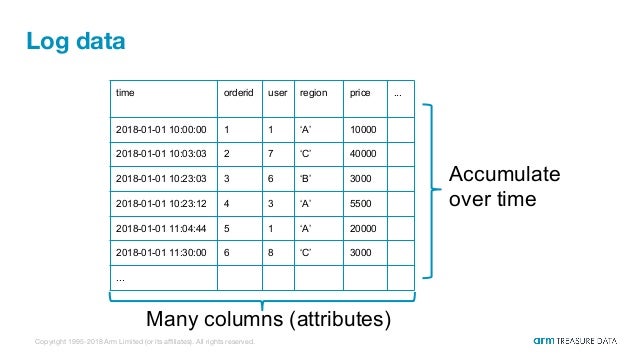

9. 9. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Log data time orderid user region price ... 2018-01-01 10:00:00 1 1 ‘A’ 10000 2018-01-01 10:03:03 2 7 ‘C’ 40000 2018-01-01 10:23:03 3 6 ‘B’ 3000 2018-01-01 10:23:12 4 3 ‘A’ 5500 2018-01-01 11:04:44 5 1 ‘A’ 20000 2018-01-01 11:30:00 6 8 ‘C’ 3000 ... Many columns (attributes) Accumulate over time

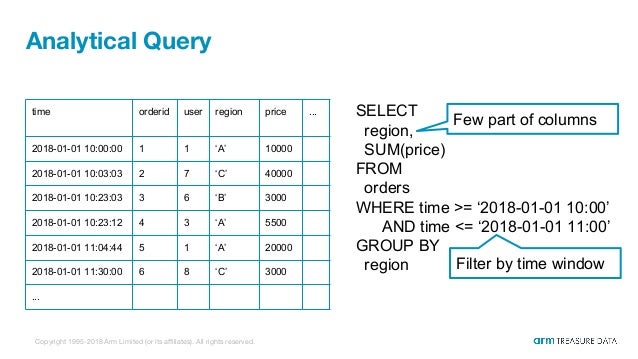

10. 10. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Analytical Query SELECT region, SUM(price) FROM orders WHERE time >= ‘2018-01-01 10:00’ AND time <= ‘2018-01-01 11:00’ GROUP BY region Few part of columns Filter by time window time orderid user region price ... 2018-01-01 10:00:00 1 1 ‘A’ 10000 2018-01-01 10:03:03 2 7 ‘C’ 40000 2018-01-01 10:23:03 3 6 ‘B’ 3000 2018-01-01 10:23:12 4 3 ‘A’ 5500 2018-01-01 11:04:44 5 1 ‘A’ 20000 2018-01-01 11:30:00 6 8 ‘C’ 3000 ...

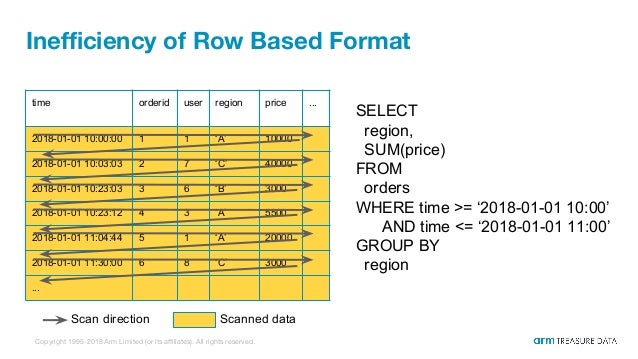

11. 11. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. time orderid user region price ... 2018-01-01 10:00:00 1 1 ‘A’ 10000 2018-01-01 10:03:03 2 7 ‘C’ 40000 2018-01-01 10:23:03 3 6 ‘B’ 3000 2018-01-01 10:23:12 4 3 ‘A’ 5500 2018-01-01 11:04:44 5 1 ‘A’ 20000 2018-01-01 11:30:00 6 8 ‘C’ 3000 ... Inefficiency of Row Based Format SELECT region, SUM(price) FROM orders WHERE time >= ‘2018-01-01 10:00’ AND time <= ‘2018-01-01 11:00’ GROUP BY region Scan direction Scanned data
12. 12. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. time orderid user region price ... 2018-01-01 10:00:00 1 1 ‘A’ 10000 2018-01-01 10:03:03 2 7 ‘C’ 40000 2018-01-01 10:23:03 3 6 ‘B’ 3000 2018-01-01 10:23:12 4 3 ‘A’ 5500 2018-01-01 11:04:44 5 1 ‘A’ 20000 2018-01-01 11:30:00 6 8 ‘C’ 3000 ... Columnar Format SELECT region, SUM(price) FROM orders WHERE time >= ‘2018-01-01 10:00’ AND time <= ‘2018-01-01 11:00’ GROUP BY region Scan direction Scanned data Few part of columns Filter by time window
13. 13. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. 2018-01-01 10:23:03 3 6 ... 2018-01-01 10:23:12 4 3 ... PlazmaDB PlazmaDB Partitions 2018-01-01 10:00:00 1 1 ... 2018-01-01 10:03:03 2 7 ... 2018-01-01 11:04:44 5 1 ... {“time”: “2018-01-01 10:00:00”, “orderid”: 1, …}, {“time”: “2018-01-01 10:03:03”, “orderid”: 2, …} Worker{“time”: “2018-01-01 10:23:03”, “orderid”: 3, …}, {“time”: “2018-01-01 10:23:12”, “orderid”: 4, …} {“time”: “2018-01-01 11:04:44”, “orderid”: 5, …} Application Partition file: A S3/RiakCS Object Send logs periodically Convert to columnar & Store a partition Table is collection of partitions

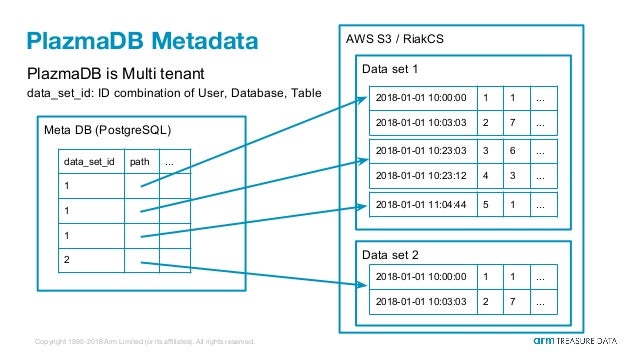

14. 14. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. 2018-01-01 10:23:03 3 6 ... 2018-01-01 10:23:12 4 3 ... Meta DB (PostgreSQL) PlazmaDB Metadata 2018-01-01 10:00:00 1 1 ... 2018-01-01 10:03:03 2 7 ... 2018-01-01 11:04:44 5 1 ... data_set_id path ... 1 1 1 2 2018-01-01 10:00:00 1 1 ... 2018-01-01 10:03:03 2 7 ... PlazmaDB is Multi tenant data_set_id: ID combination of User, Database, Table Data set 1 Data set 2 AWS S3 / RiakCS

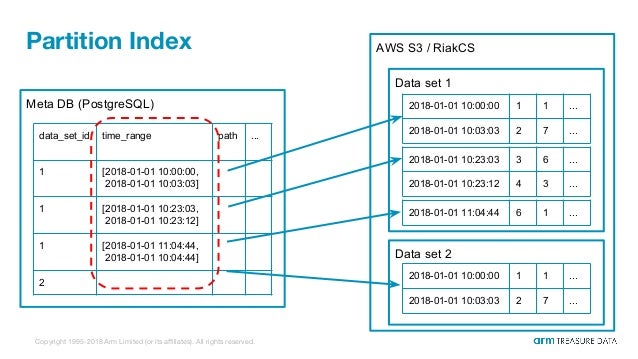

15. 15. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. 2018-01-01 10:23:03 3 6 ... 2018-01-01 10:23:12 4 3 ... Meta DB (PostgreSQL) Partition Index 2018-01-01 10:00:00 1 1 ... 2018-01-01 10:03:03 2 7 ... 2018-01-01 11:04:44 6 1 ... data_set_id time_range path ... 1 [2018-01-01 10:00:00, 2018-01-01 10:03:03] 1 [2018-01-01 10:23:03, 2018-01-01 10:23:12] 1 [2018-01-01 11:04:44, 2018-01-01 10:04:44] 2 2018-01-01 10:00:00 1 1 ... 2018-01-01 10:03:03 2 7 ... Data set 1 Data set 2 AWS S3 / RiakCS

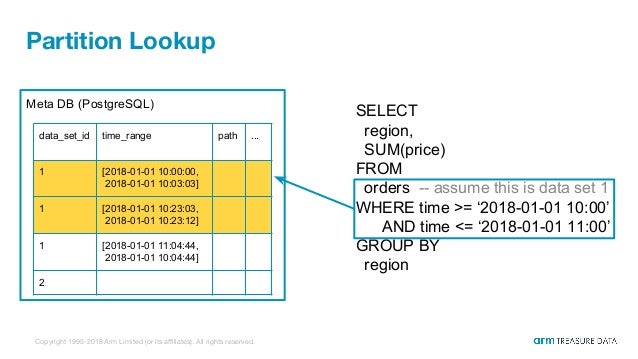

16. 16. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Partition Lookup SELECT region, SUM(price) FROM orders -- assume this is data set 1 WHERE time >= ‘2018-01-01 10:00’ AND time <= ‘2018-01-01 11:00’ GROUP BY region Meta DB (PostgreSQL) data_set_id time_range path ... 1 [2018-01-01 10:00:00, 2018-01-01 10:03:03] 1 [2018-01-01 10:23:03, 2018-01-01 10:23:12] 1 [2018-01-01 11:04:44, 2018-01-01 10:04:44] 2
17. 17. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. 2018-01-01 10:23:03 3 6 ‘B’ 3000 2018-01-01 10:23:12 4 3 ‘A’ 5500 time orderid user region price ... 2018-01-01 10:00:00 1 1 ‘A’ 10000 2018-01-01 10:03:03 2 7 ‘C’ 40000 Skip Partition Scan SELECT region, SUM(price) FROM orders WHERE time >= ‘2018-01-01 10:00’ AND time <= ‘2018-01-01 11:00’ GROUP BY region Scan direction Scanned data 2018-01-01 11:04:44 5 1 ‘A’ 20000 2018-01-01 11:30:00 6 8 ‘C’ 3000 ...
18. 18. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. How to find Partitions? SELECT region, SUM(price) FROM orders -- assume this is data set 1 WHERE time >= ‘2018-01-01 10:00’ AND time <= ‘2018-01-01 11:00’ GROUP BY region Meta DB (PostgreSQL) data_set_id time_range path ... 1 [2018-01-01 10:00:00, 2018-01-01 10:03:03] 1 [2018-01-01 10:23:03, 2018-01-01 10:23:12] 1 [2018-01-01 11:04:44, 2018-01-01 10:04:44] 2 Number of partitions in a data set can be large (1M+) for large tables. ?

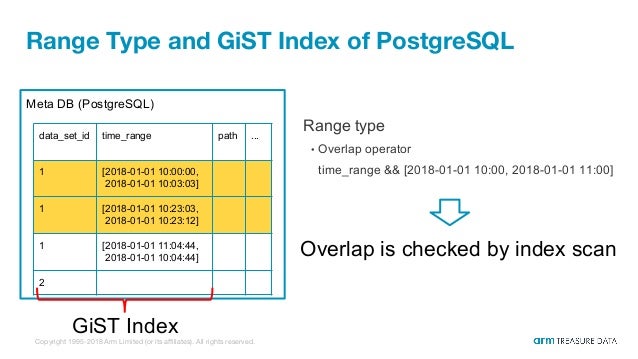

19. 19. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Range Type and GiST Index of PostgreSQL Meta DB (PostgreSQL) data_set_id time_range path ... 1 [2018-01-01 10:00:00, 2018-01-01 10:03:03] 1 [2018-01-01 10:23:03, 2018-01-01 10:23:12] 1 [2018-01-01 11:04:44, 2018-01-01 10:04:44] 2 GiST Index Range type • Overlap operator time_range && [2018-01-01 10:00, 2018-01-01 11:00] Overlap is checked by index scan

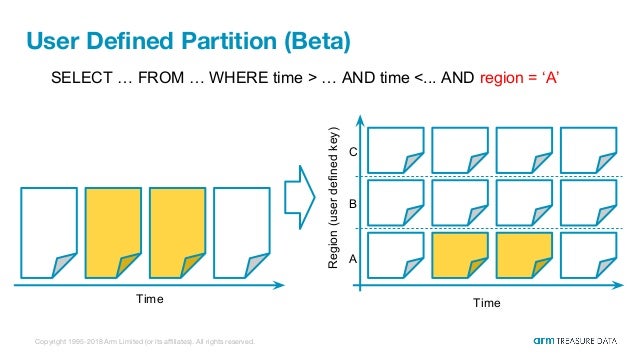

20. 20. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. User Defined Partition (Beta) SELECT … FROM … WHERE time > … AND time <... AND region = ‘A’ Time Time Region(userdefinedkey) A C B

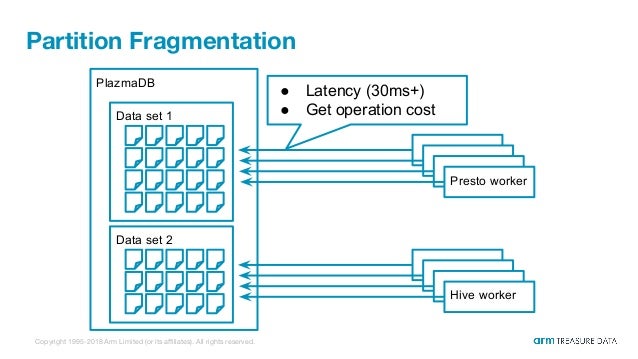

21. 21. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. PlazmaDB Partition Fragmentation Data set 1 Data set 2 Presto worker Hive worker ● Latency (30ms+) ● Get operation cost

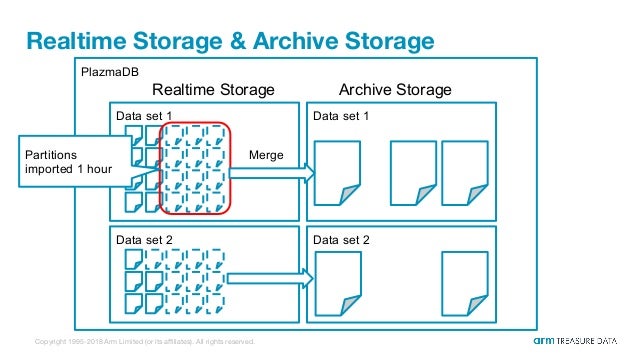

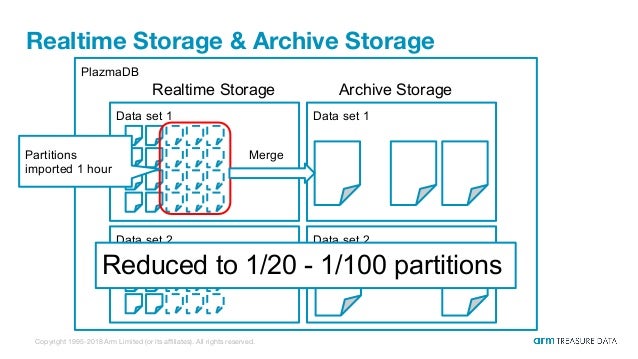

22. 22. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Data set 2 PlazmaDB Data set 2 Data set 1 Realtime Storage & Archive Storage Realtime Storage Archive Storage Partitions imported 1 hour Merge Data set 1
23. 23. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Data set 2 PlazmaDB Data set 2 Data set 1 Realtime Storage & Archive Storage Realtime Storage Archive Storage Partitions imported 1 hour Merge Data set 1 Reduced to 1/20 - 1/100 partitions
24. 24. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Streaming & Bulk data upload Realtime Storage Archive Storage Bulk loadStreaming data

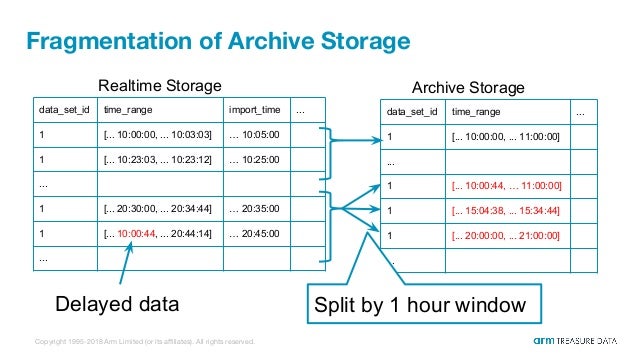

25. 25. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Fragmentation of Archive Storage data_set_id time_range import_time ... 1 [... 10:00:00, ... 10:03:03] … 10:05:00 1 [... 10:23:03, ... 10:23:12] … 10:25:00 ... 1 [... 20:30:00, ... 20:34:44] … 20:35:00 1 [... 10:00:44, ... 20:44:14] … 20:45:00 ... data_set_id time_range ... 1 [... 10:00:00, ... 11:00:00] ... 1 [... 10:00:44, … 11:00:00] 1 [... 15:04:38, ... 15:34:44] 1 [... 20:00:00, ... 21:00:00] ... Realtime Storage Archive Storage Delayed data Split by 1 hour window

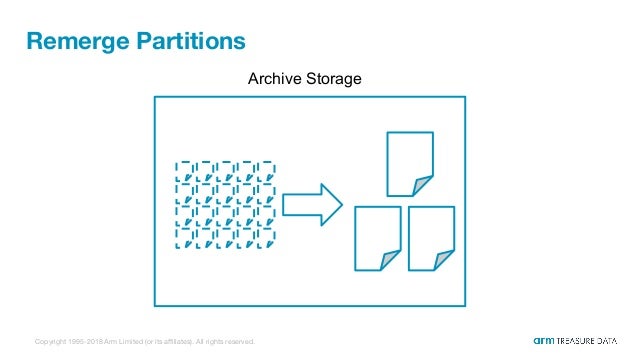

26. 26. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Remerge Partitions Archive Storage

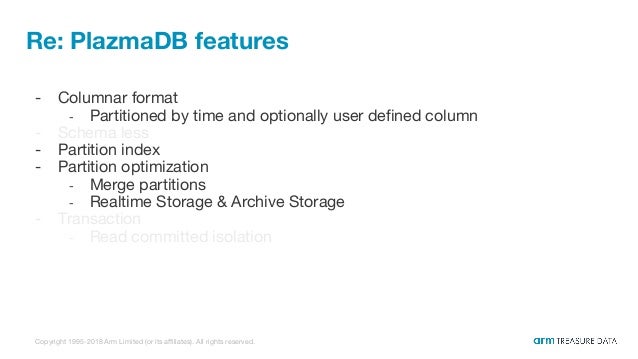

27. 27. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Re: PlazmaDB features - Columnar format - Partitioned by time and optionally user defined column - Schema less - Partition index - Partition optimization - Merge partitions - Realtime Storage & Archive Storage - Transaction - Read committed isolation
28. 28. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Current PlazmaDB & Future Challenges

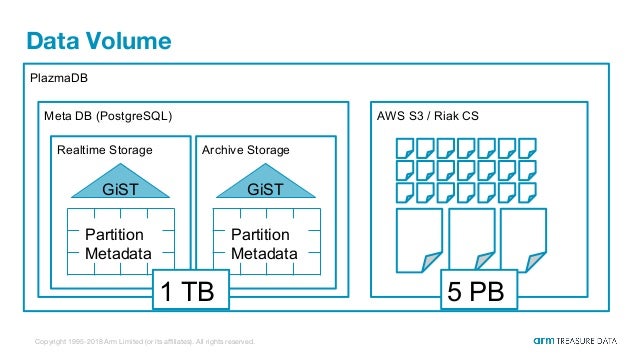

29. 29. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Data Volume PlazmaDB Meta DB (PostgreSQL) Realtime Storage Archive Storage AWS S3 / Riak CS 5 PB GiST GiST Partition Metadata Partition Metadata 1 TB

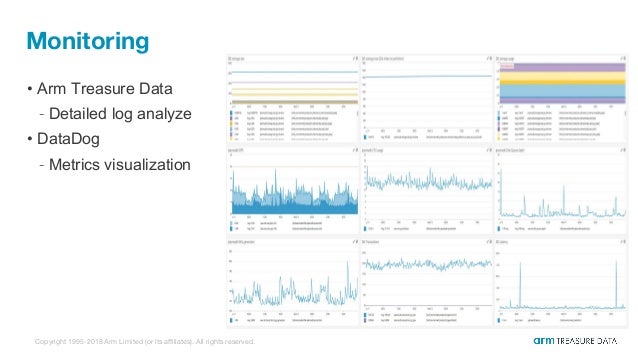

30. 30. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Monitoring • Arm Treasure Data – Detailed log analyze • DataDog – Metrics visualization

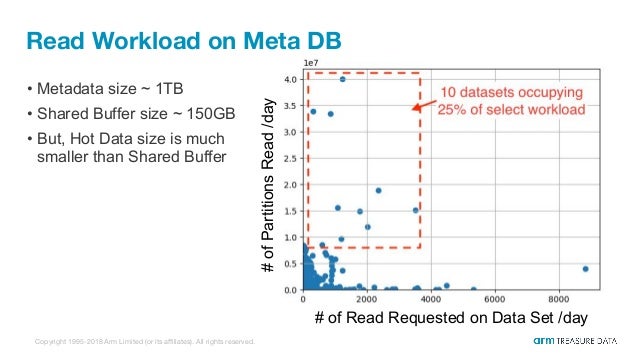

31. 31. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Read Workload on Meta DB • Metadata size ~ 1TB • Shared Buffer size ~ 150GB • But, Hot Data size is much smaller than Shared Buffer # of Read Requested on Data Set /day #ofPartitionsRead/day

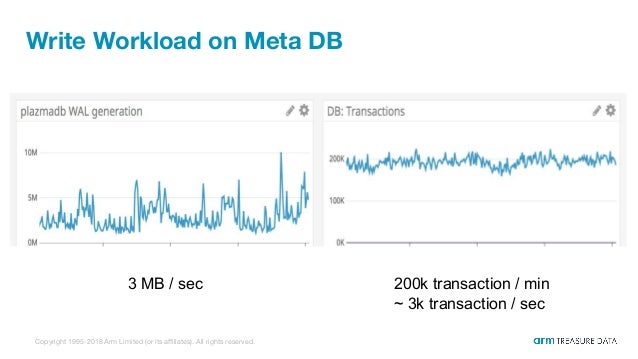

32. 32. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Write Workload on Meta DB 200k transaction / min ~ 3k transaction / sec 3 MB / sec

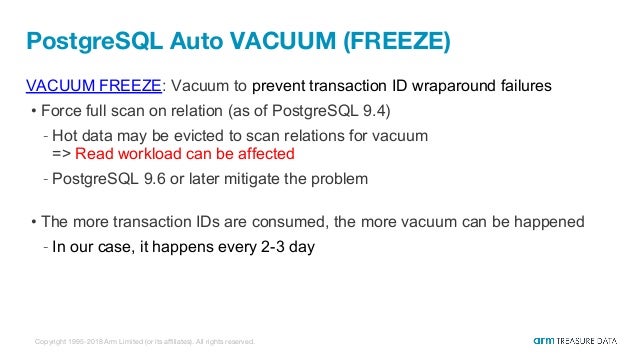

33. 33. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. PostgreSQL Auto VACUUM (FREEZE) VACUUM FREEZE: Vacuum to prevent transaction ID wraparound failures • Force full scan on relation (as of PostgreSQL 9.4) – Hot data may be evicted to scan relations for vacuum => Read workload can be affected – PostgreSQL 9.6 or later mitigate the problem • The more transaction IDs are consumed, the more vacuum can be happened – In our case, it happens every 2-3 day

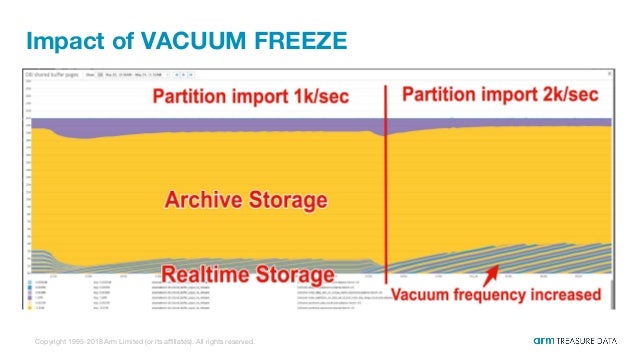

34. 34. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Impact of VACUUM FREEZE

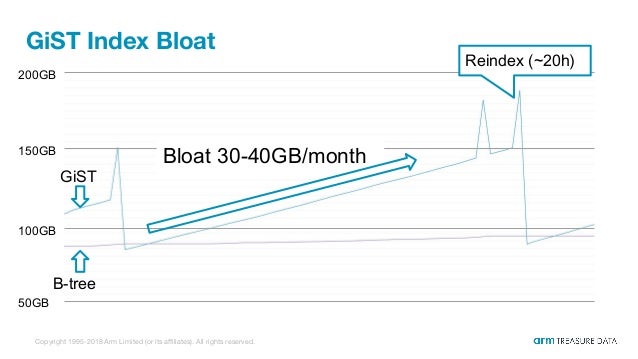

35. 35. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. GiST Index Bloat 100GB 150GB 50GB 200GB B-tree GiST Bloat 30-40GB/month Reindex (~20h)

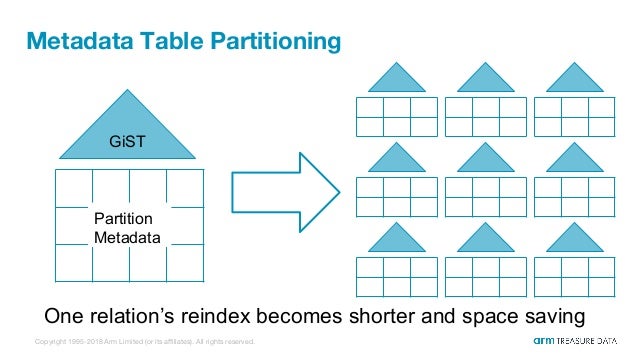

36. 36. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Metadata Table Partitioning GiST Partition Metadata One relation’s reindex becomes shorter and space saving

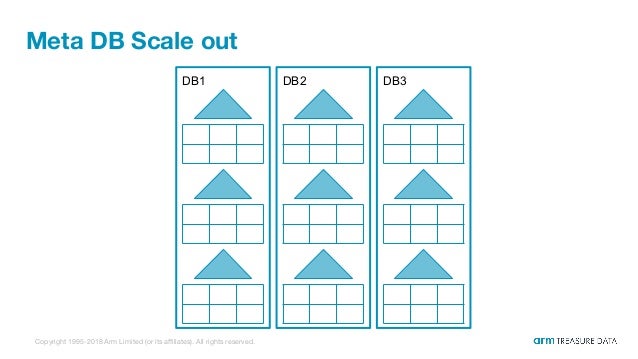

37. 37. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Meta DB Scale out DB1 DB2 DB3

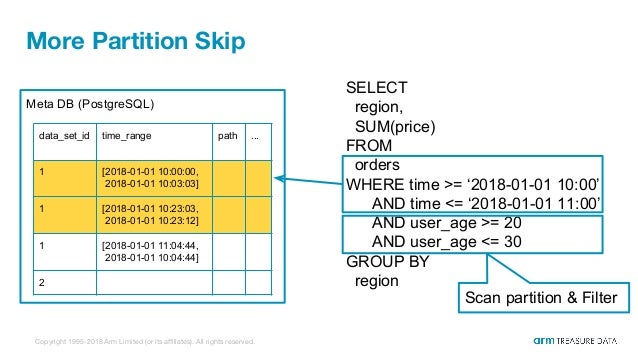

38. 38. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. More Partition Skip SELECT region, SUM(price) FROM orders WHERE time >= ‘2018-01-01 10:00’ AND time <= ‘2018-01-01 11:00’ AND user_age >= 20 AND user_age <= 30 GROUP BY region Meta DB (PostgreSQL) data_set_id time_range path ... 1 [2018-01-01 10:00:00, 2018-01-01 10:03:03] 1 [2018-01-01 10:23:03, 2018-01-01 10:23:12] 1 [2018-01-01 11:04:44, 2018-01-01 10:04:44] 2 Scan partition & Filter

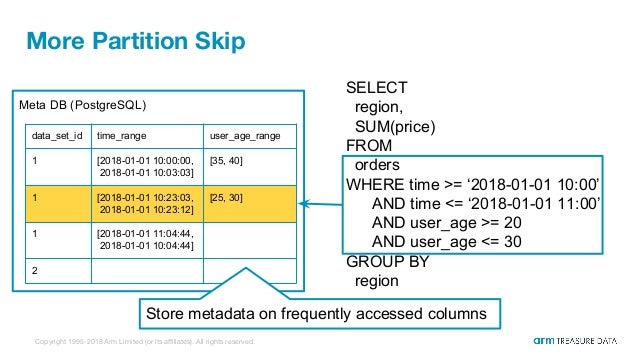

39. 39. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. More Partition Skip SELECT region, SUM(price) FROM orders WHERE time >= ‘2018-01-01 10:00’ AND time <= ‘2018-01-01 11:00’ AND user_age >= 20 AND user_age <= 30 GROUP BY region Meta DB (PostgreSQL) data_set_id time_range user_age_range 1 [2018-01-01 10:00:00, 2018-01-01 10:03:03] [35, 40] 1 [2018-01-01 10:23:03, 2018-01-01 10:23:12] [25, 30] 1 [2018-01-01 11:04:44, 2018-01-01 10:04:44] 2 Store metadata on frequently accessed columns

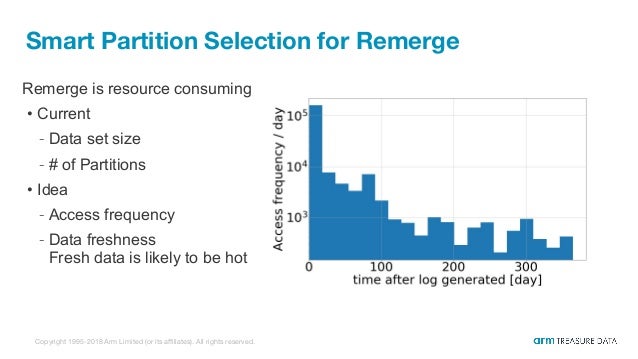

40. 40. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Smart Partition Selection for Remerge Remerge is resource consuming • Current – Data set size – # of Partitions • Idea – Access frequency – Data freshness Fresh data is likely to be hot

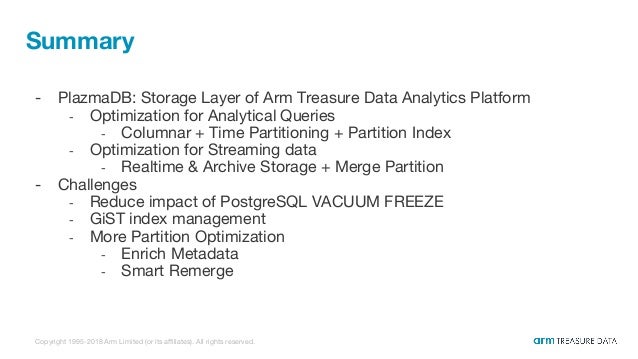

41. 41. Copyright 1995-2018 Arm Limited (or its affiliates). All rights reserved. Summary - PlazmaDB: Storage Layer of Arm Treasure Data Analytics Platform - Optimization for Analytical Queries - Columnar + Time Partitioning + Partition Index - Optimization for Streaming data - Realtime & Archive Storage + Merge Partition - Challenges - Reduce impact of PostgreSQL VACUUM FREEZE - GiST index management - More Partition Optimization - Enrich Metadata - Smart Remerge
