もうひとつのコンテナ実行環境 runq のご紹介

1. © IBM Corporation 1 runq

2. © IBM Corporation 2 bT i ( e ( /. G ac I g B @hd ): . M / : .

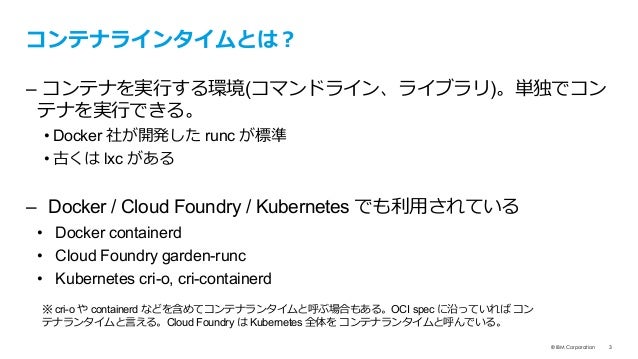

3. © IBM Corporation 3 – ( ) • Docker runc • lxc – Docker / Cloud Foundry / Kubernetes • Docker containerd • Cloud Foundry garden-runc • Kubernetes cri-o, cri-containerd cri-o containerd OCI spec Cloud Foundry Kubernetes

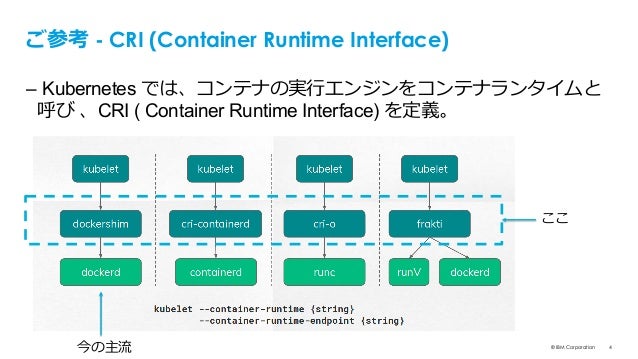

4. © IBM Corporation 4 - CRI (Container Runtime Interface) – Kubernetes CRI ( Container Runtime Interface)

5. © IBM Corporation 5 - Cloud Foundry Container Runtime – Cloud Foundry Kubernetes

6. © IBM Corporation 6 – OCI (Open Container Initiative) • https://github.com/opencontainers/runtime-spec • runc – OCI • OCI runq

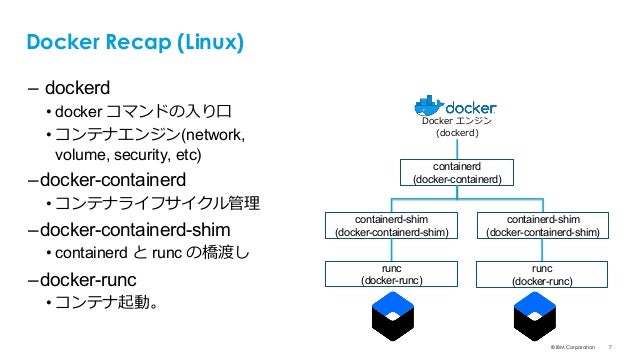

7. © IBM Corporation 7 Docker Recap (Linux) – dockerd • docker • (network, volume, security, etc) –docker-containerd • –docker-containerd-shim • containerd runc ) –docker-runc • ( containerd (docker-containerd) containerd-shim (docker-containerd-shim) containerd-shim (docker-containerd-shim) runc (docker-runc) runc (docker-runc)

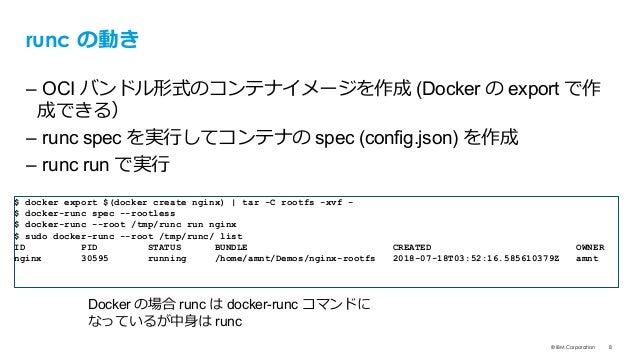

8. © IBM Corporation 8 runc – OCI (Docker export – runc spec spec (config.json) – runc run $ docker export $(docker create nginx) | tar -C rootfs -xvf - $ docker-runc spec --rootless $ docker-runc --root /tmp/runc run nginx $ sudo docker-runc --root /tmp/runc/ list ID PID STATUS BUNDLE CREATED OWNER nginx 30595 running /home/amnt/Demos/nginx-rootfs 2018-07-18T03:52:16.585610379Z amnt Docker runc docker-runc runc

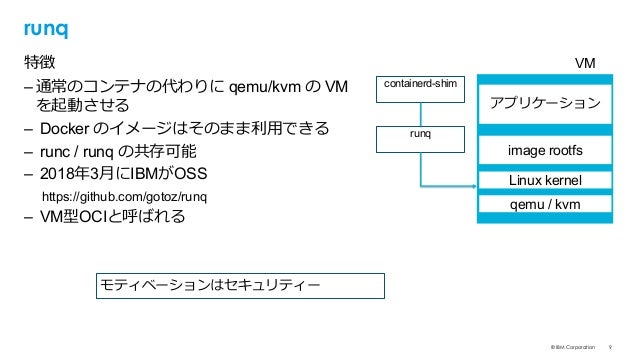

9. © IBM Corporation 9 runq – qemu/kvm VM – Docker – runc / runq – 2018 3 IBM OSS https://github.com/gotoz/runq – VM OCI containerd-shim runq qemu / kvm image rootfs Linux kernel VM

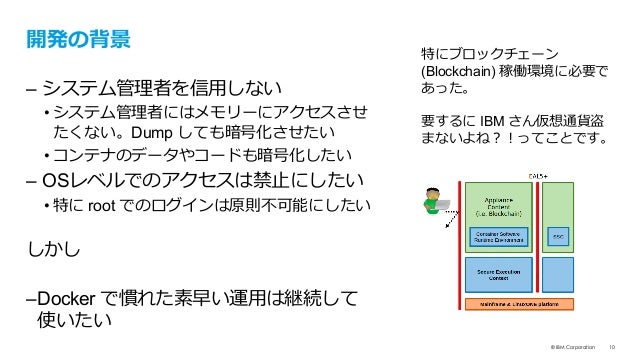

10. © IBM Corporation 10 – • Dump • – OS • root –Docker (Blockchain) IBM

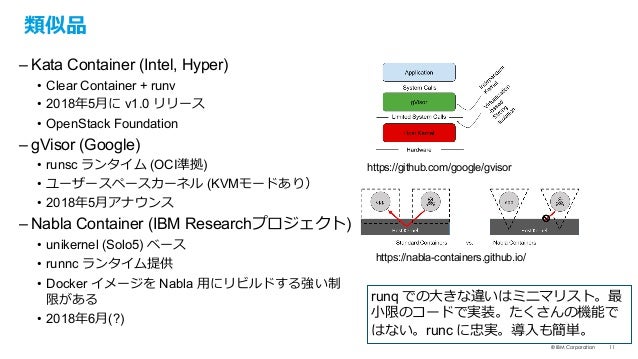

11. © IBM Corporation 11 – Kata Container (Intel, Hyper) • Clear Container + runv • 2018 5 v1.0 • OpenStack Foundation – gVisor (Google) • runsc (OCI ) • (KVM • 2018 5 – Nabla Container (IBM Research ) • unikernel (Solo5) • runnc • Docker Nabla • 2018 6 (?) runq runc https://github.com/google/gvisor https://nabla-containers.github.io/

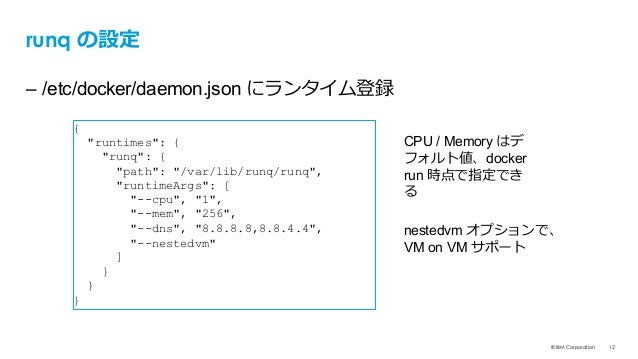

12. © IBM Corporation 12 runq – /etc/docker/daemon.json { "runtimes": { "runq": { "path": "/var/lib/runq/runq", "runtimeArgs": [ "--cpu", "1", "--mem", "256", "--dns", "8.8.8.8,8.8.4.4", "--nestedvm" ] } } } nestedvm VM on VM CPU / Memory docker run

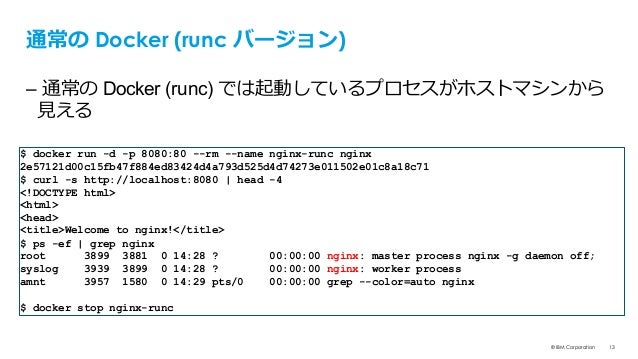

13. © IBM Corporation 13 Docker (runc ) – Docker (runc) $ docker run -d -p 8080:80 --rm --name nginx-runc nginx 2e57121d00c15fb47f884ed83424d4a793d525d4d74273e011502e01c8a18c71 $ curl -s http://localhost:8080 | head -4 <!DOCTYPE html> <html> <head> <title>Welcome to nginx!</title> $ ps -ef | grep nginx root 3899 3881 0 14:28 ? 00:00:00 nginx: master process nginx -g daemon off; syslog 3939 3899 0 14:28 ? 00:00:00 nginx: worker process amnt 3957 1580 0 14:29 pts/0 00:00:00 grep --color=auto nginx $ docker stop nginx-runc

14. © IBM Corporation 14 Docker (runq ) – (nginx) qemu $ docker run --runtime runq -d -p 9090:80 --rm --name nginx-runq nginx 774cdacfcae3219b9fc369edaadbc18a145313b62d69a5ddde86a1693aaf5a7d $ curl -s http://localhost:9090 | head -4 <!DOCTYPE html> <html> <head> <title>Welcome to nginx!</title> $ ps -ef | grep nginx amnt 4758 1580 0 14:35 pts/0 00:00:00 grep --color=auto nginx $ ps -ef | grep qemu root 4680 4659 0 14:35 ? 00:00:00 /qemu/proxy -name 774cdacfcae3 ... root 4733 4680 0 14:35 ? 00:00:00 /usr/bin/qemu-system-x86_64 -device virtio-9p- pci,fsdev=rootfs_dev,mount_tag=rootfs,disable-modern=true -chardev ... amnt 4964 1580 0 14:39 pts/0 00:00:00 grep --color=auto qemu

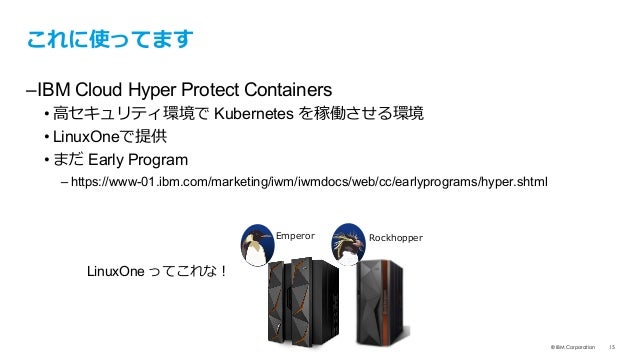

15. © IBM Corporation 15 –IBM Cloud Hyper Protect Containers • Kubernetes • LinuxOne • Early Program –https://www-01.ibm.com/marketing/iwm/iwmdocs/web/cc/earlyprograms/hyper.shtml LinuxOne

もうひとつのコンテナ実行環境 runq のご紹介

Takehiko Amano
