Using LLVM to accelerate processing of data in Apache Arrow

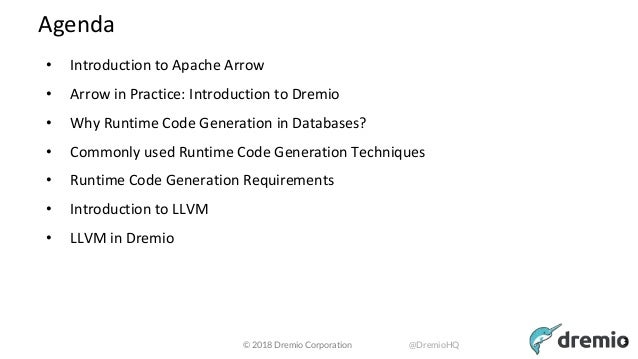

3. © 2018 Dremio Corporation @DremioHQ Agenda • Introduction to Apache Arrow • Arrow in Practice: Introduction to Dremio • Why Runtime Code Generation in Databases? • Commonly used Runtime Code Generation Techniques • Runtime Code Generation Requirements • Introduction to LLVM • LLVM in Dremio 3

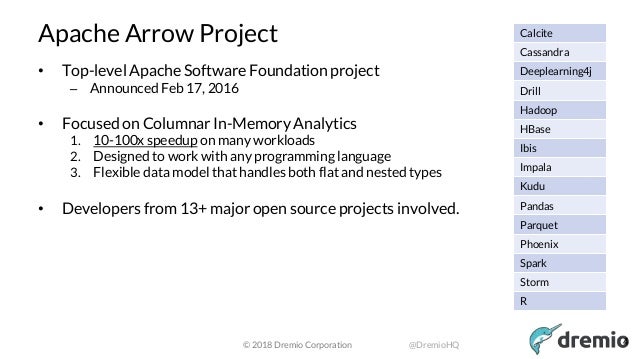

4. © 2018 Dremio Corporation @DremioHQ Apache Arrow Project • Top-level Apache Software Foundation project – Announced Feb 17, 2016 • Focused on Columnar In-Memory Analytics 1. 10-100x speedup on many workloads 2. Designed to work with any programming language 3. Flexible data model that handles both flat and nested types • Developers from 13+ major open source projects involved. Calcite Cassandra Deeplearning4j Drill Hadoop HBase Ibis Impala Kudu Pandas Parquet Phoenix Spark Storm R 4

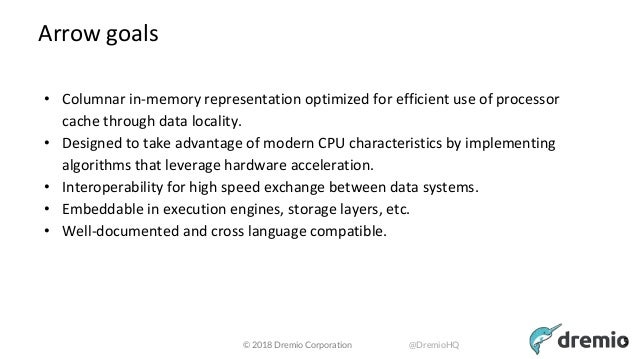

5. © 2018 Dremio Corporation @DremioHQ Arrow goals • Columnar in-memory representation optimized for efficient use of processor cache through data locality. • Designed to take advantage of modern CPU characteristics by implementing algorithms that leverage hardware acceleration. • Interoperability for high speed exchange between data systems. • Embeddable in execution engines, storage layers, etc. • Well-documented and cross language compatible. 5

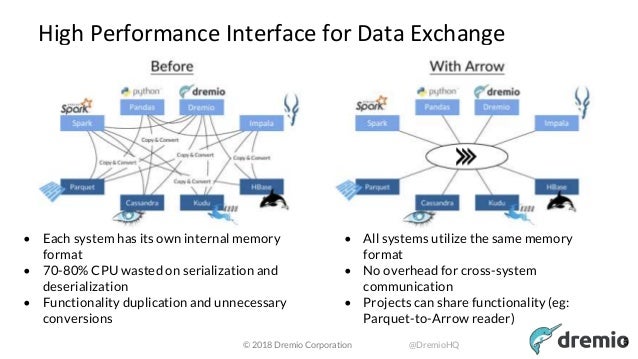

6. © 2018 Dremio Corporation @DremioHQ High Performance Interface for Data Exchange • Each system has its own internal memory format • 70-80% CPU wasted on serialization and deserialization • Functionality duplication and unnecessary conversions • All systems utilize the same memory format • No overhead for cross-system communication • Projects can share functionality (eg: Parquet-to-Arrow reader) 6

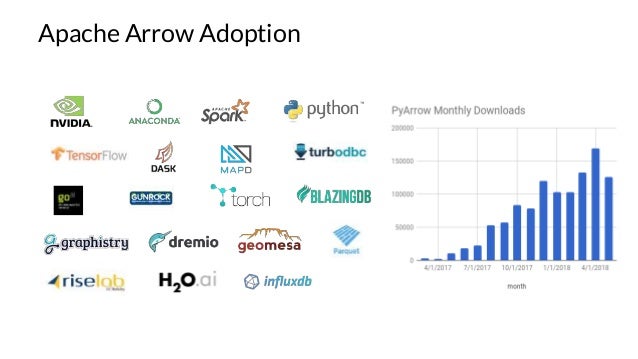

7. Apache Arrow Adoption

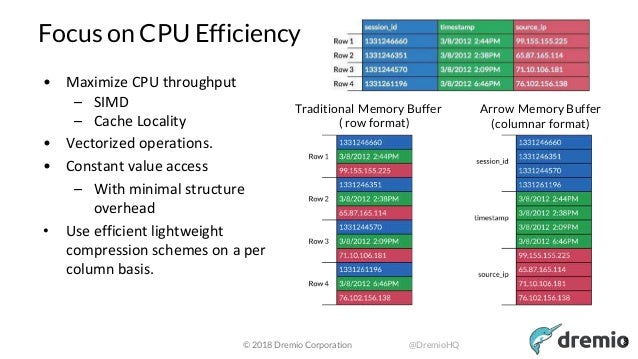

8. © 2018 Dremio Corporation @DremioHQ Focus on CPU Efficiency Traditional Memory Buffer ( row format) Arrow Memory Buffer (columnar format) • Maximize CPU throughput – SIMD – Cache Locality • Vectorized operations. • Constant value access – With minimal structure overhead • Use efficient lightweight compression schemes on a per column basis. 8

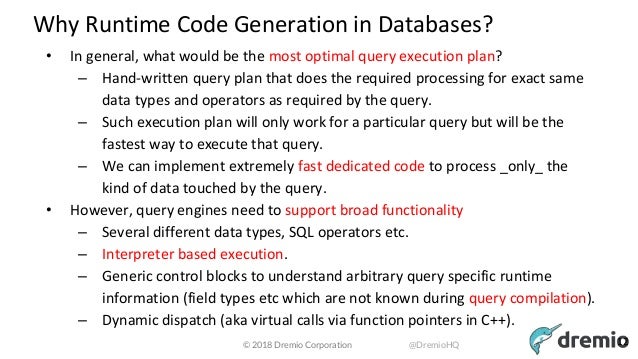

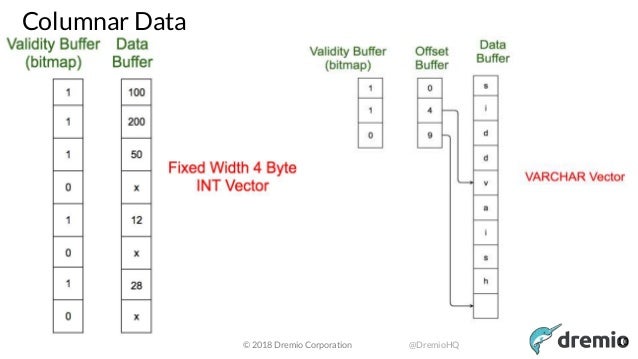

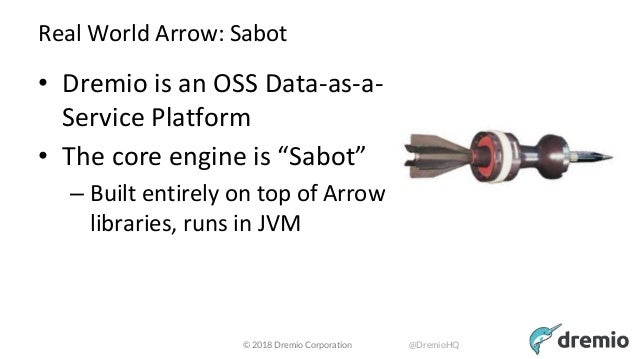

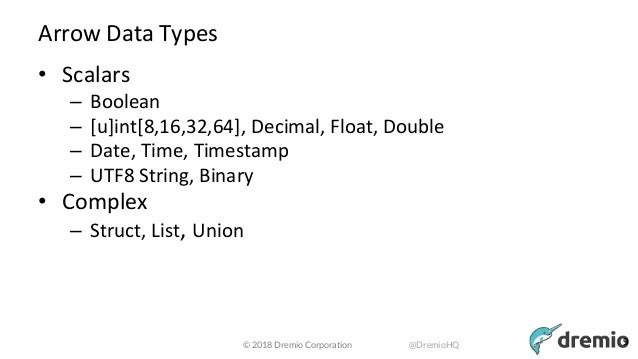

12. © 2018 Dremio Corporation @DremioHQ Why Runtime Code Generation in Databases? • In general, what would be the most optimal query execution plan? – Hand-written query plan that does the required processing for exact same data types and operators as required by the query. – Such execution plan will only work for a particular query but will be the fastest way to execute that query. – We can implement extremely fast dedicated code to process _only_ the kind of data touched by the query. • However, query engines need to support broad functionality – Several different data types, SQL operators etc. – Interpreter based execution. – Generic control blocks to understand arbitrary query specific runtime information (field types etc which are not known during query compilation). – Dynamic dispatch (aka virtual calls via function pointers in C++). 12

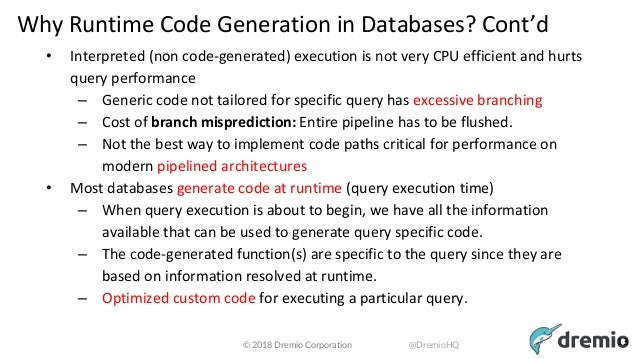

13. © 2018 Dremio Corporation @DremioHQ Why Runtime Code Generation in Databases? Cont’d • Interpreted (non code-generated) execution is not very CPU efficient and hurts query performance – Generic code not tailored for specific query has excessive branching – Cost of branch misprediction: Entire pipeline has to be flushed. – Not the best way to implement code paths critical for performance on modern pipelined architectures • Most databases generate code at runtime (query execution time) – When query execution is about to begin, we have all the information available that can be used to generate query specific code. – The code-generated function(s) are specific to the query since they are based on information resolved at runtime. – Optimized custom code for executing a particular query. 13

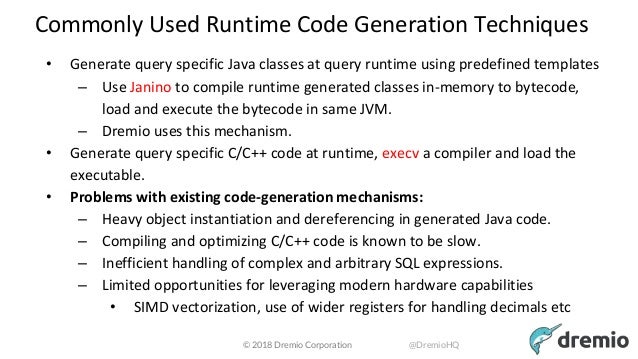

14. © 2018 Dremio Corporation @DremioHQ Commonly Used Runtime Code Generation Techniques • Generate query specific Java classes at query runtime using predefined templates – Use Janino to compile runtime generated classes in-memory to bytecode, load and execute the bytecode in same JVM. – Dremio uses this mechanism. • Generate query specific C/C++ code at runtime, execv a compiler and load the executable. • Problems with existing code-generation mechanisms: – Heavy object instantiation and dereferencing in generated Java code. – Compiling and optimizing C/C++ code is known to be slow. – Inefficient handling of complex and arbitrary SQL expressions. – Limited opportunities for leveraging modern hardware capabilities • SIMD vectorization, use of wider registers for handling decimals etc

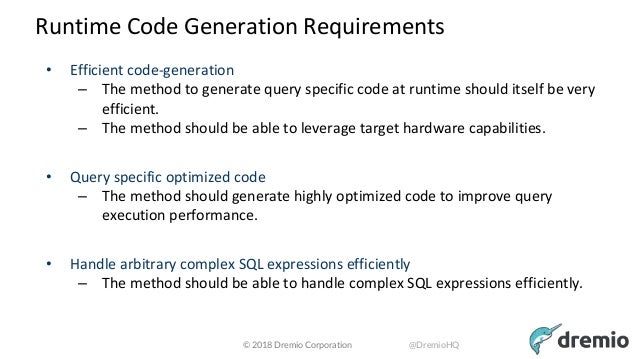

15. © 2018 Dremio Corporation @DremioHQ Runtime Code Generation Requirements • Efficient code-generation – The method to generate query specific code at runtime should itself be very efficient. – The method should be able to leverage target hardware capabilities. • Query specific optimized code – The method should generate highly optimized code to improve query execution performance. • Handle arbitrary complex SQL expressions efficiently – The method should be able to handle complex SQL expressions efficiently.

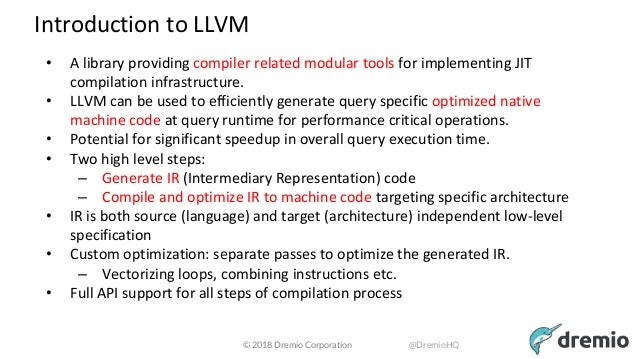

16. © 2018 Dremio Corporation @DremioHQ Introduction to LLVM • A library providing compiler related modular tools for implementing JIT compilation infrastructure. • LLVM can be used to efficiently generate query specific optimized native machine code at query runtime for performance critical operations. • Potential for significant speedup in overall query execution time. • Two high level steps: – Generate IR (Intermediary Representation) code – Compile and optimize IR to machine code targeting specific architecture • IR is both source (language) and target (architecture) independent low-level specification • Custom optimization: separate passes to optimize the generated IR. – Vectorizing loops, combining instructions etc. • Full API support for all steps of compilation process

17. © 2018 Dremio Corporation @DremioHQ Introduction to LLVM Cont’d IR (Intermediary Representation) is the core of LLVM for code generation: • A low-level assembly language like specification used by LLVM for representing code during compilation. • Generating IR using IRBuilder – Part of C++ API provided by LLVM. – Programmatically assemble IR modules/functions instruction by instruction. • Generating IR using Cross-compilation – Clang C++ compiler as a frontend to LLVM. – Compile C++ functions to corresponding IR code.

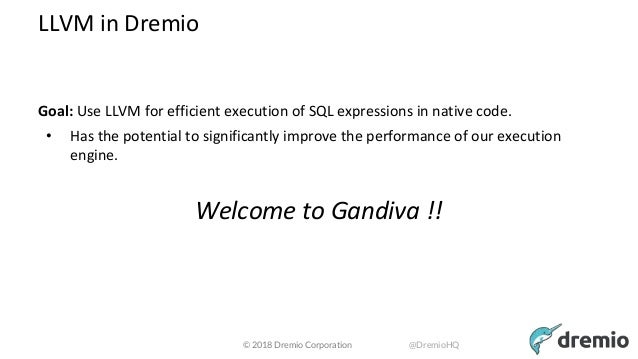

18. © 2018 Dremio Corporation @DremioHQ LLVM in Dremio Goal: Use LLVM for efficient execution of SQL expressions in native code. • Has the potential to significantly improve the performance of our execution engine. Welcome to Gandiva !!

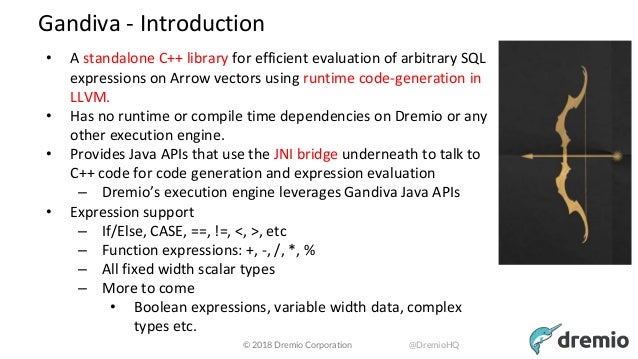

19. © 2018 Dremio Corporation @DremioHQ Gandiva - Introduction • A standalone C++ library for efficient evaluation of arbitrary SQL expressions on Arrow vectors using runtime code-generation in LLVM. • Has no runtime or compile time dependencies on Dremio or any other execution engine. • Provides Java APIs that use the JNI bridge underneath to talk to C++ code for code generation and expression evaluation – Dremio’s execution engine leverages Gandiva Java APIs • Expression support – If/Else, CASE, ==, !=, <, >, etc – Function expressions: +, -, /, *, % – All fixed width scalar types – More to come • Boolean expressions, variable width data, complex types etc.

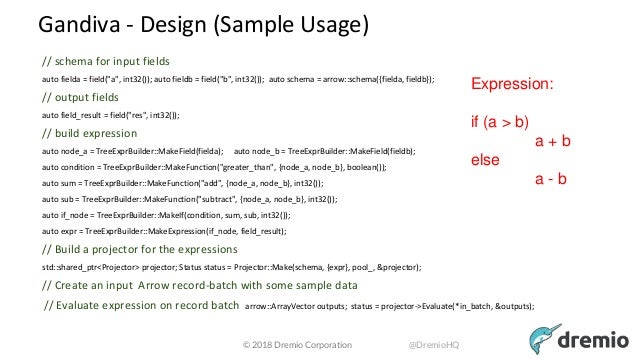

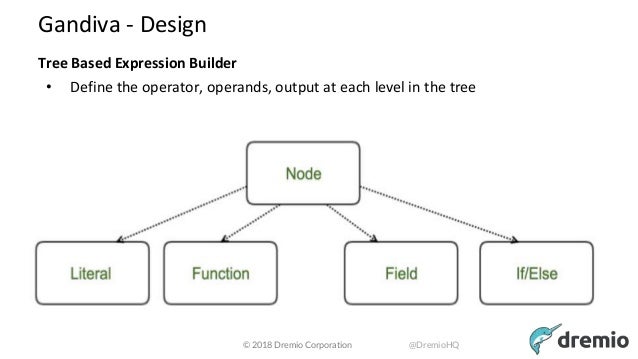

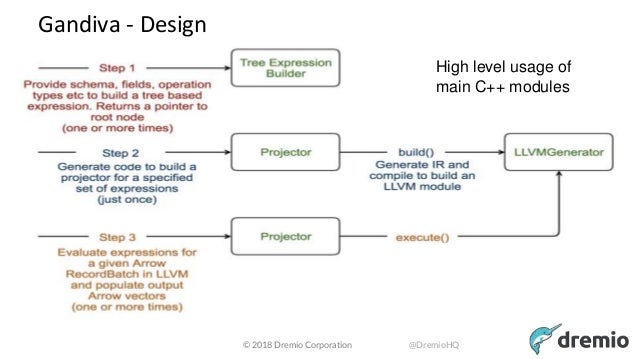

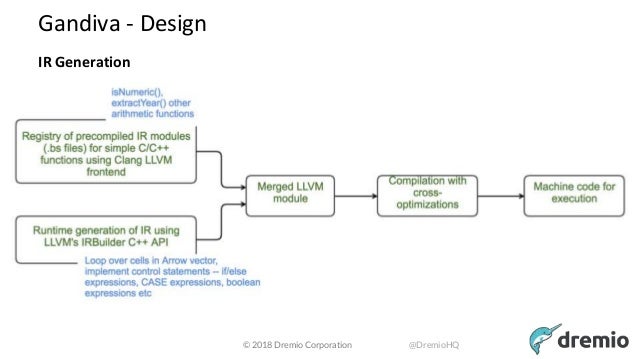

23. © 2018 Dremio Corporation @DremioHQ Gandiva - Design (Sample Usage) // schema for input fields auto fielda = field("a", int32()); auto fieldb = field("b", int32()); auto schema = arrow::schema({fielda, fieldb}); // output fields auto field_result = field("res", int32()); // build expression auto node_a = TreeExprBuilder::MakeField(fielda); auto node_b = TreeExprBuilder::MakeField(fieldb); auto condition = TreeExprBuilder::MakeFunction("greater_than", {node_a, node_b}, boolean()); auto sum = TreeExprBuilder::MakeFunction("add", {node_a, node_b}, int32()); auto sub = TreeExprBuilder::MakeFunction("subtract", {node_a, node_b}, int32()); auto if_node = TreeExprBuilder::MakeIf(condition, sum, sub, int32()); auto expr = TreeExprBuilder::MakeExpression(if_node, field_result); // Build a projector for the expressions std::shared_ptr<Projector> projector; Status status = Projector::Make(schema, {expr}, pool_, &projector); // Create an input Arrow record-batch with some sample data // Evaluate expression on record batch arrow::ArrayVector outputs; status = projector->Evaluate(*in_batch, &outputs); Expression: if (a > b) a + b else a - b

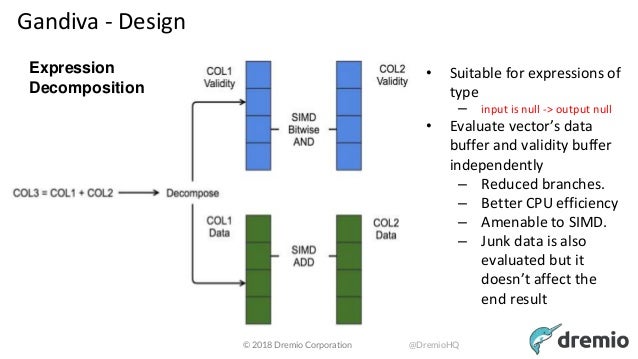

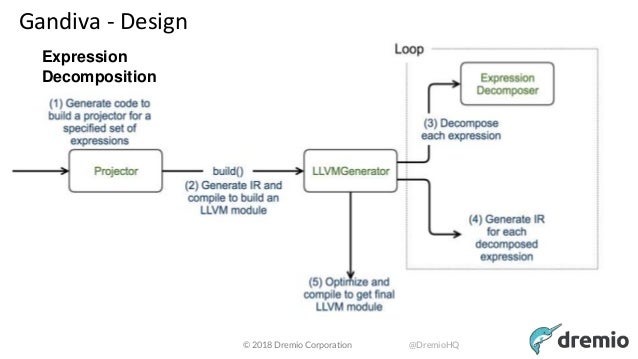

24. © 2018 Dremio Corporation @DremioHQ Gandiva - Design • Suitable for expressions of type – input is null -> output null • Evaluate vector’s data buffer and validity buffer independently – Reduced branches. – Better CPU efficiency – Amenable to SIMD. – Junk data is also evaluated but it doesn’t affect the end result Expression Decomposition

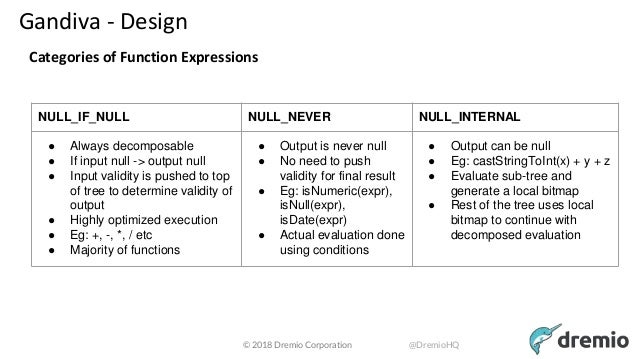

26. © 2018 Dremio Corporation @DremioHQ Gandiva - Design Categories of Function Expressions NULL_IF_NULL NULL_NEVER NULL_INTERNAL ● Always decomposable ● If input null -> output null ● Input validity is pushed to top of tree to determine validity of output ● Highly optimized execution ● Eg: +, -, *, / etc ● Majority of functions ● Output is never null ● No need to push validity for final result ● Eg: isNumeric(expr), isNull(expr), isDate(expr) ● Actual evaluation done using conditions ● Output can be null ● Eg: castStringToInt(x) + y + z ● Evaluate sub-tree and generate a local bitmap ● Rest of the tree uses local bitmap to continue with decomposed evaluation

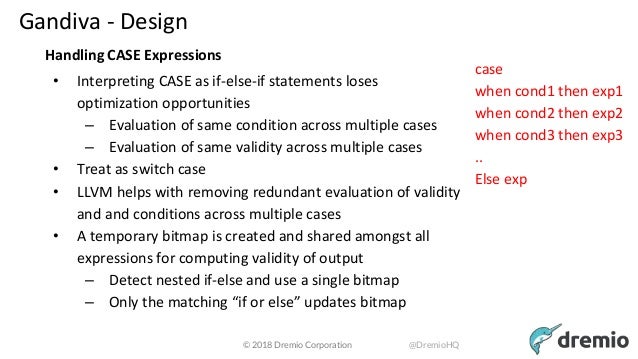

27. © 2018 Dremio Corporation @DremioHQ Gandiva - Design Handling CASE Expressions • Interpreting CASE as if-else-if statements loses optimization opportunities – Evaluation of same condition across multiple cases – Evaluation of same validity across multiple cases • Treat as switch case • LLVM helps with removing redundant evaluation of validity and and conditions across multiple cases • A temporary bitmap is created and shared amongst all expressions for computing validity of output – Detect nested if-else and use a single bitmap – Only the matching “if or else” updates bitmap case when cond1 then exp1 when cond2 then exp2 when cond3 then exp3 .. Else exp

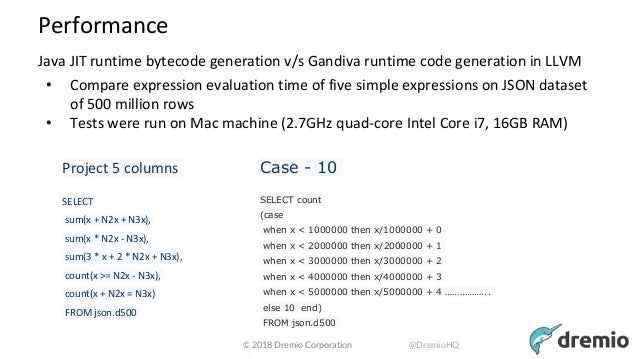

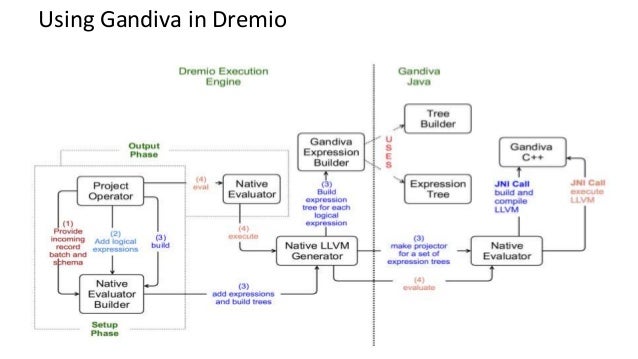

29. © 2018 Dremio Corporation @DremioHQ Performance Java JIT runtime bytecode generation v/s Gandiva runtime code generation in LLVM • Compare expression evaluation time of five simple expressions on JSON dataset of 500 million rows • Tests were run on Mac machine (2.7GHz quad-core Intel Core i7, 16GB RAM) Project 5 columns SELECT sum(x + N2x + N3x), sum(x * N2x - N3x), sum(3 * x + 2 * N2x + N3x), count(x >= N2x - N3x), count(x + N2x = N3x) FROM json.d500 Case - 10 SELECT count (case when x < 1000000 then x/1000000 + 0 when x < 2000000 then x/2000000 + 1 when x < 3000000 then x/3000000 + 2 when x < 4000000 then x/4000000 + 3 when x < 5000000 then x/5000000 + 4 ……………... else 10 end) FROM json.d500

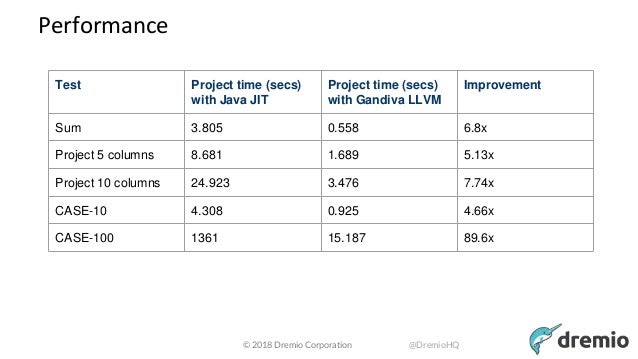

30. © 2018 Dremio Corporation @DremioHQ Performance Test Project time (secs) with Java JIT Project time (secs) with Gandiva LLVM Improvement Sum 3.805 0.558 6.8x Project 5 columns 8.681 1.689 5.13x Project 10 columns 24.923 3.476 7.74x CASE-10 4.308 0.925 4.66x CASE-100 1361 15.187 89.6x

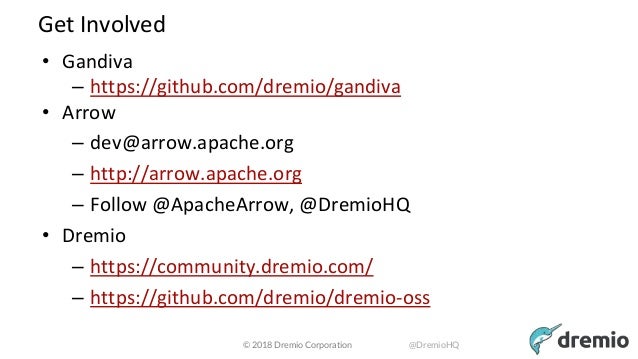

31. © 2018 Dremio Corporation @DremioHQ Get Involved • Gandiva – https://github.com/dremio/gandiva • Arrow – dev@arrow.apache.org – http://arrow.apache.org – Follow @ApacheArrow, @DremioHQ • Dremio – https://community.dremio.com/ – https://github.com/dremio/dremio-oss
