1. LINE , LINE LINE 1

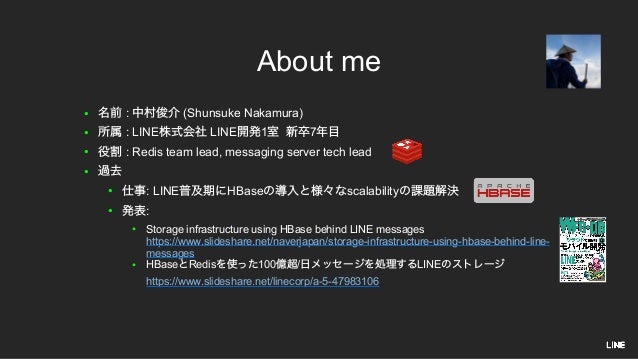

2. About me ● : (Shunsuke Nakamura) ● : LINE LINE 1 7 ● : Redis team lead, messaging server tech lead ● ● : LINE HBase scalability ● : ● Storage infrastructure using HBase behind LINE messages   https://www.slideshare.net/naverjapan/storage-infrastructure-using-hbase-behind-line- messages ● HBase Redis 100 / LINE   https://www.slideshare.net/linecorp/a-5-47983106

3. Redis Talk for LINE messaging ● ● RedisConf18 @ San Francisco ● Redis at LINE, 25 Billion Messages Per Day  https://www.slideshare.net/RedisLabs/redisconf18-redis-at- line-25-billion-messages-per-day (open today!) ● Tech Planet 2015 @ Korea ● LINE Redis Cluster   https://www.slideshare.net/lovejinstar/redis-at-line-tech- planet-2015 ●

4. Agenda ● How LINE messaging uses Redis ● Redis details for LINE messaging ● Challenge to Redis3.2 official cluster ● Redis hotspots daily handling

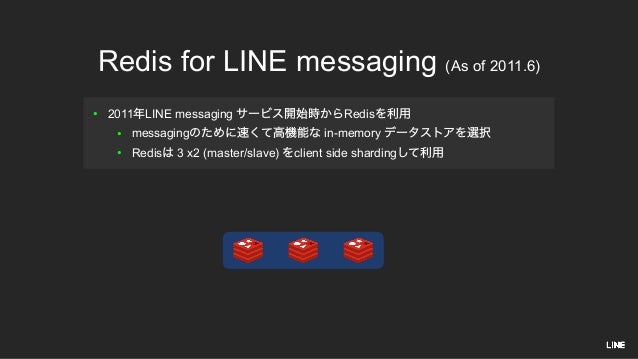

5. ● 2011 LINE messaging Redis ● messaging in-memory ● Redis 3 x2 (master/slave) client side sharding Redis for LINE messaging (As of 2011.6)

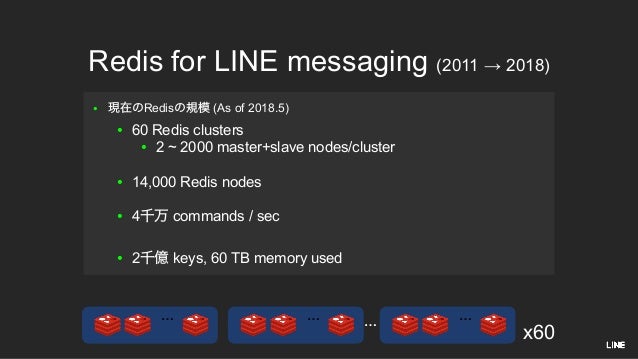

6. ● Redis (As of 2018.5) ● 60 Redis clusters ● 2 ~ 2000 master+slave nodes/cluster ● 14,000 Redis nodes ● 4 commands / sec ● 2 keys, 60 TB memory used Redis for LINE messaging (2011 → 2018) … …… … x60

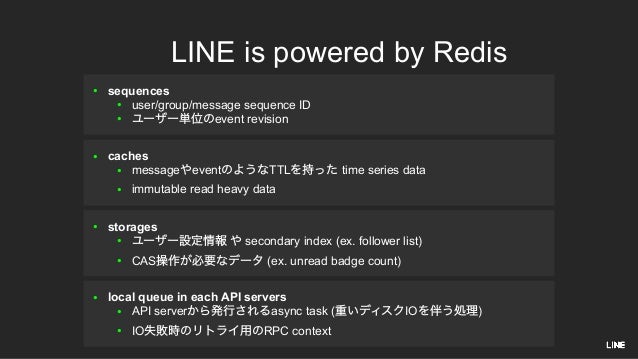

7. ● sequences ● user/group/message sequence ID ● event revision ● caches ● message event TTL time series data ● immutable read heavy data LINE is powered by Redis ● storages ● secondary index (ex. follower list) ● CAS (ex. unread badge count) ● local queue in each API servers ● API server async task ( IO ) ● IO RPC context

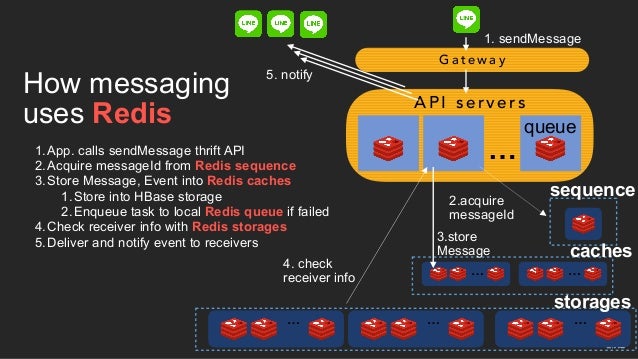

8. 1.App. calls sendMessage thrift API 2.Acquire messageId from Redis sequence 3.Store Message, Event into Redis caches 1.Store into HBase storage 2.Enqueue task to local Redis queue if failed 4.Check receiver info with Redis storages 5.Deliver and notify event to receivers How messaging uses Redis G a t e w a y A P I s e r v e r s … queue … … … … … 1. sendMessage sequence caches storages 2.acquire   messageId 3.store Message 4. check  receiver info 5. notify

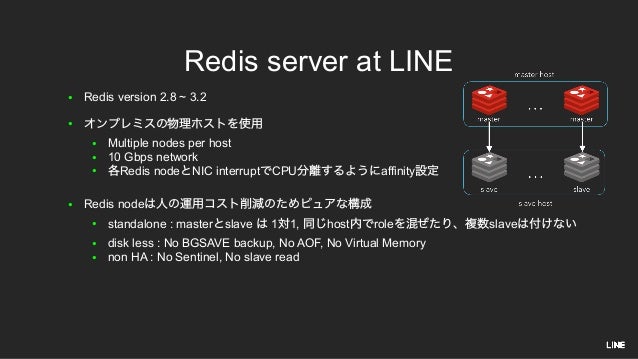

9. Redis server at LINE ● Redis version 2.8 ~ 3.2 ● ● Multiple nodes per host ● 10 Gbps network ● Redis node NIC interrupt CPU affinity   ● Redis node ● standalone : master slave 1 1, host role slave ● disk less : No BGSAVE backup, No AOF, No Virtual Memory ● non HA : No Sentinel, No slave read

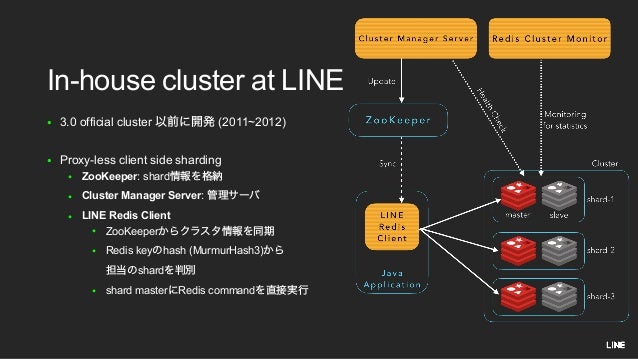

10. In-house cluster at LINE ● 3.0 official cluster (2011~2012) ● Proxy-less client side sharding ● ZooKeeper: shard ● Cluster Manager Server: ● LINE Redis Client ● ZooKeeper ● Redis key hash (MurmurHash3)   shard ● shard master Redis command

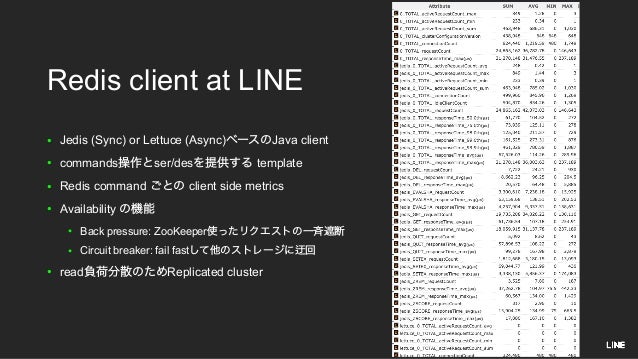

11. Redis client at LINE ● Jedis (Sync) or Lettuce (Async) Java client ● commands ser/des template ● Redis command client side metrics ● Availability ● Back pressure: ZooKeeper ● Circuit breaker: fail fast ● read Replicated cluster

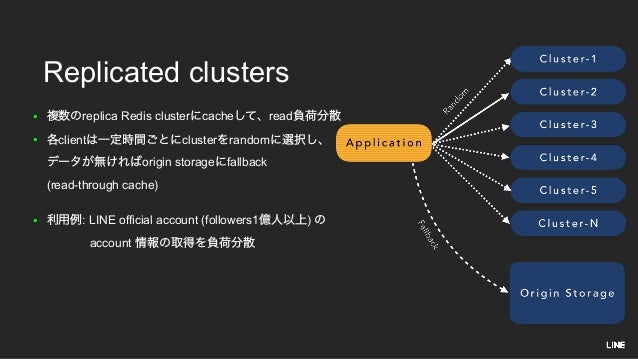

12. Replicated clusters ● replica Redis cluster cache read ● client cluster random   origin storage fallback   (read-through cache)  ● : LINE official account (followers1 )   account

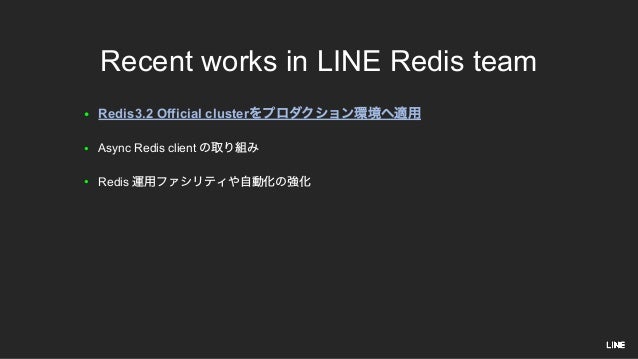

13. Recent works in LINE Redis team ● Redis3.2 Official cluster ● Async Redis client ● Redis

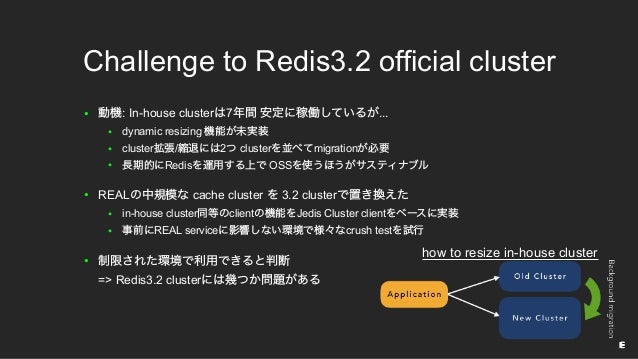

14. Challenge to Redis3.2 official cluster ● : In-house cluster 7 ... ● dynamic resizing ● cluster / 2 cluster migration ● Redis OSS ● REAL cache cluster 3.2 cluster ● in-house cluster client Jedis Cluster client ● REAL service crush test ●   => Redis3.2 cluster how to resize in-house cluster

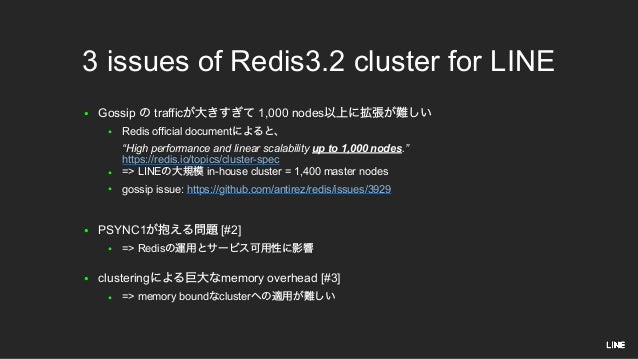

15. 3 issues of Redis3.2 cluster for LINE ● Gossip traffic 1,000 nodes ● Redis official document   “High performance and linear scalability up to 1,000 nodes.”  https://redis.io/topics/cluster-spec ● => LINE in-house cluster = 1,400 master nodes ● gossip issue: https://github.com/antirez/redis/issues/3929 ● PSYNC1 [#2] ● => Redis ● clustering memory overhead [#3] ● => memory bound cluster

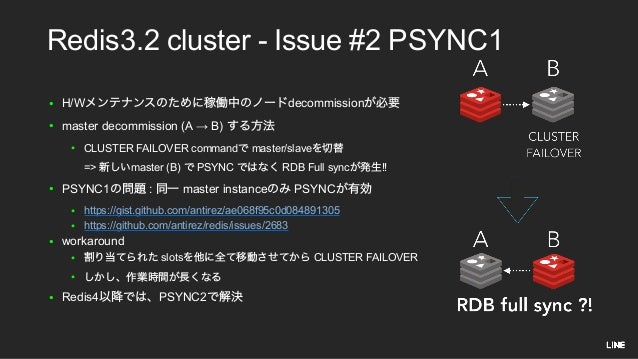

16. Redis3.2 cluster - Issue #2 PSYNC1 ● H/W decommission ● master decommission (A → B) ● CLUSTER FAILOVER command master/slave   => master (B) PSYNC RDB Full sync !! ● PSYNC1 : master instance PSYNC ● https://gist.github.com/antirez/ae068f95c0d084891305 ● https://github.com/antirez/redis/issues/2683 ● workaround ● slots CLUSTER FAILOVER ● ● Redis4 PSYNC2

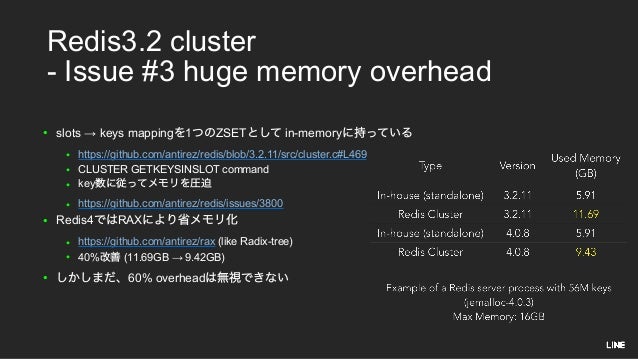

17. Redis3.2 cluster   - Issue #3 huge memory overhead ● slots → keys mapping 1 ZSET in-memory ● https://github.com/antirez/redis/blob/3.2.11/src/cluster.c#L469 ● CLUSTER GETKEYSINSLOT command ● key ● https://github.com/antirez/redis/issues/3800 ● Redis4 RAX ● https://github.com/antirez/rax (like Radix-tree) ● 40% (11.69GB → 9.42GB) ● 60% overhead

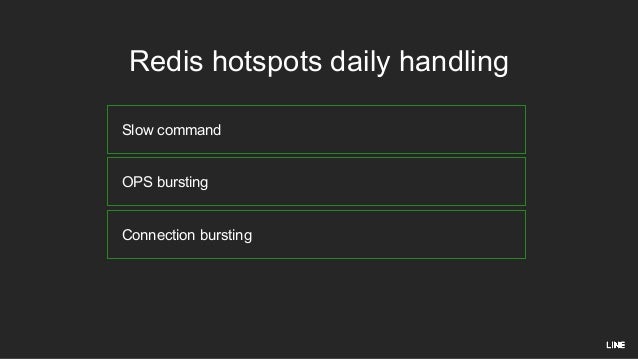

18. Redis hotspots daily handling Slow command OPS bursting Connection bursting

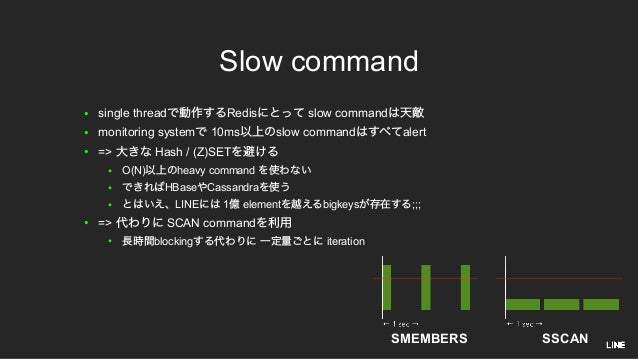

19. Slow command ● single thread Redis slow command ● monitoring system 10ms slow command alert ● => Hash / (Z)SET ● O(N) heavy command ● HBase Cassandra ● LINE 1 element bigkeys ;;; ● => SCAN command ● blocking iteration SMEMBERS SSCAN

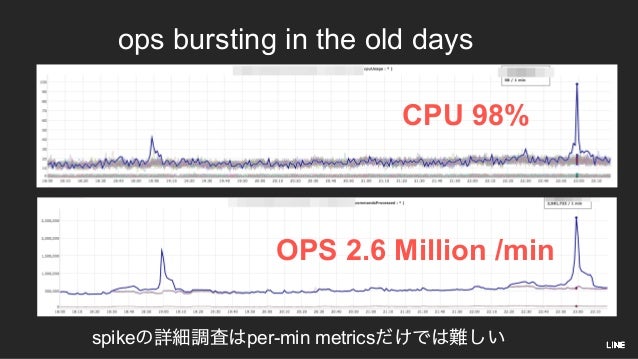

20. ops bursting in the old days OPS 2.6 Million /min spike per-min metrics CPU 98%

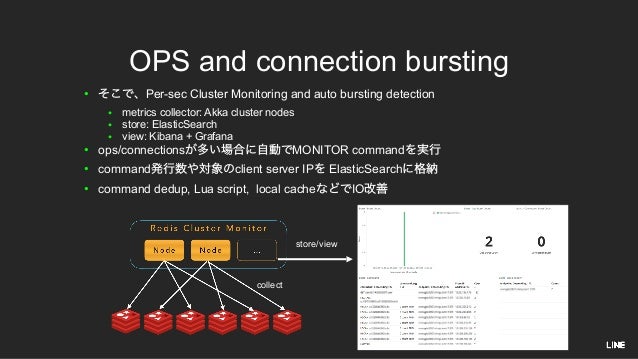

21. OPS and connection bursting ● Per-sec Cluster Monitoring and auto bursting detection ● metrics collector: Akka cluster nodes ● store: ElasticSearch ● view: Kibana + Grafana ● ops/connections MONITOR command ● command client server IP ElasticSearch ● command dedup, Lua script, local cache IO collect store/view

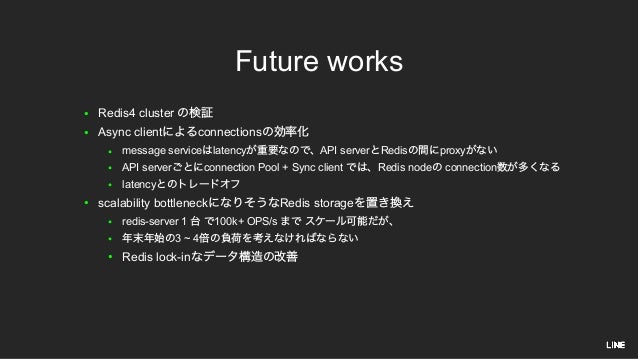

22. Future works ● Redis4 cluster ● Async client connections ● message service latency API server Redis proxy ● API server connection Pool + Sync client Redis node connection ● latency ● scalability bottleneck Redis storage ● redis-server 1 100k+ OPS/s ● 3 ~ 4 ● Redis lock-in

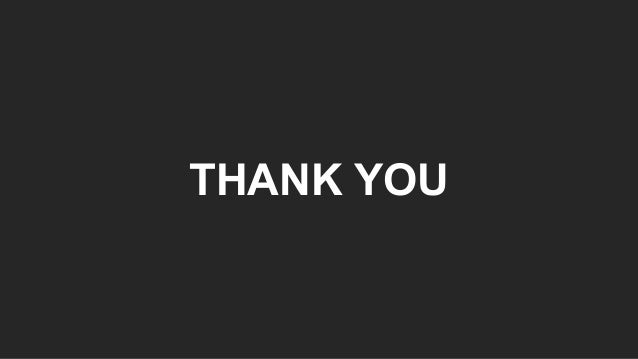

23. THANK YOU
