MySQL Spatial Functions for Geo-Enabled Applications

Geo-enabled (or location enabled) applications are very common nowadays and many of them use MySQL spatial functions. The common tasks for such applications are:

• Find all points of interests (i.e. coffee shops) around (i.e. a 10 mile radius) the given location (latitude and longitude). For example we want to show this to a user of the mobile application when we know his/her approximate location. (This usually means we need to calculate a distance between 2 points on Earth).
• Find a ZIP code (U.S. Postal address) for the given location or determine if this location is within the given area. Another example is to find a school district for the given property.

MySQL spatial functions were originally included (implementation follows a subset of OpenGIS standard). However, there are 2 major limitation of MySQL spatial functions that can make it difficult to use those functions in geo-enabled applications:

• Distance between 2 points.  The “distance” function was not implemented before MySQL 5.6. In addition (even in MySQL 5.6), all calculations (e.g. distance between 2 points) are done using a planar coordinate system (Euclidean geometry). For the distance between 2 points on Earth this can produce incorrect results.
• Determine if the point is inside a polygon. Before MySQL 5.6 the functions that test the spatial relationships between 2 geometries (i.e. find if the given point is within a polygon) only used a Minimum Bounding Rectangle (MBR). This is a major limitation for example #2 above (I will explain it below).

In my old presentation for the 2006 MySQL User Conference I  showed how to calculate distances on Earth in MySQL without using the MySQL spatial functions. In short, one can store the latitude and longitude coordinates directly in MySQL fields (decimal) and use a haversine  formula to calculate distance.

New MySQL Spatial Functions in 5.6

The good news is:

1) MySQL 5.6 adds a set of new functions (some of them are not 100% documented though) that use the object shapes rather than the MBR to calculate spatial relationships. Those new functions begins with “ST_”, i.e.

• contains(g1, g2)  uses MBR only (not exact!)
• st_contains(g1, g2) uses exact shapes

2) MySQL 5.6 implements st_distance(g1, g2) function that calculates the distance between 2 geometries, which is currently not documented (I’ve filed the feature request to document the st_distance function in MySQL)

The bad news is:

1) All functions still only use the planar system coordinates. Different SRIDs are not supported.

2) Spatial indexes (RTREE) are only supported for MyISAM tables. One can use the functions for InnoDB tables, but it will not use spatial keys.

Example of MySQL’s MBR “false positives”

To illustrate why we do not want to use MBR-based functions for geospatial search, I’ve generated 2 polygons that represent 2 zip code boundaries in San Francisco, CA and placed it on Google Maps.

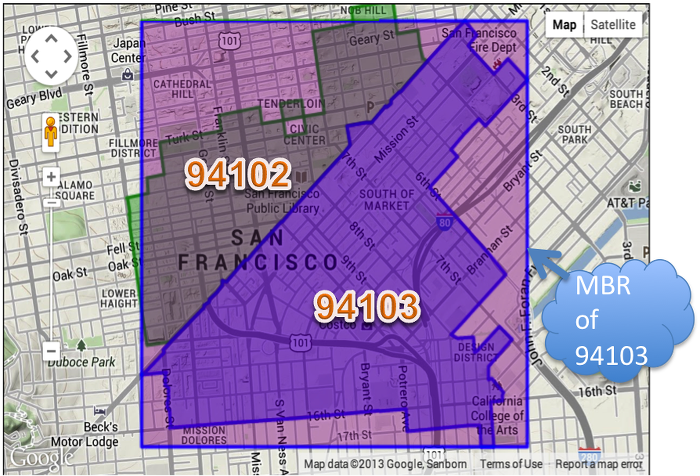

The blue rectangle represents the Minimum Bounding Rectangle of Zip code “91102” (I’ve used envelope() mysql function to obtain coordinates for the MBR). As we can see it covers both zip code 94103 and 94102. In this case if we have coordinates of a building in the city’s “south of market” district (ZIP 91103) and try to find a zip code it belongs to using the “contains()” function we will have a “false positives”:

In this particular example we got 3 zip codes as the MBR of 94158 also overlaps this area. Another point in “south of market” can actually produce 4 different zip codes. However, in MySQL 5.6 we can use the new st_contains function:

As we can see st_contains() produces the correct results.

Find a ZIP code for the given location

Starting with MySQL 5.6 one can use the MySQL spatial functions st_contains or st_within to find if the given point is inside the given polygon. In our scenario we will need to find the zip code for the given latitude and longitude. To do that in MySQL we can perform the following steps:

1. Load the zip code boundaries into MySQL as a multipoligon. There are a number of ways to get this done, one way is to download the shape files from the Census website and convert them to MySQL using org2org utility. (I will describe this in more detail in upcoming blog posts). The data will be stored as MySQL Geometry object, to convert it to text we can use astext(geom) function.
2. Use the st_contains() or st_within() functions:

   MySQL

   mysql> select zip from postalcodes where st_contains(geom, point(-122.409153, 37.77765)); +-------+ | zip | +-------+ | 94103 | +-------+ 1 row in set (0.00 sec)

   1 2 3 4 5 6 7

   mysql> select zip from postalcodes where st_contains(geom, point(-122.409153, 37.77765)); +-------+ | zip   | +-------+ | 94103 | +-------+ 1 row in set (0.00 sec)


   or

   MySQL

   mysql> select zip from postalcodes where st_within(point(-122.409153, 37.77765), geom); +-------+ | zip | +-------+ | 94103 | +-------+ 1 row in set (0.00 sec)

   1 2 3 4 5 6 7

   mysql> select zip from postalcodes where st_within(point(-122.409153, 37.77765), geom); +-------+ | zip   | +-------+ | 94103 | +-------+ 1 row in set (0.00 sec)

Spatial Index for “ST_” functions

MyISAM tables support Spatial indexes, so the above queries will use those indexes. Example:

As we can see our spatial index is used for those functions. If we ignore or remove the index, the query will run significantly slower:

The InnoDB engine does not support spatial indexes, so those queries will be slow. As zip boundaries does not change often we can potentially use MyISAM tables for them.

Find all coffee shops in a 10-mile radius

MySQL 5.6 supports st_distance functions with 2 drawbacks:

1. It only supports planar coordinates
2. It does not use index

Given those major limitations, it is not very easy to use st_distance function for the geo enabled applications. If we simply need to find a distance between 2 points it is easier to store lat, lon directly and use harvesine expression (as described above).

However it is still possible to use the st_distance() if we do not need exact numbers for the distance between 2 points (i.e. we only need to sort by distance). In our example, to find all coffee shops we will need to:

1. Get the 10 mile radius MBR and use “within()” or “st_within()” function
2. Use st_distance function in the order by clause

First, we will calculate an envelope (square) to include approximately 10 miles, using the following approximations:

• 1 degree of latitude ~= 69 miles
• 1 degree of longitude ~= cos(latitude)*69 miles

@lat and @lon in this example are the coordinates for the San Francisco International Airport (SFO).

This will give us a set of coordinates (points) for the lower left and upper right corner of our square. Then we can use a MySQL’s envelope function to generate the MBR (we use linestring to draw a line between the 2 generated points and then envelope to draw an square):

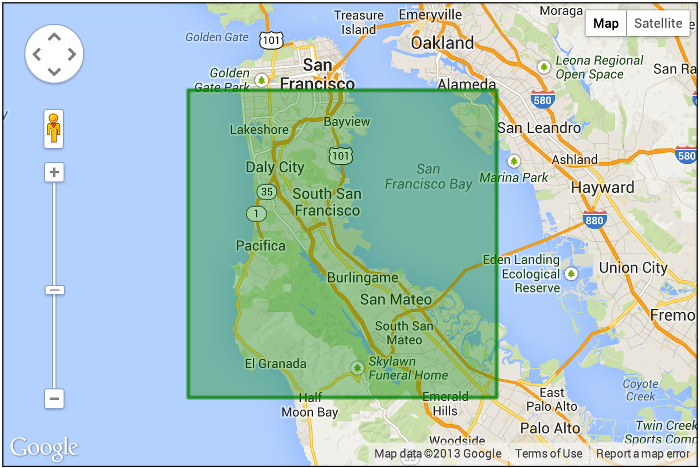

The “envelope” will look like this:

This is not exactly a 10-mile radius, however it may be close enough. Now we can find all points around SFO airport and sort by distance.

As we can see from the explain it will use the spatial key on SHAPE and will only scan 430 rows, rather than millions of POIs.

The query does not show the exact distance (this may be ok if we only need to output the points on the map).  If we need to show the distance we can use the harvesine formula to calculate that. For example we can create the following stored function to implement the calculations:

And then use it for both order by and to displaying the distance. This query will also filter by “coffee”:

Conclusion

MySQL 5.6 implements an additional set of functions that can help create geo-enabled applications with MySQL. Storing polygons boundaries (ZIP code boundaries for example) is efficient and the new spatial functions (st_within, st_contains, etc) will produce correct results and will use spatial (rtree) indexes (for MyISAM tables only). The OpenGIS standard is very common and it is easy to obtain the data in this format or use the standard application which can “talk” this language.

Unfortunately, st_distance function is not very usable for calculating distance between 2 points on Earth and it does not use an index. In this case it is still more feasible to calculate distances manually using the harvesine formula. Hopefully this will be fixed in the next mysql release.

There are also some other limitations, for example st_union() function only supports 2 arguments and does not support an array, so it can’t be used in a queries like “select st_union(geom) from zipcodes group by state”.

Links

• New spatial functions in MySQL 5.6
• Harvesine formula in Wikipedia
• My 2006 MySQL User Conference talk: geo search in MySQL and how to effectively calculate distance between 2 points in MySQL using harvesine formula
• Henric Ingo compares the sptatial functions in MySQL. MariaDB, Postgress and MongoDB: talk at Percona Live conference, blog post
• Opensource POI database download
• Google maps API: I’ve used it to generate pictures for the examples in this post
• Distance between to points on Earth: online distance calculator

And finally, let me know in the comments how you use MySQL for geo enabled applications. In my next post I will talk more about basics of the MySQL geo spatial extension as well as Sphinx Search‘s implementation of the Geospatial functions.
