1. 2nd Place Solution Instacart Market Basket Analysis

2. Agenda • My Background • Problem Overview • Main Approach • Feature Engineering • Feature Importance • Important Findings • F1 maximization

3. My Background • Bachelor of Economics • Programmer of Financial Industry • Consultant of Financial Industry • 2nd Place at KDDCUP2015 • Data Scientist at Yahoo! JAPAN

4. Problem Overview • In this competition, we have to predict reorder. • So, it is little different from general recommendation. • I mean,

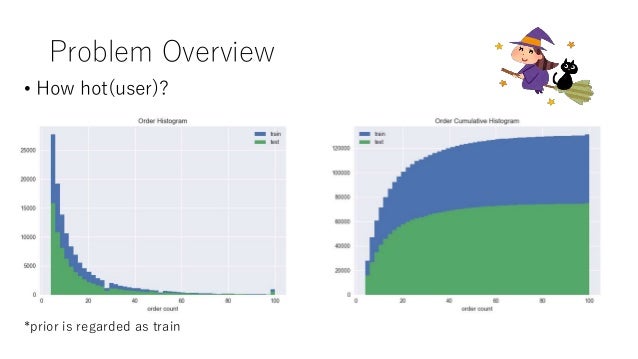

5. Problem Overview • How hot(user)? *prior is regarded as train

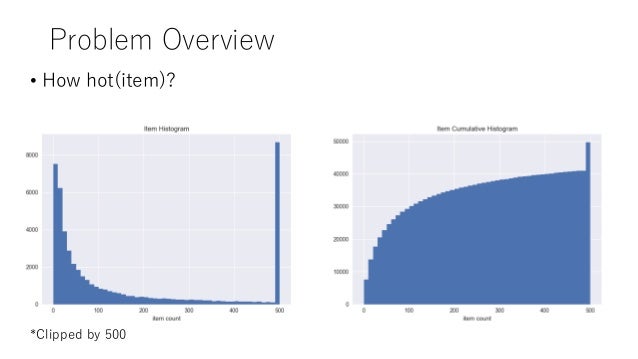

6. Problem Overview • How hot(item)? *Clipped by 500

7. Problem Overview • Evaluation metric is mean F1 score • Precision and Recall

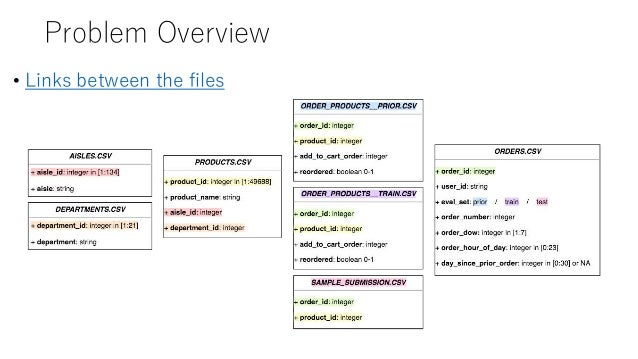

8. Problem Overview • Links between the files

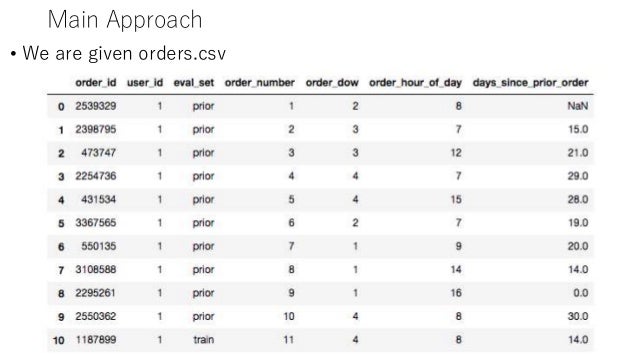

9. Main Approach • We are given orders.csv

10. Main Approach • We are given orders.csv

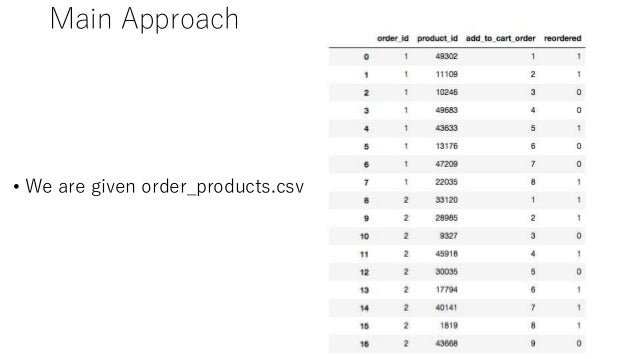

11. Main Approach • We are given order_products.csv

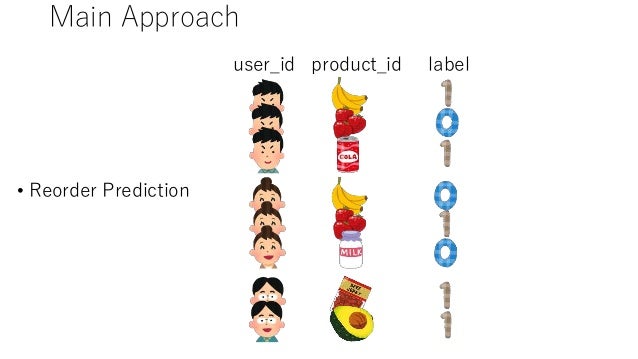

12. Main Approach • Reorder Prediction user_id product_id label

13. Main Approach • None Prediction user_id label

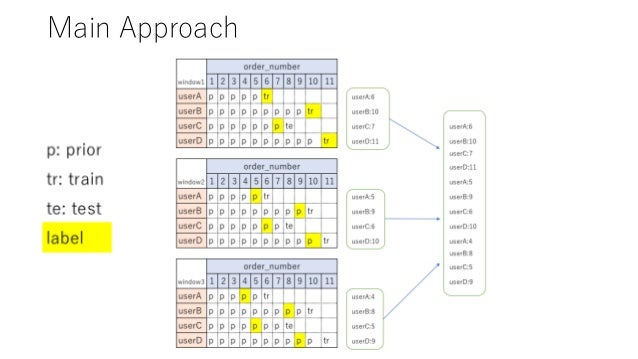

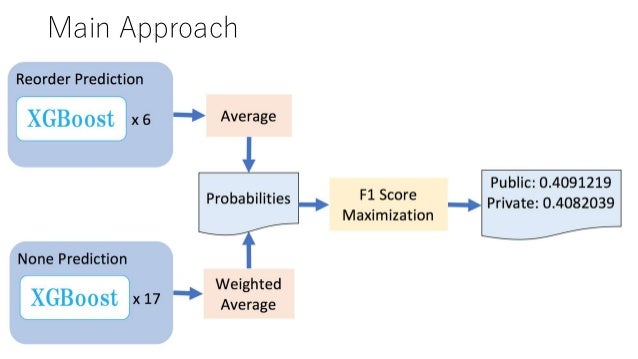

14. Main Approach

15. Main Approach

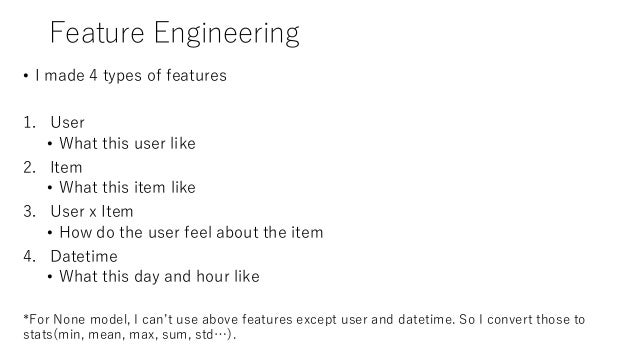

16. Feature Engineering • I made 4 types of features 1. User • What this user like 2. Item • What this item like 3. User x Item • How do the user feel about the item 4. Datetime • What this day and hour like *For None model, I can’t use above features except user and datetime. So I convert those to stats(min, mean, max, sum, std…).

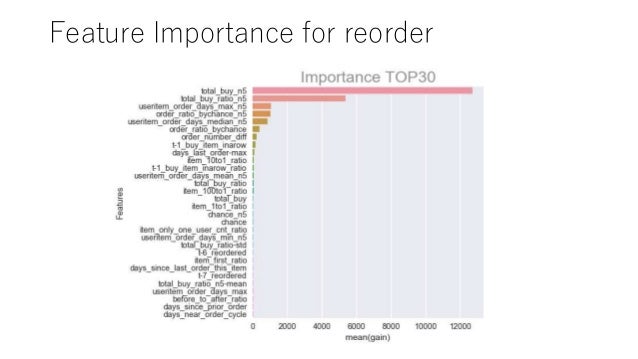

17. Feature Importance for reorder

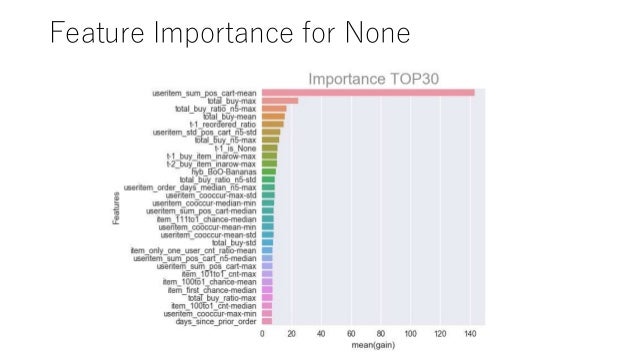

18. Feature Importance for None

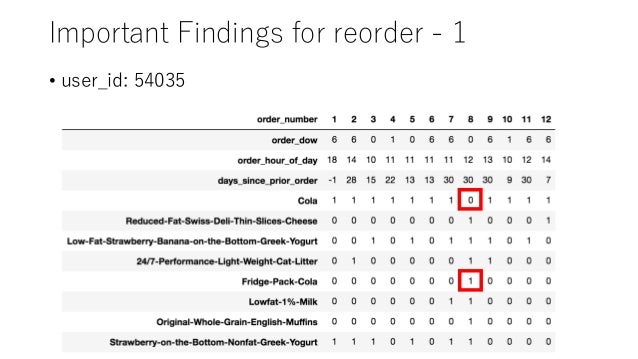

19. Important Findings for reorder - 1 • user_id: 54035

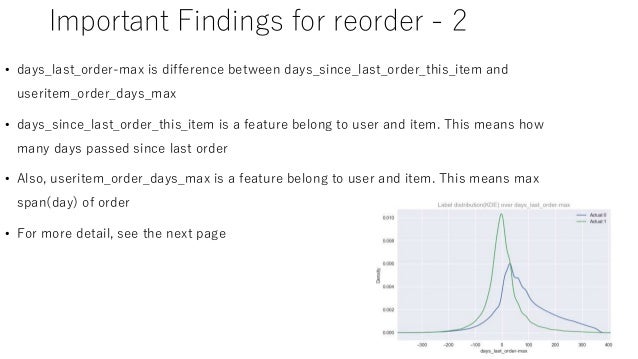

20. Important Findings for reorder - 2 • days_last_order-max is difference between days_since_last_order_this_item and useritem_order_days_max • days_since_last_order_this_item is a feature belong to user and item. This means how many days passed since last order • Also, useritem_order_days_max is a feature belong to user and item. This means max span(day) of order • For more detail, see the next page

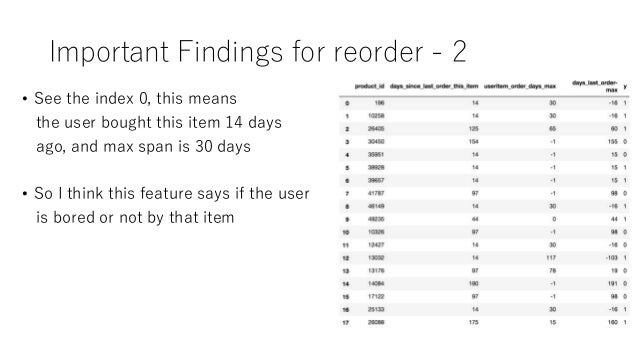

21. Important Findings for reorder - 2 • See the index 0, this means the user bought this item 14 days ago, and max span is 30 days • So I think this feature says if the user is bored or not by that item

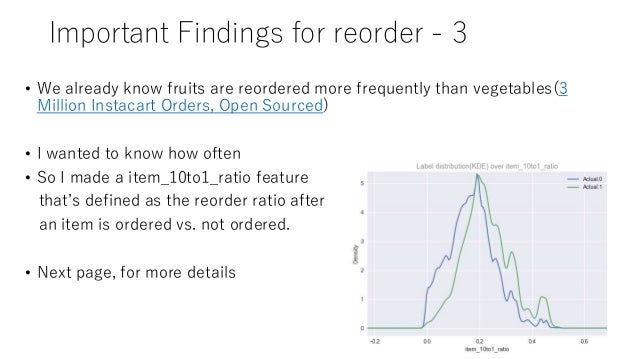

22. Important Findings for reorder - 3 • We already know fruits are reordered more frequently than vegetables(3 Million Instacart Orders, Open Sourced) • I wanted to know how often • So I made a item_10to1_ratio feature that’s defined as the reorder ratio after an item is ordered vs. not ordered. • Next page, for more details

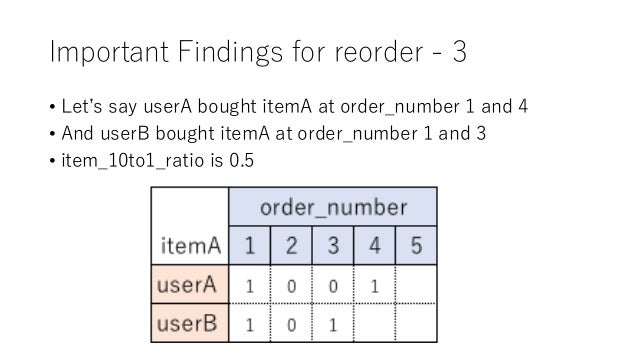

23. Important Findings for reorder - 3 • Let’s say userA bought itemA at order_number 1 and 4 • And userB bought itemA at order_number 1 and 3 • item_10to1_ratio is 0.5

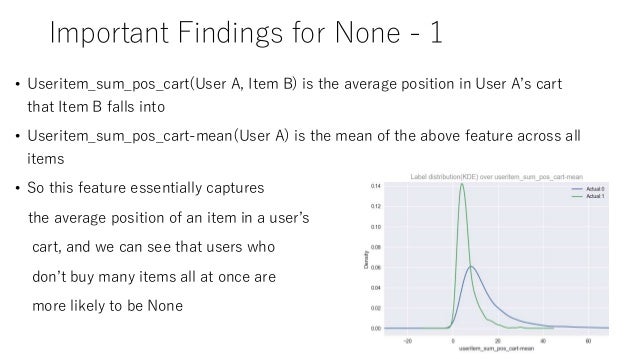

24. Important Findings for None - 1 • Useritem_sum_pos_cart(User A, Item B) is the average position in User A’s cart that Item B falls into • Useritem_sum_pos_cart-mean(User A) is the mean of the above feature across all items • So this feature essentially captures the average position of an item in a user’s cart, and we can see that users who don’t buy many items all at once are more likely to be None

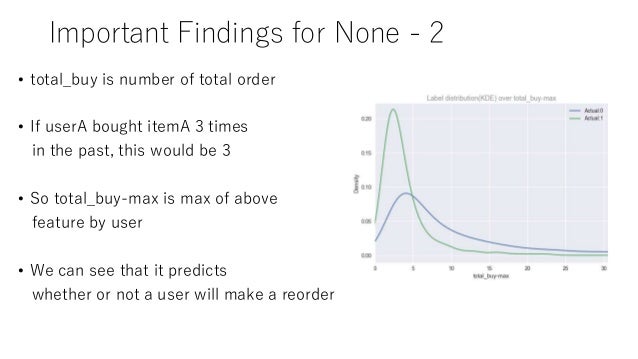

25. Important Findings for None - 2 • total_buy is number of total order • If userA bought itemA 3 times in the past, this would be 3 • So total_buy-max is max of above feature by user • We can see that it predicts whether or not a user will make a reorder

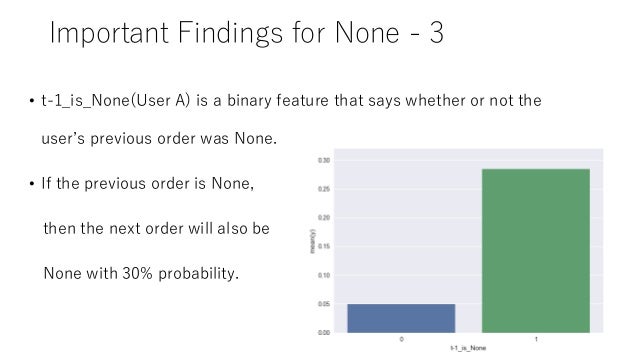

26. Important Findings for None - 3 • t-1_is_None(User A) is a binary feature that says whether or not the user’s previous order was None. • If the previous order is None, then the next order will also be None with 30% probability.

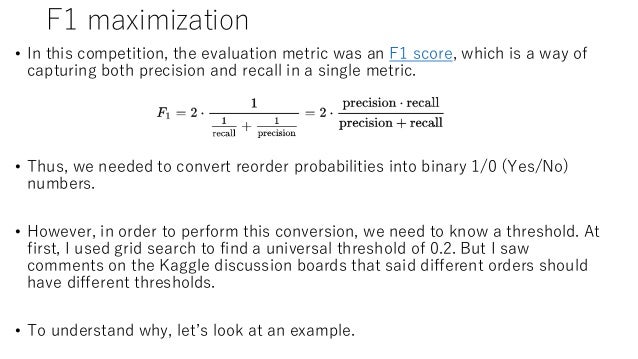

27. F1 maximization • In this competition, the evaluation metric was an F1 score, which is a way of capturing both precision and recall in a single metric. • Thus, we needed to convert reorder probabilities into binary 1/0 (Yes/No) numbers. • However, in order to perform this conversion, we need to know a threshold. At first, I used grid search to find a universal threshold of 0.2. But I saw comments on the Kaggle discussion boards that said different orders should have different thresholds. • To understand why, let’s look at an example.

28. F1 maximization

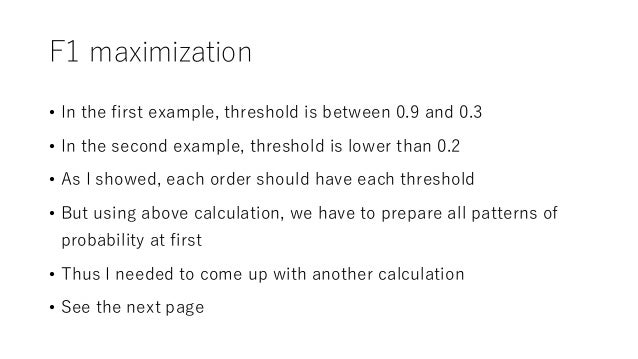

29. F1 maximization • In the first example, threshold is between 0.9 and 0.3 • In the second example, threshold is lower than 0.2 • As I showed, each order should have each threshold • But using above calculation, we have to prepare all patterns of probability at first • Thus I needed to come up with another calculation • See the next page

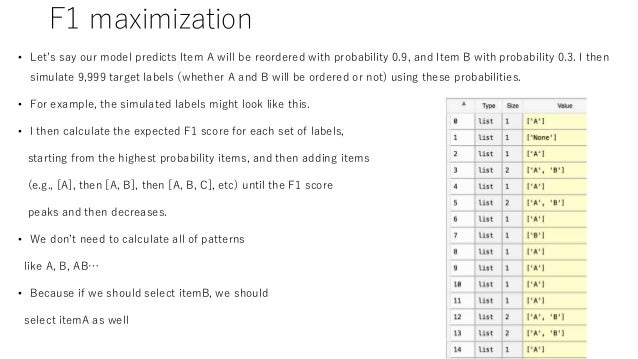

30. F1 maximization • Let’s say our model predicts Item A will be reordered with probability 0.9, and Item B with probability 0.3. I then simulate 9,999 target labels (whether A and B will be ordered or not) using these probabilities. • For example, the simulated labels might look like this. • I then calculate the expected F1 score for each set of labels, starting from the highest probability items, and then adding items (e.g., [A], then [A, B], then [A, B, C], etc) until the F1 score peaks and then decreases. • We don’t need to calculate all of patterns like A, B, AB… • Because if we should select itemB, we should select itemA as well

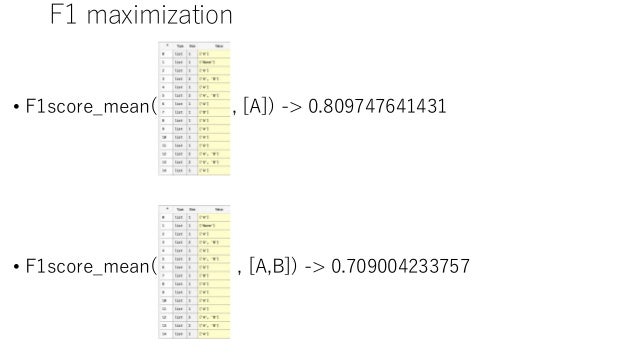

31. F1 maximization • F1score_mean( , [A]) -> 0.809747641431 • F1score_mean( , [A,B]) -> 0.709004233757

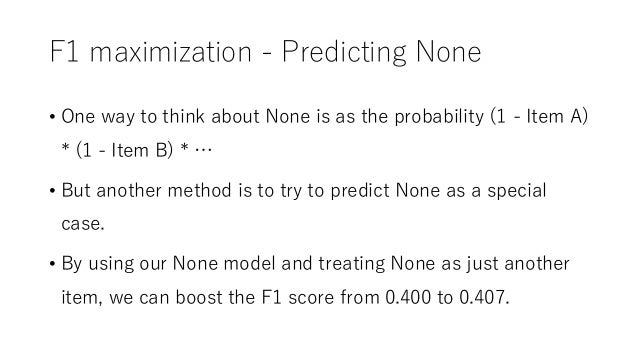

32. F1 maximization - Predicting None • One way to think about None is as the probability (1 - Item A) * (1 - Item B) * … • But another method is to try to predict None as a special case. • By using our None model and treating None as just another item, we can boost the F1 score from 0.400 to 0.407.

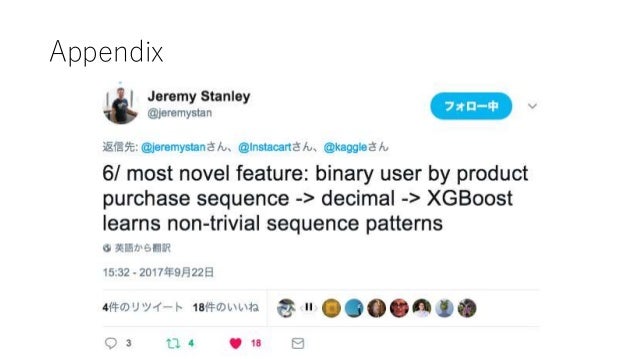

33. Appendix

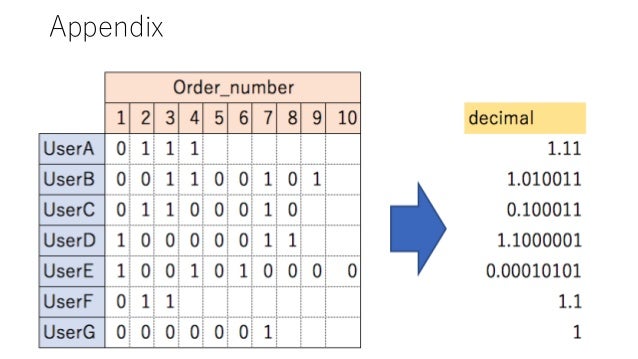

34. Appendix

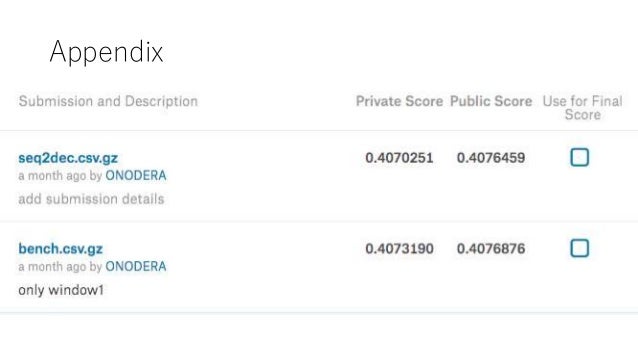

35. Appendix

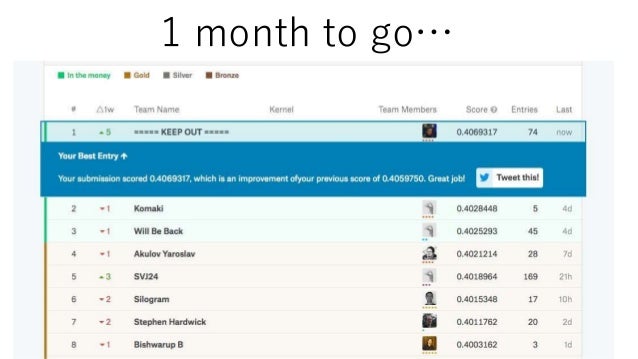

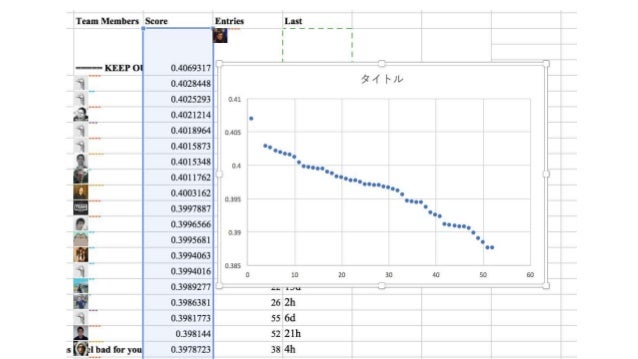

36. 1 month to go…

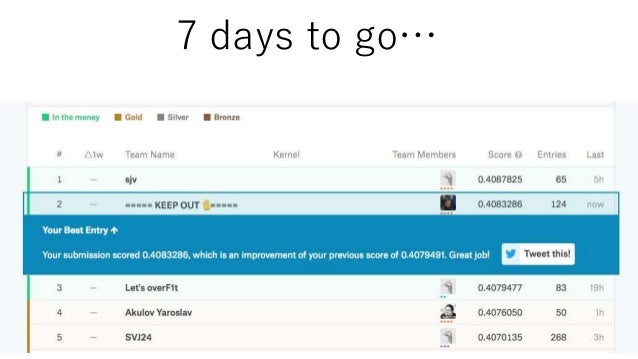

37. 7 days to go…

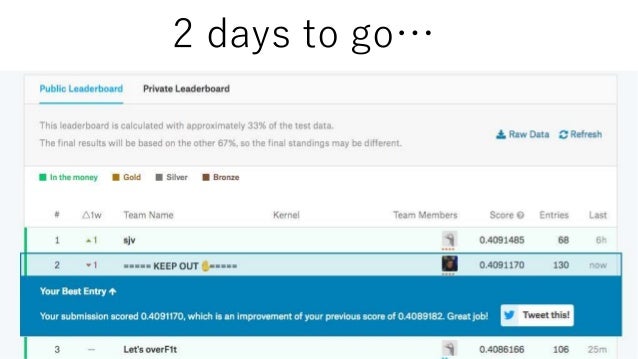

38. 2 days to go…

39. （´-`）.｡oO(

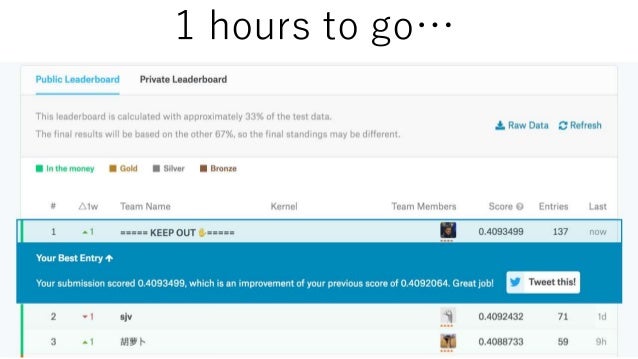

40. 1 hours to go…

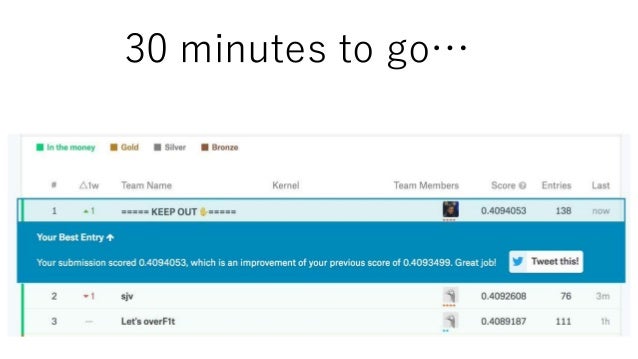

41. 30 minutes to go…

42. やったか？！

43. やったか？！（やってない）

44. 20 minutes to go…

45. EOP
