Marin Speed + Commute
Overview
MSRP • $599.99
Color • Satin Liquid Silver
FITNESS ROAD RIDING
COMMUTING
CITY TRANSIT
The Fairfax and Terra Linda make up our Speed + Commute
line, built for the flat-bar fitness road rider with the accessory
mounts and gear range for the everyday commuter.
| Size | Rider Height Range |
|---|---|
| XS (Fairfax) | 4'11" to 5'2" |
| S (Fairfax) | 5'3" to 5'6" |
| M (Fairfax) | 5'6" to 5'10" |
| L (Fairfax) | 5'10" to 6'2" |
| XL (Fairfax) | 6'2" to 6'4" |
| S (Terra Linda) | 4'11" to 5'2" |
| M (Terra Linda) | 5'3" to 5'6" |
| L (Terra Linda) | 5'6" to 5'10" |
Spec
Frame

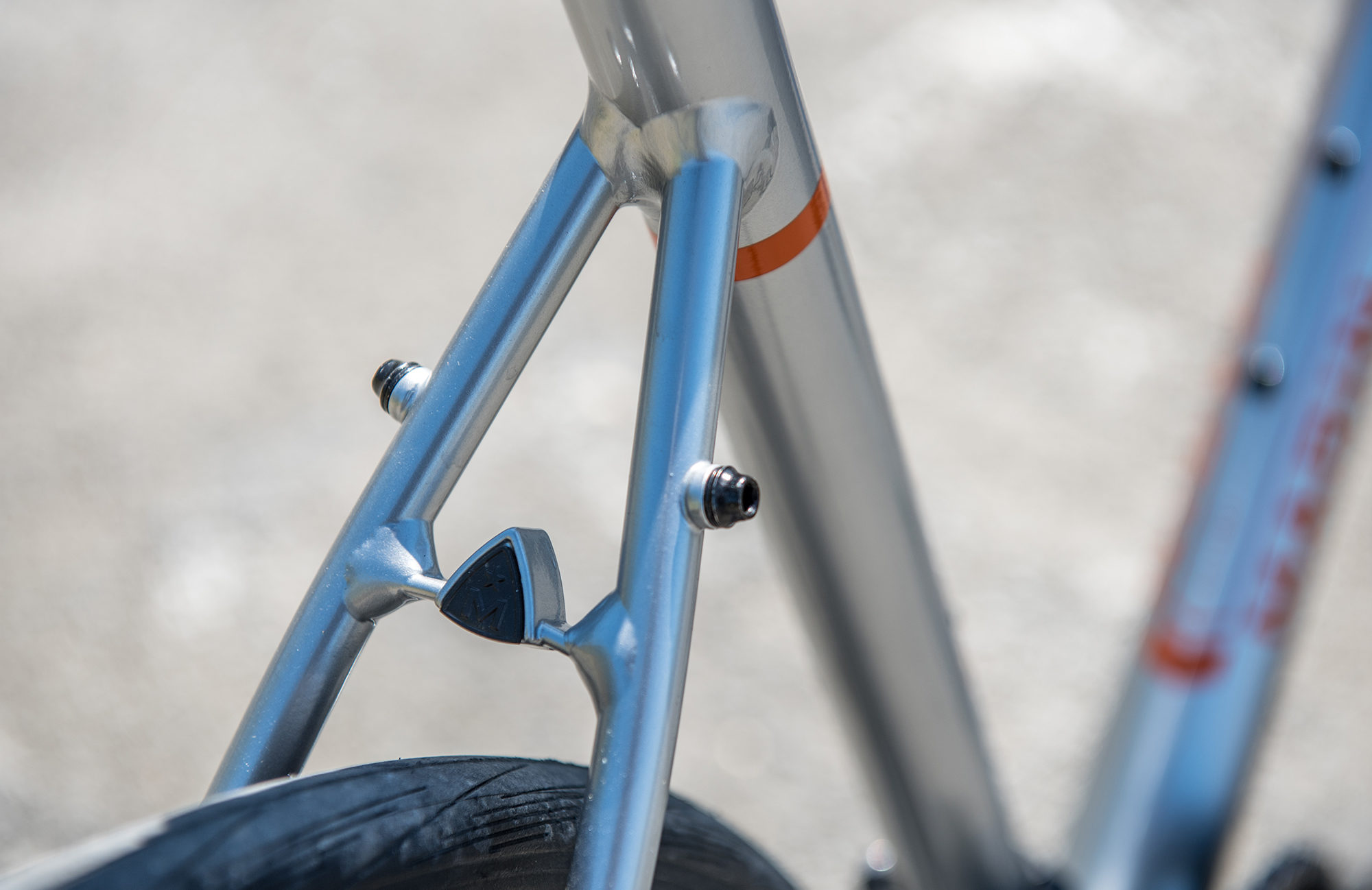

Series 2 Speed + Commute, 6061 Aluminum, 700C Wheels, Internal Cable Routing, Fender and Rack Mounts
Fork
6061 Aluminum, Straight-Blade
Rims
Marin Aluminum Double Wall, Machined Sidewall
Hub Rear
Forged Aluminum Alloy, 32H
Hub Front
Forged Aluminum Alloy, 32H
Spokes
14g Black Stainless Steel
Tires
Schwalbe Road Cruiser, 700Cx32, Kevlar Puncture Protection
Derailleur Rear
Shimano Acera Shadow, 9-Speed
Derailleur Front
Shimano Altus
Shift Lever
Shimano EF510 3x9-Speed
Crankset
SR Suntour XCR6, 48/36/26T, Ring Guard
Bottom Bracket
Sealed Cartridge Bearings, Square Taper
Chain
KMC X9
Cassette
SunRace 9-Speed, 11-34T
Brakes Front
Forged Alloy Linear Pull w/ Power Modulator
Brakes Rear
Forged Alloy Linear Pull
Brake Levers
Shimano w/ Integrated Shifters
Handlebar
Marin Alloy Flat
Stem
Marin 3D Forged Alloy
Grips
Marin Ergonomic Locking
Headset
FSA No.8B
Seatpost
Marin Alloy
Saddle
Marin Fitness Plush
Pedals
Commute Platform
SPECIFICATIONS AND PRICING ARE SUBJECT TO CHANGE WITHOUT NOTICE
Geometry
| Type | XS | S | M | L | XL |
|---|---|---|---|---|---|
| A. STACK (MM) | 557.89 | 576.97 | 596.04 | 615.11 | 643.73 |
| B. REACH (MM) | 384.74 | 394.09 | 403.44 | 411.94 | 423.19 |
| C. HEADTUBE ANGLE | 72.5° | 72.5° | 72.5° | 72.5° | 72.5° |
| D. HEADTUBE LENGTH (MM) | 135 | 155 | 175 | 195 | 225 |
| E. SEATTUBE ANGLE VIRTUAL | 73.5° | 73.5° | 73.5° | 73° | 73° |
| F. SEATTUBE ANGLE ACTUAL | 73.5° | 73.5° | 73.5° | 73° | 73° |
| G. SEATTUBE LENGTH (MM) | 381 | 431.8 | 482.6 | 520.7 | 558.8 |
| H. TOPTUBE ACTUAL (MM) | 530.6 | 542.6 | 557.2 | 574.6 | 596.6 |
| I. TOPTUBE EFFECTIVE (MM) | 550 | 565 | 580 | 600 | 620 |
| J. BOTTOM BRACKET HEIGHT (MM) | 280 | 280 | 280 | 280 | 280 |
| K. BOTTOM BRACKET DROP (MM) | 65 | 65 | 65 | 65 | 65 |
| L. CHAINSTAY (MM) | 432 | 432 | 432 | 432 | 432 |
| M. WHEELBASE (MM) | 1014.42 | 1029.78 | 1045.15 | 1059.66 | 1079.93 |
| N. STANDOVER HEIGHT (MM) | 679.9 | 725.7 | 770 | 803.5 | 839.1 |
| O. FORK OFFSET (MM) | 45 | 45 | 45 | 45 | 45 |
| SEATPOST DIAMETER (MM) | 27.2 | 27.2 | 27.2 | 27.2 | 27.2 |
| HANDLEBAR WIDTH (MM) | 640 | 680 | 680 | 700 | 700 |
| STEM LENGTH (MM) | 70 | 70 | 90 | 90 | 110 |
| CRANK LENGTH (MM) | 170 | 170 | 175 | 175 | 175 |
Technology
Series 1 & 2 Frames
Series 1 frames feature a 6061 aluminum frame with rim brake mounts and rack and fender eyelets. Series 2 frames have lightweight hydroformed tubes and internal cable routing.
Racks/Fenders
Easily outfitted with fenders for wet weather and racks for cargo carrying capacity.
Puncture-Resistant Tires
Puncture-resistant tires greatly reduce the risk of flat tires.
