1. 1. Apache Kafka Best Practices Manikumar Reddy @omkreddy
2. 2. 2 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Apache Kafka  Core APIs – The Producer API – The Consumer API – The Connector API – The Streams API  Broad classes of applications – Building real-time streaming data pipelines – Building real-time streaming applications – core building block in other data systems
3. 3. 3 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Key Concepts and Terminology

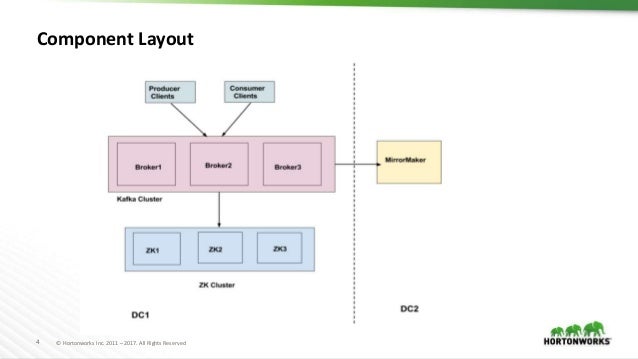

4. 4. 4 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Component Layout

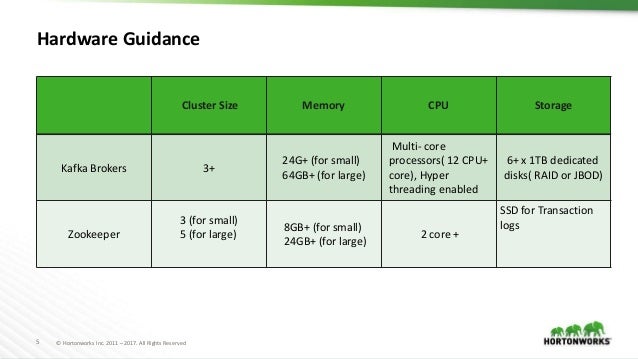

5. 5. 5 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Hardware Guidance Cluster Size Memory CPU Storage Kafka Brokers 3+ 24G+ (for small) 64GB+ (for large) Multi- core processors( 12 CPU+ core), Hyper threading enabled 6+ x 1TB dedicated disks( RAID or JBOD) Zookeeper 3 (for small) 5 (for large) 8GB+ (for small) 24GB+ (for large) 2 core + SSD for Transaction logs

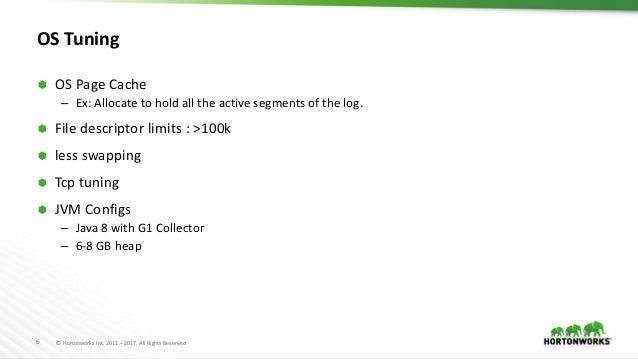

6. 6. 6 © Hortonworks Inc. 2011 – 2017. All Rights Reserved OS Tuning  OS Page Cache – Ex: Allocate to hold all the active segments of the log.  File descriptor limits : >100k  less swapping  Tcp tuning  JVM Configs – Java 8 with G1 Collector – 6-8 GB heap
7. 7. 7 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Kafka Disk Storage  Use multiple disk spindles, dedicated to kafka  JBOD vs RAID10  JBOD – Gives all the disk I/O  JBOD Limitations – any disk failure causes an unclean shutdown and requires lengthy recovery – data is not distributed consistently across disks – Multiple directories  KIP-112/113 – necessary tools for users to manage JBOD – Intelligent partition assignment – On disk failure, broker can serve replicas on the good disks – re-assign replicas between disks of the same broker

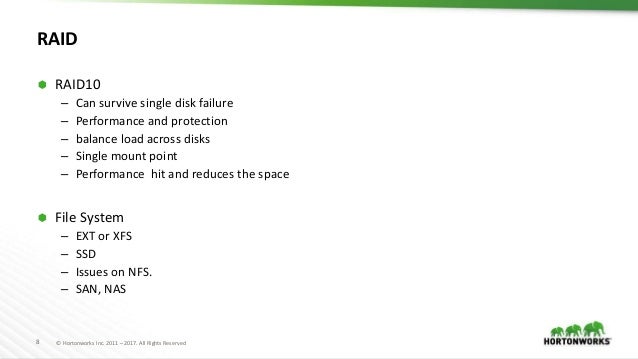

8. 8. 8 © Hortonworks Inc. 2011 – 2017. All Rights Reserved RAID  RAID10 – Can survive single disk failure – Performance and protection – balance load across disks – Single mount point – Performance hit and reduces the space  File System – EXT or XFS – SSD – Issues on NFS. – SAN, NAS

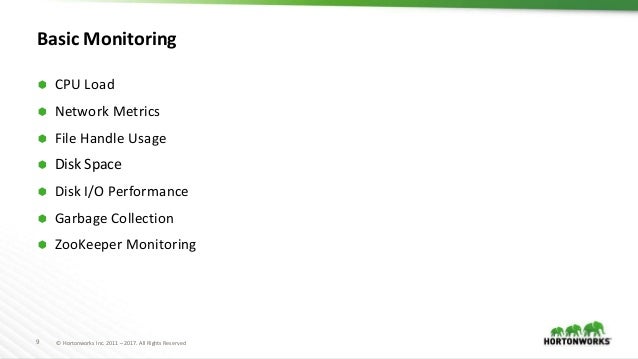

9. 9. 9 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Basic Monitoring  CPU Load  Network Metrics  File Handle Usage  Disk Space  Disk I/O Performance  Garbage Collection  ZooKeeper Monitoring

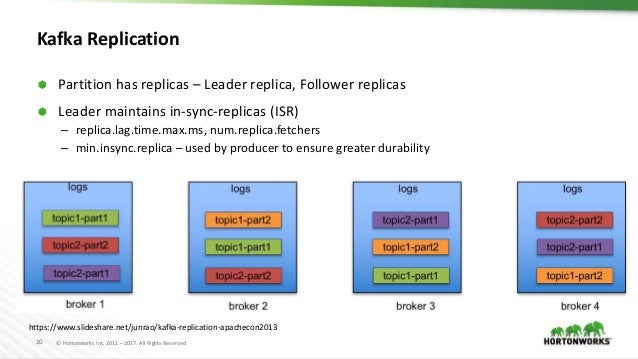

10. 10. 10 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Kafka Replication  Partition has replicas – Leader replica, Follower replicas  Leader maintains in-sync-replicas (ISR) – replica.lag.time.max.ms, num.replica.fetchers – min.insync.replica – used by producer to ensure greater durability https://www.slideshare.net/junrao/kafka-replication-apachecon2013

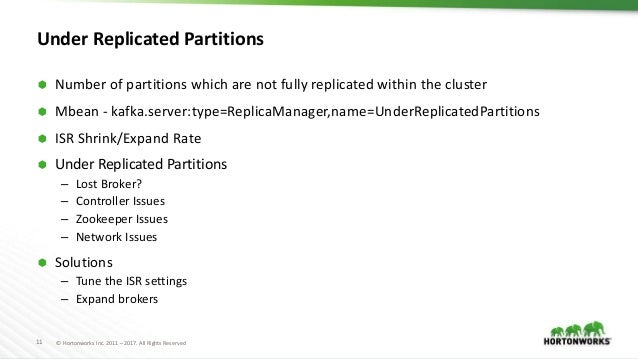

11. 11. 11 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Under Replicated Partitions  Number of partitions which are not fully replicated within the cluster  Mbean - kafka.server:type=ReplicaManager,name=UnderReplicatedPartitions  ISR Shrink/Expand Rate  Under Replicated Partitions – Lost Broker? – Controller Issues – Zookeeper Issues – Network Issues  Solutions – Tune the ISR settings – Expand brokers

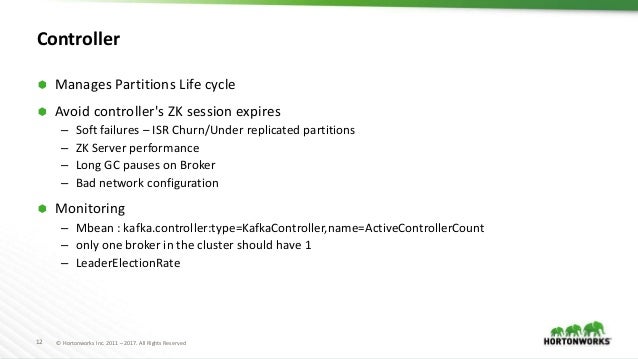

12. 12. 12 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Controller  Manages Partitions Life cycle  Avoid controller's ZK session expires – Soft failures – ISR Churn/Under replicated partitions – ZK Server performance – Long GC pauses on Broker – Bad network configuration  Monitoring – Mbean : kafka.controller:type=KafkaController,name=ActiveControllerCount – only one broker in the cluster should have 1 – LeaderElectionRate

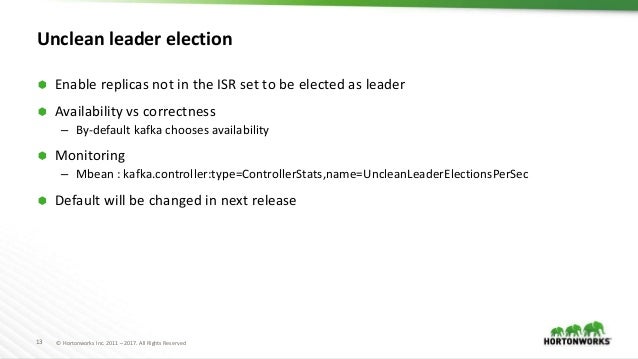

13. 13. 13 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Unclean leader election  Enable replicas not in the ISR set to be elected as leader  Availability vs correctness – By-default kafka chooses availability  Monitoring – Mbean : kafka.controller:type=ControllerStats,name=UncleanLeaderElectionsPerSec  Default will be changed in next release

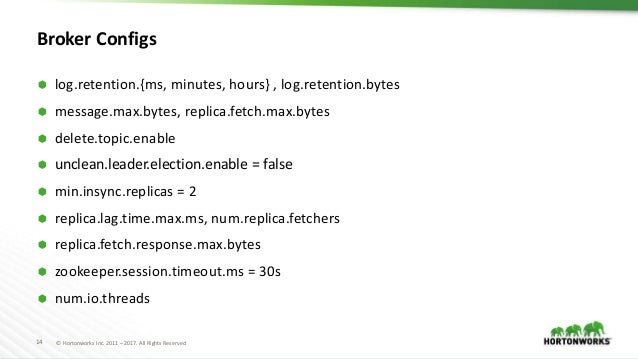

14. 14. 14 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Broker Configs  log.retention.{ms, minutes, hours} , log.retention.bytes  message.max.bytes, replica.fetch.max.bytes  delete.topic.enable  unclean.leader.election.enable = false  min.insync.replicas = 2  replica.lag.time.max.ms, num.replica.fetchers  replica.fetch.response.max.bytes  zookeeper.session.timeout.ms = 30s  num.io.threads

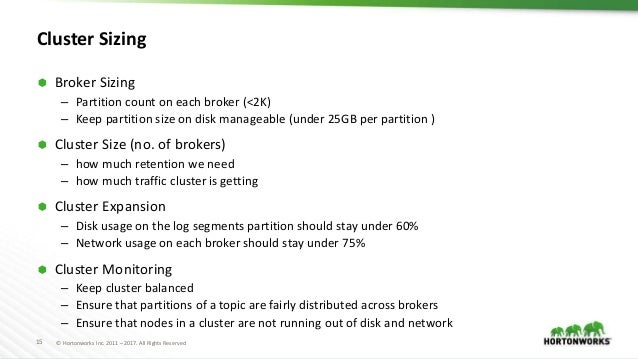

15. 15. 15 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Cluster Sizing  Broker Sizing – Partition count on each broker (<2K) – Keep partition size on disk manageable (under 25GB per partition )  Cluster Size (no. of brokers) – how much retention we need – how much traffic cluster is getting  Cluster Expansion – Disk usage on the log segments partition should stay under 60% – Network usage on each broker should stay under 75%  Cluster Monitoring – Keep cluster balanced – Ensure that partitions of a topic are fairly distributed across brokers – Ensure that nodes in a cluster are not running out of disk and network

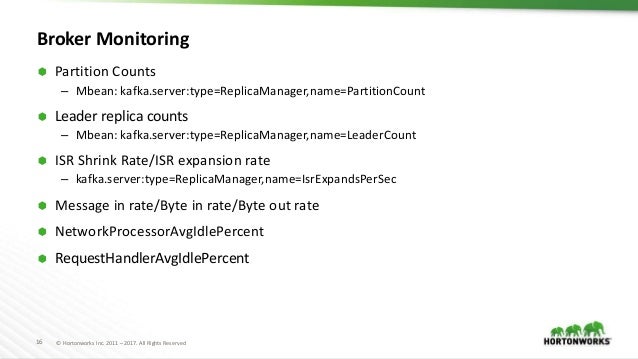

16. 16. 16 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Broker Monitoring  Partition Counts – Mbean: kafka.server:type=ReplicaManager,name=PartitionCount  Leader replica counts – Mbean: kafka.server:type=ReplicaManager,name=LeaderCount  ISR Shrink Rate/ISR expansion rate – kafka.server:type=ReplicaManager,name=IsrExpandsPerSec  Message in rate/Byte in rate/Byte out rate  NetworkProcessorAvgIdlePercent  RequestHandlerAvgIdlePercent

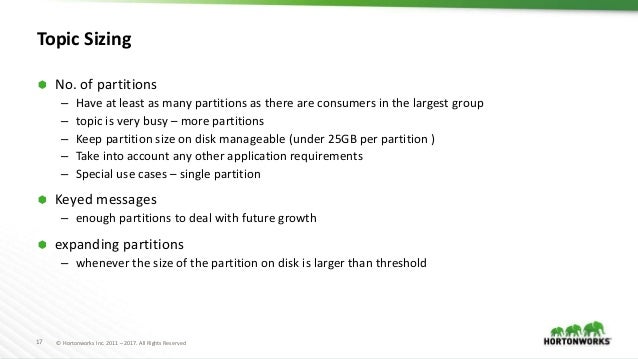

17. 17. 17 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Topic Sizing  No. of partitions – Have at least as many partitions as there are consumers in the largest group – topic is very busy – more partitions – Keep partition size on disk manageable (under 25GB per partition ) – Take into account any other application requirements – Special use cases – single partition  Keyed messages – enough partitions to deal with future growth  expanding partitions – whenever the size of the partition on disk is larger than threshold

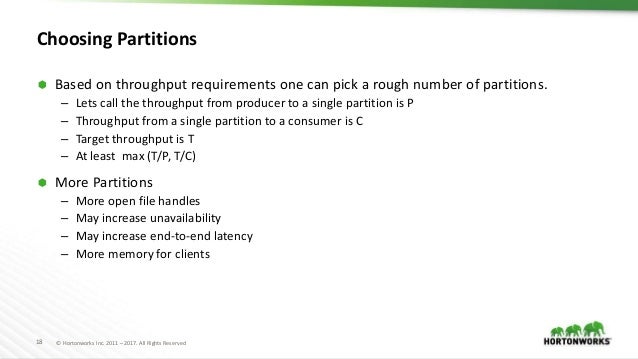

18. 18. 18 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Choosing Partitions  Based on throughput requirements one can pick a rough number of partitions. – Lets call the throughput from producer to a single partition is P – Throughput from a single partition to a consumer is C – Target throughput is T – At least max (T/P, T/C)  More Partitions – More open file handles – May increase unavailability – May increase end-to-end latency – More memory for clients

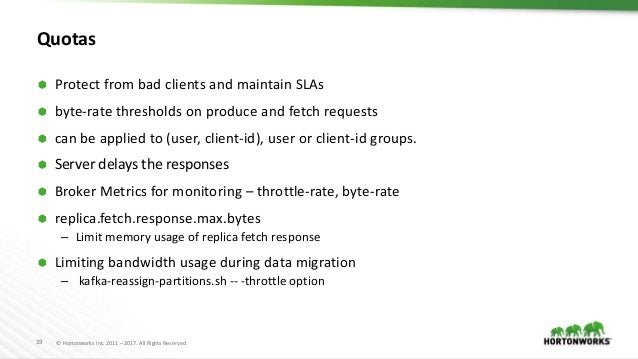

19. 19. 19 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Quotas  Protect from bad clients and maintain SLAs  byte-rate thresholds on produce and fetch requests  can be applied to (user, client-id), user or client-id groups.  Server delays the responses  Broker Metrics for monitoring – throttle-rate, byte-rate  replica.fetch.response.max.bytes – Limit memory usage of replica fetch response  Limiting bandwidth usage during data migration – kafka-reassign-partitions.sh -- -throttle option

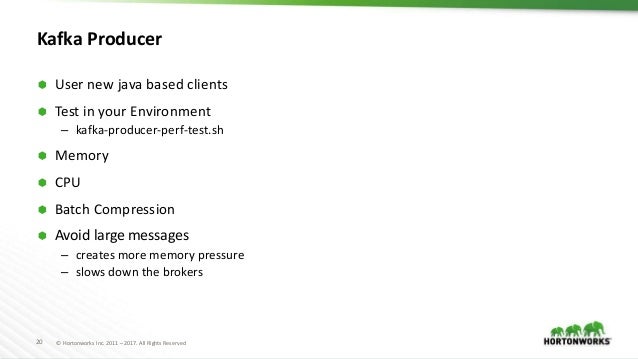

20. 20. 20 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Kafka Producer  User new java based clients  Test in your Environment – kafka-producer-perf-test.sh  Memory  CPU  Batch Compression  Avoid large messages – creates more memory pressure – slows down the brokers

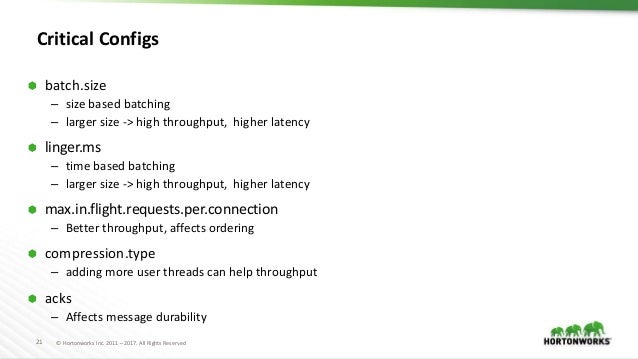

21. 21. 21 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Critical Configs  batch.size – size based batching – larger size -> high throughput, higher latency  linger.ms – time based batching – larger size -> high throughput, higher latency  max.in.flight.requests.per.connection – Better throughput, affects ordering  compression.type – adding more user threads can help throughput  acks – Affects message durability

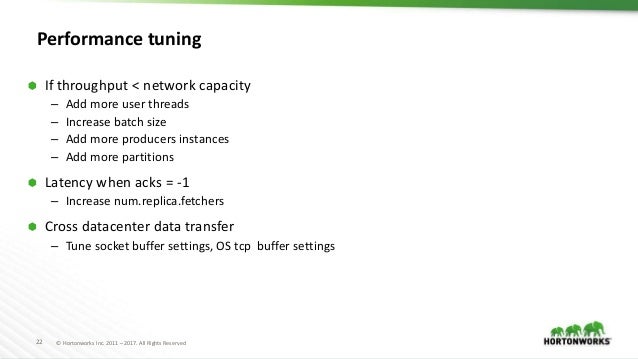

22. 22. 22 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Performance tuning  If throughput < network capacity – Add more user threads – Increase batch size – Add more producers instances – Add more partitions  Latency when acks = -1 – Increase num.replica.fetchers  Cross datacenter data transfer – Tune socket buffer settings, OS tcp buffer settings

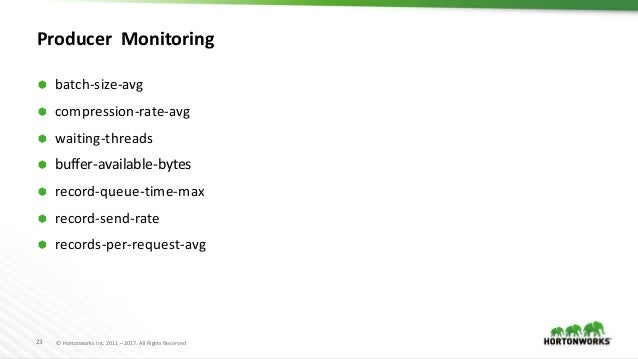

23. 23. 23 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Producer Monitoring  batch-size-avg  compression-rate-avg  waiting-threads  buffer-available-bytes  record-queue-time-max  record-send-rate  records-per-request-avg

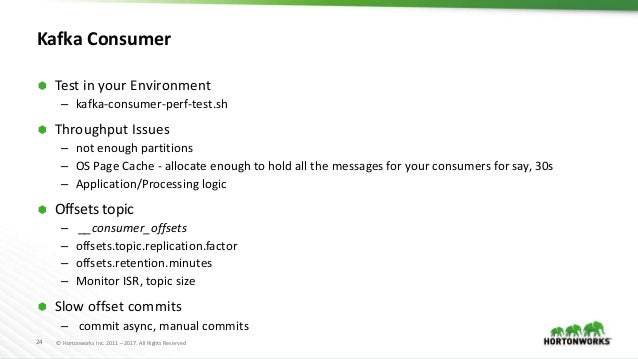

24. 24. 24 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Kafka Consumer  Test in your Environment – kafka-consumer-perf-test.sh  Throughput Issues – not enough partitions – OS Page Cache - allocate enough to hold all the messages for your consumers for say, 30s – Application/Processing logic  Offsets topic – __consumer_offsets – offsets.topic.replication.factor – offsets.retention.minutes – Monitor ISR, topic size  Slow offset commits – commit async, manual commits

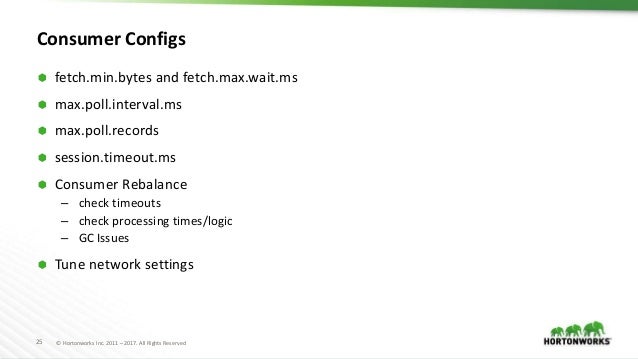

25. 25. 25 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Consumer Configs  fetch.min.bytes and fetch.max.wait.ms  max.poll.interval.ms  max.poll.records  session.timeout.ms  Consumer Rebalance – check timeouts – check processing times/logic – GC Issues  Tune network settings

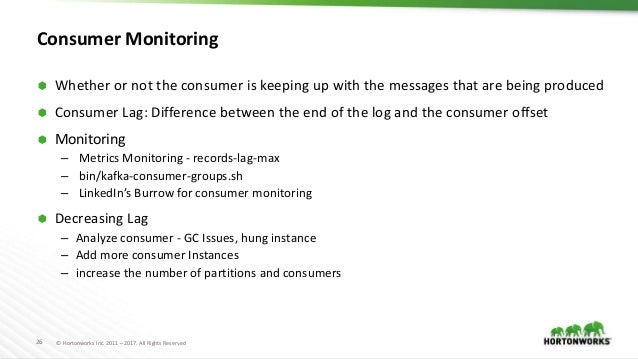

26. 26. 26 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Consumer Monitoring  Whether or not the consumer is keeping up with the messages that are being produced  Consumer Lag: Difference between the end of the log and the consumer offset  Monitoring – Metrics Monitoring - records-lag-max – bin/kafka-consumer-groups.sh – LinkedIn’s Burrow for consumer monitoring  Decreasing Lag – Analyze consumer - GC Issues, hung instance – Add more consumer Instances – increase the number of partitions and consumers

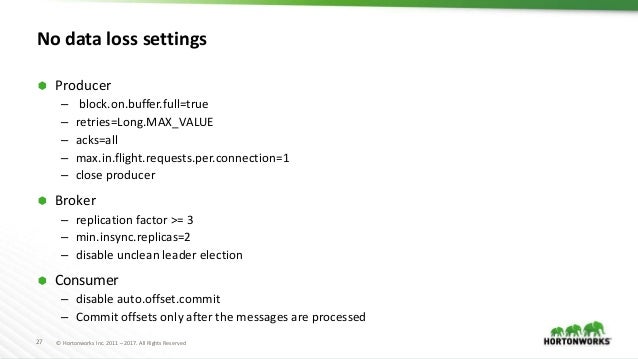

27. 27. 27 © Hortonworks Inc. 2011 – 2017. All Rights Reserved No data loss settings  Producer – block.on.buffer.full=true – retries=Long.MAX_VALUE – acks=all – max.in.flight.requests.per.connection=1 – close producer  Broker – replication factor >= 3 – min.insync.replicas=2 – disable unclean leader election  Consumer – disable auto.offset.commit – Commit offsets only after the messages are processed

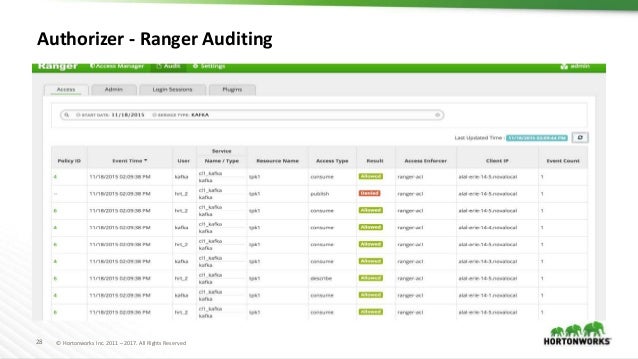

28. 28. 28 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Authorizer - Ranger Auditing

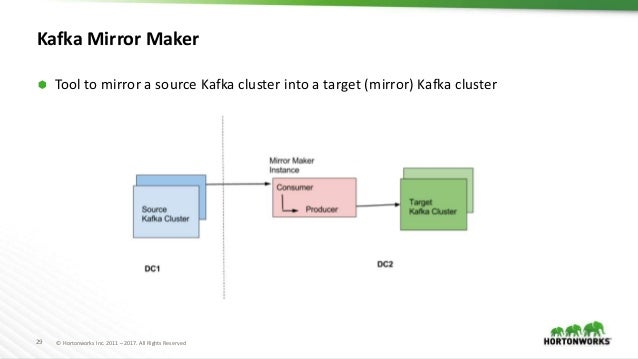

29. 29. 29 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Kafka Mirror Maker  Tool to mirror a source Kafka cluster into a target (mirror) Kafka cluster

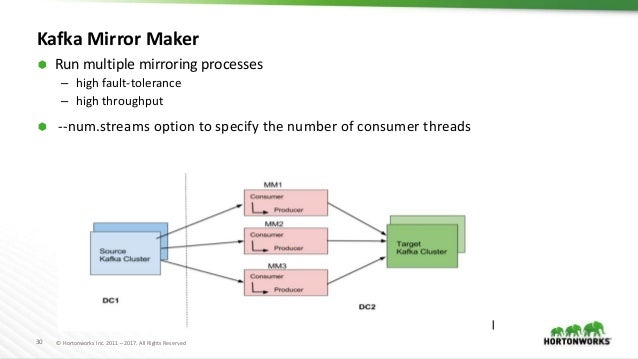

30. 30. 30 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Kafka Mirror Maker  Run multiple mirroring processes – high fault-tolerance – high throughput  --num.streams option to specify the number of consumer threads – no.of threads in num.streams

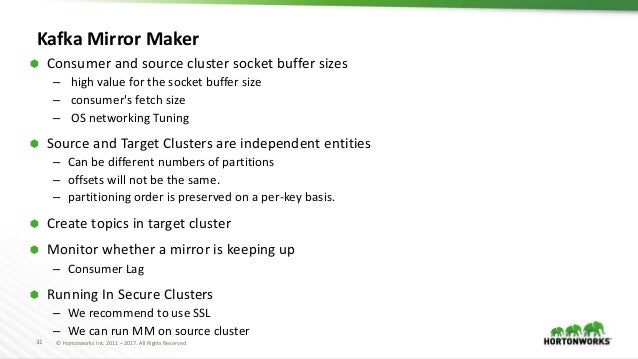

31. 31. 31 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Kafka Mirror Maker  Consumer and source cluster socket buffer sizes – high value for the socket buffer size – consumer's fetch size – OS networking Tuning  Source and Target Clusters are independent entities – Can be different numbers of partitions – offsets will not be the same. – partitioning order is preserved on a per-key basis.  Create topics in target cluster  Monitor whether a mirror is keeping up – Consumer Lag  Running In Secure Clusters – We recommend to use SSL – We can run MM on source cluster

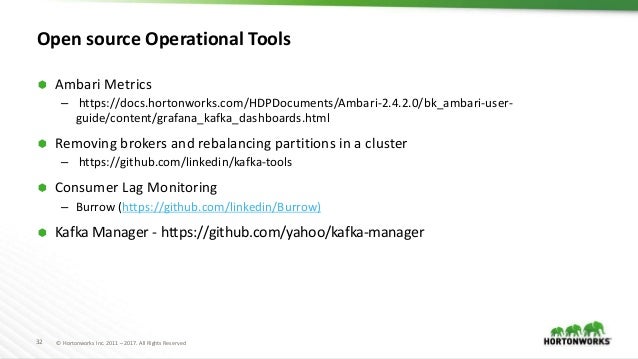

32. 32. 32 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Open source Operational Tools  Ambari Metrics – https://docs.hortonworks.com/HDPDocuments/Ambari-2.4.2.0/bk_ambari-user- guide/content/grafana_kafka_dashboards.html  Removing brokers and rebalancing partitions in a cluster – https://github.com/linkedin/kafka-tools  Consumer Lag Monitoring – Burrow (https://github.com/linkedin/Burrow)  Kafka Manager - https://github.com/yahoo/kafka-manager

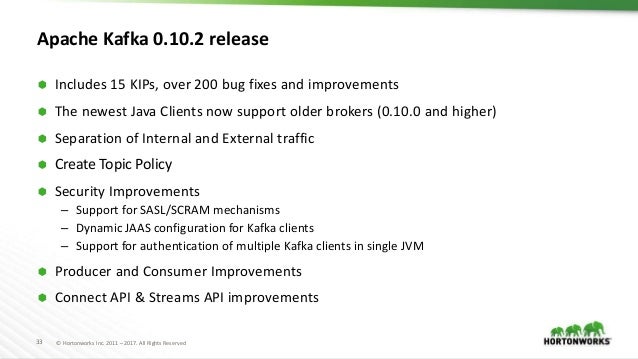

33. 33. 33 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Apache Kafka 0.10.2 release  Includes 15 KIPs, over 200 bug fixes and improvements  The newest Java Clients now support older brokers (0.10.0 and higher)  Separation of Internal and External traffic  Create Topic Policy  Security Improvements – Support for SASL/SCRAM mechanisms – Dynamic JAAS configuration for Kafka clients – Support for authentication of multiple Kafka clients in single JVM  Producer and Consumer Improvements  Connect API & Streams API improvements
34. 34. 34 © Hortonworks Inc. 2011 – 2017. All Rights Reserved Thank You

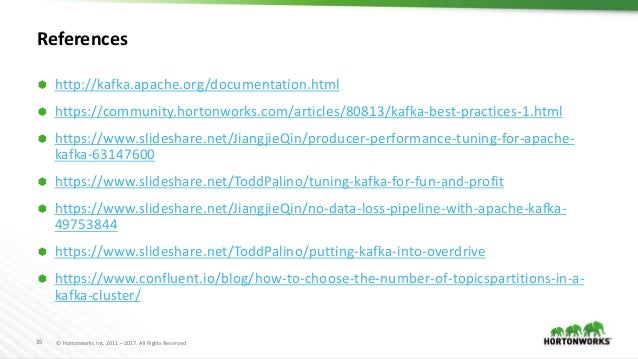

35. 35. 35 © Hortonworks Inc. 2011 – 2017. All Rights Reserved References  http://kafka.apache.org/documentation.html  https://community.hortonworks.com/articles/80813/kafka-best-practices-1.html  https://www.slideshare.net/JiangjieQin/producer-performance-tuning-for-apache- kafka-63147600  https://www.slideshare.net/ToddPalino/tuning-kafka-for-fun-and-profit  https://www.slideshare.net/JiangjieQin/no-data-loss-pipeline-with-apache-kafka- 49753844  https://www.slideshare.net/ToddPalino/putting-kafka-into-overdrive  https://www.confluent.io/blog/how-to-choose-the-number-of-topicspartitions-in-a- kafka-cluster/
