Building GUI App with Electron and Lisp

1. How Building GUI App with Lisp The Case of Pocket Change, Inc. LISP MEETUP #50 Mar 27, 2017

2. I’m Eitaro Fukamachi @nitro_idiot fukamachi

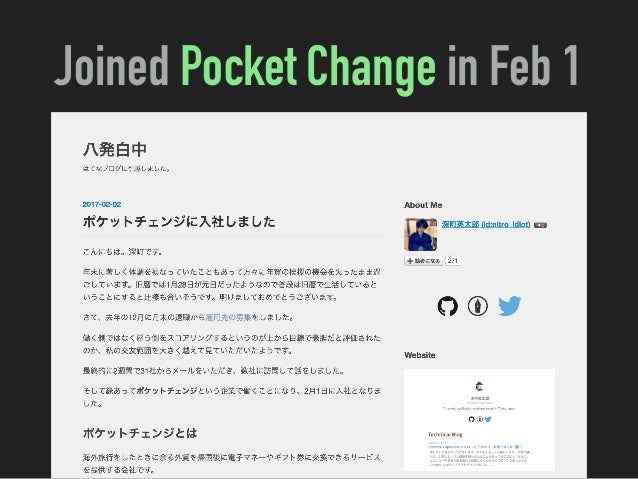

3. Joined Pocket Change in Feb 1

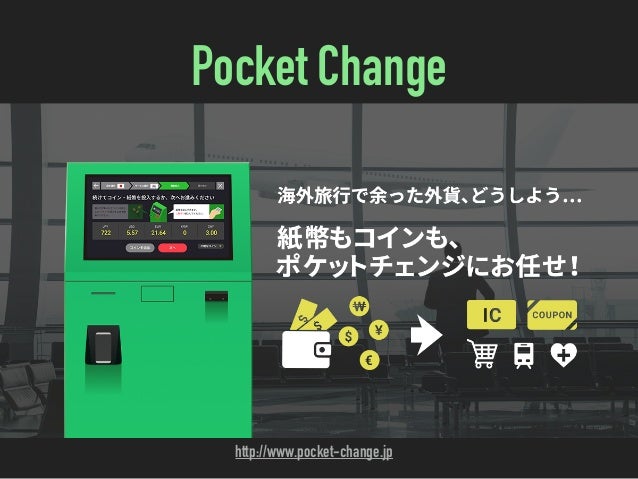

4. Pocket Change http://www.pocket-change.jp

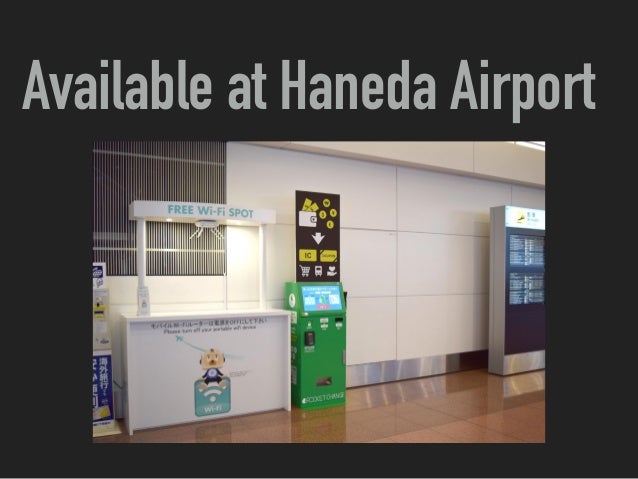

5. Available at Haneda Airport

6. Today’s topic

7. What I want to tell today What I don’t tell How we use Common Lisp in our work How you can use Common Lisp in your work

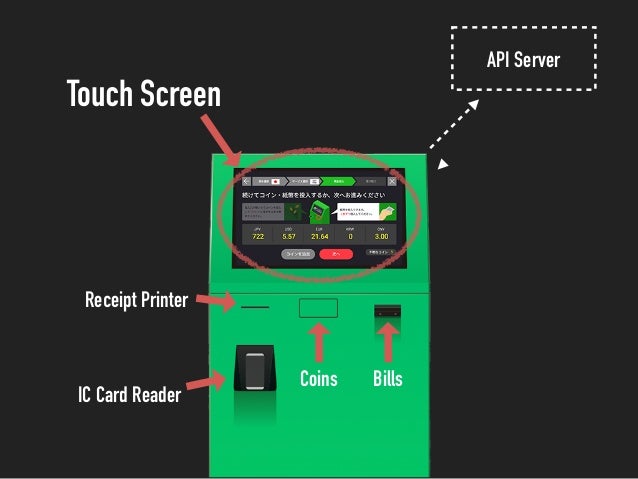

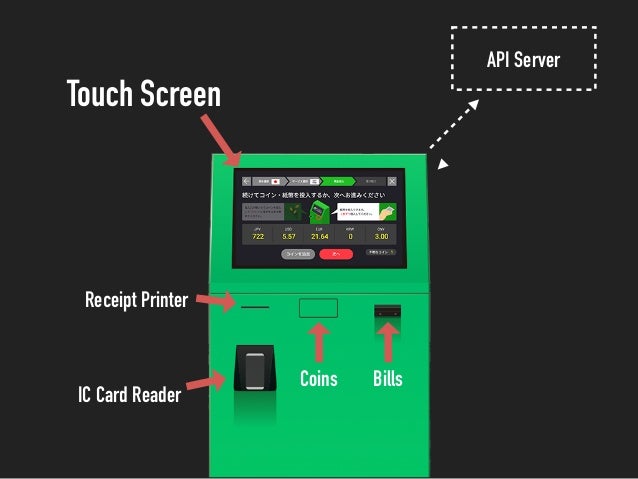

8. Touch Screen Coins Bills IC Card Reader Receipt Printer API Server

9. Touch Screen Coins Bills IC Card Reader Receipt Printer API Server

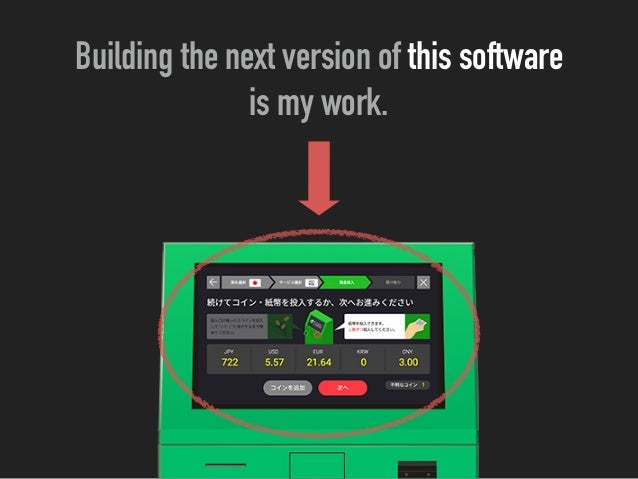

10. Building the next version of this software is my work.

11. How to build Pocket Change

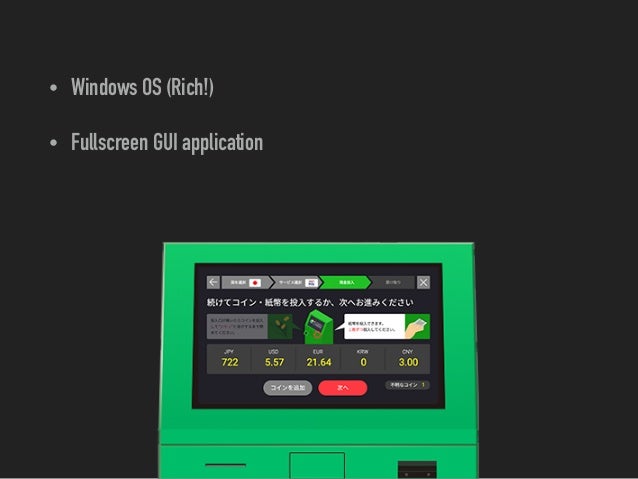

12. • Windows OS (Rich!) • Fullscreen GUI application

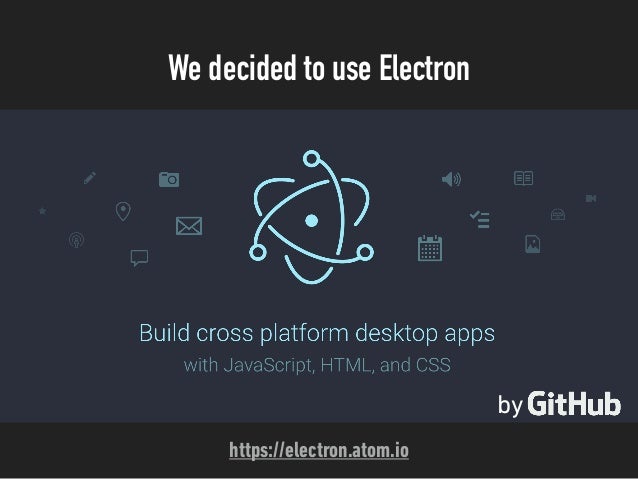

13. We decided to use Electron https://electron.atom.io by

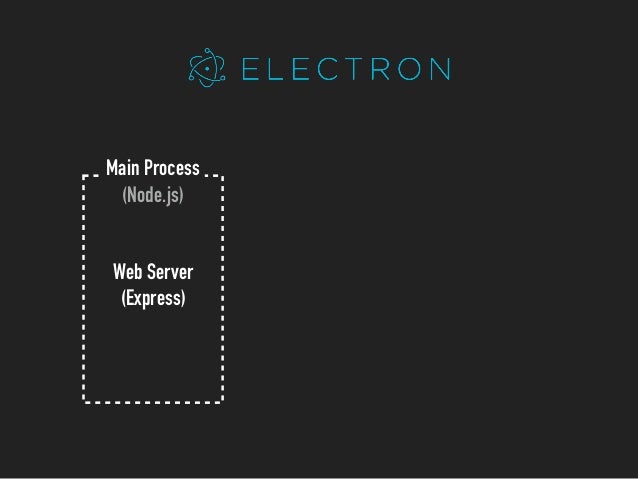

14. Web Server (Express) Main Process (Node.js)

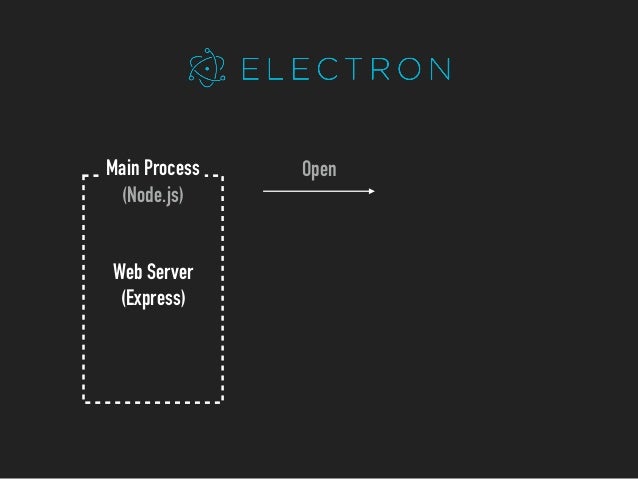

15. Open Web Server (Express) Main Process (Node.js)

16. Open Web Server (Express) Main Process (Node.js) Renderer Process (Chromium) React.js

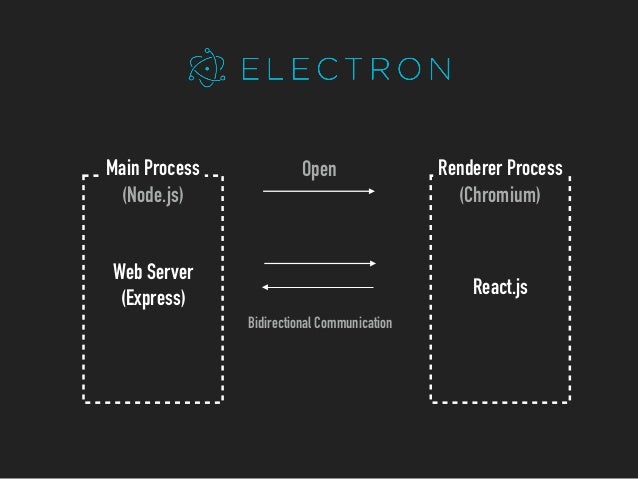

17. Open Web Server (Express) Main Process (Node.js) Bidirectional Communication Renderer Process (Chromium) React.js

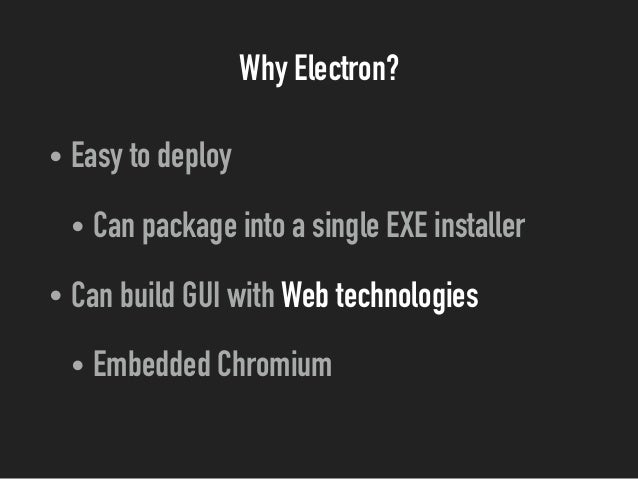

18. Why Electron? • Easy to deploy • Can package into a single EXE installer • Can build GUI with Web technologies • Embedded Chromium

19. However

20. The language is JavaScript. 👎

21. Why can’t we use Common Lisp?

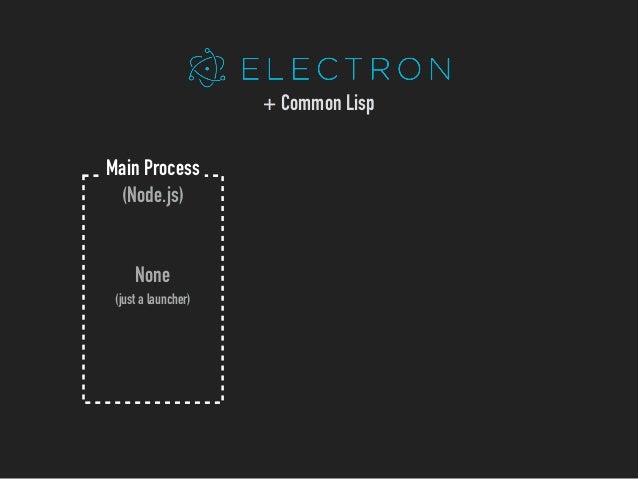

22. None (just a launcher) Main Process (Node.js) + Common Lisp

23. Open None (just a launcher) Main Process (Node.js) + Common Lisp

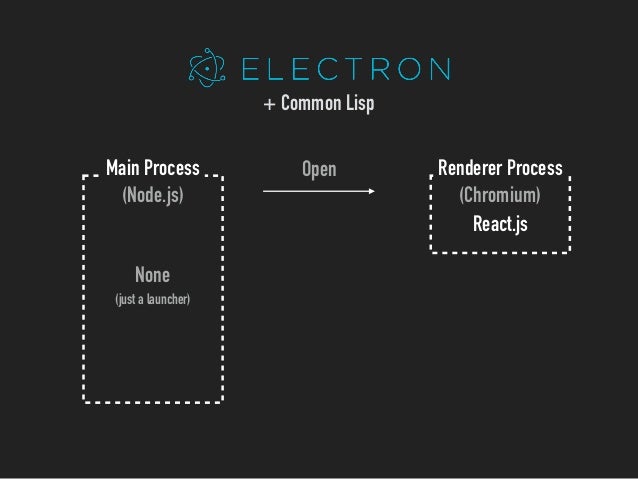

24. Open None (just a launcher) Main Process (Node.js) Renderer Process (Chromium) React.js + Common Lisp

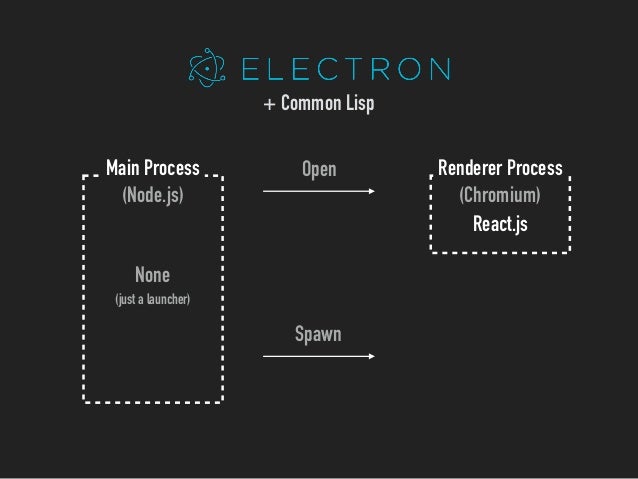

25. Open None (just a launcher) Main Process (Node.js) Renderer Process (Chromium) React.js Spawn + Common Lisp

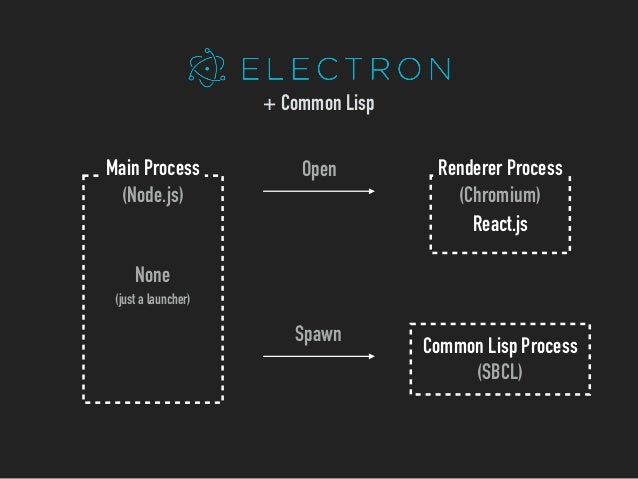

26. Open None (just a launcher) Main Process (Node.js) Renderer Process (Chromium) React.js Common Lisp Process (SBCL) Spawn + Common Lisp

27. Open None (just a launcher) Main Process (Node.js) Renderer Process (Chromium) React.js Common Lisp Process (SBCL) Spawn Bidirectional Communication + Common Lisp

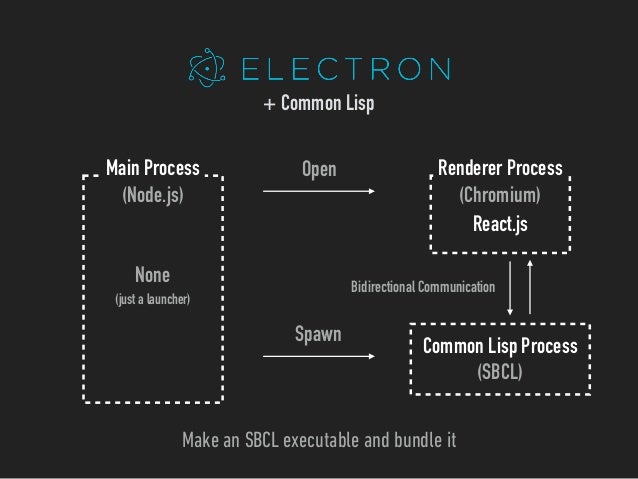

28. Open None (just a launcher) Main Process (Node.js) Renderer Process (Chromium) React.js Common Lisp Process (SBCL) Spawn Bidirectional Communication + Common Lisp Make an SBCL executable and bundle it

29. Looks a quite easy trick, huh? :)

30. How communicating between CL and Browser

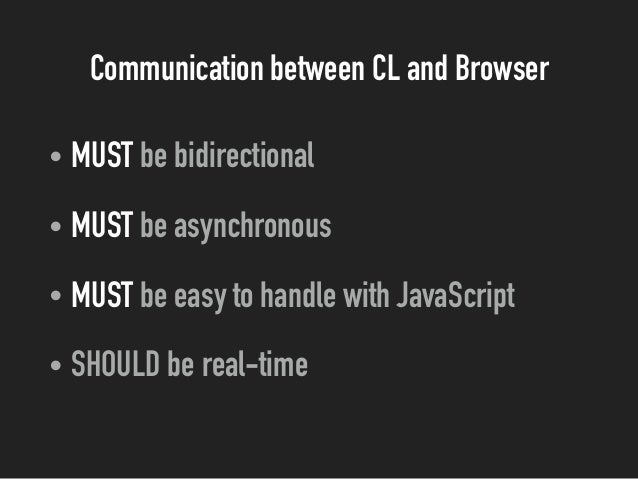

33. Communication between CL and Browser • MUST be bidirectional • MUST be asynchronous • MUST be easy to handle with JavaScript • SHOULD be real-time

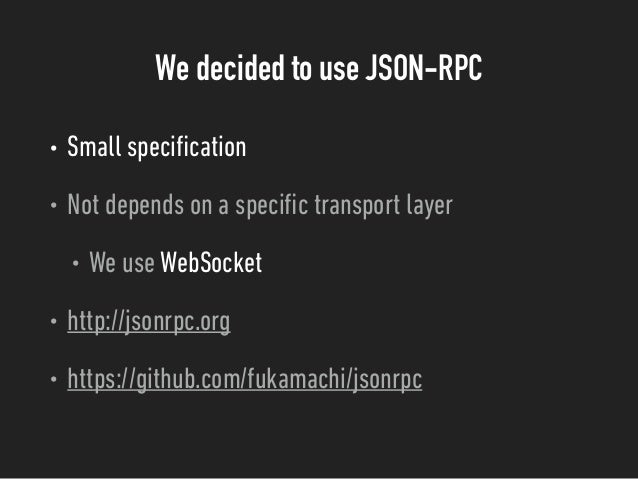

34. We decided to use JSON-RPC • Small speciﬁcation • Not depends on a speciﬁc transport layer • We use WebSocket • http://jsonrpc.org • https://github.com/fukamachi/jsonrpc

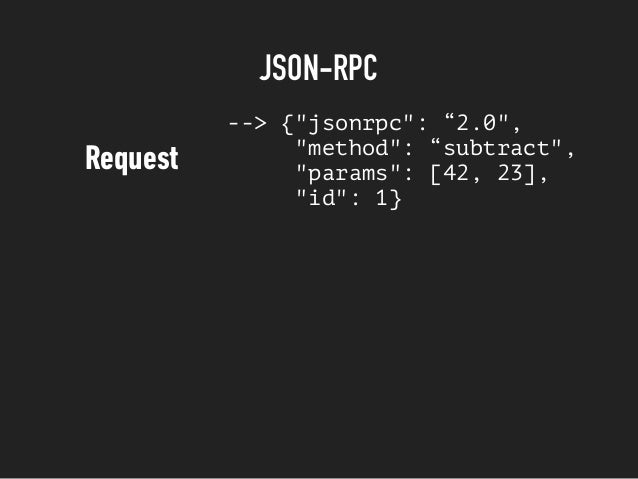

35. JSON-RPC --> {"jsonrpc": “2.0", "method": “subtract", "params": [42, 23], "id": 1} Request

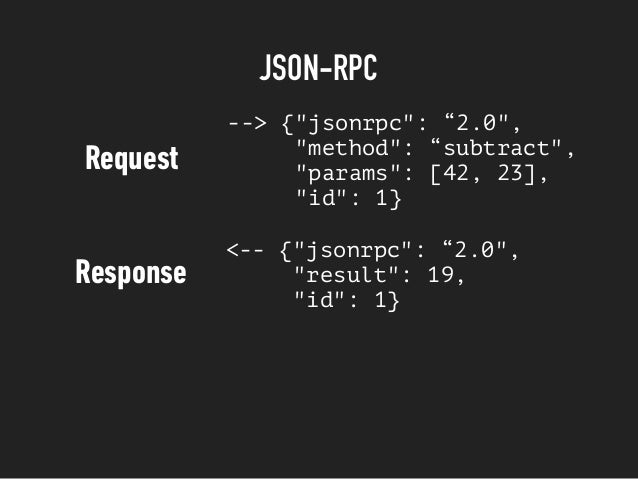

36. JSON-RPC --> {"jsonrpc": “2.0", "method": “subtract", "params": [42, 23], "id": 1} Request <-- {"jsonrpc": “2.0", "result": 19, "id": 1} Response

37. JSON-RPC --> {"jsonrpc": “2.0", "method": “subtract", "params": [42, 23], "id": 1} Request <-- {"jsonrpc": “2.0", "result": 19, "id": 1} Response --> {"jsonrpc": “2.0", "method": “update", "params": [1,2,3,4,5]} Notiﬁcation (Request without “id”)

38. How to structure GUI Application with Electron

39. No best practices (yet) to build an Electron app.

40. In our case

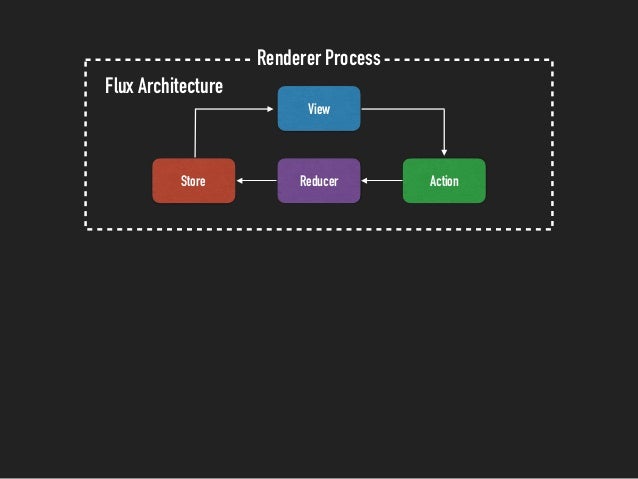

41. Renderer Process Store View ActionReducer Flux Architecture

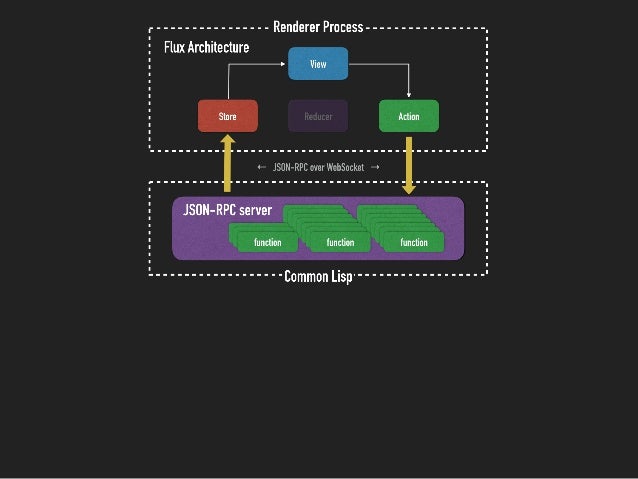

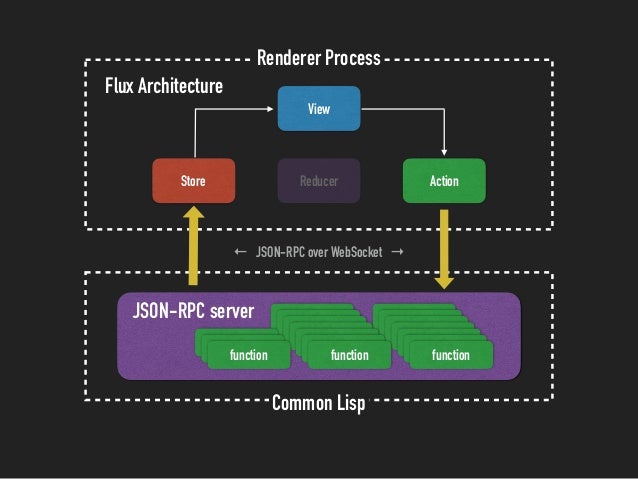

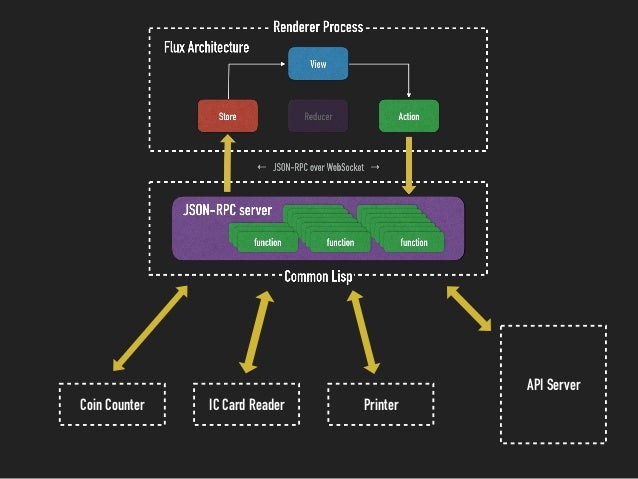

42. functionfunctionfunctionfunction functionfunctionfunctionfunctionfunctionfunctionfunction Renderer Process Store View ActionReducer Flux Architecture Common Lisp JSON-RPC server functionfunctionfunction functionfunctionfunction ← JSON-RPC over WebSocket →

43. Not only Browser Common Lisp

44. Coin Counter IC Card Reader Printer API Server

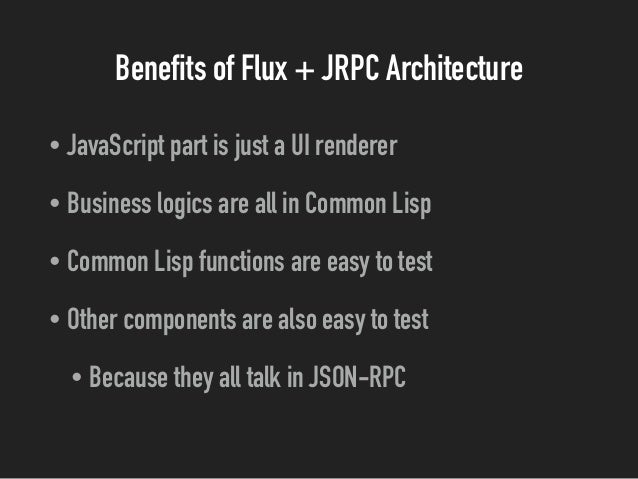

45. Benefits of Flux + JRPC Architecture • JavaScript part is just a UI renderer • Business logics are all in Common Lisp • Common Lisp functions are easy to test • Other components are also easy to test • Because they all talk in JSON-RPC

46. How to develop the app

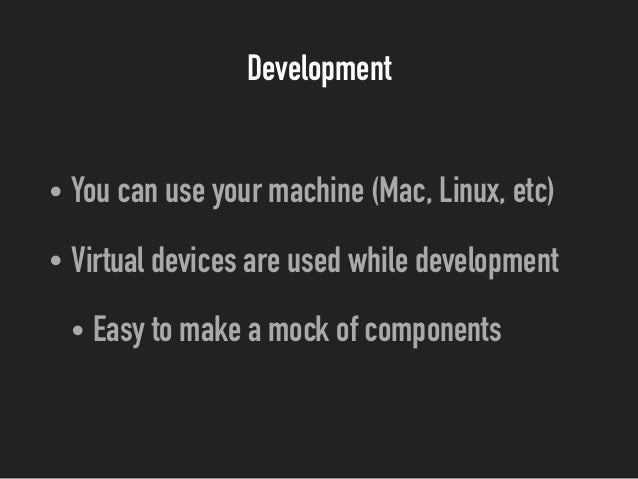

47. Development • You can use your machine (Mac, Linux, etc) • Virtual devices are used while development • Easy to make a mock of components

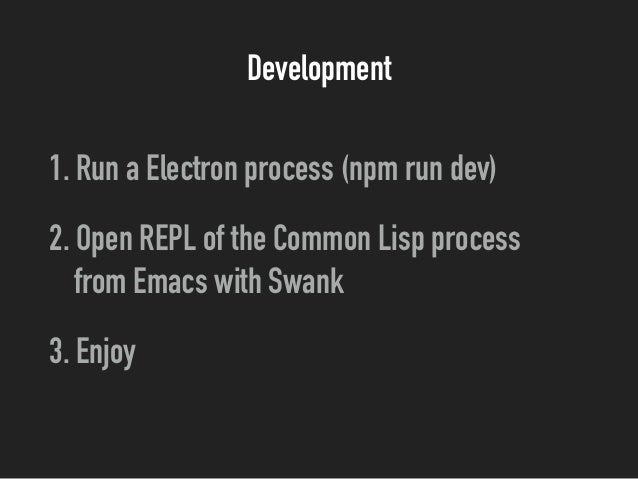

48. Development 1. Run a Electron process (npm run dev) 2. Open REPL of the Common Lisp process  from Emacs with Swank 3. Enjoy

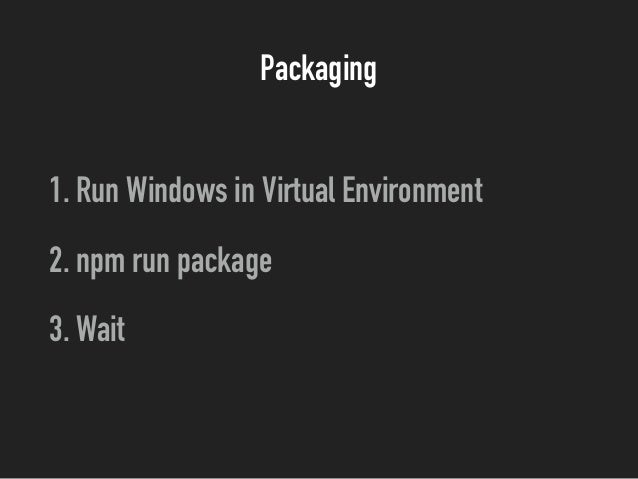

49. Packaging 1. Run Windows in Virtual Environment 2. npm run package 3. Wait

50. Experiments

51. Coin Counter IC Card Reader Printer API Server

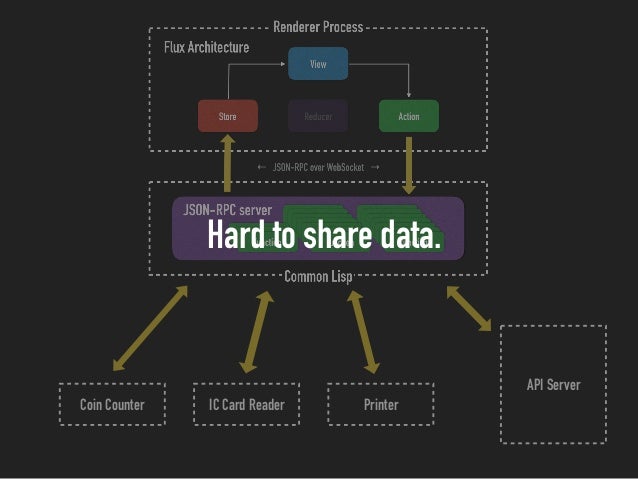

52. Coin Counter IC Card Reader Printer API Server Hard to share data.

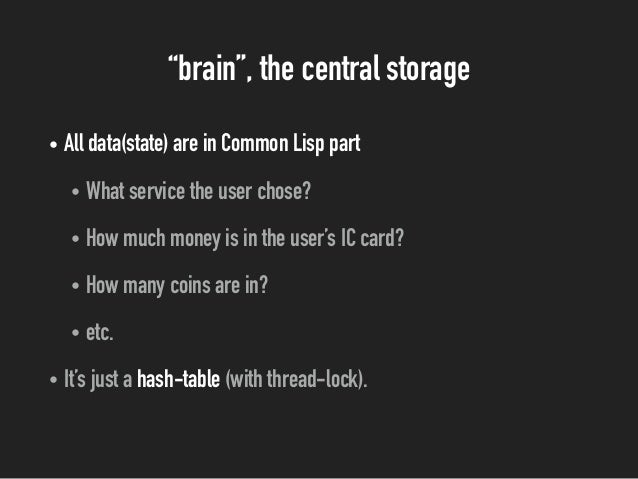

53. “brain”, the central storage • All data(state) are in Common Lisp part • What service the user chose? • How much money is in the user’s IC card? • How many coins are in? • etc. • It’s just a hash-table (with thread-lock).

54. “Propagation Class” Metaclass for synchronize data between components

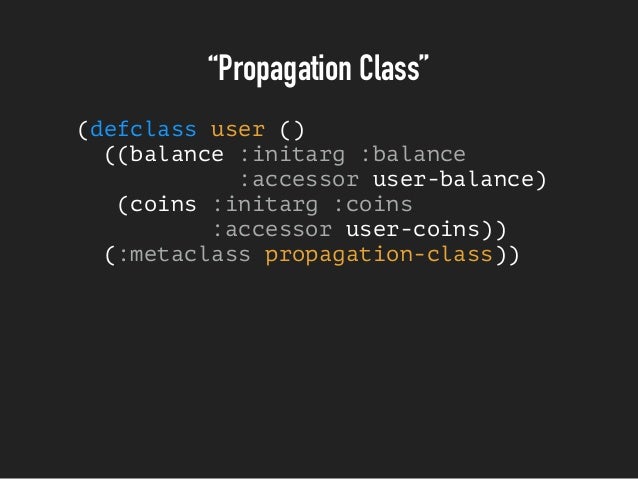

55. “Propagation Class” (defclass user () ((balance :initarg :balance :accessor user-balance) (coins :initarg :coins :accessor user-coins)) (:metaclass propagation-class))

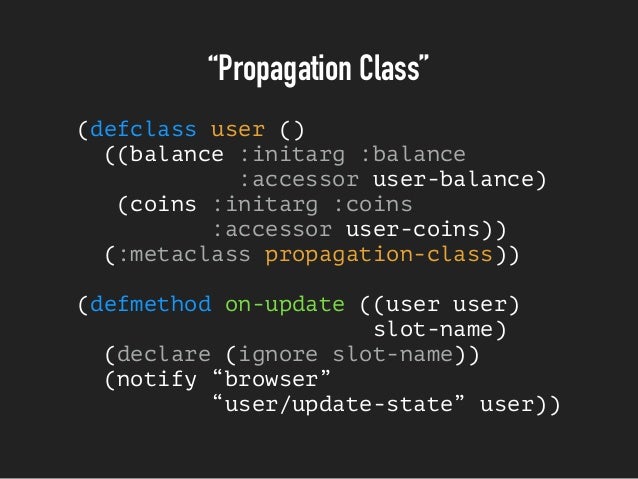

56. “Propagation Class” (defclass user () ((balance :initarg :balance :accessor user-balance) (coins :initarg :coins :accessor user-coins)) (:metaclass propagation-class)) (defmethod on-update ((user user) slot-name) (declare (ignore slot-name)) (notify “browser” “user/update-state” user))

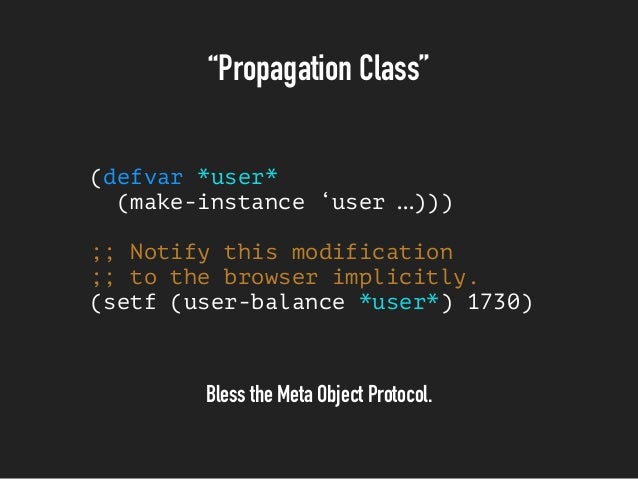

57. “Propagation Class” (defvar *user* (make-instance ‘user …))) ;; Notify this modification ;; to the browser implicitly. (setf (user-balance *user*) 1730) Bless the Meta Object Protocol.

58. So, Why Common Lisp?

59. Why Common Lisp? • We ♥ Common Lisp :) • Good for writing unknown/complicated applications. • Interactive development with REPL.

60. Thanks.
