実例で学ぶ、明日から使えるSpring Boot Tips #jsug

2. © 2016 Pivotal Software, Inc. All rights reserved. Who am I ? • Toshiaki Maki (@making) https://ik.am • Sr. Solutions Architect @Pivotal • Spring ☘ / Cloud Foundry ☁ / Concourse ✈ / BOSH 🐚 bit.ly/hajiboot2

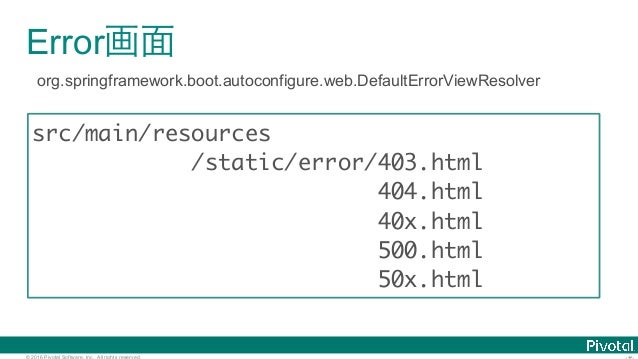

17. © 2016 Pivotal Software, Inc. All rights reserved. Error org.springframework.boot.autoconfigure.web.DefaultErrorViewResolver src/main/resources /static/error/403.html 404.html 40x.html 500.html 50x.html

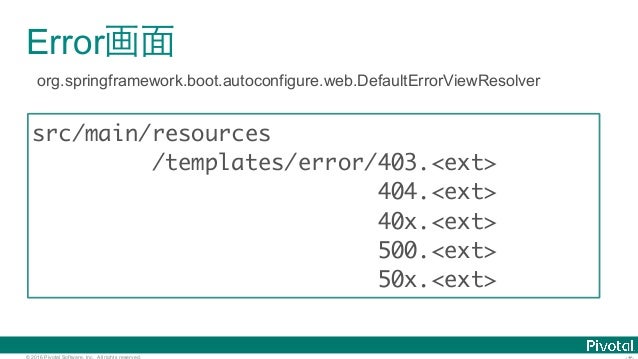

18. © 2016 Pivotal Software, Inc. All rights reserved. Error org.springframework.boot.autoconfigure.web.DefaultErrorViewResolver src/main/resources /templates/error/403.<ext> 404.<ext> 40x.<ext> 500.<ext> 50x.<ext>

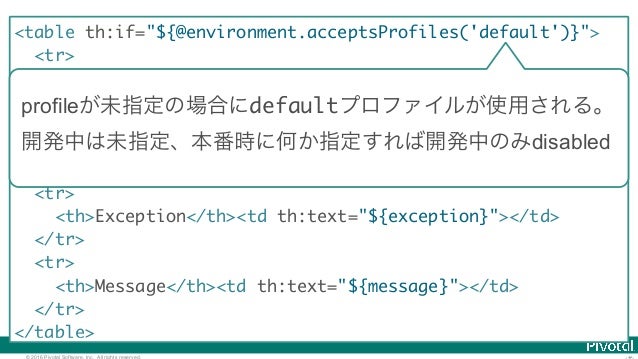

19. © 2016 Pivotal Software, Inc. All rights reserved. <table th:if="${@environment.acceptsProfiles('default')}">  <tr> <th>Status</th><td th:text="${status}"></td> </tr>  <tr> <th>Error</th><td th:text="${error}"></td> </tr>  <tr> <th>Exception</th><td th:text="${exception}"></td> </tr>  <tr> <th>Message</th><td th:text="${message}"></td> </tr>  </table>

20. © 2016 Pivotal Software, Inc. All rights reserved. <table th:if="${@environment.acceptsProfiles('default')}">  <tr> <th>Status</th><td th:text="${status}"></td> </tr>  <tr> <th>Error</th><td th:text="${error}"></td> </tr>  <tr> <th>Exception</th><td th:text="${exception}"></td> </tr>  <tr> <th>Message</th><td th:text="${message}"></td> </tr>  </table> profile default disabled

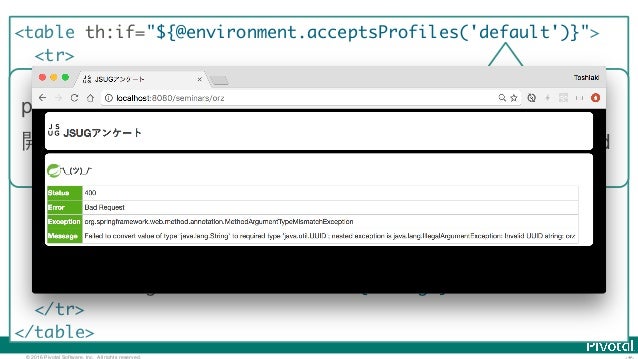

21. © 2016 Pivotal Software, Inc. All rights reserved. <table th:if="${@environment.acceptsProfiles('default')}">  <tr> <th>Status</th><td th:text="${status}"></td> </tr>  <tr> <th>Error</th><td th:text="${error}"></td> </tr>  <tr> <th>Exception</th><td th:text="${exception}"></td> </tr>  <tr> <th>Message</th><td th:text="${message}"></td> </tr>  </table> profile default disabled

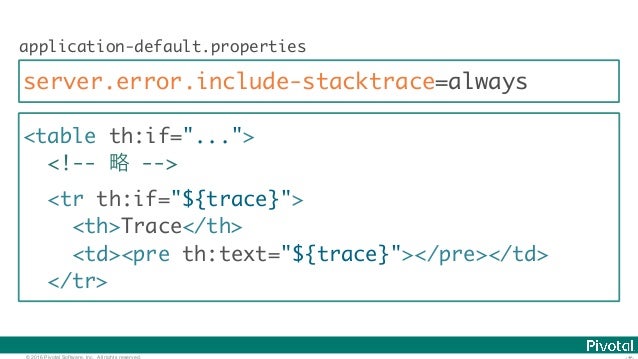

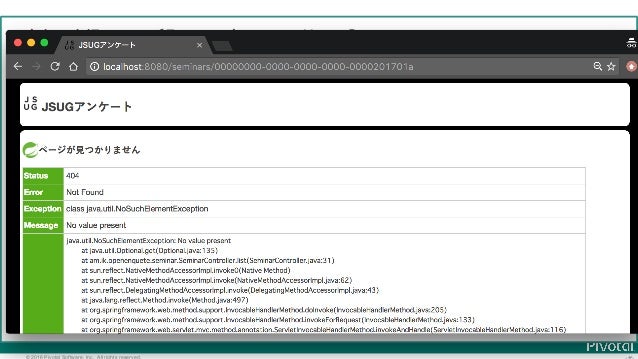

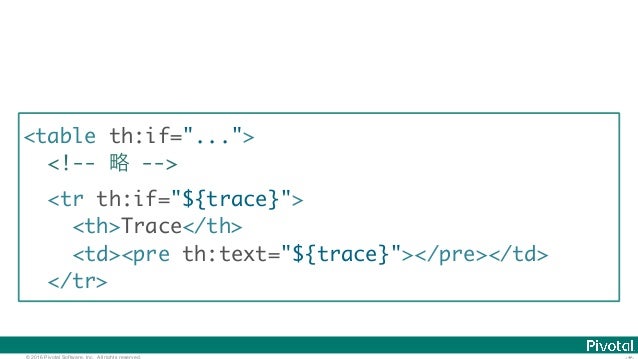

23. © 2016 Pivotal Software, Inc. All rights reserved. <table th:if="...">   <tr th:if="${trace}"> <th>Trace</th> <td><pre th:text="${trace}"></pre></td> </tr>  server.error.include-stacktrace=always application-default.properties

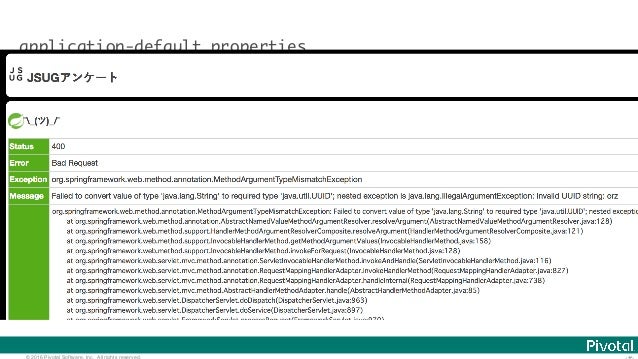

24. © 2016 Pivotal Software, Inc. All rights reserved. <table th:if="...">   <tr th:if="${trace}"> <th>Trace</th> <td><pre th:text="${trace}"></pre></td> </tr>  server.error.include-stacktrace=always application-default.properties

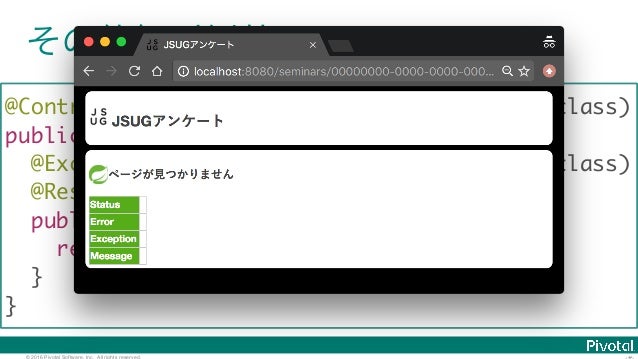

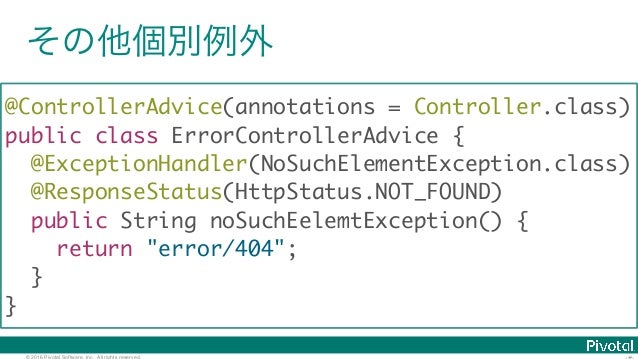

25. © 2016 Pivotal Software, Inc. All rights reserved. @ControllerAdvice(annotations = Controller.class)  public class ErrorControllerAdvice {  @ExceptionHandler(NoSuchElementException.class)  @ResponseStatus(HttpStatus.NOT_FOUND)  public String noSuchEelemtException() {  return "error/404";  }  }

26. © 2016 Pivotal Software, Inc. All rights reserved. @ControllerAdvice(annotations = Controller.class)  public class ErrorControllerAdvice {  @ExceptionHandler(NoSuchElementException.class)  @ResponseStatus(HttpStatus.NOT_FOUND)  public String noSuchEelemtException() {  return "error/404";  }  }

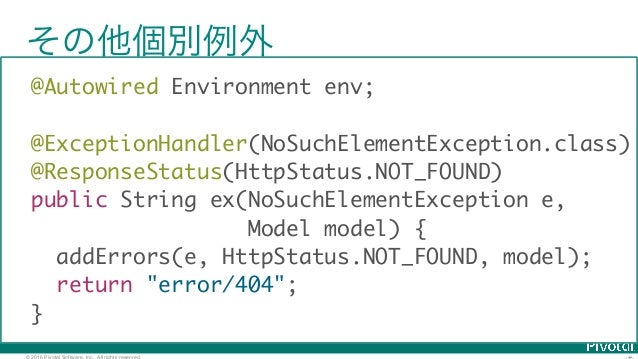

27. © 2016 Pivotal Software, Inc. All rights reserved. @Autowired Environment env;   @ExceptionHandler(NoSuchElementException.class)  @ResponseStatus(HttpStatus.NOT_FOUND)  public String ex(NoSuchElementException e, Model model) { addErrors(e, HttpStatus.NOT_FOUND, model);  return "error/404";  }

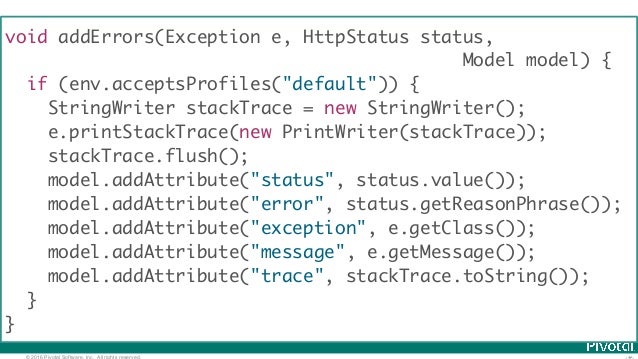

28. © 2016 Pivotal Software, Inc. All rights reserved. void addErrors(Exception e, HttpStatus status, Model model) { if (env.acceptsProfiles("default")) {  StringWriter stackTrace = new StringWriter();  e.printStackTrace(new PrintWriter(stackTrace));  stackTrace.flush();  model.addAttribute("status", status.value());  model.addAttribute("error", status.getReasonPhrase());  model.addAttribute("exception", e.getClass());  model.addAttribute("message", e.getMessage());  model.addAttribute("trace", stackTrace.toString());  }  }

29. © 2016 Pivotal Software, Inc. All rights reserved. void addErrors(Exception e, HttpStatus status, Model model) { if (env.acceptsProfiles("default")) {  StringWriter stackTrace = new StringWriter();  e.printStackTrace(new PrintWriter(stackTrace));  stackTrace.flush();  model.addAttribute("status", status.value());  model.addAttribute("error", status.getReasonPhrase());  model.addAttribute("exception", e.getClass());  model.addAttribute("message", e.getMessage());  model.addAttribute("trace", stackTrace.toString());  }  }

30. © 2016 Pivotal Software, Inc. All rights reserved. Profile • java -jar app.jar --spring.profiles.active=prod • java -jar -Dspring.profiles.active=prod app.jar • export SPRING_PRPFILES_ACTIVE=prod Cloud Foundry cloud

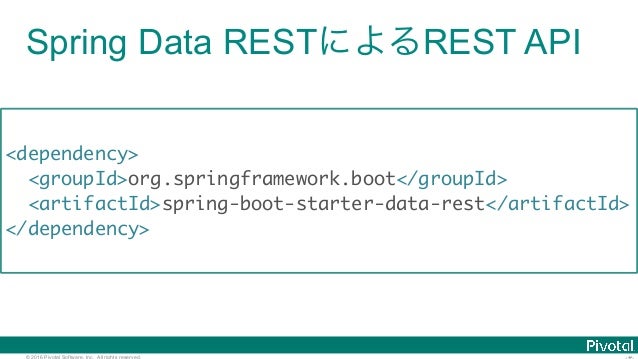

33. © 2016 Pivotal Software, Inc. All rights reserved. Spring Data REST REST API <dependency>  <groupId>org.springframework.boot</groupId>  <artifactId>spring-boot-starter-data-rest</artifactId>  </dependency>

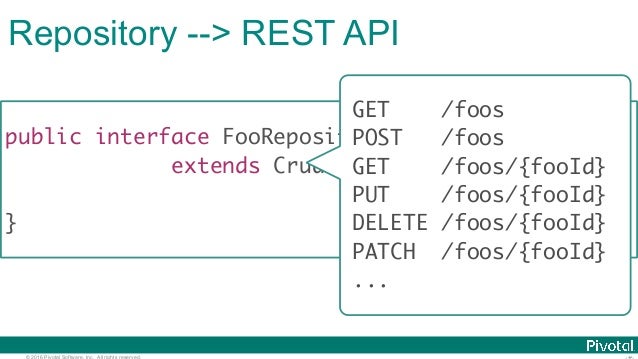

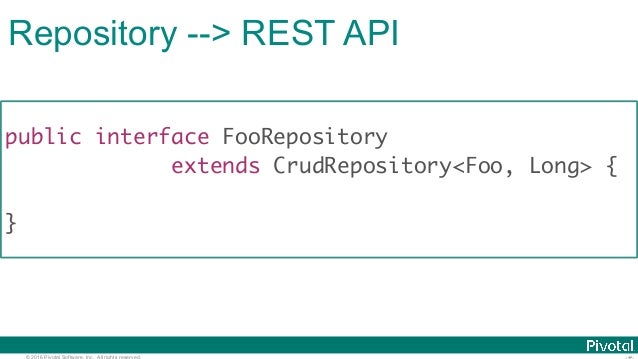

35. © 2016 Pivotal Software, Inc. All rights reserved. public interface FooRepository extends CrudRepository<Foo, Long> {   } Repository --> REST API GET /foos POST /foos GET /foos/{fooId} PUT /foos/{fooId} DELETE /foos/{fooId} PATCH /foos/{fooId} ...

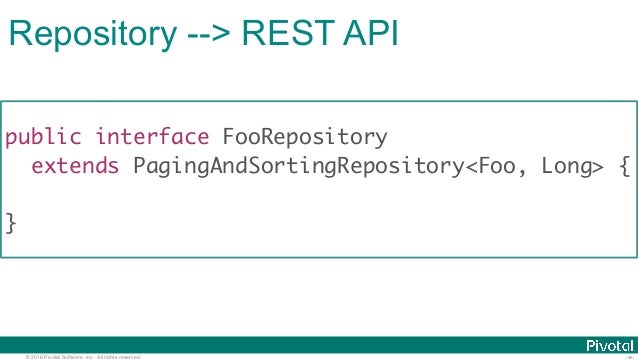

37. © 2016 Pivotal Software, Inc. All rights reserved. Repository --> REST API public interface FooRepository extends PagingAndSortingRepository<Foo, Long> {   } GET /foos?page={page} &size={size}&sort={sort} ...

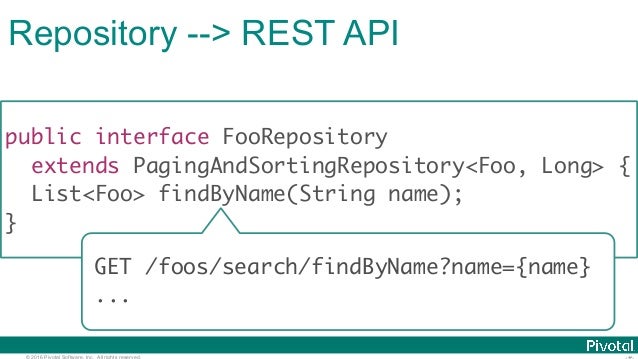

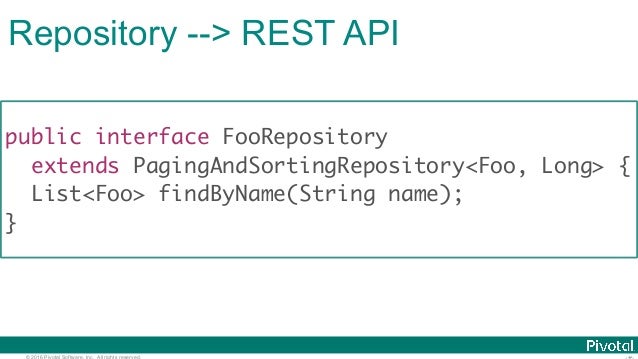

39. © 2016 Pivotal Software, Inc. All rights reserved. Repository --> REST API public interface FooRepository extends PagingAndSortingRepository<Foo, Long> { List<Foo> findByName(String name);  } GET /foos/search/findByName?name={name} ...

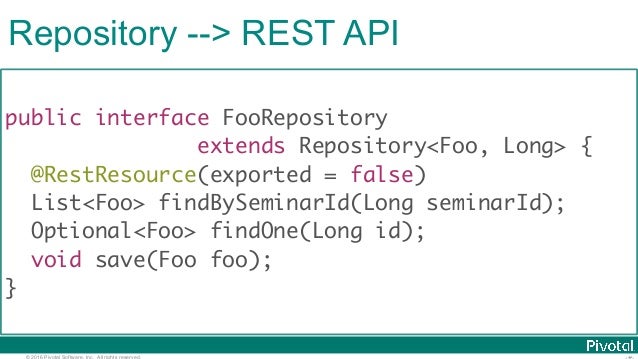

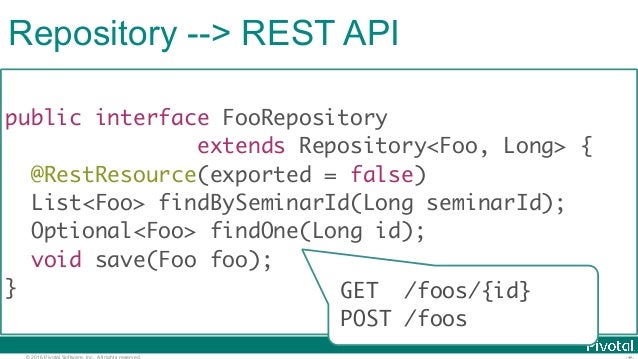

40. © 2016 Pivotal Software, Inc. All rights reserved. Repository --> REST API public interface FooRepository extends Repository<Foo, Long> { @RestResource(exported = false) List<Foo> findBySeminarId(Long seminarId); Optional<Foo> findOne(Long id); void save(Foo foo);   }

41. © 2016 Pivotal Software, Inc. All rights reserved. Repository --> REST API public interface FooRepository extends Repository<Foo, Long> { @RestResource(exported = false) List<Foo> findBySeminarId(Long seminarId); Optional<Foo> findOne(Long id); void save(Foo foo);   } GET /foos/{id} POST /foos

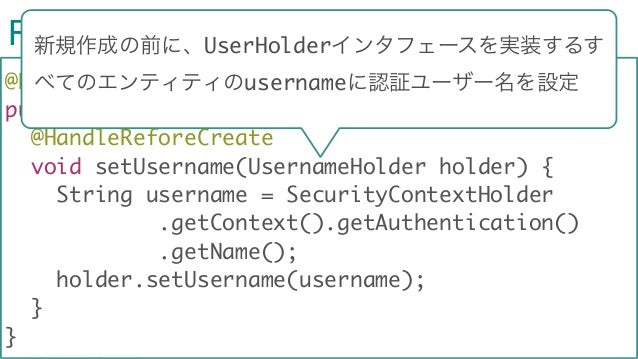

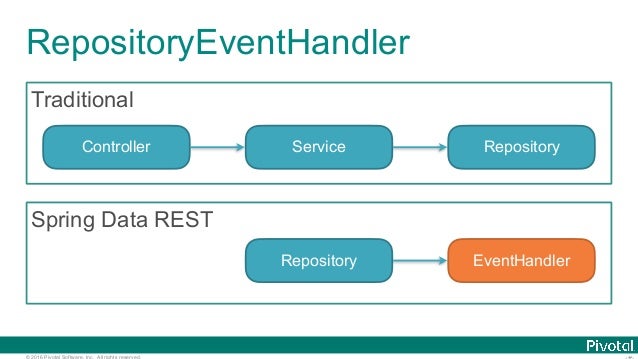

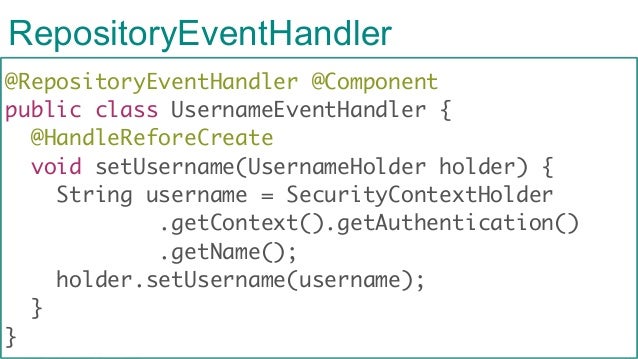

43. © 2016 Pivotal Software, Inc. All rights reserved. RepositoryEventHandler @RepositoryEventHandler @Component public class UsernameEventHandler { @HandleReforeCreate void setUsername(UsernameHolder holder) { String username = SecurityContextHolder .getContext().getAuthentication() .getName(); holder.setUsername(username); }  }

44. © 2016 Pivotal Software, Inc. All rights reserved. RepositoryEventHandler @RepositoryEventHandler @Component public class UsernameEventHandler { @HandleReforeCreate void setUsername(UsernameHolder holder) { String username = SecurityContextHolder .getContext().getAuthentication() .getName(); holder.setUsername(username); }  } UserHolder username

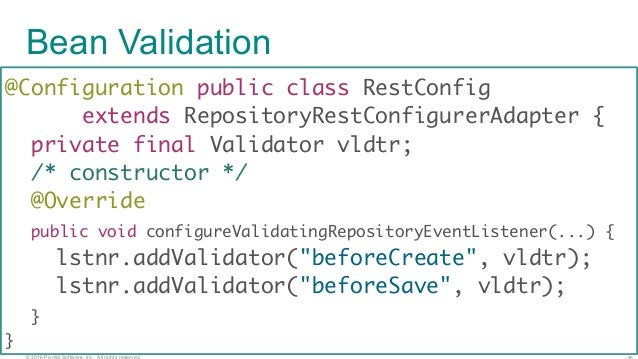

45. © 2016 Pivotal Software, Inc. All rights reserved. Bean Validation @Configuration public class RestConfig extends RepositoryRestConfigurerAdapter { private final Validator vldtr; /* constructor */ @Override public void configureValidatingRepositoryEventListener(...) { lstnr.addValidator("beforeCreate", vldtr); lstnr.addValidator("beforeSave", vldtr); } }

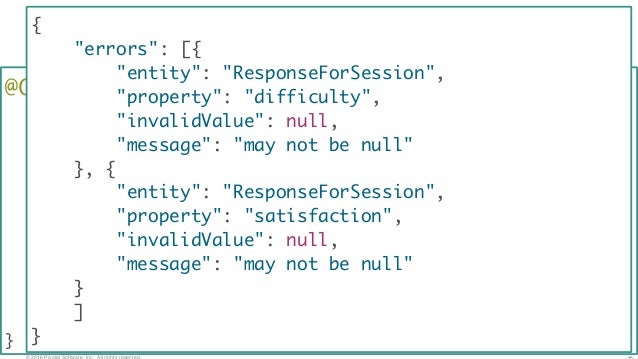

46. © 2016 Pivotal Software, Inc. All rights reserved. Bean Validation @Configuration public class RestConfig extends RepositoryRestConfigurerAdapter { private final Validator vldtr; /* constructor */ @Override public void configureValidatingRepositoryEventListener(...) { lstnr.addValidator("beforeCreate", vldtr); lstnr.addValidator("beforeSave", vldtr); } } { "errors": [{ "entity": "ResponseForSession", "property": "difficulty", "invalidValue": null, "message": "may not be null" }, { "entity": "ResponseForSession", "property": "satisfaction", "invalidValue": null, "message": "may not be null" } ] }

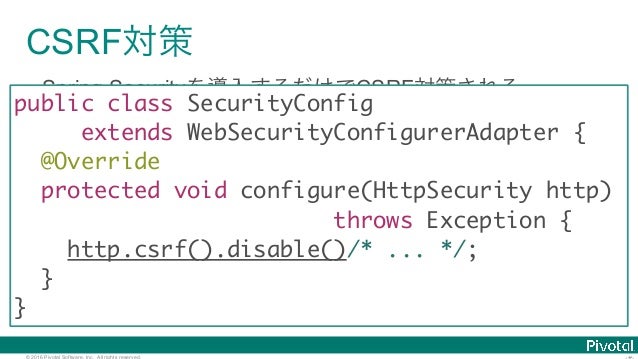

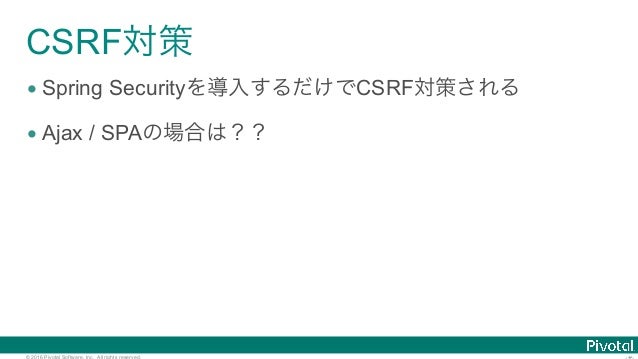

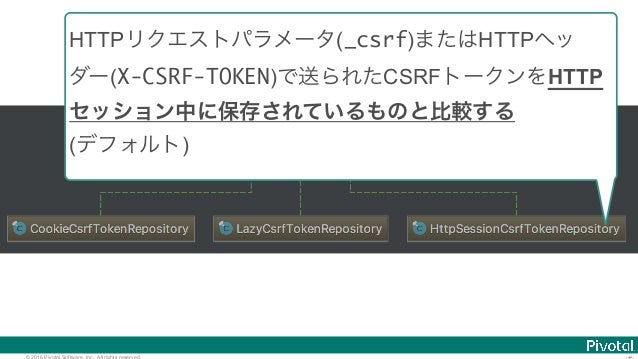

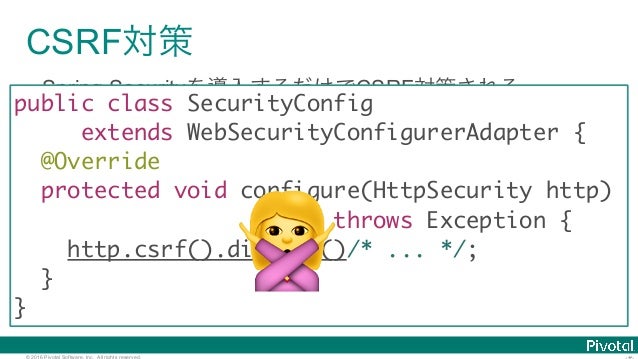

55. © 2016 Pivotal Software, Inc. All rights reserved. CSRF • Spring Security CSRF • Ajax / SPA public class SecurityConfig extends WebSecurityConfigurerAdapter {  @Override  protected void configure(HttpSecurity http) throws Exception {  http.csrf().disable()/* ... */; } }

56. © 2016 Pivotal Software, Inc. All rights reserved. CSRF • Spring Security CSRF • Ajax / SPA public class SecurityConfig extends WebSecurityConfigurerAdapter {  @Override  protected void configure(HttpSecurity http) throws Exception {  http.csrf().disable()/* ... */; } } 🙅

57. © 2016 Pivotal Software, Inc. All rights reserved. $.post('/user', { firstName: 'Fred', lastName: 'Flintstone', _csrf: $('input[name=_csrf]').val() }); $(document).ajaxSend(function(e, xhr, options) { var token = $('input[name=_csrf]').val(); xhr.setRequestHeader('X-CSRF-TOKEN', token); }); OR

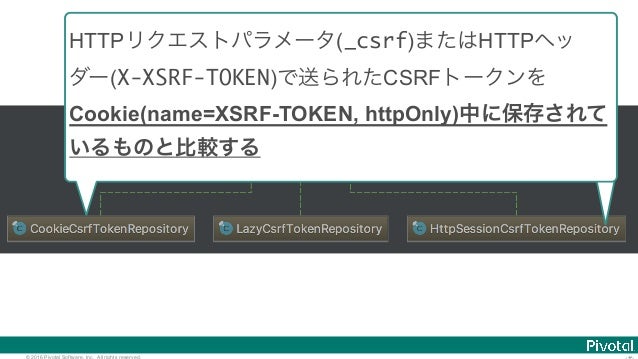

59. © 2016 Pivotal Software, Inc. All rights reserved. public class SecurityConfig extends WebSecurityConfigurerAdapter { @Override  protected void configure(HttpSecurity http) throws Exception {  http./* ... * /and().csrf()  .csrfTokenRepository( CookieCsrfTokenRepository .withHttpOnlyFalse());  }  }

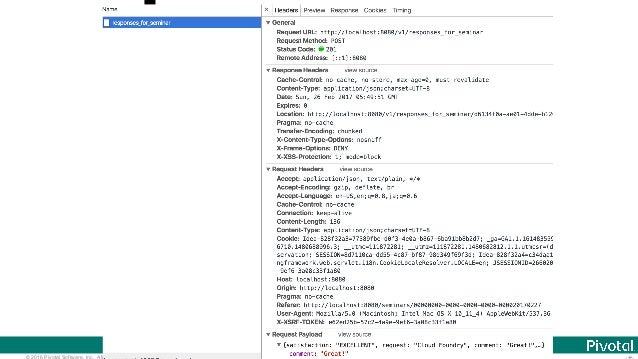

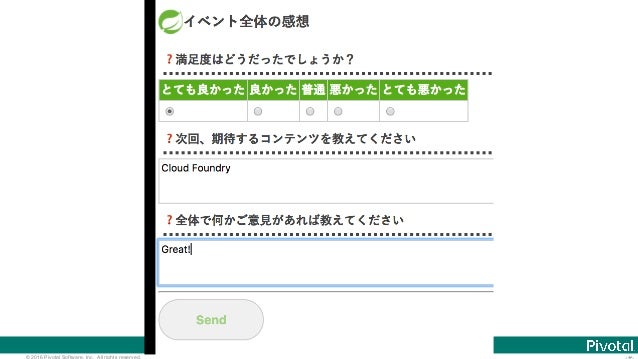

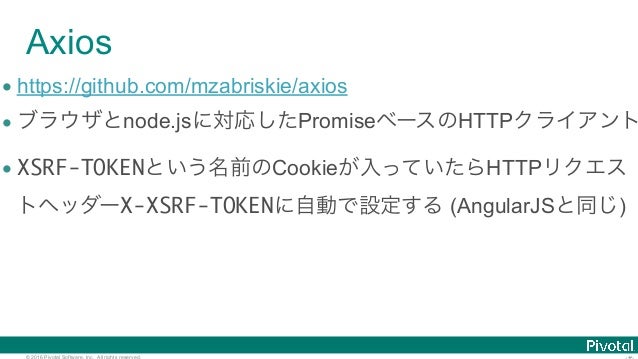

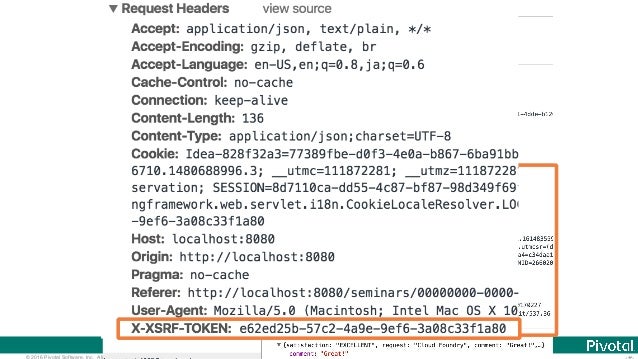

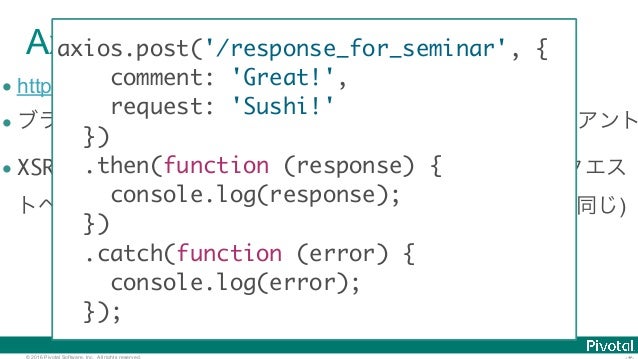

64. © 2016 Pivotal Software, Inc. All rights reserved. Axios • https://github.com/mzabriskie/axios • node.js Promise HTTP • XSRF-TOKEN Cookie HTTP X-XSRF-TOKEN (AngularJS ) axios.post('/response_for_seminar', { comment: 'Great!', request: 'Sushi!' }) .then(function (response) { console.log(response); }) .catch(function (error) { console.log(error); });

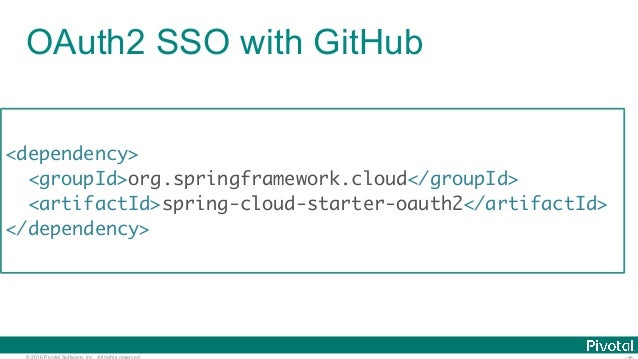

72. © 2016 Pivotal Software, Inc. All rights reserved. OAuth2 SSO with GitHub <dependency>  <groupId>org.springframework.cloud</groupId>  <artifactId>spring-cloud-starter-oauth2</artifactId>  </dependency>

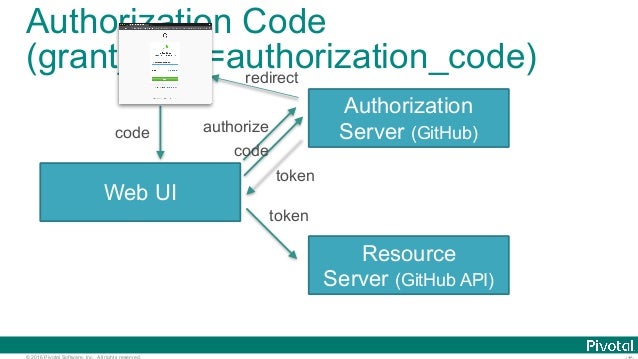

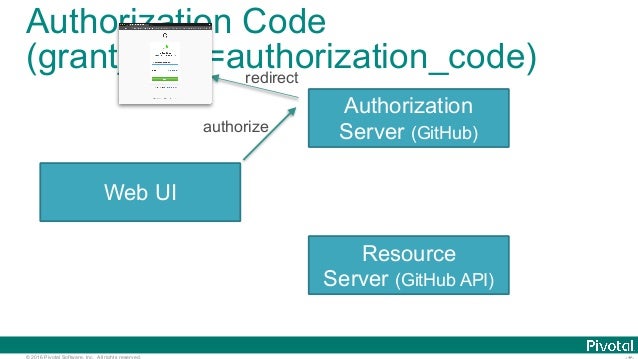

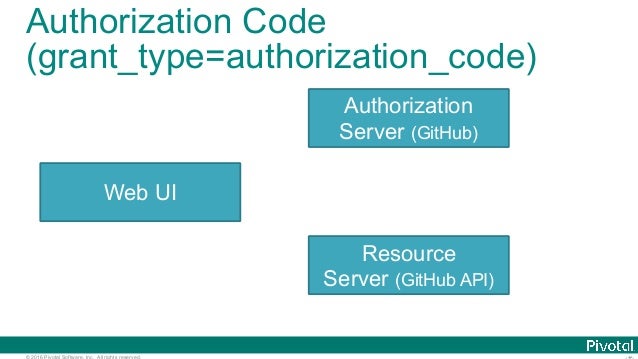

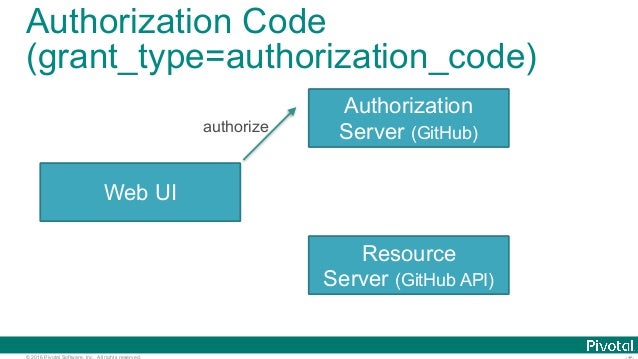

78. © 2016 Pivotal Software, Inc. All rights reserved. Authorization Code (grant_type=authorization_code) Authorization Server (GitHub) Web UI Resource Server (GitHub API) authorize redirect code code token

79. © 2016 Pivotal Software, Inc. All rights reserved. Authorization Code (grant_type=authorization_code) Authorization Server (GitHub) Web UI Resource Server (GitHub API) authorize redirect code code token token

80. © 2016 Pivotal Software, Inc. All rights reserved. Authorization Code (grant_type=authorization_code) Authorization Server (GitHub) Web UI Resource Server (GitHub API) authorize redirect code code token token response

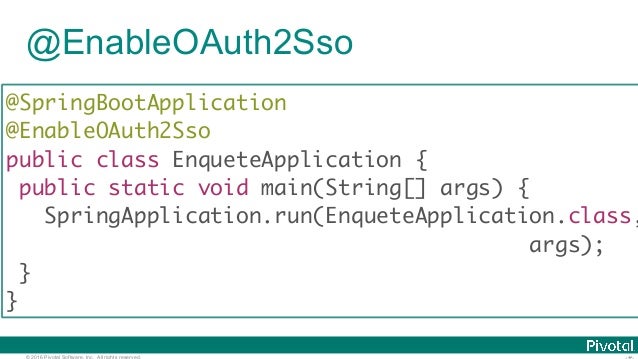

81. © 2016 Pivotal Software, Inc. All rights reserved. @EnableOAuth2Sso @SpringBootApplication @EnableOAuth2Sso  public class EnqueteApplication {  public static void main(String[] args) {  SpringApplication.run(EnqueteApplication.class, args);  } }

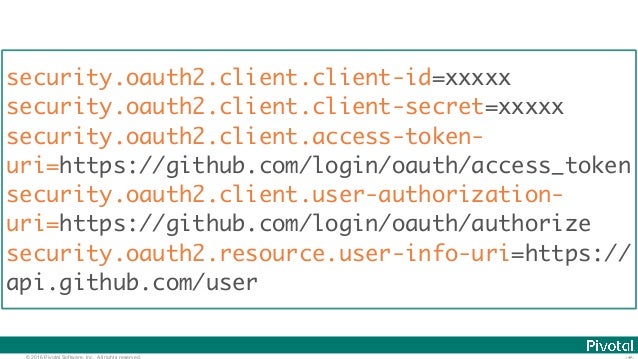

82. © 2016 Pivotal Software, Inc. All rights reserved. security.oauth2.client.client-id=xxxxx security.oauth2.client.client-secret=xxxxx security.oauth2.client.access-token- uri=https://github.com/login/oauth/access_token security.oauth2.client.user-authorization- uri=https://github.com/login/oauth/authorize  security.oauth2.resource.user-info-uri=https:// api.github.com/user

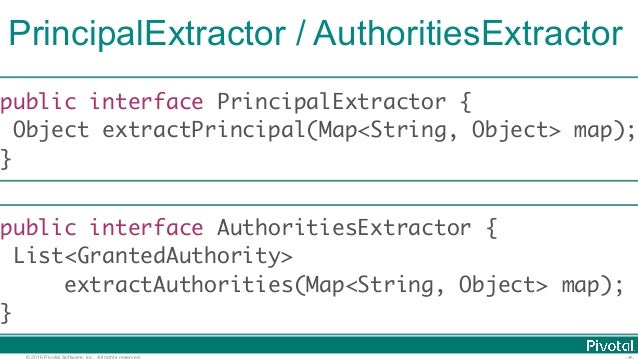

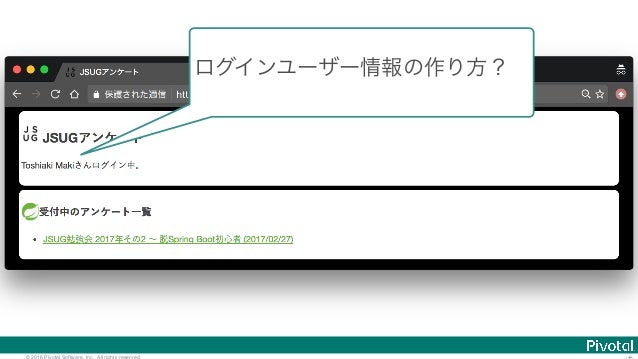

85. © 2016 Pivotal Software, Inc. All rights reserved. PrincipalExtractor / AuthoritiesExtractor public interface PrincipalExtractor {  Object extractPrincipal(Map<String, Object> map); } public interface AuthoritiesExtractor {  List<GrantedAuthority> extractAuthorities(Map<String, Object> map); }

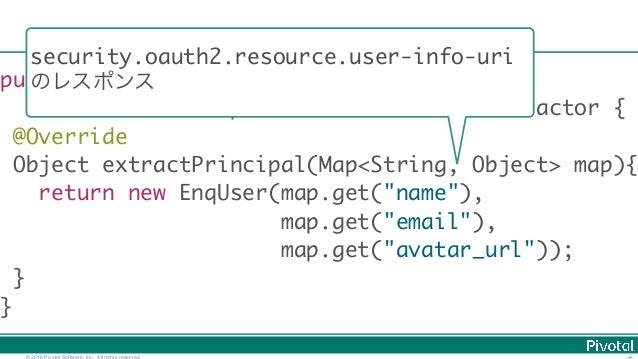

86. © 2016 Pivotal Software, Inc. All rights reserved. public EnqUserPrincipalExtractor implements AuthoritiesExtractor { @Override  Object extractPrincipal(Map<String, Object> map){ return new EnqUser(map.get("name"), map.get("email"), map.get("avatar_url")); } }

87. © 2016 Pivotal Software, Inc. All rights reserved. public EnqUserPrincipalExtractor implements AuthoritiesExtractor { @Override  Object extractPrincipal(Map<String, Object> map){ return new EnqUser(map.get("name"), map.get("email"), map.get("avatar_url")); } } security.oauth2.resource.user-info-uri

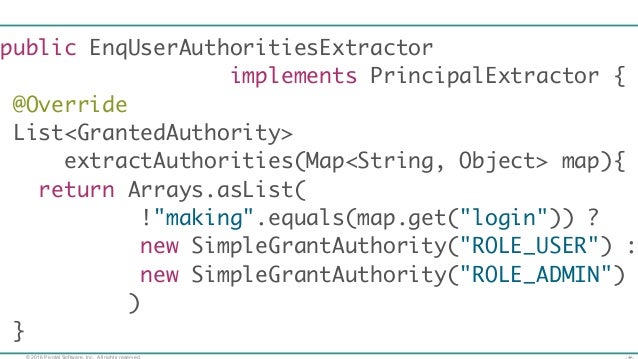

88. © 2016 Pivotal Software, Inc. All rights reserved. public EnqUserAuthoritiesExtractor implements PrincipalExtractor { @Override  List<GrantedAuthority> extractAuthorities(Map<String, Object> map){ return Arrays.asList( !"making".equals(map.get("login")) ? new SimpleGrantAuthority("ROLE_USER") : new SimpleGrantAuthority("ROLE_ADMIN") ) }

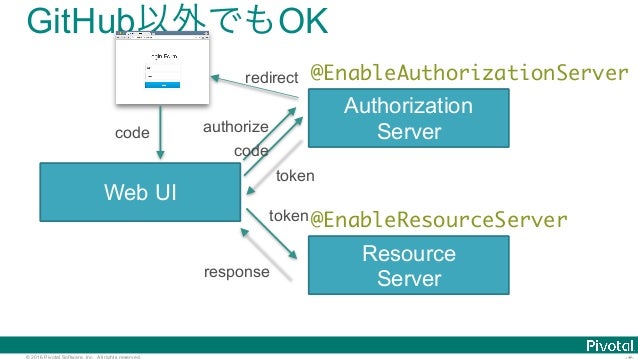

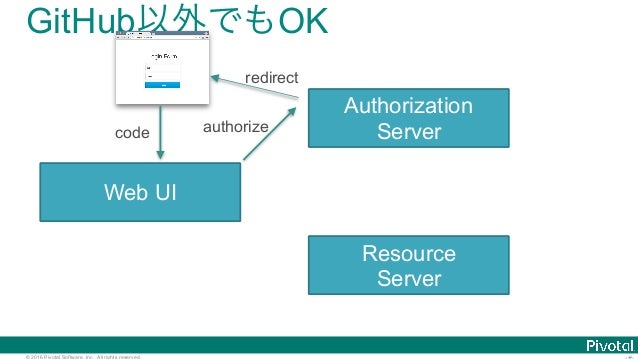

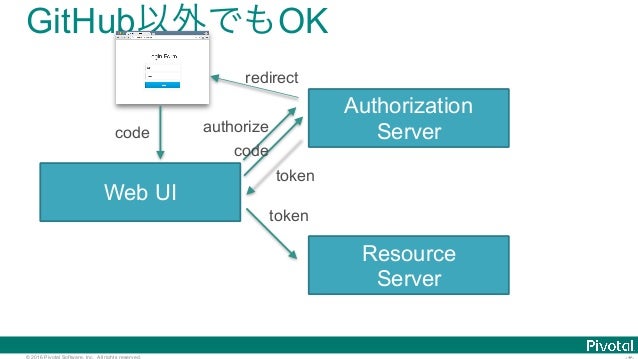

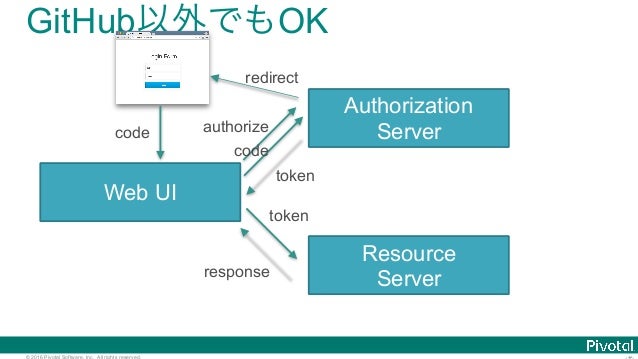

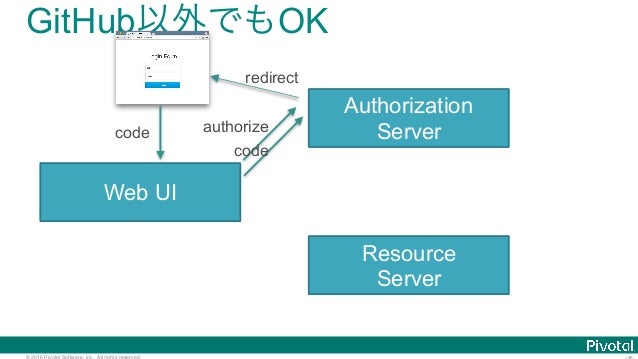

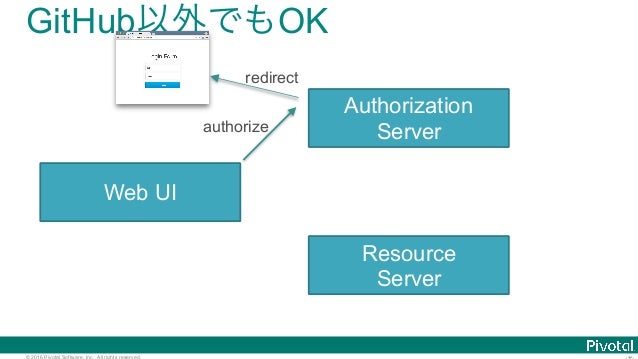

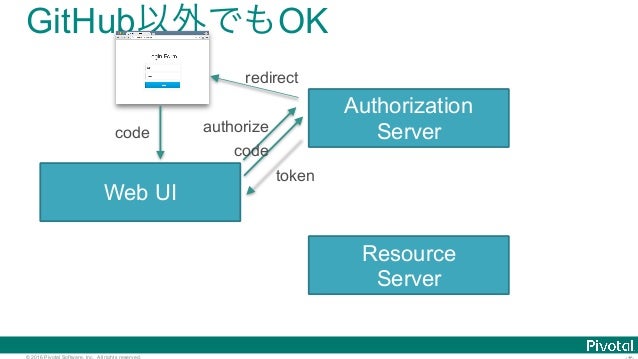

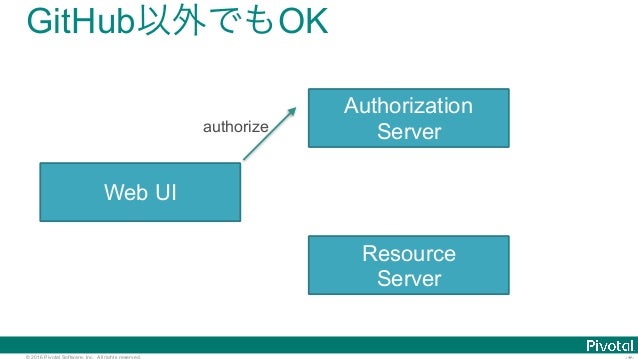

97. © 2016 Pivotal Software, Inc. All rights reserved. GitHub OK Authorization Server Web UI Resource Server authorize redirect code code token token response @EnableAuthorizationServer @EnableResourceServer

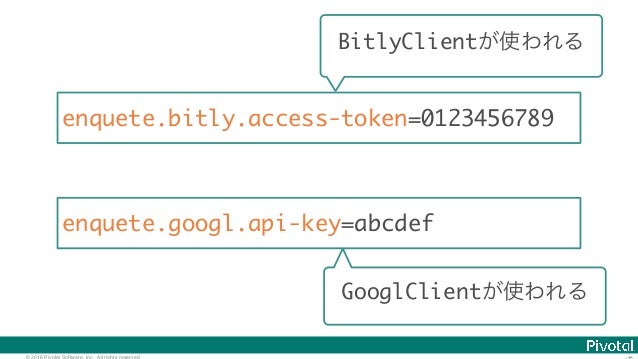

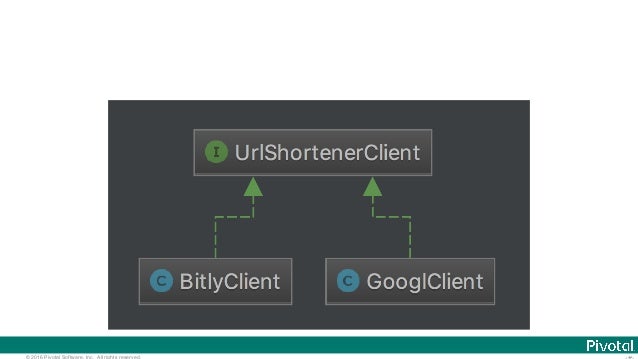

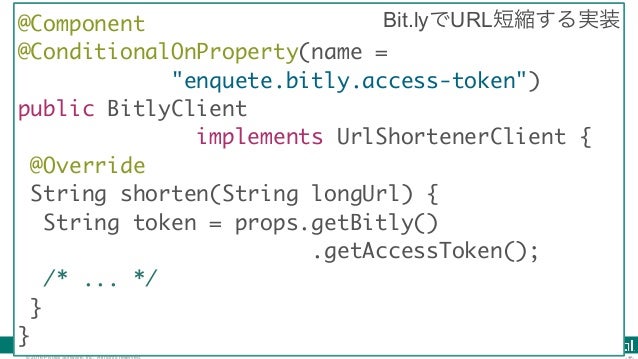

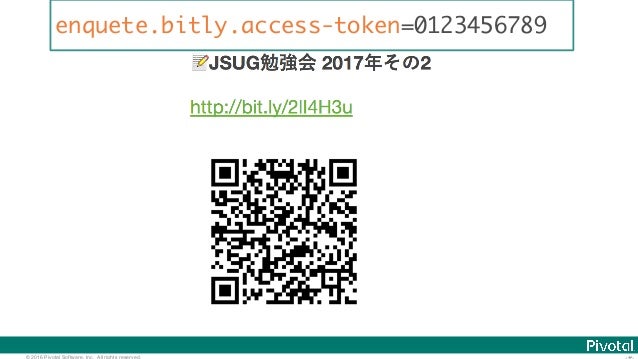

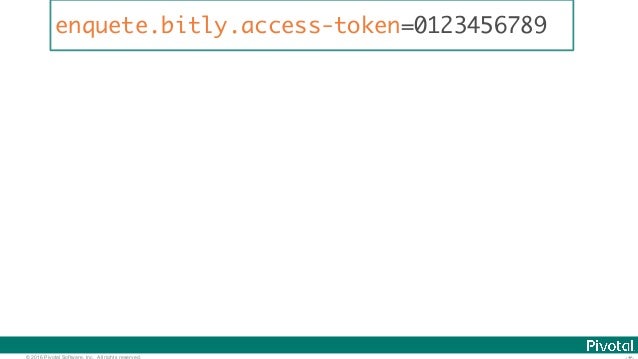

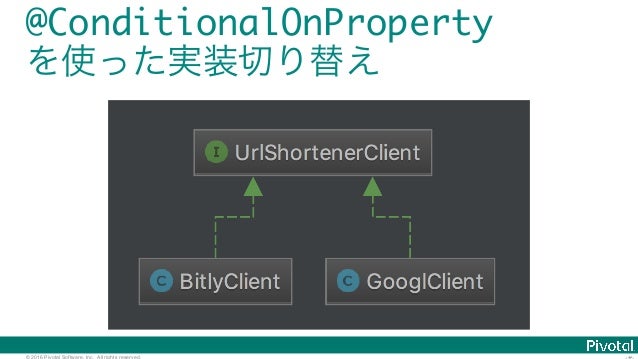

105. © 2016 Pivotal Software, Inc. All rights reserved. @Component @ConditionalOnProperty(name = "enquete.bitly.access-token") public BitlyClient implements UrlShortenerClient { @Override  String shorten(String longUrl) { String token = props.getBitly() .getAccessToken(); /* ... */ } } Bit.ly URL

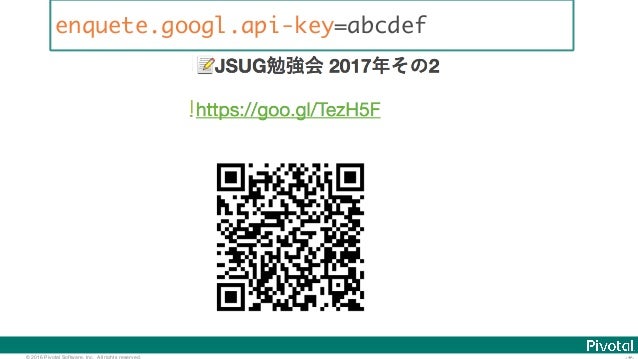

106. © 2016 Pivotal Software, Inc. All rights reserved. @Component @ConditionalOnProperty(name = "enquete.googl.api-key") public GooglClient implements UrlShortenerClient { @Override  String shorten(String longUrl) { String apiKey = props.getGoogl().getApiKey(); /* ... */ } } Goo.gl URL

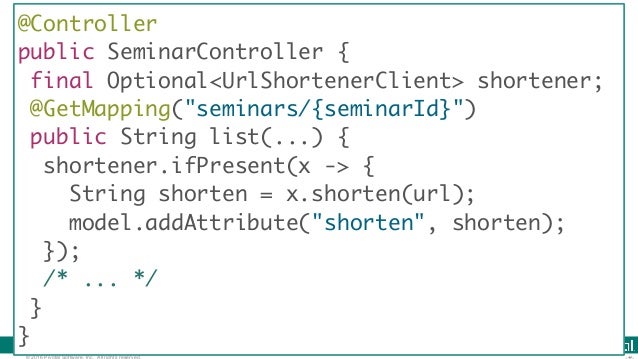

108. © 2016 Pivotal Software, Inc. All rights reserved. @Controller public SeminarController { final Optional<UrlShortenerClient> shortener;  @GetMapping("seminars/{seminarId}")  public String list(...) { shortener.ifPresent(x -> { String shorten = x.shorten(url); model.addAttribute("shorten", shorten); }); /* ... */ } }

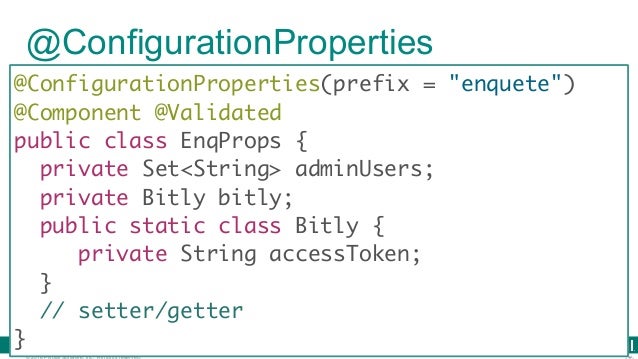

116. © 2016 Pivotal Software, Inc. All rights reserved. @ConfigurationProperties @ConfigurationProperties(prefix = "enquete") @Component @Validated public class EnqProps {  private Set<String> adminUsers; private Bitly bitly; public static class Bitly {  private String accessToken;  } // setter/getter }

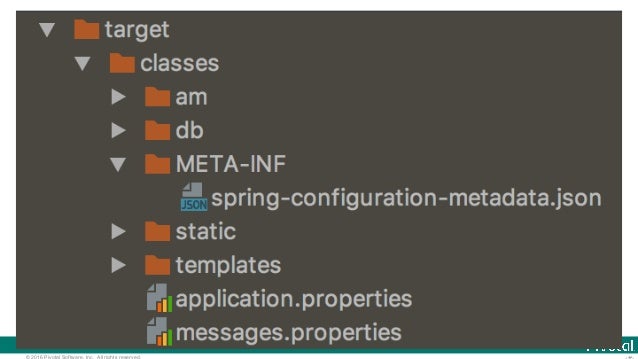

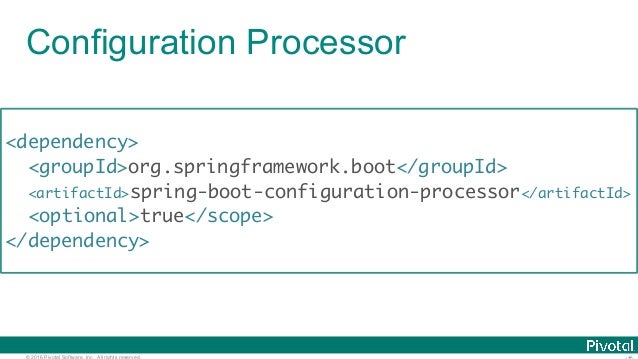

117. © 2016 Pivotal Software, Inc. All rights reserved. Configuration Processor <dependency>  <groupId>org.springframework.boot</groupId>  <artifactId>spring-boot-configuration-processor</artifactId> <optional>true</scope>  </dependency>

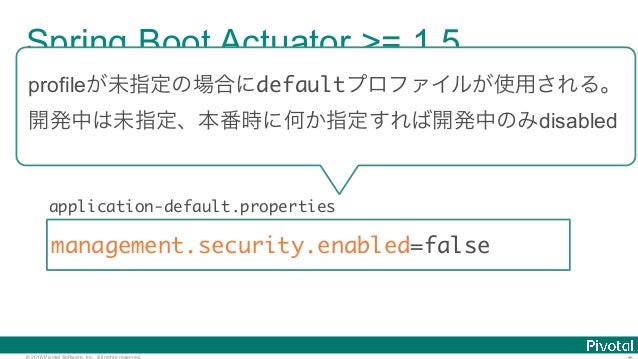

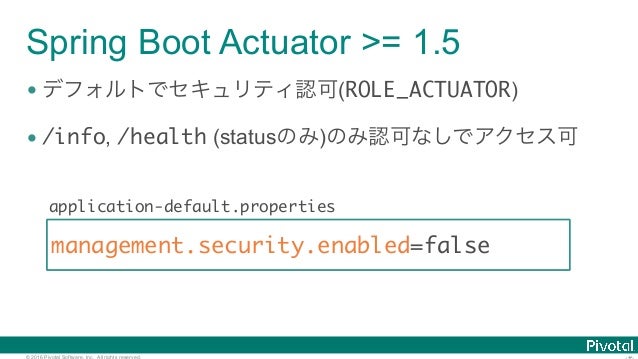

124. © 2016 Pivotal Software, Inc. All rights reserved. Spring Boot Actuator >= 1.5 • (ROLE_ACTUATOR) • /info, /health (status ) management.security.enabled=false application-default.properties profile default disabled

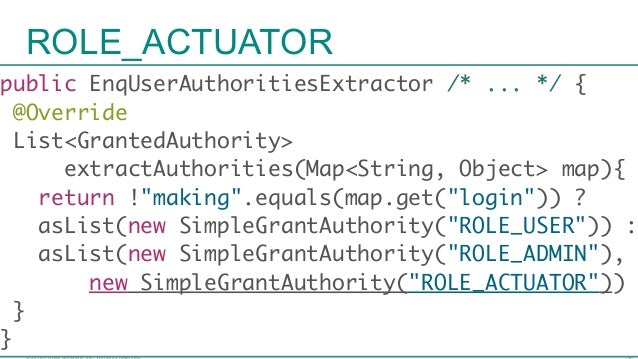

125. © 2016 Pivotal Software, Inc. All rights reserved. ROLE_ACTUATOR public EnqUserAuthoritiesExtractor /* ... */ { @Override  List<GrantedAuthority> extractAuthorities(Map<String, Object> map){ return !"making".equals(map.get("login")) ? asList(new SimpleGrantAuthority("ROLE_USER")) : asList(new SimpleGrantAuthority("ROLE_ADMIN"), new SimpleGrantAuthority("ROLE_ACTUATOR")) } }

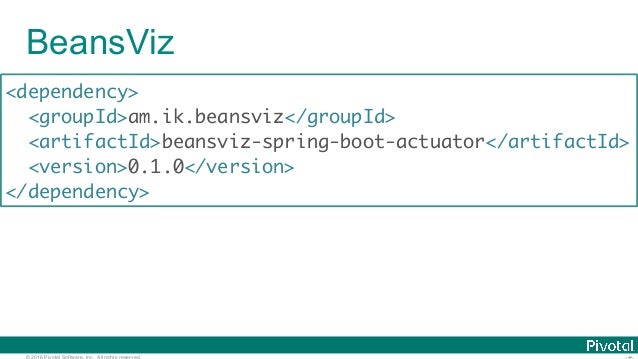

126. © 2016 Pivotal Software, Inc. All rights reserved. BeansViz <dependency>  <groupId>am.ik.beansviz</groupId>  <artifactId>beansviz-spring-boot-actuator</artifactId>  <version>0.1.0</version> </dependency>

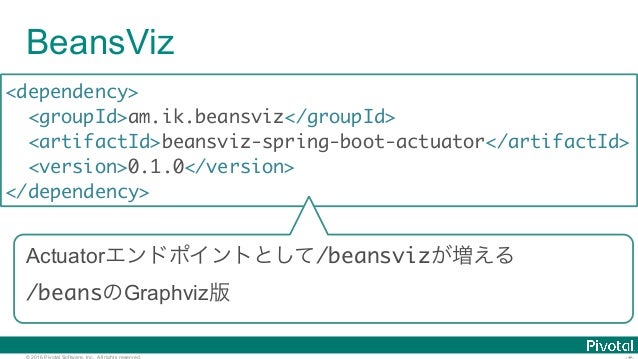

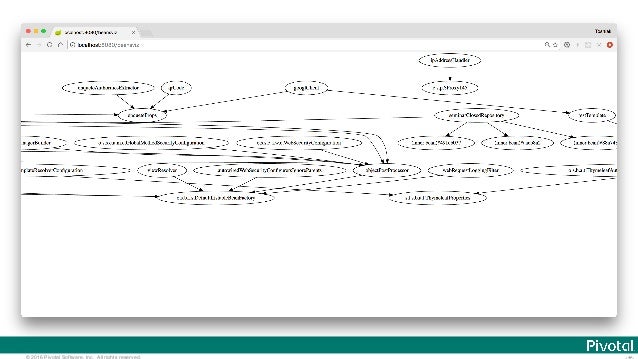

127. © 2016 Pivotal Software, Inc. All rights reserved. BeansViz <dependency>  <groupId>am.ik.beansviz</groupId>  <artifactId>beansviz-spring-boot-actuator</artifactId>  <version>0.1.0</version> </dependency> Actuator /beansviz /beans Graphviz
