Linux Networking Explained

1. Linux Networking Explained LinuxCon 2016, Toronto Thomas Graf (@tgraf__) Kernel, Cilium & Open vSwitch Team Noiro Networks (Cisco)

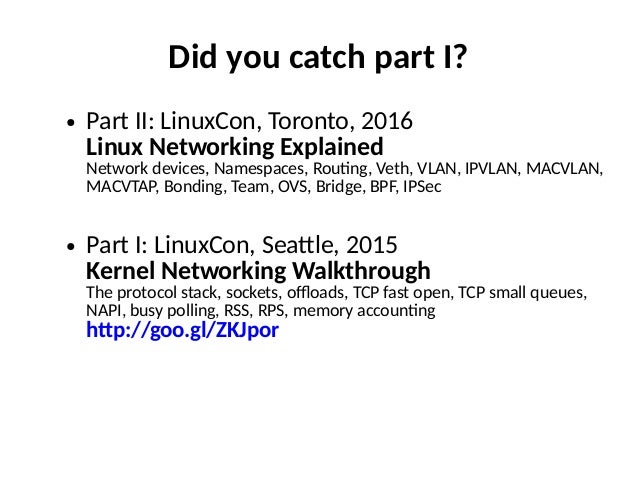

2. Did you catch part I? ● Part II: LinuxCon, Toronto, 2016 Linux Networking Explained Network devices, Namespaces, Rou"ng, Veth, VLAN, IPVLAN, MACVLAN, MACVTAP, Bonding, Team, OVS, Bridge, BPF, IPSec ● Part I: LinuxCon, Sea,le, 2015 Kernel Networking Walkthrough The protocol stack, sockets, o/oads, TCP fast open, TCP small queues, NAPI, busy polling, RSS, RPS, memory accoun"ng h/p://goo.gl/ZKJpor

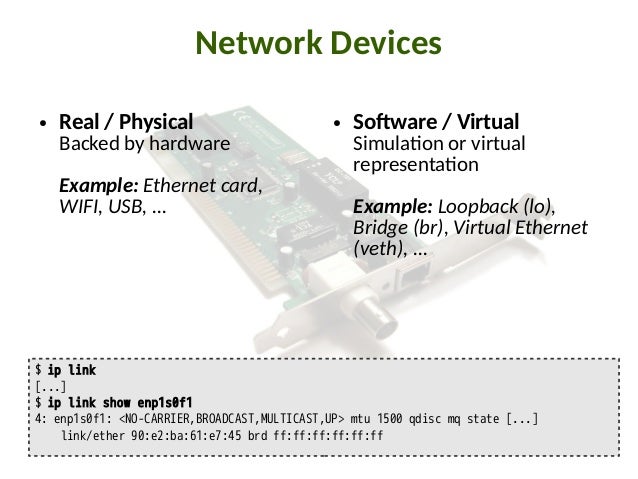

3. Network Devices ● Real / Physical Backed by hardware Example: Ethernet card, WIFI, USB, ... ● So7ware / Virtual Simula"on or virtual representa"on Example: Loopback (lo), Bridge (br), Virtual Ethernet (veth), ... $ ip link [...] $ ip link show enp1s0f1 4: enp1s0f1: <NO-CARRIER,BROADCAST,MULTICAST,UP> mtu 1500 qdisc mq state [...] link/ether 90:e2:ba:61:e7:45 brd ff:ff:ff:ff:ff:ff

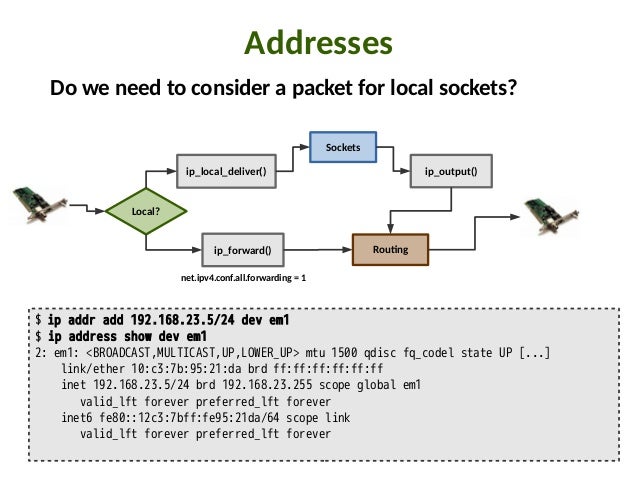

4. Addresses $ ip addr add 192.168.23.5/24 dev em1 $ ip address show dev em1 2: em1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP [...] link/ether 10:c3:7b:95:21:da brd ff:ff:ff:ff:ff:ff inet 192.168.23.5/24 brd 192.168.23.255 scope global em1 valid_lft forever preferred_lft forever inet6 fe80::12c3:7bff:fe95:21da/64 scope link valid_lft forever preferred_lft forever Do we need to consider a packet for local sockets? ip_forward() Local? Rou:ng Sockets ip_local_deliver() ip_output() net.ipv4.conf.all.forwarding = 1

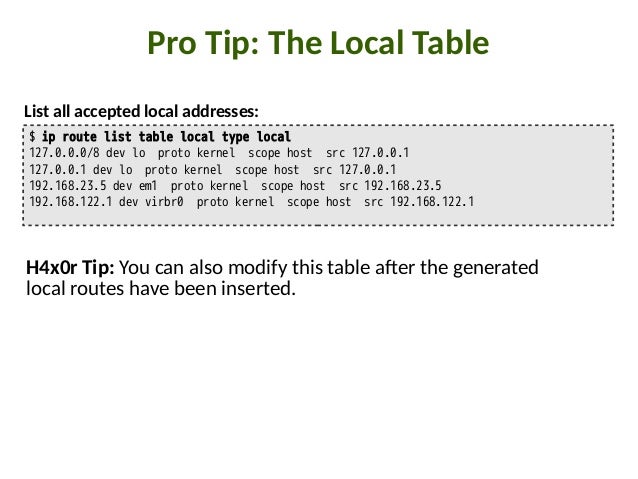

5. Pro Tip: The Local Table $ ip route list table local type local 127.0.0.0/8 dev lo proto kernel scope host src 127.0.0.1 127.0.0.1 dev lo proto kernel scope host src 127.0.0.1 192.168.23.5 dev em1 proto kernel scope host src 192.168.23.5 192.168.122.1 dev virbr0 proto kernel scope host src 192.168.122.1 List all accepted local addresses: H4x0r Tip: You can also modify this table a5er the generated local routes have been inserted.

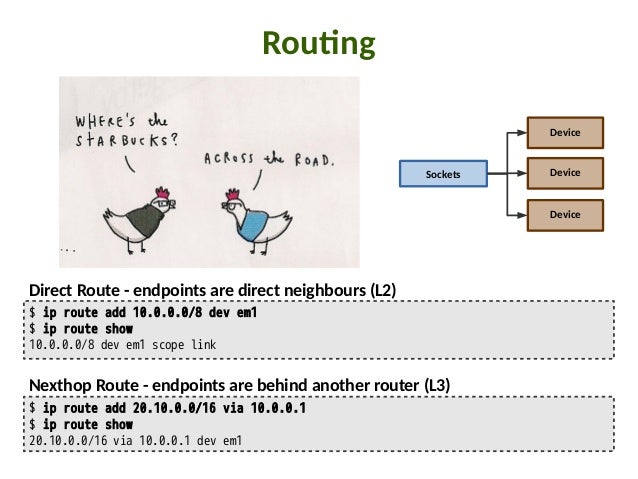

6. Rou:ng $ ip route add 10.0.0.0/8 dev em1 $ ip route show 10.0.0.0/8 dev em1 scope link Device $ ip route add 20.10.0.0/16 via 10.0.0.1 $ ip route show 20.10.0.0/16 via 10.0.0.1 dev em1 Direct Route - endpoints are direct neighbours (L2) Nexthop Route - endpoints are behind another router (L3) DeviceSockets Device

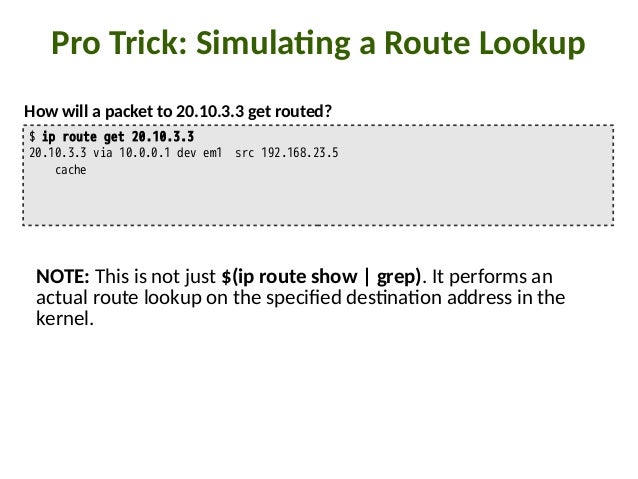

7. Pro Trick: Simula:ng a Route Lookup $ ip route get 20.10.3.3 20.10.3.3 via 10.0.0.1 dev em1 src 192.168.23.5 cache How will a packet to 20.10.3.3 get routed? NOTE: This is not just $(ip route show | grep). It performs an actual route lookup on the speci8ed des"na"on address in the kernel.

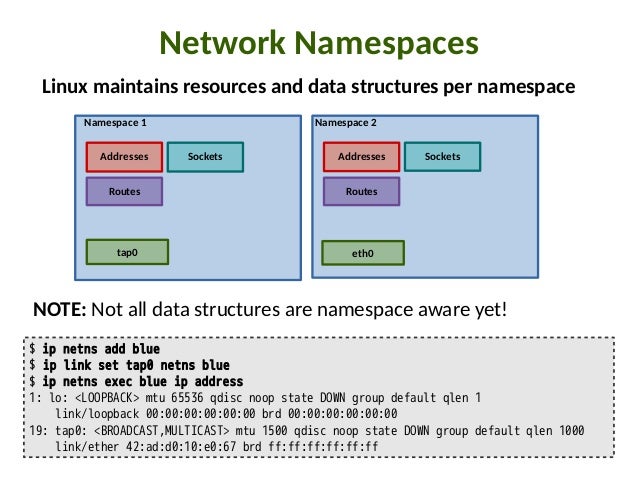

8. Network Namespaces $ ip netns add blue $ ip link set tap0 netns blue $ ip netns exec blue ip address 1: lo: <LOOPBACK> mtu 65536 qdisc noop state DOWN group default qlen 1 link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00 19: tap0: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN group default qlen 1000 link/ether 42:ad:d0:10:e0:67 brd ff:ff:ff:ff:ff:ff Namespace 2Namespace 1 NOTE: Not all data structures are namespace aware yet! eth0tap0 AddressesAddresses RoutesRoutes SocketsSockets Linux maintains resources and data structures per namespace

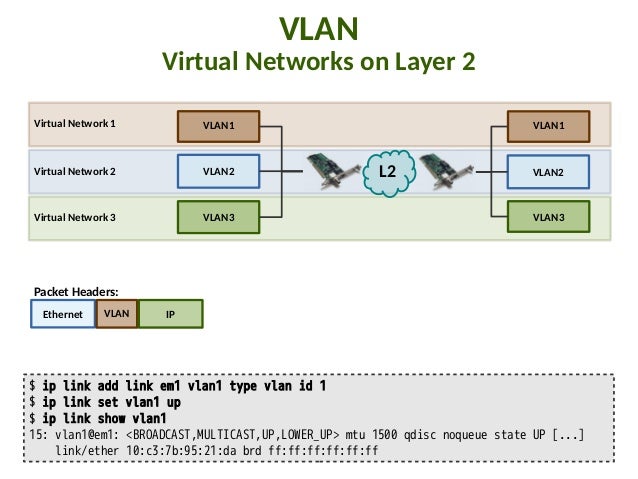

9. Virtual Network 2 Virtual Network 3 Virtual Network 1 VLAN Virtual Networks on Layer 2 $ ip link add link em1 vlan1 type vlan id 1 $ ip link set vlan1 up $ ip link show vlan1 15: vlan1@em1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc noqueue state UP [...] link/ether 10:c3:7b:95:21:da brd ff:ff:ff:ff:ff:ff VLAN1 VLAN1 VLAN2 VLAN2 VLAN3 VLAN3 L2 Ethernet VLAN IP Packet Headers:

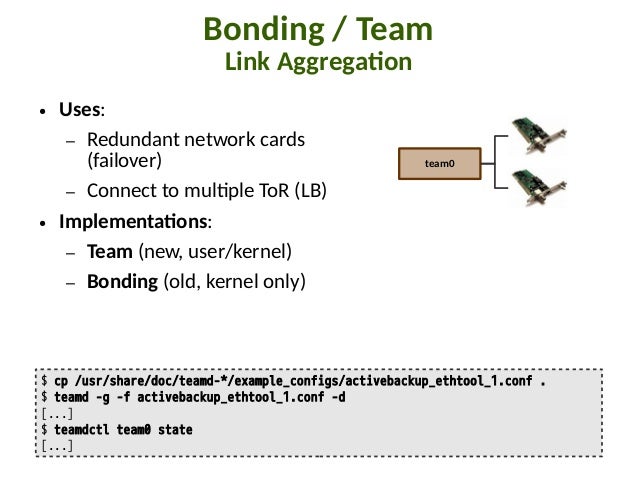

10. Bonding / Team Link Aggrega:on $ cp /usr/share/doc/teamd-*/example_configs/activebackup_ethtool_1.conf . $ teamd -g -f activebackup_ethtool_1.conf -d [...] $ teamdctl team0 state [...] team0 ● Uses: – Redundant network cards (failover) – Connect to mul"ple ToR (LB) ● Implementa:ons: – Team (new, user/kernel) – Bonding (old, kernel only)

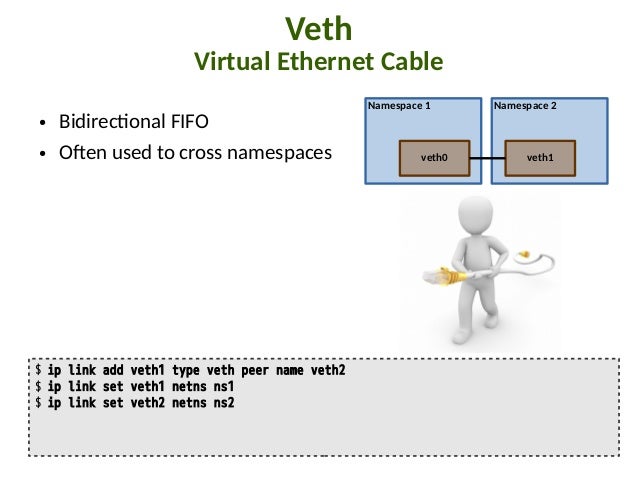

11. Namespace 1 Namespace 2 Veth Virtual Ethernet Cable ● Bidirec"onal FIFO ● O5en used to cross namespaces $ ip link add veth1 type veth peer name veth2 $ ip link set veth1 netns ns1 $ ip link set veth2 netns ns2 veth0 veth1

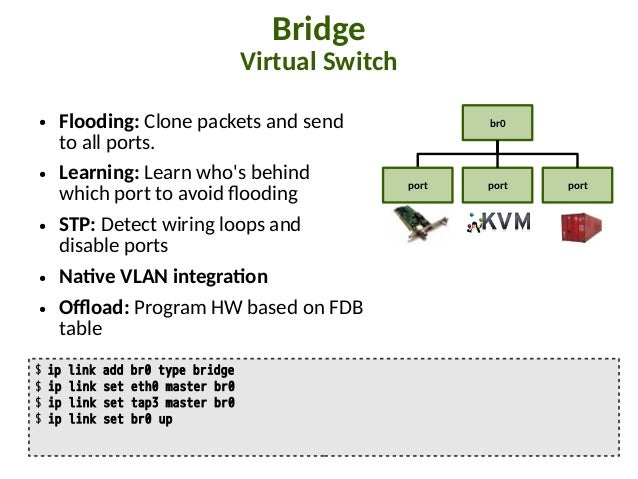

12. Bridge Virtual Switch ● Flooding: Clone packets and send to all ports. ● Learning: Learn who's behind which port to avoid <ooding ● STP: Detect wiring loops and disable ports ● Na:ve VLAN integra:on ● OFoad: Program HW based on FDB table $ ip link add br0 type bridge $ ip link set eth0 master br0 $ ip link set tap3 master br0 $ ip link set br0 up br0 port portport

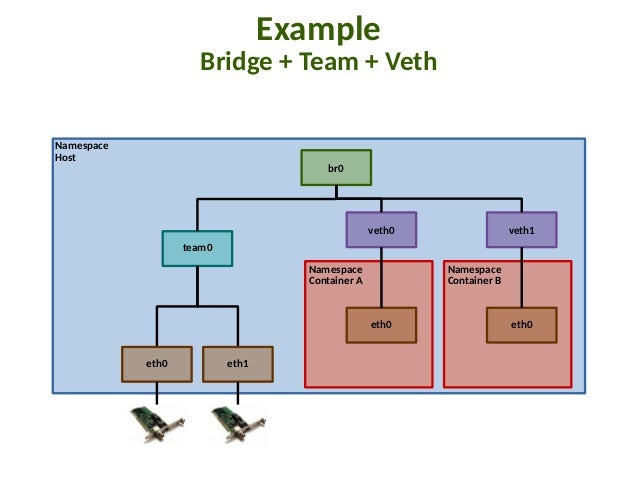

13. Example Bridge + Team + Veth Namespace Host Namespace Container B Namespace Container A br0 veth1 team0 veth0 eth0eth0 eth1eth0

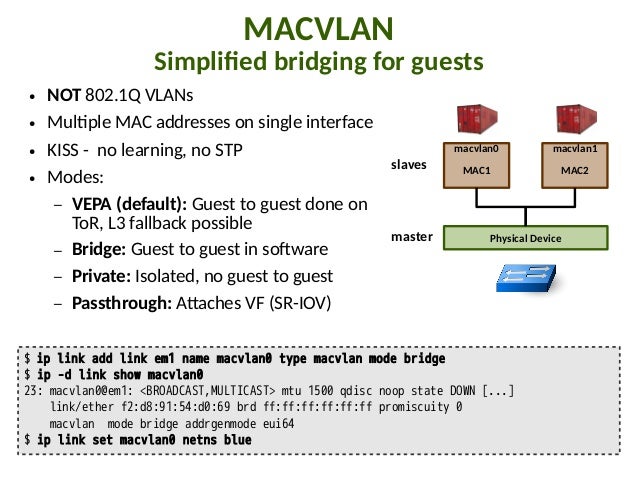

14. MACVLAN SimpliIed bridging for guests ● NOT 802.1Q VLANs ● Mul"ple MAC addresses on single interface ● KISS - no learning, no STP ● Modes: – VEPA (default): Guest to guest done on ToR, L3 fallback possible – Bridge: Guest to guest in so5ware – Private: Isolated, no guest to guest – Passthrough: A,aches VF (SR-IOV) $ ip link add link em1 name macvlan0 type macvlan mode bridge $ ip -d link show macvlan0 23: macvlan0@em1: <BROADCAST,MULTICAST> mtu 1500 qdisc noop state DOWN [...] link/ether f2:d8:91:54:d0:69 brd ff:ff:ff:ff:ff:ff promiscuity 0 macvlan mode bridge addrgenmode eui64 $ ip link set macvlan0 netns blue macvlan0 MAC1 Physical Device macvlan1 MAC2 master slaves

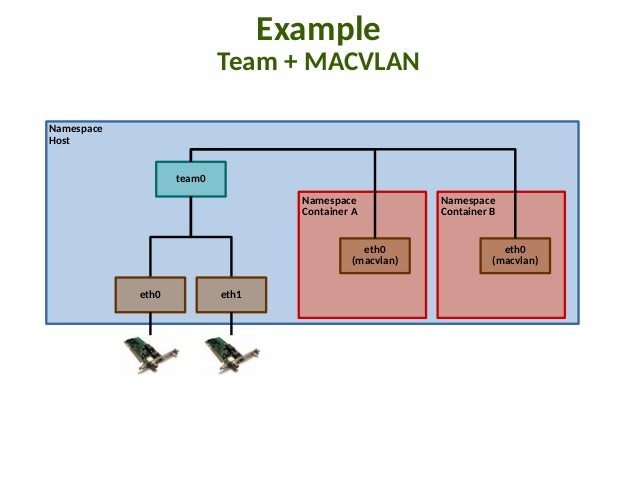

15. Example Team + MACVLAN Namespace Host Namespace Container B Namespace Container A team0 eth0 (macvlan) eth0 (macvlan) eth1eth0

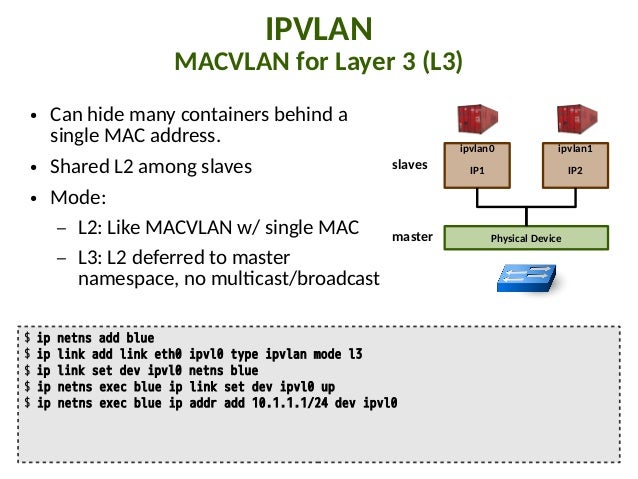

16. IPVLAN MACVLAN for Layer 3 (L3) ● Can hide many containers behind a single MAC address. ● Shared L2 among slaves ● Mode: – L2: Like MACVLAN w/ single MAC – L3: L2 deferred to master namespace, no mul"cast/broadcast $ ip netns add blue $ ip link add link eth0 ipvl0 type ipvlan mode l3 $ ip link set dev ipvl0 netns blue $ ip netns exec blue ip link set dev ipvl0 up $ ip netns exec blue ip addr add 10.1.1.1/24 dev ipvl0 ipvlan0 IP1 Physical Device ipvlan1 IP2 master slaves

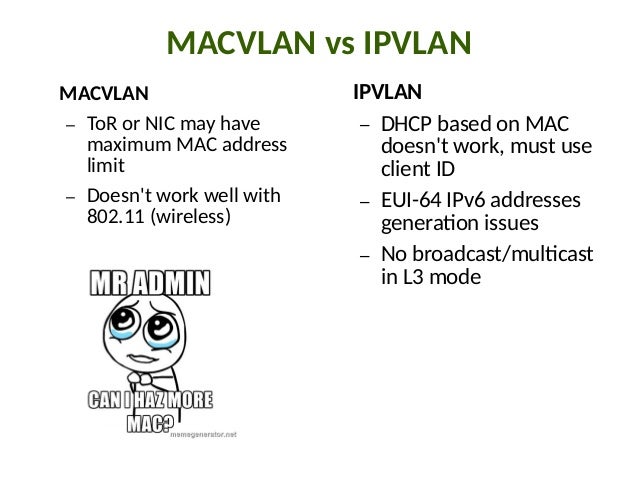

17. MACVLAN vs IPVLAN MACVLAN – ToR or NIC may have maximum MAC address limit – Doesn't work well with 802.11 (wireless) IPVLAN – DHCP based on MAC doesn't work, must use client ID – EUI-64 IPv6 addresses genera"on issues – No broadcast/mul"cast in L3 mode

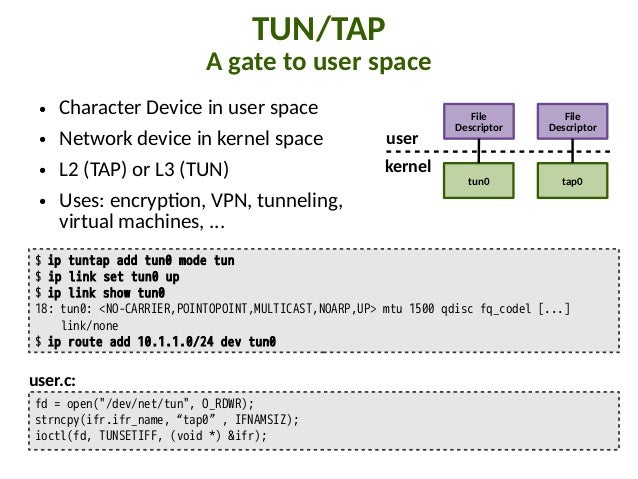

18. TUN/TAP A gate to user space ● Character Device in user space ● Network device in kernel space ● L2 (TAP) or L3 (TUN) ● Uses: encryp"on, VPN, tunneling, virtual machines, ... tun0 tap0 fd = open("/dev/net/tun", O_RDWR); strncpy(ifr.ifr_name,“tap0”, IFNAMSIZ); ioctl(fd, TUNSETIFF, (void *) &ifr); $ ip tuntap add tun0 mode tun $ ip link set tun0 up $ ip link show tun0 18: tun0: <NO-CARRIER,POINTOPOINT,MULTICAST,NOARP,UP> mtu 1500 qdisc fq_codel [...] link/none $ ip route add 10.1.1.0/24 dev tun0 user.c: File Descriptor File Descriptor kernel user

19. MACVTAP Bridge + TAP = MACVTAP ● A TAP with an integrated bridge ● Connects VM/container via L2 ● Same modes as MACVLAN macvtap2 MAC1 macvtap3 MAC2 $ ip link add link em1 name macvtap0 type macvtap mode vepa $ ip -d link show macvtap 20: macvtap0@em1: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1500 qdisc fq_codel state UP [...] link/ether 3e:cb:79:61:8c:4b brd ff:ff:ff:ff:ff:ff macvtap mode vepa addrgenmode eui64 $ ls -l /dev/tap20 crw-------. 1 root root 241, 1 Aug 8 21:08 /dev/tap20 /dev/tap3/dev/tap2 kernel user Physical Device

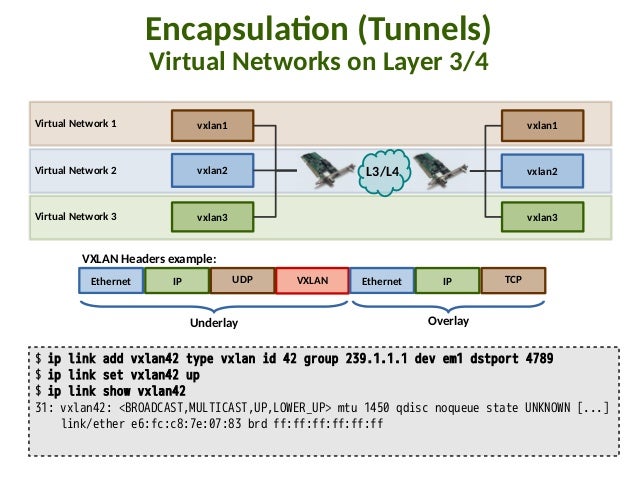

20. Virtual Network 2 Virtual Network 3 Virtual Network 1 Encapsula:on (Tunnels) Virtual Networks on Layer 3/4 $ ip link add vxlan42 type vxlan id 42 group 239.1.1.1 dev em1 dstport 4789 $ ip link set vxlan42 up $ ip link show vxlan42 31: vxlan42: <BROADCAST,MULTICAST,UP,LOWER_UP> mtu 1450 qdisc noqueue state UNKNOWN [...] link/ether e6:fc:c8:7e:07:83 brd ff:ff:ff:ff:ff:ff vxlan1 vxlan1 vxlan2 vxlan2 vxlan3 vxlan3 L3/L4 Ethernet VXLANIP VXLAN Headers example: UDP Ethernet IP TCP Underlay Overlay

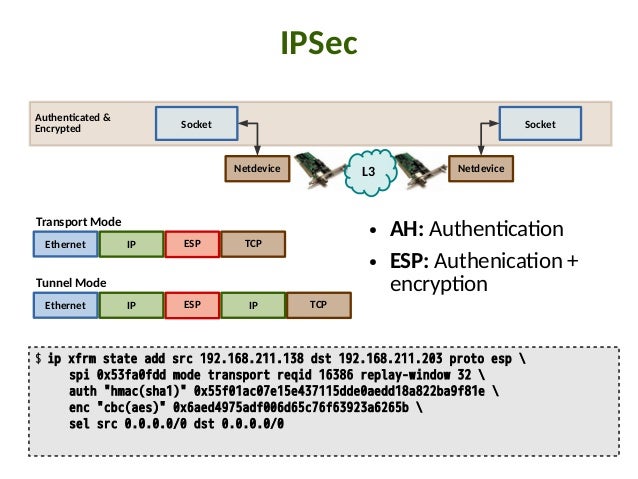

21. Authen:cated & Encrypted IPSec $ ip xfrm state add src 192.168.211.138 dst 192.168.211.203 proto esp spi 0x53fa0fdd mode transport reqid 16386 replay-window 32 auth "hmac(sha1)" 0x55f01ac07e15e437115dde0aedd18a822ba9f81e enc "cbc(aes)" 0x6aed4975adf006d65c76f63923a6265b sel src 0.0.0.0/0 dst 0.0.0.0/0 Socket Socket L3 Ethernet ESPIP Transport Mode TCP Tunnel Mode Ethernet ESPIP TCPIP Netdevice Netdevice ● AH: Authen"ca"on ● ESP: Authenica"on + encryp"on

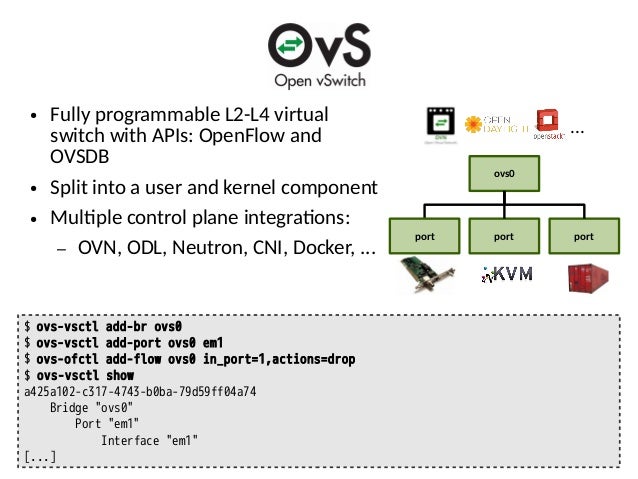

22. ovs0 port portport ● Fully programmable L2-L4 virtual switch with APIs: OpenFlow and OVSDB ● Split into a user and kernel component ● Mul"ple control plane integra"ons: – OVN, ODL, Neutron, CNI, Docker, ... ... $ ovs-vsctl add-br ovs0 $ ovs-vsctl add-port ovs0 em1 $ ovs-ofctl add-flow ovs0 in_port=1,actions=drop $ ovs-vsctl show a425a102-c317-4743-b0ba-79d59ff04a74 Bridge "ovs0" Port "em1" Interface "em1" [...]

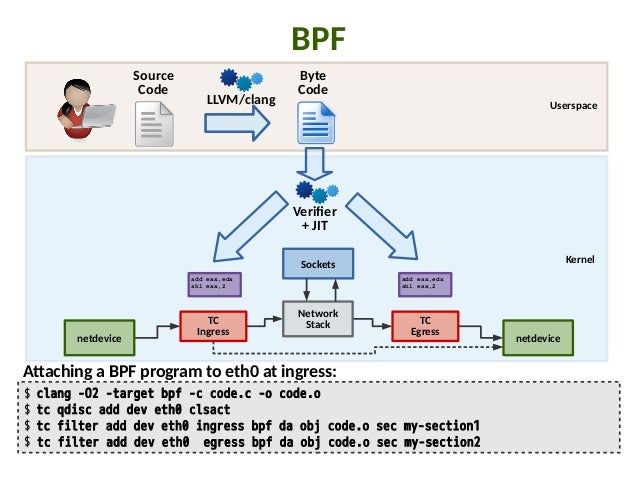

23. Kernel Userspace BPF Source Code Byte Code LLVM/clang Sockets netdevice Network StackTC Ingress TC Egress netdevice $ clang -O2 -target bpf -c code.c -o code.o $ tc qdisc add dev eth0 clsact $ tc filter add dev eth0 ingress bpf da obj code.o sec my-section1 $ tc filter add dev eth0 egress bpf da obj code.o sec my-section2 A/aching a BPF program to eth0 at ingress: VeriIer + JIT add eax,edx shl eax,2 add eax,edx shl eax,2

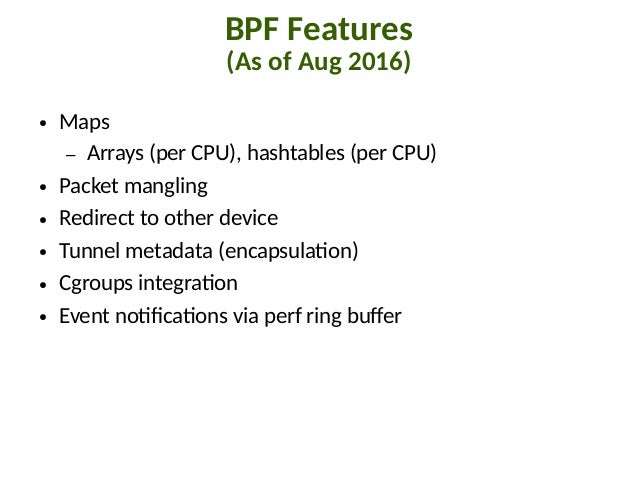

24. BPF Features (As of Aug 2016) ● Maps – Arrays (per CPU), hashtables (per CPU) ● Packet mangling ● Redirect to other device ● Tunnel metadata (encapsula"on) ● Cgroups integra"on ● Event no"8ca"ons via perf ring buJer

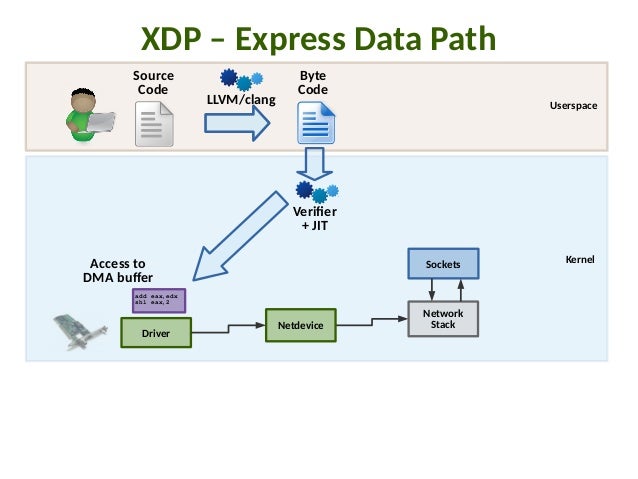

25. Kernel Userspace XDP – Express Data Path Source Code Byte Code LLVM/clang Sockets Netdevice Network Stack VeriIer + JIT add eax,edx shl eax,2 Driver Access to DMA buLer

26. Q&A Image Sources: ● Cover (Toronto) Rick Harris (h,ps://www.<ickr.com/photos/rickharris/) ● The Invisible Man Dr. Azzacov (h,ps://www.<ickr.com/photos/drazzacov/) ● Chicken JOHN LLOYD (h,ps://www.<ickr.com/photos/hugo90/) Learn more about networking with BPF: Fast IPv6-only Networking for Containers Based on BPF and XDP Wednesday August 24, 2016 4:35pm – 5:35pm, Queen's Quay Contact: ● Twi/er: @tgraf__ Mail: tgraf@tgraf.ch
