1. 1. From DDD to CQRS presented by Dennis Traub .NET Usergroup Bern - 19. März 2013Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
2. 2. Who‘s that guy? Dennis Traub Founder, Owner, CEO, Single Employee of D. Traub Software Development Consultancy Consultant, developer, trainer, speaker 39 years old Married, father of one 20+ years in software development Hire me at mail@dennistraub.de @dtraubDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
3. 3. AGENDA DDD Recap CQRS Break Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & AnswersDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
4. 4. AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & AnswersDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
5. 5. The „Blue Book“ by Eric Evans Image PlaceholderDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

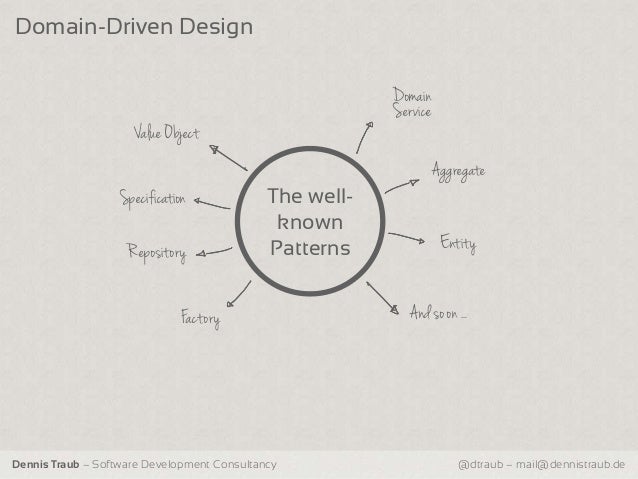

6. 6. Domain-Driven Design Domain Service Value Object Aggregate Specification The well- known Reposit ory Patterns Entity Factory And so on . .Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

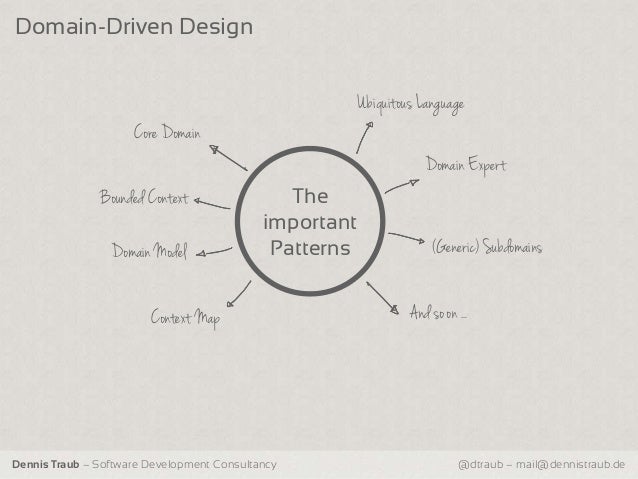

7. 7. Domain-Driven Design Ubiquit ous Language Core Domain Domain Expert Bounded Context The important Domain Model Patterns (Generic) Subdomains Context Map And so on . .Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
8. 8. don‘t build one big model that works for everyoneDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

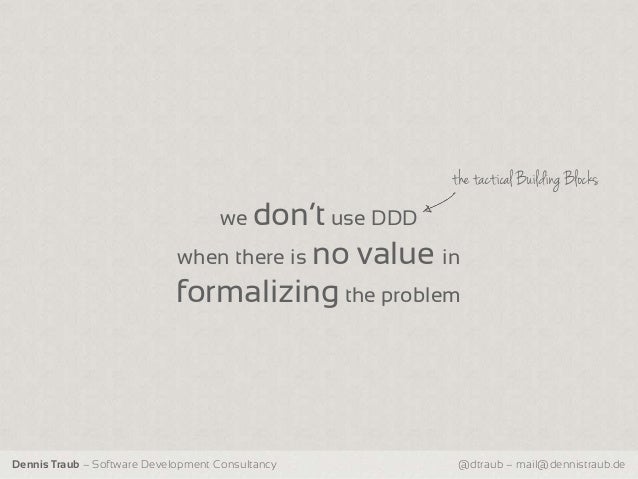

9. 9. the tactical Building Blocks we don‘t use DDD when there is no value in formalizing the problemDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
10. 10. we only use DDD in parts where we get a competitive advantageDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
11. 11. we focus our effort and resources on the most important subdomainDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

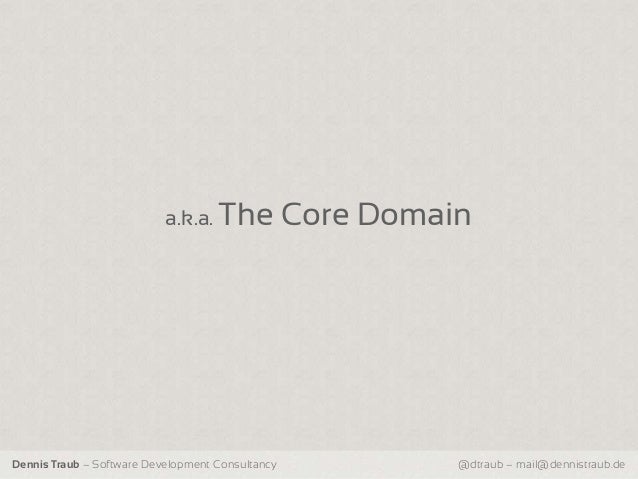

12. 12. a.k.a. The Core DomainDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
13. 13. AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & AnswersDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

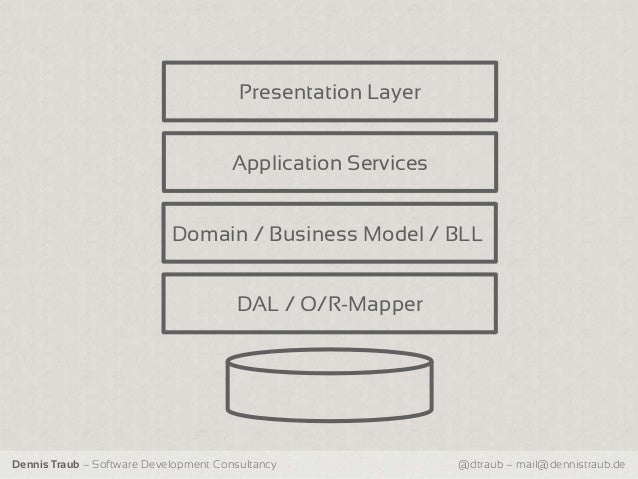

14. 14. Presentation Layer Application Services Domain / Business Model / BLL DAL / O/R-MapperDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
15. 15. Pros of the „Best Practice Architecture“ 1 Easy to build 2 Accepted by management 3 Well-know throughall all seniority levels 4 We know ist limitiationsDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
16. 16. Cons of the „Best Practice Architecture“ 1 Limited scalability 2 Loss of intent 3 Lazy loading, locking, race conditions, … 4 Few classes do way too much stuffDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

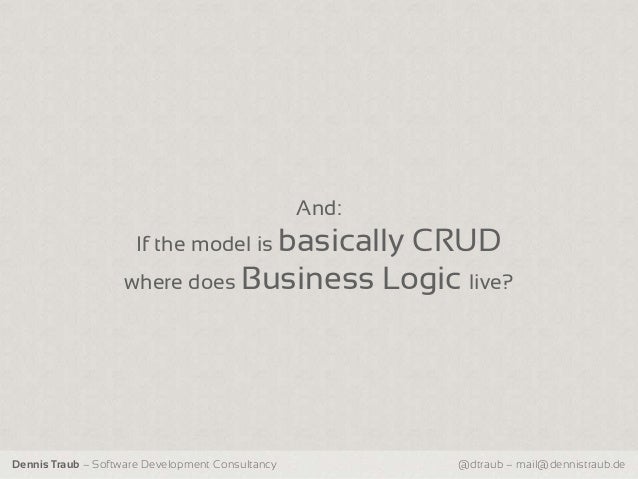

17. 17. And: If the model is basically CRUD where does Business Logic live?Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

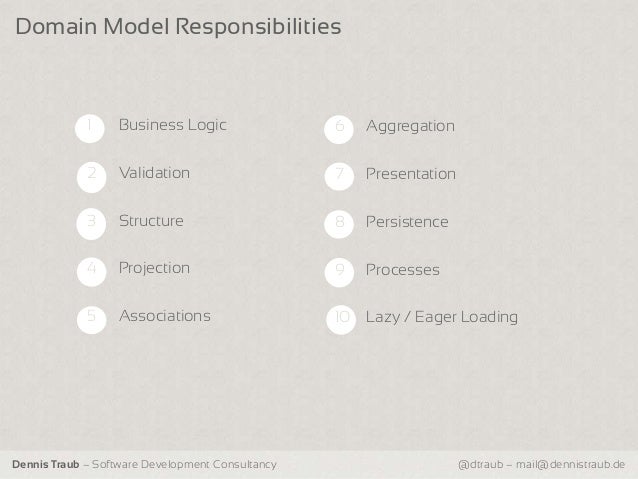

18. 18. Domain Model Responsibilities 1 Business Logic 6 Aggregation 2 Validation 7 Presentation 3 Structure 8 Persistence 4 Projection 9 Processes 5 Associations 10 Lazy / Eager LoadingDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
19. 19. the S in SOLIDDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
20. 20. Single Responsibility Principle just because we can doesn‘t mean we shouldDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

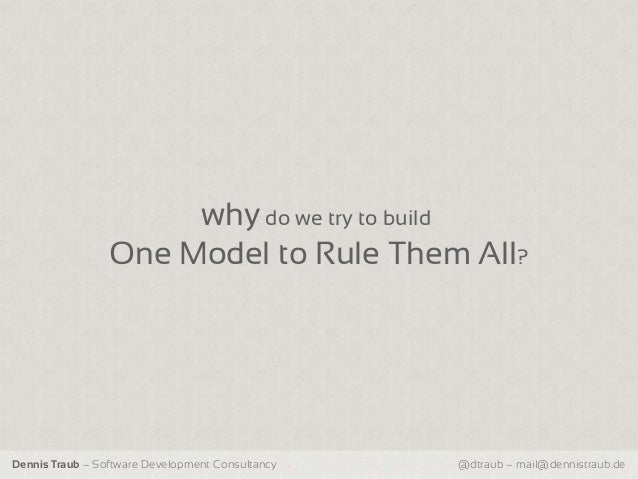

21. 21. why do we try to build One Model to Rule Them All?Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
22. 22. reading and writing are completely different from eachotherDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
23. 23. Sometimes it‘s cheaper to do two things than dealing with the trade-offsDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
24. 24. AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & AnswersDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
25. 25. Command Query SeparationDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
26. 26. Command Query Separation (CQS) „Every method should either be a command that performs an action or a query that returns data to the caller“ -- Dr. Bertrand MeyerDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
27. 27. Command Query Separation (CQS) in other words: Asking a question should not change the answerDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
28. 28. Command/Query Responsability SegregationDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

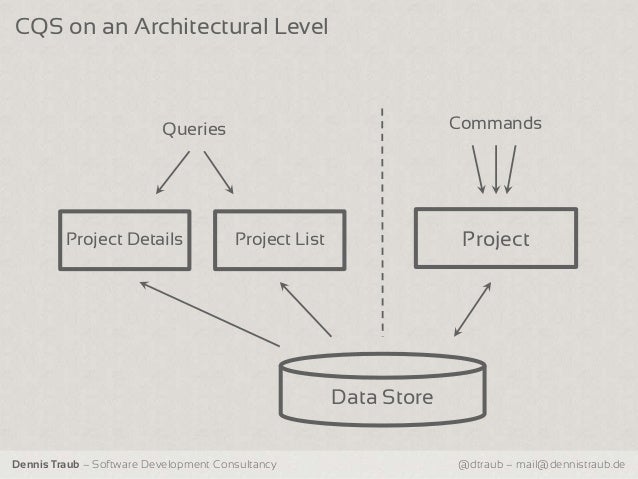

29. 29. CQS on an Architectural Level Queries Commands Project Details Project List Project Data StoreDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

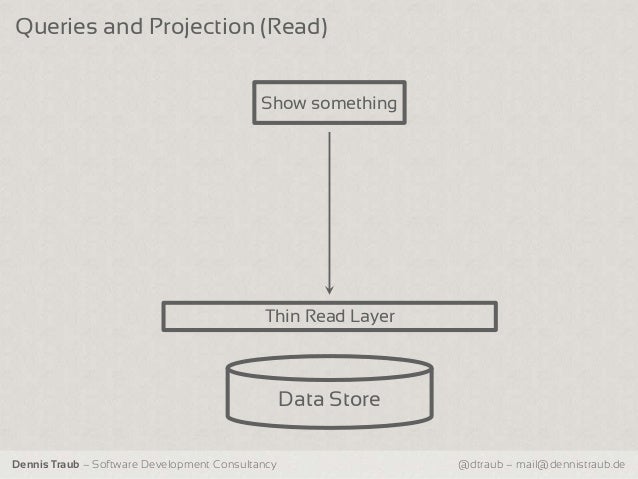

30. 30. Queries and Projection (Read) Show something Thin Read Layer Data StoreDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
31. 31. Thin Read Layer Concerns: 1 Filtering, Scope 2 Data PresentationDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
32. 32. Thin Read Layer Attributes: 1 Data-Oriented 2 Indexable 3 Can be denormalized and distributed for fast access 4 Only StructureDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

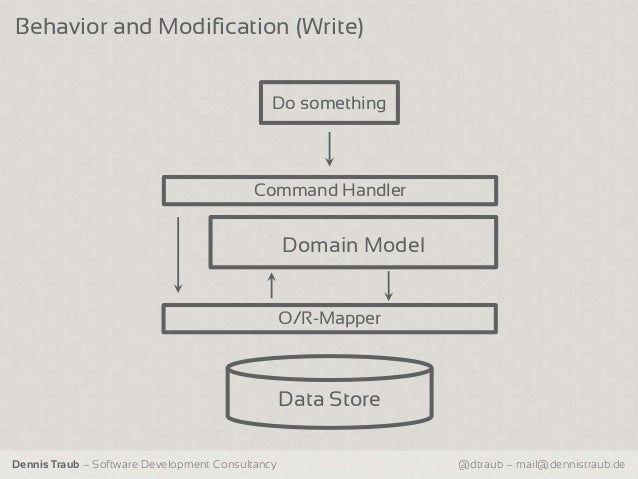

33. 33. Behavior and Modification (Write) Do something Command Handler Domain Model O/R-Mapper Data StoreDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

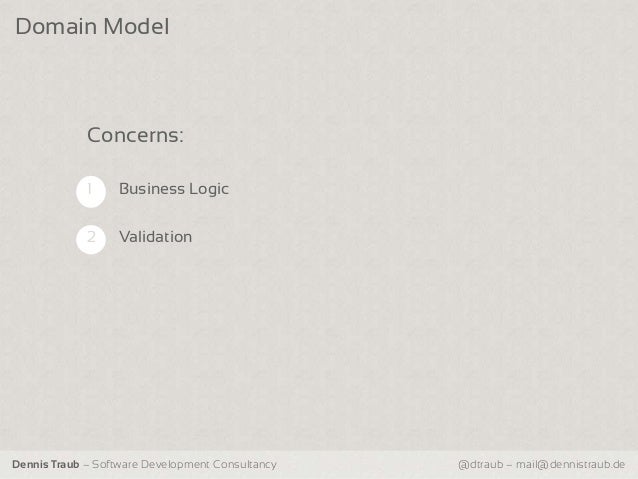

34. 34. Domain Model Concerns: 1 Business Logic 2 ValidationDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

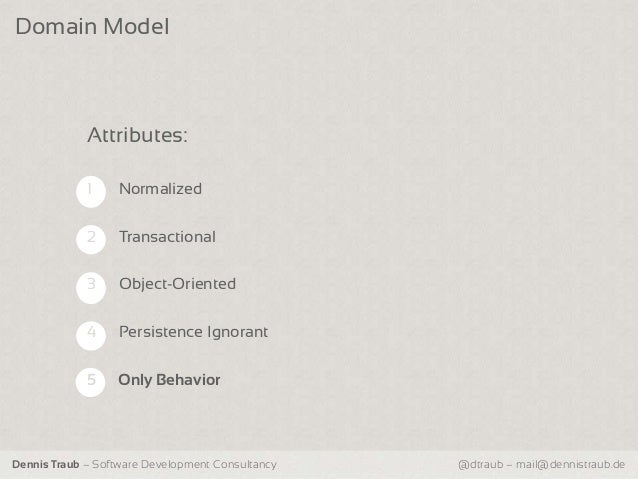

35. 35. Domain Model Attributes: 1 Normalized 2 Transactional 3 Object-Oriented 4 Persistence Ignorant 5 Only BehaviorDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
36. 36. Commands Refactor Application Service Calls to Objects 1 Serializable 2 Can be enveloped 3 Can be intercepted 4 Can be enriched 5 Communicate intentDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

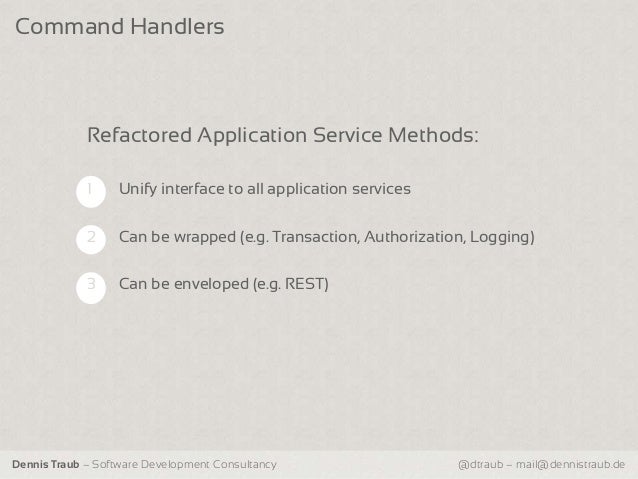

37. 37. Command Handlers Refactored Application Service Methods: 1 Unify interface to all application services 2 Can be wrapped (e.g. Transaction, Authorization, Logging) 3 Can be enveloped (e.g. REST)Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

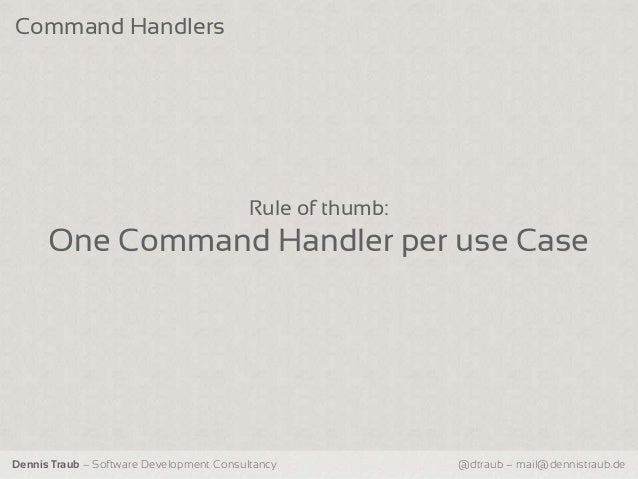

38. 38. Command Handlers Rule of thumb: One Command Handler per use CaseDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
39. 39. This is CQRS Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Data StoreDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
40. 40. BREAKDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
41. 41. AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & AnswersDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
42. 42. Domain EventDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
43. 43. Domain Event captures the memory of something interesting affecting the domainDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

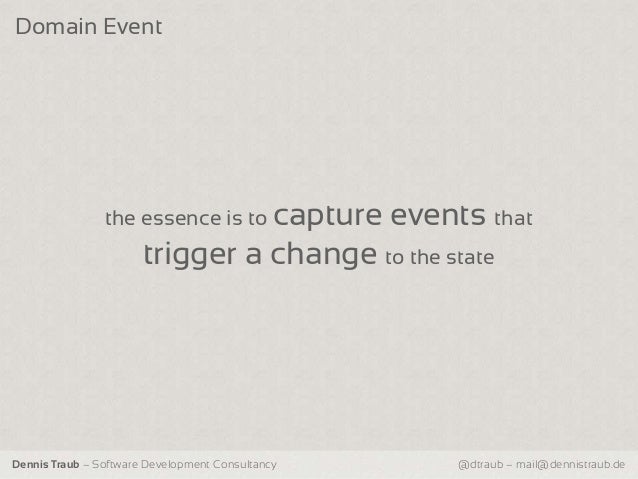

44. 44. Domain Event the essence is to capture events that trigger a change to the stateDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
45. 45. Domain Event event objects are processed to cause the respective changeDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
46. 46. Domain Event and stored to provide an audit logDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

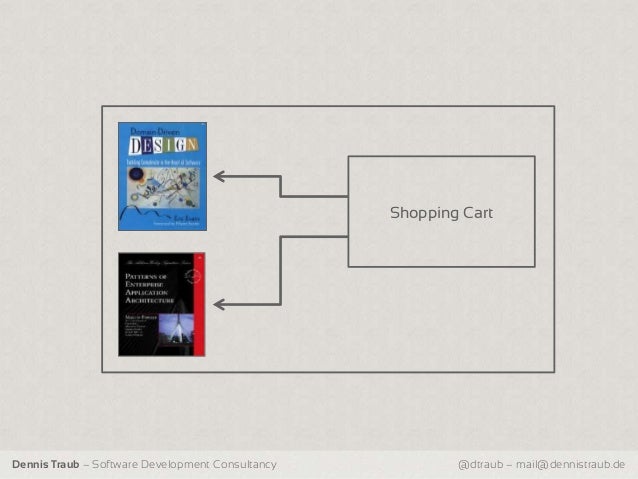

47. 47. Shopping CartDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
48. 48. we don‘t know: What led to this state?Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

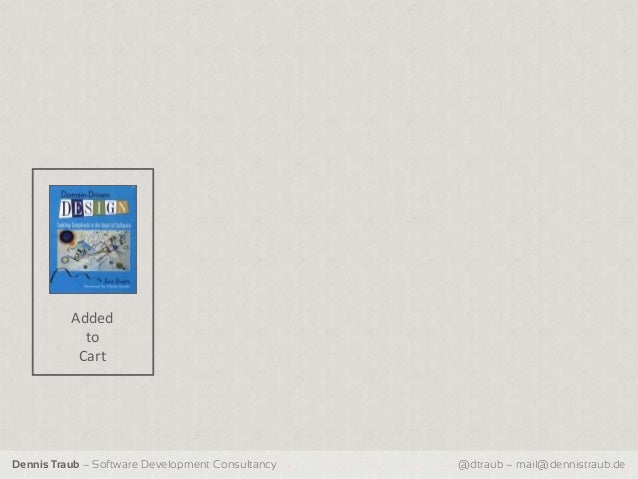

49. 49. Added to CartDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

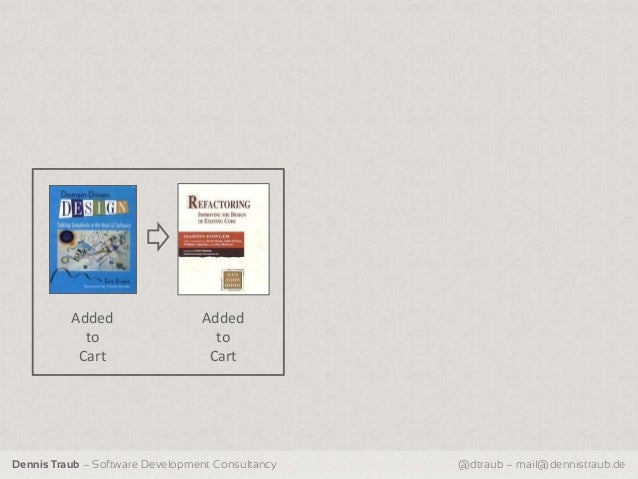

50. 50. Added Added to to Cart CartDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

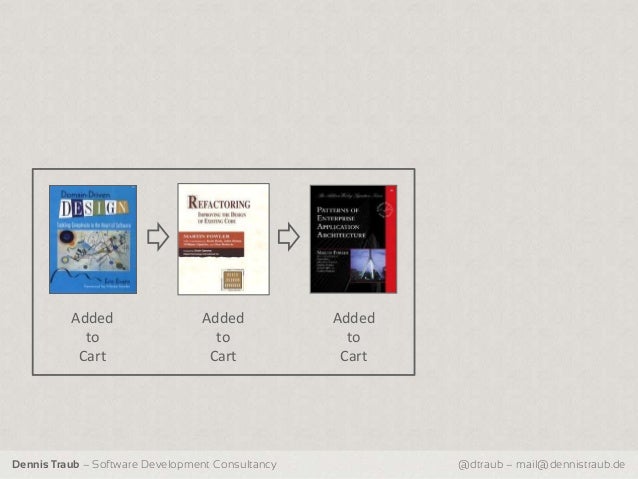

51. 51. Added Added Added to to to Cart Cart CartDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
52. 52. Added Added Added Removed to to to from Cart Cart Cart CartDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

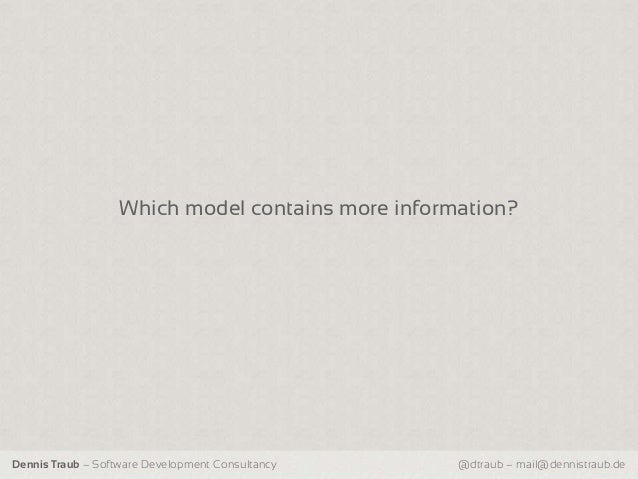

53. 53. Which model contains more information?Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
54. 54. Shopping CartDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

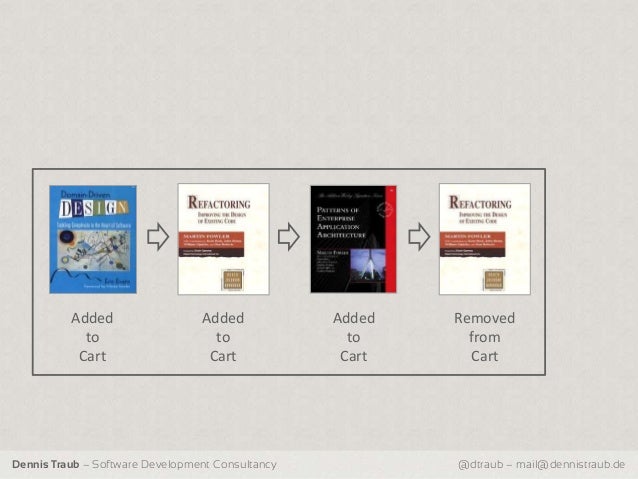

55. 55. Added Added Added Removed to to to from Cart Cart Cart CartDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
56. 56. what if we capture every single event?Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

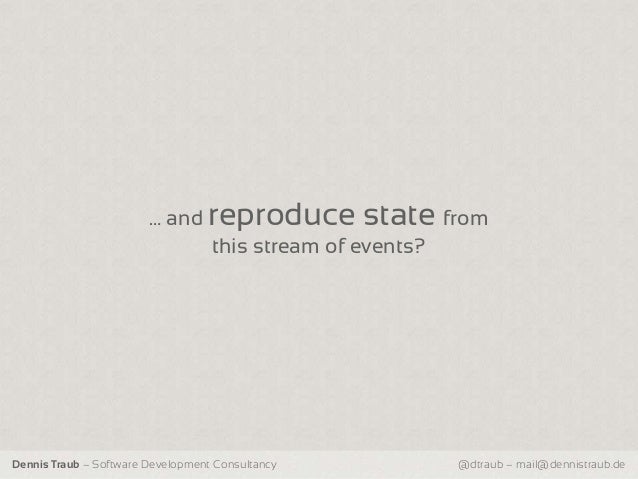

57. 57. … and reproduce state from this stream of events?Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

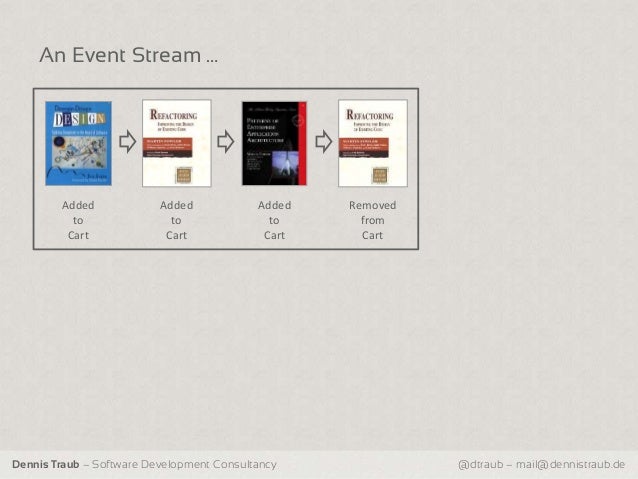

58. 58. An Event Stream … Added Added Added Removed to to to from Cart Cart Cart CartDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

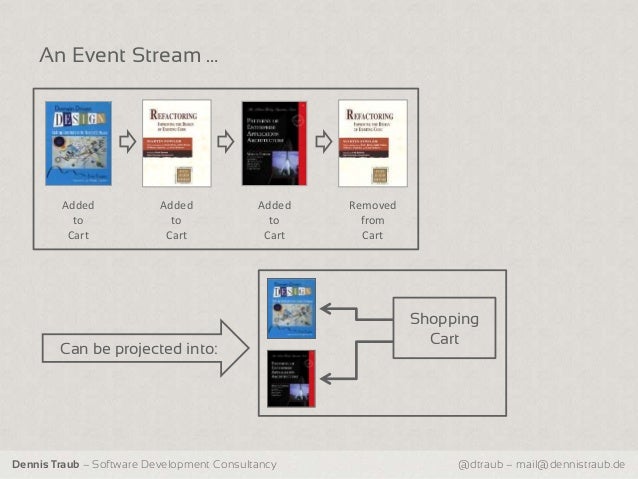

59. 59. An Event Stream … Added Added Added Removed to to to from Cart Cart Cart Cart Shopping Cart Can be projected into:Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

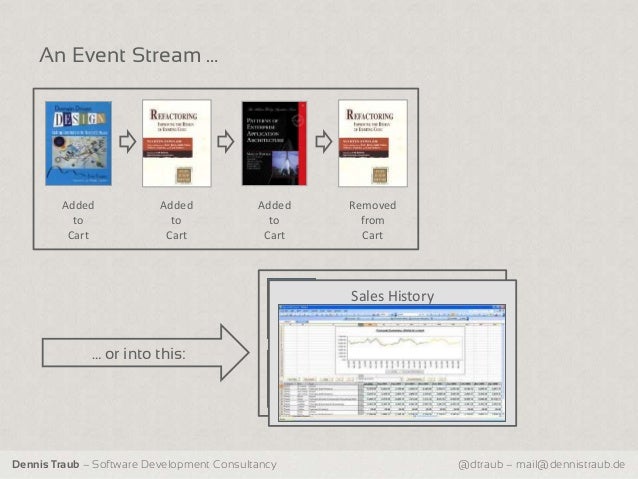

60. 60. An Event Stream … Added Added Added Removed to to to from Cart Cart Cart Cart Sales History Shopping Cart … or into this:Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
61. 61. An Event Stream … Added Added Added Removed to to to from Cart Cart Cart Cart Sales History Audit Trail Shopping Cart … or into this:Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
62. 62. An Event Stream … Added Added Added Removed to to to from Cart Cart Cart Cart Sales History Audit Trail Shopping Campaign Effectiveness Cart … or into this:Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

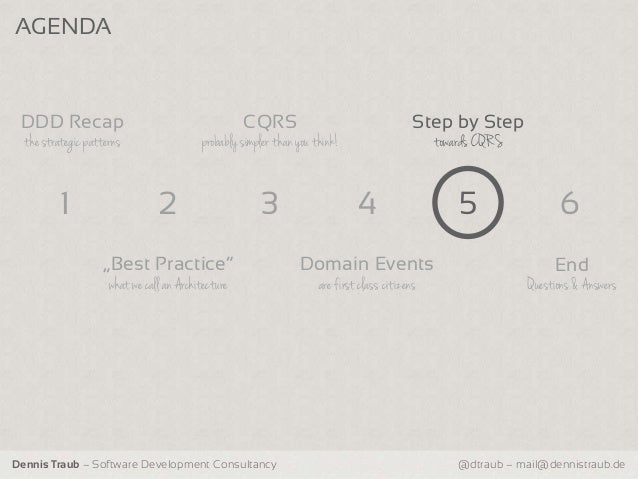

63. 63. AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & AnswersDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

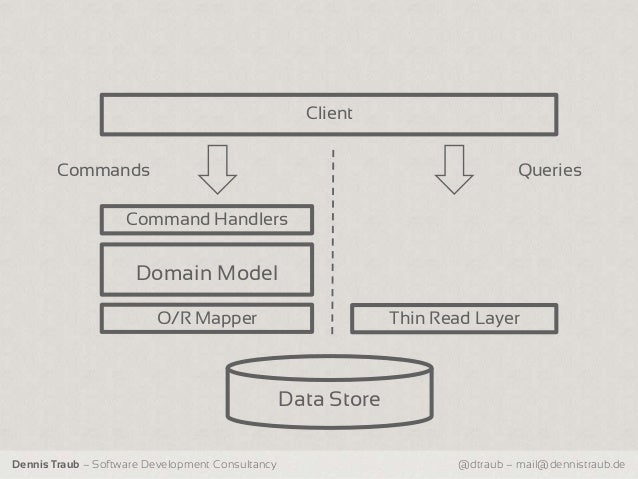

64. 64. Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Data StoreDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

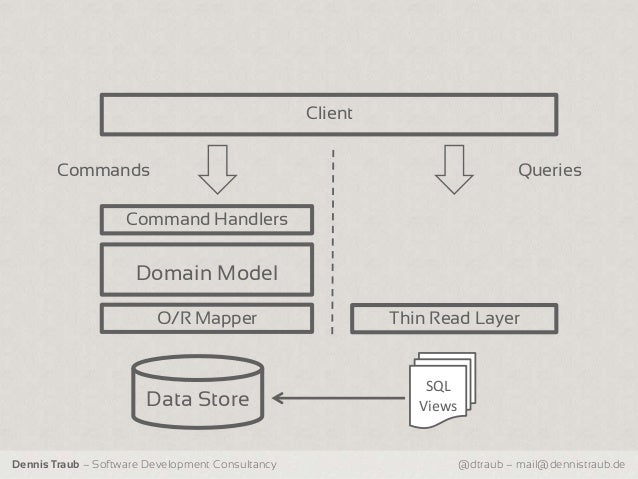

65. 65. Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer SQL Data Store ViewsDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

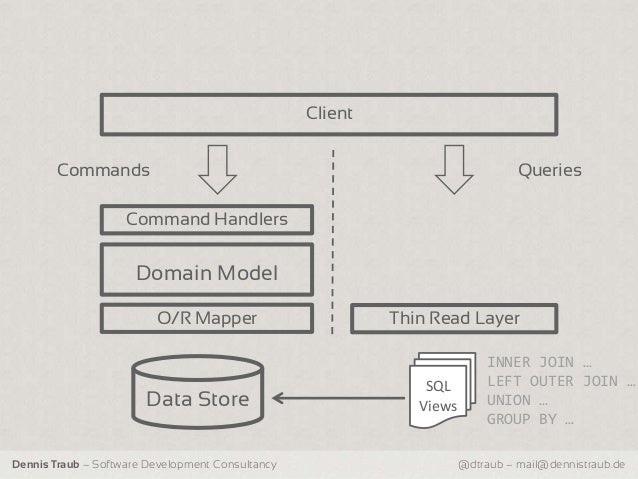

66. 66. Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer INNER JOIN … SQL LEFT OUTER JOIN … Data Store Views UNION … GROUP BY …Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

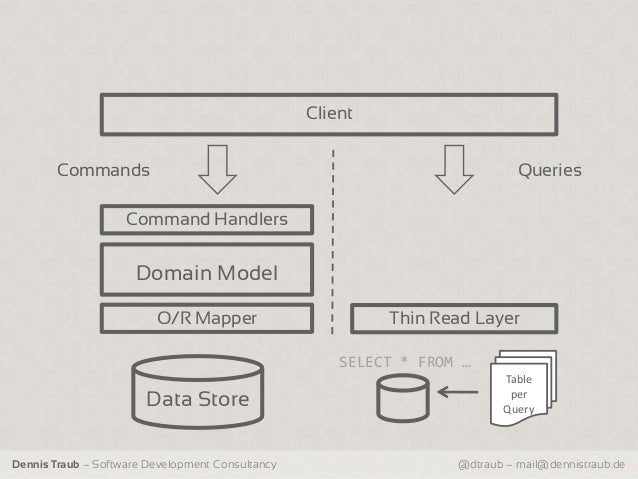

67. 67. Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer SELECT * FROM … Table Data Store per QueryDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

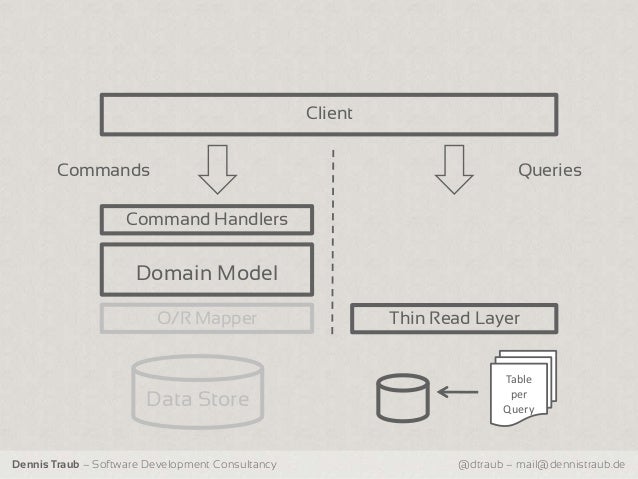

68. 68. Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Table Data Store per QueryDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

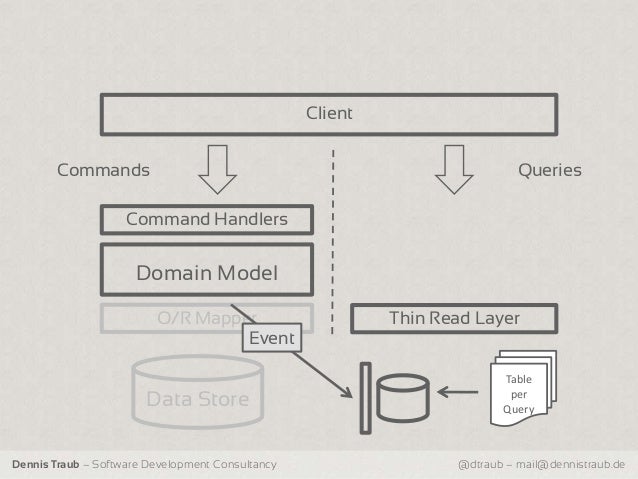

69. 69. Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Event Table Data Store per QueryDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
70. 70. Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Event Event Table Data Store per QueryDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
71. 71. Client Commands Queries Command Handlers Domain Model O/R Mapper Thin Read Layer Event Event Event Table Data Store per QueryDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
72. 72. Simplified:Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

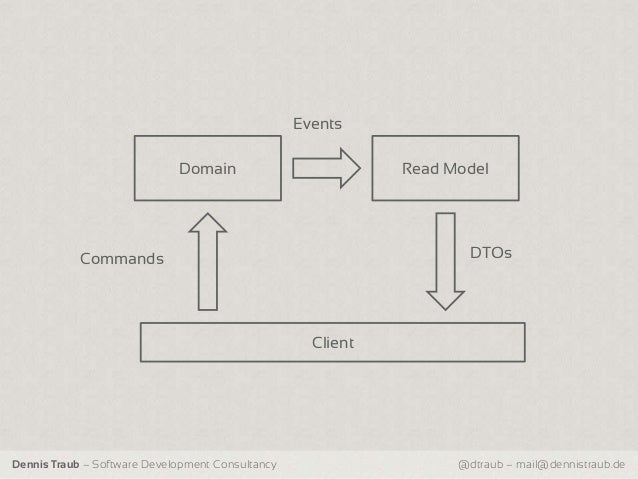

73. 73. Events Domain Read Model Commands DTOs ClientDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
74. 74. Some CodeDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
75. 75. Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

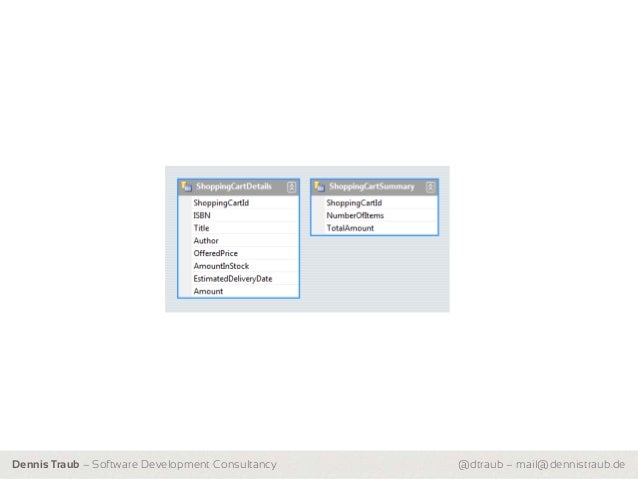

76. 76. Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

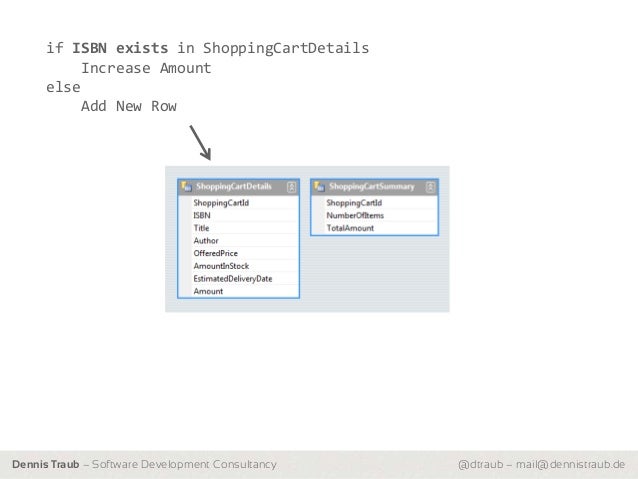

77. 77. if ISBN exists in ShoppingCartDetails Increase Amount else Add New RowDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

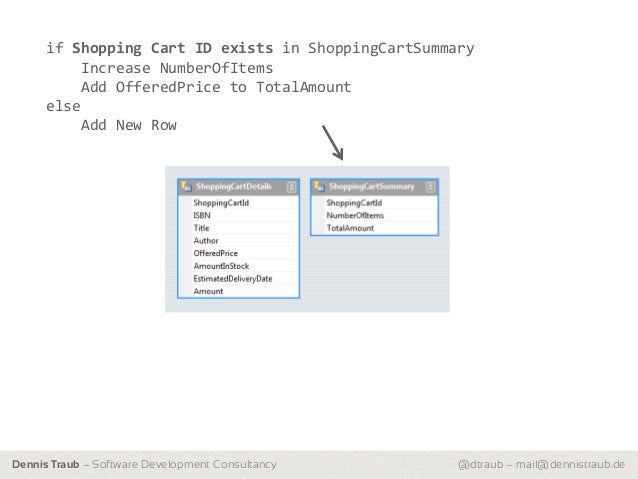

78. 78. if Shopping Cart ID exists in ShoppingCartSummary Increase NumberOfItems Add OfferedPrice to TotalAmount else Add New RowDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

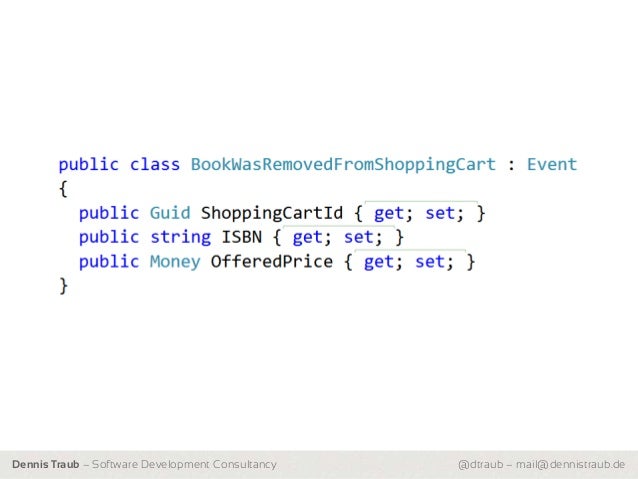

79. 79. Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
80. 80. Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

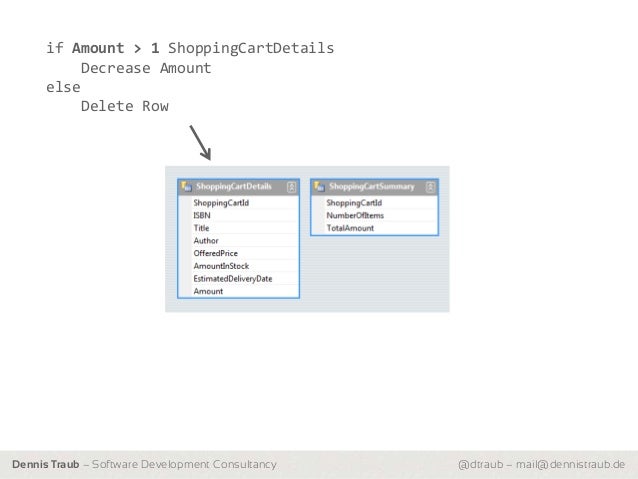

81. 81. if Amount > 1 ShoppingCartDetails Decrease Amount else Delete RowDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
82. 82. Subtract OfferedPrice to TotalAmount Decrease NumberOfItemsDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
83. 83. TestabilityDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

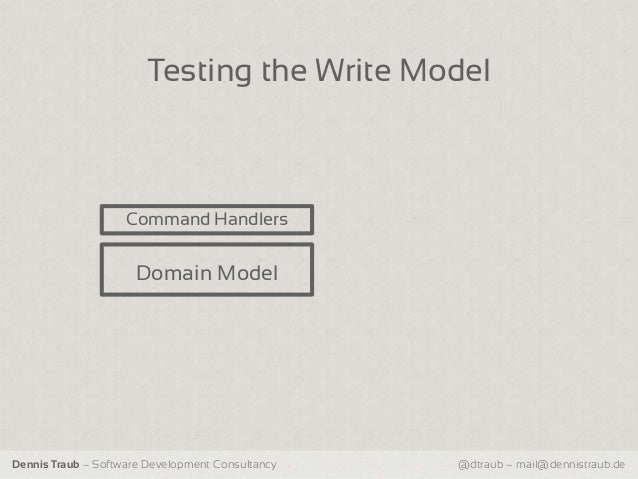

84. 84. Testing the Write Model Command Handlers Domain ModelDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

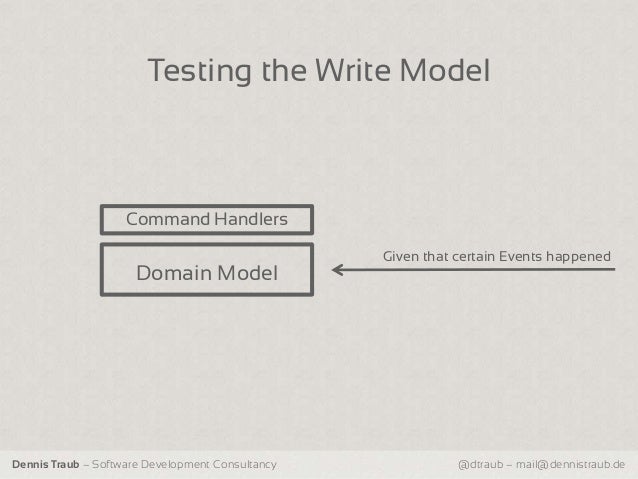

85. 85. Testing the Write Model Command Handlers Given that certain Events happened Domain ModelDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

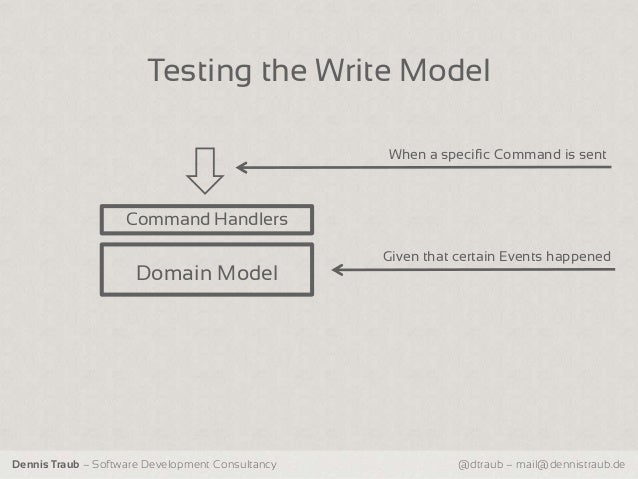

86. 86. Testing the Write Model When a specific Command is sent Command Handlers Given that certain Events happened Domain ModelDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

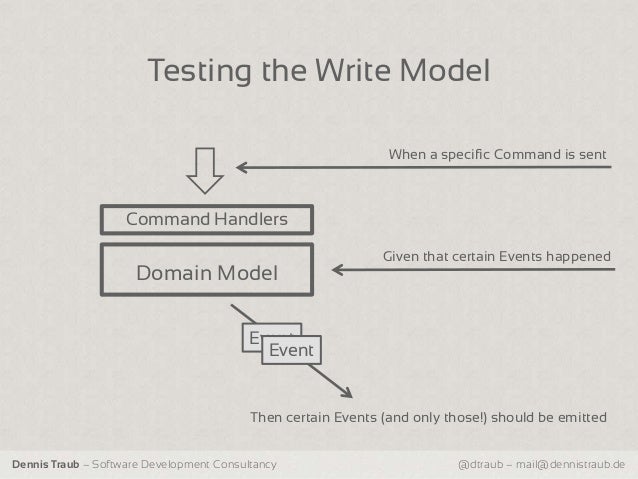

87. 87. Testing the Write Model When a specific Command is sent Command Handlers Given that certain Events happened Domain Model Event Event Then certain Events (and only those!) should be emittedDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

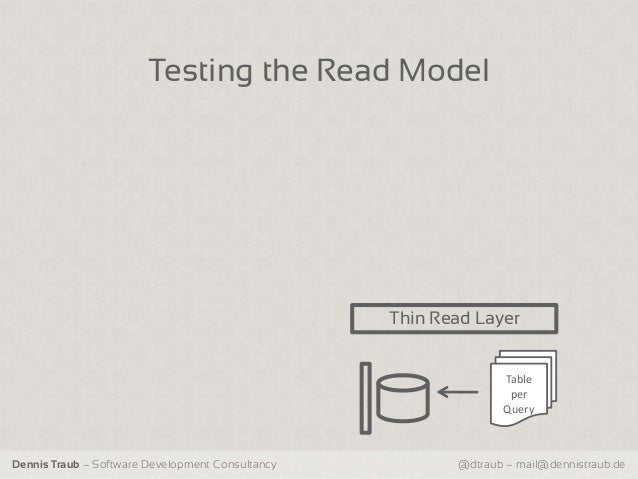

88. 88. Testing the Read Model Thin Read Layer Table per QueryDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

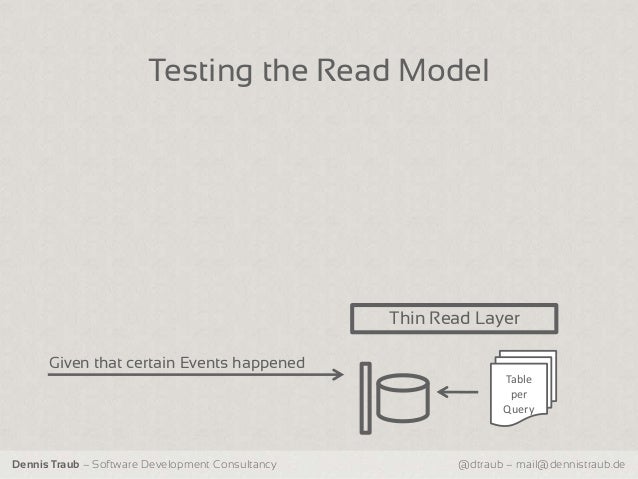

89. 89. Testing the Read Model Thin Read Layer Given that certain Events happened Table per QueryDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

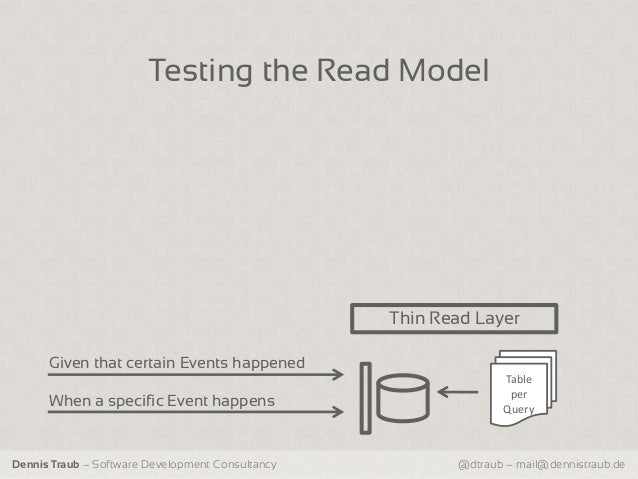

90. 90. Testing the Read Model Thin Read Layer Given that certain Events happened Table per When a specific Event happens QueryDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

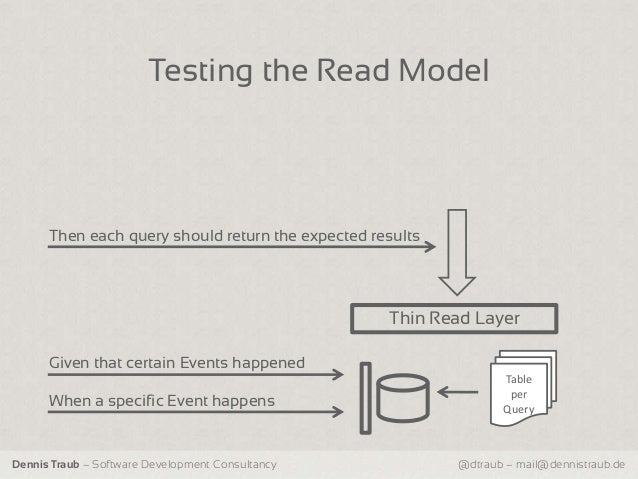

91. 91. Testing the Read Model Then each query should return the expected results Thin Read Layer Given that certain Events happened Table per When a specific Event happens QueryDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
92. 92. Main ValuesDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
93. 93. Main Values additive only we don‘t lose informationDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

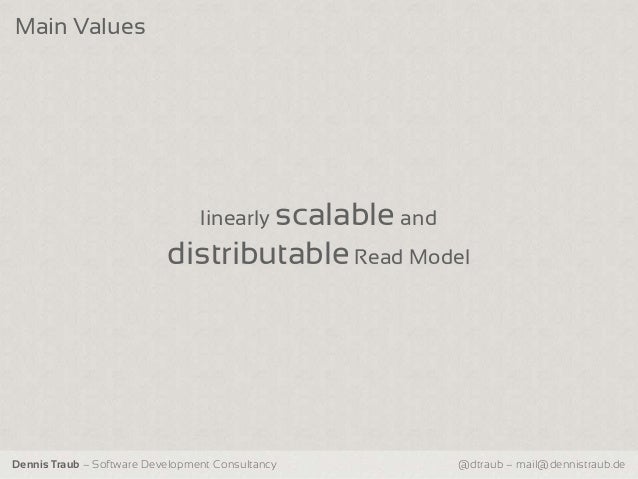

94. 94. Main Values linearly scalable and distributable Read ModelDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
95. 95. Main Values every new view can be created from the beginning of timeDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

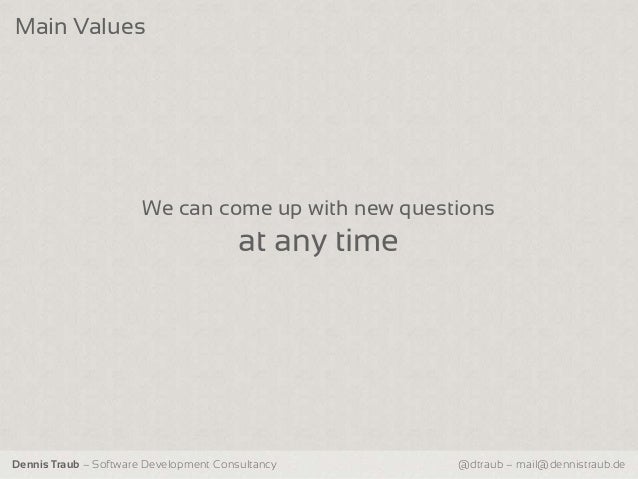

96. 96. Main Values We can come up with new questions at any timeDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de

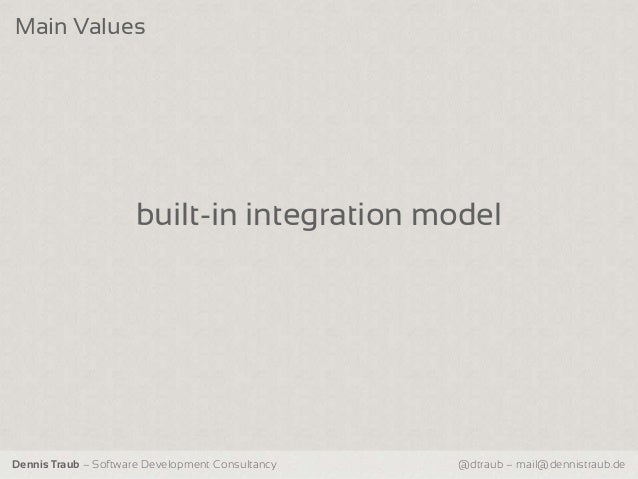

97. 97. Main Values built-in integration modelDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
98. 98. Proven TechnologyDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
99. 99. mature business models move away from Update/Delete and become purely transactionalDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
100. 100. Human resources Medicine Bookkeeping Banking Finances Government …Dennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
101. 101. AGENDA DDD Recap CQRS Step by Step the strategic patterns probably simpler than you think! towards CQRS 1 2 3 4 5 6 „Best Practice“ Domain Events End what we call an Architecture are first class citizens Questions & AnswersDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
102. 102. ? QUESTIONSDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
103. 103. THANK YOU! follow me: @dtraubDennis Traub – Software Development Consultancy @dtraub – mail@dennistraub.de
