Prometheus meets Consul  Satoshi SUZUKI, @studio3104 Consul Casual Talks at LINE Corp. 27F Cafe. Aug 1, 2016 1
Who? Satoshi SUZUKI • Twitter: @studio3104 • GitHub: studio3104 • Works for: LINE Corporation Consul Casual Talks at LINE ...

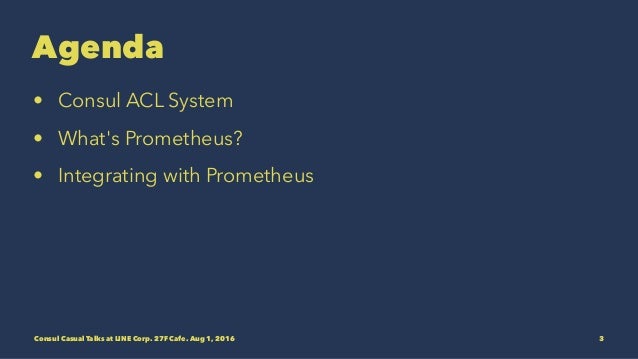

Agenda • Consul ACL System • What's Prometheus? • Integrating with Prometheus Consul Casual Talks at LINE Corp. 27F Cafe. ...
Consul ACL System Consul Casual Talks at LINE Corp. 27F Cafe. Aug 1, 2016 4

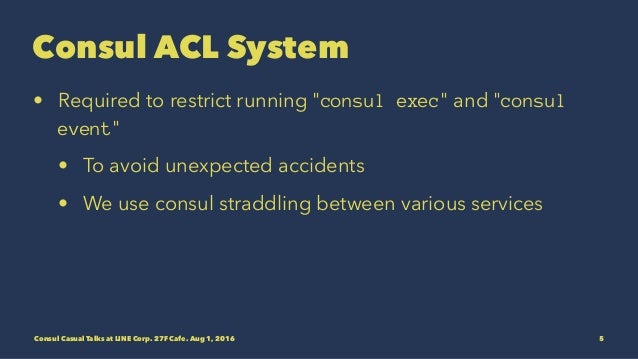

Consul ACL System • Required to restrict running "consul exec" and "consul event" • To avoid unexpected accidents • We use...
Consul ACL System • If it's not restricted... $ consul exec 'rm -f /tmp/somethingimportant' ==> hostname1: finished with e...

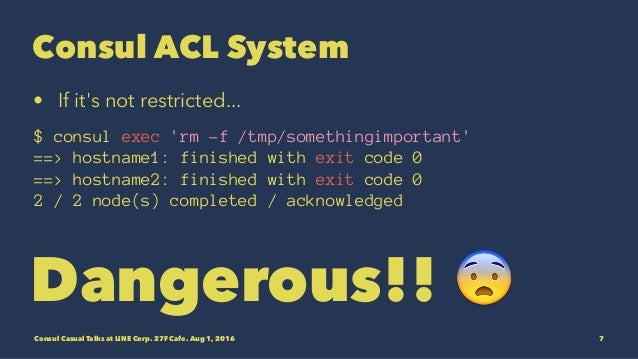

Consul ACL System • If it's not restricted... $ consul exec 'rm -f /tmp/somethingimportant' ==> hostname1: finished with e...

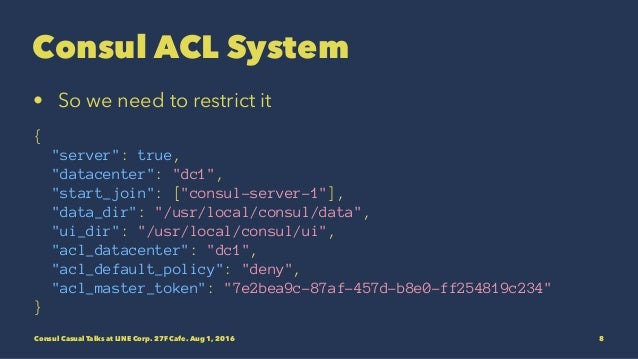

Consul ACL System • So we need to restrict it { "server": true, "datacenter": "dc1", "start_join": ["consul-server-1"], "d...

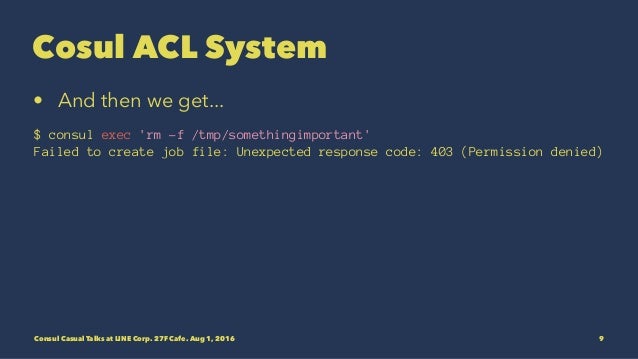

Cosul ACL System • And then we get... $ consul exec 'rm -f /tmp/somethingimportant' Failed to create job file: Unexpected ...
Cosul ACL System • And then we get... $ consul exec 'rm -f /tmp/somethingimportant' Failed to create job file: Unexpected ...

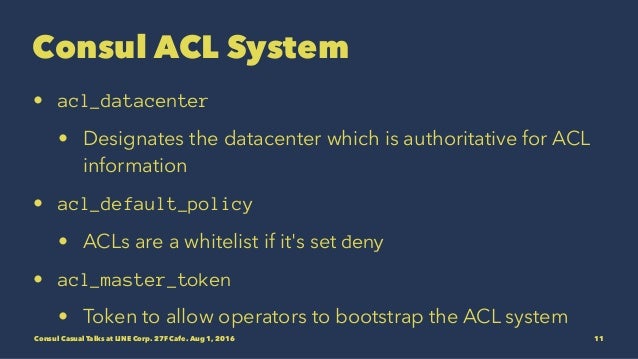

Consul ACL System • acl_datacenter • Designates the datacenter which is authoritative for ACL information • acl_default_po...
Anonymous Token Consul Casual Talks at LINE Corp. 27F Cafe. Aug 1, 2016 12

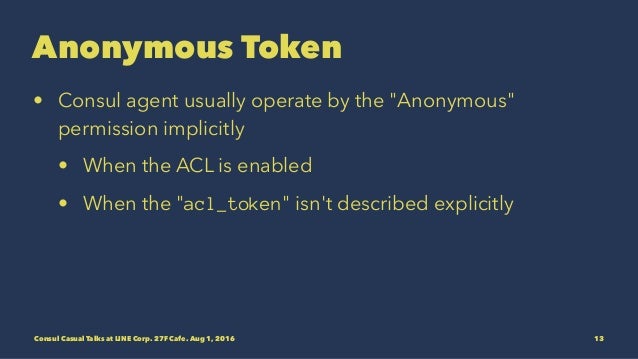

Anonymous Token • Consul agent usually operate by the "Anonymous" permission implicitly • When the ACL is enabled • When t...

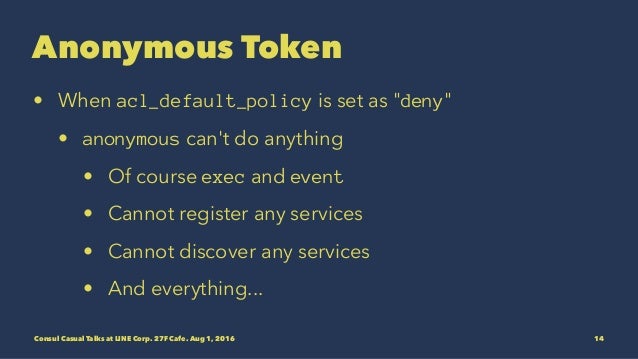

Anonymous Token • When acl_default_policy is set as "deny" • anonymous can't do anything • Of course exec and event • Cann...

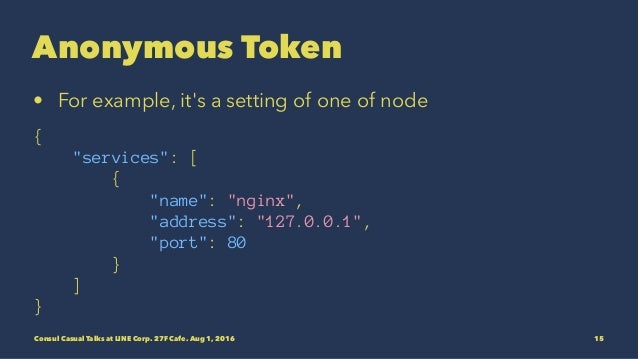

Anonymous Token • For example, it's a setting of one of node { "services": [ { "name": "nginx", "address": "127.0.0.1", "p...

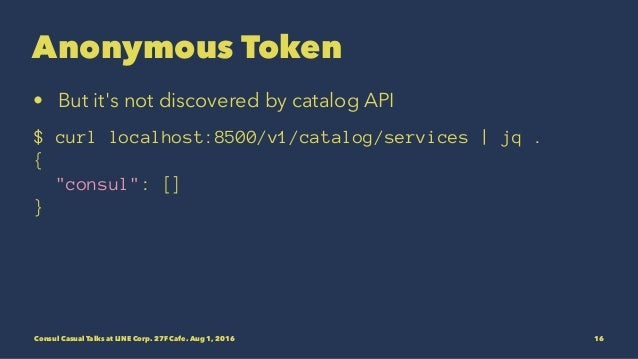

Anonymous Token • But it's not discovered by catalog API $ curl localhost:8500/v1/catalog/services | jq . { "consul": [] }...

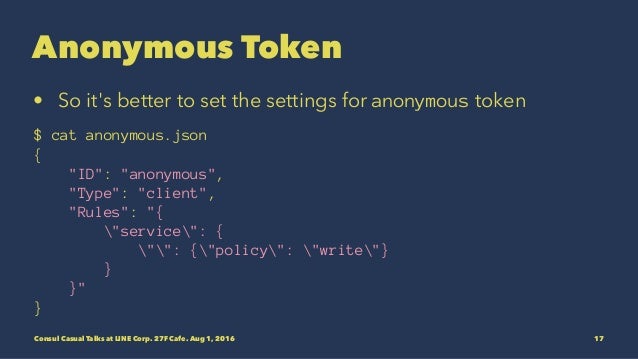

Anonymous Token • So it's better to set the settings for anonymous token $ cat anonymous.json { "ID": "anonymous", "Type":...

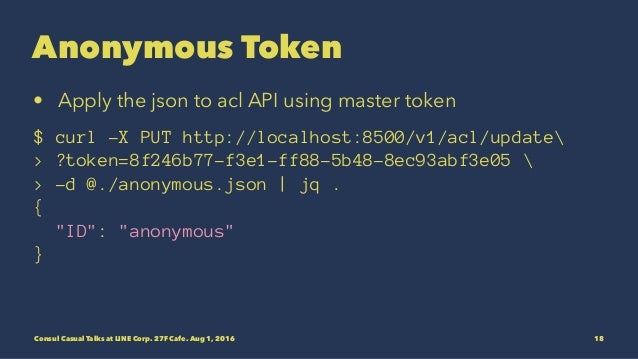

Anonymous Token • Apply the json to acl API using master token $ curl -X PUT http://localhost:8500/v1/acl/update > ?token=...

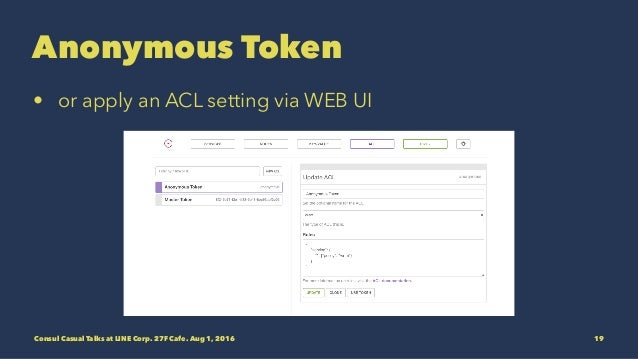

Anonymous Token • or apply an ACL setting via WEB UI Consul Casual Talks at LINE Corp. 27F Cafe. Aug 1, 2016 19

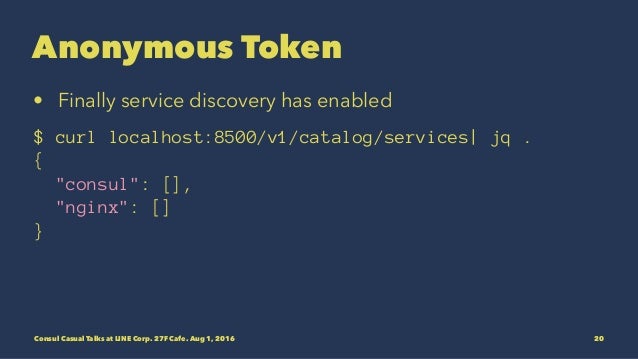

Anonymous Token • Finally service discovery has enabled $ curl localhost:8500/v1/catalog/services| jq . { "consul": [], "n...

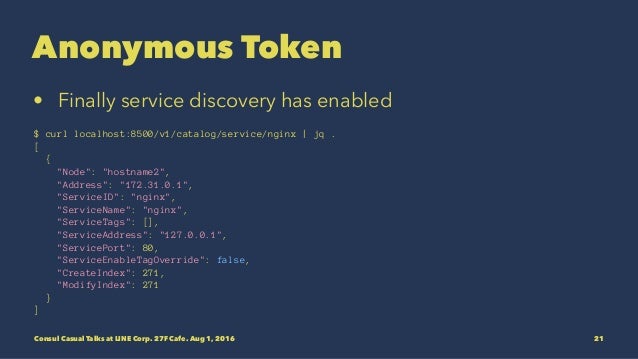

Anonymous Token • Finally service discovery has enabled $ curl localhost:8500/v1/catalog/service/nginx | jq . [ { "Node": ...

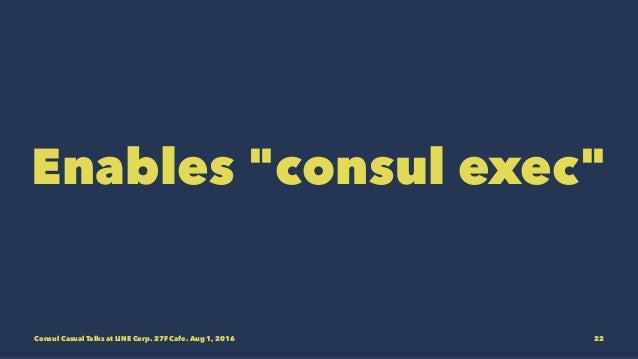

Enables "consul exec" Consul Casual Talks at LINE Corp. 27F Cafe. Aug 1, 2016 22

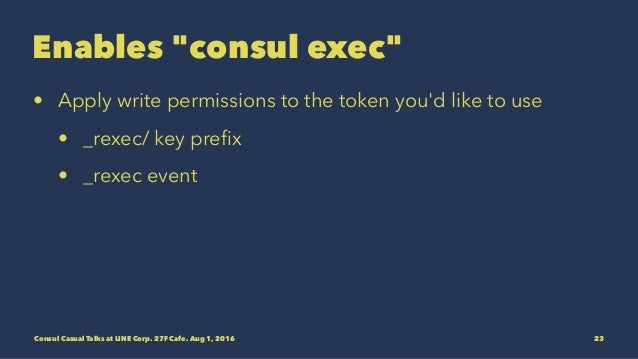

Enables "consul exec" • Apply write permissions to the token you'd like to use • _rexec/ key prefix • _rexec event Consul C...

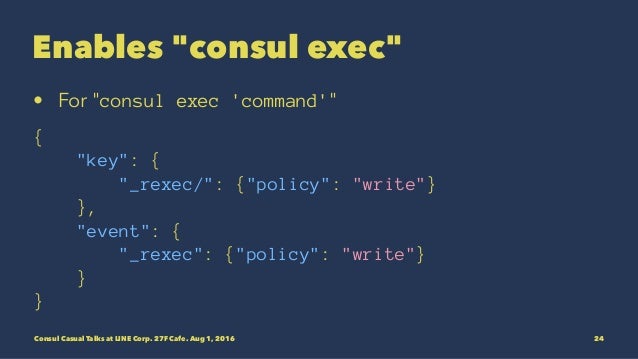

Enables "consul exec" • For "consul exec 'command'" { "key": { "_rexec/": {"policy": "write"} }, "event": { "_rexec": {"po...

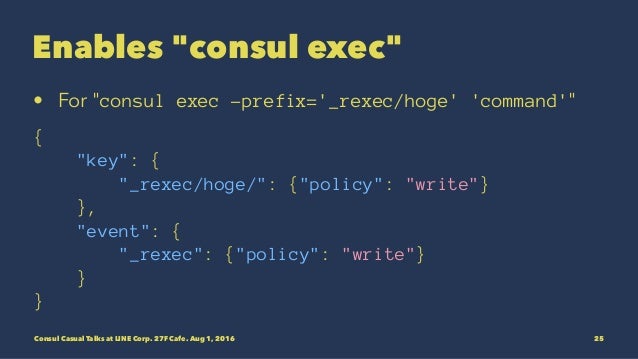

Enables "consul exec" • For "consul exec -prefix='_rexec/hoge' 'command'" { "key": { "_rexec/hoge/": {"policy": "write"} }...

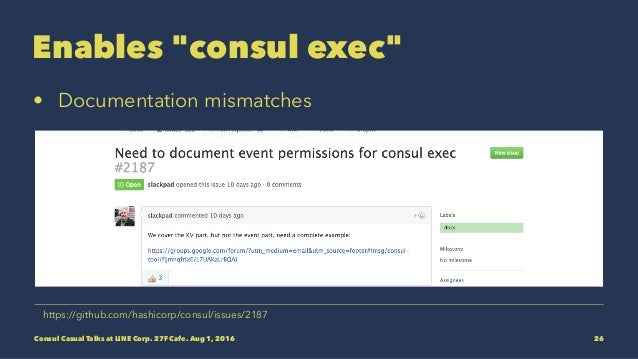

Enables "consul exec" • Documentation mismatches     https://github.com/hashicorp/consul/issues/2187 Consul Casual Talks a...
What's Prometheus? Consul Casual Talks at LINE Corp. 27F Cafe. Aug 1, 2016 27

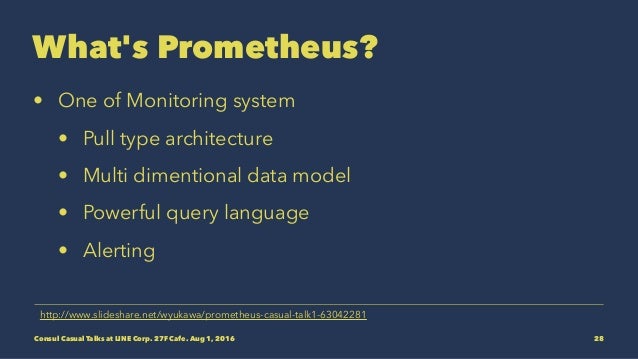

What's Prometheus?   • One of Monitoring system • Pull type architecture • Multi dimentional data model • Powerful query l...

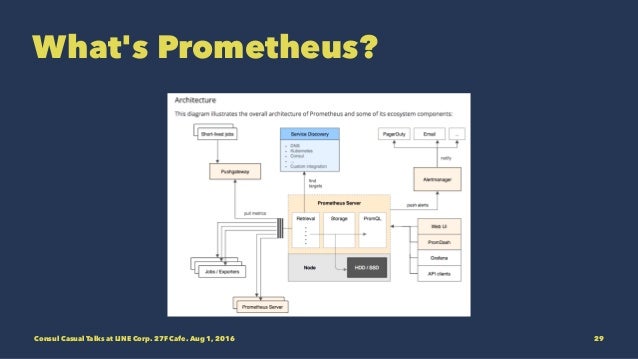

What's Prometheus? Consul Casual Talks at LINE Corp. 27F Cafe. Aug 1, 2016 29
Integrating with Prometheus Consul Casual Talks at LINE Corp. 27F Cafe. Aug 1, 2016 30

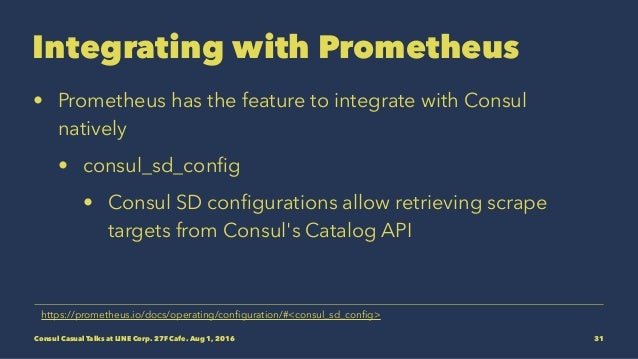

Integrating with Prometheus • Prometheus has the feature to integrate with Consul natively    • consul_sd_config • Consul S...

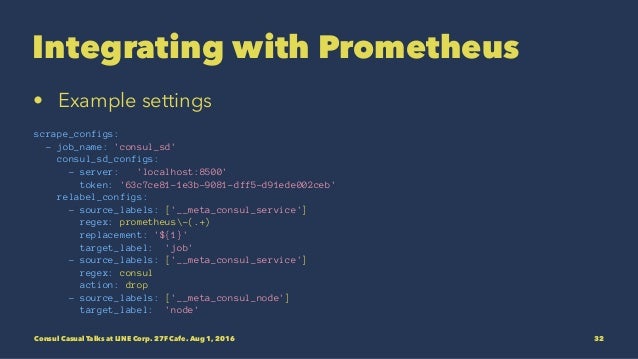

Integrating with Prometheus • Example settings scrape_configs: - job_name: 'consul_sd' consul_sd_configs: - server: 'local...

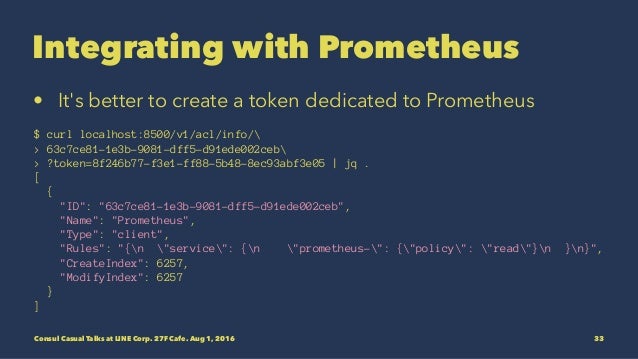

Integrating with Prometheus • It's better to create a token dedicated to Prometheus $ curl localhost:8500/v1/acl/info/ > 6...

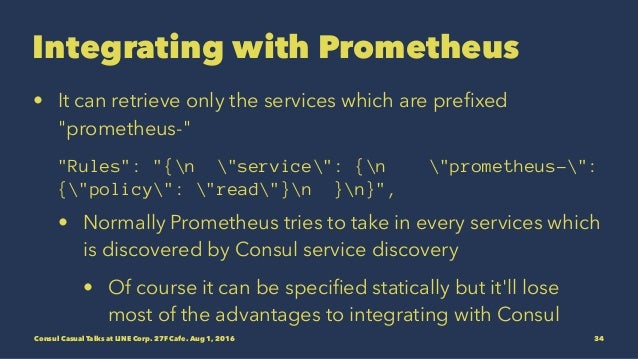

Integrating with Prometheus • It can retrieve only the services which are prefixed "prometheus-" "Rules": "{n "service": {n...

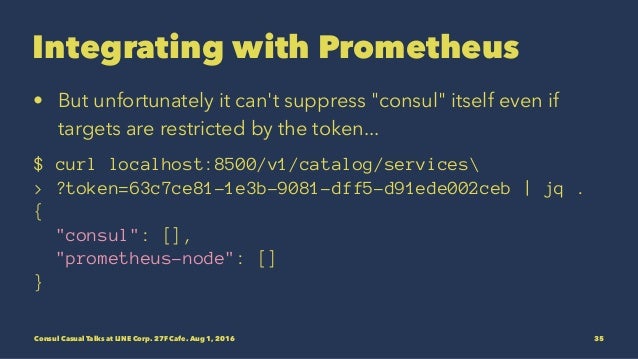

Integrating with Prometheus • But unfortunately it can't suppress "consul" itself even if targets are restricted by the to...

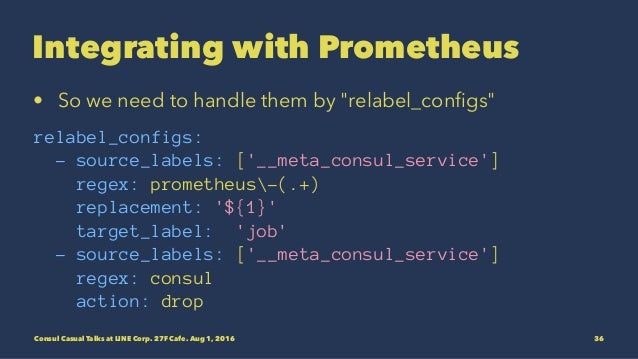

Integrating with Prometheus • So we need to handle them by "relabel_configs" relabel_configs: - source_labels: ['__meta_con...

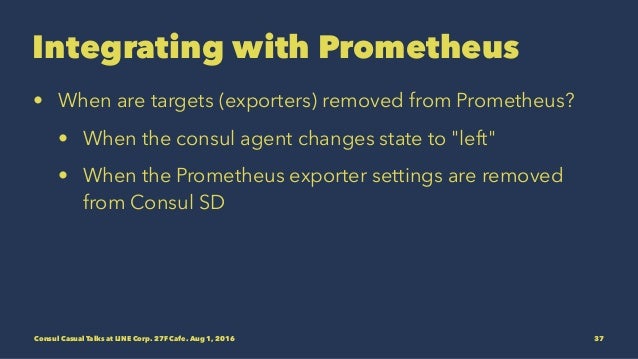

Integrating with Prometheus • When are targets (exporters) removed from Prometheus? • When the consul agent changes state ...

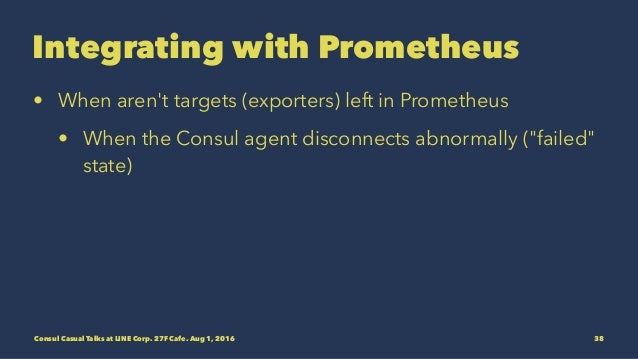

Integrating with Prometheus • When aren't targets (exporters) left in Prometheus • When the Consul agent disconnects abnor...
Questions?  Satoshi SUZUKI, @studio3104 Consul Casual Talks at LINE Corp. 27F Cafe. Aug 1, 2016 39
