Spring 2016 Intern at Treasure Data

1. 2016 Spring Intern @ Treasure Data 2016/4/3 - 2016/6/17 Part 1: Field-Aware Factorization Machines Part 2: Kernelized Passive-Aggressive Part 3: ChangeFinder

2. whoami Sotaro Sugimoto (杉本宗太郎) • U. Tokyo B.S. Physics (2016) • Georgia Tech M.S. Computational Science & Engineering (2016-2018) • https://github.com/L3Sota Facebook (Look for the dog)

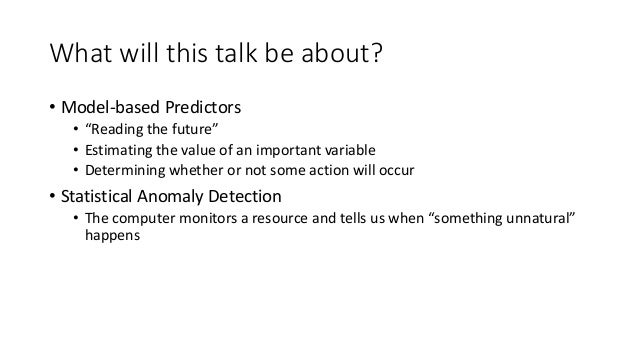

3. What will this talk be about? • Model-based Predictors • “Reading the future” • Estimating the value of an important variable • Determining whether or not some action will occur • Statistical Anomaly Detection • The computer monitors a resource and tells us when “something unnatural” happens

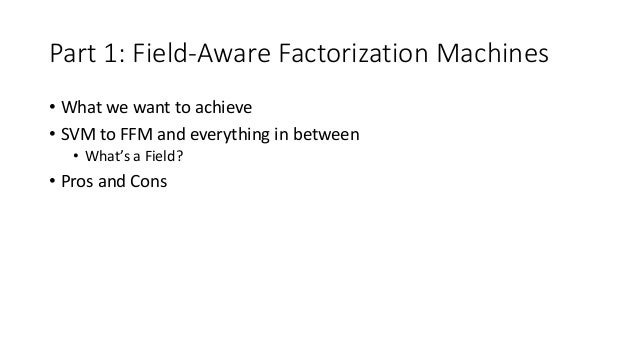

4. Part 1: Field-Aware Factorization Machines • What we want to achieve • SVM to FFM and everything in between • What’s a Field? • Pros and Cons

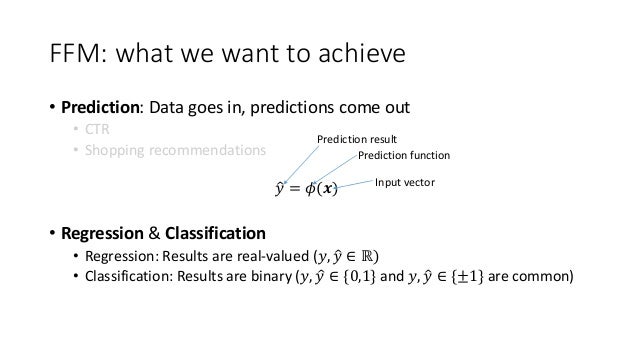

5. FFM: what we want to achieve • Prediction: Data goes in, predictions come out • CTR • Shopping recommendations 𝑦 = 𝜙(𝒙) • Regression & Classification • Regression: Results are real-valued (𝑦, 𝑦 ∈ ℝ) • Classification: Results are binary (𝑦, 𝑦 ∈ {0,1} and 𝑦, 𝑦 ∈ {±1} are common) Prediction result Prediction function Input vector

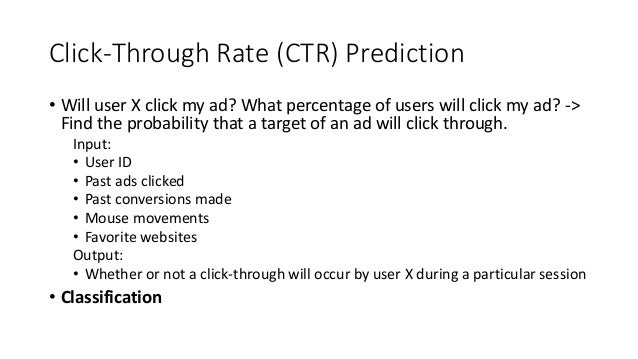

6. Click-Through Rate (CTR) Prediction • Will user X click my ad? What percentage of users will click my ad? -> Find the probability that a target of an ad will click through. Input: • User ID • Past ads clicked • Past conversions made • Mouse movements • Favorite websites Output: • Whether or not a click-through will occur by user X during a particular session • Classification

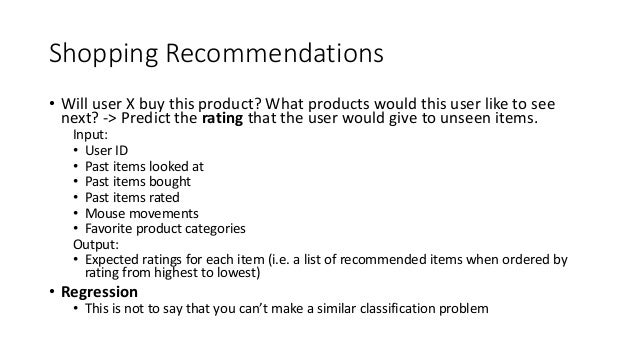

7. Shopping Recommendations • Will user X buy this product? What products would this user like to see next? -> Predict the rating that the user would give to unseen items. Input: • User ID • Past items looked at • Past items bought • Past items rated • Mouse movements • Favorite product categories Output: • Expected ratings for each item (i.e. a list of recommended items when ordered by rating from highest to lowest) • Regression • This is not to say that you can’t make a similar classification problem

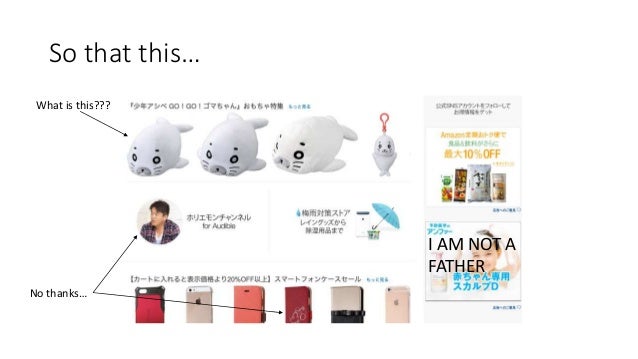

8. So that this… What is this??? I AM NOT A FATHER No thanks…

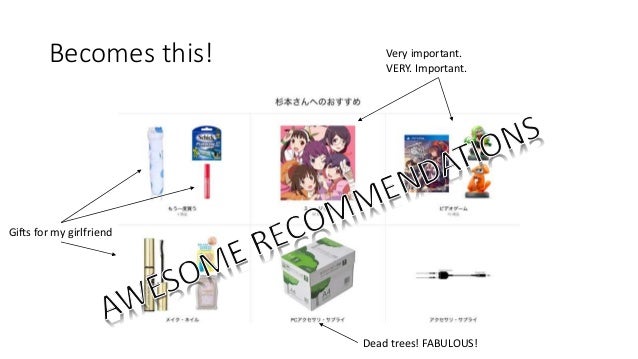

9. Becomes this! Gifts for my girlfriend Very important. VERY. Important. Dead trees! FABULOUS!

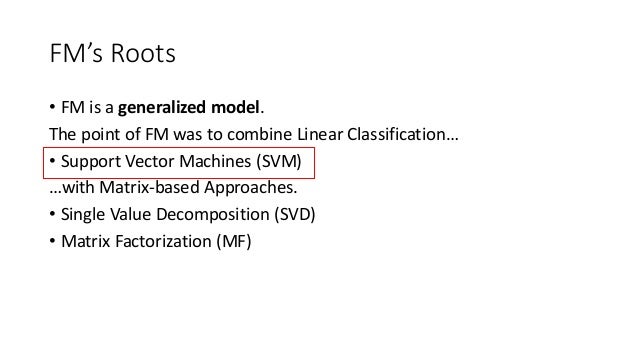

10. FM’s Roots • FM is a generalized model. The point of FM was to combine Linear Classification… • Support Vector Machines (SVM) …with Matrix-based Approaches. • Single Value Decomposition (SVD) • Matrix Factorization (MF)

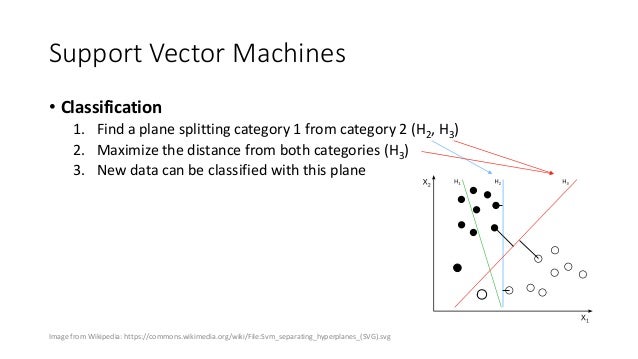

11. Support Vector Machines • Classification 1. Find a plane splitting category 1 from category 2 (H2, H3) 2. Maximize the distance from both categories (H3) 3. New data can be classified with this plane Image from Wikipedia: https://commons.wikimedia.org/wiki/File:Svm_separating_hyperplanes_(SVG).svg

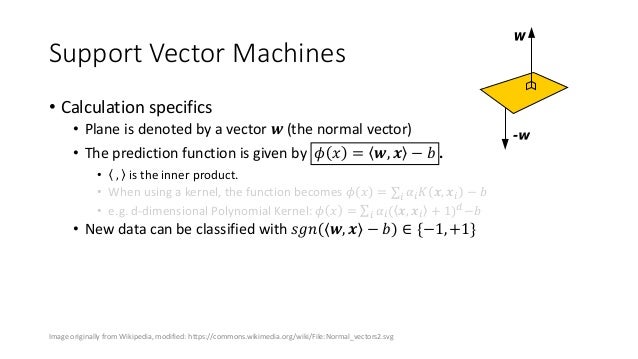

12. Support Vector Machines • Calculation specifics • Plane is denoted by a vector 𝒘 (the normal vector) • The prediction function is given by 𝜙 𝑥 = 𝒘, 𝒙 − 𝑏 . • , is the inner product. • When using a kernel, the function becomes 𝜙 𝑥 = 𝑖 𝛼𝑖 𝐾 𝒙, 𝒙𝑖 − 𝑏 • e.g. d-dimensional Polynomial Kernel: 𝜙 𝑥 = 𝑖 𝛼𝑖( 𝒙, 𝒙𝑖 + 1) 𝑑 −𝑏 • New data can be classified with 𝑠𝑔𝑛 𝒘, 𝒙 − 𝑏 ∈ {−1, +1} Image originally from Wikipedia, modified: https://commons.wikimedia.org/wiki/File:Normal_vectors2.svg

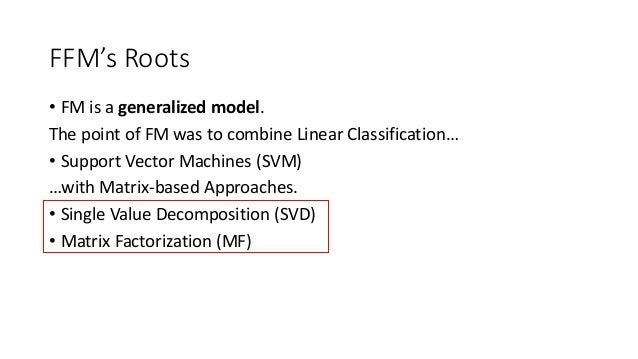

13. FFM’s Roots • FM is a generalized model. The point of FM was to combine Linear Classification… • Support Vector Machines (SVM) …with Matrix-based Approaches. • Single Value Decomposition (SVD) • Matrix Factorization (MF)

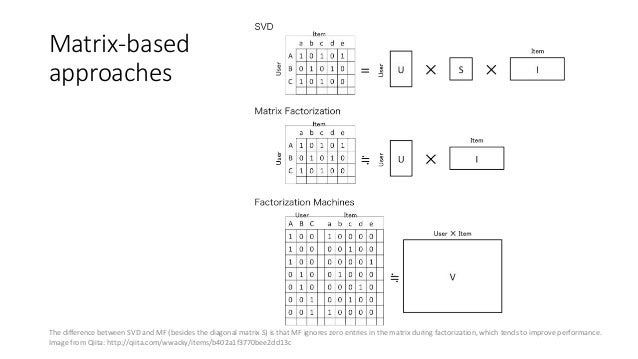

14. Matrix-based approaches The difference between SVD and MF (besides the diagonal matrix S) is that MF ignores zero entries in the matrix during factorization, which tends to improve performance. Image from Qiita: http://qiita.com/wwacky/items/b402a1f3770bee2dd13c

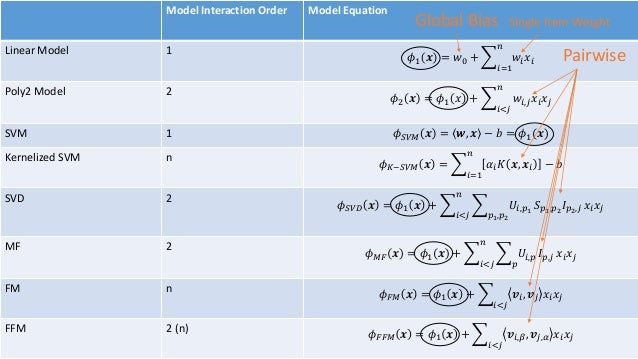

15. Model Interaction Order Model Equation Linear Model 1 𝜙1 𝒙 = 𝑤0 + 𝑖=1 𝑛 𝑤𝑖 𝑥𝑖 Poly2 Model 2 𝜙2 𝒙 = 𝜙1 𝑥 + 𝑖<𝑗 𝑛 𝑤𝑖,𝑗 𝑥𝑖 𝑥𝑗 SVM 1 𝜙 𝑆𝑉𝑀 𝒙 = 𝒘, 𝒙 − 𝑏 = 𝜙1(𝒙) Kernelized SVM n 𝜙 𝐾−𝑆𝑉𝑀 𝒙 = 𝑖=1 𝑛 𝛼𝑖 𝐾 𝒙, 𝒙𝑖 − 𝑏 SVD 2 𝜙 𝑆𝑉𝐷 𝒙 = 𝜙1 𝒙 + 𝑖<𝑗 𝑛 𝑝1,𝑝2 𝑈𝑖,𝑝1 𝑆 𝑝1,𝑝2 𝐼 𝑝2,𝑗 𝑥𝑖 𝑥𝑗 MF 2 𝜙 𝑀𝐹 𝒙 = 𝜙1 𝒙 + 𝑖<𝑗 𝑛 𝑝 𝑈𝑖,𝑝 𝐼 𝑝,𝑗 𝑥𝑖 𝑥𝑗 FM n 𝜙 𝐹𝑀 𝒙 = 𝜙1 𝒙 + 𝑖<𝑗 𝒗𝑖, 𝒗𝑗 𝑥𝑖 𝑥𝑗 FFM 2 (n) 𝜙 𝐹𝐹𝑀 𝒙 = 𝜙1 𝒙 + 𝑖<𝑗 𝒗𝑖,𝛽, 𝒗𝑗,𝛼 𝑥𝑖 𝑥𝑗 Global Bias Single Item Weight Pairwise

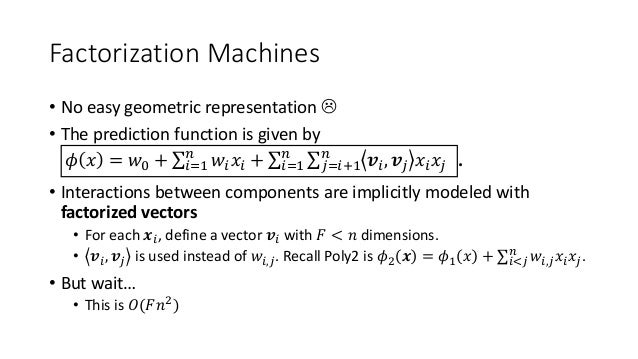

16. Factorization Machines • No easy geometric representation  • The prediction function is given by 𝜙 𝑥 = 𝑤0 + 𝑖=1 𝑛 𝑤𝑖 𝑥𝑖 + 𝑖=1 𝑛 𝑗=𝑖+1 𝑛 𝒗𝑖, 𝒗𝑗 𝑥𝑖 𝑥𝑗 . • Interactions between components are implicitly modeled with factorized vectors • For each 𝒙𝑖, define a vector 𝒗𝑖 with 𝐹 < 𝑛 dimensions. • 𝒗𝑖, 𝒗𝑗 is used instead of 𝑤𝑖,𝑗. Recall Poly2 is 𝜙2 𝒙 = 𝜙1 𝑥 + 𝑖<𝑗 𝑛 𝑤𝑖,𝑗 𝑥𝑖 𝑥𝑗. • But wait… • This is 𝑂(𝐹𝑛2)

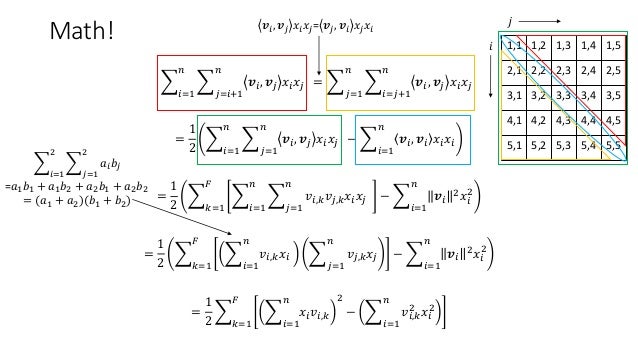

17. Math! 𝑖=1 𝑛 𝑗=𝑖+1 𝑛 𝒗𝑖, 𝒗𝑗 𝑥𝑖 𝑥𝑗 = 𝑗=1 𝑛 𝑖=𝑗+1 𝑛 𝒗𝑖, 𝒗𝑗 𝑥𝑖 𝑥𝑗 = 1 2 𝑖=1 𝑛 𝑗=1 𝑛 𝒗𝑖, 𝒗𝑗 𝑥𝑖 𝑥𝑗 − 𝑖=1 𝑛 𝒗𝑖, 𝒗𝑖 𝑥𝑖 𝑥𝑖 = 1 2 𝑘=1 𝐹 𝑖=1 𝑛 𝑗=1 𝑛 𝑣𝑖,𝑘 𝑣𝑗,𝑘 𝑥𝑖 𝑥𝑗 − 𝑖=1 𝑛 𝒗𝑖 2 𝑥𝑖 2 = 1 2 𝑘=1 𝐹 𝑖=1 𝑛 𝑣𝑖,𝑘 𝑥𝑖 𝑗=1 𝑛 𝑣𝑗,𝑘 𝑥𝑗 − 𝑖=1 𝑛 𝒗𝑖 2 𝑥𝑖 2 = 1 2 𝑘=1 𝐹 𝑖=1 𝑛 𝑥𝑖 𝑣𝑖,𝑘 2 − 𝑖=1 𝑛 𝑣𝑖,𝑘 2 𝑥𝑖 2 𝒗𝑖, 𝒗𝑗 𝑥𝑖 𝑥𝑗= 𝒗𝑗, 𝒗𝑖 𝑥𝑗 𝑥𝑖 1,1 1,2 1,3 1,4 1,5 2,1 2,2 2,3 2,4 2,5 3,1 3,2 3,3 3,4 3,5 4,1 4,2 4,3 4,4 4,5 5,1 5,2 5,3 5,4 5,5 𝑖=1 2 𝑗=1 2 𝑎𝑖 𝑏𝑗 =𝑎1 𝑏1 + 𝑎1 𝑏2 + 𝑎2 𝑏1 + 𝑎2 𝑏2 = (𝑎1 + 𝑎2)(𝑏1 + 𝑏2) 𝑗 𝑖

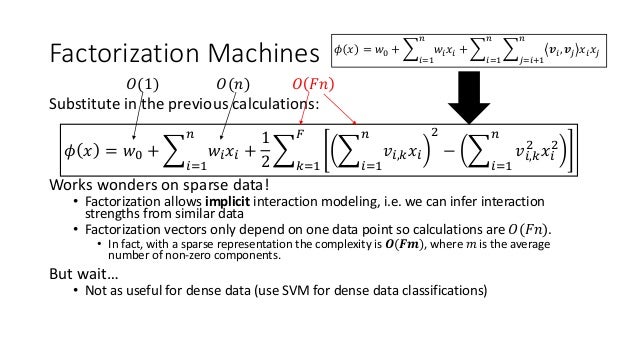

18. Factorization Machines Substitute in the previous calculations: 𝜙 𝑥 = 𝑤0 + 𝑖=1 𝑛 𝑤𝑖 𝑥𝑖 + 1 2 𝑘=1 𝐹 𝑖=1 𝑛 𝑣𝑖,𝑘 𝑥𝑖 2 − 𝑖=1 𝑛 𝑣𝑖,𝑘 2 𝑥𝑖 2 Works wonders on sparse data! • Factorization allows implicit interaction modeling, i.e. we can infer interaction strengths from similar data • Factorization vectors only depend on one data point so calculations are 𝑂(𝐹𝑛). • In fact, with a sparse representation the complexity is 𝑶(𝑭𝒎), where 𝑚 is the average number of non-zero components. But wait… • Not as useful for dense data (use SVM for dense data classifications) 𝑂(1) 𝑂(𝑛) 𝑂 𝐹𝑛 𝜙 𝑥 = 𝑤0 + 𝑖=1 𝑛 𝑤𝑖 𝑥𝑖 + 𝑖=1 𝑛 𝑗=𝑖+1 𝑛 𝒗𝑖, 𝒗𝑗 𝑥𝑖 𝑥𝑗

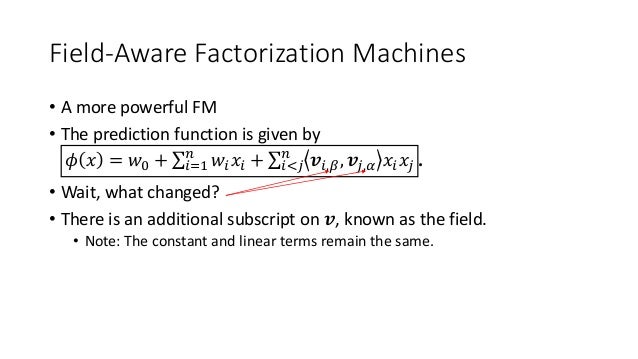

19. Field-Aware Factorization Machines • A more powerful FM • The prediction function is given by 𝜙 𝑥 = 𝑤0 + 𝑖=1 𝑛 𝑤𝑖 𝑥𝑖 + 𝑖<𝑗 𝑛 𝒗𝑖,𝛽, 𝒗𝑗,𝛼 𝑥𝑖 𝑥𝑗 . • Wait, what changed? • There is an additional subscript on 𝒗, known as the field. • Note: The constant and linear terms remain the same.

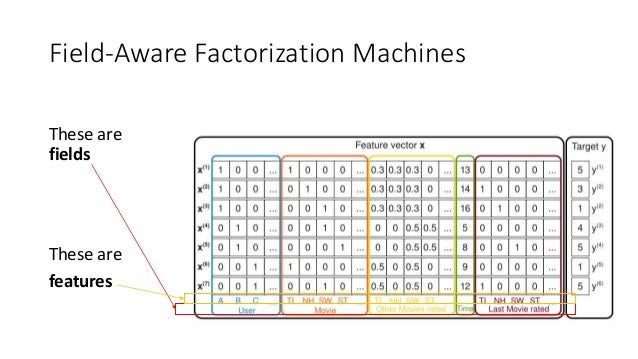

20. Field-Aware Factorization Machines These are fields These are features

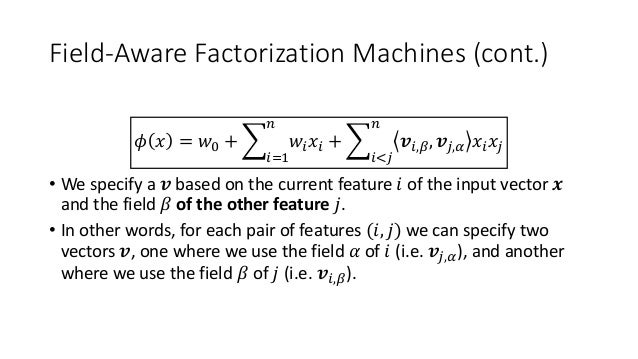

21. Field-Aware Factorization Machines (cont.) 𝜙 𝑥 = 𝑤0 + 𝑖=1 𝑛 𝑤𝑖 𝑥𝑖 + 𝑖<𝑗 𝑛 𝒗𝑖,𝛽, 𝒗𝑗,𝛼 𝑥𝑖 𝑥𝑗 • We specify a 𝒗 based on the current feature 𝑖 of the input vector 𝒙 and the field 𝛽 of the other feature 𝑗. • In other words, for each pair of features (𝑖, 𝑗) we can specify two vectors 𝒗, one where we use the field 𝛼 of 𝑖 (i.e. 𝒗𝑗,𝛼), and another where we use the field 𝛽 of 𝑗 (i.e. 𝒗𝑖,𝛽).

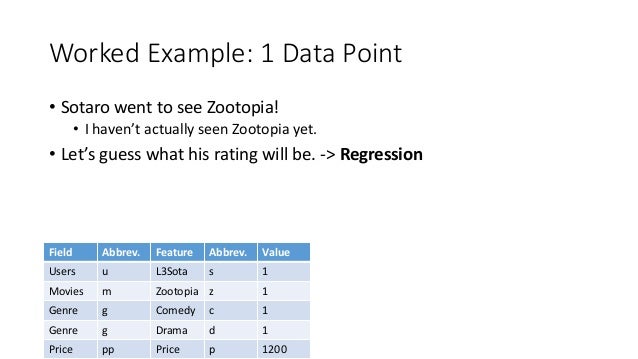

22. Worked Example: 1 Data Point • Sotaro went to see Zootopia! • I haven’t actually seen Zootopia yet. • Let’s guess what his rating will be. -> Regression Field Abbrev. Feature Abbrev. Value Users u L3Sota s 1 Movies m Zootopia z 1 Genre g Comedy c 1 Genre g Drama d 1 Price pp Price p 1200

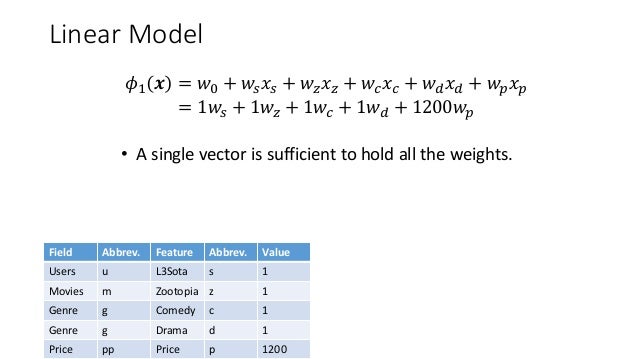

23. Linear Model Field Abbrev. Feature Abbrev. Value Users u L3Sota s 1 Movies m Zootopia z 1 Genre g Comedy c 1 Genre g Drama d 1 Price pp Price p 1200 𝜙1 𝒙 = 𝑤0 + 𝑤𝑠 𝑥 𝑠 + 𝑤𝑧 𝑥 𝑧 + 𝑤𝑐 𝑥 𝑐 + 𝑤 𝑑 𝑥 𝑑 + 𝑤 𝑝 𝑥 𝑝 = 1𝑤𝑠 + 1𝑤𝑧 + 1𝑤𝑐 + 1𝑤 𝑑 + 1200𝑤 𝑝 • A single vector is sufficient to hold all the weights.

24. Poly2 Model Field Abbrev. Feature Abbrev. Value Users u L3Sota s 1 Movies m Zootopia z 1 Genre g Comedy c 1 Genre g Drama d 1 Price pp Price p 1200 𝜙2 𝒙 = 𝑤0 + 𝑤𝑠 𝑥 𝑠 + 𝑤𝑧 𝑥 𝑧 + 𝑤𝑐 𝑥 𝑐 + 𝑤 𝑑 𝑥 𝑑 + 𝑤 𝑝 𝑥 𝑝 +𝒘 𝒔,𝒛 𝒙 𝒔 𝒙 𝒛 + 𝒘 𝒔,𝒄 𝒙 𝒔 𝒙 𝒄 + 𝒘 𝒔,𝒅 𝒙 𝒔 𝒙 𝒅 + 𝒘 𝒔,𝒑 𝒙 𝒔 𝒙 𝒑 +𝒘 𝒛,𝒄 𝒙 𝒛 𝒙 𝒄 + 𝒘 𝒛,𝒅 𝒙 𝒛 𝒙 𝒅 + 𝒘 𝒛,𝒑 𝒙 𝒛 𝒙 𝒑 +𝒘 𝒄,𝒅 𝒙 𝒄 𝒙 𝒅 + 𝒘 𝒄,𝒑 𝒙 𝒄 𝒙 𝒑 +𝒘 𝒅,𝒑 𝒙 𝒅 𝒙 𝒑 𝑤0, 𝑤𝑠, 𝑤𝑧, 𝑤𝑐, 𝑤 𝑑, 𝑤 𝑝 𝑤𝑠,𝑧, 𝑤𝑠,𝑐, 𝑤𝑠,𝑑, 𝑤𝑠,𝑝, 𝑤𝑧,𝑐, 𝑤 𝑧,𝑑, 𝑤𝑧,𝑝, 𝑤𝑐,𝑑, 𝑤𝑐,𝑝, 𝑤 𝑑,𝑝

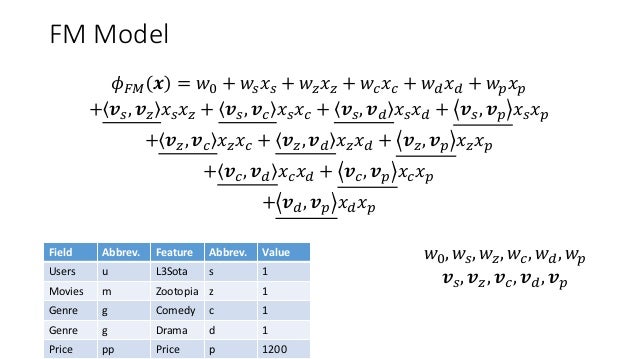

25. FM Model Field Abbrev. Feature Abbrev. Value Users u L3Sota s 1 Movies m Zootopia z 1 Genre g Comedy c 1 Genre g Drama d 1 Price pp Price p 1200 𝜙 𝐹𝑀 𝒙 = 𝑤0 + 𝑤𝑠 𝑥 𝑠 + 𝑤𝑧 𝑥 𝑧 + 𝑤𝑐 𝑥 𝑐 + 𝑤 𝑑 𝑥 𝑑 + 𝑤 𝑝 𝑥 𝑝 + 𝒗 𝑠, 𝒗 𝑧 𝑥 𝑠 𝑥 𝑧 + 𝒗 𝑠, 𝒗 𝑐 𝑥 𝑠 𝑥 𝑐 + 𝒗 𝑠, 𝒗 𝑑 𝑥 𝑠 𝑥 𝑑 + 𝒗 𝑠, 𝒗 𝑝 𝑥 𝑠 𝑥 𝑝 + 𝒗 𝑧, 𝒗 𝑐 𝑥 𝑧 𝑥 𝑐 + 𝒗 𝑧, 𝒗 𝑑 𝑥 𝑧 𝑥 𝑑 + 𝒗 𝑧, 𝒗 𝑝 𝑥 𝑧 𝑥 𝑝 + 𝒗 𝑐, 𝒗 𝑑 𝑥 𝑐 𝑥 𝑑 + 𝒗 𝑐, 𝒗 𝑝 𝑥 𝑐 𝑥 𝑝 + 𝒗 𝑑, 𝒗 𝑝 𝑥 𝑑 𝑥 𝑝 𝑤0, 𝑤𝑠, 𝑤𝑧, 𝑤𝑐, 𝑤 𝑑, 𝑤 𝑝 𝒗 𝑠, 𝒗 𝑧, 𝒗 𝑐, 𝒗 𝑑, 𝒗 𝑝

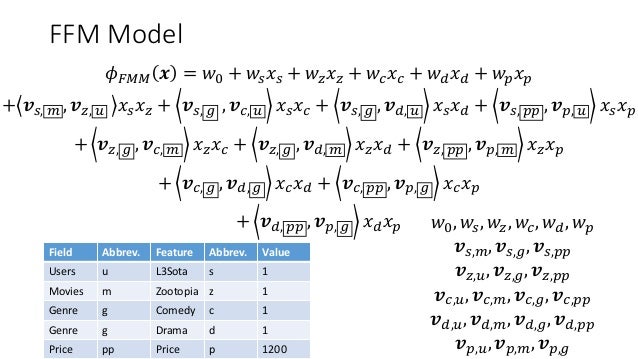

26. FFM Model Field Abbrev. Feature Abbrev. Value Users u L3Sota s 1 Movies m Zootopia z 1 Genre g Comedy c 1 Genre g Drama d 1 Price pp Price p 1200 𝜙 𝐹𝑀𝑀 𝒙 = 𝑤0 + 𝑤𝑠 𝑥 𝑠 + 𝑤𝑧 𝑥 𝑧 + 𝑤𝑐 𝑥 𝑐 + 𝑤 𝑑 𝑥 𝑑 + 𝑤 𝑝 𝑥 𝑝 + 𝒗 𝑠, 𝑚 , 𝒗 𝑧, 𝑢 𝑥 𝑠 𝑥 𝑧 + 𝒗 𝑠, 𝑔 , 𝒗 𝑐, 𝑢 𝑥 𝑠 𝑥 𝑐 + 𝒗 𝑠, 𝑔 , 𝒗 𝑑, 𝑢 𝑥 𝑠 𝑥 𝑑 + 𝒗 𝑠, 𝑝𝑝 , 𝒗 𝑝, 𝑢 𝑥 𝑠 𝑥 𝑝 + 𝒗 𝑧, 𝑔 , 𝒗 𝑐, 𝑚 𝑥 𝑧 𝑥 𝑐 + 𝒗 𝑧, 𝑔 , 𝒗 𝑑, 𝑚 𝑥 𝑧 𝑥 𝑑 + 𝒗 𝑧, 𝑝𝑝 , 𝒗 𝑝, 𝑚 𝑥 𝑧 𝑥 𝑝 + 𝒗 𝑐, 𝑔 , 𝒗 𝑑, 𝑔 𝑥 𝑐 𝑥 𝑑 + 𝒗 𝑐, 𝑝𝑝 , 𝒗 𝑝, 𝑔 𝑥 𝑐 𝑥 𝑝 + 𝒗 𝑑, 𝑝𝑝 , 𝒗 𝑝, 𝑔 𝑥 𝑑 𝑥 𝑝 𝑤0, 𝑤𝑠, 𝑤𝑧, 𝑤𝑐, 𝑤 𝑑, 𝑤 𝑝 𝒗 𝑠,𝑚, 𝒗 𝑠,𝑔, 𝒗 𝑠,𝑝𝑝 𝒗 𝑧,𝑢, 𝒗 𝑧,𝑔, 𝒗 𝑧,𝑝𝑝 𝒗 𝑐,𝑢, 𝒗 𝑐,𝑚, 𝒗 𝑐,𝑔, 𝒗 𝑐,𝑝𝑝 𝒗 𝑑,𝑢, 𝒗 𝑑,𝑚, 𝒗 𝑑,𝑔, 𝒗 𝑑,𝑝𝑝 𝒗 𝑝,𝑢, 𝒗 𝑝,𝑚, 𝒗 𝑝,𝑔

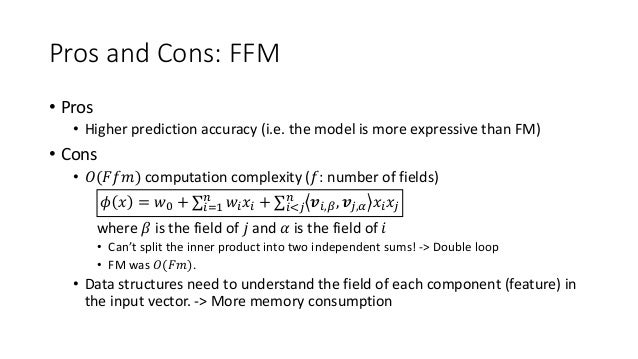

27. Pros and Cons: FFM • Pros • Higher prediction accuracy (i.e. the model is more expressive than FM) • Cons • 𝑂(𝐹𝑓𝑚) computation complexity (𝑓: number of fields) 𝜙 𝑥 = 𝑤0 + 𝑖=1 𝑛 𝑤𝑖 𝑥𝑖 + 𝑖<𝑗 𝑛 𝒗𝑖,𝛽, 𝒗𝑗,𝛼 𝑥𝑖 𝑥𝑗 where 𝛽 is the field of 𝑗 and 𝛼 is the field of 𝑖 • Can’t split the inner product into two independent sums! -> Double loop • FM was 𝑂(𝐹𝑚). • Data structures need to understand the field of each component (feature) in the input vector. -> More memory consumption

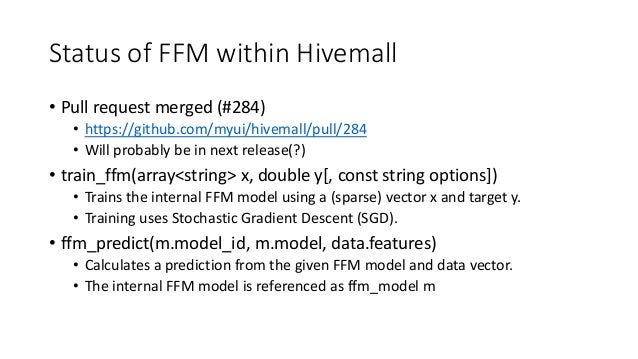

28. Status of FFM within Hivemall • Pull request merged (#284) • https://github.com/myui/hivemall/pull/284 • Will probably be in next release(?) • train_ffm(array<string> x, double y[, const string options]) • Trains the internal FFM model using a (sparse) vector x and target y. • Training uses Stochastic Gradient Descent (SGD). • ffm_predict(m.model_id, m.model, data.features) • Calculates a prediction from the given FFM model and data vector. • The internal FFM model is referenced as ffm_model m

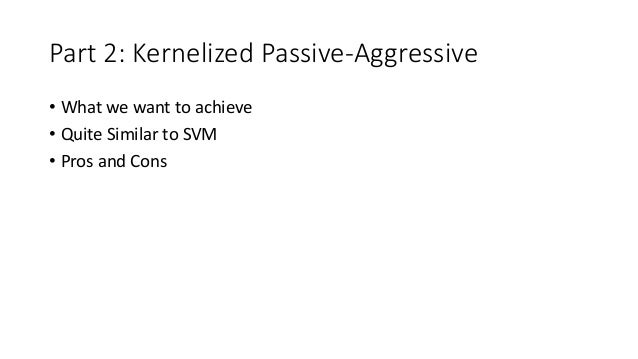

29. Part 2: Kernelized Passive-Aggressive • What we want to achieve • Quite Similar to SVM • Pros and Cons

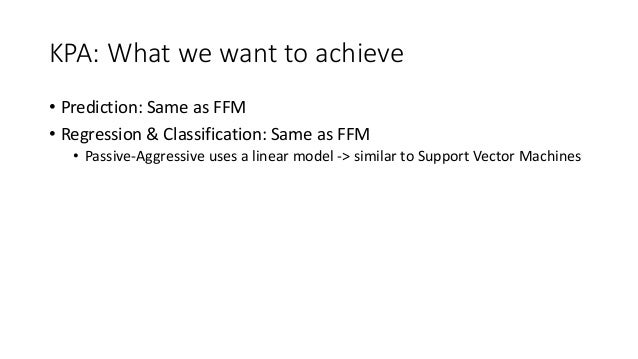

30. KPA: What we want to achieve • Prediction: Same as FFM • Regression & Classification: Same as FFM • Passive-Aggressive uses a linear model -> similar to Support Vector Machines

31. Quite Similar to SVM • SVM Model is 𝜙 𝑆𝑉𝑀 𝒙 = 𝒘, 𝒙 − 𝑏 • Passive-Aggressive Model is 𝜙 𝑃𝐴 𝒙 = 𝒘, 𝒙 − 𝑏 • Additionally, PA uses a margin 𝜖, which has different meanings for classification and regression. What’s the difference? • Passive-Aggressive models don’t update their weights when a new data point is correctly classified/a new data point is within the regression range. • PA is an online algorithm (real-time learning) • SVM generally uses batch learning Classification Regression Images and equations from slides at http://ttic.uchicago.edu/~shai/ppt/PassiveAggressive.ppt

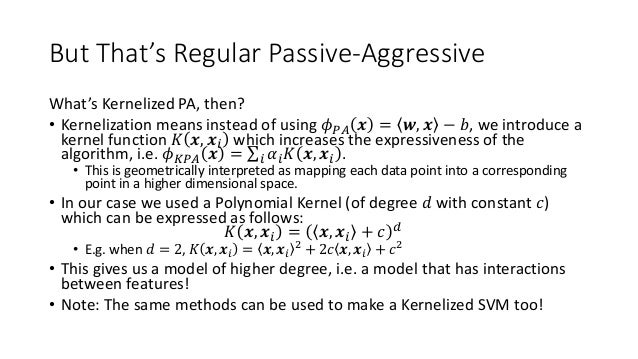

32. But That’s Regular Passive-Aggressive What’s Kernelized PA, then? • Kernelization means instead of using 𝜙 𝑃𝐴 𝒙 = 𝒘, 𝒙 − 𝑏, we introduce a kernel function 𝐾 𝒙, 𝒙𝑖 which increases the expressiveness of the algorithm, i.e. 𝜙 𝐾𝑃𝐴 𝒙 = 𝑖 𝛼𝑖 𝐾 𝒙, 𝒙𝑖 . • This is geometrically interpreted as mapping each data point into a corresponding point in a higher dimensional space. • In our case we used a Polynomial Kernel (of degree 𝑑 with constant 𝑐) which can be expressed as follows: 𝐾 𝒙, 𝒙𝑖 = 𝒙, 𝒙𝑖 + 𝑐 𝑑 • E.g. when 𝑑 = 2, 𝐾 𝒙, 𝒙𝑖 = 𝒙, 𝒙𝑖 2 + 2𝑐 𝒙, 𝒙𝑖 + 𝑐2 • This gives us a model of higher degree, i.e. a model that has interactions between features! • Note: The same methods can be used to make a Kernelized SVM too!

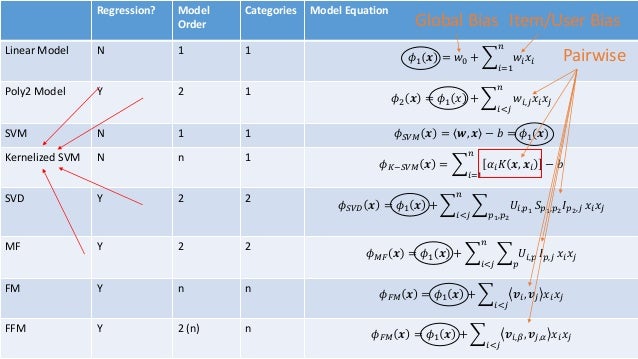

33. Regression? Model Order Categories Model Equation Linear Model N 1 1 𝜙1 𝒙 = 𝑤0 + 𝑖=1 𝑛 𝑤𝑖 𝑥𝑖 Poly2 Model Y 2 1 𝜙2 𝒙 = 𝜙1 𝑥 + 𝑖<𝑗 𝑛 𝑤𝑖,𝑗 𝑥𝑖 𝑥𝑗 SVM N 1 1 𝜙 𝑆𝑉𝑀 𝒙 = 𝒘, 𝒙 − 𝑏 = 𝜙1(𝒙) Kernelized SVM N n 1 𝜙 𝐾−𝑆𝑉𝑀 𝒙 = 𝑖=1 𝑛 𝛼𝑖 𝐾 𝒙, 𝒙𝑖 − 𝑏 SVD Y 2 2 𝜙 𝑆𝑉𝐷 𝒙 = 𝜙1 𝒙 + 𝑖<𝑗 𝑛 𝑝1,𝑝2 𝑈𝑖,𝑝1 𝑆 𝑝1,𝑝2 𝐼 𝑝2,𝑗 𝑥𝑖 𝑥𝑗 MF Y 2 2 𝜙 𝑀𝐹 𝒙 = 𝜙1 𝒙 + 𝑖<𝑗 𝑛 𝑝 𝑈𝑖,𝑝 𝐼 𝑝,𝑗 𝑥𝑖 𝑥𝑗 FM Y n n 𝜙 𝐹𝑀 𝒙 = 𝜙1 𝒙 + 𝑖<𝑗 𝒗𝑖, 𝒗𝑗 𝑥𝑖 𝑥𝑗 FFM Y 2 (n) n 𝜙 𝐹𝑀 𝒙 = 𝜙1 𝒙 + 𝑖<𝑗 𝒗𝑖,𝛽, 𝒗𝑗,𝛼 𝑥𝑖 𝑥𝑗 Global Bias Item/User Bias Pairwise

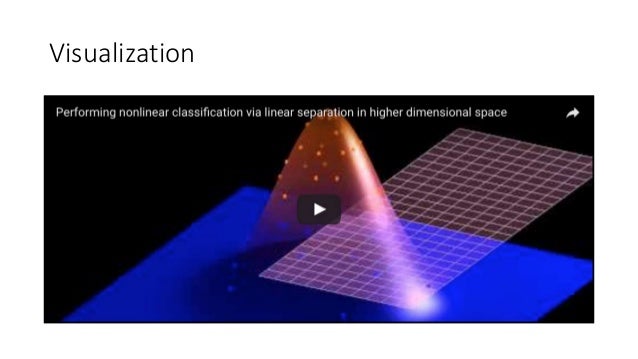

34. Visualization

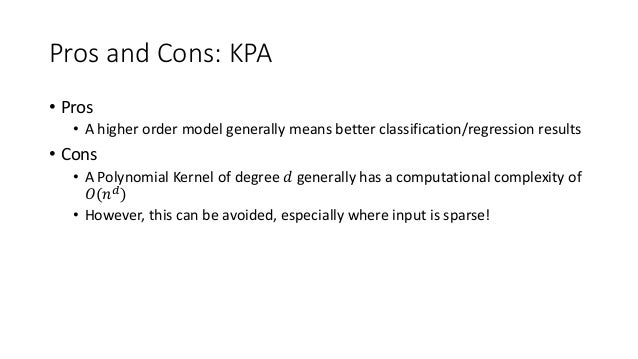

35. Pros and Cons: KPA • Pros • A higher order model generally means better classification/regression results • Cons • A Polynomial Kernel of degree 𝑑 generally has a computational complexity of 𝑂(𝑛 𝑑 ) • However, this can be avoided, especially where input is sparse!

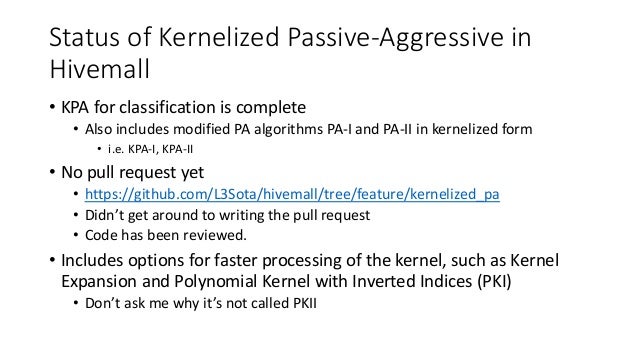

36. Status of Kernelized Passive-Aggressive in Hivemall • KPA for classification is complete • Also includes modified PA algorithms PA-I and PA-II in kernelized form • i.e. KPA-I, KPA-II • No pull request yet • https://github.com/L3Sota/hivemall/tree/feature/kernelized_pa • Didn’t get around to writing the pull request • Code has been reviewed. • Includes options for faster processing of the kernel, such as Kernel Expansion and Polynomial Kernel with Inverted Indices (PKI) • Don’t ask me why it’s not called PKII

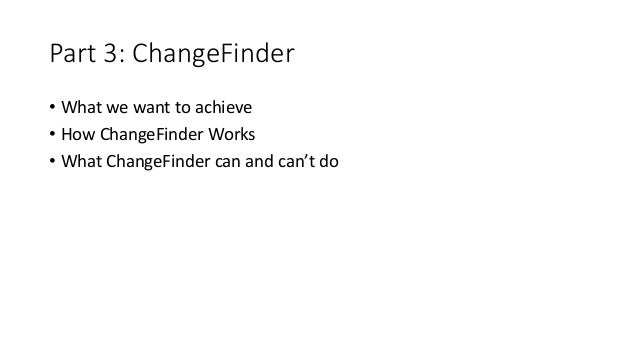

37. Part 3: ChangeFinder • What we want to achieve • How ChangeFinder Works • What ChangeFinder can and can’t do

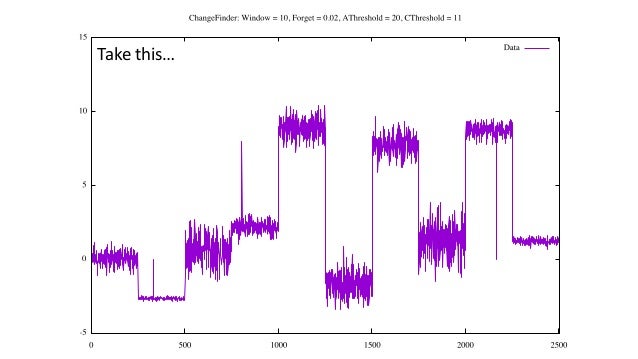

38. Take this…

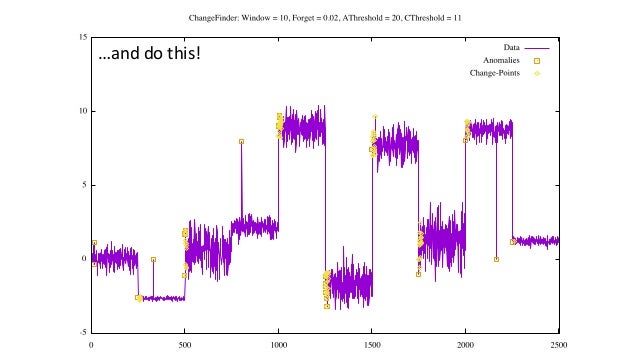

39. …and do this!

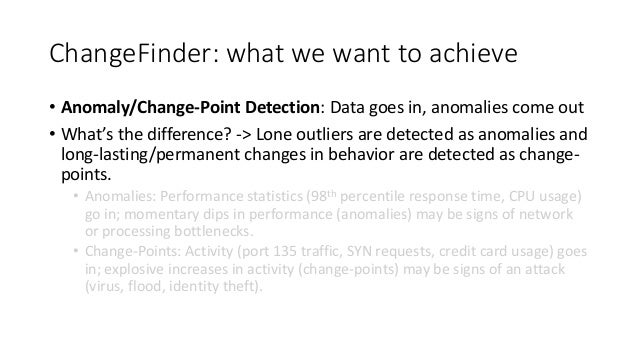

40. ChangeFinder: what we want to achieve • Anomaly/Change-Point Detection: Data goes in, anomalies come out • What’s the difference? -> Lone outliers are detected as anomalies and long-lasting/permanent changes in behavior are detected as change- points. • Anomalies: Performance statistics (98th percentile response time, CPU usage) go in; momentary dips in performance (anomalies) may be signs of network or processing bottlenecks. • Change-Points: Activity (port 135 traffic, SYN requests, credit card usage) goes in; explosive increases in activity (change-points) may be signs of an attack (virus, flood, identity theft).

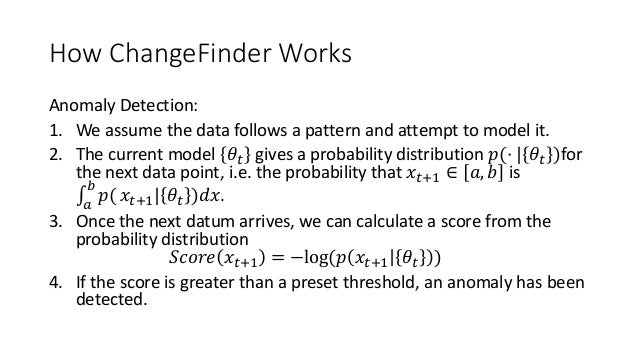

41. How ChangeFinder Works Anomaly Detection: 1. We assume the data follows a pattern and attempt to model it. 2. The current model 𝜃𝑡 gives a probability distribution 𝑝(⋅ | 𝜃𝑡 )for the next data point, i.e. the probability that 𝑥 𝑡+1 ∈ 𝑎, 𝑏 is 𝑎 𝑏 𝑝( 𝑥 𝑡+1| 𝜃𝑡 )𝑑𝑥. 3. Once the next datum arrives, we can calculate a score from the probability distribution 𝑆𝑐𝑜𝑟𝑒 𝑥 𝑡+1 = −log(𝑝 𝑥 𝑡+1 𝜃𝑡 ) 4. If the score is greater than a preset threshold, an anomaly has been detected.

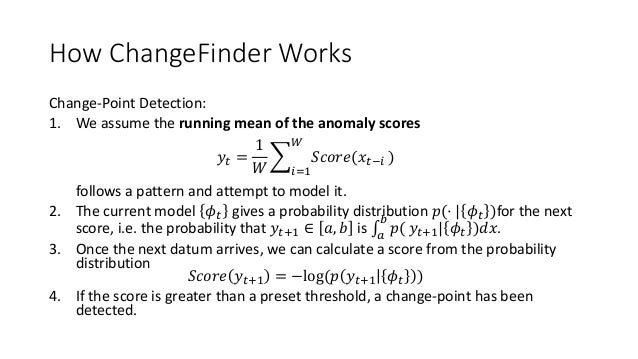

42. How ChangeFinder Works Change-Point Detection: 1. We assume the running mean of the anomaly scores 𝑦𝑡 = 1 𝑊 𝑖=1 𝑊 𝑆𝑐𝑜𝑟𝑒(𝑥𝑡−𝑖 ) follows a pattern and attempt to model it. 2. The current model 𝜙 𝑡 gives a probability distribution 𝑝(⋅ | 𝜙 𝑡 )for the next score, i.e. the probability that 𝑦𝑡+1 ∈ 𝑎, 𝑏 is 𝑎 𝑏 𝑝( 𝑦𝑡+1| 𝜙 𝑡 )𝑑𝑥. 3. Once the next datum arrives, we can calculate a score from the probability distribution 𝑆𝑐𝑜𝑟𝑒 𝑦𝑡+1 = −log(𝑝 𝑦𝑡+1 𝜙 𝑡 ) 4. If the score is greater than a preset threshold, a change-point has been detected.

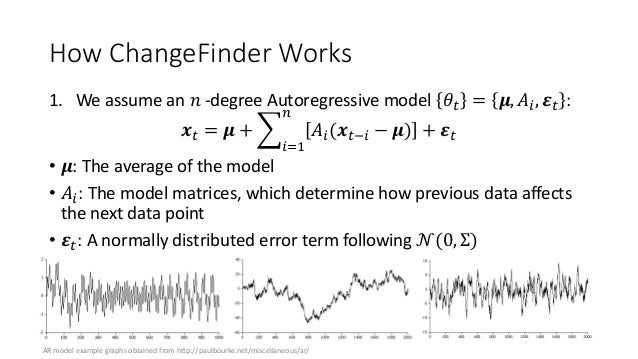

43. How ChangeFinder Works 1. We assume an 𝑛 -degree Autoregressive model 𝜃𝑡 = 𝝁, 𝐴𝑖, 𝜺 𝑡 : 𝒙 𝑡 = 𝝁 + 𝑖=1 𝑛 𝐴𝑖(𝒙 𝑡−𝑖 − 𝝁) + 𝜺 𝑡 • 𝝁: The average of the model • 𝐴𝑖: The model matrices, which determine how previous data affects the next data point • 𝜺 𝑡: A normally distributed error term following 𝒩(0, Σ) AR model example graphs obtained from http://paulbourke.net/miscellaneous/ar/

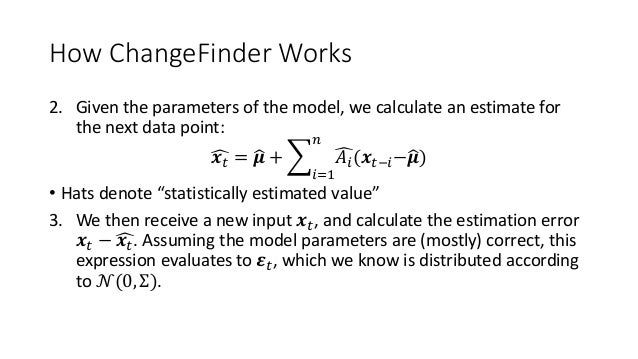

44. How ChangeFinder Works 2. Given the parameters of the model, we calculate an estimate for the next data point: 𝒙 𝑡 = 𝝁 + 𝑖=1 𝑛 𝐴𝑖(𝒙 𝑡−𝑖− 𝝁) • Hats denote “statistically estimated value” 3. We then receive a new input 𝒙 𝑡, and calculate the estimation error 𝒙 𝑡 − 𝒙 𝑡. Assuming the model parameters are (mostly) correct, this expression evaluates to 𝜺 𝑡, which we know is distributed according to 𝒩(0, Σ).

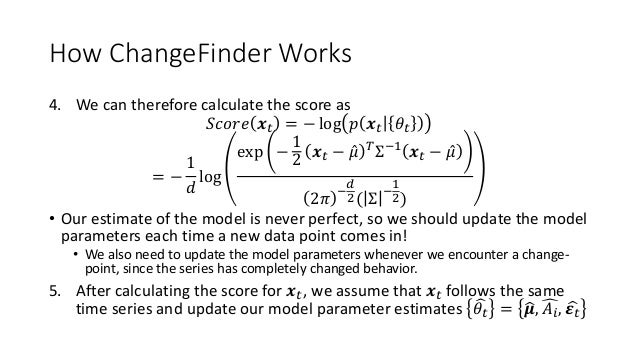

45. How ChangeFinder Works 4. We can therefore calculate the score as 𝑆𝑐𝑜𝑟𝑒 𝒙 𝑡 = − log 𝑝 𝒙 𝑡 𝜃𝑡 = − 1 𝑑 log exp − 1 2 𝒙 𝑡 − 𝜇 𝑇 Σ−1 𝒙 𝑡 − 𝜇 2𝜋 − 𝑑 2( Σ − 1 2) • Our estimate of the model is never perfect, so we should update the model parameters each time a new data point comes in! • We also need to update the model parameters whenever we encounter a change- point, since the series has completely changed behavior. 5. After calculating the score for 𝒙 𝑡, we assume that 𝒙 𝑡 follows the same time series and update our model parameter estimates 𝜃𝑡 = 𝝁, 𝐴𝑖, 𝜺 𝑡

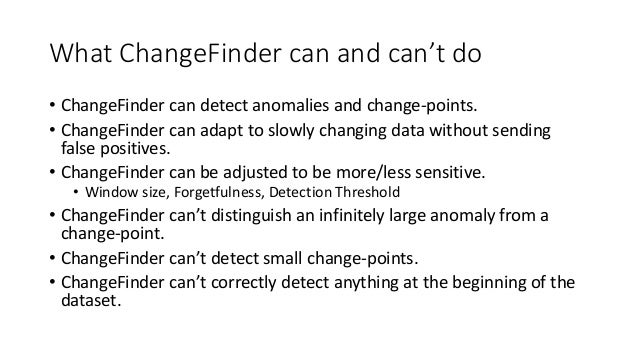

46. What ChangeFinder can and can’t do • ChangeFinder can detect anomalies and change-points. • ChangeFinder can adapt to slowly changing data without sending false positives. • ChangeFinder can be adjusted to be more/less sensitive. • Window size, Forgetfulness, Detection Threshold • ChangeFinder can’t distinguish an infinitely large anomaly from a change-point. • ChangeFinder can’t detect small change-points. • ChangeFinder can’t correctly detect anything at the beginning of the dataset.

47. Status of ChangeFinder within Hivemall • No pull request yet • https://github.com/L3Sota/hivemall/tree/feature/cf_sdar_focused • Mostly complete but some issues remain with detection accuracy, esp. at higher dimensions • cf_detect(array<double> x[, const string options]) • ChangeFinder expects input one data point (one vector) at a time, and automatically learns from the data in the order provided while returning detection results.

48. How was Interning? • Educational • Eclipse • Maven • Java • Contributing to an existing project • Inspiring • Cool people doing cool stuff, and I get to join in • Critical • Next steps: Code more! Get more experience! • Shifting from “doing what I’m told” to “think what the next step is”
