Beyond EXPLAIN: Query Optimization From Theory To Code

1. Beyond EXPLAIN Yuto Hayamizu Ryoji Kawamichi Query Optimization From Theory To Code 2016/5/20 PGCon 2016 @ Ottawa

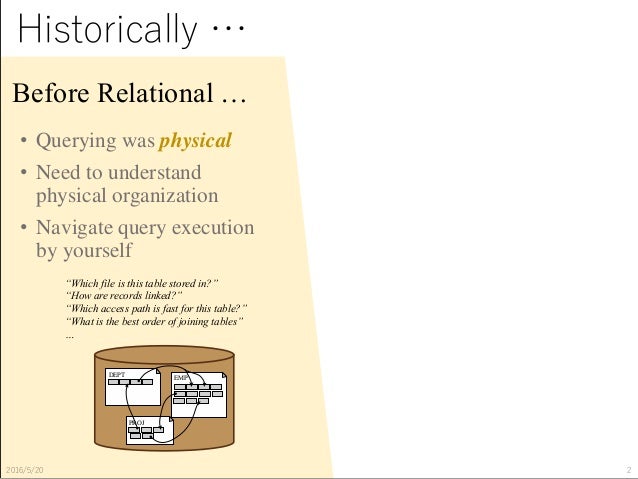

2. Before Relational … • Querying was physical • Need to understand physical organization • Navigate query execution by yourself 2016/5/20 2 DEPT EMP PROJ “Which file is this table stored in?” “How are records linked?” “Which access path is fast for this table?” “What is the best order of joining tables” … Historically …

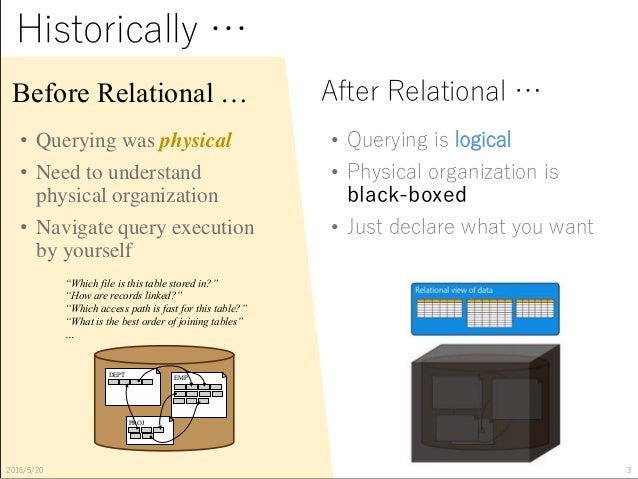

3. Before Relational … • Querying was physical • Need to understand physical organization • Navigate query execution by yourself 2016/5/20 3 After Relational … DEPT EMP PROJ “Which file is this table stored in?” “How are records linked?” “Which access path is fast for this table?” “What is the best order of joining tables” … • Querying is logical • Physical organization is black-boxed • Just declare what you want Historically …

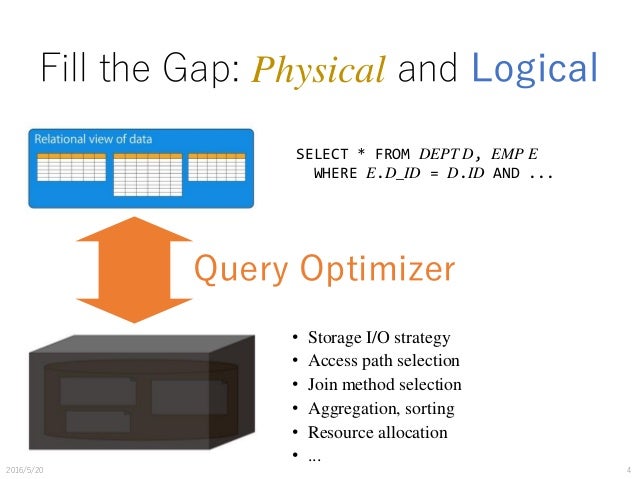

4. Fill the Gap: Physical and Logical 2016/5/20 4 SELECT * FROM DEPT D, EMP E WHERE E.D_ID = D.ID AND ... • Storage I/O strategy • Access path selection • Join method selection • Aggregation, sorting • Resource allocation • ... Query Optimizer

5. If optimizer perfectly fills the gap... 2016/5/20 5 We don’t need EXPLAIN

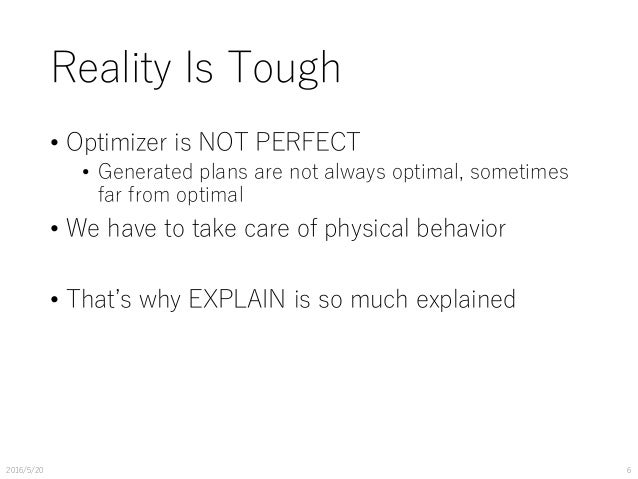

6. Reality Is Tough • Optimizer is NOT PERFECT • Generated plans are not always optimal, sometimes far from optimal • We have to take care of physical behavior • That’s why EXPLAIN is so much explained 2016/5/20 6

7. Go Beyond EXPLAIN • Deeper understanding of optimization, better control of your databases • Theoretical fundamentals of query optimization • From basic framework to cutting-edge technologies • PostgreSQL Optimizer implementation • Focusing on basic scan and join methods • Behavior observation with TPC-H benchmark 2016/5/20 7

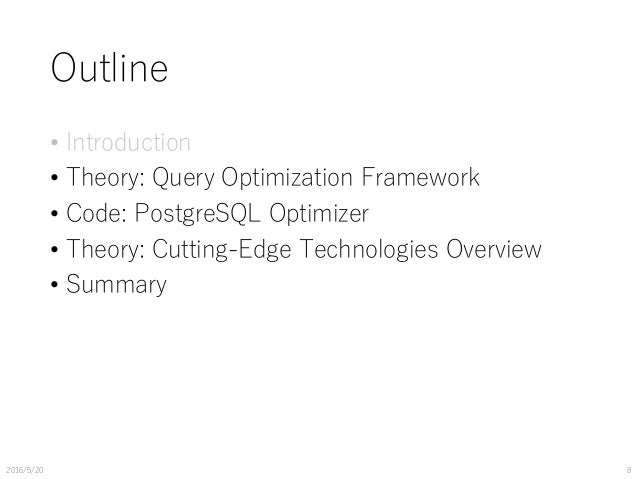

8. Outline • Introduction • Theory: Query Optimization Framework • Code: PostgreSQL Optimizer • Theory: Cutting-Edge Technologies Overview • Summary 2016/5/20 8

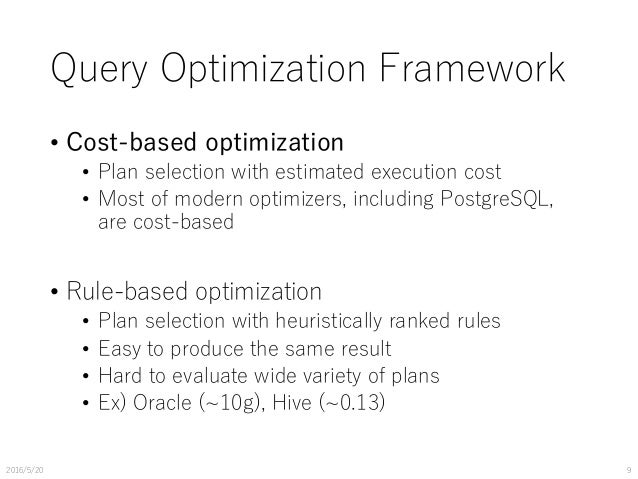

9. Query Optimization Framework • Cost-based optimization • Plan selection with estimated execution cost • Most of modern optimizers, including PostgreSQL, are cost-based • Rule-based optimization • Plan selection with heuristically ranked rules • Easy to produce the same result • Hard to evaluate wide variety of plans • Ex) Oracle (~10g), Hive (~0.13) 2016/5/20 9

10. Main Challenges in Cost-based Optimization • Cost modeling is HARD • Overhead of CPU, I/O, memory access, network, … • Cardinality estimation is HARD • Output size of scans, joins, aggregations, … • Join ordering search is HARD • Combinatorial explosion of join ordering and access path • Exhaustive search is NP-hard 2016/5/20 10

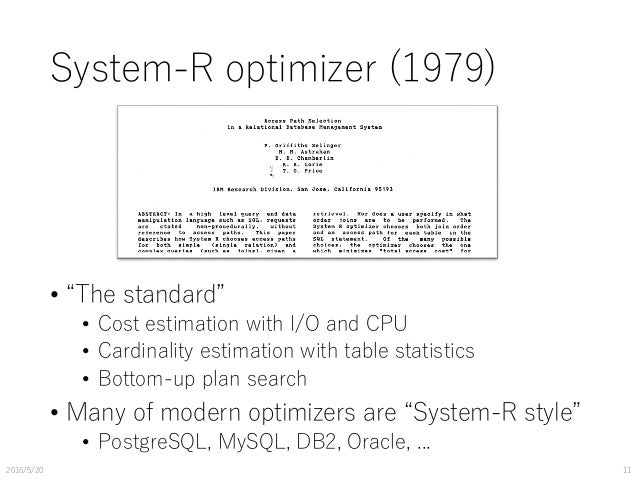

11. System-R optimizer (1979) • “The standard” • Cost estimation with I/O and CPU • Cardinality estimation with table statistics • Bottom-up plan search • Many of modern optimizers are “System-R style” • PostgreSQL, MySQL, DB2, Oracle, ... 2016/5/20 11

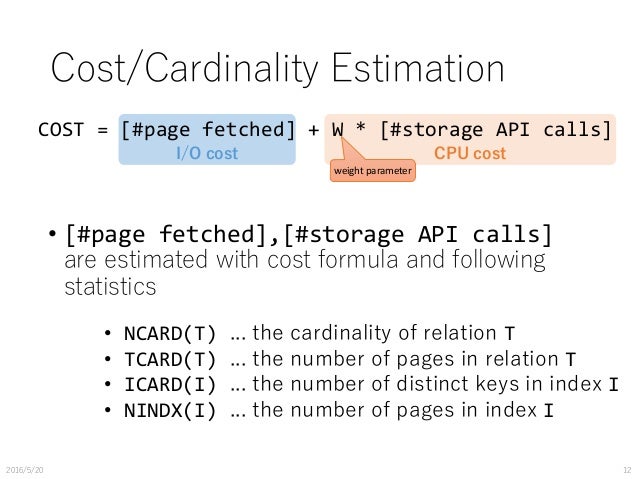

12. Cost/Cardinality Estimation • [#page fetched],[#storage API calls] are estimated with cost formula and following statistics 2016/5/20 12 CPU costI/O cost COST = [#page fetched] + W * [#storage API calls] weight parameter • NCARD(T) ... the cardinality of relation T • TCARD(T) ... the number of pages in relation T • ICARD(I) ... the number of distinct keys in index I • NINDX(I) ... the number of pages in index I

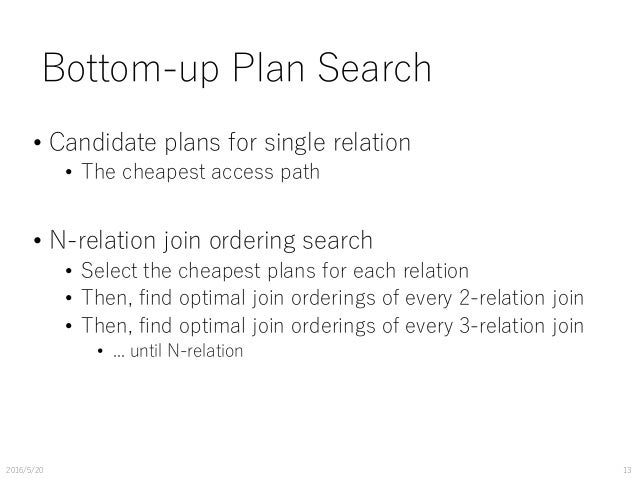

13. Bottom-up Plan Search • Candidate plans for single relation • The cheapest access path • N-relation join ordering search • Select the cheapest plans for each relation • Then, find optimal join orderings of every 2-relation join • Then, find optimal join orderings of every 3-relation join • ... until N-relation 2016/5/20 13

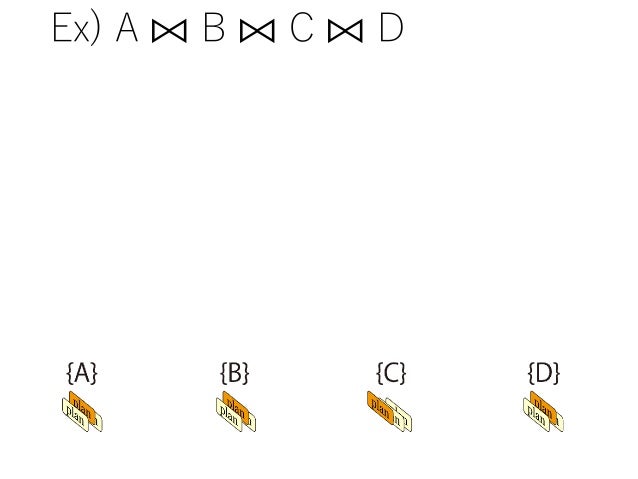

14. Ex) A ⨝ B ⨝ C ⨝ D

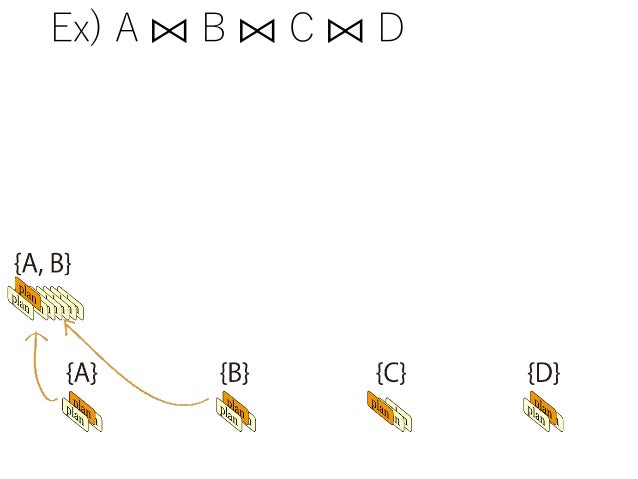

15. Ex) A ⨝ B ⨝ C ⨝ D

16. Ex) A ⨝ B ⨝ C ⨝ D

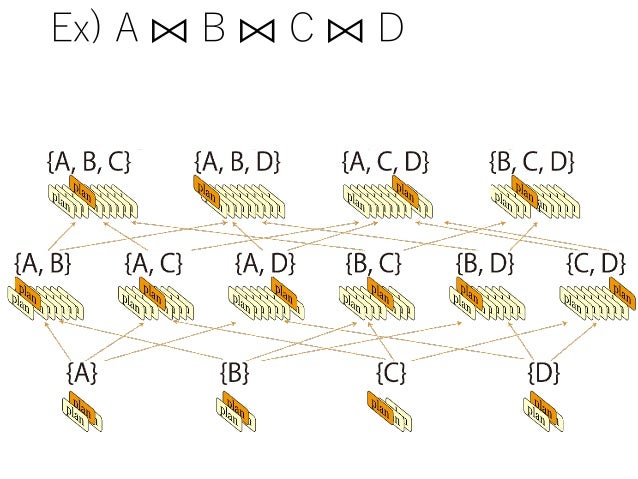

17. Ex) A ⨝ B ⨝ C ⨝ D

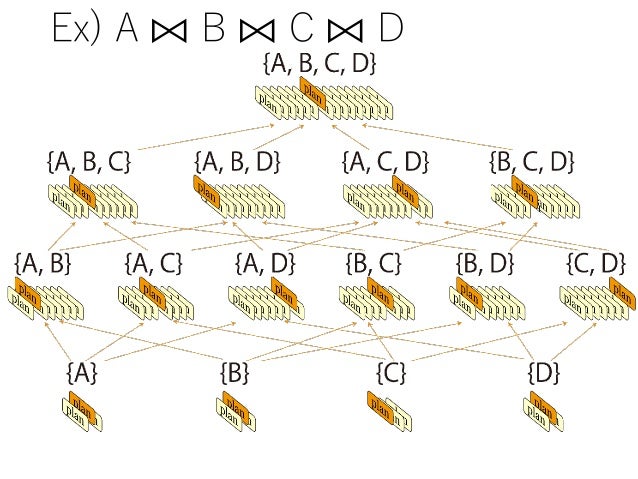

18. Ex) A ⨝ B ⨝ C ⨝ D

19. Volcano/Cascades (1993) • Top-down transformational plan search • Yet another optimization approach • Not well known as “System-R style”, but widely used in practice Ex) SQL Server, Apache Hive (Apache Calcite), Greenplum Orca • Extensible optimization framework 2016/5/20 19

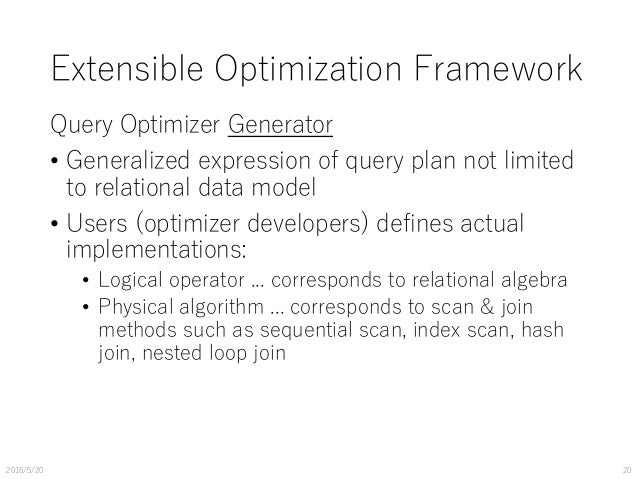

20. Extensible Optimization Framework Query Optimizer Generator • Generalized expression of query plan not limited to relational data model • Users (optimizer developers) defines actual implementations: • Logical operator ... corresponds to relational algebra • Physical algorithm ... corresponds to scan & join methods such as sequential scan, index scan, hash join, nested loop join 2016/5/20 20

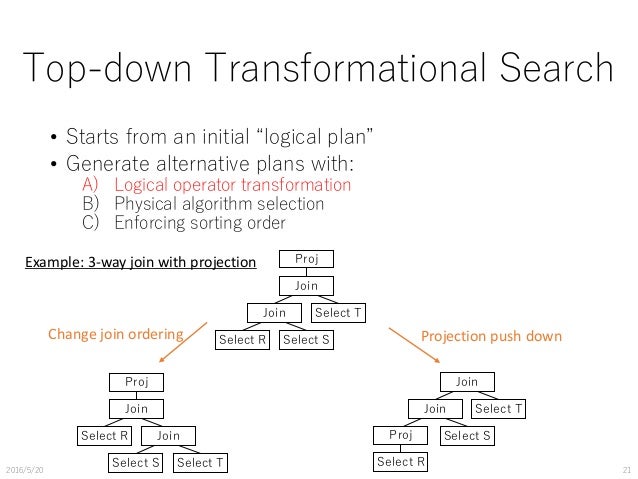

21. Top-down Transformational Search • Starts from an initial “logical plan” • Generate alternative plans with: A) Logical operator transformation B) Physical algorithm selection C) Enforcing sorting order 2016/5/20 21 Join Select T Join Select R Select S Proj Join Select T JoinSelect R Select S Proj Change join ordering Join Select T Join Select R Select SProj Projection push down Example: 3-way join with projection

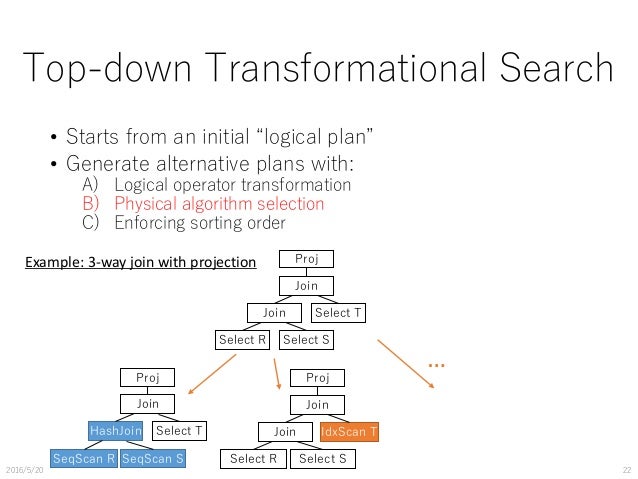

22. Top-down Transformational Search • Starts from an initial “logical plan” • Generate alternative plans with: A) Logical operator transformation B) Physical algorithm selection C) Enforcing sorting order 2016/5/20 22 Join Select T Join Select R Select S ProjExample: 3-way join with projection HashJoin Select T Join SeqScan R SeqScan S Proj Join IdxScan T Join Select R Select S Proj …

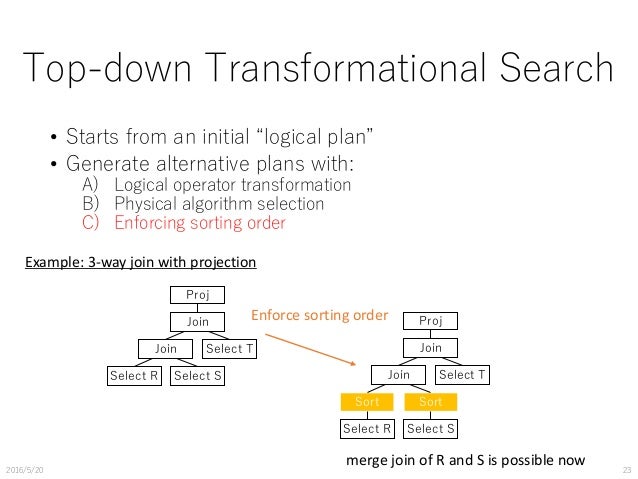

23. Top-down Transformational Search • Starts from an initial “logical plan” • Generate alternative plans with: A) Logical operator transformation B) Physical algorithm selection C) Enforcing sorting order 2016/5/20 23 Join Select T Join Select R Select S Proj Example: 3-way join with projection Join Select T Join Sort Sort Proj Select R Select S Enforce sorting order merge join of R and S is possible now

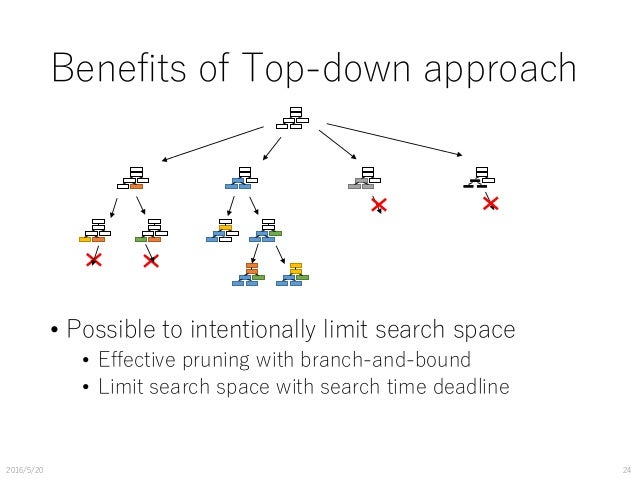

24. Benefits of Top-down approach • Possible to intentionally limit search space • Effective pruning with branch-and-bound • Limit search space with search time deadline 2016/5/20 24

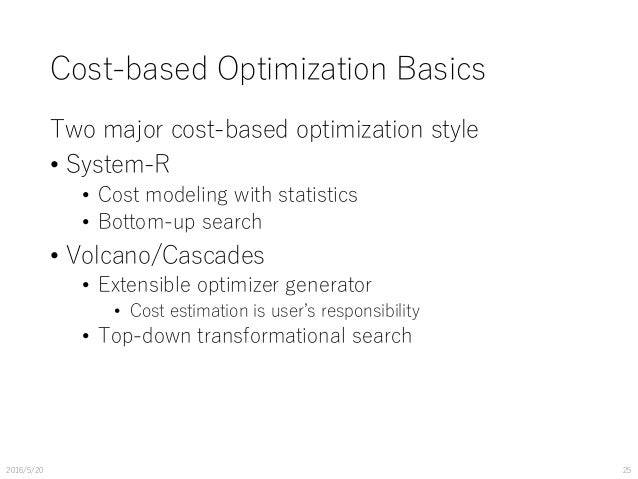

25. Cost-based Optimization Basics Two major cost-based optimization style • System-R • Cost modeling with statistics • Bottom-up search • Volcano/Cascades • Extensible optimizer generator • Cost estimation is user’s responsibility • Top-down transformational search 2016/5/20 25

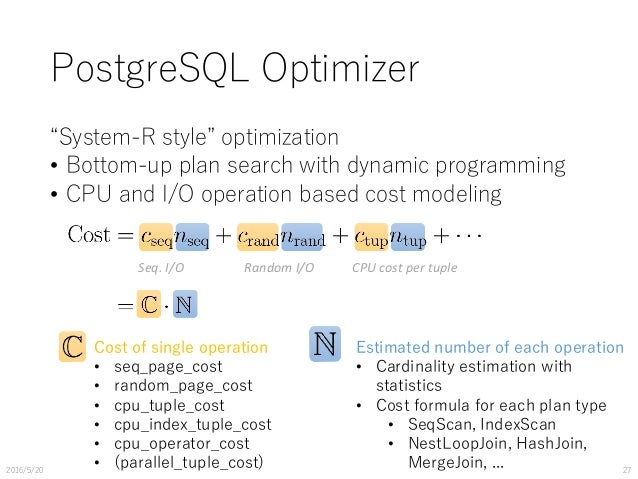

27. PostgreSQL Optimizer “System-R style” optimization • Bottom-up plan search with dynamic programming • CPU and I/O operation based cost modeling 2016/5/20 27 Seq. I/O Random I/O CPU cost per tuple Cost of single operation • seq_page_cost • random_page_cost • cpu_tuple_cost • cpu_index_tuple_cost • cpu_operator_cost • (parallel_tuple_cost) Estimated number of each operation • Cardinality estimation with statistics • Cost formula for each plan type • SeqScan, IndexScan • NestLoopJoin, HashJoin, MergeJoin, ...

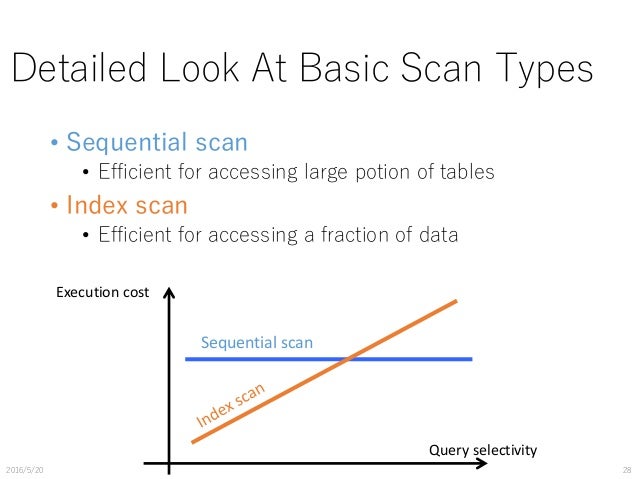

28. Detailed Look At Basic Scan Types • Sequential scan • Efficient for accessing large potion of tables • Index scan • Efficient for accessing a fraction of data 2016/5/20 28 Execution cost Query selectivity Sequential scan

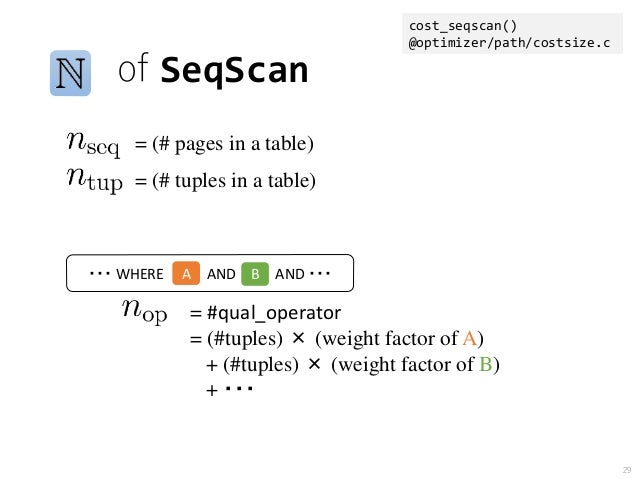

29. of SeqScan 29 = (# pages in a table) = (# tuples in a table) = #qual_operator = (#tuples) × (weight factor of A) + (#tuples) × (weight factor of B) + ・・・・・・ WHERE AND AND ・・・A B cost_seqscan() @optimizer/path/costsize.c

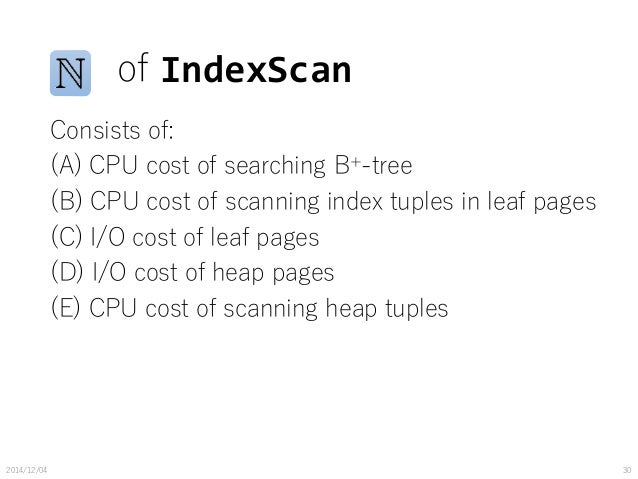

30. of IndexScan Consists of: (A) CPU cost of searching B+-tree (B) CPU cost of scanning index tuples in leaf pages (C) I/O cost of leaf pages (D) I/O cost of heap pages (E) CPU cost of scanning heap tuples 2014/12/04 30

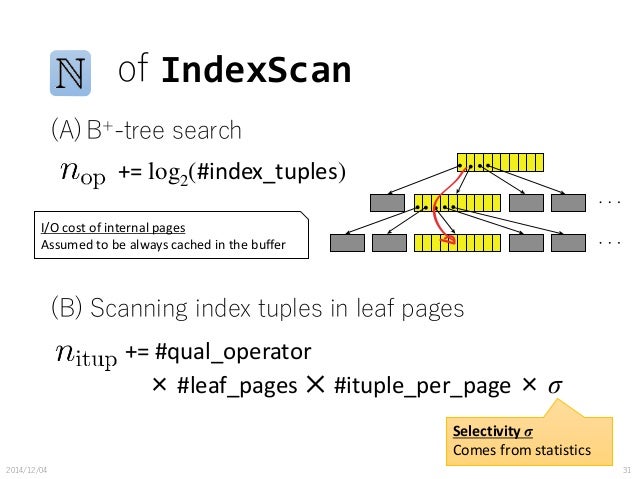

31. of IndexScan (A) B+-tree search (B) Scanning index tuples in leaf pages 2014/12/04 31 += log2(#index_tuples) I/O cost of internal pages Assumed to be always cached in the buffer += #qual_operator × #leaf_pages ✕ #ituple_per_page × σ Selectivity σ Comes from statistics

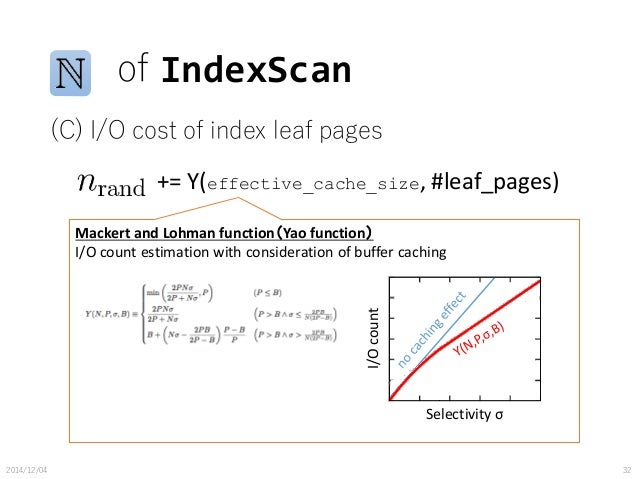

32. Mackert and Lohman function（Yao function） I/O count estimation with consideration of buffer caching of IndexScan (C) I/O cost of index leaf pages 2014/12/04 32 += Y(effective_cache_size, #leaf_pages) Selectivity σ I/Ocount

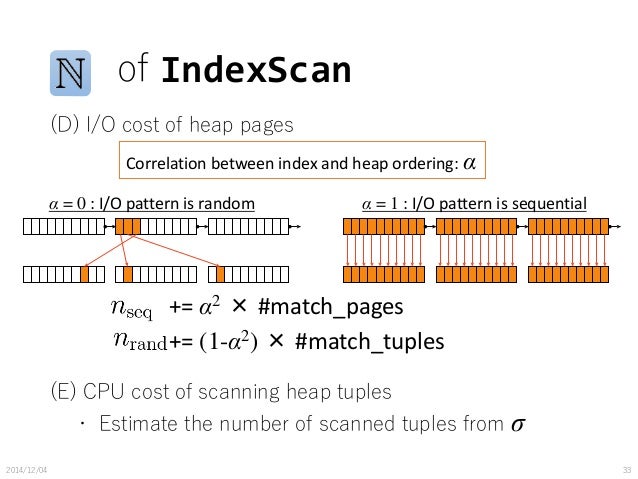

33. of IndexScan (D) I/O cost of heap pages (E) CPU cost of scanning heap tuples ・ Estimate the number of scanned tuples from σ 2014/12/04 33 += α2 × #match_pages Correlation between index and heap ordering: α α = 0 : I/O pattern is random α = 1 : I/O pattern is sequential += (1-α2) × #match_tuples

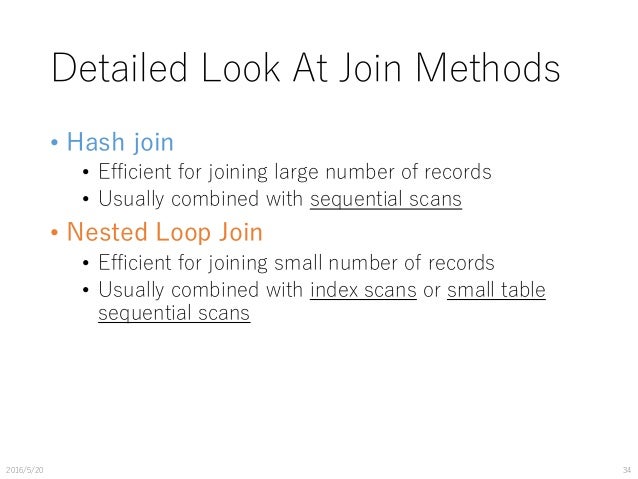

34. Detailed Look At Join Methods • Hash join • Efficient for joining large number of records • Usually combined with sequential scans • Nested Loop Join • Efficient for joining small number of records • Usually combined with index scans or small table sequential scans 2016/5/20 34

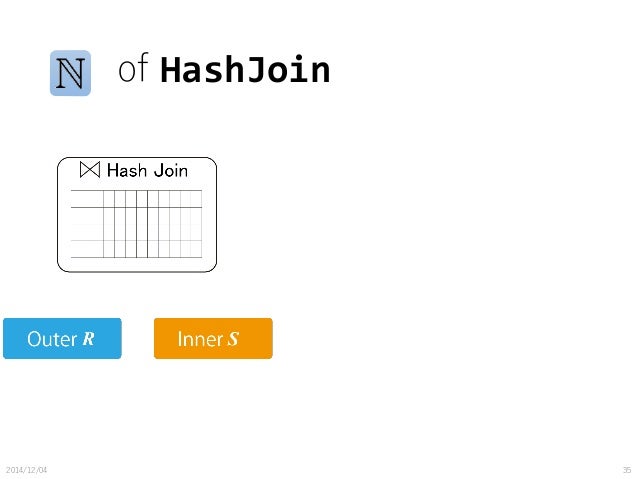

35. of HashJoin 2014/12/04 35

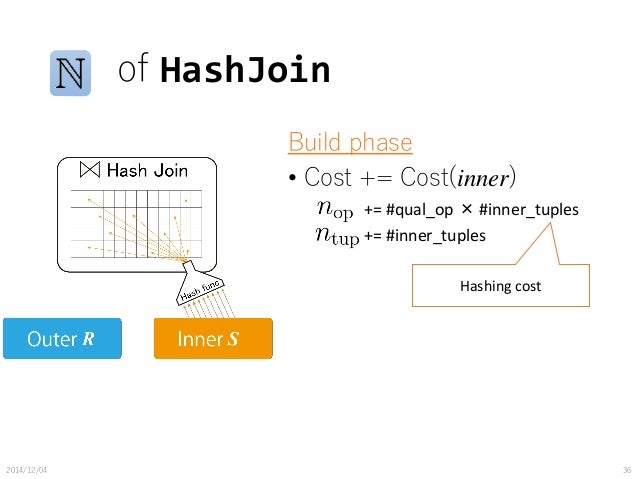

36. of HashJoin Build phase • Cost += Cost(inner) 2014/12/04 36 += #qual_op × #inner_tuples += #inner_tuples Hashing cost

37. of HashJoin 2014/12/04 37 Build phase • Cost += Cost(inner) += #qual_op × #inner_tuples += #inner_tuples

38. of HashJoin 2014/12/04 38 Build phase • Cost += Cost(inner)+ Probe phase • Cost += Cost(outer)+ += #qual_op × #inner_tuples += #inner_tuples += #qual_op × (1 + #bucket_size × 0.5) × #outer_tuples += #match_tuples Hashing & table lookup (bucket search) cost

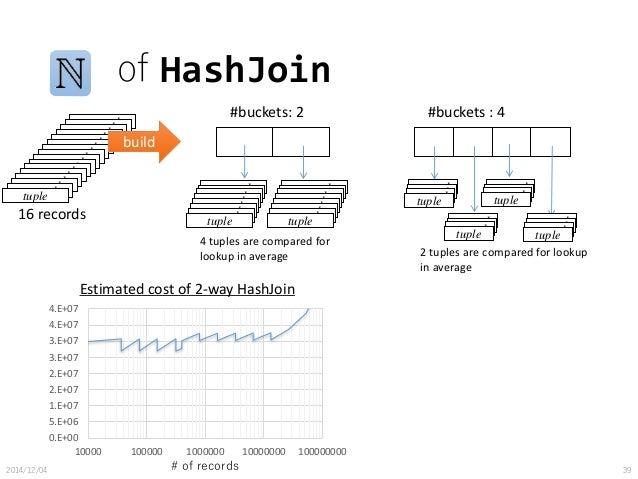

39. recordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordrecordtuple of HashJoin 2014/12/04 39 #buckets: 2 #buckets : 4 build 4 tuples are compared for lookup in average 2 tuples are compared for lookup in average 0.E+00 5.E+06 1.E+07 2.E+07 2.E+07 3.E+07 3.E+07 4.E+07 4.E+07 10000 100000 1000000 10000000 100000000 Estimated cost of 2-way HashJoin # of records 16 records recordrecordrecordrecordrecordrecordrecordtuple recordrecordrecordrecordrecordrecordrecordtuple recordrecordrecordtuple recordrecordrecordtuple recordrecordrecordtuple recordrecordrecordtuple

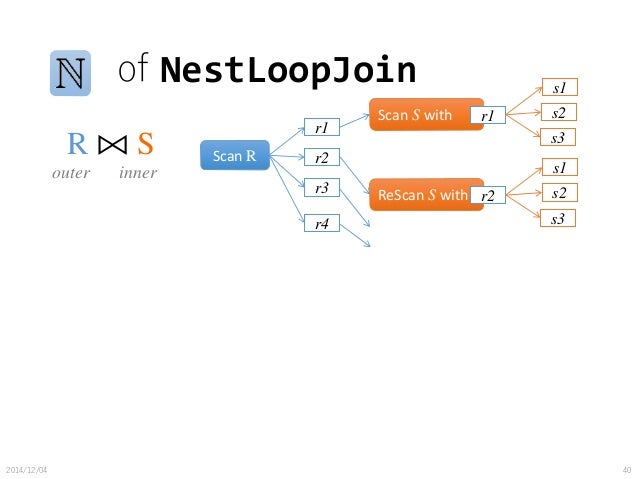

40. of NestLoopJoin 2014/12/04 40 R ⨝ S Scan R r2 r1 r3 r4 Scan S with r1 s1 s2 s3 ReScan S with r2 s1 s2 s3 outer inner

41. of NestLoopJoin • When #outer_tuples = 1 2014/12/04 41 R ⨝ S Scan R r1 Scan S with r1 s1 s2 s3 outer inner Cost = Cost(outer) + Cost(inner) + += #inner_tuples += #qual_operator × #inner_tuples

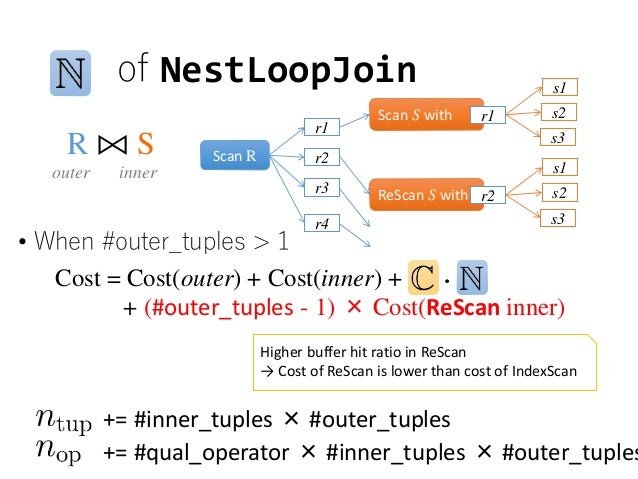

42. of NestLoopJoin • When #outer_tuples > 1 R ⨝ S Scan R r2 r1 r3 r4 Scan S with r1 s1 s2 s3 ReScan S with r2 s1 s2 s3 outer inner Cost = Cost(outer) + Cost(inner) + + (#outer_tuples - 1) × Cost(ReScan inner) Higher buffer hit ratio in ReScan → Cost of ReScan is lower than cost of IndexScan += #inner_tuples × #outer_tuples += #qual_operator × #inner_tuples × #outer_tuples

43. See How It Works • TPC-H Benchmark • Specification and tools for benchmarking data warehouse workload • Open source implementation: DBT-3, pg_tpch • Schema, data generation rules and queries • Experiments with 100GB • Scale Factor = 100 2016/5/20 43

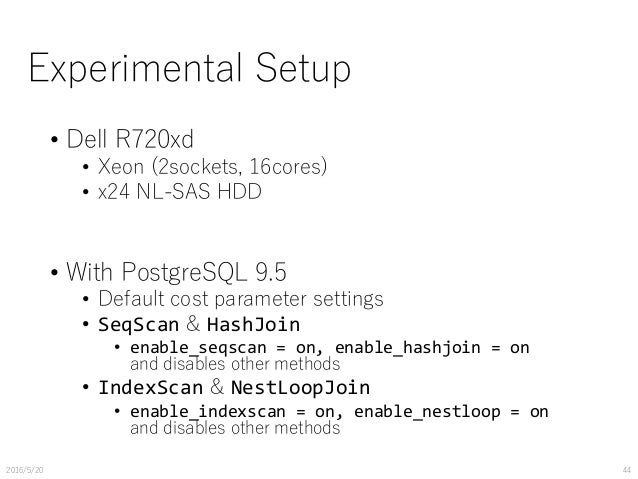

44. Experimental Setup • Dell R720xd • Xeon (2sockets, 16cores) • x24 NL-SAS HDD • With PostgreSQL 9.5 • Default cost parameter settings • SeqScan & HashJoin • enable_seqscan = on, enable_hashjoin = on and disables other methods • IndexScan & NestLoopJoin • enable_indexscan = on, enable_nestloop = on and disables other methods 2016/5/20 44

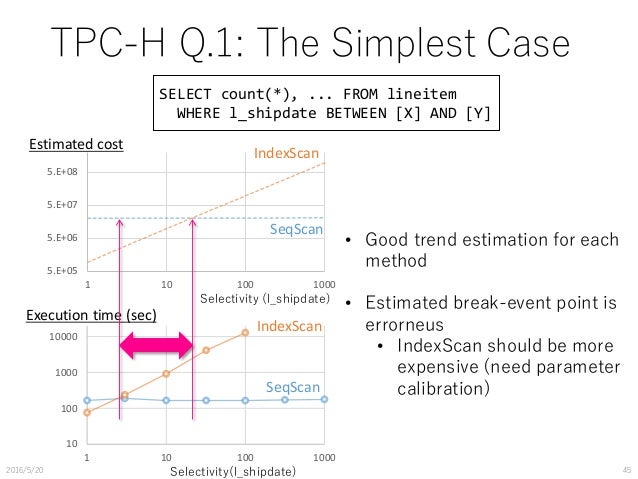

45. TPC-H Q.1: The Simplest Case 2016/5/20 45 5.E+05 5.E+06 5.E+07 5.E+08 1 10 100 1000 Estimated cost Selectivity (l_shipdate) IndexScan SeqScan 10 100 1000 10000 1 10 100 1000 Execution time (sec) Selectivity(l_shipdate) IndexScan SeqScan • Good trend estimation for each method • Estimated break-event point is errorneus • IndexScan should be more expensive (need parameter calibration) SELECT count(*), ... FROM lineitem WHERE l_shipdate BETWEEN [X] AND [Y]

46. TPC-H Q.3 2016/5/20 46 Estimated cost SeqScan customer SeqScan orders SeqScan lineitem Hash HashJoin HashJoin IndexScan orders IndexScan lineitem NestLoop NestLoop IndexScan customer Execution time (sec) Selectivity 1.E+00 1.E+02 1.E+04 1.E+06 1.E+08 1 10 100 1000 10000 100000 1000000 1 10 100 1000 10000 1 10 100 1000 10000 100000 1000000 Selectivity NestLoop+IndexScan HashJoin+SeqScan NestLoop+IndexScan HashJoin+SeqScan Similar result as in Q.1 • Good trend estimation for each • Erroneous break-event point without parameter calibration SELECT count(*), ... FROM customer, orders, lineitem WHERE c_custkey = o_custkey AND o_orderkey = l_orderkey AND c_custkey < [X] AND c_mktsegment = ‘MACHINERY’;

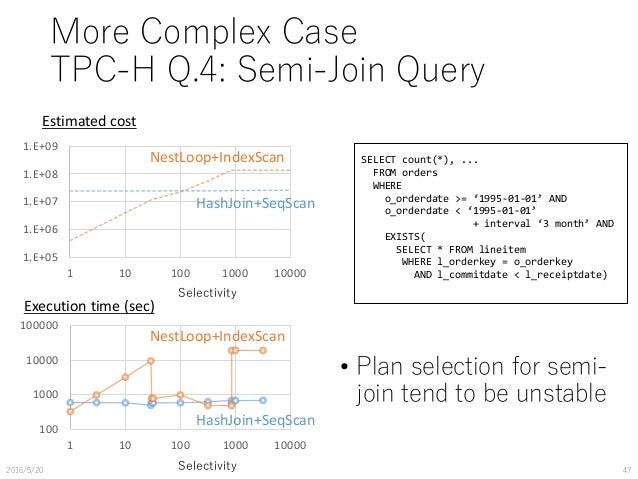

47. 100 1000 10000 100000 1 10 100 1000 10000 More Complex Case TPC-H Q.4: Semi-Join Query • Plan selection for semi- join tend to be unstable 2016/5/20 47Selectivity 1.E+05 1.E+06 1.E+07 1.E+08 1.E+09 1 10 100 1000 10000 HashJoin+SeqScan NestLoop+IndexScan Estimated cost Execution time (sec) HashJoin+SeqScan NestLoop+IndexScan SELECT count(*), ... FROM orders WHERE o_orderdate >= ‘1995-01-01’ AND o_orderdate < ‘1995-01-01’ + interval ‘3 month’ AND EXISTS( SELECT * FROM lineitem WHERE l_orderkey = o_orderkey AND l_commitdate < l_receiptdate) Selectivity

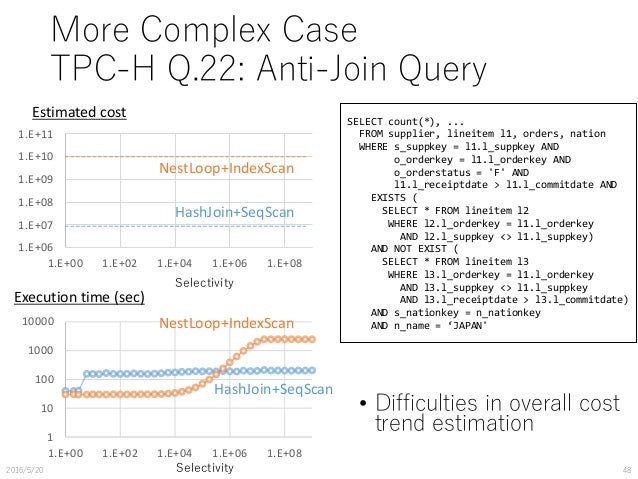

48. 1.E+06 1.E+07 1.E+08 1.E+09 1.E+10 1.E+11 1.E+00 1.E+02 1.E+04 1.E+06 1.E+08 More Complex Case TPC-H Q.22: Anti-Join Query • Difficulties in overall cost trend estimation 2016/5/20 48 Selectivity 1 10 100 1000 10000 1.E+00 1.E+02 1.E+04 1.E+06 1.E+08 Estimated cost Execution time (sec) Selectivity HashJoin+SeqScan NestLoop+IndexScan HashJoin+SeqScan NestLoop+IndexScan SELECT count(*), ... FROM supplier, lineitem l1, orders, nation WHERE s_suppkey = l1.l_suppkey AND o_orderkey = l1.l_orderkey AND o_orderstatus = 'F' AND l1.l_receiptdate > l1.l_commitdate AND EXISTS ( SELECT * FROM lineitem l2 WHERE l2.l_orderkey = l1.l_orderkey AND l2.l_suppkey <> l1.l_suppkey) AND NOT EXIST ( SELECT * FROM lineitem l3 WHERE l3.l_orderkey = l1.l_orderkey AND l3.l_suppkey <> l1.l_suppkey AND l3.l_receiptdate > l3.l_commitdate) AND s_nationkey = n_nationkey AND n_name = ‘JAPAN'

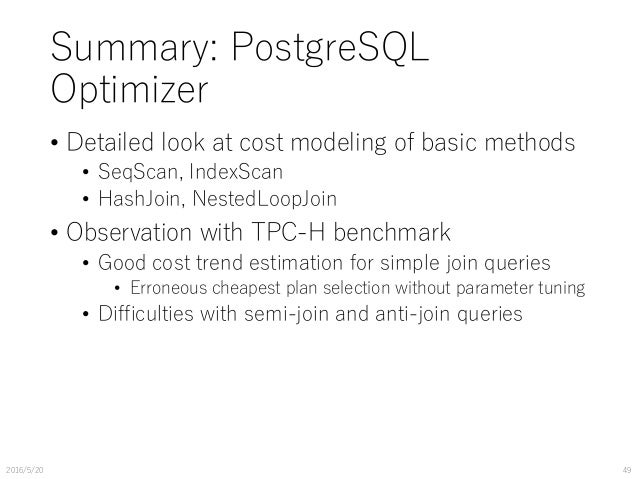

49. Summary: PostgreSQL Optimizer • Detailed look at cost modeling of basic methods • SeqScan, IndexScan • HashJoin, NestedLoopJoin • Observation with TPC-H benchmark • Good cost trend estimation for simple join queries • Erroneous cheapest plan selection without parameter tuning • Difficulties with semi-join and anti-join queries 2016/5/20 49

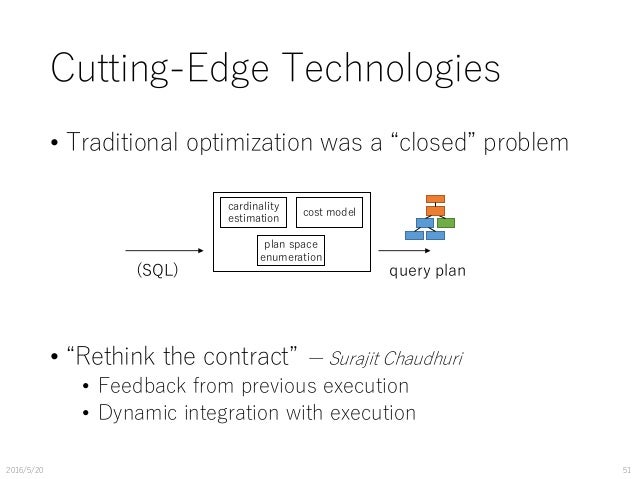

51. Cutting-Edge Technologies • Traditional optimization was a “closed” problem • “Rethink the contract” ー Surajit Chaudhuri • Feedback from previous execution • Dynamic integration with execution 2016/5/20 51 cardinality estimation cost model plan space enumeration (SQL) query plan

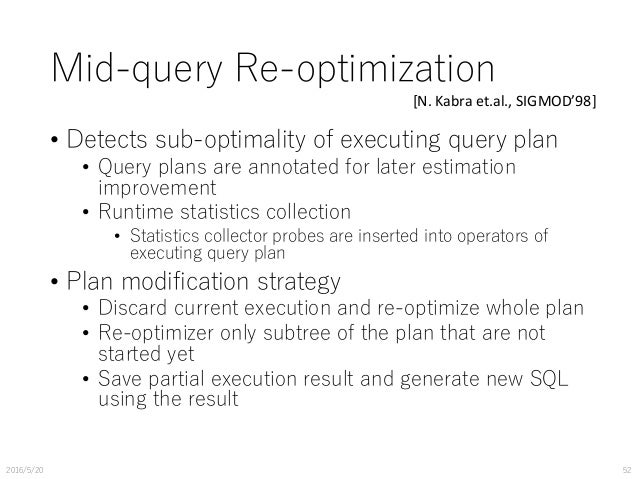

52. Mid-query Re-optimization • Detects sub-optimality of executing query plan • Query plans are annotated for later estimation improvement • Runtime statistics collection • Statistics collector probes are inserted into operators of executing query plan • Plan modification strategy • Discard current execution and re-optimize whole plan • Re-optimizer only subtree of the plan that are not started yet • Save partial execution result and generate new SQL using the result 2016/5/20 52 [N. Kabra et.al., SIGMOD’98]

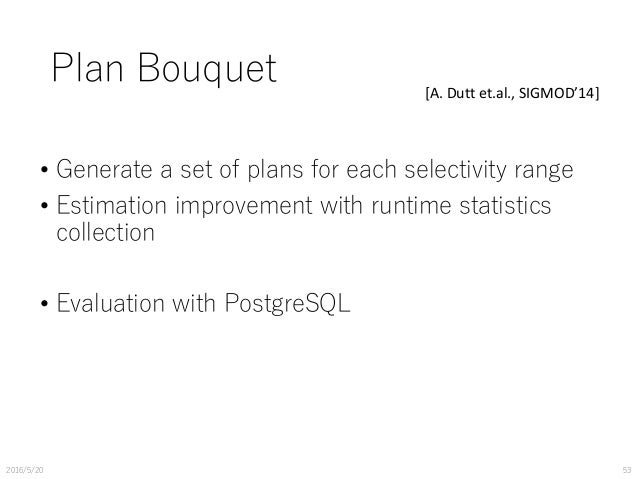

53. Plan Bouquet • Generate a set of plans for each selectivity range • Estimation improvement with runtime statistics collection • Evaluation with PostgreSQL 2016/5/20 53 [A. Dutt et.al., SIGMOD’14]

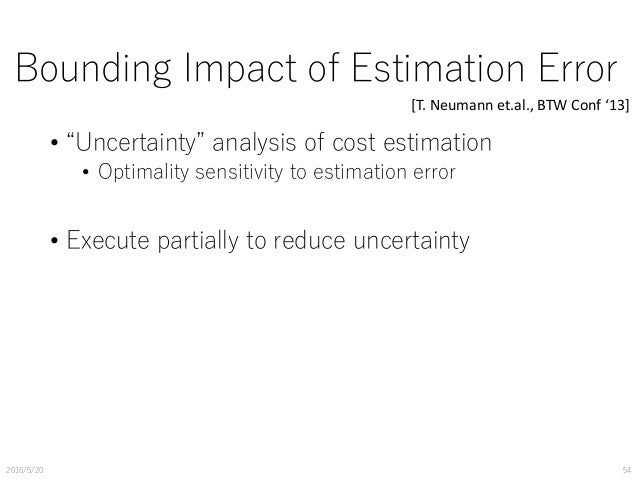

54. Bounding Impact of Estimation Error • “Uncertainty” analysis of cost estimation • Optimality sensitivity to estimation error • Execute partially to reduce uncertainty 2016/5/20 54 [T. Neumann et.al., BTW Conf ‘13]

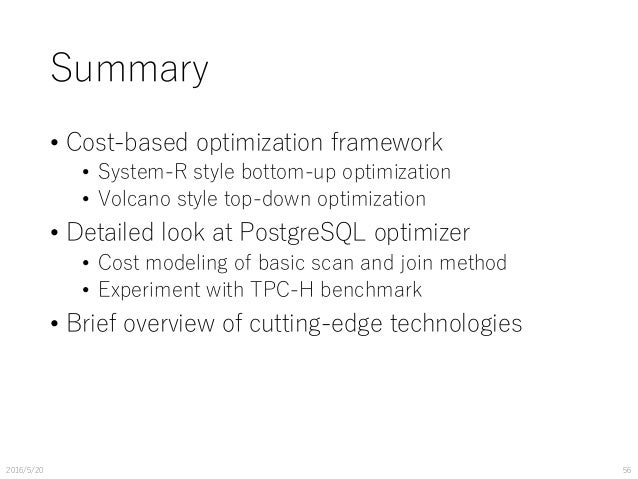

56. Summary • Cost-based optimization framework • System-R style bottom-up optimization • Volcano style top-down optimization • Detailed look at PostgreSQL optimizer • Cost modeling of basic scan and join method • Experiment with TPC-H benchmark • Brief overview of cutting-edge technologies 2016/5/20 56
