Linux  4.x  Performance   Using  BPF  Superpowers   Brendan Gregg Senior Performance Architect Feb   2016

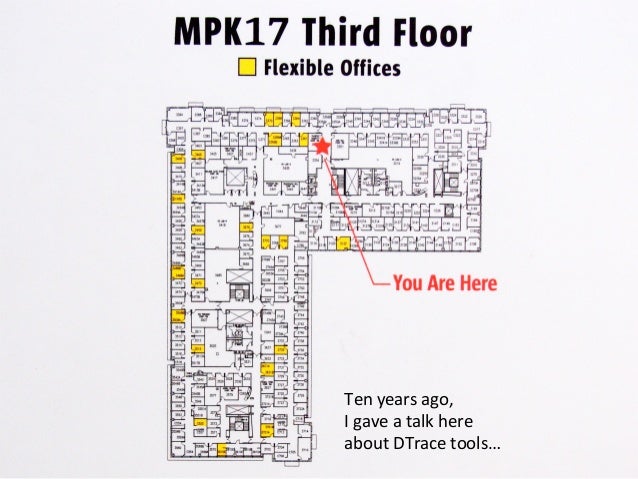

Ten  years  ago,   I  gave  a  talk  here     about  DTrace  tools…

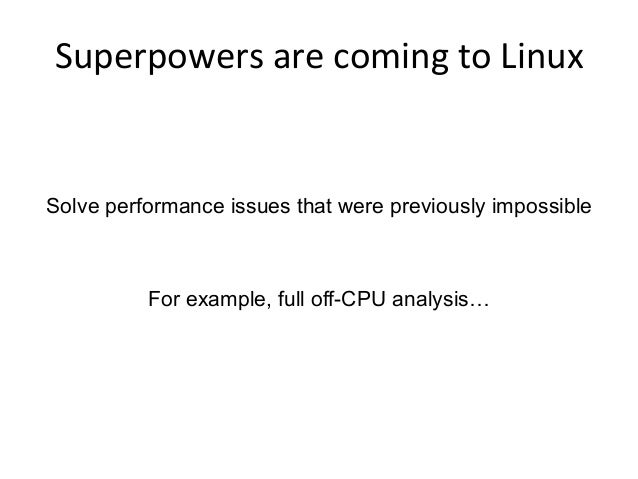

Superpowers  are  coming  to  Linux     Solve performance issues that were previously impossible For example, ...
Ideal  Thread  States   A starting point for deeper analysis

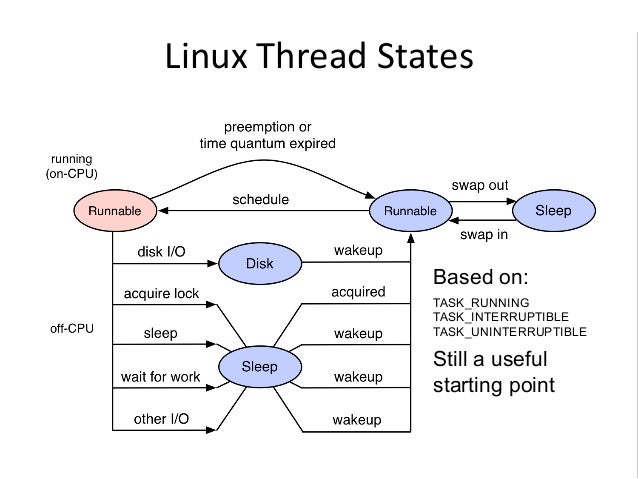

Linux  Thread  States   Based on: TASK_RUNNING TASK_INTERRUPTIBLE TASK_UNINTERRUPTIBLE Still a useful starting point

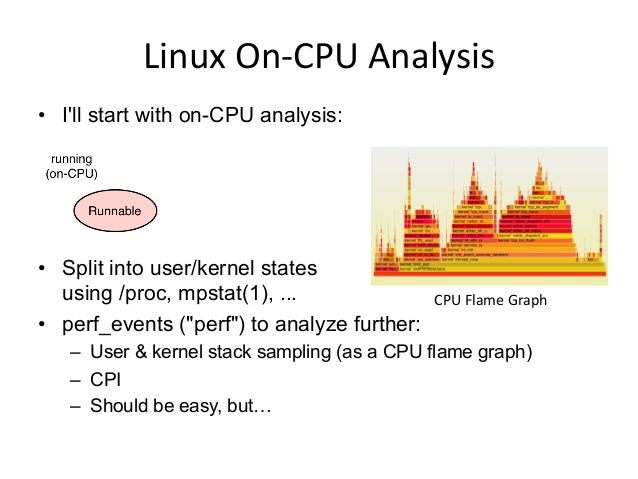

Linux  On-­‐CPU  Analysis   CPU  Flame  Graph   •  I'll start with on-CPU analysis: •  Split into user/kernel ...

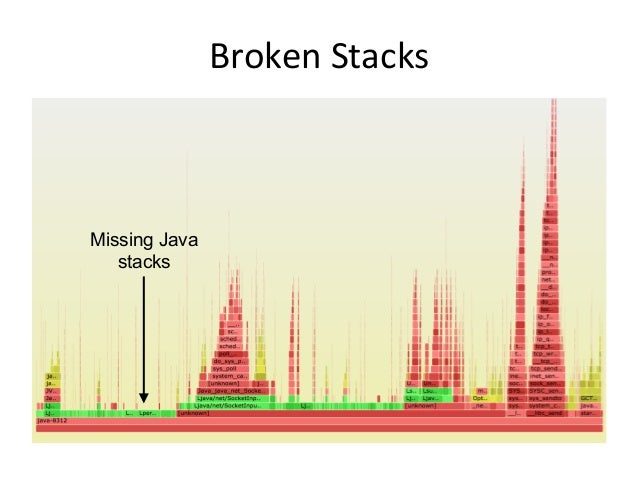

Broken  Stacks   Missing Java stacks

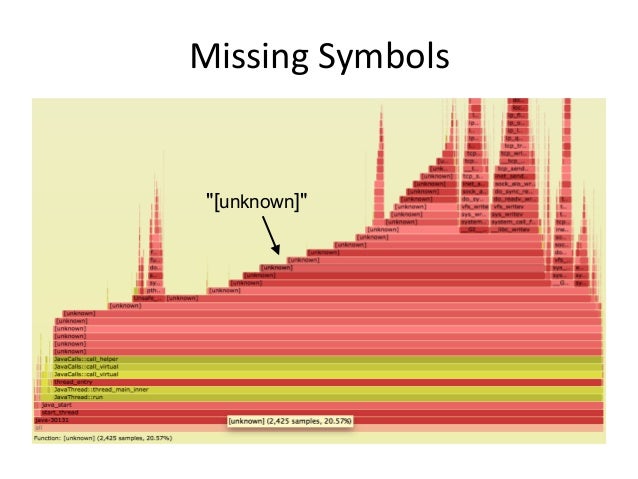

Missing  Symbols   "[unknown]"

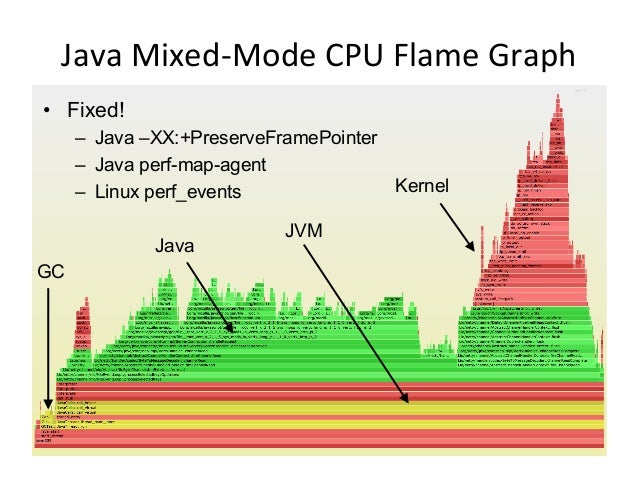

Java  Mixed-­‐Mode  CPU  Flame  Graph   Java JVM Kernel GC •  Fixed! –  Java –XX:+PreserveFramePointer –  Java p...

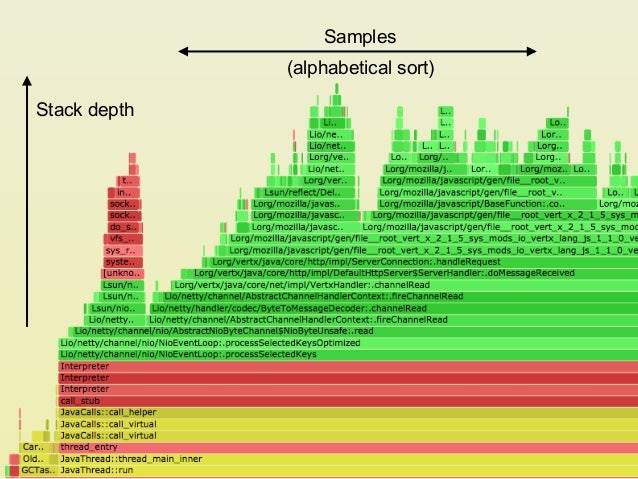

Stack depth Samples (alphabetical sort)

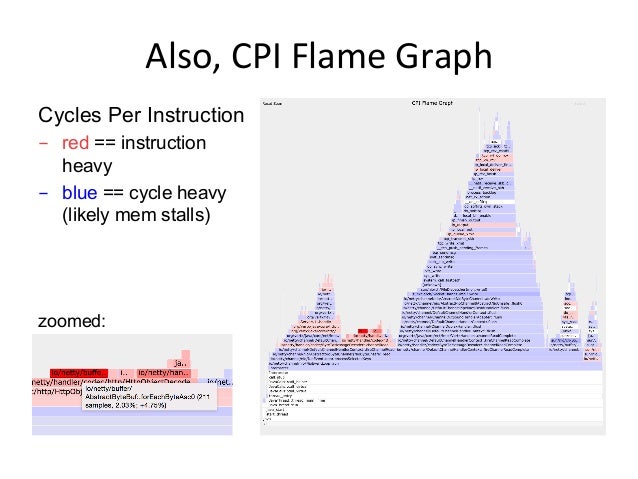

Also,  CPI  Flame  Graph   Cycles Per Instruction -  red == instruction heavy -  blue == cycle heavy (likely mem s...

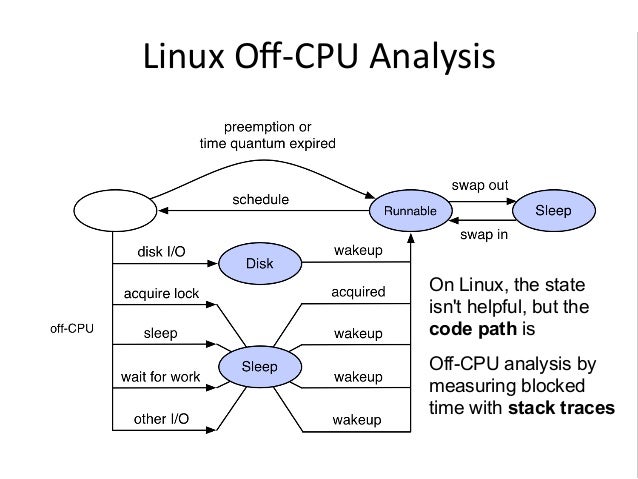

Linux  Off-­‐CPU  Analysis   On Linux, the state isn't helpful, but the code path is Off-CPU analysis by measuring bl...

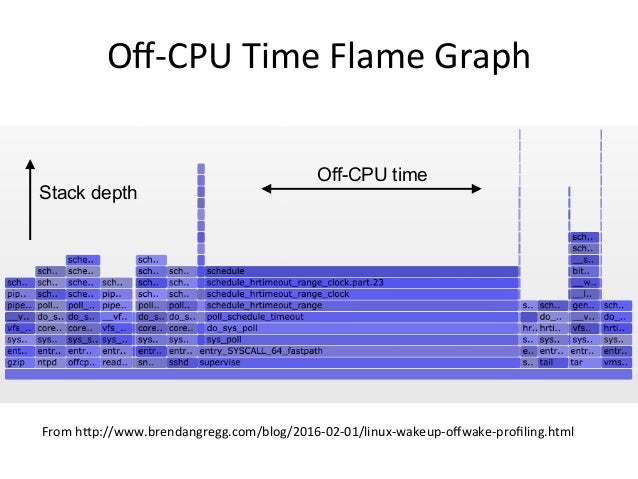

Off-­‐CPU  Time  Flame  Graph   From  hRp://www.brendangregg.com/blog/2016-­‐02-­‐01/linux-­‐wakeup-­‐offwake-­‐pr...

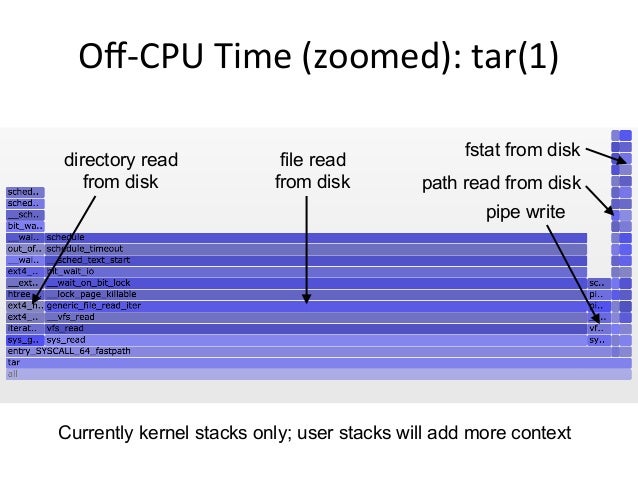

Off-­‐CPU  Time  (zoomed):  tar(1)   file read from disk directory read from disk Currently kernel stacks only; use...

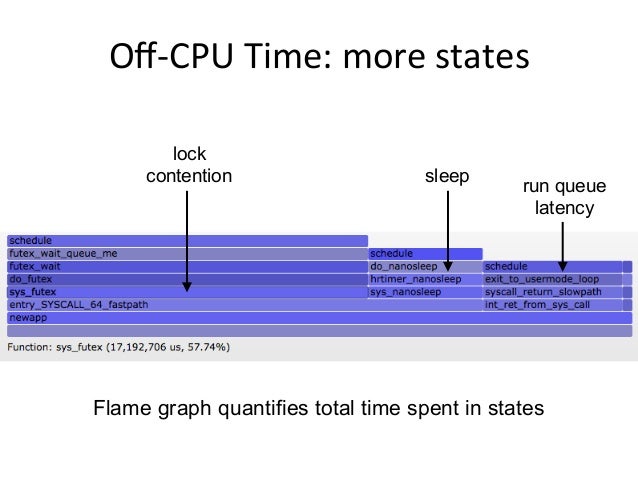

Off-­‐CPU  Time:  more  states   lock contention sleep run queue latency Flame graph quantifies total time spent in...

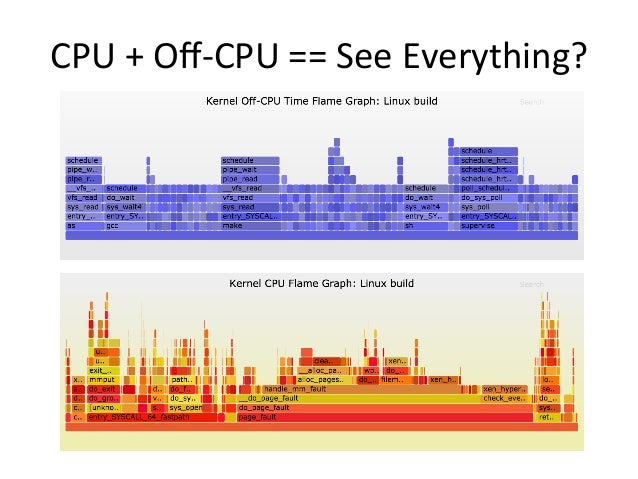

CPU  +  Off-­‐CPU  ==  See  Everything?

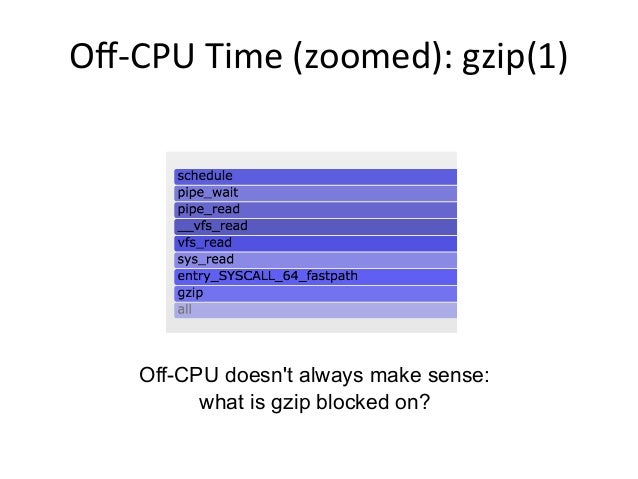

Off-­‐CPU  Time  (zoomed):  gzip(1)   Off-CPU doesn't always make sense: what is gzip blocked on?

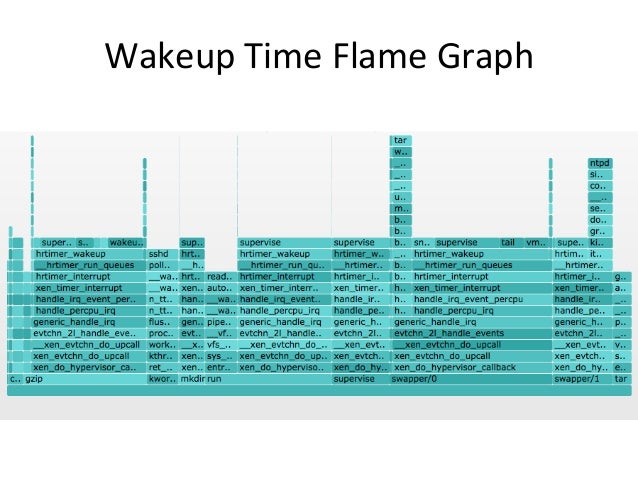

Wakeup  Time  Flame  Graph

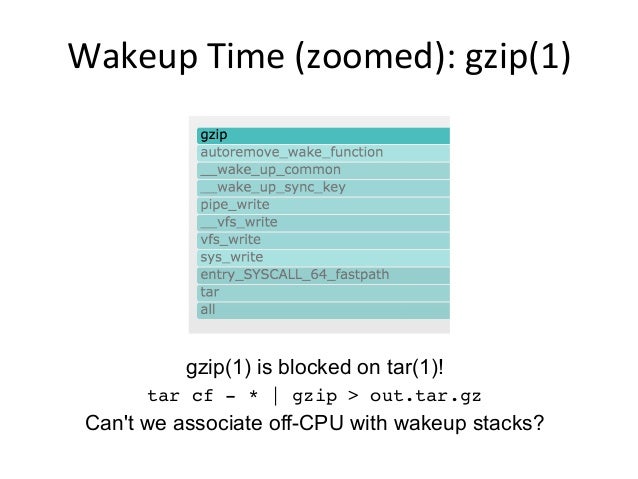

Wakeup  Time  (zoomed):  gzip(1)   gzip(1) is blocked on tar(1)! tar cf - * | gzip > out.tar.gz Can't we associate...

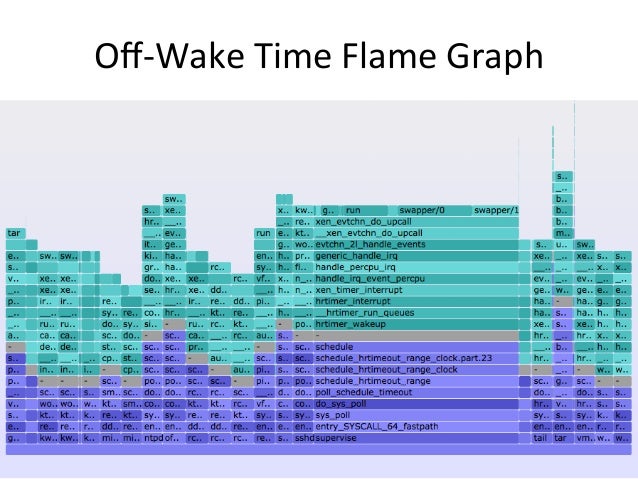

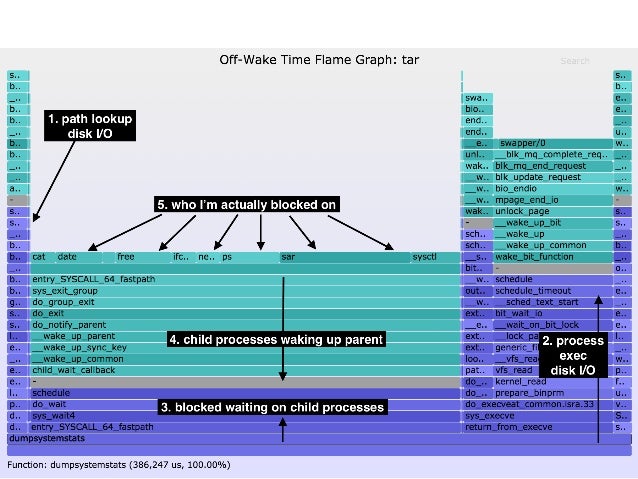

Off-­‐Wake  Time  Flame  Graph

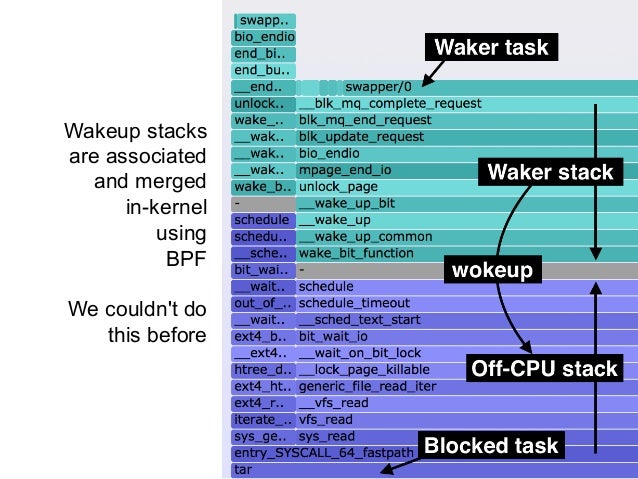

Wakeup stacks are associated and merged in-kernel using BPF We couldn't do this before

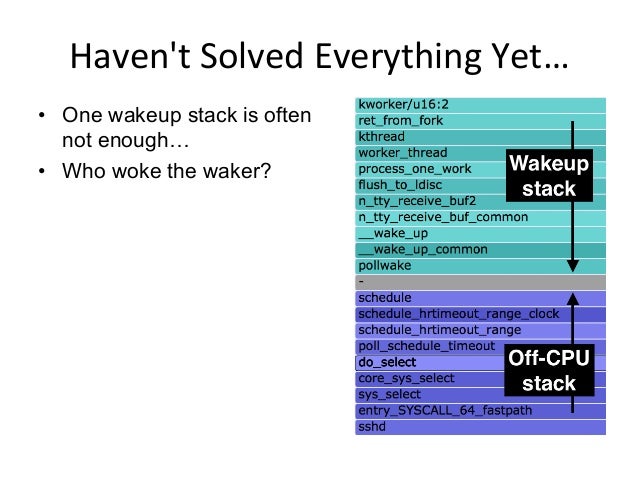

•  One wakeup stack is often not enough… •  Who woke the waker? Haven't  Solved  Everything  Yet…

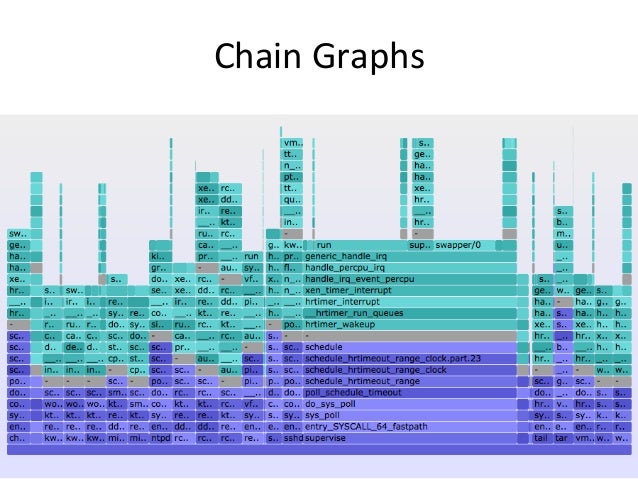

Chain  Graphs

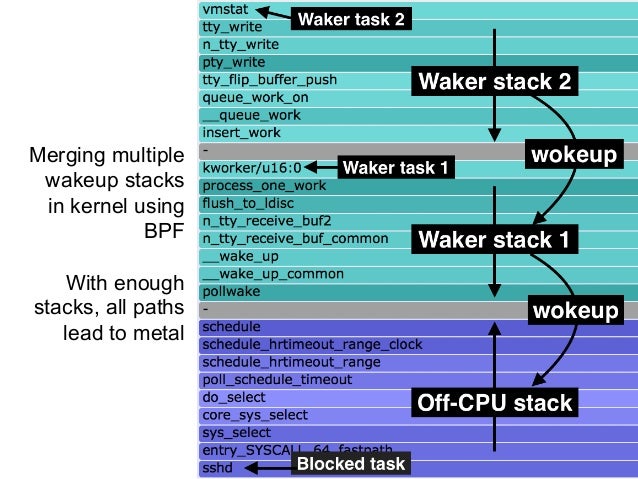

Merging multiple wakeup stacks in kernel using BPF With enough stacks, all paths lead to metal

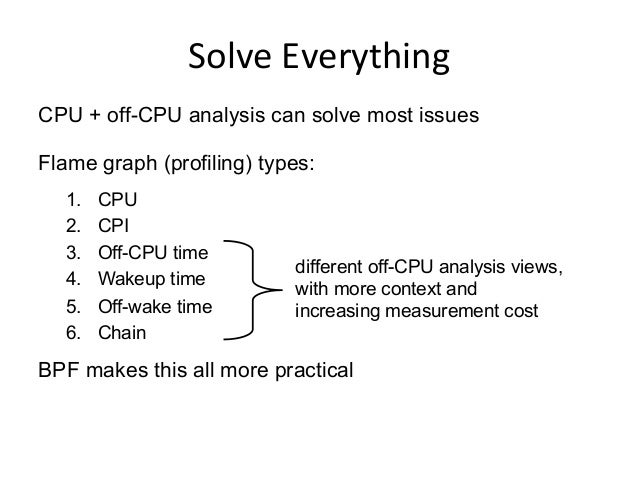

Solve  Everything   CPU + off-CPU analysis can solve most issues Flame graph (profiling) types: 1.  CPU 2.  CPI 3.  Of...

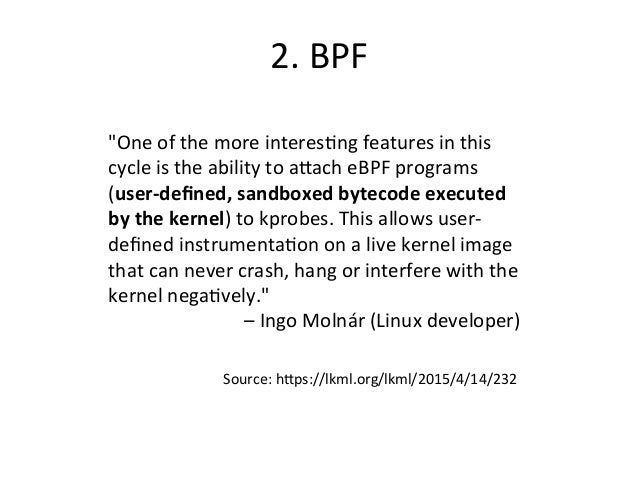

2.  BPF   "One  of  the  more  interesbng  features  in  this   cycle  is  the  ability  to ...
2.  BPF   "crazy  stuff"   –  Alexei  Starovoitov  (eBPF  lead)   Source:  hRp://www.slideshare.net/Ale...

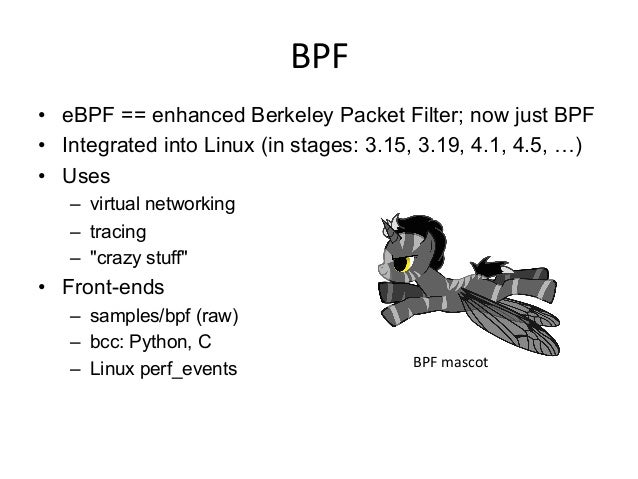

BPF   •  eBPF == enhanced Berkeley Packet Filter; now just BPF •  Integrated into Linux (in stages: 3.15, 3.19, 4.1, 4.5...

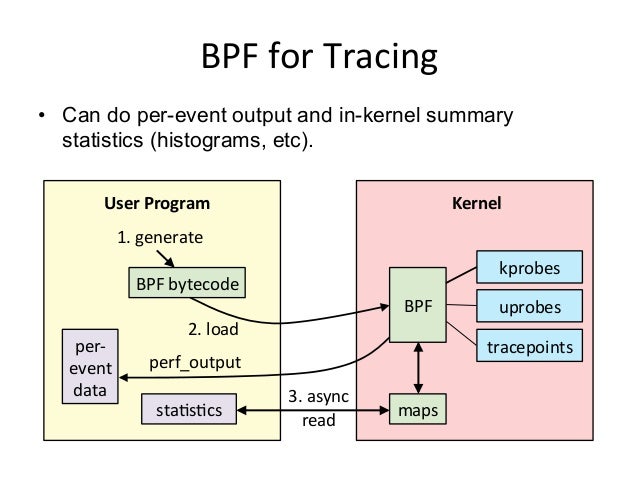

BPF  for  Tracing   •  Can do per-event output and in-kernel summary statistics (histograms, etc). BPF  bytecode ...

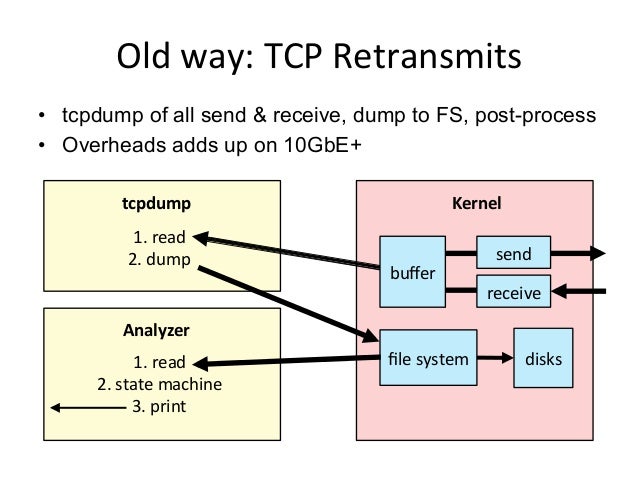

Old  way:  TCP  Retransmits   •  tcpdump of all send & receive, dump to FS, post-process •  Overheads adds up on 1...

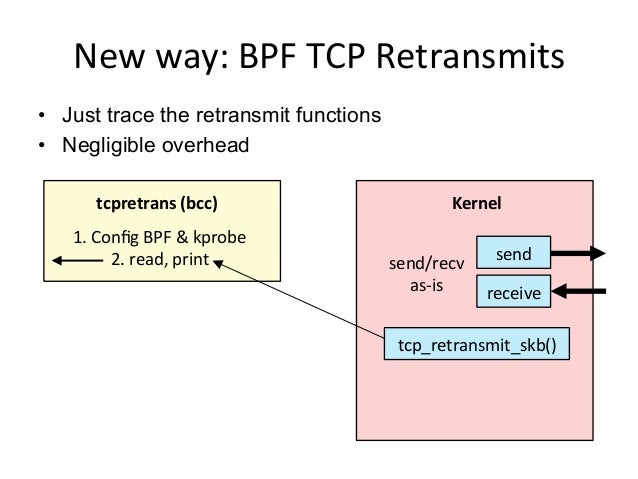

New  way:  BPF  TCP  Retransmits   •  Just trace the retransmit functions •  Negligible overhead send   receiv...

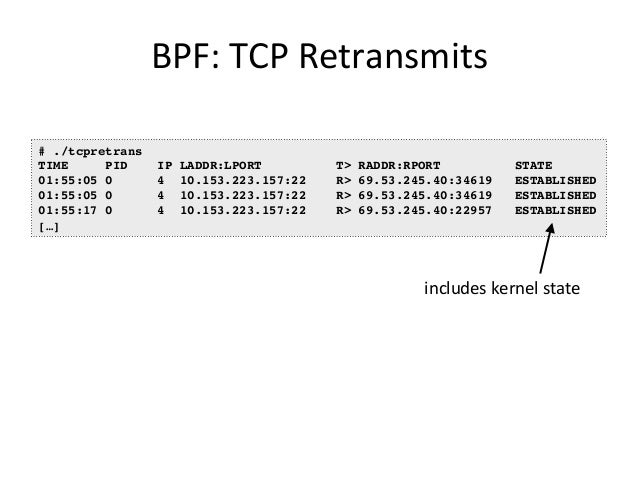

BPF:  TCP  Retransmits   # ./tcpretrans TIME PID IP LADDR:LPORT T> RADDR:RPORT STATE 01:55:05 0 4 10.153.223.157:22 ...

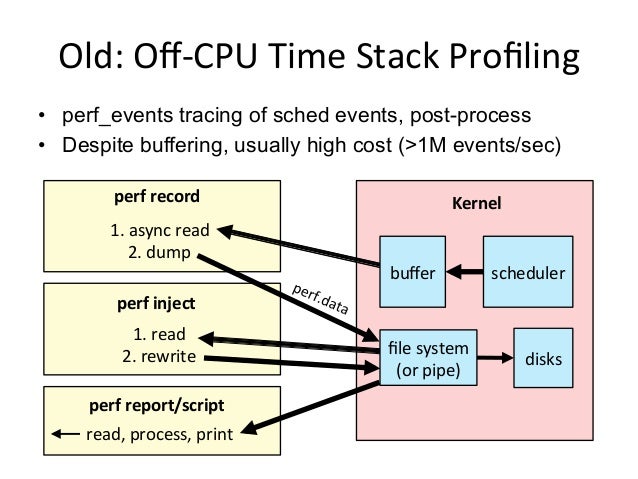

Old:  Off-­‐CPU  Time  Stack  Profiling   •  perf_events tracing of sched events, post-process •  Despite bufferin...

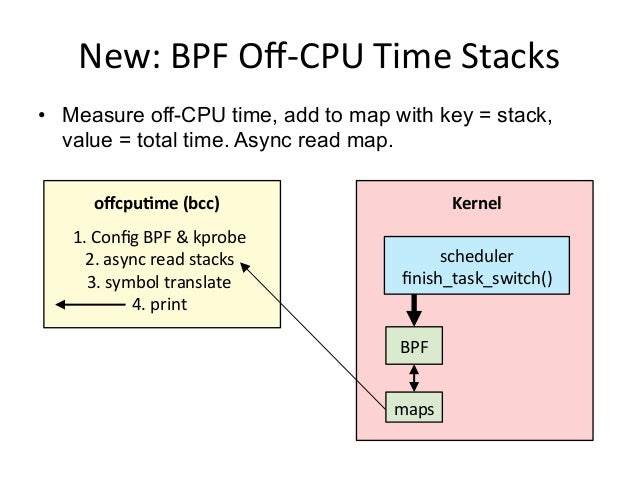

New:  BPF  Off-­‐CPU  Time  Stacks   •  Measure off-CPU time, add to map with key = stack, value = total time. As...

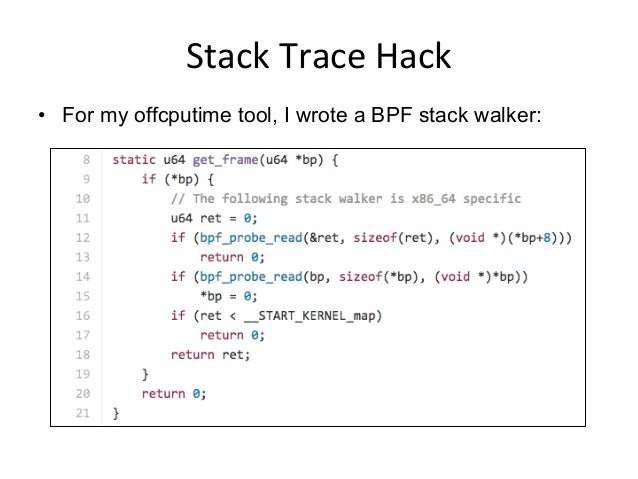

Stack  Trace  Hack   •  For my offcputime tool, I wrote a BPF stack walker:

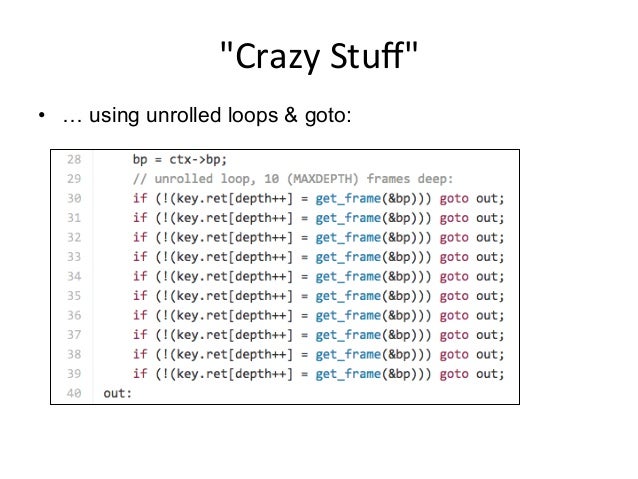

"Crazy  Stuff"   •  … using unrolled loops & goto:

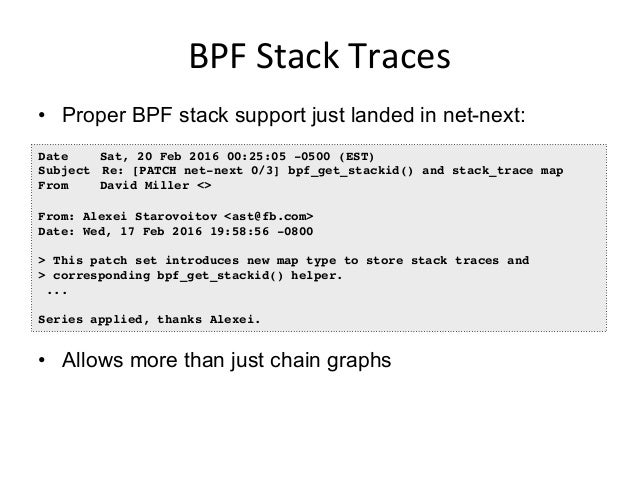

BPF  Stack  Traces   •  Proper BPF stack support just landed in net-next: •  Allows more than just chain graphs Date...

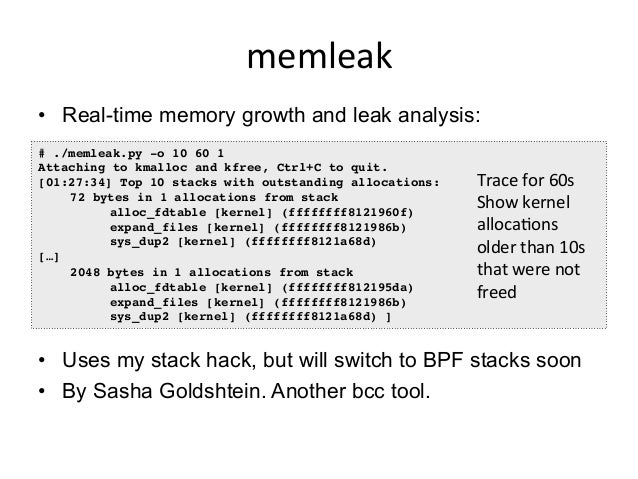

memleak   •  Real-time memory growth and leak analysis: •  Uses my stack hack, but will switch to BPF stacks soon •  By ...

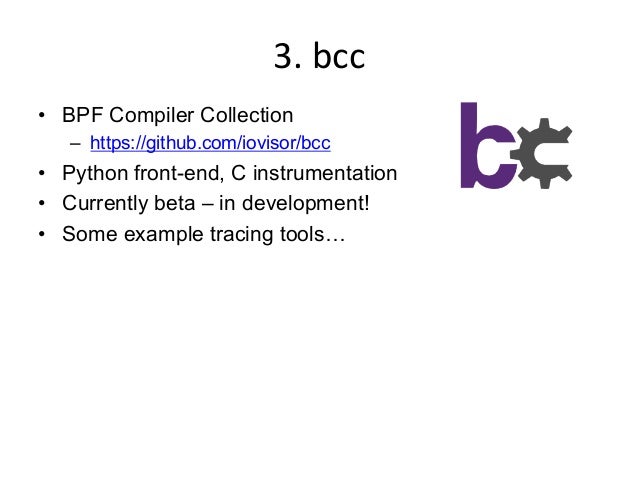

3.  bcc   •  BPF Compiler Collection –  https://github.com/iovisor/bcc •  Python front-end, C instrumentation •  Curre...

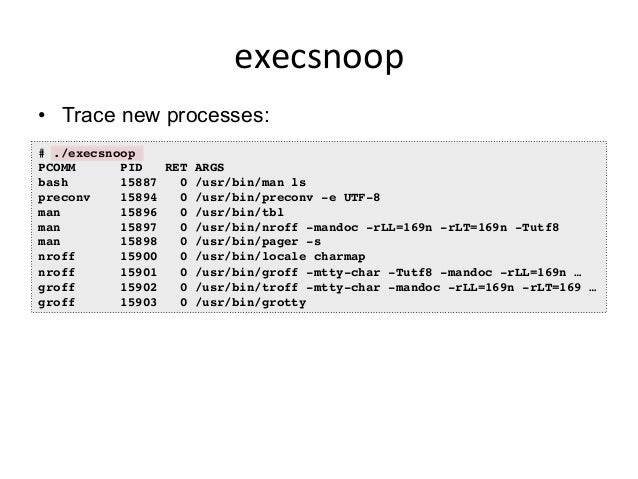

execsnoop   •  Trace new processes: # ./execsnoop PCOMM PID RET ARGS bash 15887 0 /usr/bin/man ls preconv 15894 0 /usr/b...

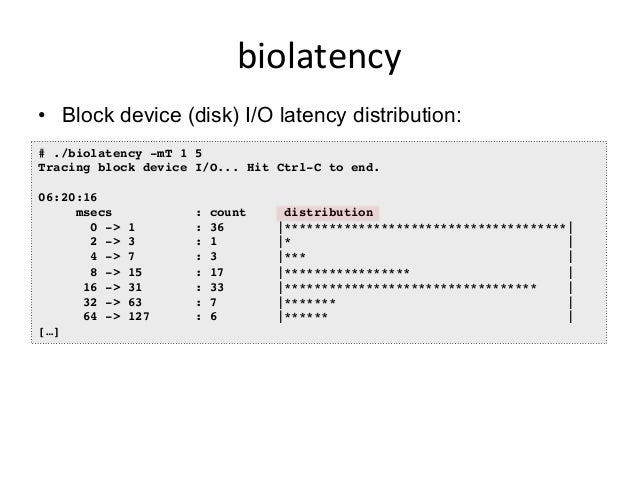

biolatency   •  Block device (disk) I/O latency distribution: # ./biolatency -mT 1 5 Tracing block device I/O... Hit Ctr...

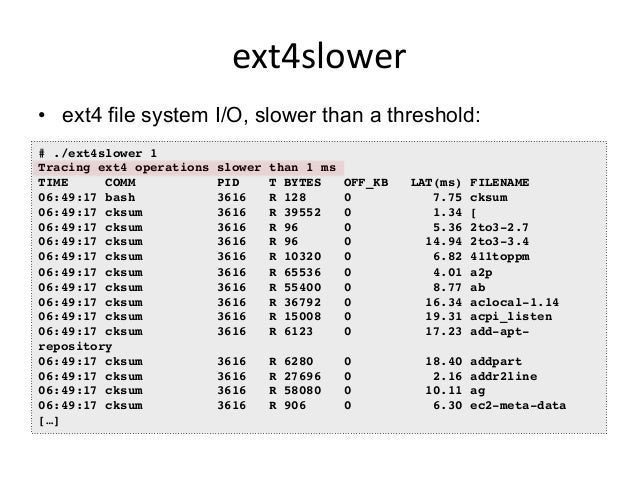

ext4slower   •  ext4 file system I/O, slower than a threshold: # ./ext4slower 1 Tracing ext4 operations slower than 1 ms...

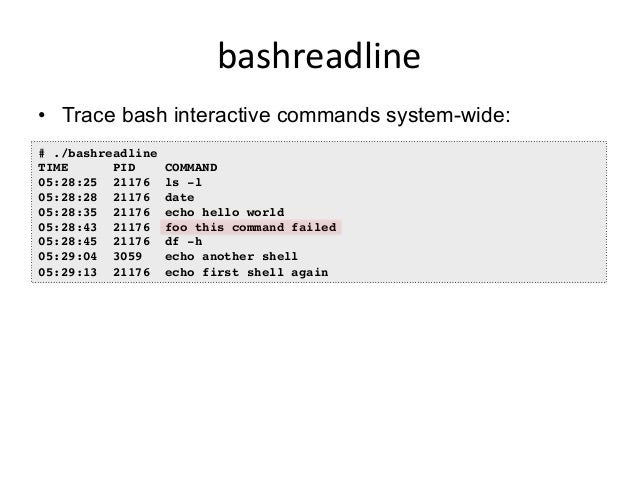

bashreadline   •  Trace bash interactive commands system-wide: # ./bashreadline TIME PID COMMAND 05:28:25 21176 ls -l 05...

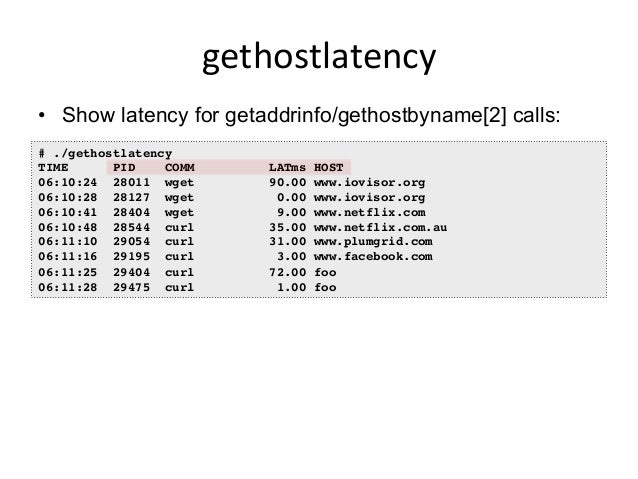

gethostlatency   •  Show latency for getaddrinfo/gethostbyname[2] calls: # ./gethostlatency TIME PID COMM LATms HOST 06:...

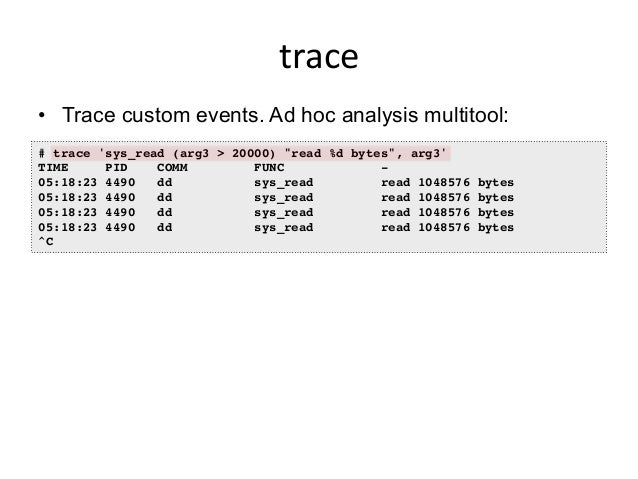

trace   •  Trace custom events. Ad hoc analysis multitool: # trace 'sys_read (arg3 > 20000) "read %d bytes", arg3' TIME ...

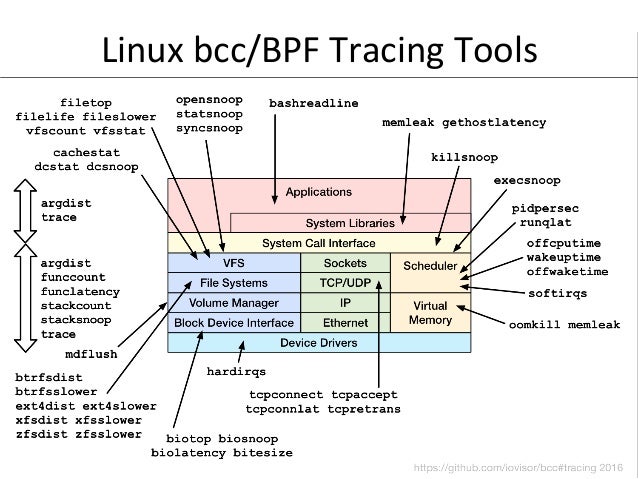

Linux  bcc/BPF  Tracing  Tools

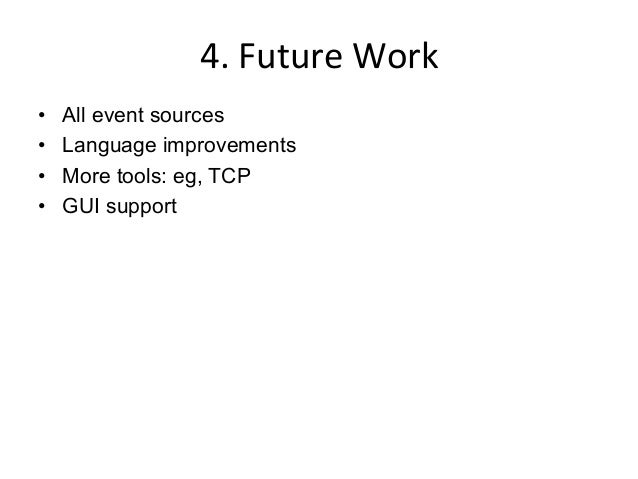

4.  Future  Work   •  All event sources •  Language improvements •  More tools: eg, TCP •  GUI support

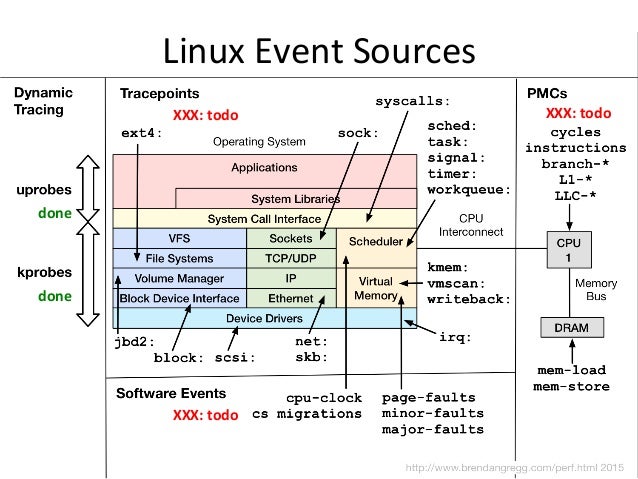

Linux  Event  Sources   done   XXX:  todo   XXX:  todo   XXX:  todo   done

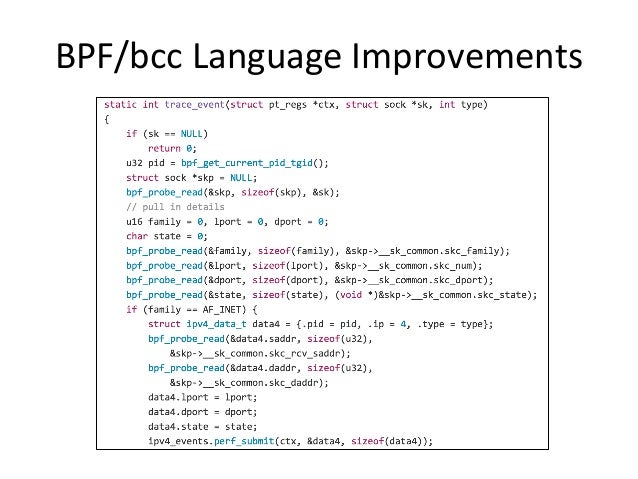

BPF/bcc  Language  Improvements

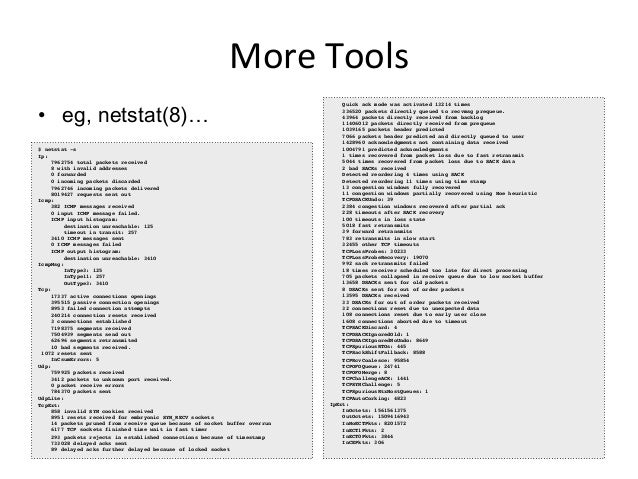

More  Tools   •  eg, netstat(8)… $ netstat -s Ip: 7962754 total packets received 8 with invalid addresses 0 forwarded ...
BeRer  TCP  Tools   •  TCP retransmit by type and time •  Congestion algorithm metrics •  etc.
GUI  Support   •  eg, Netflix Vector: open source instance analyzer:
Summary   •  BPF in Linux 4.x makes many new things possible –  Stack-based thread state analysis (solve all issues!) – ...
Links   •  iovisor bcc: •  https://github.com/iovisor/bcc •  http://www.brendangregg.com/blog/2015-09-22/bcc-linux-4.3-t...
Feb   2016   •  Questions? •  http://slideshare.net/brendangregg •  http://www.brendangregg.com •  bgregg@netflix.com ...
