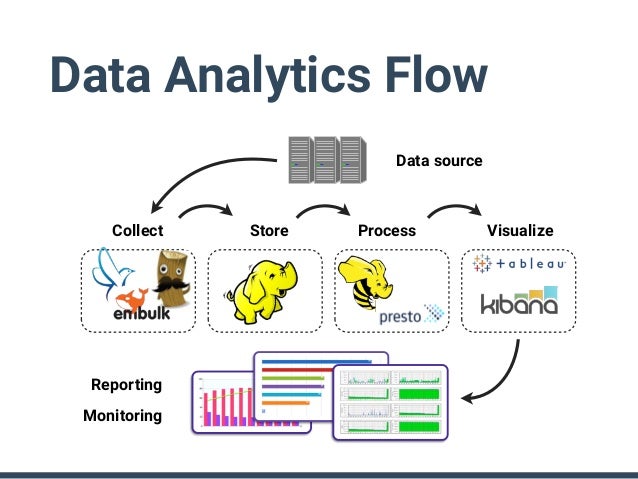

Data Analytics Flow
Collect Store Process Visualize
Data source
Reporting
Monitoring
5.
What I'll talk about today
• Architecture Overview
• Semantics for Distributed Systems
• Queue/Worker and Scheduler
• Data Processing: Hive and Presto
• Data Storage: PlazmaDB
• All about Our Infrastructure
• Data Collection: Fluentd and Embulk
• Data and Open Source Software Products
• Disposable Services and Persistent Data
7.
Console
API
EventCollector
PlazmaDB
Worker
Scheduler
Hadoop
Cluster
Presto
Cluster
USERS
TD SDKs
SERVERS
DataConnector
CUSTOMER's
SYSTEMS

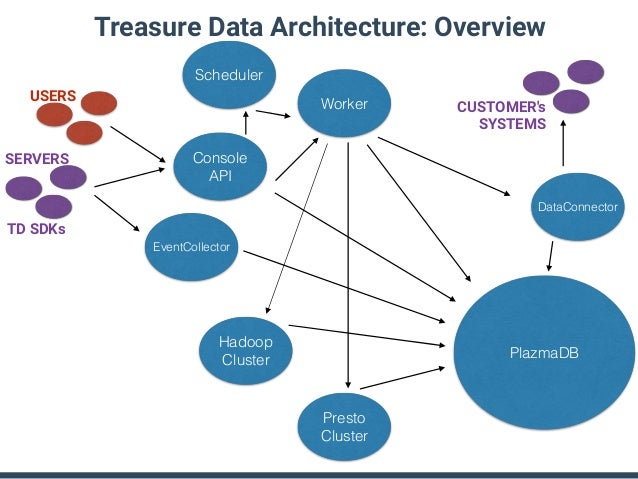

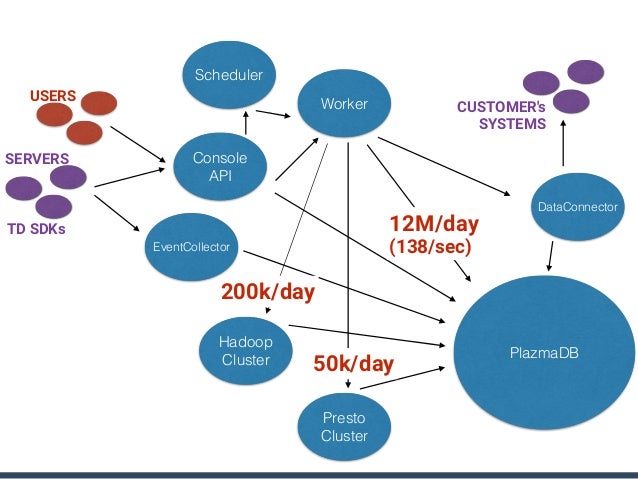

Treasure Data Architecture: Overview
8.
Console
API
EventCollector
PlazmaDB
Worker
Scheduler
Hadoop
Cluster
Presto
Cluster
USERS
TD SDKs
SERVERS
DataConnector
CUSTOMER's
SYSTEMS
Console, API:
entrance for jobs&data
EventCollector:
entrance for data from JS&Mobile SDK
or services integrated with TD
9.
Console
API
EventCollector
PlazmaDB
Worker
Scheduler
Hadoop
Cluster
Presto
Cluster
USERS
TD SDKs
SERVERS
DataConnector
CUSTOMER's
SYSTEMS

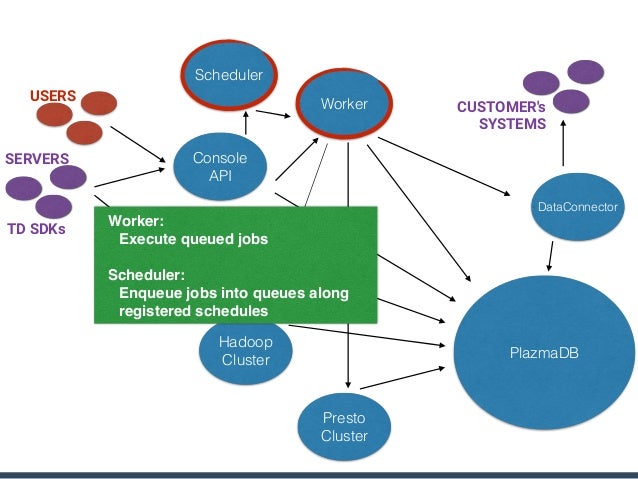

Worker:
Execute queued jobs
Scheduler:
Enqueue jobs into queues along
registered schedules
10.
Console
API
EventCollector
PlazmaDB
Worker
Scheduler
Hadoop
Cluster
Presto
Cluster
USERS
TD SDKs
SERVERS
DataConnector
CUSTOMER's
SYSTEMS

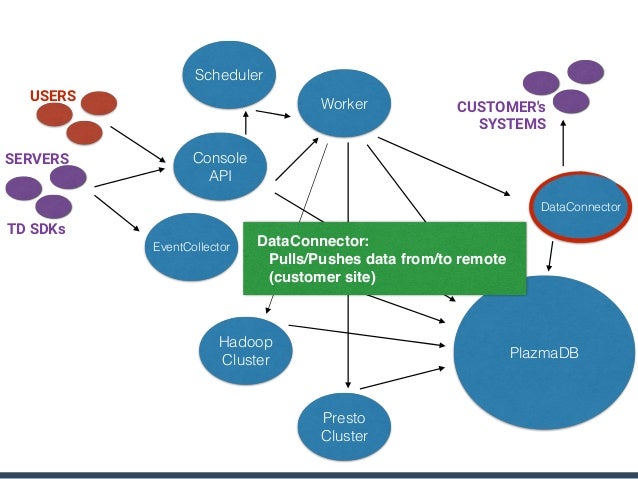

DataConnector:
Pulls/Pushes data from/to remote
(customer site)
11.
Console
API
EventCollector
PlazmaDB
Worker
Scheduler
Hadoop
Cluster
Presto
Cluster
USERS
TD SDKs
SERVERS
DataConnector
CUSTOMER's
SYSTEMS

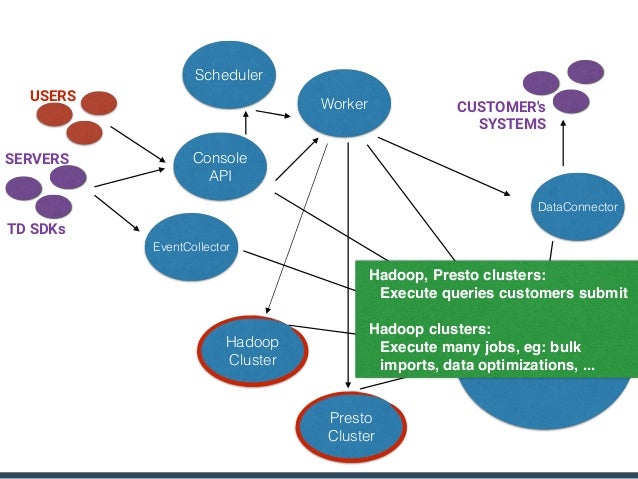

Hadoop, Presto clusters:
Execute queries customers submit
Hadoop clusters:
Execute many jobs, eg: bulk
imports, data optimizations, ...
12.
Console
API
EventCollector
PlazmaDB
Worker
Scheduler
Hadoop
Cluster
Presto
Cluster
USERS
TD SDKs
SERVERS
DataConnector
CUSTOMER's
SYSTEMS

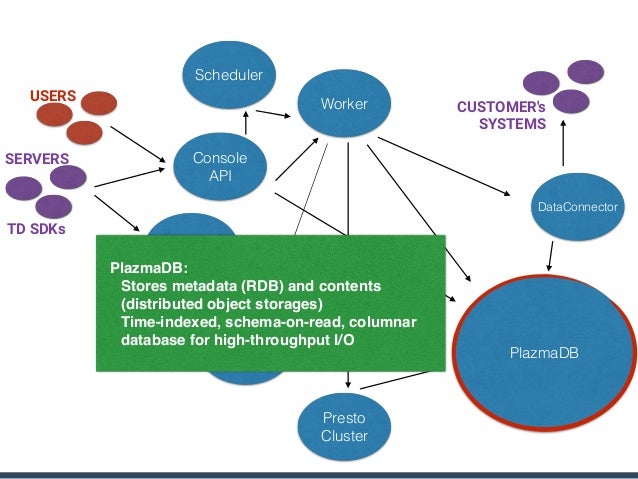

PlazmaDB:
Stores metadata (RDB) and contents
(distributed object storages)
Time-indexed, schema-on-read, columnar
database for high-throughput I/O
14.

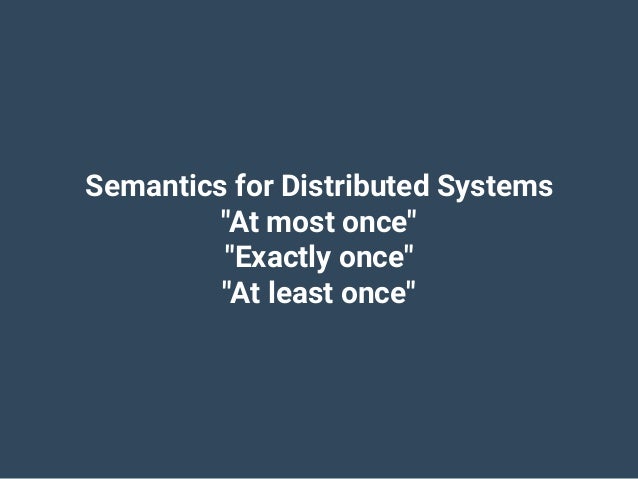

Semantics for Distributed Systems
"At most once"
"Exactly once"
"At least once"
15.

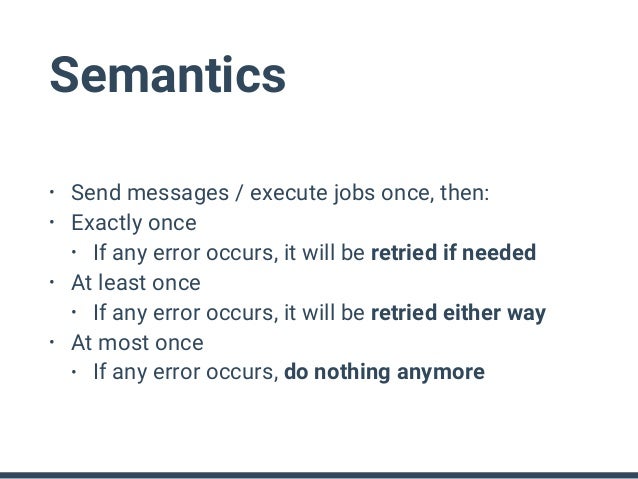

Semantics
• Send messages / execute jobs once, then:
• Exactly once
• If any error occurs, it will be retried if needed
• At least once
• If any error occurs, it will be retried either way
• At most once
• If any error occurs, do nothing anymore
16.
Semantics
• Send messages / execute jobs once, then:
• Exactly once
• If any error occurs, it will be retried if needed
• Hard to implement, poor performance (e.g. TCP for users)
• At least once
• If any error occurs, it will be retried either way
• Possibly duplicated events (e.g. TCP packets)
• At most once
• If any error occurs, do nothing anymore
• Possibly missing events (e.g. UDP packets)
17.

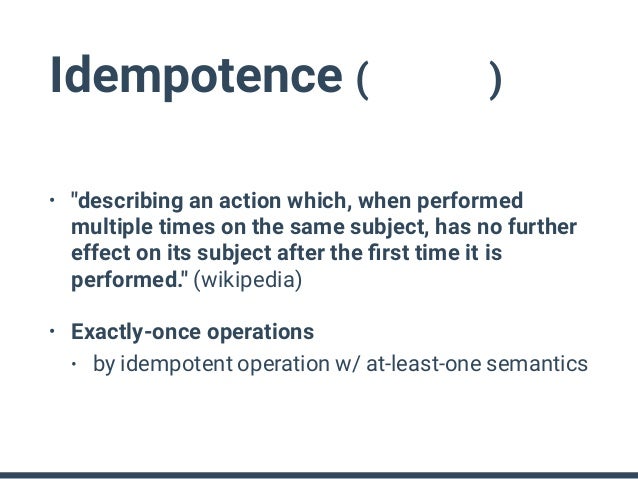

Idempotence (冪等性)
• "describing an action which, when performed
multiple times on the same subject, has no further
effect on its subject after the first time it is
performed." (wikipedia)
• Exactly-once operations
• by idempotent operation w/ at-least-one semantics
19.

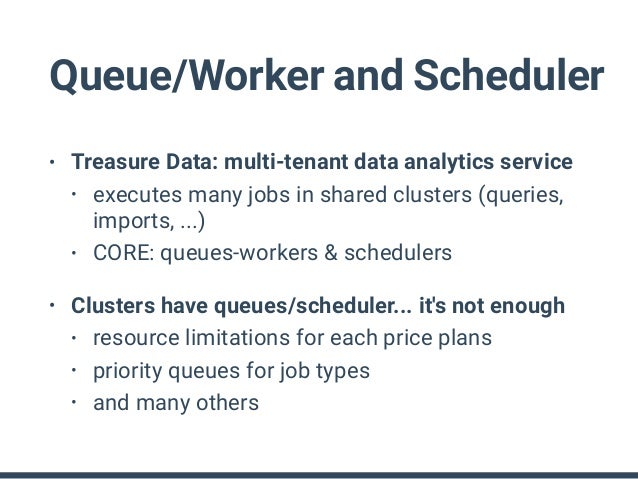

Queue/Worker and Scheduler
• Treasure Data: multi-tenant data analytics service
• executes many jobs in shared clusters (queries,
imports, ...)
• CORE: queues-workers & schedulers
• Clusters have queues/scheduler... it's not enough
• resource limitations for each price plans
• priority queues for job types
• and many others
20.

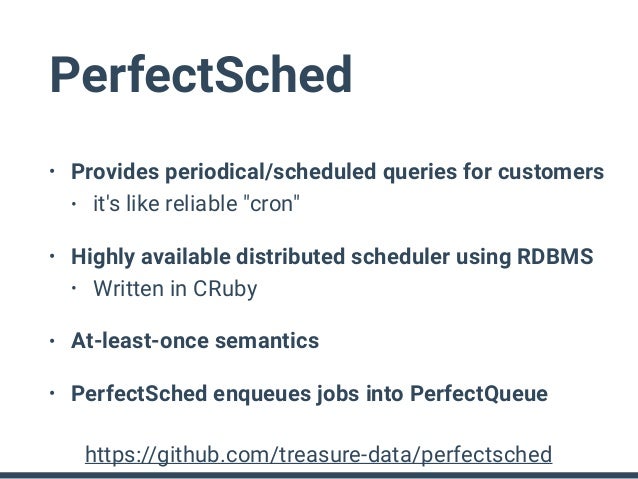

PerfectSched
• Provides periodical/scheduled queries for customers
• it's like reliable "cron"
• Highly available distributed scheduler using RDBMS
• Written in CRuby
• At-least-once semantics
• PerfectSched enqueues jobs into PerfectQueue
https://github.com/treasure-data/perfectsched
21.

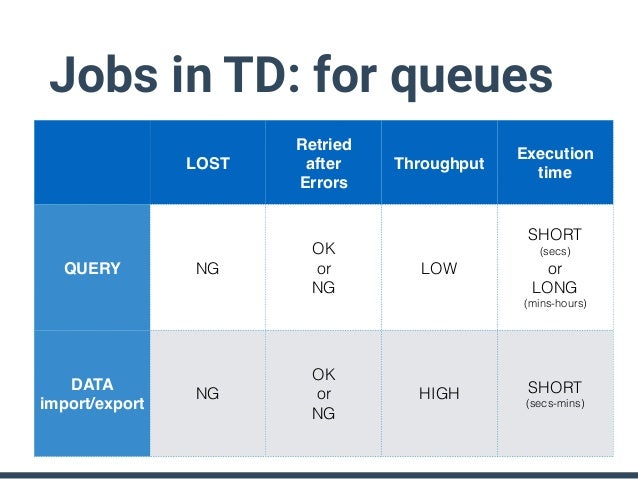

Jobs in TD: for queues
LOST
Retried
after
Errors
Throughput
Execution
time
QUERY NG
OK
or
NG
LOW
SHORT
(secs)
or
LONG
(mins-hours)
DATA
import/export
NG
OK
or
NG
HIGH SHORT
(secs-mins)
22.

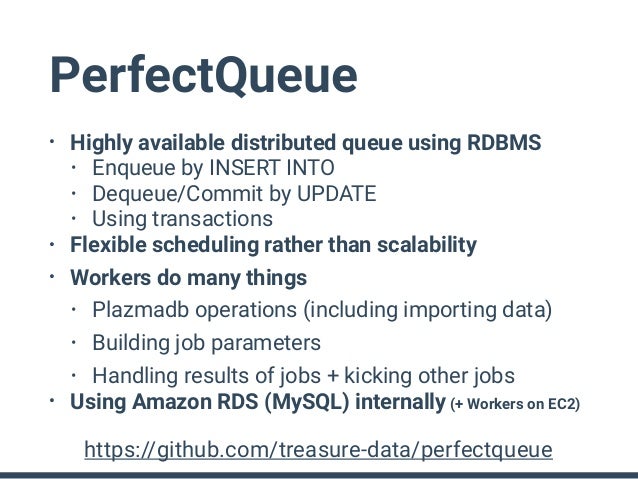

PerfectQueue
• Highly available distributed queue using RDBMS
• Enqueue by INSERT INTO
• Dequeue/Commit by UPDATE
• Using transactions
• Flexible scheduling rather than scalability
• Workers do many things
• Plazmadb operations (including importing data)
• Building job parameters
• Handling results of jobs + kicking other jobs
• Using Amazon RDS (MySQL) internally (+ Workers on EC2)
https://github.com/treasure-data/perfectqueue
23.
Worker
Worker
Worker
Worker

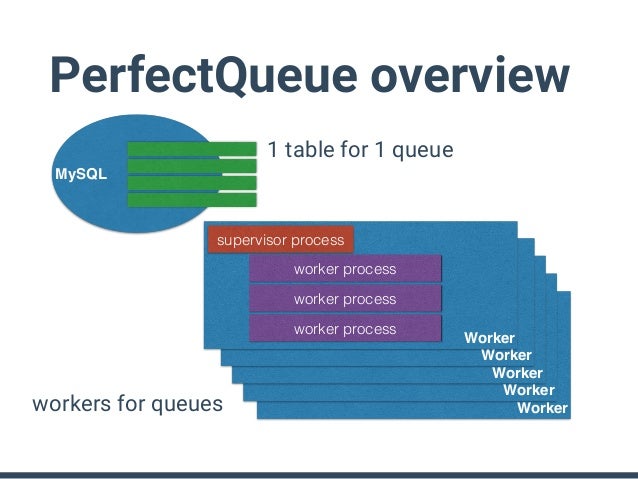

PerfectQueue overview
Worker
MySQL
1 table for 1 queue
workers for queues
supervisor process
worker process
worker process
worker process
24.

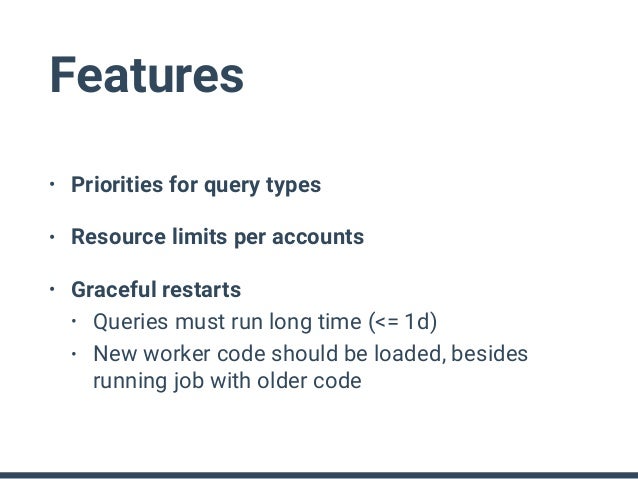

Features
• Priorities for query types
• Resource limits per accounts
• Graceful restarts
• Queries must run long time (<= 1d)
• New worker code should be loaded, besides
running job with older code
26.

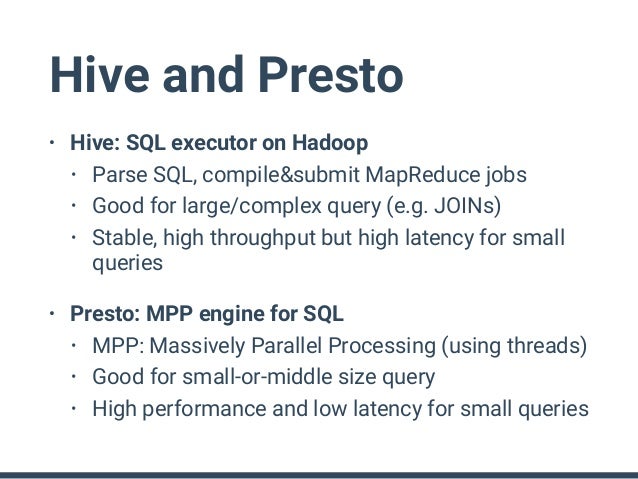

Hive and Presto
• Hive: SQL executor on Hadoop
• Parse SQL, compile&submit MapReduce jobs
• Good for large/complex query (e.g. JOINs)
• Stable, high throughput but high latency for small
queries
• Presto: MPP engine for SQL
• MPP: Massively Parallel Processing (using threads)
• Good for small-or-middle size query
• High performance and low latency for small queries
27.

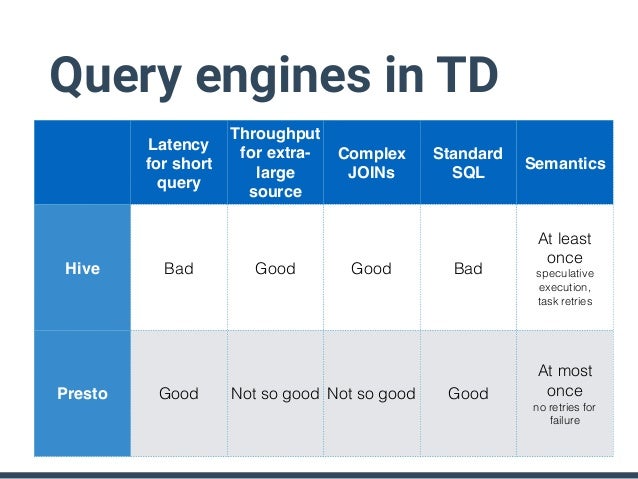

Query engines in TD
Latency
for short
query
Throughput
for extra-
large
source
data
Complex
JOINs
Standard
SQL
Semantics
Hive Bad Good Good Bad
At least
once
speculative
execution,
task retries
Presto Good Not so good Not so good Good
At most
once
no retries for
failure
28.
PlazmaDB

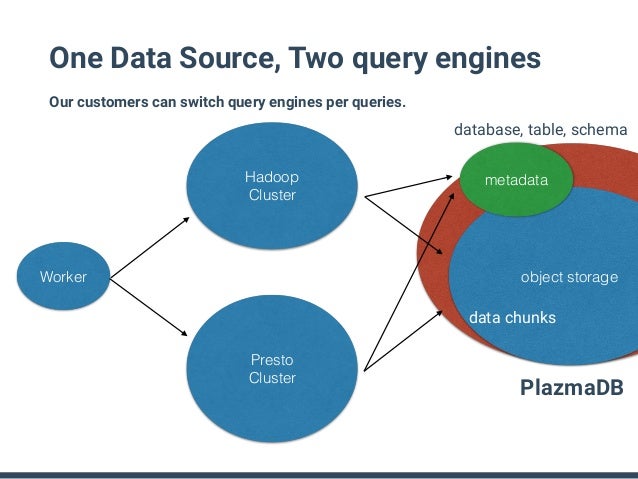

One Data Source, Two query engines
Our customers can switch query engines per queries.
object storageWorker
Hadoop
Cluster
Presto
Cluster
metadata
database, table, schema
data chunks
PlazmaDB
30.

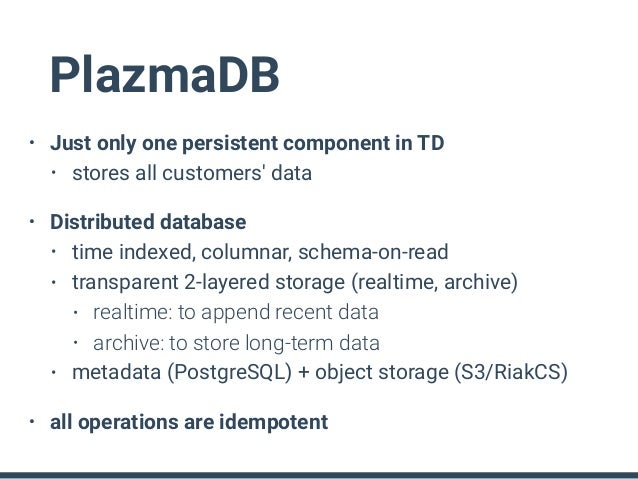

PlazmaDB
• Just only one persistent component in TD
• stores all customers' data
• Distributed database
• time indexed, columnar, schema-on-read
• transparent 2-layered storage (realtime, archive)
• realtime: to append recent data
• archive: to store long-term data
• metadata (PostgreSQL) + object storage (S3/RiakCS)
• all operations are idempotent
31.
Realtime
Storage
PostgreSQL
Amazon S3 /
Basho Riak CS
Metadata
Import
Queue
Import
Worker
Import
Worker
Import
Worker
uploaded time file index range records
2015-03-08 10:47
[2015-12-01 10:47:11,
2015-12-01 10:48:13]
3
2015-03-08 11:09
[2015-12-01 11:09:32,
2015-12-01 11:10:35]
25
2015-03-08 11:38
[2015-12-01 11:38:43,
2015-12-01 11:40:49]
14
… … … …
Archive
Storage

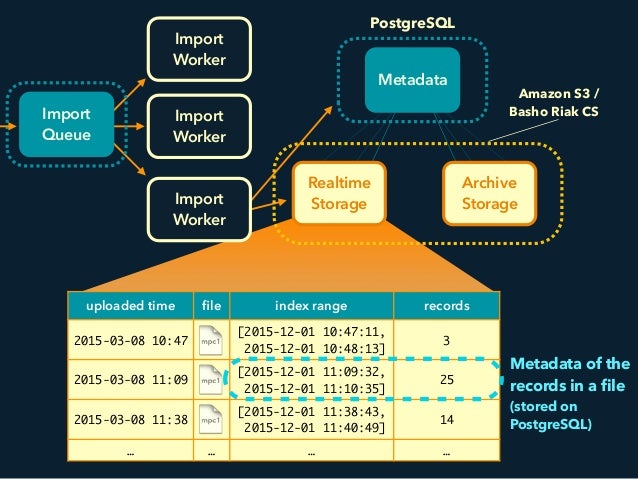

Metadata of the
records in a file
(stored on
PostgreSQL)
32.
Amazon S3 /
Basho Riak CS
Metadata
Merge Worker
(MapReduce)
uploaded time file index range records
2015-03-08 10:47
[2015-12-01 10:47:11,
2015-12-01 10:48:13]
3
2015-03-08 11:09
[2015-12-01 11:09:32,
2015-12-01 11:10:35]
25
2015-03-08 11:38
[2015-12-01 11:38:43,
2015-12-01 11:40:49]
14
… … … …
file index range records
[2015-12-01 10:00:00,
2015-12-01 11:00:00]
3,312
[2015-12-01 11:00:00,
2015-12-01 12:00:00]
2,143
… … …
Realtime
Storage
Archive
Storage
PostgreSQL

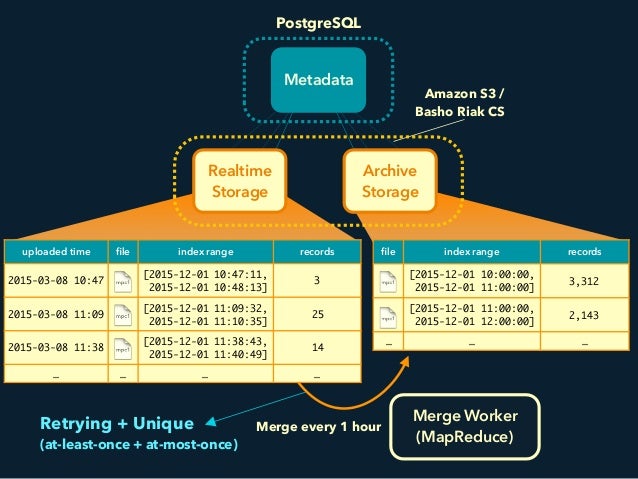

Merge every 1 hourRetrying + Unique
(at-least-once + at-most-once)
33.
Amazon S3 /
Basho Riak CS
Metadata
uploaded time file index range records
2015-03-08 10:47
[2015-12-01 10:47:11,
2015-12-01 10:48:13]
3
2015-03-08 11:09
[2015-12-01 11:09:32,
2015-12-01 11:10:35]
25
2015-03-08 11:38
[2015-12-01 11:38:43,
2015-12-01 11:40:49]
14
… … … …
file index range records
[2015-12-01 10:00:00,
2015-12-01 11:00:00]
3,312
[2015-12-01 11:00:00,
2015-12-01 12:00:00]
2,143
… … …
Realtime
Storage
Archive
Storage
PostgreSQL

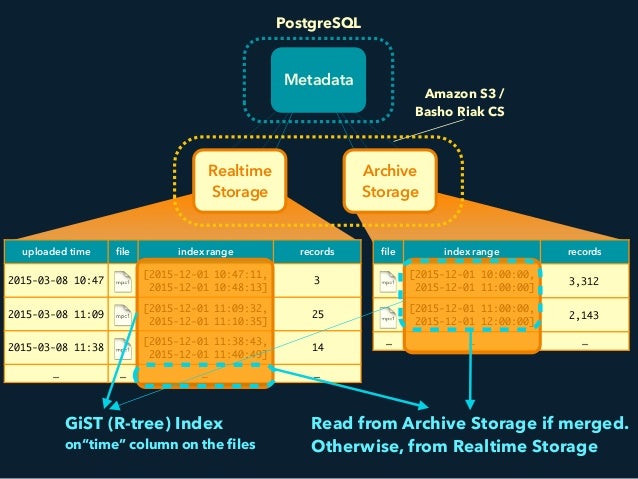

GiST (R-tree) Index
on“time” column on the files
Read from Archive Storage if merged.
Otherwise, from Realtime Storage
34.
time code method
2015-12-01 10:02:36 200 GET
2015-12-01 10:22:09 404 GET
2015-12-01 10:36:45 200 GET
2015-12-01 10:49:21 200 POST
… … …
time code method
2015-12-01 11:10:09 200 GET
2015-12-01 11:21:45 200 GET
2015-12-01 11:38:59 200 GET
2015-12-01 11:43:37 200 GET
2015-12-01 11:54:52 “200” GET
… … …
Archive
Storage
path index range records
[2015-12-01 10:00:00,
2015-12-01 11:00:00]
3,312
[2015-12-01 11:00:00,
2015-12-01 12:00:00]
2,143
… … …

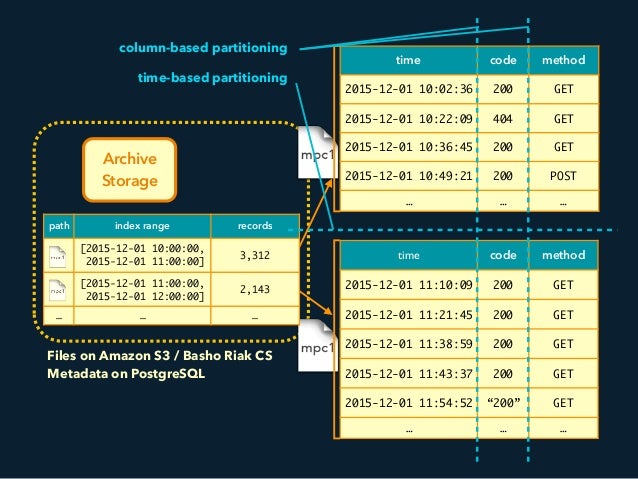

column-based partitioning
time-based partitioning
Files on Amazon S3 / Basho Riak CS
Metadata on PostgreSQL
35.

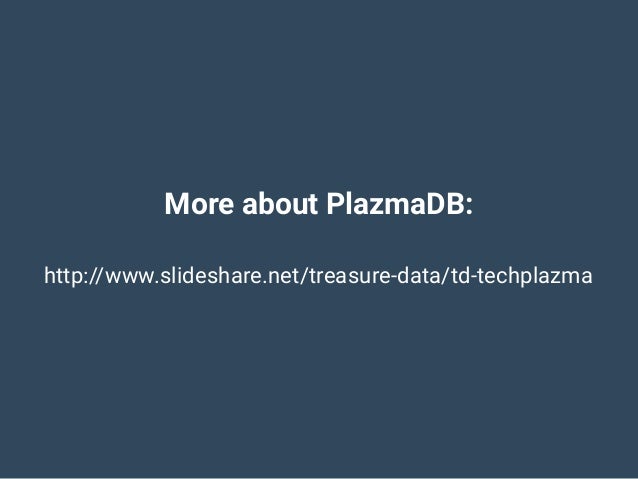

More about PlazmaDB:
http://www.slideshare.net/treasure-data/td-techplazma
36.

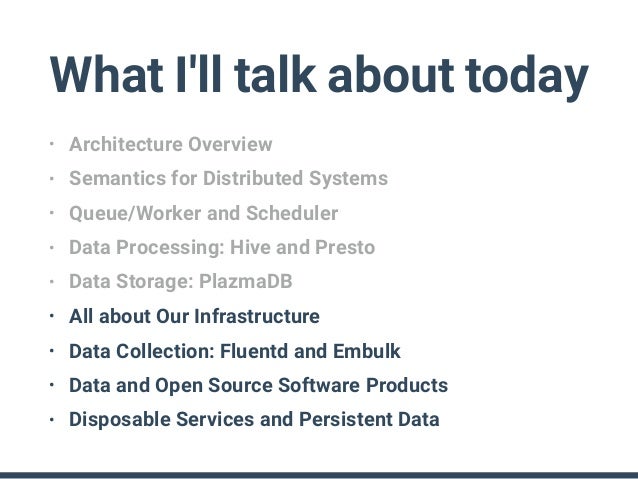

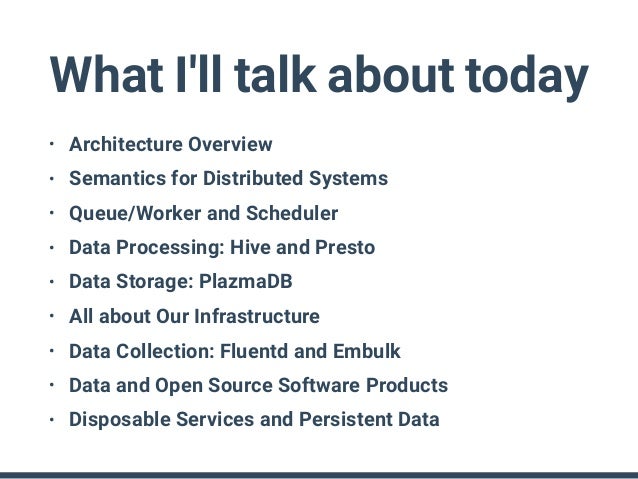

What I'll talk about today
• Architecture Overview
• Semantics for Distributed Systems
• Queue/Worker and Scheduler
• Data Processing: Hive and Presto
• Data Storage: PlazmaDB
• All about Our Infrastructure
• Data Collection: Fluentd and Embulk
• Data and Open Source Software Products
• Disposable Services and Persistent Data
38.
Infrastructure: fully on cloud
• AWS, IDCF Cloud, Heroku, Fastly for service core
• S3, EC2, RDS, ElastiCache, ... (in AWS)
• Not locked-in for cloud services
• And many services for DevOps
• Github, CircleCI, DataDog, PagerDuty, StatusPage.io,
Chef.io, JIRA/Confluence, Airbrake, NewRelic,
Artifactory, zendesk, OneLogin, Box, Orbitz, Slack, ...
• No self-hosted servers for non-core services
• w/o VPN servers :P
39.

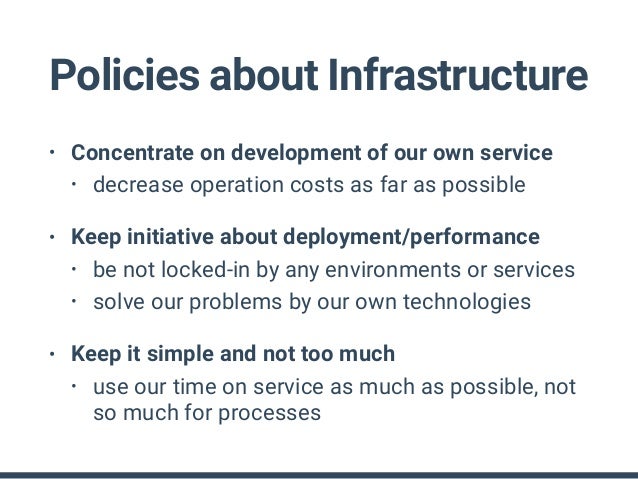

Policies about Infrastructure
• Concentrate on development of our own service
• decrease operation costs as far as possible
• Keep initiative about deployment/performance
• be not locked-in by any environments or services
• solve our problems by our own technologies
• Keep it simple and not too much
• use our time on service as much as possible, not
so much for processes
41.
http://www.fluentd.org/
Fluentd
Unified Logging Layer
For Stream Data
Written in CRuby
http://www.slideshare.net/treasure-data/the-basics-of-fluentd-35681111
42.

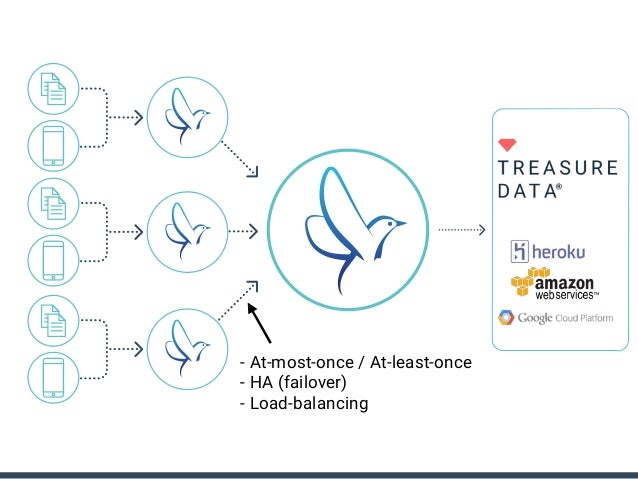

- At-most-once / At-least-once
- HA (failover)
- Load-balancing
43.
Fluentd

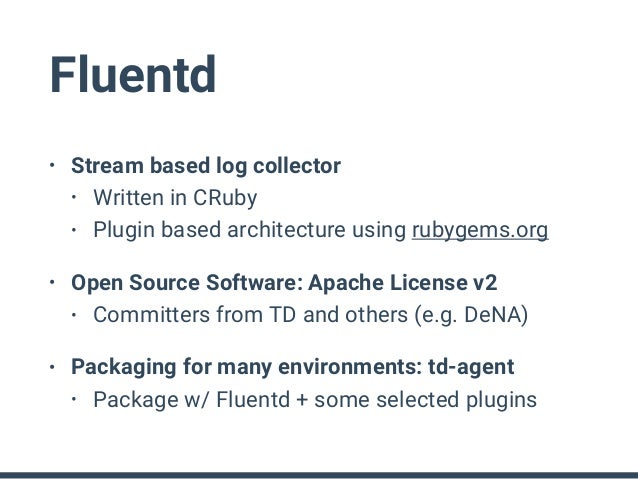

• Stream based log collector
• Written in CRuby
• Plugin based architecture using rubygems.org
• Open Source Software: Apache License v2
• Committers from TD and others (e.g. DeNA)
• Packaging for many environments: td-agent
• Package w/ Fluentd + some selected plugins
44.
- Using Docker logging driver for Fluentd
(fully OSS)
45.
Bulk Data Loader
High Throughput&Reliability
Embulk
Written in Java/JRuby
http://www.slideshare.net/frsyuki/embuk-making-data-integration-works-relaxed
http://www.embulk.org/
47.

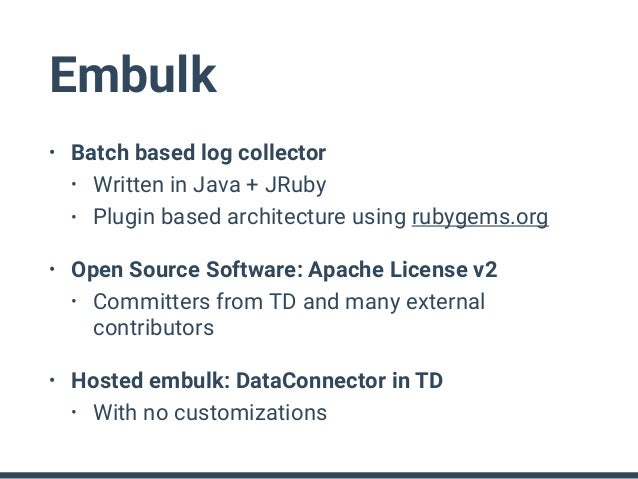

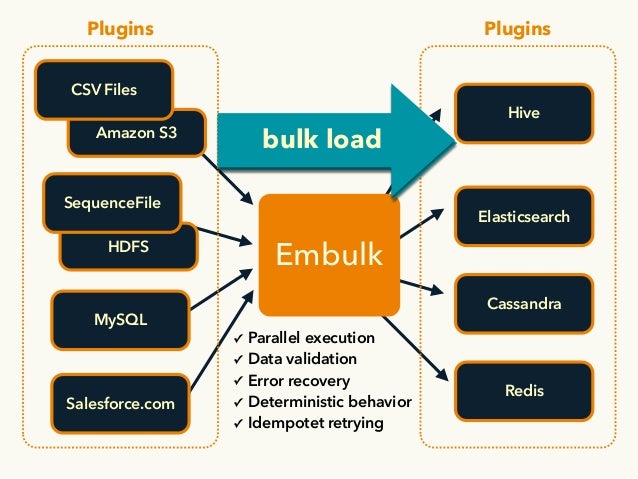

Embulk
• Batch based log collector
• Written in Java + JRuby
• Plugin based architecture using rubygems.org
• Open Source Software: Apache License v2
• Committers from TD and many external
contributors
• Hosted embulk: DataConnector in TD
• With no customizations
49.

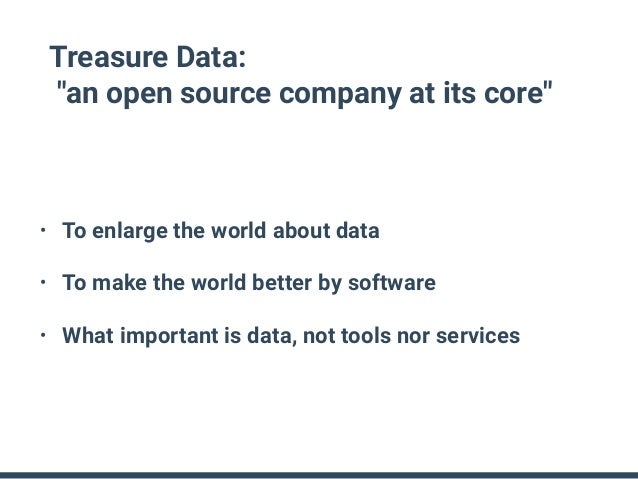

Treasure Data:
"an open source company at its core"
• To enlarge the world about data
• To make the world better by software
• What important is data, not tools nor services
50.
Disposable Service Components
and
Persistent Data
51.

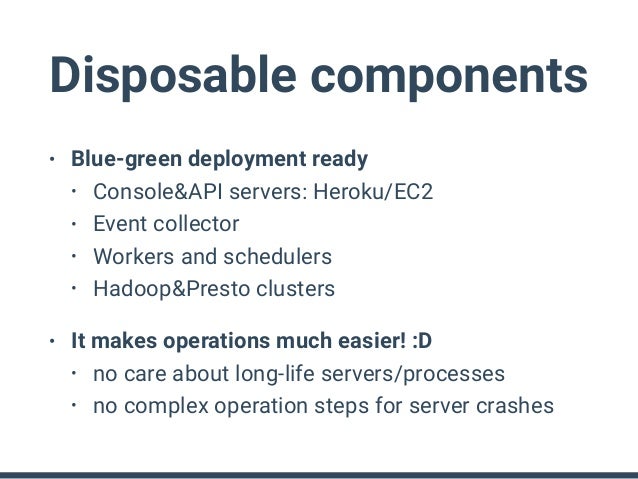

Disposable components
• Blue-green deployment ready
• Console&API servers: Heroku/EC2
• Event collector
• Workers and schedulers
• Hadoop&Presto clusters
• It makes operations much easier! :D
• no care about long-life servers/processes
• no complex operation steps for server crashes
55.
PlazmaDB
Worker
Hadoop Cluster New Hadoop Cluster
Hive CLI
MR App

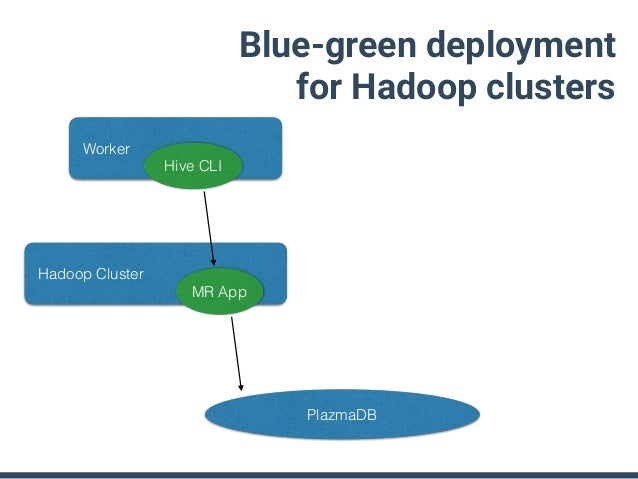

Blue-green deployment
for Hadoop clusters
56.
PlazmaDB
Worker
New Hadoop Cluster
Hive CLI
MR App

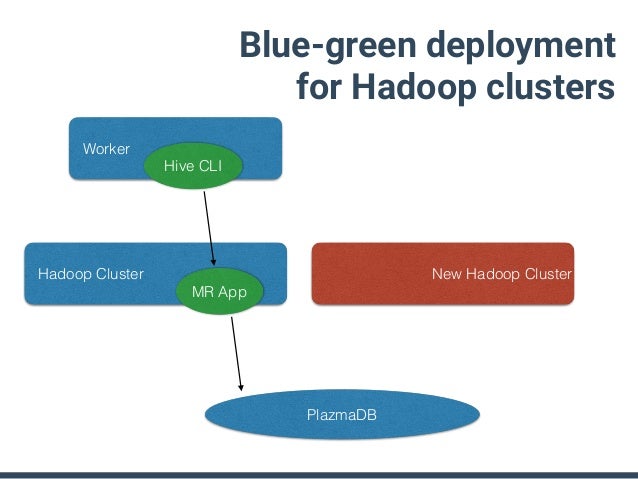

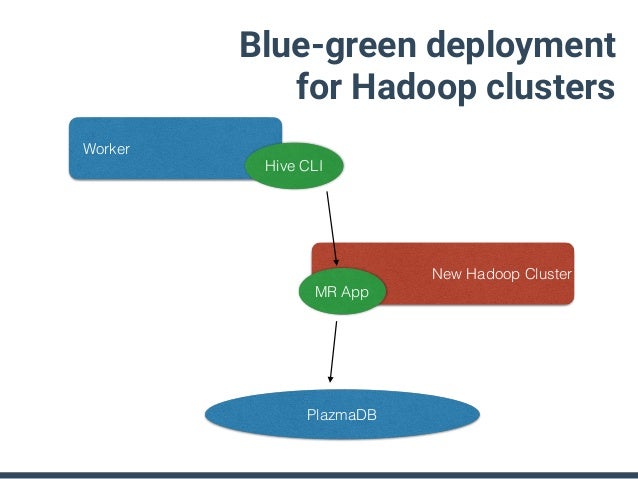

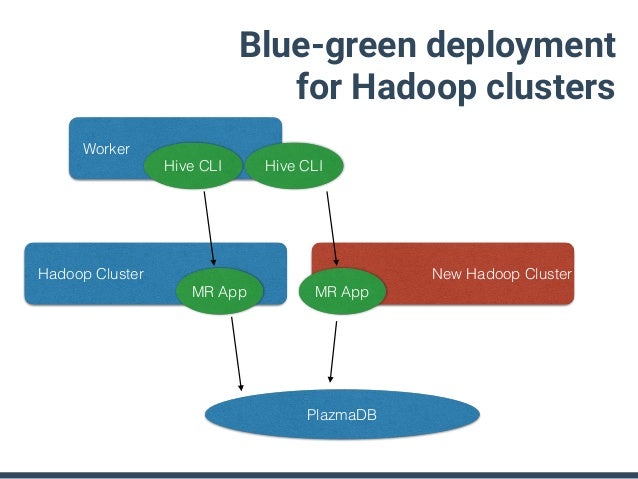

Blue-green deployment
for Hadoop clusters
57.

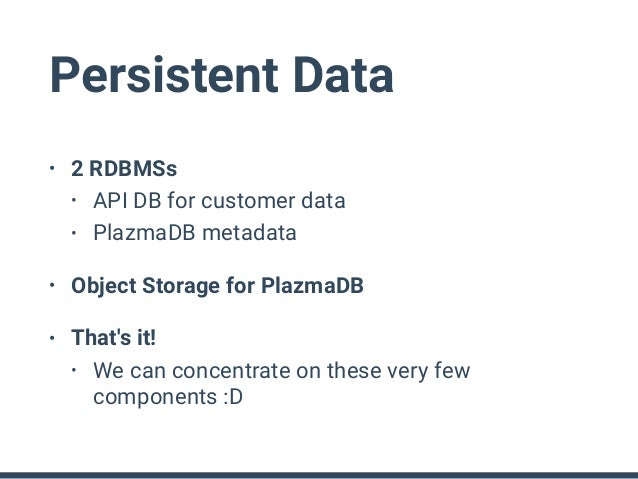

Persistent Data
• 2 RDBMSs
• API DB for customer data
• PlazmaDB metadata
• Object Storage for PlazmaDB
• That's it!
• We can concentrate on these very few
components :D
Clipping is a handy way to collect and organize the most important slides from a presentation. You can keep your great finds in clipboards organized around topics.
Be the first to comment
