Tuning TCP and NGINX on EC2
Who are we? Chartbeat measures and monetizes attention on the web. Working with 80% of the top US news sites and global ...

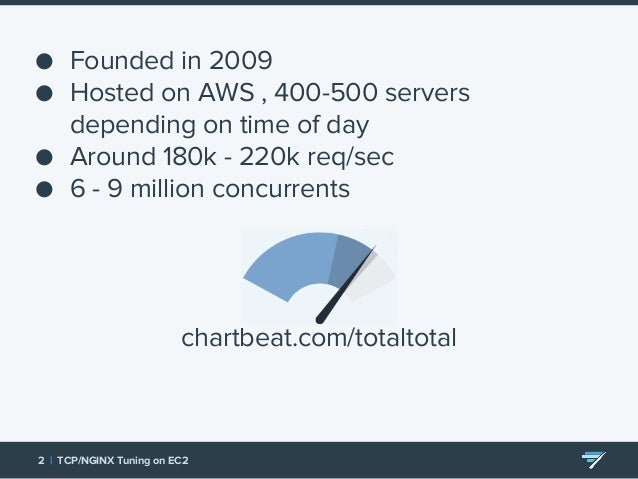

● Founded in 2009 ● Hosted on AWS , 400-500 servers depending on time of day ● Around 180k - 220k req/sec ● 6 - 9 mill...
Who am I? ● Sr Web Operations Engineer ● Previously worked at ○ Bitly ○ TheStreet.com ○ Promotions.com 2 | TCP/NGINX...

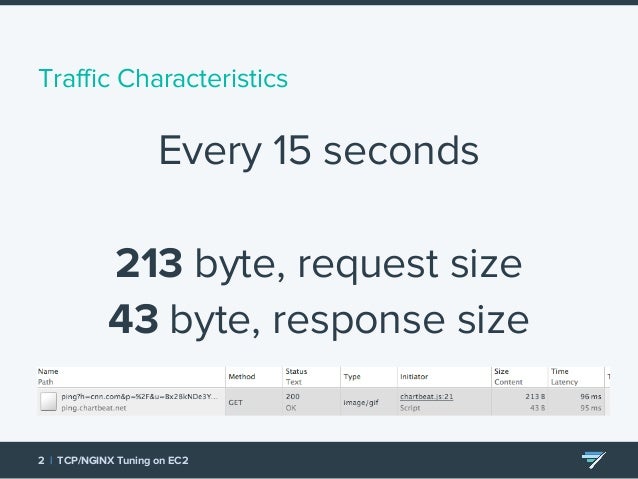

Traffic Characteristics Every 15 seconds 213 byte, request size 43 byte, response size 2 | TCP/NGINX Tuning on EC2

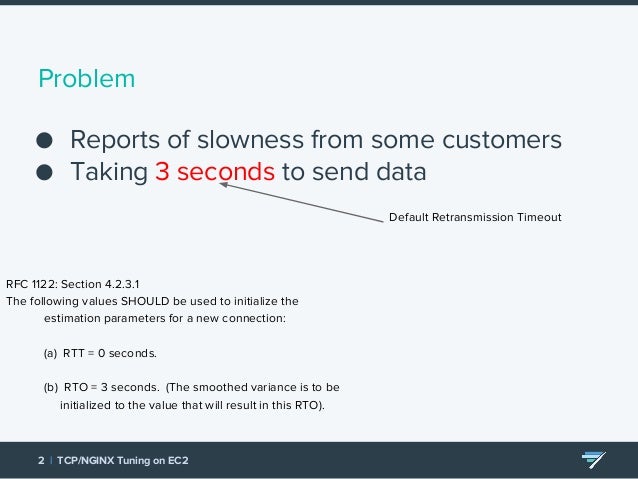

Problem ● Reports of slowness from some customers ● Taking 3 seconds to send data 2 | TCP/NGINX Tuning on EC2 Default ...
2 | TCP/NGINX Tuning on EC2 flickr: wallyg
2 | TCP/NGINX Tuning on EC2 flickr: oregondot
Now what? TCPDump + Wireshark confirms retransmissions 2 | TCP/NGINX Tuning on EC2
DON’T GRAPH ALL THE THINGS ● Graph only relevant metrics ○ you’ll end up with a ton of red herrings 2 | TCP/NGINX Tunin...

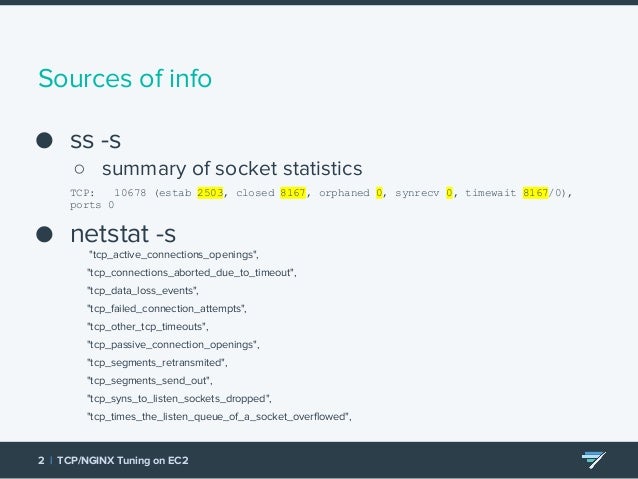

Sources of info ● ss -s ○ summary of socket statistics TCP: 10678 (estab 2503, closed 8167, orphaned 0, synrecv 0, time...

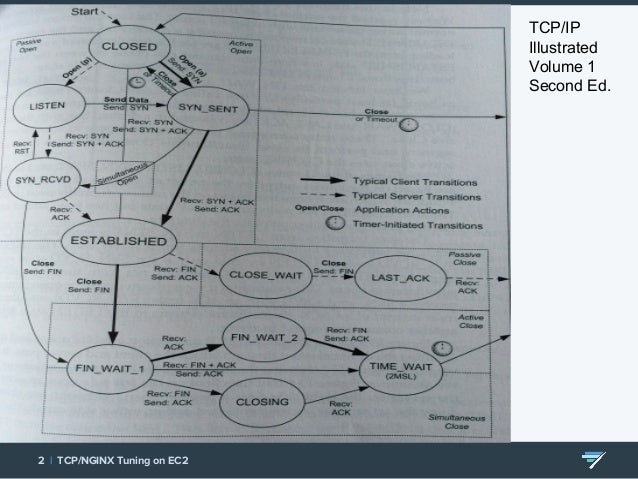

2 | TCP/NGINX Tuning on EC2 TCP/IP Illustrated Volume 1 Second Ed.

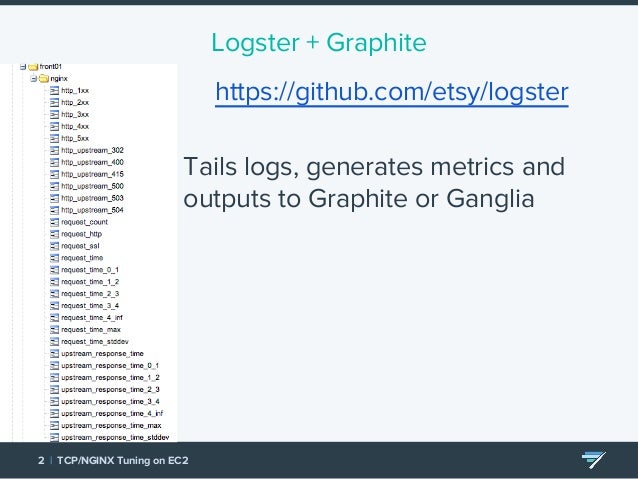

2 | TCP/NGINX Tuning on EC2 Logster + Graphite https://github.com/etsy/logster Tails logs, generates metrics and outpu...

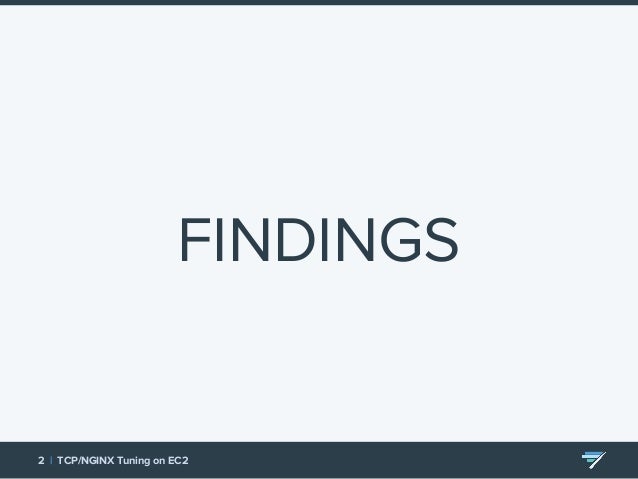

FINDINGS 2 | TCP/NGINX Tuning on EC2

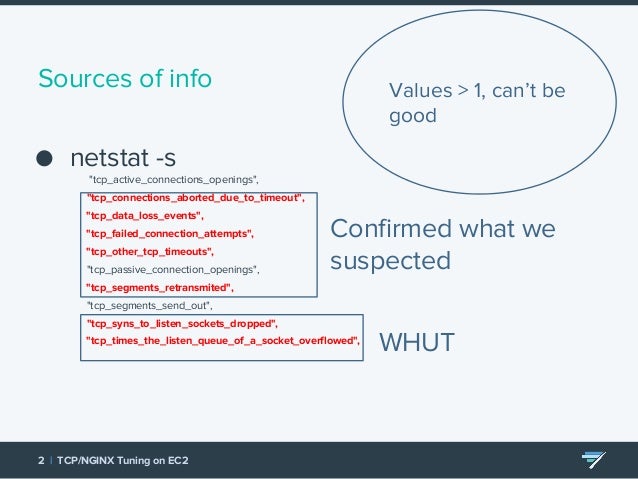

Sources of info ● netstat -s "tcp_active_connections_openings", "tcp_connections_aborted_due_to_timeout", "tcp_data_lo...
2 | TCP/NGINX Tuning on EC2

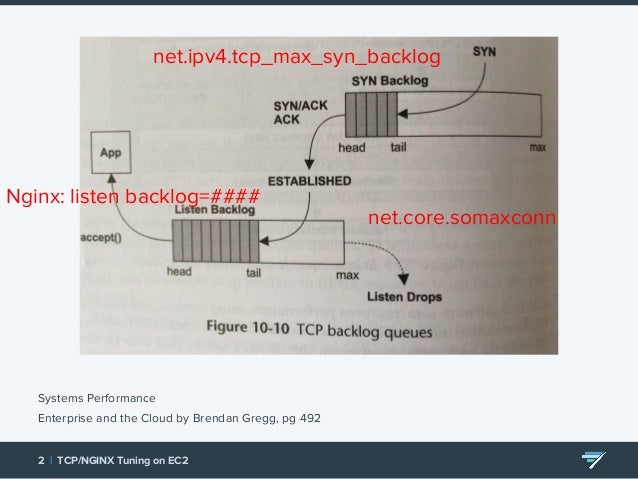

net.ipv4.tcp_max_syn_backlog Systems Performance Enterprise and the Cloud by Brendan Gregg, pg 492 2 | TCP/NGINX Tuning...

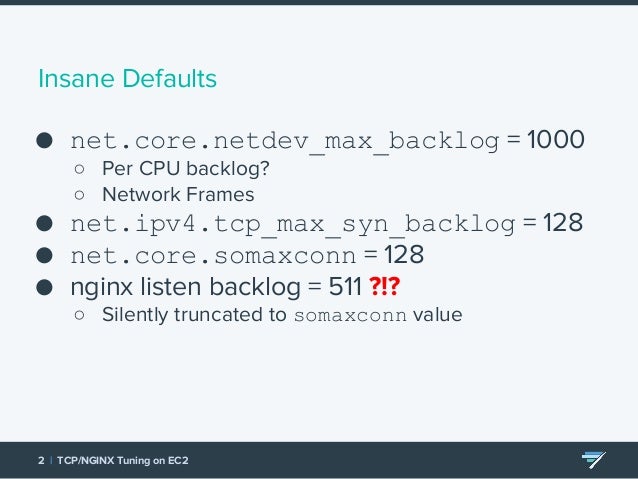

Insane Defaults ● net.core.netdev_max_backlog = 1000 ○ Per CPU backlog? ○ Network Frames ● net.ipv4.tcp_max_syn_backlo...

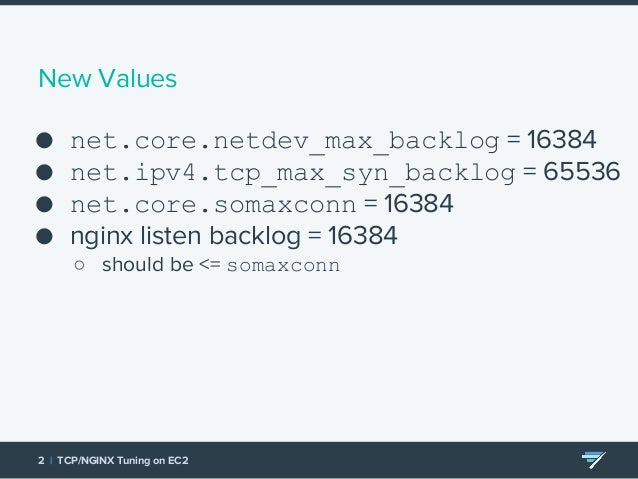

New Values ● net.core.netdev_max_backlog = 16384 ● net.ipv4.tcp_max_syn_backlog = 65536 ● net.core.somaxconn = 16384 ●...
2 | TCP/NGINX Tuning on EC2 Results

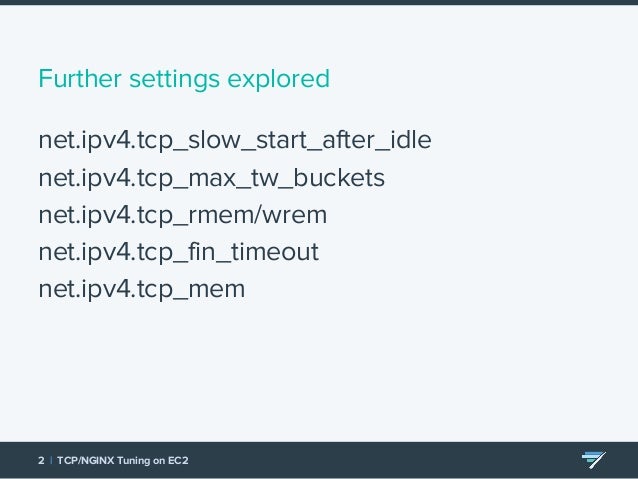

Further settings explored net.ipv4.tcp_slow_start_after_idle net.ipv4.tcp_max_tw_buckets net.ipv4.tcp_rmem/wrem net.ip...

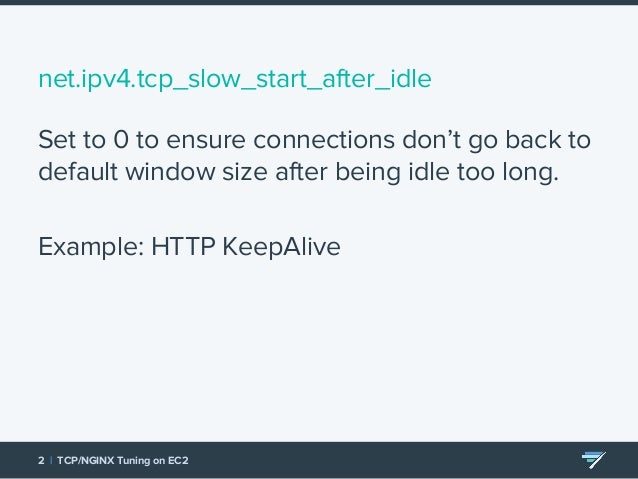

net.ipv4.tcp_slow_start_after_idle Set to 0 to ensure connections don’t go back to default window size after being idle ...

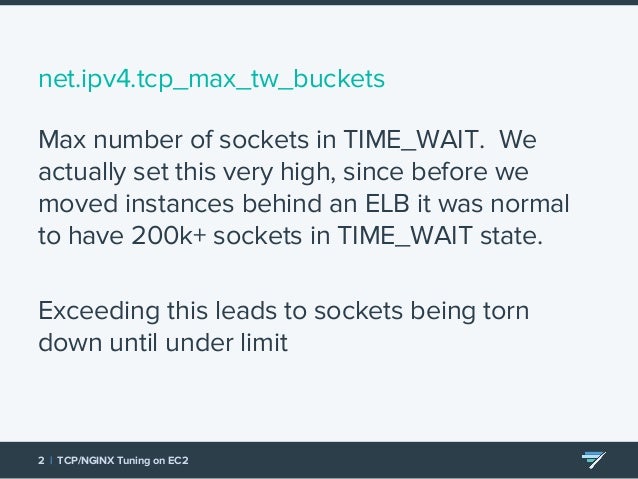

net.ipv4.tcp_max_tw_buckets Max number of sockets in TIME_WAIT. We actually set this very high, since before we moved i...

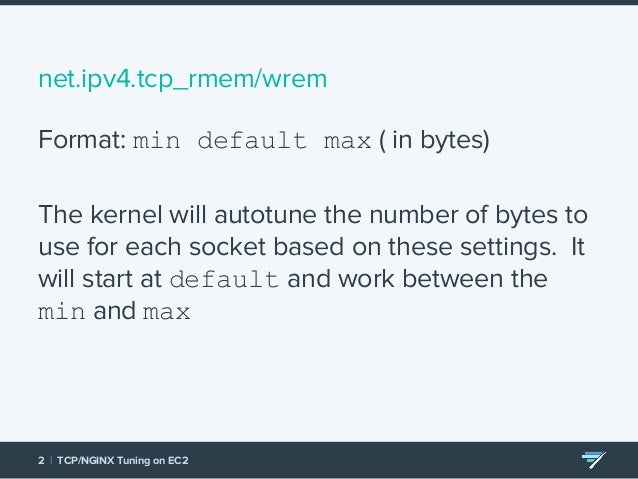

net.ipv4.tcp_rmem/wrem Format: min default max ( in bytes) The kernel will autotune the number of bytes to use for each...

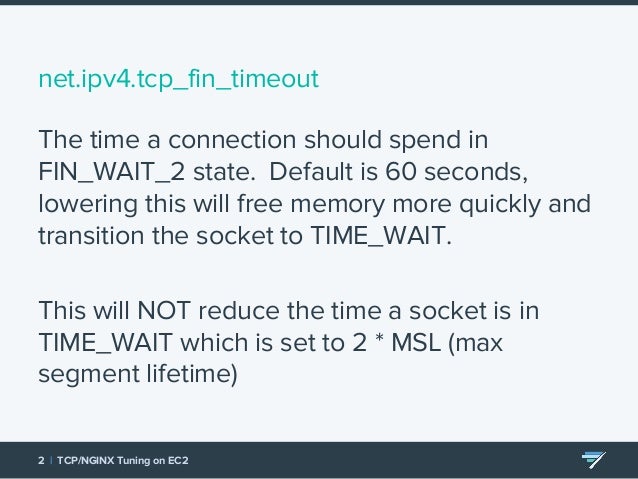

net.ipv4.tcp_fin_timeout The time a connection should spend in FIN_WAIT_2 state. Default is 60 seconds, lowering this w...
net.ipv4.tcp_fin_timeout continued... MSL is hardcoded in the kernel at 60 seconds! https://github. com/torvalds/linux/...

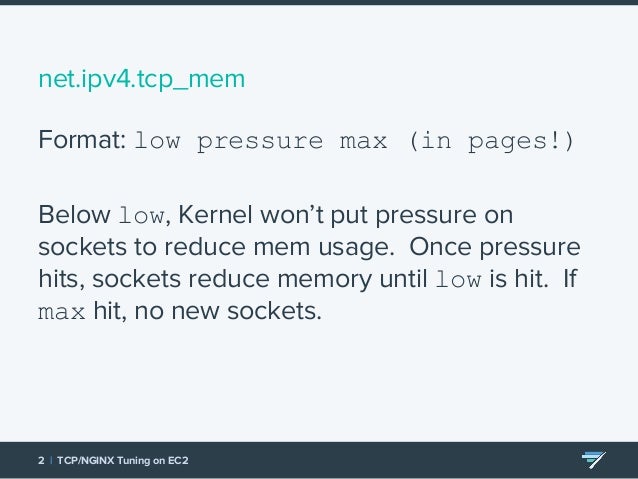

net.ipv4.tcp_mem Format: low pressure max (in pages!) Below low, Kernel won’t put pressure on sockets to reduce mem usa...
2 | TCP/NGINX Tuning on EC2
2 | TCP/NGINX Tuning on EC2

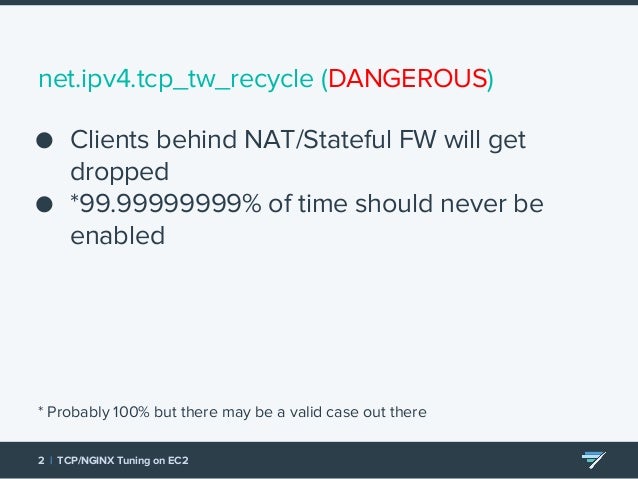

net.ipv4.tcp_tw_recycle (DANGEROUS) ● Clients behind NAT/Stateful FW will get dropped ● *99.99999999% of time should ne...

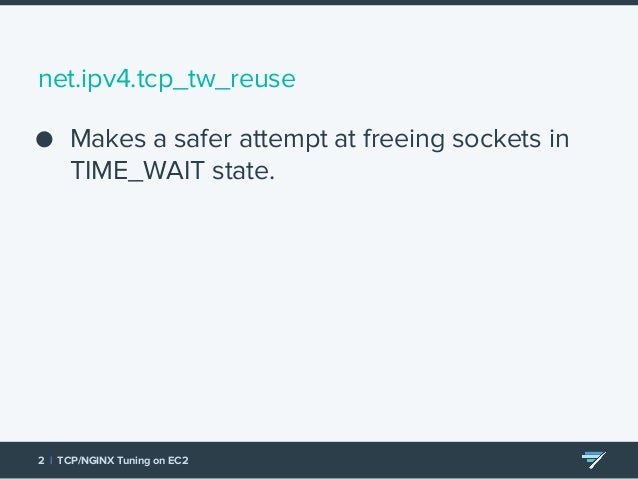

net.ipv4.tcp_tw_reuse ● Makes a safer attempt at freeing sockets in TIME_WAIT state. 2 | TCP/NGINX Tuning on EC2

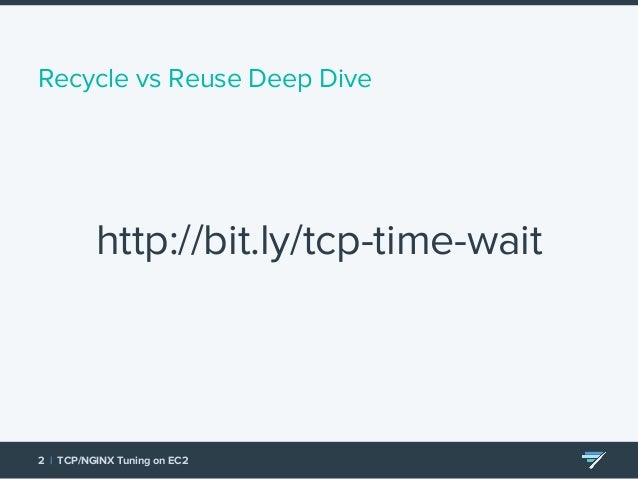

Recycle vs Reuse Deep Dive http://bit.ly/tcp-time-wait 2 | TCP/NGINX Tuning on EC2

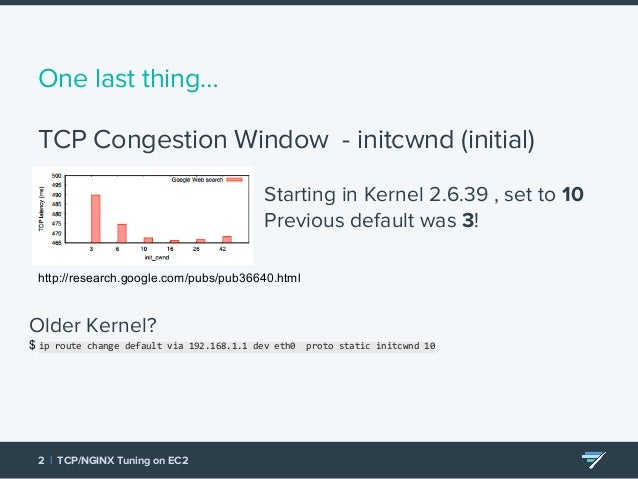

One last thing… TCP Congestion Window - initcwnd (initial) 2 | TCP/NGINX Tuning on EC2 Starting in Kernel 2.6.39 , set ...

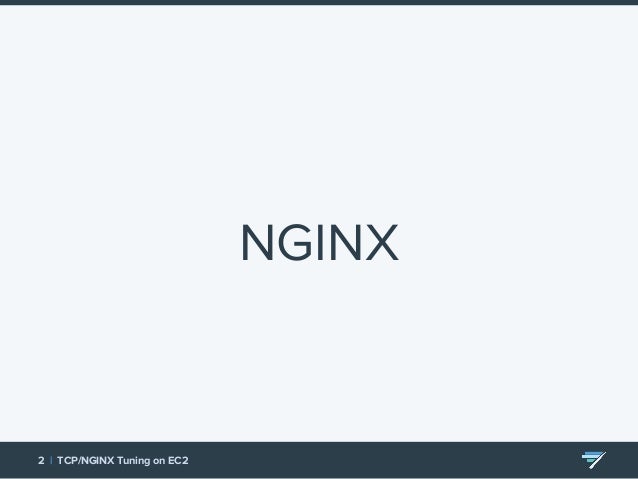

2 | TCP/NGINX Tuning on EC2 NGINX

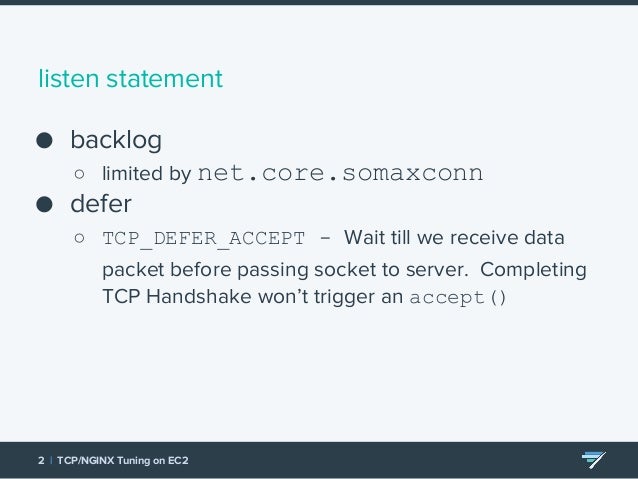

listen statement ● backlog ○ limited by net.core.somaxconn ● defer ○ TCP_DEFER_ACCEPT - Wait till we receive data pac...

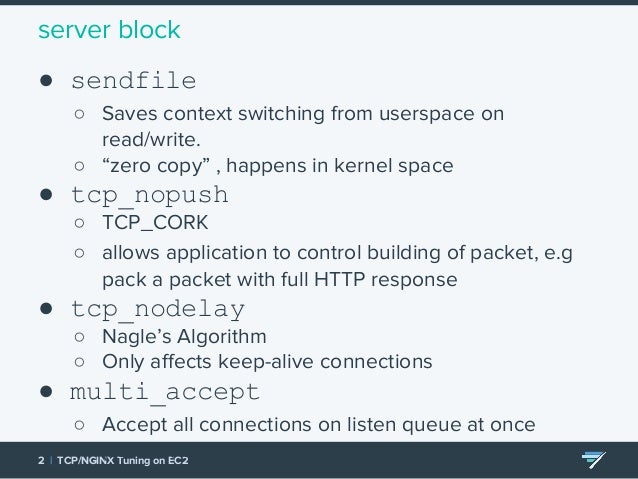

server block ● sendfile ○ Saves context switching from userspace on read/write. ○ “zero copy” , happens in kernel spac...

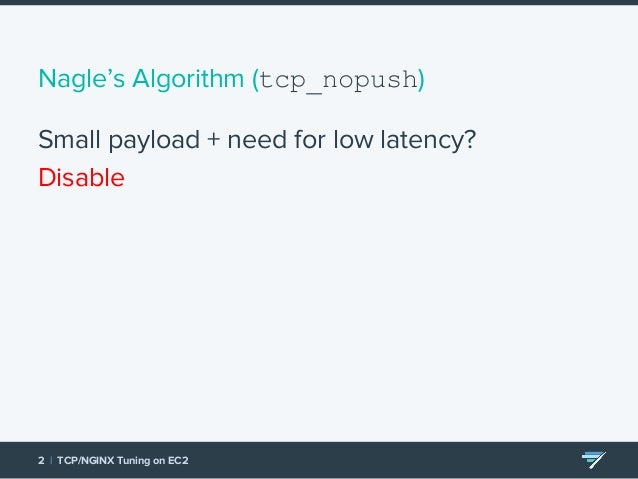

Nagle’s Algorithm (tcp_nopush) Small payload + need for low latency? Disable 2 | TCP/NGINX Tuning on EC2

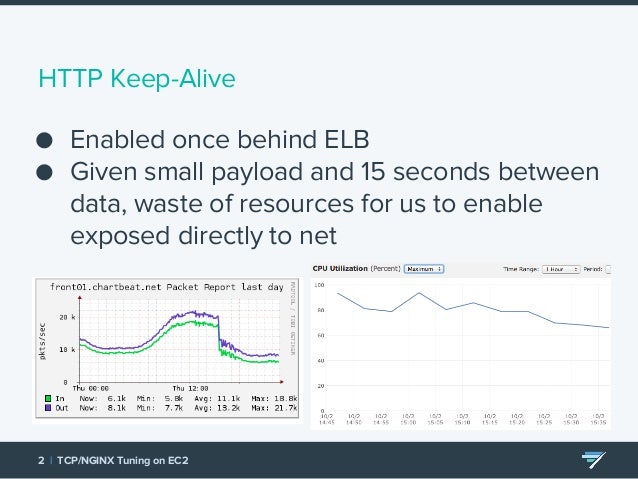

HTTP Keep-Alive ● Enabled once behind ELB ● Given small payload and 15 seconds between data, waste of resources for us ...

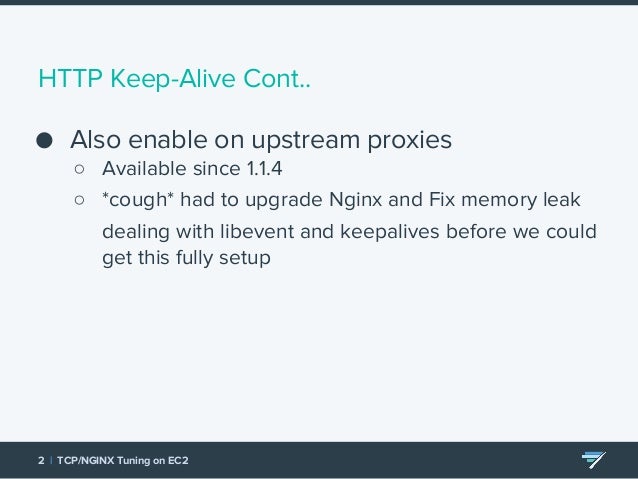

HTTP Keep-Alive Cont.. ● Also enable on upstream proxies ○ Available since 1.1.4 ○ *cough* had to upgrade Nginx and Fix...

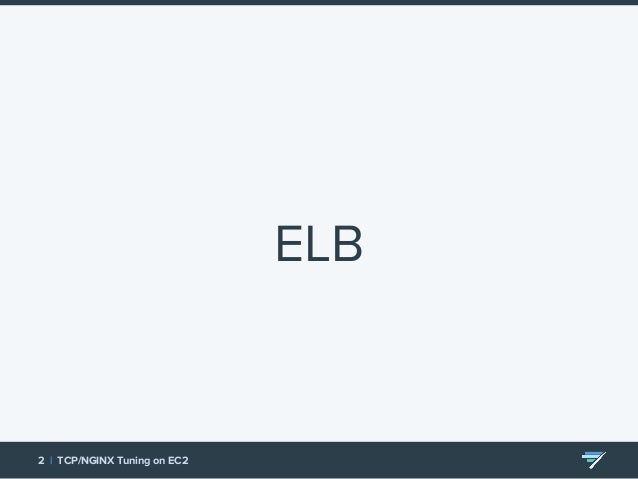

2 | TCP/NGINX Tuning on EC2 ELB

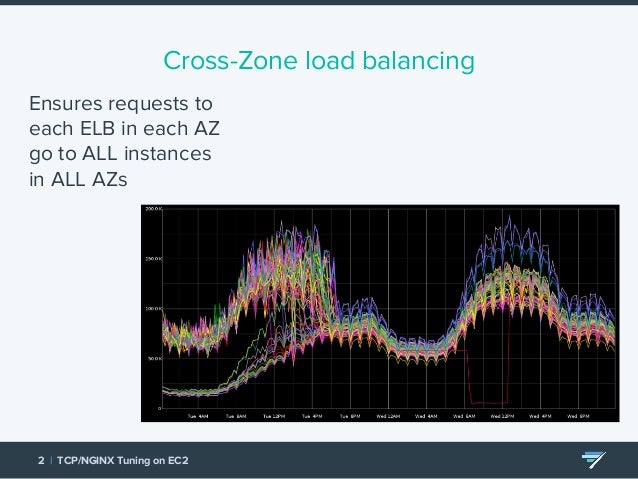

Cross-Zone load balancing Ensures requests to each ELB in each AZ go to ALL instances in ALL AZs 2 | TCP/NGINX Tuning...

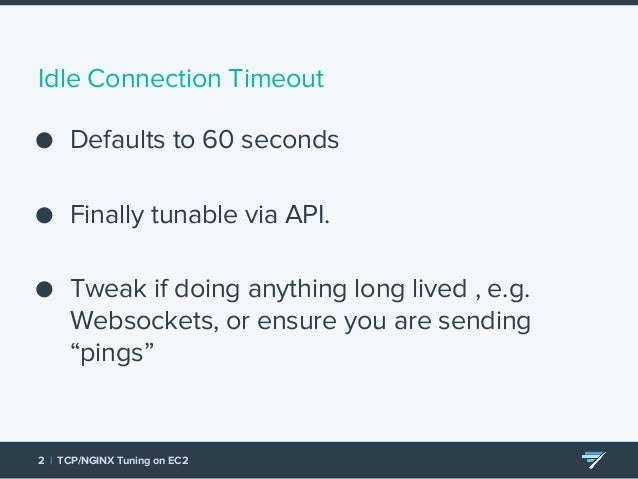

Idle Connection Timeout ● Defaults to 60 seconds ● Finally tunable via API. ● Tweak if doing anything long lived , e.g....

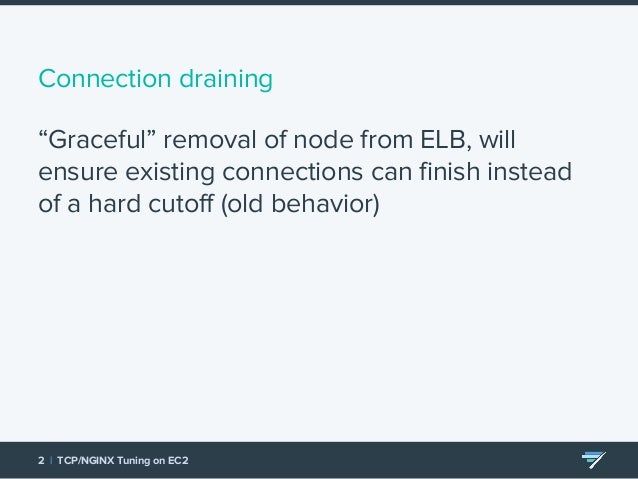

Connection draining “Graceful” removal of node from ELB, will ensure existing connections can finish instead of a hard ...

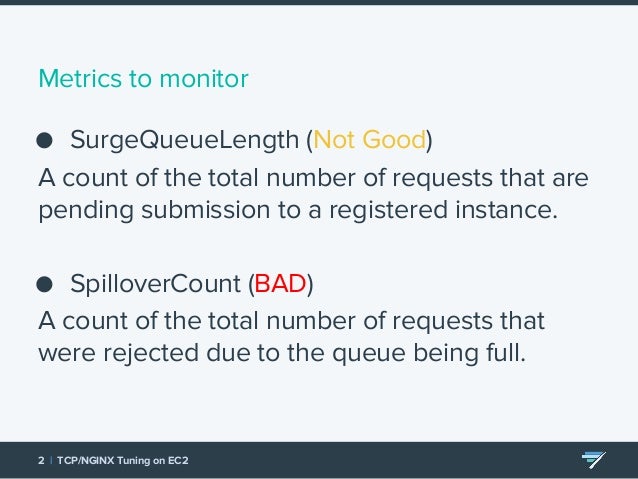

Metrics to monitor ● SurgeQueueLength (Not Good) A count of the total number of requests that are pending submission to...

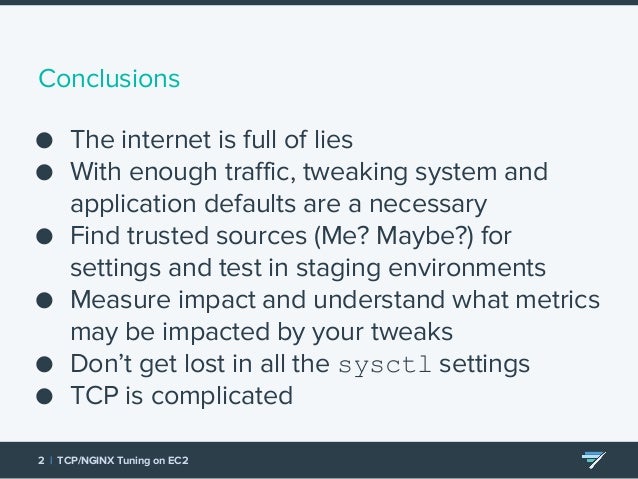

Conclusions ● The internet is full of lies ● With enough traffic, tweaking system and application defaults are a necess...

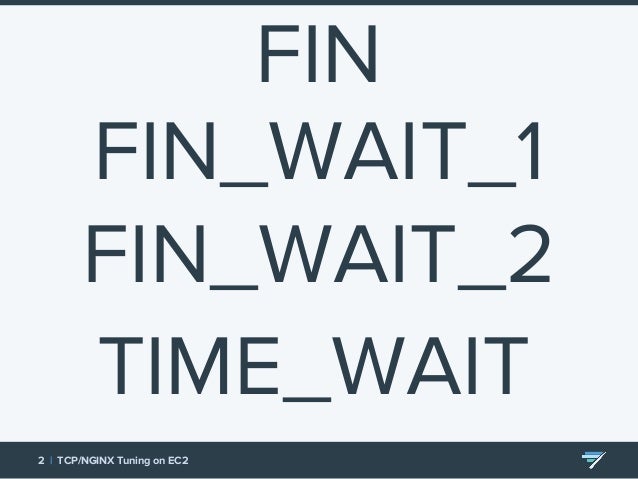

2 | TCP/NGINX Tuning on EC2 FIN FIN_WAIT_1 FIN_WAIT_2 TIME_WAIT
Resources and References https://www.kernel. org/doc/Documentation/networking/ip-sysctl.txt 2 | TCP/NGINX Tuning on EC2...

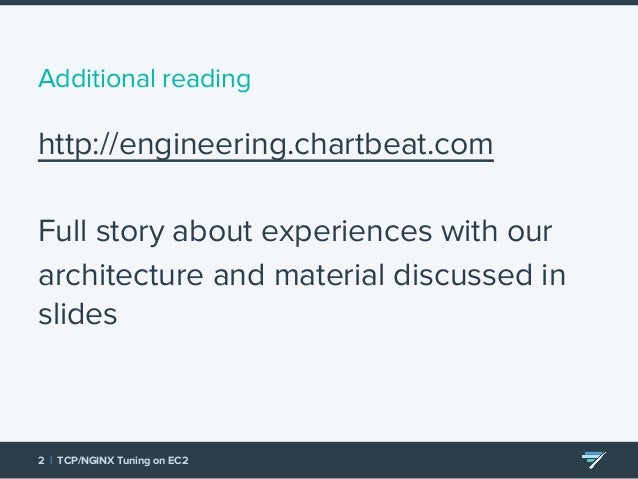

Additional reading http://engineering.chartbeat.com Full story about experiences with our architecture and material dis...
Questions / Comments? 2 | TCP/NGINX Tuning on EC2 @Lintzston justin@chartbeat.com
Upcoming SlideShare
Loading in …5
×

Tuning TCP and NGINX on EC2

7,157
 -1

Published on

Our Sr. Web Operations Engineer, Justin Lintz, goes over some parameters we tuned in TCP and NGINX to improve the performance and stability of our systems. These slides are a complement to a two part blog post found over on our engineering blog.

http://engineering.chartbeat.com/2014/01/02/part-1-lessons-learned-tuning-tcp-and-nginx-in-ec2/

http://engineering.chartbeat.com/2014/02/12/part-2-lessons-learned-tuning-tcp-and-nginx-in-ec2/

Published in: Technology
0 Comments
37 Likes
Statistics
Notes
no profile picture user

  • Be the first to comment

Show More
No Downloads
Views
Total Views
7,157
On Slideshare
0
From Embeds
0
Number of Embeds
7
Actions
Shares
0
Downloads
142
Comments
0
Likes
37
Embeds 0
No embeds

No notes for slide
  • Record traffic during US Election and World Cup, USA vs Germany 10+ million concurrents. Presidential election at the time was 2x our normal traffic
  • High packet rate, low bandwidth. 43 bytes is small empty image we can send. Need this for error handling purposes on frontend side. Can’t send empty response
  • Reports from users about slowness in sending “pings” to our servers. Slow clients, slowness doesn’t really affect our numbers too much as long as its arriving < 5 seconds. Asked for some numbers, seeing pings taking around 3 seconds . That number sets off some alarms
  • These two numbers should raise alarms when you are doing any troubleshooting with TCP connections. 3 seconds is the default timeout for re-trying a connection, will backoff and re-try after 6 seconds, so 9 seconds total for a connection
  • Maybe on client side? How do we know it’s on us? At the time our Pingdom monitoring didn’t show anything unusual, later learned this is definitely not enough
  • Especially if you don’t have a good baseline for some metrics, you will end up chasing oddities in graphs that may be completely irrelevant
  • Only graphed relevant info from netstat -s, there is a ton of metrics that may be useful for debugging other issues, but we started with these since they appeared to be most related with the issue at hand. For example, “fast retransmit” , while relevant, wouldnt indicate a delay of 3 seconds, since it bypasses the timeout. Push these to ganglia/graphite
  • Had to enable logging, discard after hour, space contraints. Rotation impacts performance, switch to ext4 on log volume helped, no compress
  • Confirmed issues, didn’t give us a source. But some symptoms to look into.
  • Two queues, first for half established connections , can make large to help with SYN floods, although given todays flood attacks, probably not much help
    Second queue for established connections for your app to pluck off
    max_syn_backlog = system wide
    net.core.somaxconn = per process
  • Still not 100% sure what this controls, from looking at Kernel source , it appears to be this

    Nginx backlog originally wasn’t documented in documentation, I had to find this in the source code and from googling
  • Didnt know about nginx listen backlog at first. Initially changed first three values, saw a slight decrease in timeouts and listen queue overflows ,took a bunch of reading till I learned about the fact that each application has to set its own backlog queue and even further research to find what nginxs default value was

  • Kernel will reuse sockets in TIME_WAIT when it can, a socket in a TIME_WAIT state actually doesn’t take up any resources
  • Tweak if dealing with sending/receiving large amounts of data to improve throughput
    We changed but our throughput is fairly low per server so didn’t see any measurable impact
  • Internet gets this wrong a lot. TIME_WAIT takes up no memory
  • everyone on the internet gets this wrong! If you really want to change TIME_WAIT time , see ip_conntrack_tcp_timeout_time_wait in ip_conntrack module
  • The pressure relates to the rmem and wmem settings we set earlier.
  • Definitions wrong, harmful settings recommended, even seen this in a lot of books when searching books.google.com for settings
  • If you are reading any blog/book that recommends enabling this, run far away
  • Amazing read into why recycle is bad, and why TIME_WAIT exists
  • Allows for more data in flight, if you are serving up larger content, you will see nice improvements here
  • Defer , saves on resources where handshake occurs but no data is sent or data is delayed. Leaves Nginx free to deal with connections already sending a data payload
  • we set both to on. Small payloads
    tcp_nopush = application controls things
    tcp_nodelay = seamless to developer, just happens
    multi_accept, we have off, given our constant stream of connections, it can overwhelm downstream
  • Lower CPU utilization as well
  • Previous behavior, if request hit ELB in AZ us-east-1d, would only get routed to instances behind there. This change really smoothed out distribution for us
  • Indicates capacity issues
  • It’s easy to get carried away and tune too many things (premature optimization) or settings which may have little to no effect for you.
  • Dont trust random blogs, filled with terrible information. Sysctl settings defined wrong or extremely vague
