1. 1. Evolution of AWS Backend of SmartNews 2016/01/27 Classmethod x SmartNews AWS Night
2. 2. Self Introduction • Nobutoshi Ogata • Manager, Site Reliability Engineering • @nobu666 • ❤ Whiskey, Cat, Heavy Metal • Entrusted dev.(10y) ➡ Game platform infrastructure(3y) ➡ Some startup(1y) ➡ SmartNews(2015/05-)
3. 3. SmartNews
4. 4. 15,000,000+ downloads worldwide

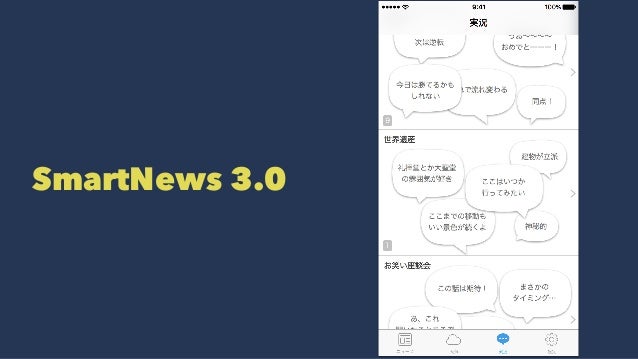

5. 5. SmartNews 3.0
6. 6. LINE Stamp shipped today

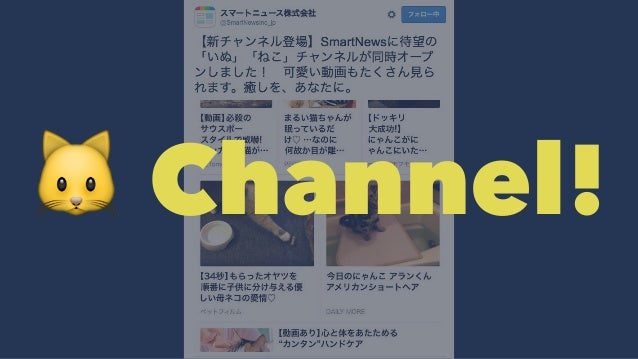

7. 7. ! Channel!

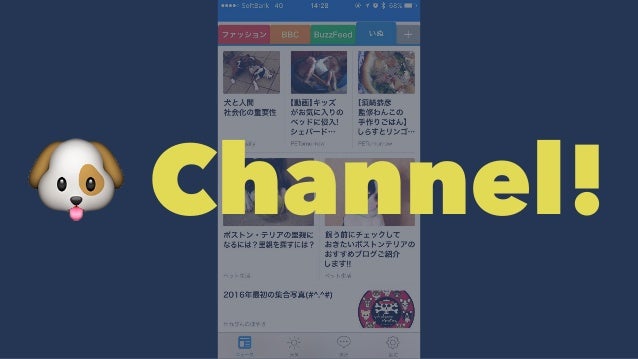

8. 8. ! Channel!
9. 9. Questionnaire

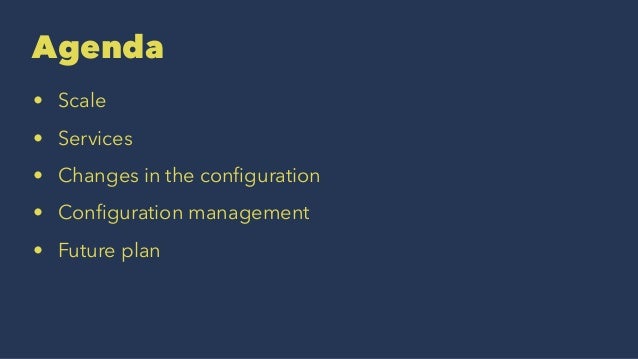

10. 10. Agenda • Scale • Services • Changes in the configuration • Configuration management • Future plan
11. 11. Scale

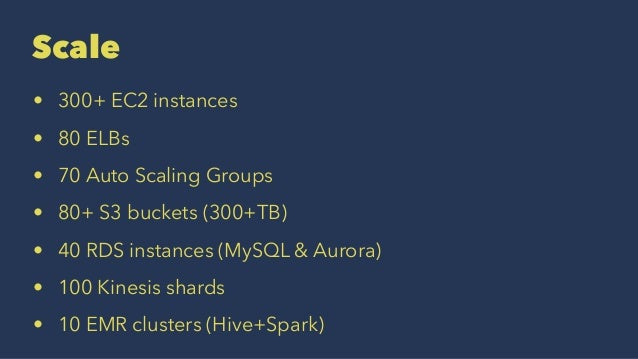

12. 12. Scale • 300+ EC2 instances • 80 ELBs • 70 Auto Scaling Groups • 80+ S3 buckets (300+TB) • 40 RDS instances (MySQL & Aurora) • 100 Kinesis shards • 10 EMR clusters (Hive+Spark)

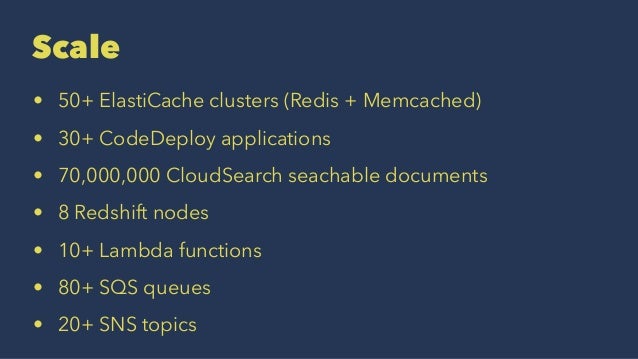

13. 13. Scale • 50+ ElastiCache clusters (Redis + Memcached) • 30+ CodeDeploy applications • 70,000,000 CloudSearch seachable documents • 8 Redshift nodes • 10+ Lambda functions • 80+ SQS queues • 20+ SNS topics

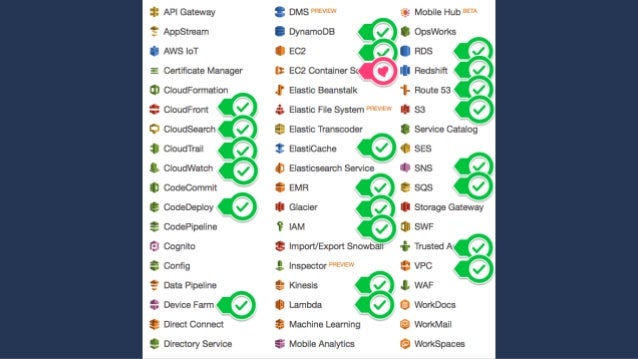

14. 14. Services
15. 15. Changes in the configuration

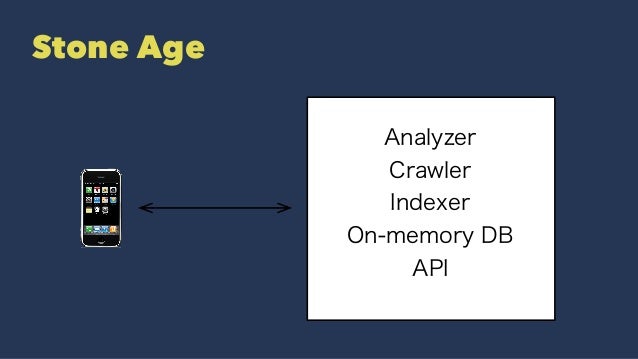

16. 16. Stone Age Analyzer Crawler Indexer On-memory DB API

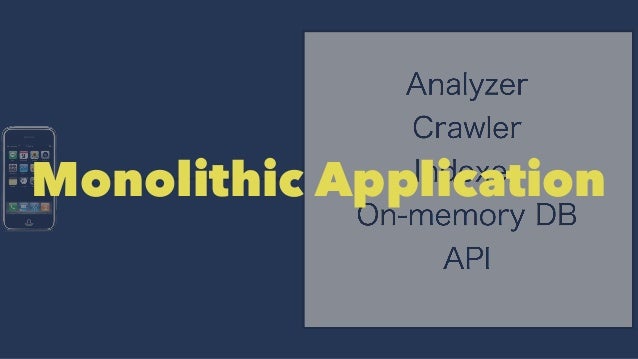

17. 17. Monolithic Application

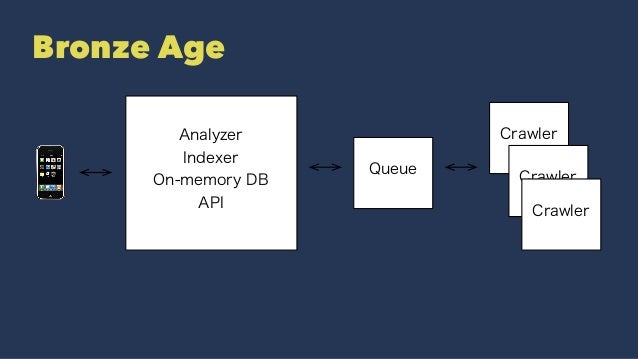

18. 18. Bronze Age Analyzer Indexer On-memory DB API Crawler Crawler Crawler Queue

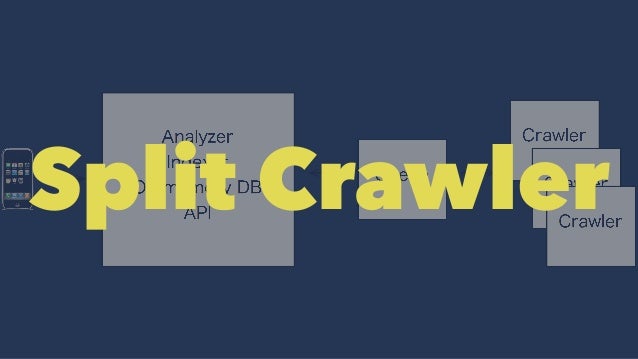

19. 19. Split Crawler

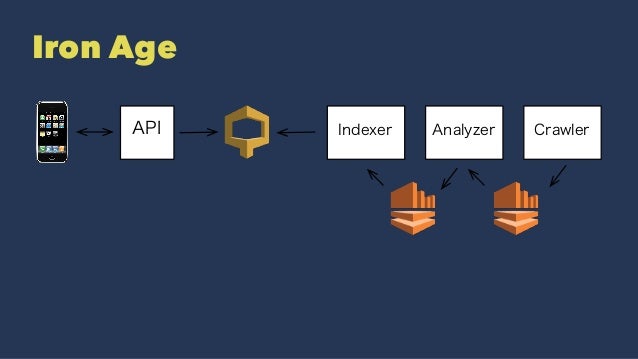

20. 20. Iron Age API Indexer Analyzer Crawler

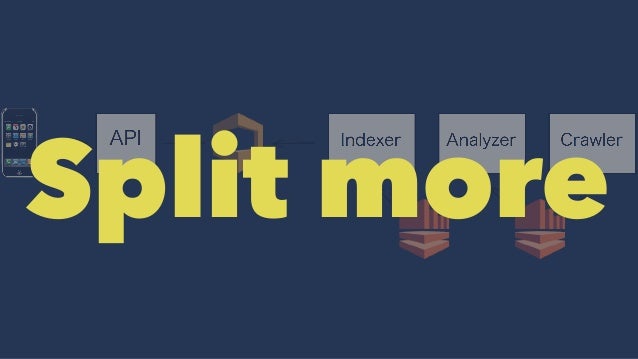

21. 21. Split more
22. 22. Present day Crawler Nationality detector Language detector Analyzer Facial recognition Indexer Ranking Search Recommend API Gateway Admin tool Validator Proxy Live Push Sexy detector Auth Proxy
23. 23. Micro Services?

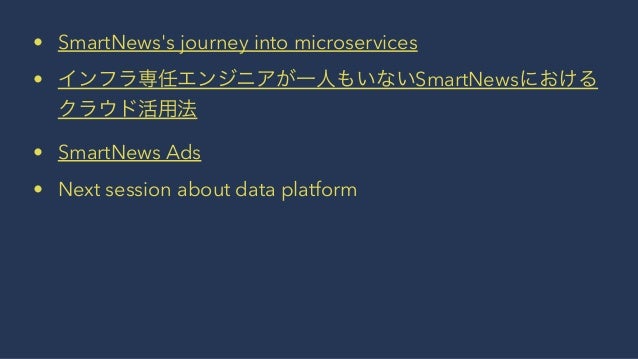

24. 24. • SmartNews's journey into microservices • インフラ専任エンジニアが一人もいないSmartNewsにおける クラウド活用法 • SmartNews Ads • Next session about data platform
25. 25. Configuration management
26. 26. Pull style deploy

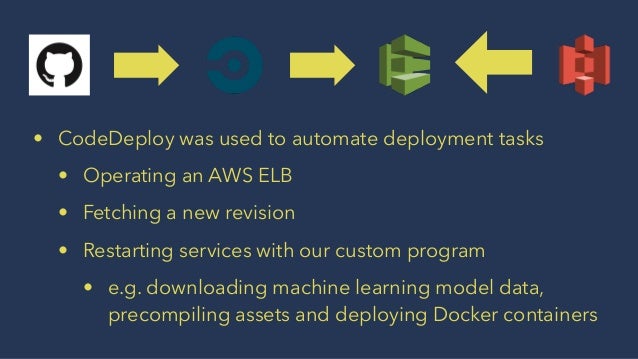

27. 27. ➡ ➡ • CodeDeploy was used to automate deployment tasks • Operating an AWS ELB • Fetching a new revision • Restarting services with our custom program • e.g. downloading machine learning model data, precompiling assets and deploying Docker containers

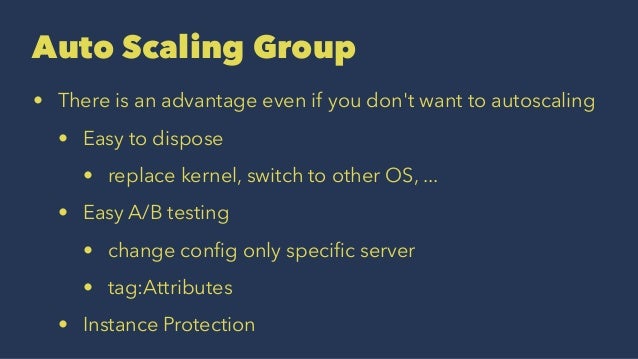

28. 28. Auto Scaling Group • There is an advantage even if you don't want to autoscaling • Easy to dispose • replace kernel, switch to other OS, ... • Easy A/B testing • change config only specific server • tag:Attributes • Instance Protection

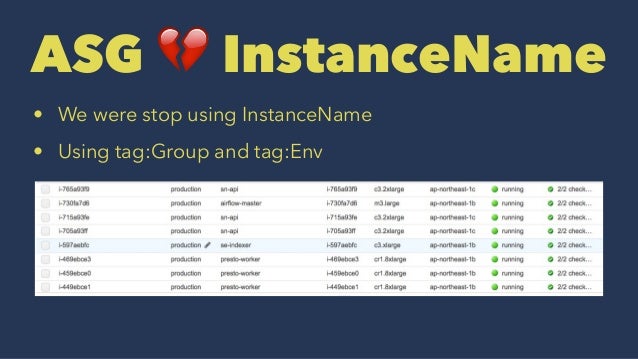

29. 29. ASG ! InstanceName • We were stop using InstanceName • Using tag:Group and tag:Env

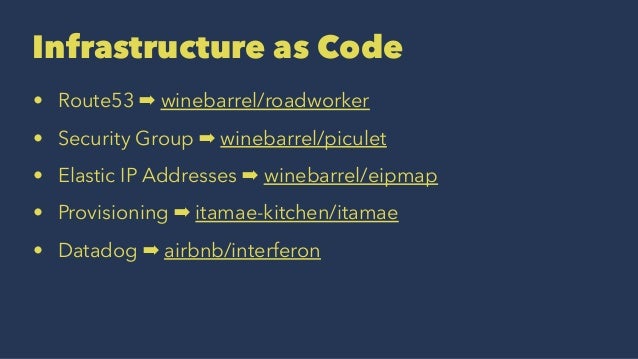

30. 30. Infrastructure as Code • Route53 ➡ winebarrel/roadworker • Security Group ➡ winebarrel/piculet • Elastic IP Addresses ➡ winebarrel/eipmap • Provisioning ➡ itamae-kitchen/itamae • Datadog ➡ airbnb/interferon

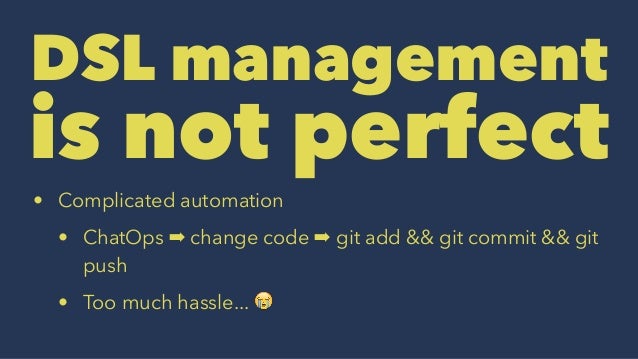

31. 31. DSL management is not perfect • Complicated automation • ChatOps ➡ change code ➡ git add && git commit && git push • Too much hassle... !

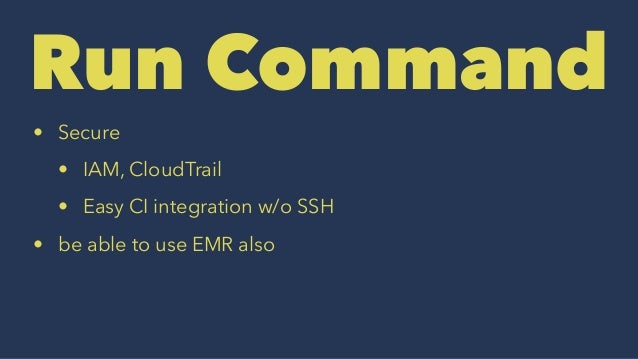

32. 32. Run Command • Secure • IAM, CloudTrail • Easy CI integration w/o SSH • be able to use EMR also

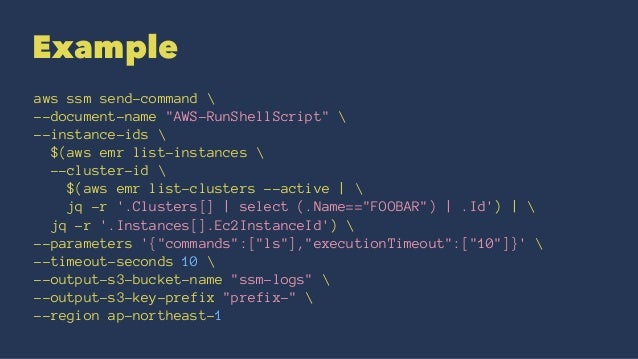

33. 33. Example aws ssm send-command --document-name "AWS-RunShellScript" --instance-ids $(aws emr list-instances --cluster-id $(aws emr list-clusters --active | jq -r '.Clusters[] | select (.Name=="FOOBAR") | .Id') | jq -r '.Instances[].Ec2InstanceId') --parameters '{"commands":["ls"],"executionTimeout":["10"]}' --timeout-seconds 10 --output-s3-bucket-name "ssm-logs" --output-s3-key-prefix "prefix-" --region ap-northeast-1
34. 34. Future plan
35. 35. ECS Spot Fleet Contaniner Registry ConsulAWS Blackbelt 2015 ECS p.98
36. 36. Containerize all services
37. 37. Scalable Safety Efficient Portable Measurable
38. 38. Aggregates events

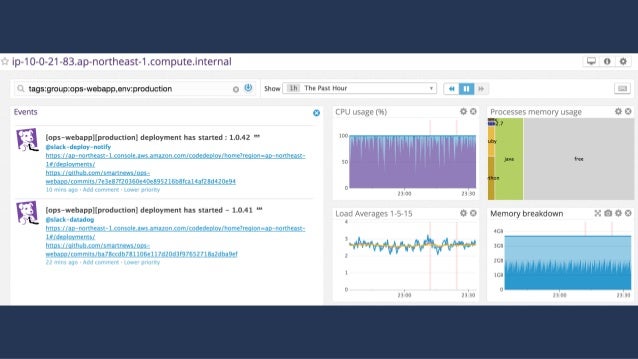

39. 39. Events aggregator • Events • Deploy/Provision/Restart/Terminate etc. • All events goes to SNS or Kinesis. Users will describe and hook scripts • Visualize via Datadog • Notice to Slack • Auto healing
40. 40. Summary
41. 41. Summary• AWS release new service continuously • We ride on the shoulders of giants • We will never forget that OSS helped us
42. 42. We're hiring! Only two people on Site Reliability Engineering Team http://about.smartnews.com/en/careers/
