1. Tips for better CI on Android Tomoaki Imai @Potatotips #22 2015/10/13

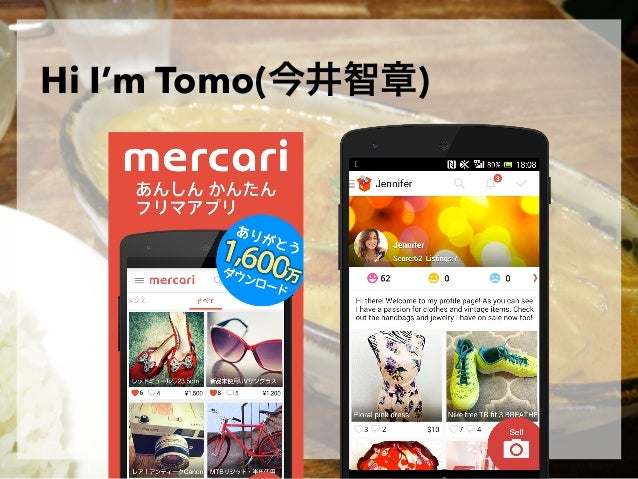

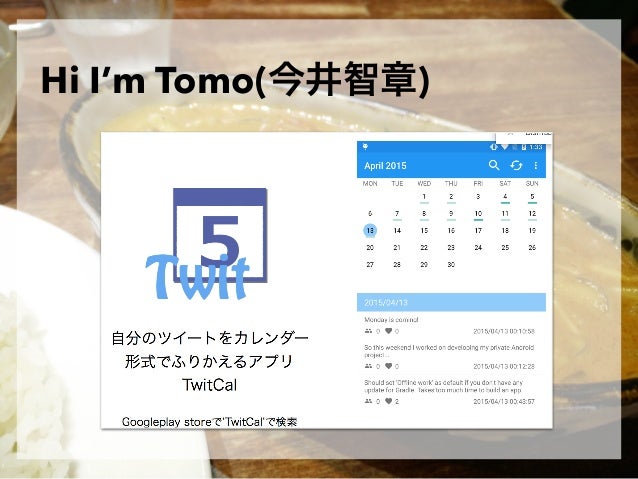

2. Hi I’m Tomo(今井智章)

7. Continuous Integration on Android

8. 1. How do we CI on Android 2. 4 tips for better CI

10. How do we CI Mercari Android App?

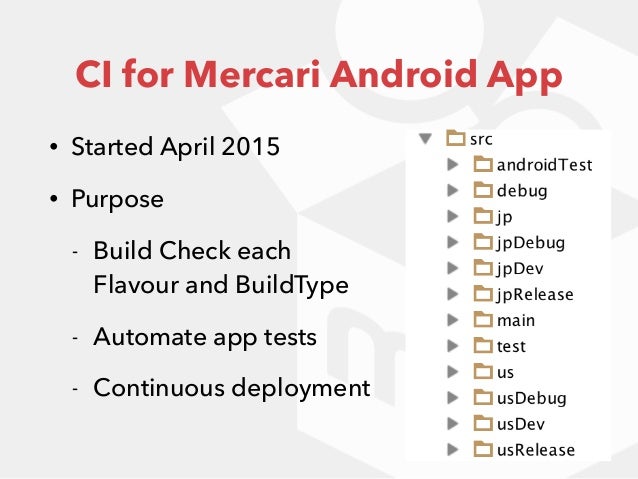

11. CI for Mercari Android App • Started April 2015 • Purpose - Build Check each Flavour and BuildType - Automate app tests - Continuous deployment

12. Phase 1: Travis CI

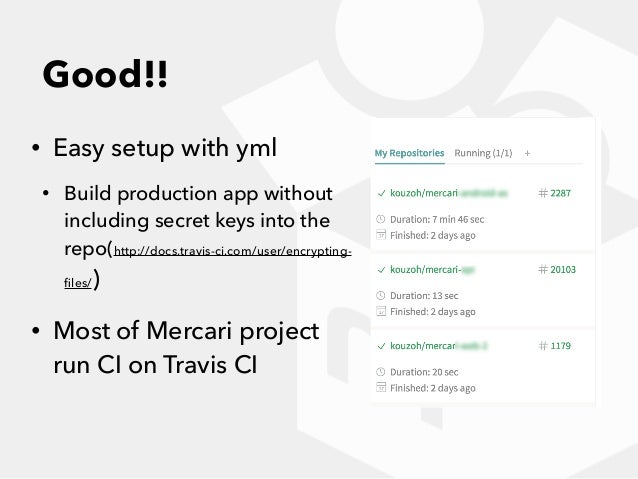

13. Good!! • Easy setup with yml • Build production app without including secret keys into the repo(http://docs.travis-ci.com/user/encrypting- ﬁles/) • Most of Mercari project run CI on Travis CI

14. So-so… • Need some tweaks to avoid Out of Memory • Slow. Takes 12-15min/per build check

15. Phase 2: circleCI

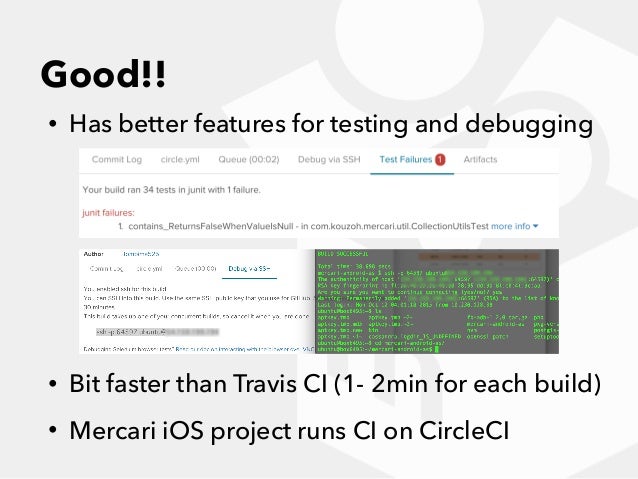

16. Good!! • Has better features for testing and debugging • Bit faster than Travis CI (1- 2min for each build) • Mercari iOS project runs CI on CircleCI

17. So-so… • Need some tweaks to avoid Out of Memory • Building production app looked a bit tricky (Haven’t tried yet)

18. Both CI service have good parts…

19. Why not use both?

20. Phase 3: Travis CI & circleCI

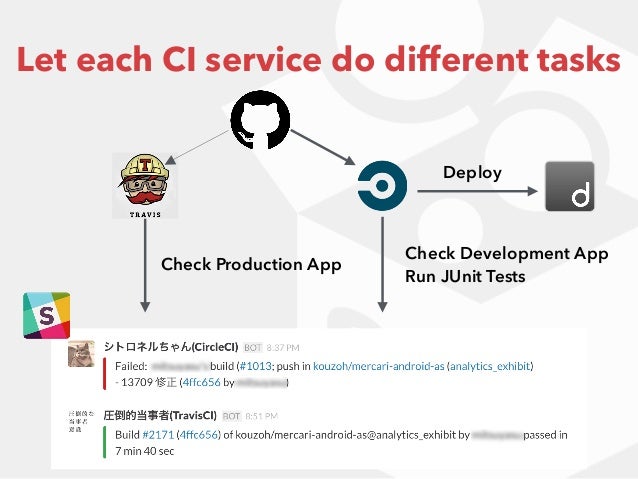

21. Check Production App Check Development App Run JUnit Tests Deploy Let each CI service do different tasks

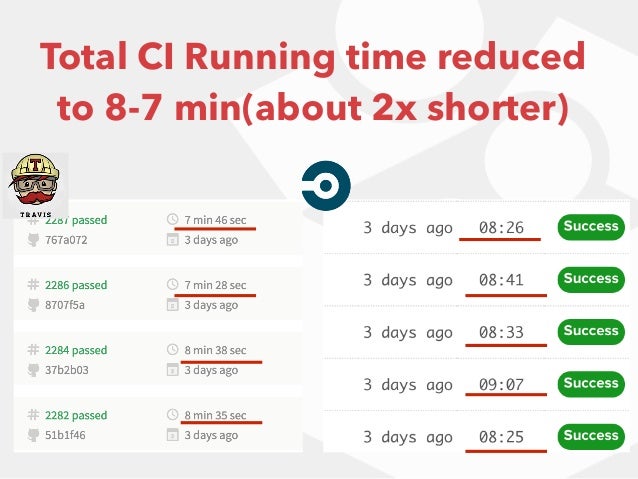

22. Total CI Running time reduced to 8-7 min(about 2x shorter)

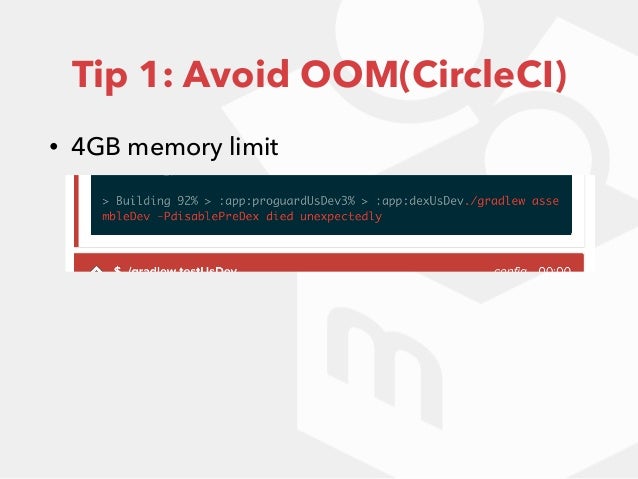

24. Tip 1: Avoid OOM(CircleCI) • 4GB memory limit

25. Tip 1: Avoid OOM(CircleCI) • 4GB memory limit

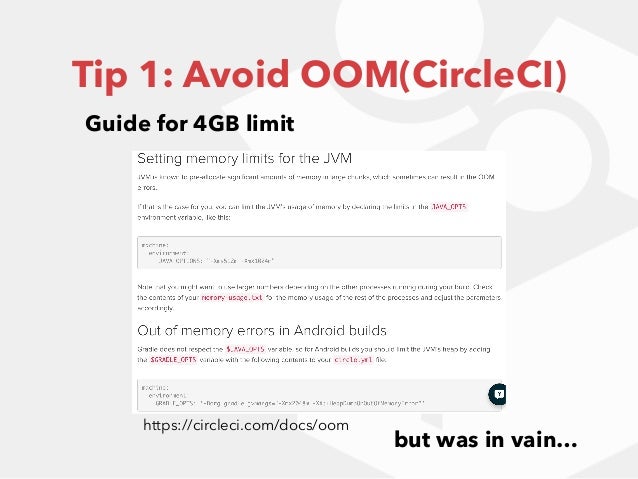

26. Tip 1: Avoid OOM(CircleCI) https://circleci.com/docs/oom but was in vain… Guide for 4GB limit

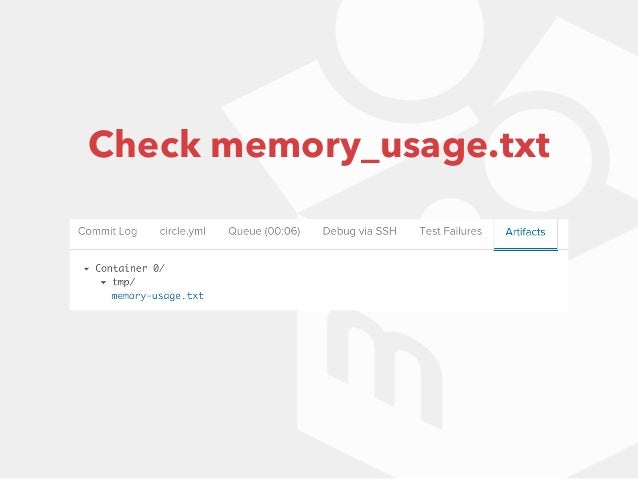

27. Check memory_usage.txt

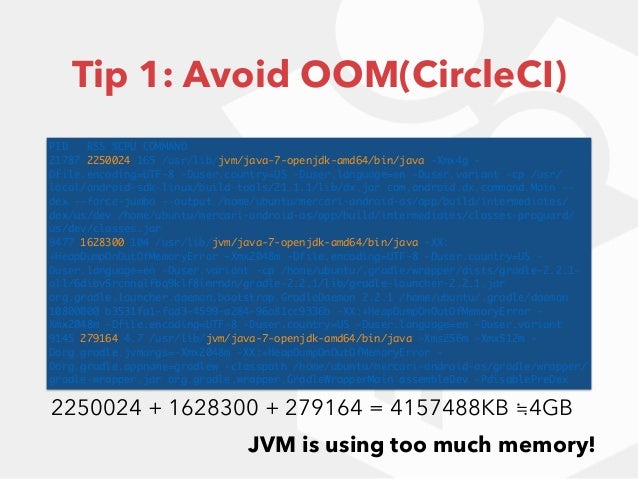

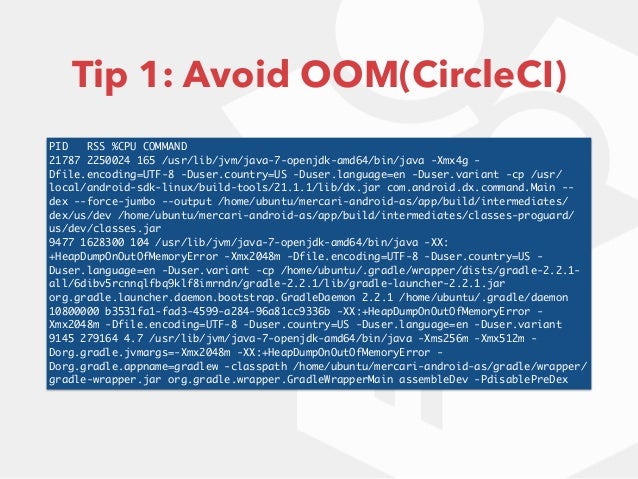

28. PID RSS %CPU COMMAND 21787 2250024 165 /usr/lib/jvm/java-7-openjdk-amd64/bin/java -Xmx4g - Dfile.encoding=UTF-8 -Duser.country=US -Duser.language=en -Duser.variant -cp /usr/ local/android-sdk-linux/build-tools/21.1.1/lib/dx.jar com.android.dx.command.Main -- dex --force-jumbo --output /home/ubuntu/mercari-android-as/app/build/intermediates/ dex/us/dev /home/ubuntu/mercari-android-as/app/build/intermediates/classes-proguard/ us/dev/classes.jar 9477 1628300 104 /usr/lib/jvm/java-7-openjdk-amd64/bin/java -XX: +HeapDumpOnOutOfMemoryError -Xmx2048m -Dfile.encoding=UTF-8 -Duser.country=US - Duser.language=en -Duser.variant -cp /home/ubuntu/.gradle/wrapper/dists/gradle-2.2.1- all/6dibv5rcnnqlfbq9klf8imrndn/gradle-2.2.1/lib/gradle-launcher-2.2.1.jar org.gradle.launcher.daemon.bootstrap.GradleDaemon 2.2.1 /home/ubuntu/.gradle/daemon 10800000 b3531fa1-fad3-4599-a284-96a81cc9336b -XX:+HeapDumpOnOutOfMemoryError - Xmx2048m -Dfile.encoding=UTF-8 -Duser.country=US -Duser.language=en -Duser.variant 9145 279164 4.7 /usr/lib/jvm/java-7-openjdk-amd64/bin/java -Xms256m -Xmx512m - Dorg.gradle.jvmargs=-Xmx2048m -XX:+HeapDumpOnOutOfMemoryError - Dorg.gradle.appname=gradlew -classpath /home/ubuntu/mercari-android-as/gradle/wrapper/ gradle-wrapper.jar org.gradle.wrapper.GradleWrapperMain assembleDev -PdisablePreDex Tip 1: Avoid OOM(CircleCI)

29. PID RSS %CPU COMMAND 21787 2250024 165 /usr/lib/jvm/java-7-openjdk-amd64/bin/java -Xmx4g - Dfile.encoding=UTF-8 -Duser.country=US -Duser.language=en -Duser.variant -cp /usr/ local/android-sdk-linux/build-tools/21.1.1/lib/dx.jar com.android.dx.command.Main -- dex --force-jumbo --output /home/ubuntu/mercari-android-as/app/build/intermediates/ dex/us/dev /home/ubuntu/mercari-android-as/app/build/intermediates/classes-proguard/ us/dev/classes.jar 9477 1628300 104 /usr/lib/jvm/java-7-openjdk-amd64/bin/java -XX: +HeapDumpOnOutOfMemoryError -Xmx2048m -Dfile.encoding=UTF-8 -Duser.country=US - Duser.language=en -Duser.variant -cp /home/ubuntu/.gradle/wrapper/dists/gradle-2.2.1- all/6dibv5rcnnqlfbq9klf8imrndn/gradle-2.2.1/lib/gradle-launcher-2.2.1.jar org.gradle.launcher.daemon.bootstrap.GradleDaemon 2.2.1 /home/ubuntu/.gradle/daemon 10800000 b3531fa1-fad3-4599-a284-96a81cc9336b -XX:+HeapDumpOnOutOfMemoryError - Xmx2048m -Dfile.encoding=UTF-8 -Duser.country=US -Duser.language=en -Duser.variant 9145 279164 4.7 /usr/lib/jvm/java-7-openjdk-amd64/bin/java -Xms256m -Xmx512m - Dorg.gradle.jvmargs=-Xmx2048m -XX:+HeapDumpOnOutOfMemoryError - Dorg.gradle.appname=gradlew -classpath /home/ubuntu/mercari-android-as/gradle/wrapper/ gradle-wrapper.jar org.gradle.wrapper.GradleWrapperMain assembleDev -PdisablePreDex Tip 1: Avoid OOM(CircleCI) JVM is using too much memory! 2250024 + 1628300 + 279164 = 4157488KB ≒4GB

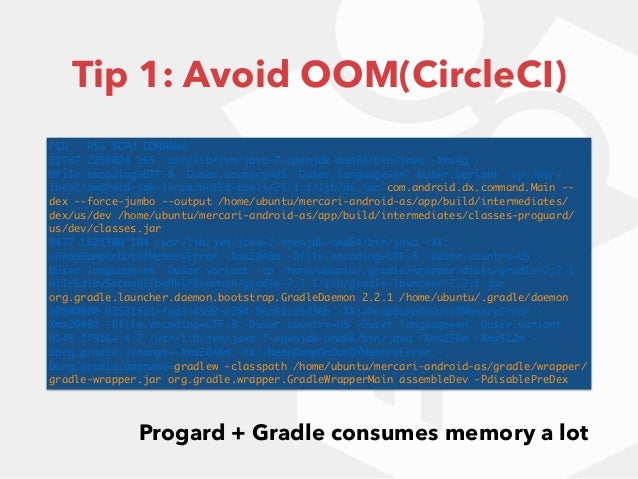

30. PID RSS %CPU COMMAND 21787 2250024 165 /usr/lib/jvm/java-7-openjdk-amd64/bin/java -Xmx4g - Dfile.encoding=UTF-8 -Duser.country=US -Duser.language=en -Duser.variant -cp /usr/ local/android-sdk-linux/build-tools/21.1.1/lib/dx.jar com.android.dx.command.Main -- dex --force-jumbo --output /home/ubuntu/mercari-android-as/app/build/intermediates/ dex/us/dev /home/ubuntu/mercari-android-as/app/build/intermediates/classes-proguard/ us/dev/classes.jar 9477 1628300 104 /usr/lib/jvm/java-7-openjdk-amd64/bin/java -XX: +HeapDumpOnOutOfMemoryError -Xmx2048m -Dfile.encoding=UTF-8 -Duser.country=US - Duser.language=en -Duser.variant -cp /home/ubuntu/.gradle/wrapper/dists/gradle-2.2.1- all/6dibv5rcnnqlfbq9klf8imrndn/gradle-2.2.1/lib/gradle-launcher-2.2.1.jar org.gradle.launcher.daemon.bootstrap.GradleDaemon 2.2.1 /home/ubuntu/.gradle/daemon 10800000 b3531fa1-fad3-4599-a284-96a81cc9336b -XX:+HeapDumpOnOutOfMemoryError - Xmx2048m -Dfile.encoding=UTF-8 -Duser.country=US -Duser.language=en -Duser.variant 9145 279164 4.7 /usr/lib/jvm/java-7-openjdk-amd64/bin/java -Xms256m -Xmx512m - Dorg.gradle.jvmargs=-Xmx2048m -XX:+HeapDumpOnOutOfMemoryError - Dorg.gradle.appname=gradlew -classpath /home/ubuntu/mercari-android-as/gradle/wrapper/ gradle-wrapper.jar org.gradle.wrapper.GradleWrapperMain assembleDev -PdisablePreDex Tip 1: Avoid OOM(CircleCI) Progard + Gradle consumes memory a lot

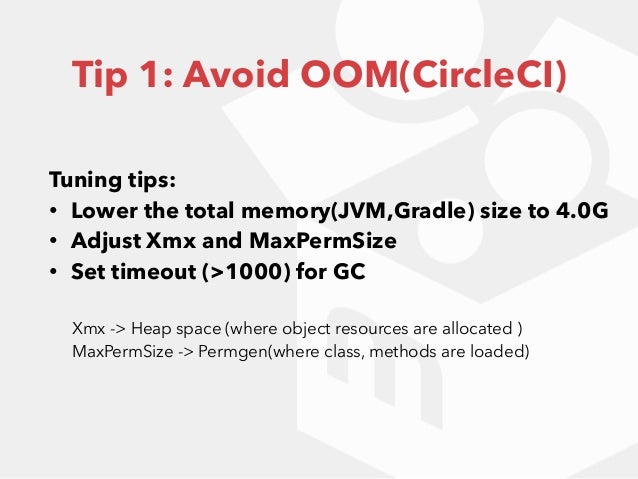

31. Tip 1: Avoid OOM(CircleCI) Tuning tips: • Lower the total memory(JVM,Gradle) size to 4.0G • Adjust Xmx and MaxPermSize • Set timeout (>1000) for GC Xmx -> Heap space (where object resources are allocated ) MaxPermSize -> Permgen(where class, methods are loaded)

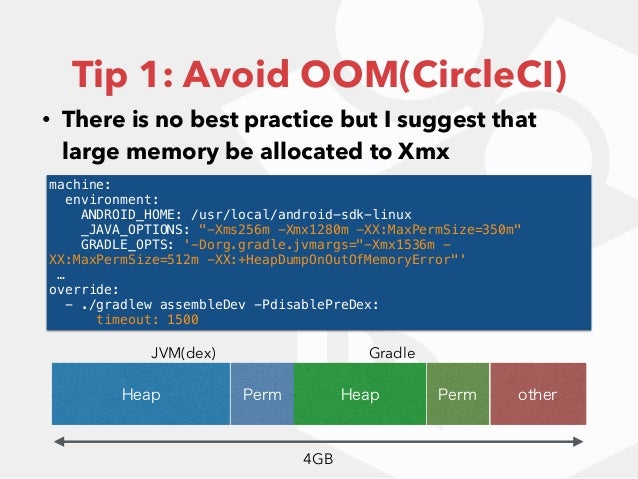

32. Tip 1: Avoid OOM(CircleCI) machine:  environment:  ANDROID_HOME: /usr/local/android-sdk-linux  _JAVA_OPTIONS: "-Xms256m -Xmx1280m -XX:MaxPermSize=350m"  GRADLE_OPTS: '-Dorg.gradle.jvmargs="-Xmx1536m - XX:MaxPermSize=512m -XX:+HeapDumpOnOutOfMemoryError"' … override:  - ./gradlew assembleDev -PdisablePreDex:  timeout: 1500 Heap Perm Heap Perm other JVM(dex) Gradle 4GB • There is no best practice but I suggest that large memory be allocated to Xmx

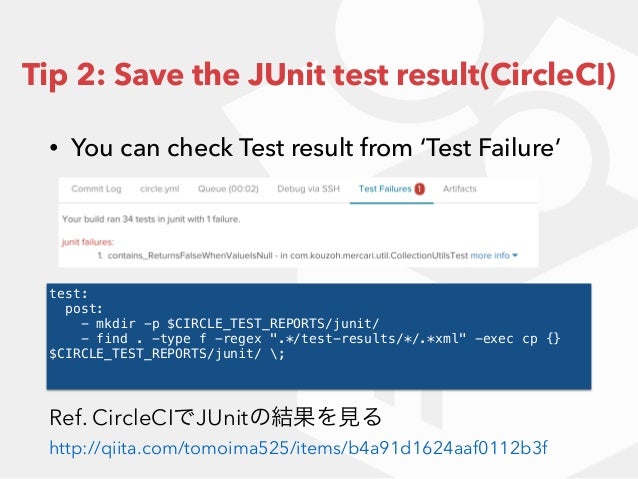

33. Tip 2: Save the JUnit test result(CircleCI) test:  post:  - mkdir -p $CIRCLE_TEST_REPORTS/junit/  - find . -type f -regex ".*/test-results/*/.*xml" -exec cp {} $CIRCLE_TEST_REPORTS/junit/ ; • You can check Test result from ‘Test Failure’ http://qiita.com/tomoima525/items/b4a91d1624aaf0112b3f Ref. CircleCIでJUnitの結果を見る

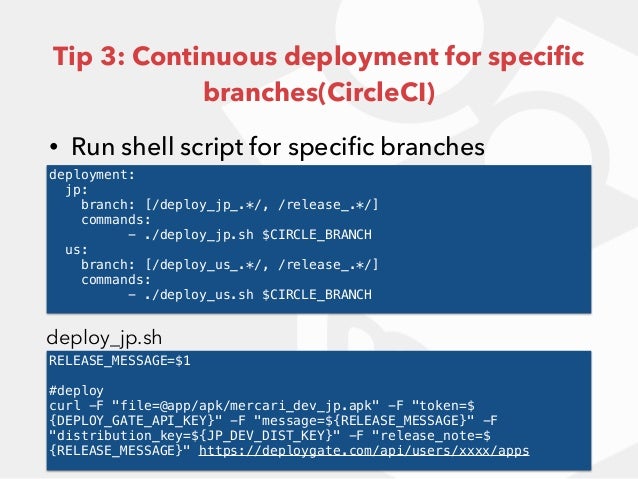

34. Tip 3: Continuous deployment for speciﬁc branches(CircleCI) • Run shell script for speciﬁc branches deployment:  jp:  branch: [/deploy_jp_.*/, /release_.*/]  commands:  - ./deploy_jp.sh $CIRCLE_BRANCH  us:  branch: [/deploy_us_.*/, /release_.*/]  commands:  - ./deploy_us.sh $CIRCLE_BRANCH RELEASE_MESSAGE=$1 #deploy  curl -F "file=@app/apk/mercari_dev_jp.apk" -F "token=$ {DEPLOY_GATE_API_KEY}" -F "message=${RELEASE_MESSAGE}" -F "distribution_key=${JP_DEV_DIST_KEY}" -F "release_note=$ {RELEASE_MESSAGE}" https://deploygate.com/api/users/xxxx/apps deploy_jp.sh

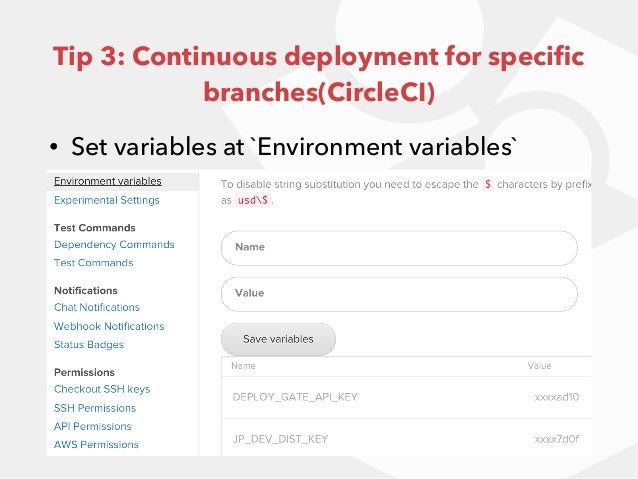

35. Tip 3: Continuous deployment for speciﬁc branches(CircleCI) • Set variables at `Environment variables`

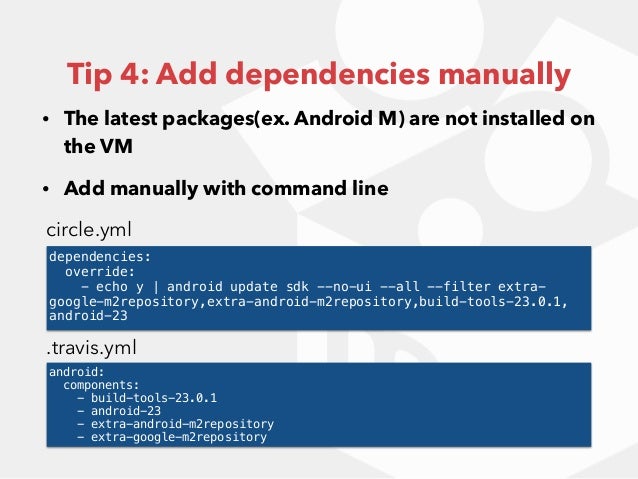

36. Tip 4: Add dependencies manually dependencies: override: - echo y | android update sdk --no-ui --all --filter extra- google-m2repository,extra-android-m2repository,build-tools-23.0.1, android-23 android: components: - build-tools-23.0.1 - android-23 - extra-android-m2repository - extra-google-m2repository .travis.yml circle.yml • The latest packages(ex. Android M) are not installed on the VM • Add manually with command line

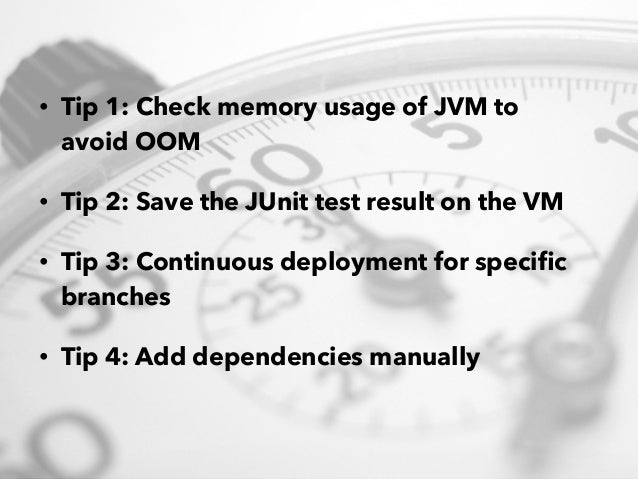

37. • Tip 1: Check memory usage of JVM to avoid OOM • Tip 2: Save the JUnit test result on the VM • Tip 3: Continuous deployment for speciﬁc branches • Tip 4: Add dependencies manually

38. Try it out for your project!
