MySQL in the Cloud

1. MySQL in the Cloud Colin Charles, MariaDB/SkySQL Ab colin@mariadb.org | byte@bytebot.net http://mariadb.com/ | http://mariadb.org/ http://bytebot.net/blog/ | @bytebot on Twitter LinuxCon/CloudOpen, New Orleans, Louisiana, USA 17 September 2013 1

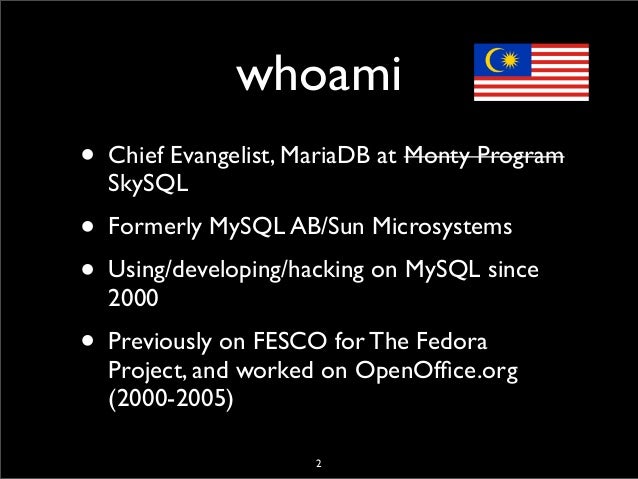

2. whoami • Chief Evangelist, MariaDB at Monty Program SkySQL • Formerly MySQL AB/Sun Microsystems • Using/developing/hacking on MySQL since 2000 • Previously on FESCO for The Fedora Project, and worked on OpenOfﬁce.org (2000-2005) 2

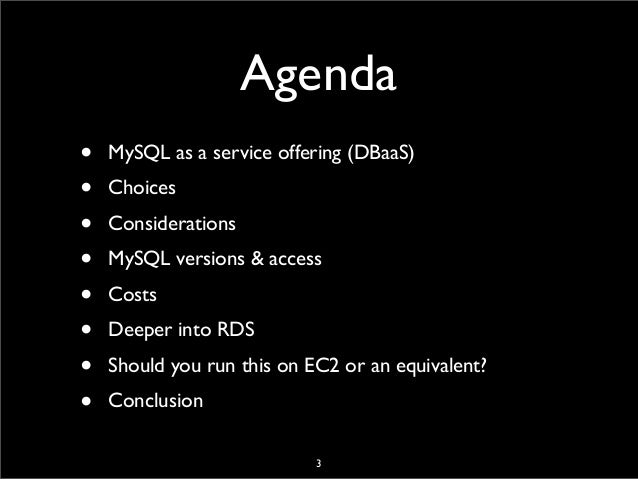

3. Agenda • MySQL as a service offering (DBaaS) • Choices • Considerations • MySQL versions & access • Costs • Deeper into RDS • Should you run this on EC2 or an equivalent? • Conclusion 3

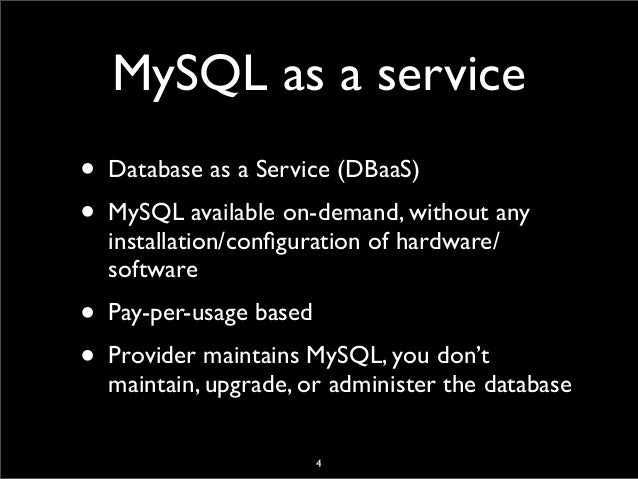

4. MySQL as a service • Database as a Service (DBaaS) • MySQL available on-demand, without any installation/conﬁguration of hardware/ software • Pay-per-usage based • Provider maintains MySQL, you don’t maintain, upgrade, or administer the database 4

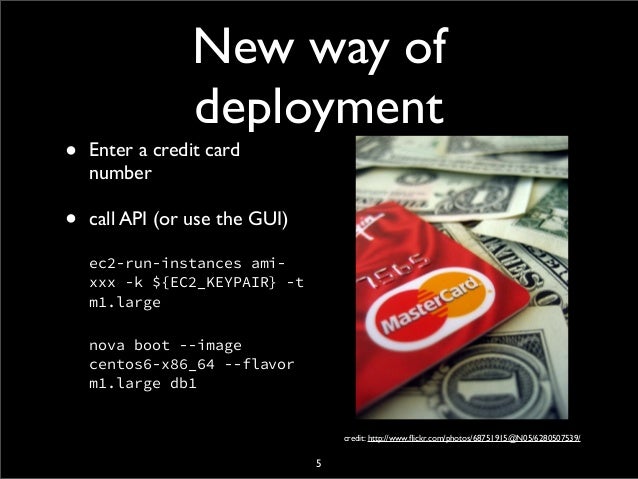

5. New way of deployment • Enter a credit card number • call API (or use the GUI) ec2-run-instances ami- xxx -k ${EC2_KEYPAIR} -t m1.large nova boot --image centos6-x86_64 --flavor m1.large db1 5 credit: http://www.ﬂickr.com/photos/68751915@N05/6280507539/

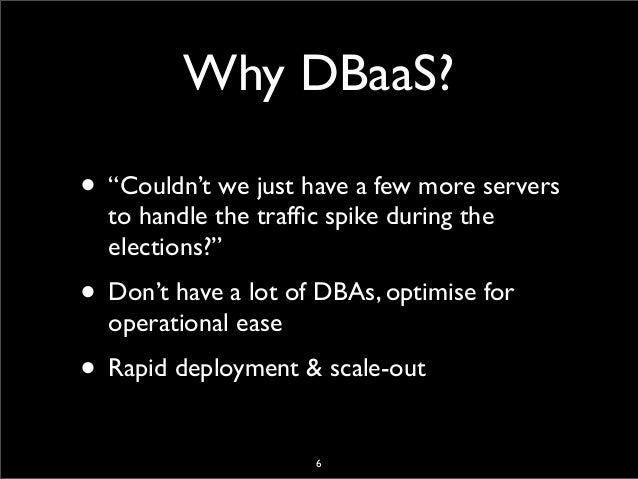

6. Why DBaaS? • “Couldn’t we just have a few more servers to handle the trafﬁc spike during the elections?” • Don’t have a lot of DBAs, optimise for operational ease • Rapid deployment & scale-out 6

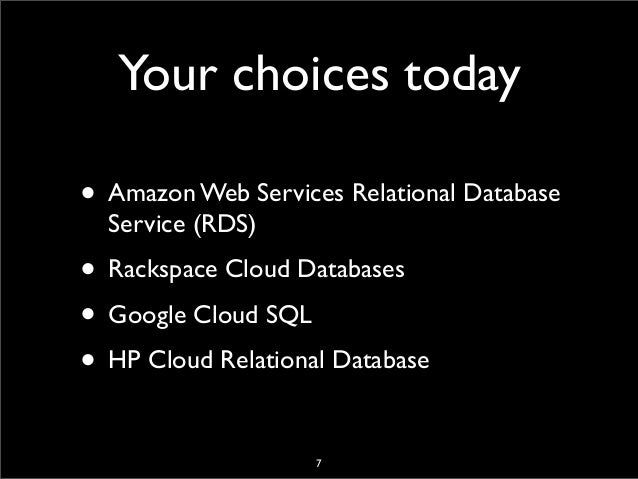

7. Your choices today • Amazon Web Services Relational Database Service (RDS) • Rackspace Cloud Databases • Google Cloud SQL • HP Cloud Relational Database 7

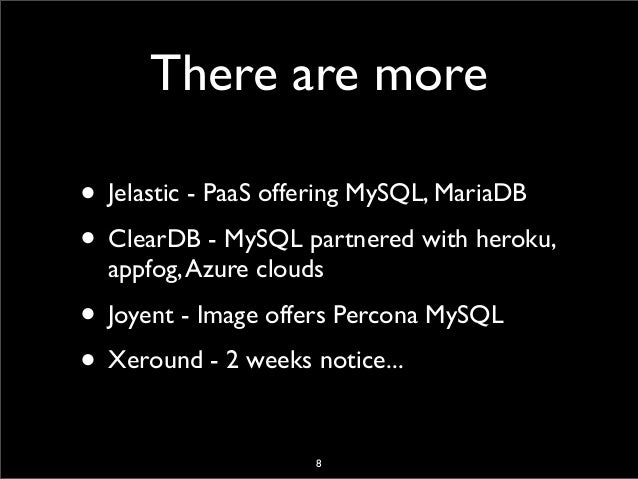

8. There are more • Jelastic - PaaS offering MySQL, MariaDB • ClearDB - MySQL partnered with heroku, appfog,Azure clouds • Joyent - Image offers Percona MySQL • Xeround - 2 weeks notice... 8

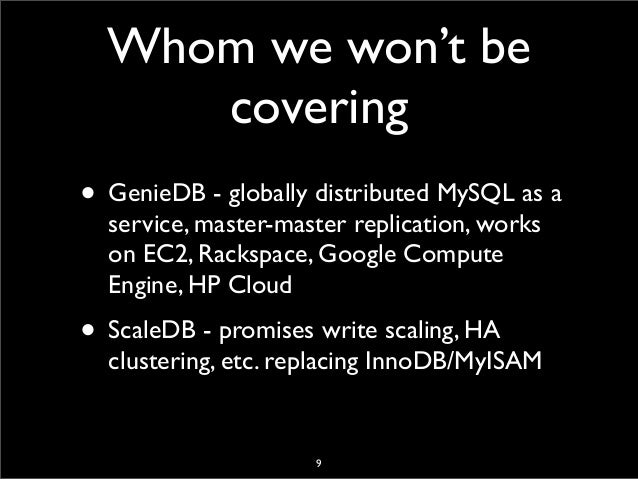

9. Whom we won’t be covering • GenieDB - globally distributed MySQL as a service, master-master replication, works on EC2, Rackspace, Google Compute Engine, HP Cloud • ScaleDB - promises write scaling, HA clustering, etc. replacing InnoDB/MyISAM 9

10. Regions & Availability Zones • Region: a data centre location, containing multiple Availability Zones • Availability Zone (AZ): isolated from failures from other AZs + low- latency network connectivity to other zones in same region 10

11. Location, location, location • AWS RDS: US East (N.Virginia), US West (Oregon), US West (California), EU (Ireland), APAC (Singapore),APAC (Tokyo),APAC (Sydney), South America (São Paulo), GovCloud • Rackspace: USA (Dallas DFW, Chicago ORD, N.Virginia IAD),APAC (Sydney), EU (London)* • Google Cloud SQL: US, EU • HP Cloud: US-East (Virginia), US-West 11

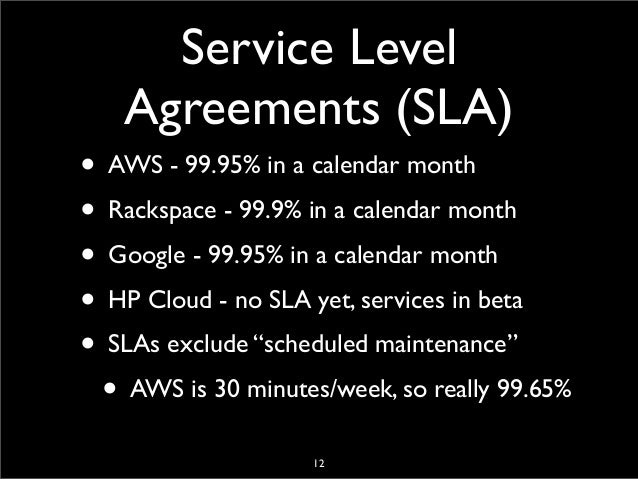

12. Service Level Agreements (SLA) • AWS - 99.95% in a calendar month • Rackspace - 99.9% in a calendar month • Google - 99.95% in a calendar month • HP Cloud - no SLA yet, services in beta • SLAs exclude “scheduled maintenance” • AWS is 30 minutes/week, so really 99.65% 12

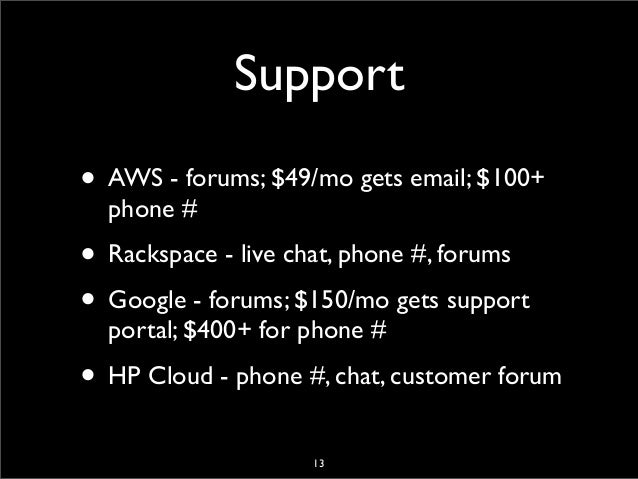

13. Support • AWS - forums; $49/mo gets email; $100+ phone # • Rackspace - live chat, phone #, forums • Google - forums; $150/mo gets support portal; $400+ for phone # • HP Cloud - phone #, chat, customer forum 13

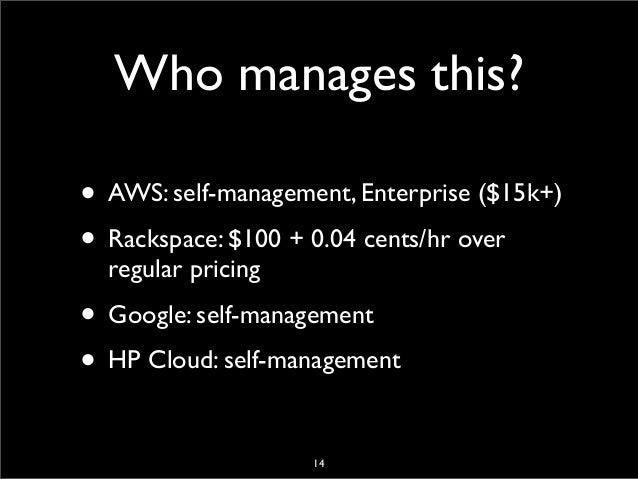

14. Who manages this? • AWS: self-management, Enterprise ($15k+) • Rackspace: $100 + 0.04 cents/hr over regular pricing • Google: self-management • HP Cloud: self-management 14

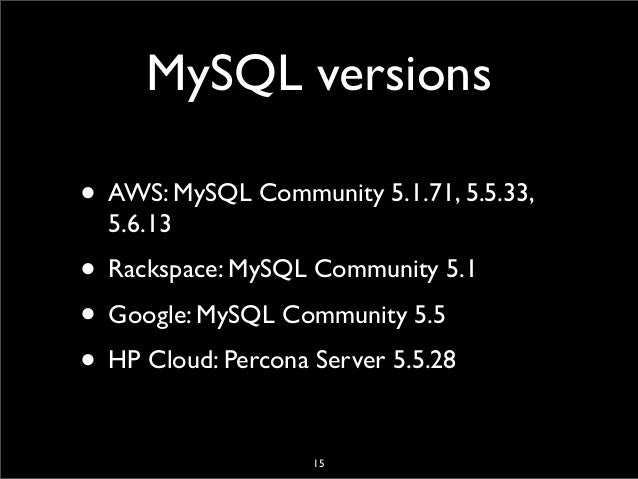

15. MySQL versions • AWS: MySQL Community 5.1.71, 5.5.33, 5.6.13 • Rackspace: MySQL Community 5.1 • Google: MySQL Community 5.5 • HP Cloud: Percona Server 5.5.28 15

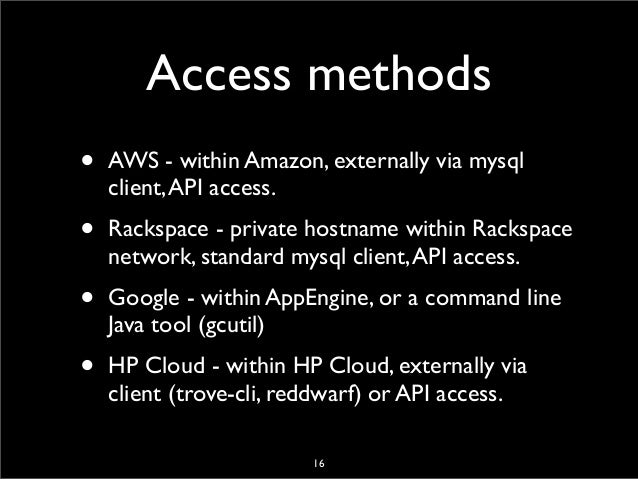

16. Access methods • AWS - within Amazon, externally via mysql client,API access. • Rackspace - private hostname within Rackspace network, standard mysql client,API access. • Google - within AppEngine, or a command line Java tool (gcutil) • HP Cloud - within HP Cloud, externally via client (trove-cli, reddwarf) or API access. 16

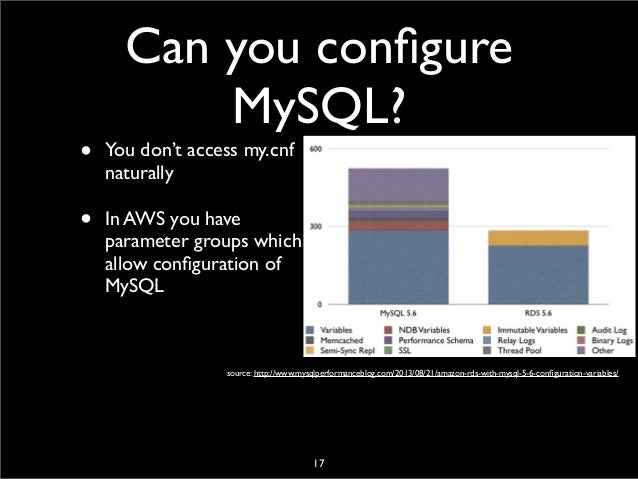

17. Can you configure MySQL? • You don’t access my.cnf naturally • In AWS you have parameter groups which allow configuration of MySQL 17 source: http://www.mysqlperformanceblog.com/2013/08/21/amazon-rds-with-mysql-5-6-configuration-variables/

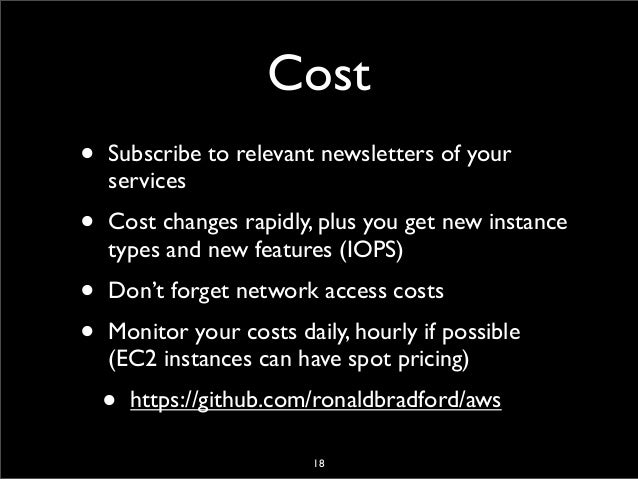

18. Cost • Subscribe to relevant newsletters of your services • Cost changes rapidly, plus you get new instance types and new features (IOPS) • Don’t forget network access costs • Monitor your costs daily, hourly if possible (EC2 instances can have spot pricing) • https://github.com/ronaldbradford/aws 18

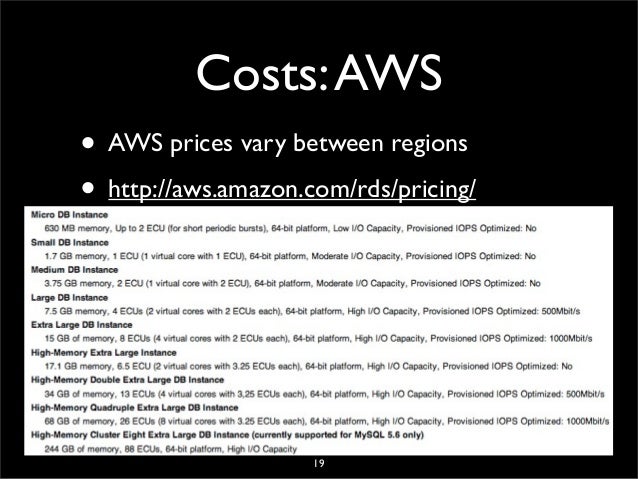

19. Costs:AWS • AWS prices vary between regions • http://aws.amazon.com/rds/pricing/ 19

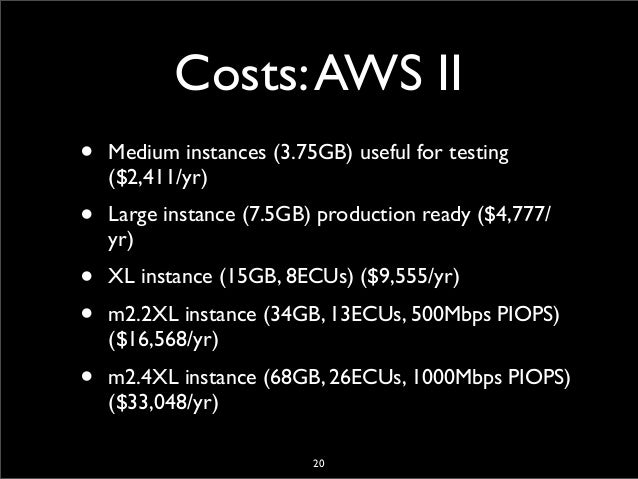

20. Costs:AWS II • Medium instances (3.75GB) useful for testing ($2,411/yr) • Large instance (7.5GB) production ready ($4,777/ yr) • XL instance (15GB, 8ECUs) ($9,555/yr) • m2.2XL instance (34GB, 13ECUs, 500Mbps PIOPS) ($16,568/yr) • m2.4XL instance (68GB, 26ECUs, 1000Mbps PIOPS) ($33,048/yr) 20

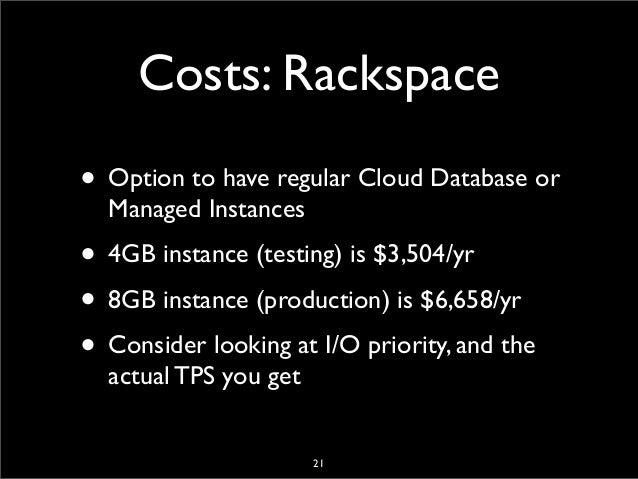

21. Costs: Rackspace • Option to have regular Cloud Database or Managed Instances • 4GB instance (testing) is $3,504/yr • 8GB instance (production) is $6,658/yr • Consider looking at I/O priority, and the actual TPS you get 21

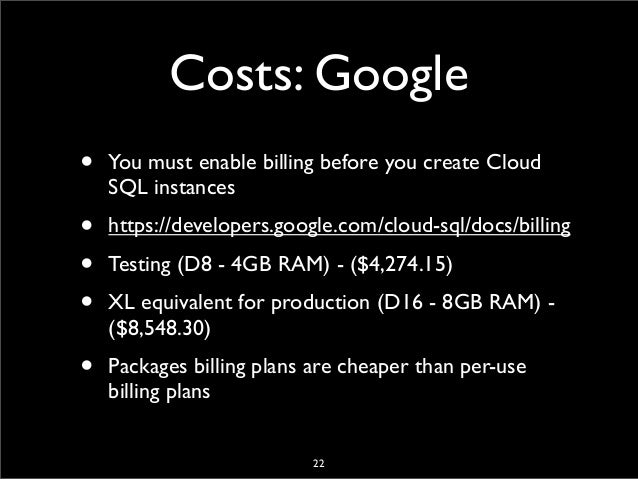

22. Costs: Google • You must enable billing before you create Cloud SQL instances • https://developers.google.com/cloud-sql/docs/billing • Testing (D8 - 4GB RAM) - ($4,274.15) • XL equivalent for production (D16 - 8GB RAM) - ($8,548.30) • Packages billing plans are cheaper than per-use billing plans 22

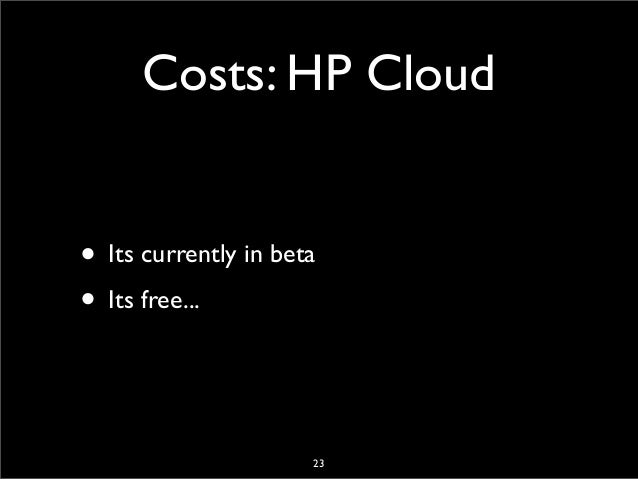

23. Costs: HP Cloud • Its currently in beta • Its free... 23

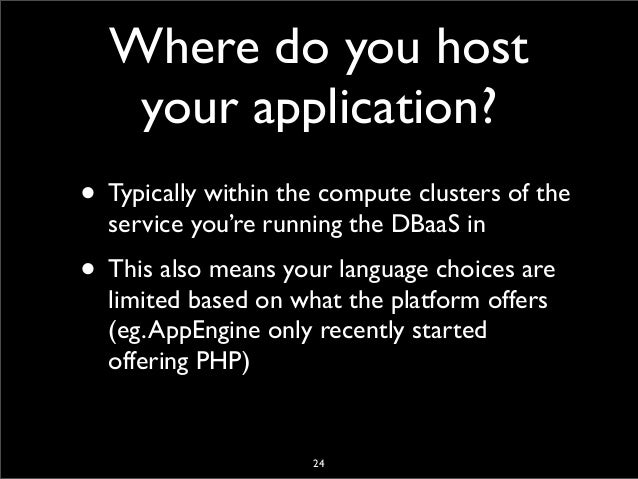

24. Where do you host your application? • Typically within the compute clusters of the service you’re running the DBaaS in • This also means your language choices are limited based on what the platform offers (eg.AppEngine only recently started offering PHP) 24

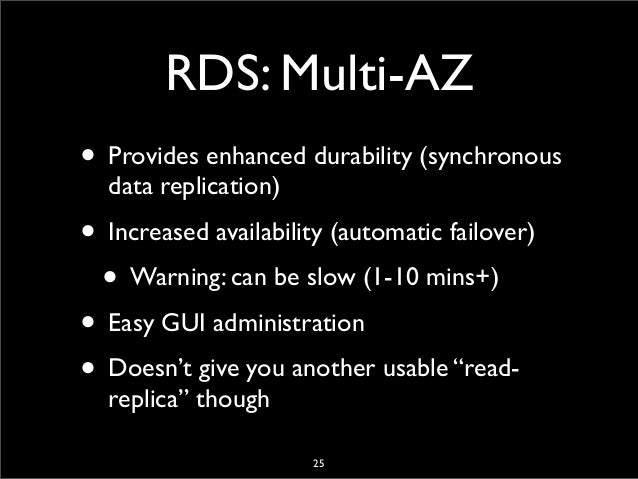

25. RDS: Multi-AZ • Provides enhanced durability (synchronous data replication) • Increased availability (automatic failover) • Warning: can be slow (1-10 mins+) • Easy GUI administration • Doesn’t give you another usable “read- replica” though 25

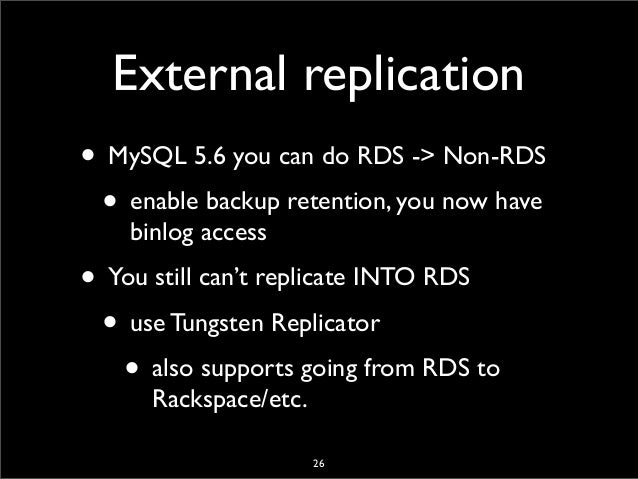

26. External replication • MySQL 5.6 you can do RDS -> Non-RDS • enable backup retention, you now have binlog access • You still can’t replicate INTO RDS • use Tungsten Replicator • also supports going from RDS to Rackspace/etc. 26

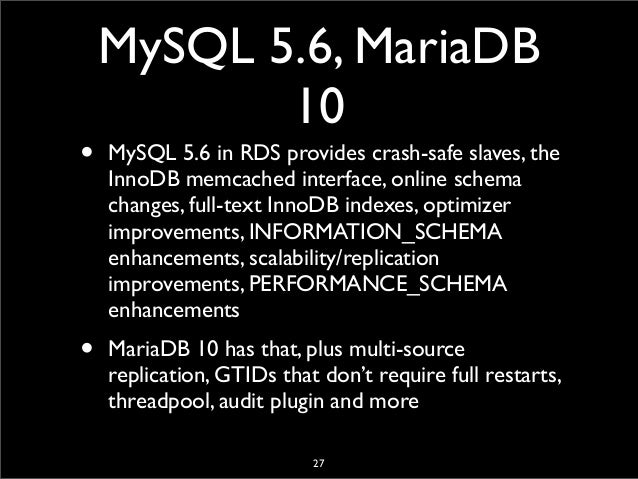

27. MySQL 5.6, MariaDB 10 • MySQL 5.6 in RDS provides crash-safe slaves, the InnoDB memcached interface, online schema changes, full-text InnoDB indexes, optimizer improvements, INFORMATION_SCHEMA enhancements, scalability/replication improvements, PERFORMANCE_SCHEMA enhancements • MariaDB 10 has that, plus multi-source replication, GTIDs that don’t require full restarts, threadpool, audit plugin and more 27

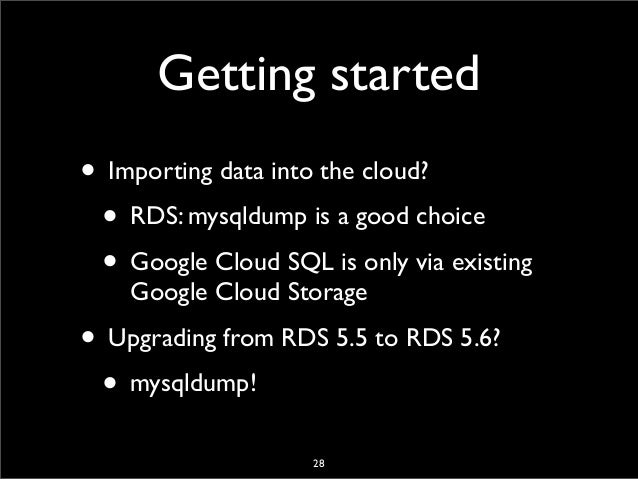

28. Getting started • Importing data into the cloud? • RDS: mysqldump is a good choice • Google Cloud SQL is only via existing Google Cloud Storage • Upgrading from RDS 5.5 to RDS 5.6? • mysqldump! 28

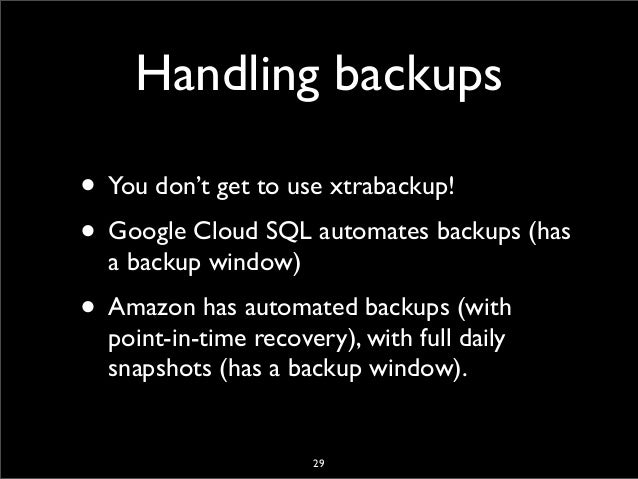

29. Handling backups • You don’t get to use xtrabackup! • Google Cloud SQL automates backups (has a backup window) • Amazon has automated backups (with point-in-time recovery), with full daily snapshots (has a backup window). 29

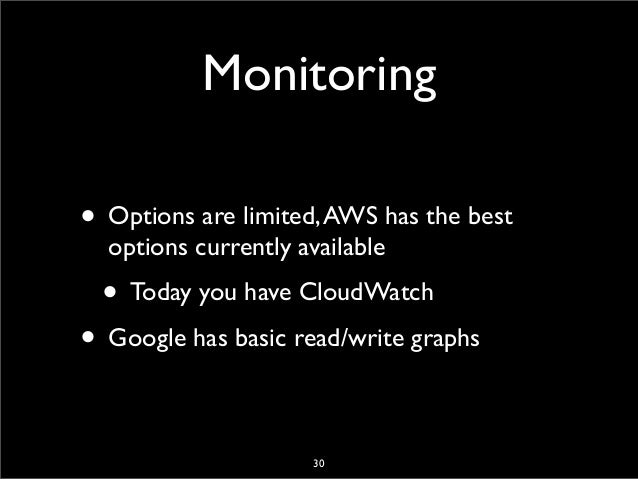

30. Monitoring • Options are limited,AWS has the best options currently available • Today you have CloudWatch • Google has basic read/write graphs 30

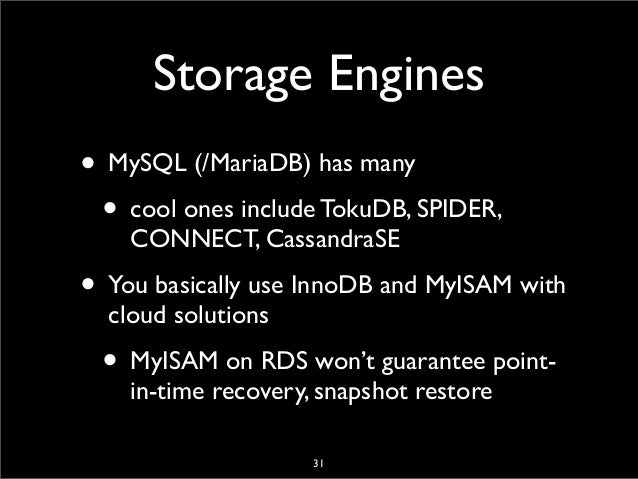

31. Storage Engines • MySQL (/MariaDB) has many • cool ones include TokuDB, SPIDER, CONNECT, CassandraSE • You basically use InnoDB and MyISAM with cloud solutions • MyISAM on RDS won’t guarantee point- in-time recovery, snapshot restore 31

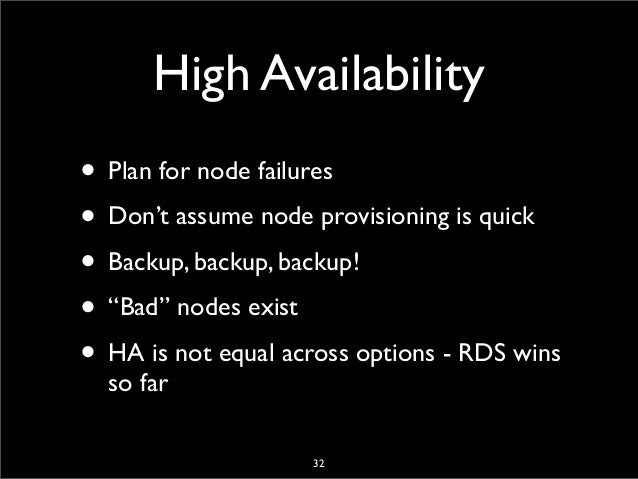

32. High Availability • Plan for node failures • Don’t assume node provisioning is quick • Backup, backup, backup! • “Bad” nodes exist • HA is not equal across options - RDS wins so far 32

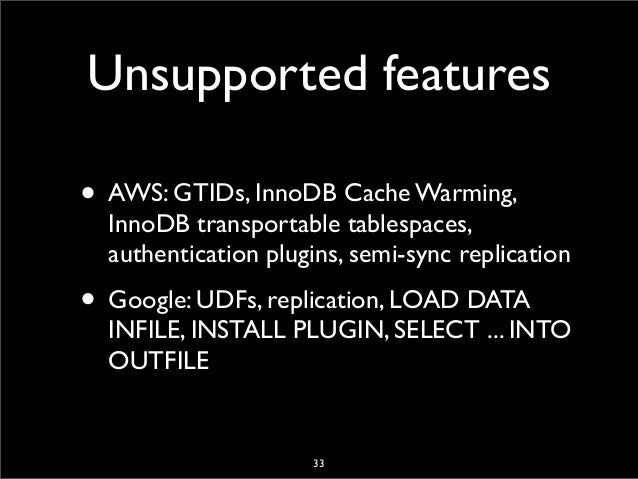

33. Unsupported features • AWS: GTIDs, InnoDB Cache Warming, InnoDB transportable tablespaces, authentication plugins, semi-sync replication • Google: UDFs, replication, LOAD DATA INFILE, INSTALL PLUGIN, SELECT ... INTO OUTFILE 33

34. Provisioned IOPS • Only available on Amazon • Faster, predictable, consistent I/O performance with low latencies • Good throughput, RAID on backed • EBS is more reliable 34

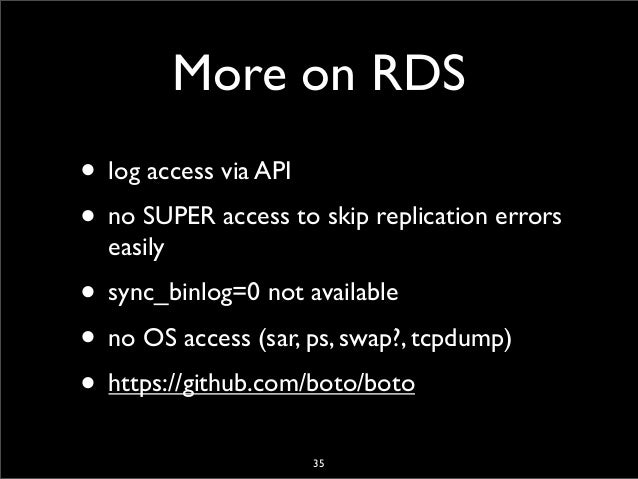

35. More on RDS • log access via API • no SUPER access to skip replication errors easily • sync_binlog=0 not available • no OS access (sar, ps, swap?, tcpdump) • https://github.com/boto/boto 35

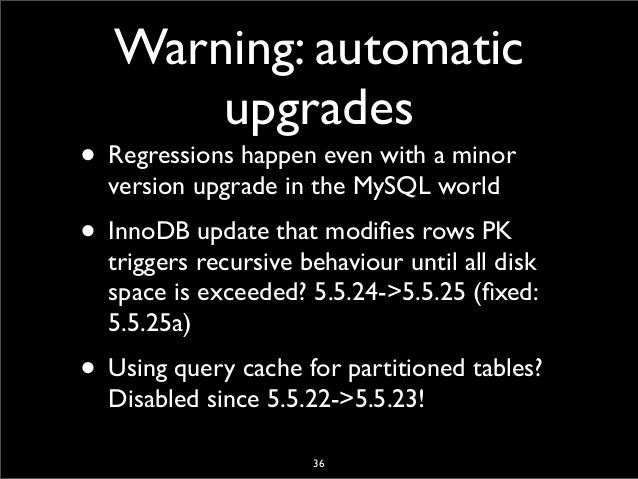

36. Warning: automatic upgrades • Regressions happen even with a minor version upgrade in the MySQL world • InnoDB update that modiﬁes rows PK triggers recursive behaviour until all disk space is exceeded? 5.5.24->5.5.25 (ﬁxed: 5.5.25a) • Using query cache for partitioned tables? Disabled since 5.5.22->5.5.23! 36

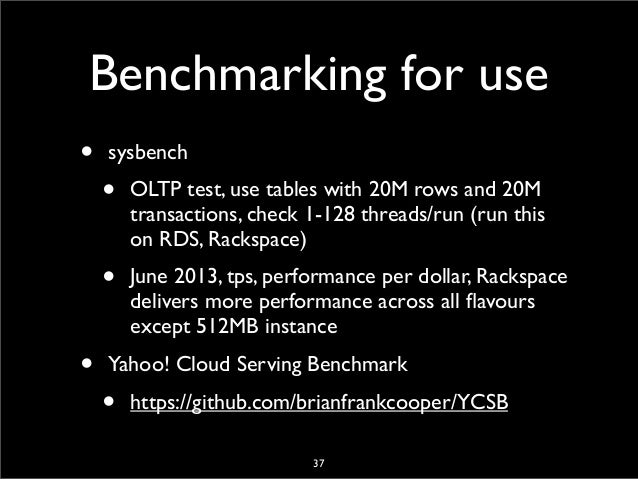

37. Benchmarking for use • sysbench • OLTP test, use tables with 20M rows and 20M transactions, check 1-128 threads/run (run this on RDS, Rackspace) • June 2013, tps, performance per dollar, Rackspace delivers more performance across all ﬂavours except 512MB instance • Yahoo! Cloud Serving Benchmark • https://github.com/brianfrankcooper/YCSB 37

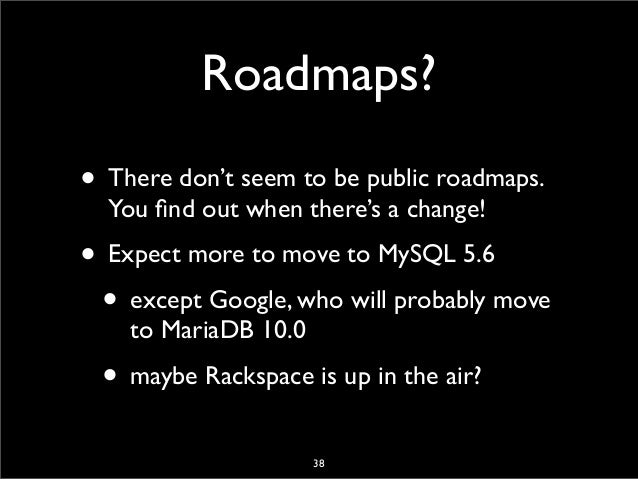

38. Roadmaps? • There don’t seem to be public roadmaps. You ﬁnd out when there’s a change! • Expect more to move to MySQL 5.6 • except Google, who will probably move to MariaDB 10.0 • maybe Rackspace is up in the air? 38

39. Running MySQL in EC2 • Can do multiple geographic regions via replication • Run just one Percona Server/ MariaDB server/instance • Use additional EBS volumes for InnoDB tablespaces • RAID EBS volumes (RAID1) • Warm up data partitions, mount partitions with noatime, nodirtime • Vertical scaling with SSD-backed storage • Monitoring with nagios • Snapshot backups and save to S3 • Can use Elastic Load Balancer • Can use spot instances • Can use tools like MHA to provide automatic failover • Can use MariaDB Galera Cluster/ Percona XtraDB Cluster 39

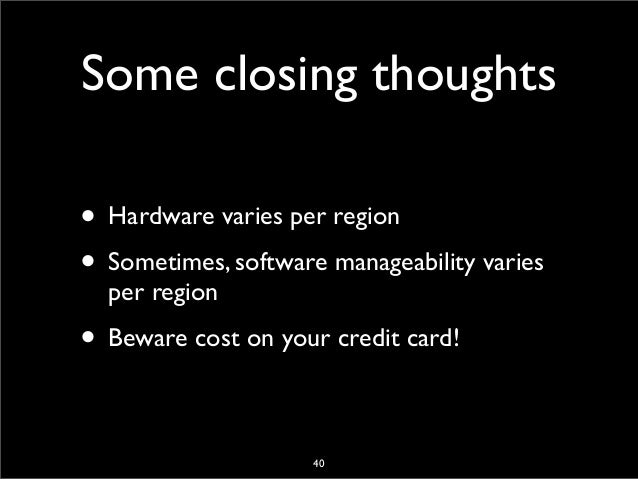

40. Some closing thoughts • Hardware varies per region • Sometimes, software manageability varies per region • Beware cost on your credit card! 40

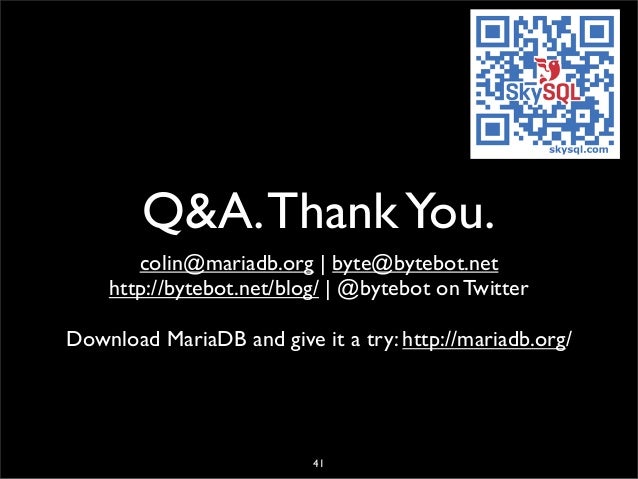

41. Q&A.ThankYou. colin@mariadb.org | byte@bytebot.net http://bytebot.net/blog/ | @bytebot on Twitter Download MariaDB and give it a try: http://mariadb.org/ 41
