Middleware as Code with mruby

Transcript

• 1. Middleware as Code with mruby Details of mruby usage in production
• 2. self.introduce => { name: “SHIBATA Hiroshi”, nickname: “hsbt”, title: “Chief engineer at GMO Pepabo, Inc.”, commit_bits: [“ruby”, “rake”, “rubygems”, “rdoc”, “tdiary”, “hiki”, “railsgirls”, “railsgirls-jp”, “jenkins”], sites: [“ruby-lang.org”, “rubyci.com”, “railsgirls.com”, “railsgirls.jp”], }
• 3. I’m from Tokyo, Japan Tokyo Matze RDRC
• 4. I’m from Asakusa.rb Asakusa.rb is one of the most active meet-ups in Tokyo, Japan. @a_matsuda (Ruby/Rails committer, RubyKaigi organizer) @kakutani (RubyKaigi organizer) @ko1 (Ruby committer) @takkanm (Ruby/Rails programmer) @gunjisatoshi (Rubyist Magazine editor) @hsbt (Me!)
• 5. I’m from the Ruby core team We are working on the next version of Ruby, 2.3.0, now. However, the main feature is under “TBD” status. Some libraries will be omitted from stdlib such as rake, net-telnet, etc.. If you have any issue, please submit it to our issue tracker at http://bugs.ruby-lang.org We hold the core developer meeting every months, and discuss various issues and ideas on Ruby. See https://bugs.ruby-lang.org/ projects/ruby/wiki/#Developer-Meetings for details.
• 6. Middleware as Code with mruby

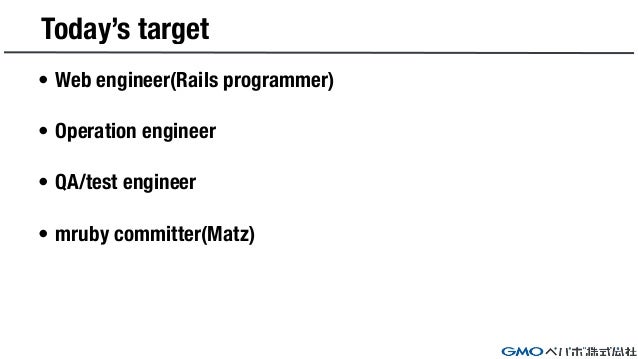

• 7. Today’s target • Web engineer(Rails programmer) • Operation engineer • QA/test engineer • mruby committer(Matz)
• 8. mruby

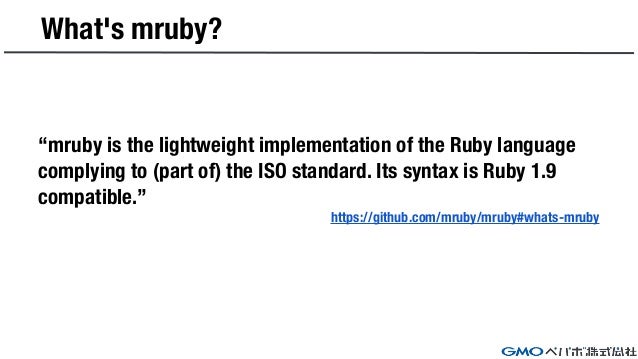

• 9. What's mruby? “mruby is the lightweight implementation of the Ruby language complying to (part of) the ISO standard. Its syntax is Ruby 1.9 compatible.” https://github.com/mruby/mruby#whats-mruby

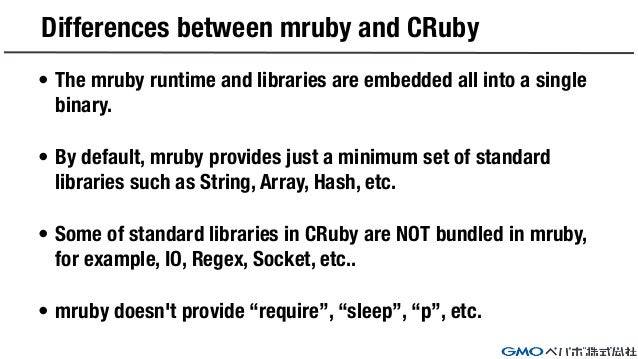

• 10. Differences between mruby and CRuby • The mruby runtime and libraries are embedded all into a single binary. • By default, mruby provides just a minimum set of standard libraries such as String, Array, Hash, etc. • Some of standard libraries in CRuby are NOT bundled in mruby, for example, IO, Regex, Socket, etc.. • mruby doesn't provide “require”, “sleep”, “p”, etc.

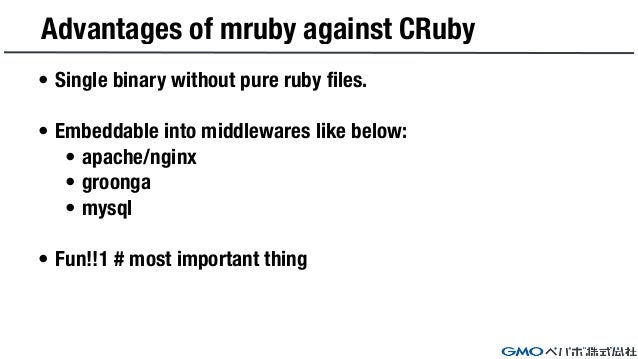

• 11. Advantages of mruby against CRuby • Single binary without pure ruby files. • Embeddable into middlewares like below: • apache/nginx • groonga • mysql • Fun!!1 # most important thing

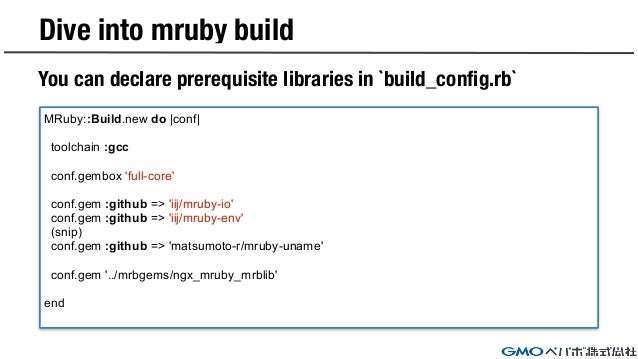

• 12. Dive into mruby build You can declare prerequisite libraries in `build_config.rb` MRuby::Build.new do |conf| toolchain :gcc conf.gembox 'full-core' conf.gem :github => 'iij/mruby-io' conf.gem :github => 'iij/mruby-env' (snip) conf.gem :github => 'matsumoto-r/mruby-uname' conf.gem '../mrbgems/ngx_mruby_mrblib' end

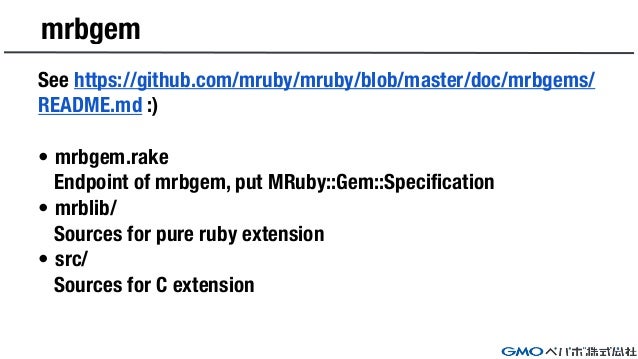

• 13. mrbgem See https://github.com/mruby/mruby/blob/master/doc/mrbgems/ README.md :) • mrbgem.rake Endpoint of mrbgem, put MRuby::Gem::Specification • mrblib/ Sources for pure ruby extension • src/ Sources for C extension
• 14. 🐙 Demo 🐱

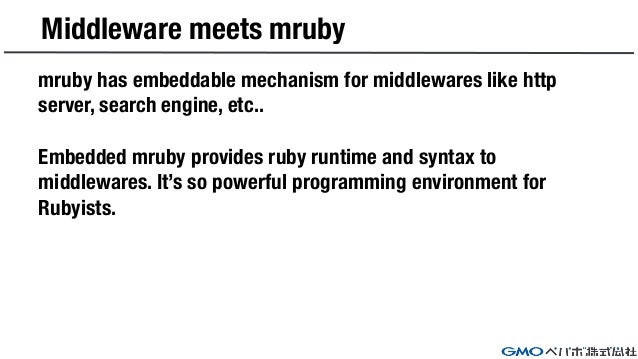

• 15. Middleware meets mruby mruby has embeddable mechanism for middlewares like http server, search engine, etc.. Embedded mruby provides ruby runtime and syntax to middlewares. It’s so powerful programming environment for Rubyists.
• 16. ngx_mruby
• 17. Introduction to ngx_mruby “ngx_mruby is A Fast and Memory-Efficient Web Server Extension Mechanism Using Scripting Language mruby for nginx.” https://github.com/matsumoto-r/ngx_mruby#whats-ngx_mruby location /proxy { mruby_set_code $backend ' backends = [ "test1.example.com", "test2.example.com", "test3.example.com", ] backends[rand(backends.length)] '; } location /hello { mruby_content_handler /path/to/hello.rb cache; } In “nginx.conf”!!!

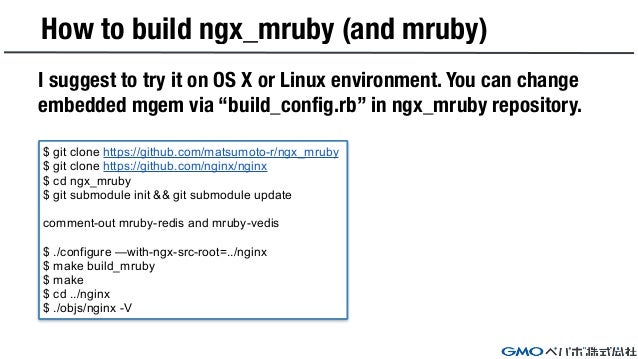

• 18. How to build ngx_mruby (and mruby) I suggest to try it on OS X or Linux environment. You can change embedded mgem via “build_config.rb” in ngx_mruby repository. $ git clone https://github.com/matsumoto-r/ngx_mruby $ git clone https://github.com/nginx/nginx $ cd ngx_mruby $ git submodule init && git submodule update comment-out mruby-redis and mruby-vedis $ ./configure —with-ngx-src-root=../nginx $ make build_mruby $ make $ cd ../nginx $ ./objs/nginx -V

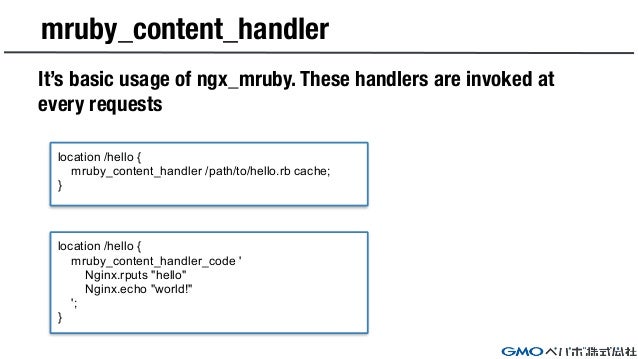

• 19. mruby_content_handler location /hello { mruby_content_handler /path/to/hello.rb cache; } location /hello { mruby_content_handler_code ' Nginx.rputs "hello" Nginx.echo "world!" '; } It’s basic usage of ngx_mruby. These handlers are invoked at every requests

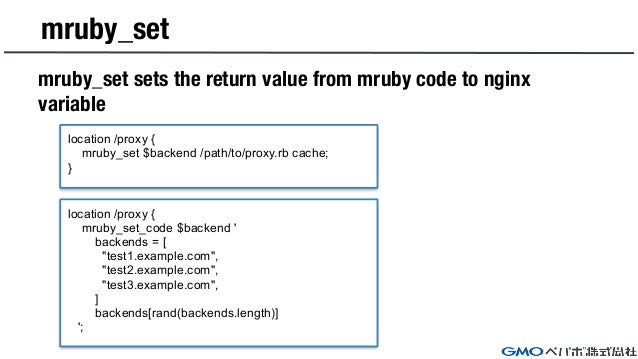

• 20. mruby_set location /proxy { mruby_set $backend /path/to/proxy.rb cache; } location /proxy { mruby_set_code $backend ' backends = [ "test1.example.com", "test2.example.com", "test3.example.com", ] backends[rand(backends.length)] '; mruby_set sets the return value from mruby code to nginx variable

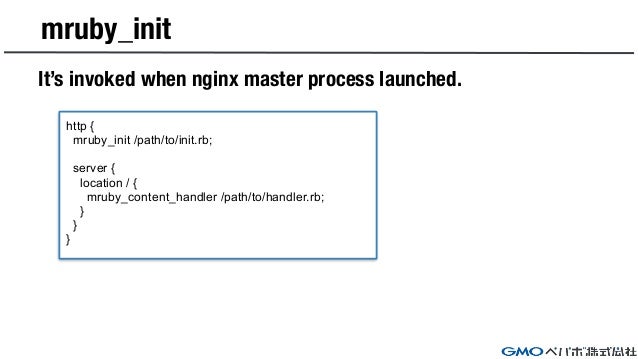

• 21. mruby_init http { mruby_init /path/to/init.rb; server { location / { mruby_content_handler /path/to/handler.rb; } } } It’s invoked when nginx master process launched.

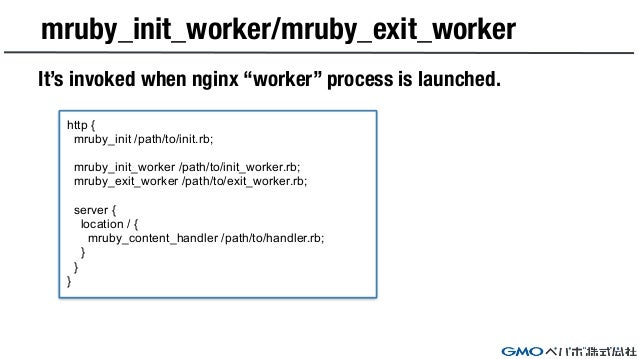

• 22. mruby_init_worker/mruby_exit_worker http { mruby_init /path/to/init.rb; mruby_init_worker /path/to/init_worker.rb; mruby_exit_worker /path/to/exit_worker.rb; server { location / { mruby_content_handler /path/to/handler.rb; } } } It’s invoked when nginx “worker” process is launched.

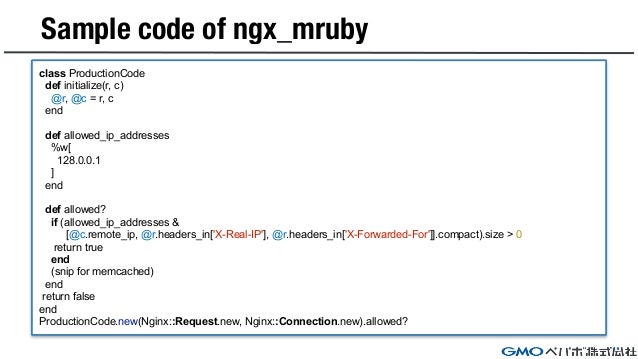

• 23. Sample code of ngx_mruby class ProductionCode def initialize(r, c) @r, @c = r, c end def allowed_ip_addresses %w[ 128.0.0.1 ] end def allowed? if (allowed_ip_addresses & [@c.remote_ip, @r.headers_in['X-Real-IP'], @r.headers_in['X-Forwarded-For']].compact).size > 0 return true end (snip for memcached) end return false end ProductionCode.new(Nginx::Request.new, Nginx::Connection.new).allowed?

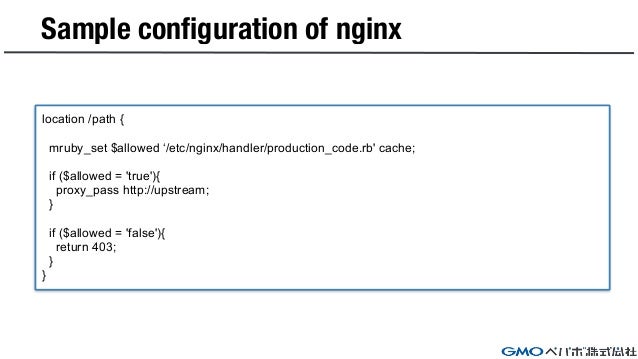

• 24. Sample configuration of nginx location /path { mruby_set $allowed ‘/etc/nginx/handler/production_code.rb' cache; if ($allowed = 'true'){ proxy_pass http://upstream; } if ($allowed = 'false'){ return 403; } }

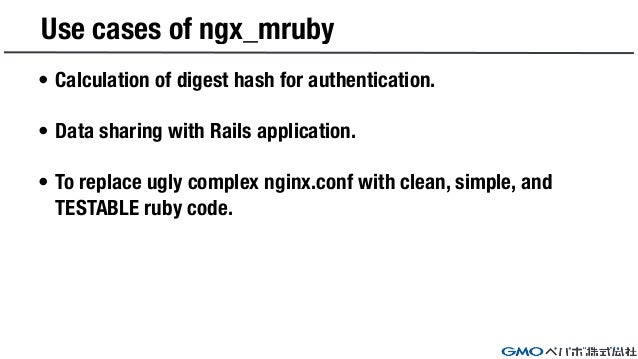

• 25. Use cases of ngx_mruby • Calculation of digest hash for authentication. • Data sharing with Rails application. • To replace ugly complex nginx.conf with clean, simple, and TESTABLE ruby code.
• 26. Middleware as Code
• 27. Our use cases

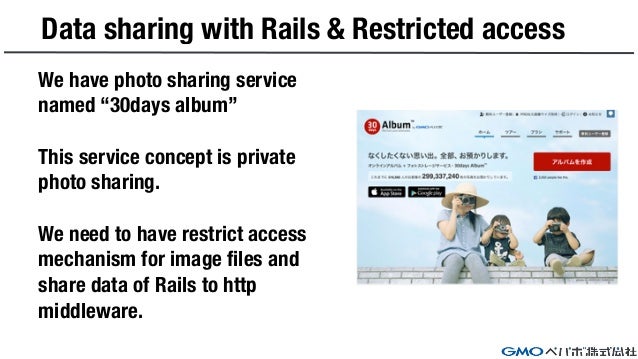

• 28. Data sharing with Rails & Restricted access We have photo sharing service named “30days album” This service concept is private photo sharing. We need to have restrict access mechanism for image files and share data of Rails to http middleware.

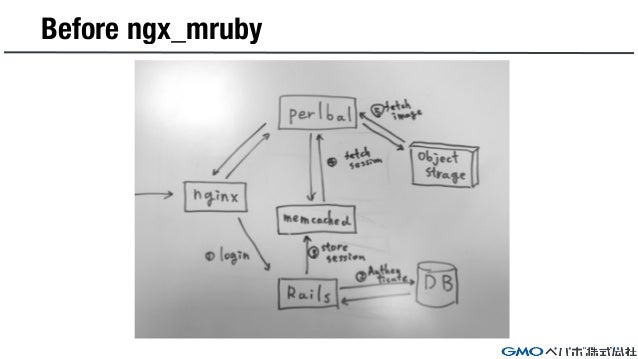

• 29. Before ngx_mruby

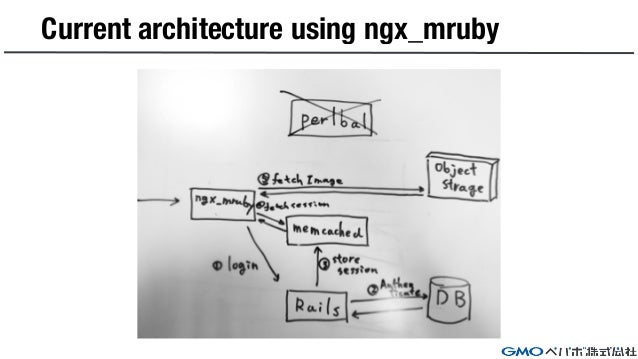

• 30. Current architecture using ngx_mruby

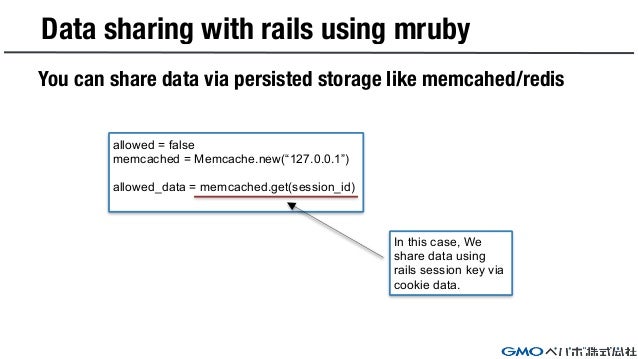

• 31. Data sharing with rails using mruby allowed = false memcached = Memcache.new(“127.0.0.1”) allowed_data = memcached.get(session_id) You can share data via persisted storage like memcahed/redis In this case, We share data using rails session key via cookie data.

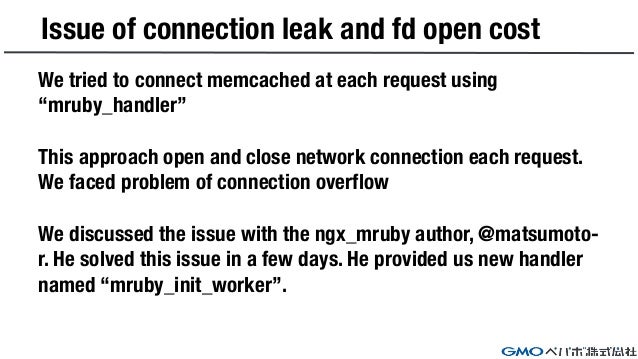

• 32. Issue of connection leak and fd open cost We tried to connect memcached at each request using “mruby_handler” This approach open and close network connection each request. We faced problem of connection overflow We discussed the issue with the ngx_mruby author, @matsumoto- r. He solved this issue in a few days. He provided us new handler named “mruby_init_worker”.
• 33. OSS 💖

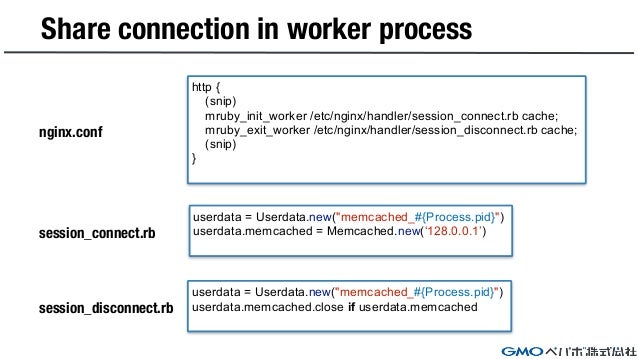

• 34. Share connection in worker process userdata = Userdata.new("memcached_#{Process.pid}") userdata.memcached = Memcached.new(‘128.0.0.1’) userdata = Userdata.new("memcached_#{Process.pid}") userdata.memcached.close if userdata.memcached http { (snip) mruby_init_worker /etc/nginx/handler/session_connect.rb cache; mruby_exit_worker /etc/nginx/handler/session_disconnect.rb cache; (snip) } session_connect.rb session_disconnect.rb nginx.conf

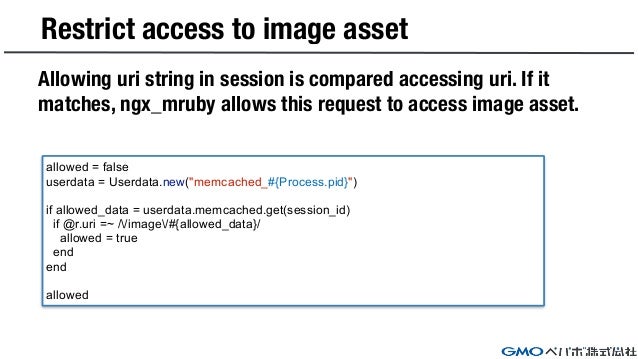

• 35. Restrict access to image asset allowed = false userdata = Userdata.new("memcached_#{Process.pid}") if allowed_data = userdata.memcached.get(session_id) if @r.uri =~ //image/#{allowed_data}/ allowed = true end end allowed Allowing uri string in session is compared accessing uri. If it matches, ngx_mruby allows this request to access image asset.

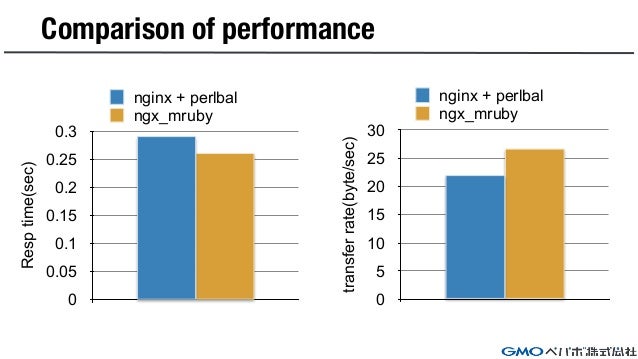

• 36. Comparison of performanceResptime(sec) 0 0.05 0.1 0.15 0.2 0.25 0.3 nginx + perlbal ngx_mruby transferrate(byte/sec) 0 5 10 15 20 25 30 nginx + perlbal ngx_mruby
• 37. 🌟 STAR IT 🌟 https://github.com/ matsumoto-r/ngx_mruby
• 38. Testing code of mruby
• 39. Someone said “Test is redundant”

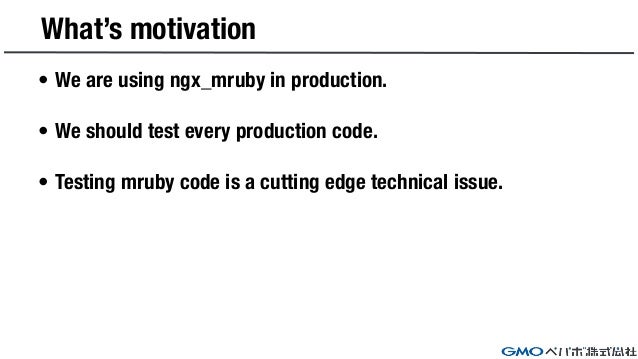

• 40. What’s motivation • We are using ngx_mruby in production. • We should test every production code. • Testing mruby code is a cutting edge technical issue.

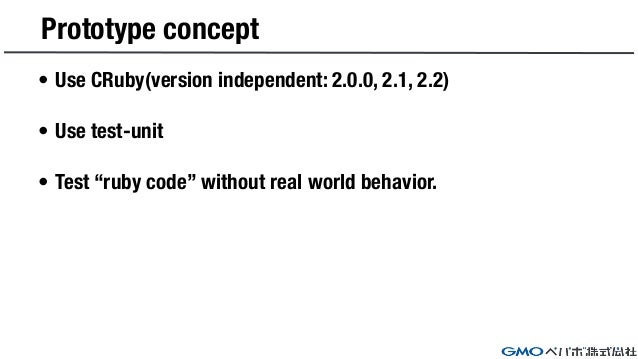

• 41. Prototype concept • Use CRuby(version independent: 2.0.0, 2.1, 2.2) • Use test-unit • Test “ruby code” without real world behavior.
• 42. Sample code of ngx_mruby class ProductionCode def initialize(r, c) @r, @c = r, c end def allowed_ip_addresses %w[ 128.0.0.1 ] end def allowed? if (allowed_ip_addresses & [@c.remote_ip, @r.headers_in['X-Real-IP'], @r.headers_in['X-Forwarded-For']].compact).size > 0 return true end (snip for memcached) end return false end ProductionCode.new(Nginx::Request.new, Nginx::Connection.new).allowed?

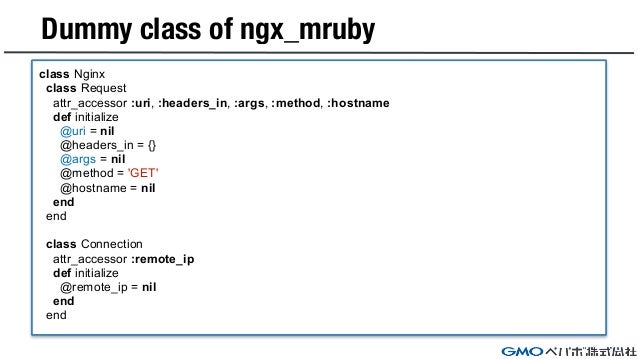

• 43. Dummy class of ngx_mruby class Nginx class Request attr_accessor :uri, :headers_in, :args, :method, :hostname def initialize @uri = nil @headers_in = {} @args = nil @method = 'GET' @hostname = nil end end class Connection attr_accessor :remote_ip def initialize @remote_ip = nil end end

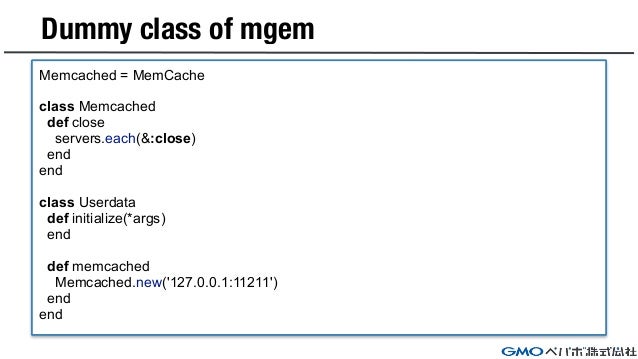

• 44. Dummy class of mgem Memcached = MemCache class Memcached def close servers.each(&:close) end end class Userdata def initialize(*args) end def memcached Memcached.new('127.0.0.1:11211') end end

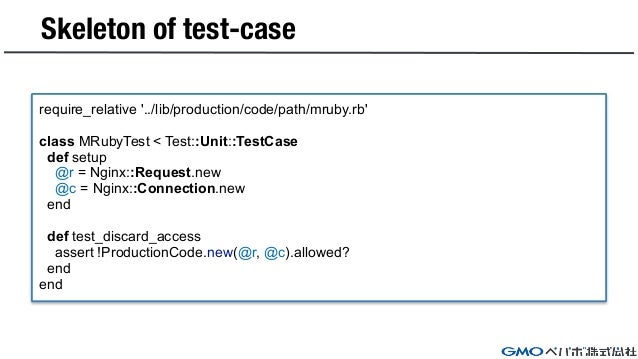

• 45. Skeleton of test-case require_relative '../lib/production/code/path/mruby.rb' class MRubyTest < Test::Unit::TestCase def setup @r = Nginx::Request.new @c = Nginx::Connection.new end def test_discard_access assert !ProductionCode.new(@r, @c).allowed? end end

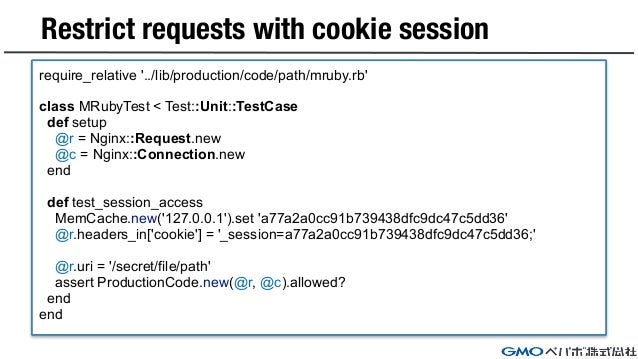

• 46. Restrict requests with cookie session require_relative '../lib/production/code/path/mruby.rb' class MRubyTest < Test::Unit::TestCase def setup @r = Nginx::Request.new @c = Nginx::Connection.new end def test_session_access MemCache.new('127.0.0.1').set 'a77a2a0cc91b739438dfc9dc47c5dd36' @r.headers_in['cookie'] = '_session=a77a2a0cc91b739438dfc9dc47c5dd36;' @r.uri = '/secret/file/path' assert ProductionCode.new(@r, @c).allowed? end end

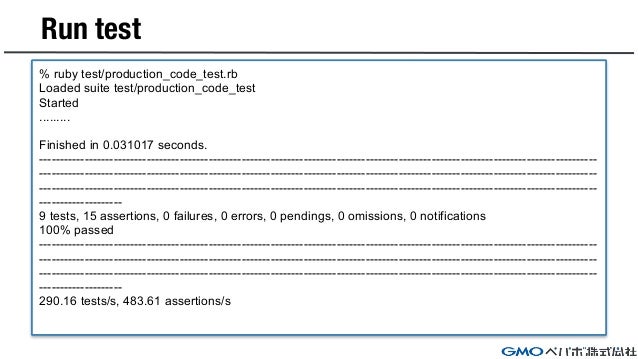

• 47. Run test % ruby test/production_code_test.rb Loaded suite test/production_code_test Started ......... Finished in 0.031017 seconds. --------------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------------------------- -------------------- 9 tests, 15 assertions, 0 failures, 0 errors, 0 pendings, 0 omissions, 0 notifications 100% passed --------------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------------------------- --------------------------------------------------------------------------------------------------------------------------------------- -------------------- 290.16 tests/s, 483.61 assertions/s
• 48. Test is back!!

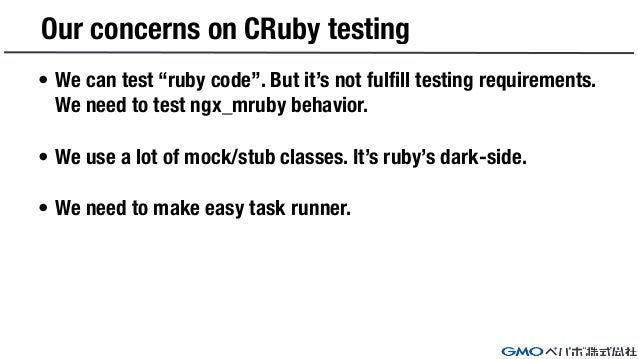

• 49. Our concerns on CRuby testing • We can test “ruby code”. But it’s not fulfill testing requirements. We need to test ngx_mruby behavior. • We use a lot of mock/stub classes. It’s ruby’s dark-side. • We need to make easy task runner.
• 50. Testing code of mruby using mruby

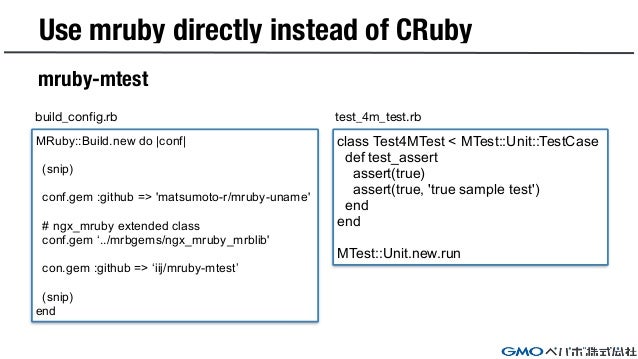

• 51. Use mruby directly instead of CRuby mruby-mtest class Test4MTest < MTest::Unit::TestCase def test_assert assert(true) assert(true, 'true sample test') end end MTest::Unit.new.run MRuby::Build.new do |conf| (snip) conf.gem :github => 'matsumoto-r/mruby-uname' # ngx_mruby extended class conf.gem ‘../mrbgems/ngx_mruby_mrblib' con.gem :github => ‘iij/mruby-mtest’ (snip) end build_config.rb test_4m_test.rb

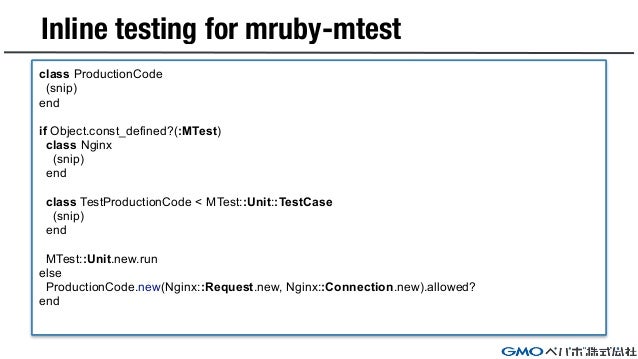

• 52. Inline testing for mruby-mtest class ProductionCode (snip) end if Object.const_defined?(:MTest) class Nginx (snip) end class TestProductionCode < MTest::Unit::TestCase (snip) end MTest::Unit.new.run else ProductionCode.new(Nginx::Request.new, Nginx::Connection.new).allowed? end

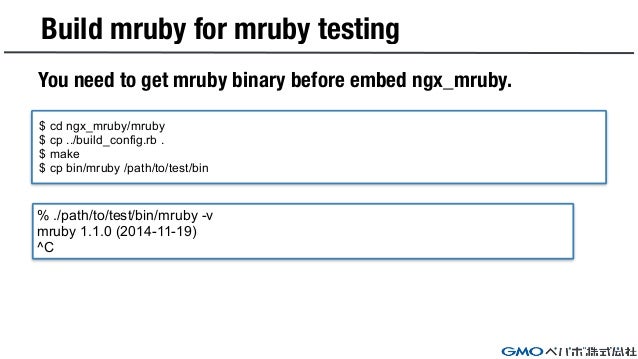

• 53. Build mruby for mruby testing $ cd ngx_mruby/mruby $ cp ../build_config.rb . $ make $ cp bin/mruby /path/to/test/bin You need to get mruby binary before embed ngx_mruby. % ./path/to/test/bin/mruby -v mruby 1.1.0 (2014-11-19) ^C

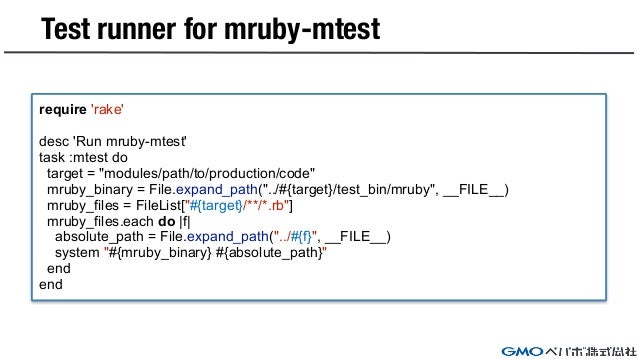

• 54. Test runner for mruby-mtest require 'rake' desc 'Run mruby-mtest' task :mtest do target = "modules/path/to/production/code" mruby_binary = File.expand_path("../#{target}/test_bin/mruby", __FILE__) mruby_files = FileList["#{target}/**/*.rb"] mruby_files.each do |f| absolute_path = File.expand_path("../#{f}", __FILE__) system "#{mruby_binary} #{absolute_path}" end end

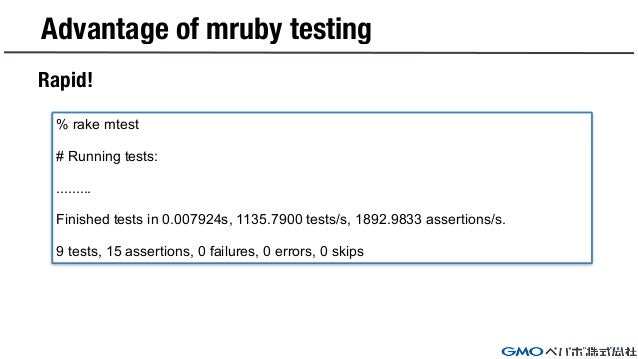

• 55. Advantage of mruby testing Rapid! % rake mtest # Running tests: ......... Finished tests in 0.007924s, 1135.7900 tests/s, 1892.9833 assertions/s. 9 tests, 15 assertions, 0 failures, 0 errors, 0 skips
• 56. Deployment

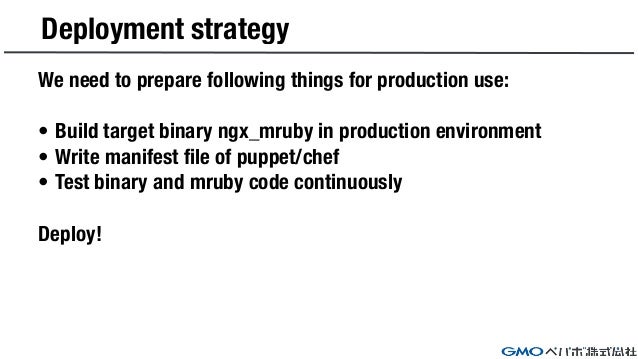

• 57. Deployment strategy We need to prepare following things for production use: • Build target binary ngx_mruby in production environment • Write manifest file of puppet/chef • Test binary and mruby code continuously Deploy!

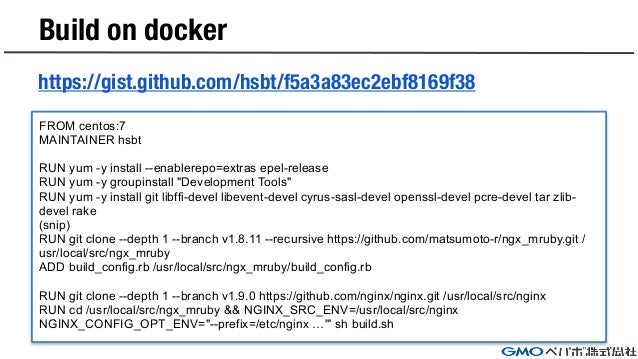

• 58. Build on docker FROM centos:7 MAINTAINER hsbt RUN yum -y install --enablerepo=extras epel-release RUN yum -y groupinstall "Development Tools" RUN yum -y install git libffi-devel libevent-devel cyrus-sasl-devel openssl-devel pcre-devel tar zlib- devel rake (snip) RUN git clone --depth 1 --branch v1.8.11 --recursive https://github.com/matsumoto-r/ngx_mruby.git / usr/local/src/ngx_mruby ADD build_config.rb /usr/local/src/ngx_mruby/build_config.rb RUN git clone --depth 1 --branch v1.9.0 https://github.com/nginx/nginx.git /usr/local/src/nginx RUN cd /usr/local/src/ngx_mruby && NGINX_SRC_ENV=/usr/local/src/nginx NGINX_CONFIG_OPT_ENV="--prefix=/etc/nginx …'" sh build.sh https://gist.github.com/hsbt/f5a3a83ec2ebf8169f38

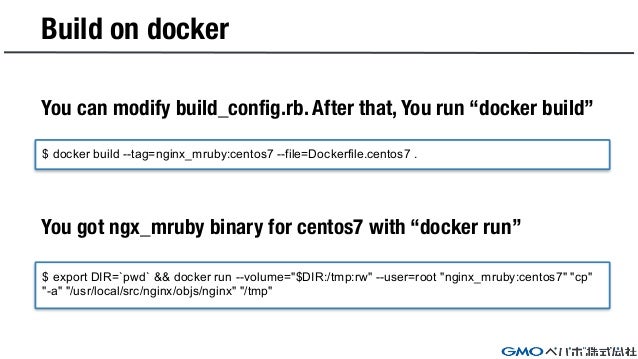

• 59. Build on docker $ docker build --tag=nginx_mruby:centos7 --file=Dockerfile.centos7 . You can modify build_config.rb. After that, You run “docker build” $ export DIR=`pwd` && docker run --volume="$DIR:/tmp:rw" --user=root "nginx_mruby:centos7" "cp" "-a" "/usr/local/src/nginx/objs/nginx" "/tmp" You got ngx_mruby binary for centos7 with “docker run”

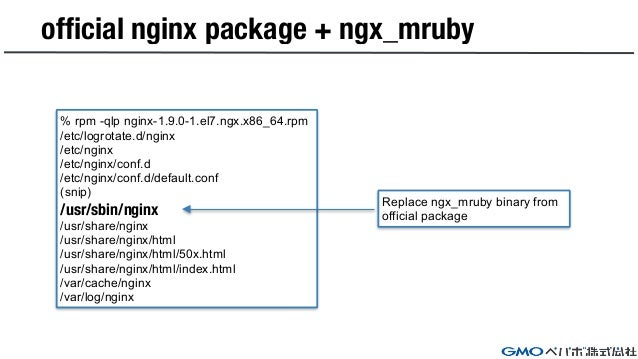

• 60. official nginx package + ngx_mruby % rpm -qlp nginx-1.9.0-1.el7.ngx.x86_64.rpm /etc/logrotate.d/nginx /etc/nginx /etc/nginx/conf.d /etc/nginx/conf.d/default.conf (snip) /usr/sbin/nginx /usr/share/nginx /usr/share/nginx/html /usr/share/nginx/html/50x.html /usr/share/nginx/html/index.html /var/cache/nginx /var/log/nginx Replace ngx_mruby binary from official package

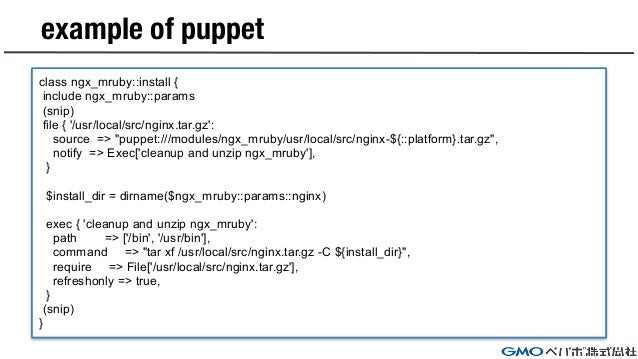

• 61. example of puppet class ngx_mruby::install { include ngx_mruby::params (snip) file { '/usr/local/src/nginx.tar.gz': source => "puppet:///modules/ngx_mruby/usr/local/src/nginx-${::platform}.tar.gz", notify => Exec['cleanup and unzip ngx_mruby'], } $install_dir = dirname($ngx_mruby::params::nginx) exec { 'cleanup and unzip ngx_mruby': path => ['/bin', '/usr/bin'], command => "tar xf /usr/local/src/nginx.tar.gz -C ${install_dir}", require => File['/usr/local/src/nginx.tar.gz'], refreshonly => true, } (snip) }

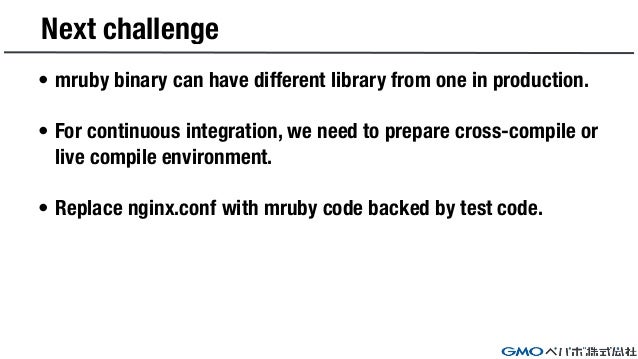

• 62. Next challenge • mruby binary can have different library from one in production. • For continuous integration, we need to prepare cross-compile or live compile environment. • Replace nginx.conf with mruby code backed by test code.

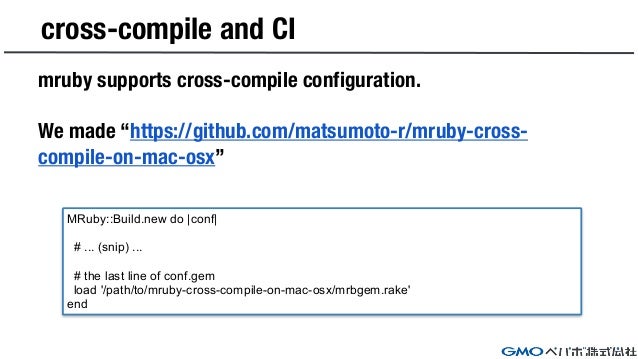

• 63. cross-compile and CI mruby supports cross-compile configuration. We made “https://github.com/matsumoto-r/mruby-cross- compile-on-mac-osx” MRuby::Build.new do |conf| # ... (snip) ... # the last line of conf.gem load '/path/to/mruby-cross-compile-on-mac-osx/mrbgem.rake' end
• 64. mruby in the future

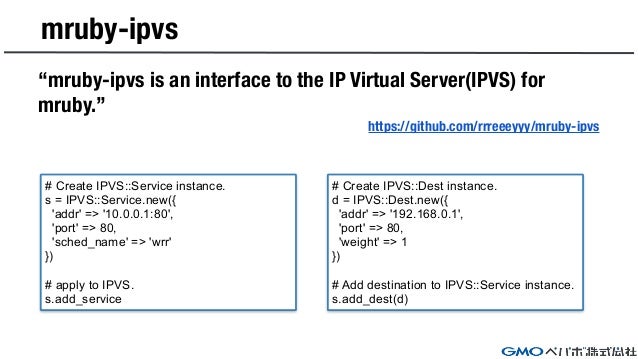

• 65. mruby-ipvs “mruby-ipvs is an interface to the IP Virtual Server(IPVS) for mruby.” https://github.com/rrreeeyyy/mruby-ipvs # Create IPVS::Service instance. s = IPVS::Service.new({ 'addr' => '10.0.0.1:80', 'port' => 80, 'sched_name' => 'wrr' }) # apply to IPVS. s.add_service # Create IPVS::Dest instance. d = IPVS::Dest.new({ 'addr' => '192.168.0.1', 'port' => 80, 'weight' => 1 }) # Add destination to IPVS::Service instance. s.add_dest(d)

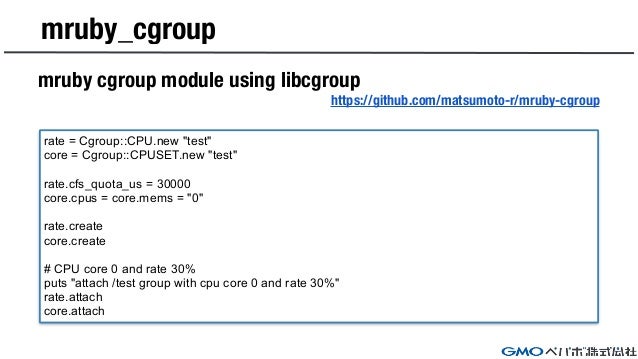

• 66. mruby_cgroup mruby cgroup module using libcgroup https://github.com/matsumoto-r/mruby-cgroup rate = Cgroup::CPU.new "test" core = Cgroup::CPUSET.new "test" rate.cfs_quota_us = 30000 core.cpus = core.mems = "0" rate.create core.create # CPU core 0 and rate 30% puts "attach /test group with cpu core 0 and rate 30%" rate.attach core.attach
• 67. We should use mruby!
