• 1. Library Operating System with Mainline Linux Network Stack ! Hajime Tazaki, Ryo Nakamura, Yuji Sekiya netdev0.1, Feb. 2015

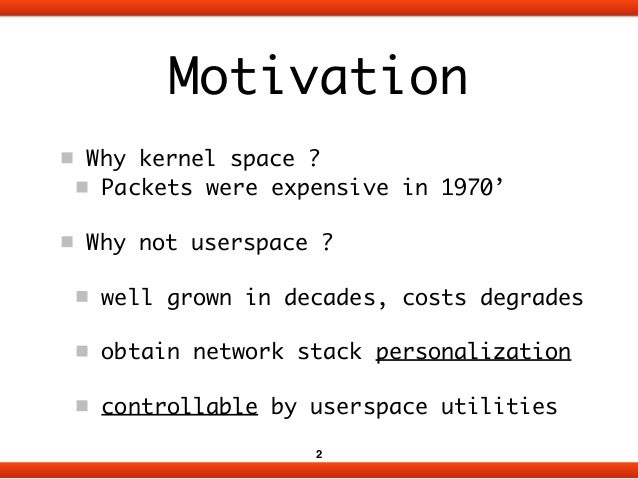

• 2. Motivation Why kernel space ? Packets were expensive in 1970’ Why not userspace ? well grown in decades, costs degrades obtain network stack personalization controllable by userspace utilities 2

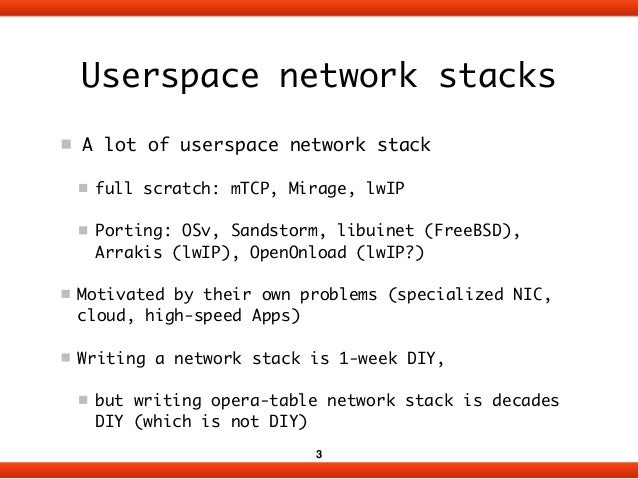

• 3. Userspace network stacks A lot of userspace network stack full scratch: mTCP, Mirage, lwIP Porting: OSv, Sandstorm, libuinet (FreeBSD), Arrakis (lwIP), OpenOnload (lwIP?) Motivated by their own problems (specialized NIC, cloud, high-speed Apps) Writing a network stack is 1-week DIY, but writing opera-table network stack is decades DIY (which is not DIY) 3
• 4. Questions How to benefit matured network stack in userspace ? How to trivially introduce your idea on network stack ? xxTCP, IPvX, etc.. How to flexibly test your code with a complex scenario ? 4

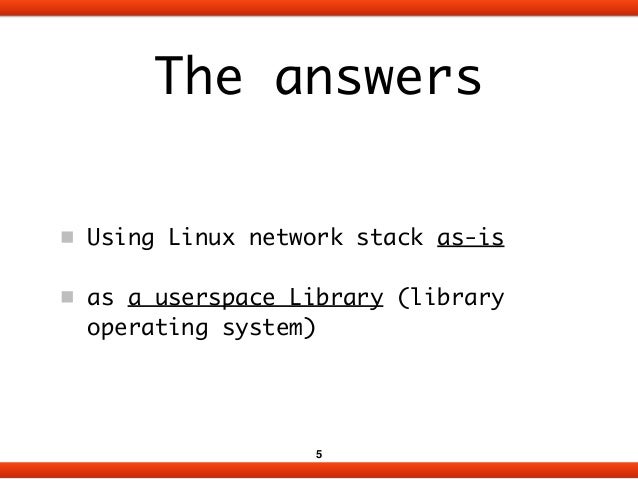

• 5. The answers Using Linux network stack as-is ! as a userspace Library (library operating system) 5

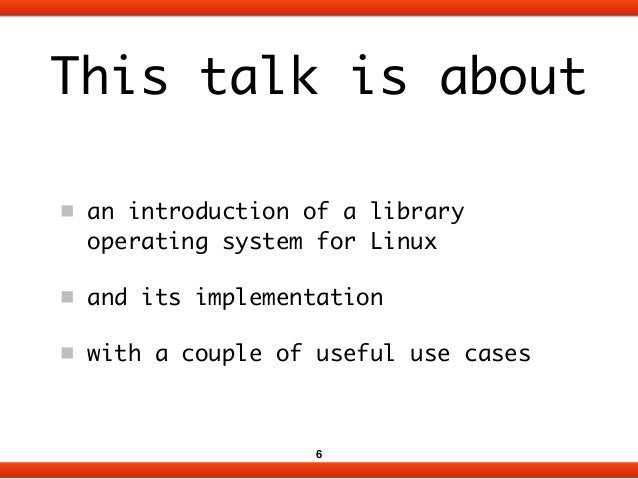

• 6. This talk is about an introduction of a library operating system for Linux and its implementation with a couple of useful use cases 6

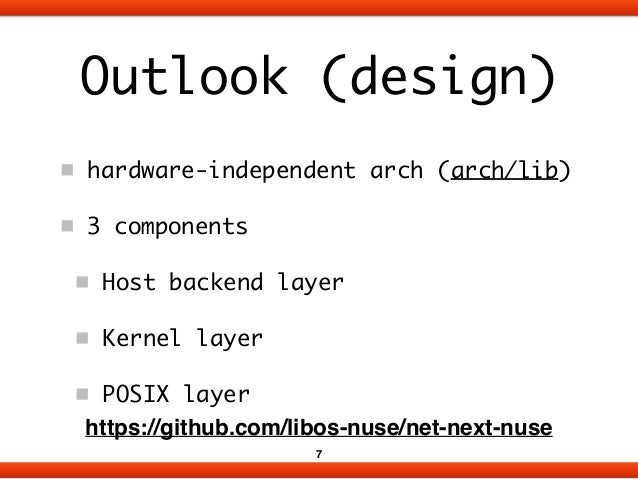

• 7. Outlook (design) hardware-independent arch (arch/lib) 3 components Host backend layer Kernel layer POSIX layer 7 https://github.com/libos-nuse/net-next-nuse

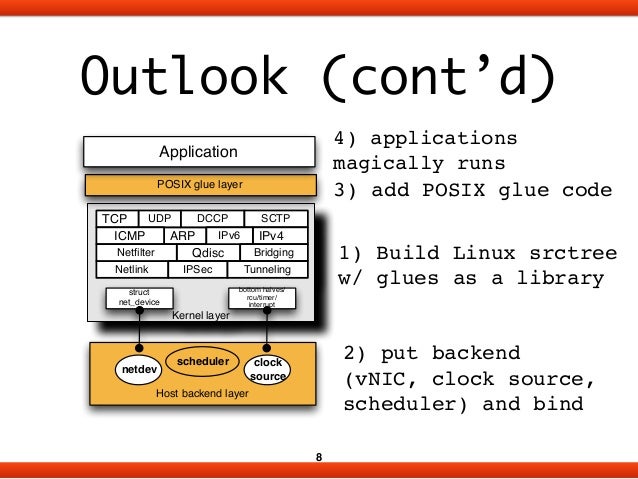

• 8. Outlook (cont’d) 8 ARP Qdisc TCP UDP DCCP SCTP ICMP IPv4IPv6 Netlink BridgingNetfilter IPSec Tunneling Kernel layer Host backend layer bottom halves/ rcu/timer/ interrupt struct net_device scheduler netdev clock source POSIX glue layer Application 1) Build Linux srctree w/ glues as a library 2) put backend! (vNIC, clock source,! scheduler) and bind 3) add POSIX glue code 4) applications magically runs

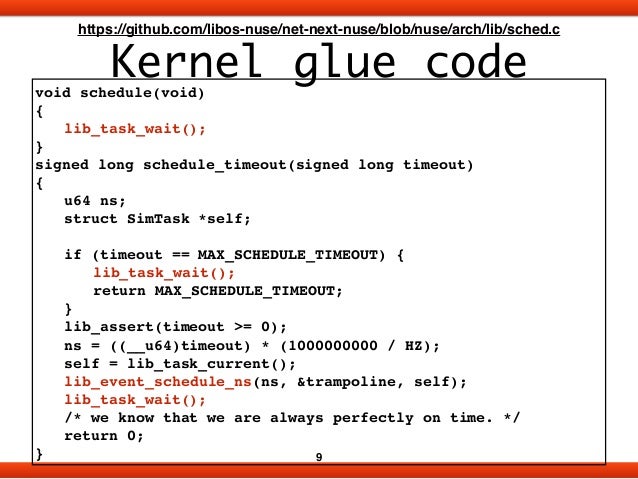

• 9. Kernel glue code 9 https://github.com/libos-nuse/net-next-nuse/blob/nuse/arch/lib/sched.c void schedule(void)! {! ! lib_task_wait();! }! signed long schedule_timeout(signed long timeout)! {! ! u64 ns;! ! struct SimTask *self;! ! ! if (timeout == MAX_SCHEDULE_TIMEOUT) {! ! ! lib_task_wait();! ! ! return MAX_SCHEDULE_TIMEOUT;! ! }! ! lib_assert(timeout >= 0);! ! ns = ((__u64)timeout) * (1000000000 / HZ);! ! self = lib_task_current();! ! lib_event_schedule_ns(ns, &trampoline, self);! ! lib_task_wait();! ! /* we know that we are always perfectly on time. */! ! return 0;! }

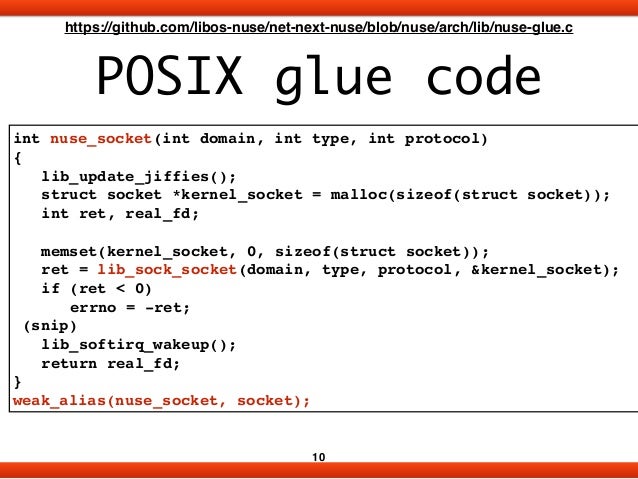

• 10. POSIX glue code 10 https://github.com/libos-nuse/net-next-nuse/blob/nuse/arch/lib/nuse-glue.c int nuse_socket(int domain, int type, int protocol)! {! ! lib_update_jiffies();! ! struct socket *kernel_socket = malloc(sizeof(struct socket));! ! int ret, real_fd;! ! ! memset(kernel_socket, 0, sizeof(struct socket));! ! ret = lib_sock_socket(domain, type, protocol, &kernel_socket);! ! if (ret < 0)! ! ! errno = -ret;! (snip)! ! lib_softirq_wakeup();! ! return real_fd;! }! weak_alias(nuse_socket, socket);

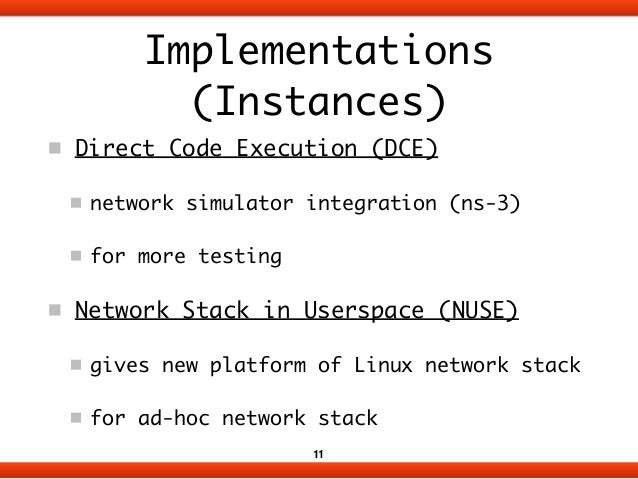

• 11. Implementations (Instances) Direct Code Execution (DCE) network simulator integration (ns-3) for more testing Network Stack in Userspace (NUSE) gives new platform of Linux network stack for ad-hoc network stack 11

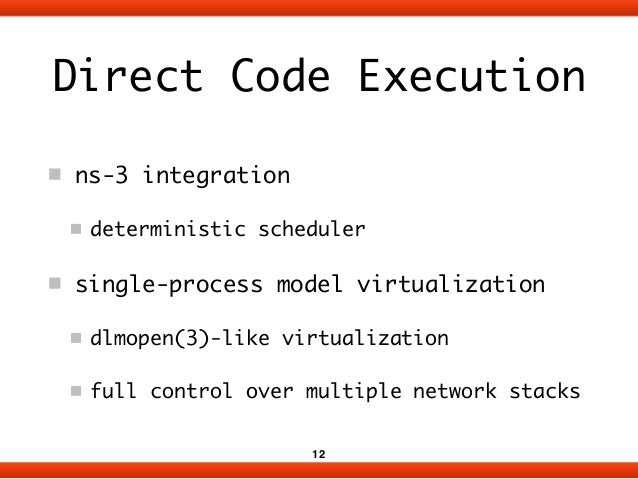

• 12. Direct Code Execution ns-3 integration deterministic scheduler single-process model virtualization dlmopen(3)-like virtualization full control over multiple network stacks 12

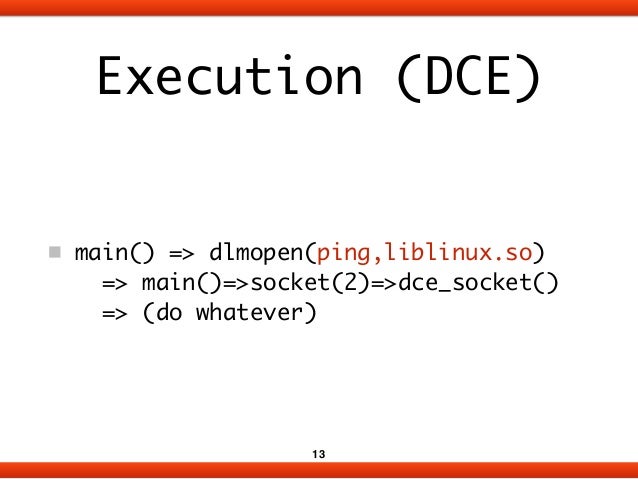

• 13. Execution (DCE) main() => dlmopen(ping,liblinux.so)
 => main()=>socket(2)=>dce_socket()
 => (do whatever) 13

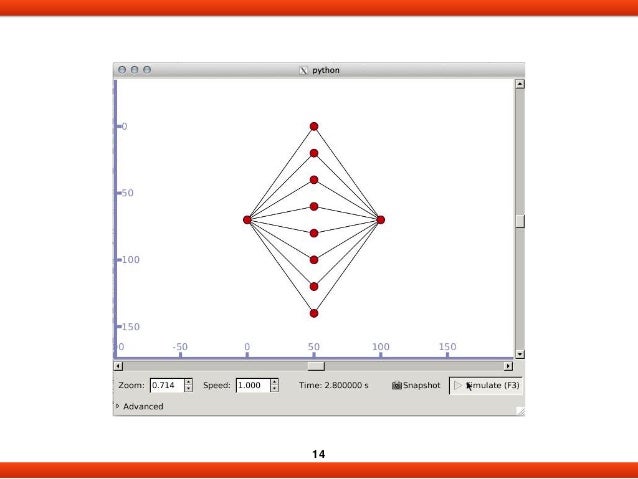

• 14. 14
• 15. 15

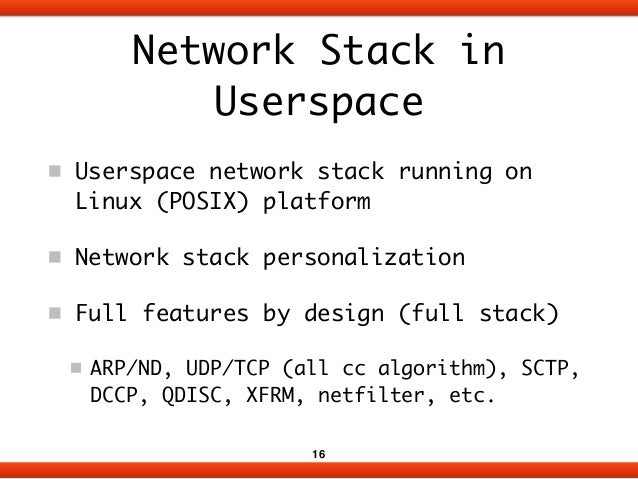

• 16. Network Stack in Userspace Userspace network stack running on Linux (POSIX) platform Network stack personalization Full features by design (full stack) ARP/ND, UDP/TCP (all cc algorithm), SCTP, DCCP, QDISC, XFRM, netfilter, etc. 16

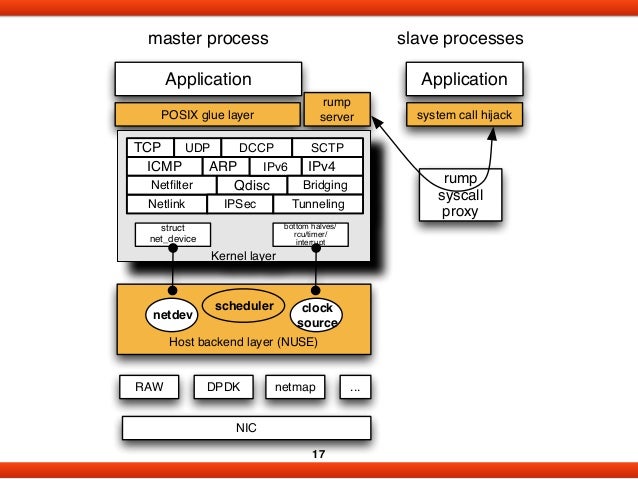

• 17. 17 Application ARP Qdisc TCP UDP DCCP SCTP ICMP IPv4IPv6 Netlink BridgingNetfilter IPSec Tunneling Kernel layer Host backend layer (NUSE) POSIX glue layer bottom halves/ rcu/timer/ interrupt struct net_device RAW DPDK netmap ... NIC scheduler netdev clock source system call hijack Application master process slave processes rump syscall proxy rump server

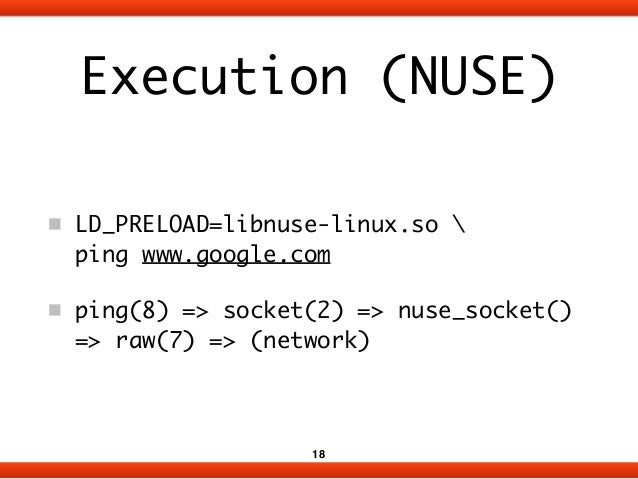

• 18. Execution (NUSE) LD_PRELOAD=libnuse-linux.so
 ping www.google.com ping(8) => socket(2) => nuse_socket() => raw(7) => (network) 18

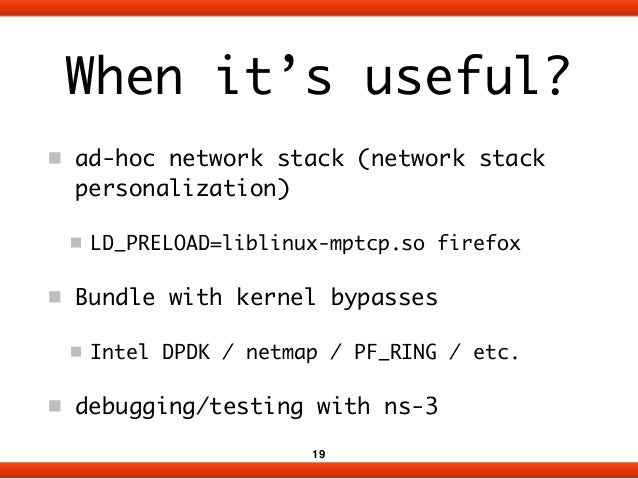

• 19. When it’s useful? ad-hoc network stack (network stack personalization) LD_PRELOAD=liblinux-mptcp.so firefox Bundle with kernel bypasses Intel DPDK / netmap / PF_RING / etc. debugging/testing with ns-3 19

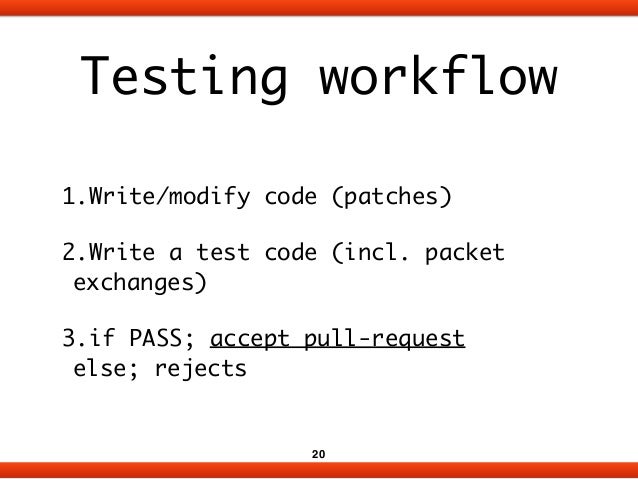

• 20. Testing workflow 1.Write/modify code (patches) 2.Write a test code (incl. packet exchanges) 3.if PASS; accept pull-request
 else; rejects 20

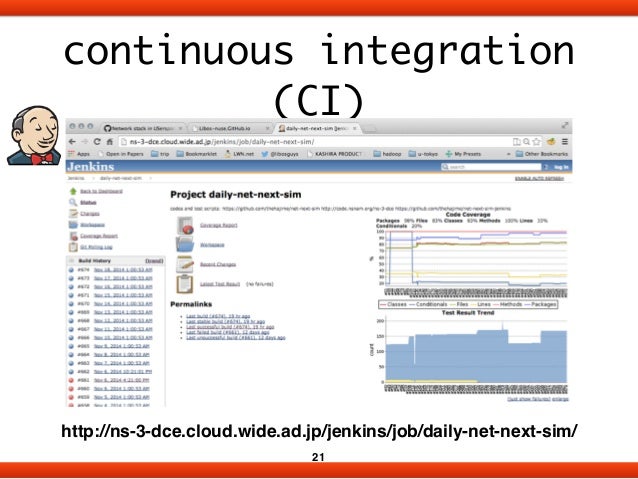

• 21. continuous integration (CI) 21 http://ns-3-dce.cloud.wide.ad.jp/jenkins/job/daily-net-next-sim/

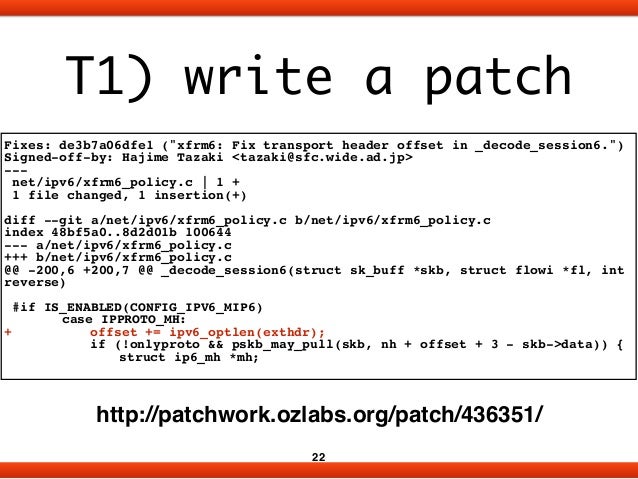

• 22. T1) write a patch 22 Fixes: de3b7a06dfe1 ("xfrm6: Fix transport header offset in _decode_session6.")! Signed-off-by: Hajime Tazaki <tazaki@sfc.wide.ad.jp>! ---! net/ipv6/xfrm6_policy.c | 1 +! 1 file changed, 1 insertion(+)! ! diff --git a/net/ipv6/xfrm6_policy.c b/net/ipv6/xfrm6_policy.c! index 48bf5a0..8d2d01b 100644! --- a/net/ipv6/xfrm6_policy.c! +++ b/net/ipv6/xfrm6_policy.c! @@ -200,6 +200,7 @@ _decode_session6(struct sk_buff *skb, struct flowi *fl, int reverse)! ! #if IS_ENABLED(CONFIG_IPV6_MIP6)! ! ! case IPPROTO_MH:! +! ! ! offset += ipv6_optlen(exthdr);! ! ! ! if (!onlyproto && pskb_may_pull(skb, nh + offset + 3 - skb->data)) {! ! ! ! ! struct ip6_mh *mh;! http://patchwork.ozlabs.org/patch/436351/
• 23. T2) write a test As ns-3 scenario C++ or python create a topology config nodes run/check results (e.g., ping6) 23 +-----------+! | HA |! +-----------+! |sim0! +----------+------------+! |sim0 |sim0! sim2+----+---+ +----+---+! - - -| AR1 | | AR2 |! +---+----+ +----+---+! |sim1 |sim1! | |! sim0 sim0! +----+------+ (Movement) +----+-----+! | MR | <=====> | MR |! +-----------+ +----------+! |sim1 |sim1! +---------+ +---------+! | MNN | | MNN |! +---------+ +---------+! http://code.nsnam.org/thehajime/ns-3-dce-umip/file/tip/test/dce-umip-test.cc

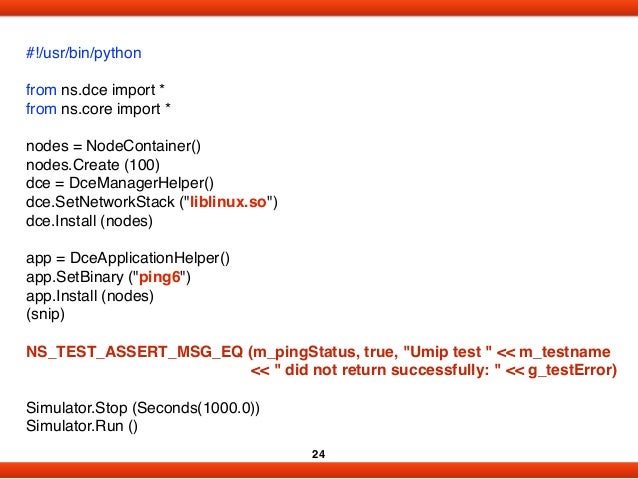

• 24. 24 #!/usr/bin/python! ! from ns.dce import *! from ns.core import *! ! nodes = NodeContainer()! nodes.Create (100)! dce = DceManagerHelper()! dce.SetNetworkStack ("liblinux.so")! dce.Install (nodes)! ! app = DceApplicationHelper()! app.SetBinary ("ping6")! app.Install (nodes)! (snip)! ! NS_TEST_ASSERT_MSG_EQ (m_pingStatus, true, "Umip test " << m_testname! << " did not return successfully: " << g_testError)! ! Simulator.Stop (Seconds(1000.0))! Simulator.Run ()

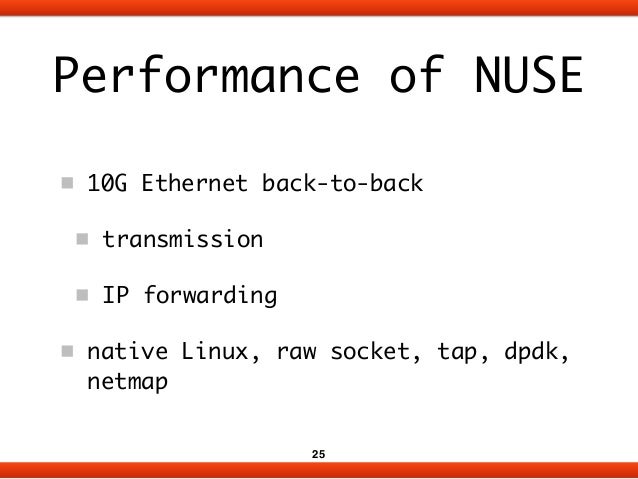

• 25. Performance of NUSE 10G Ethernet back-to-back transmission IP forwarding native Linux, raw socket, tap, dpdk, netmap 25

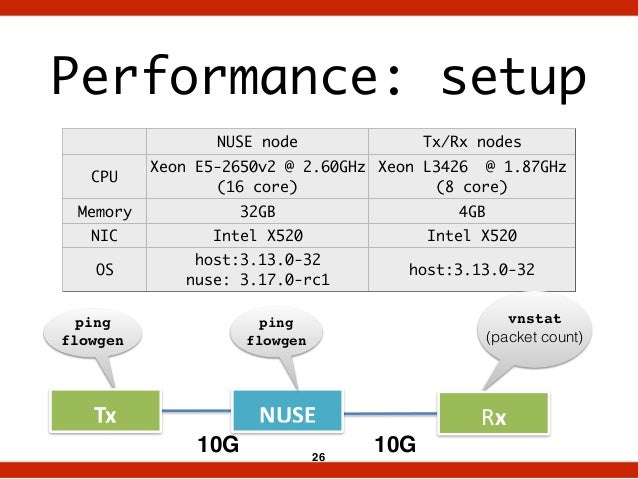

• 26. Performance: setup 26 10G10G NUSE node Tx/Rx nodes CPU Xeon E5-2650v2 @ 2.60GHz (16 core) Xeon L3426 @ 1.87GHz (8 core) Memory 32GB 4GB NIC Intel X520 Intel X520 OS host:3.13.0-32 nuse: 3.17.0-rc1 host:3.13.0-32 ping! flowgen vnstat! (packet count) Tx NUSE Rx ping! flowgen

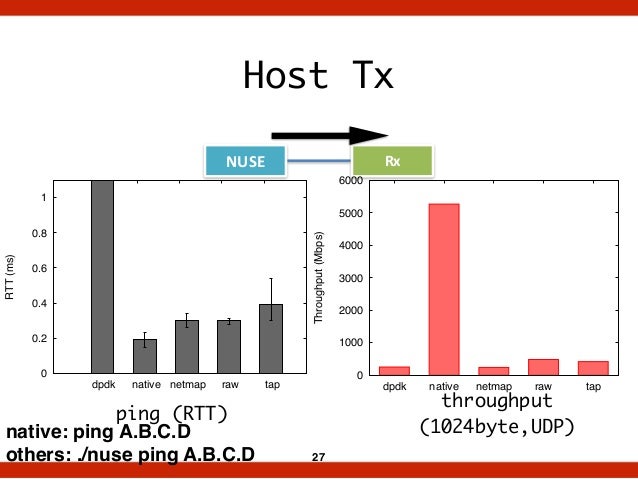

• 27. Host Tx 27 RxNUSE ping (RTT) throughput (1024byte,UDP) 0 1000 2000 3000 4000 5000 6000 dpdk native netmap raw tap Throughput(Mbps) 0 0.2 0.4 0.6 0.8 1 dpdk native netmap raw tap RTT(ms) native: ping A.B.C.D! others: ./nuse ping A.B.C.D

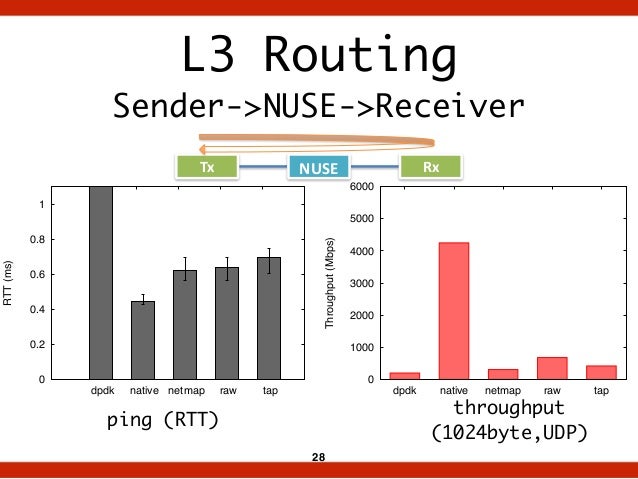

• 28. L3 Routing Sender->NUSE->Receiver 28 Tx RxNUSE ping (RTT) throughput (1024byte,UDP) 0 1000 2000 3000 4000 5000 6000 dpdk native netmap raw tap Throughput(Mbps) 0 0.2 0.4 0.6 0.8 1 dpdk native netmap raw tap RTT(ms)

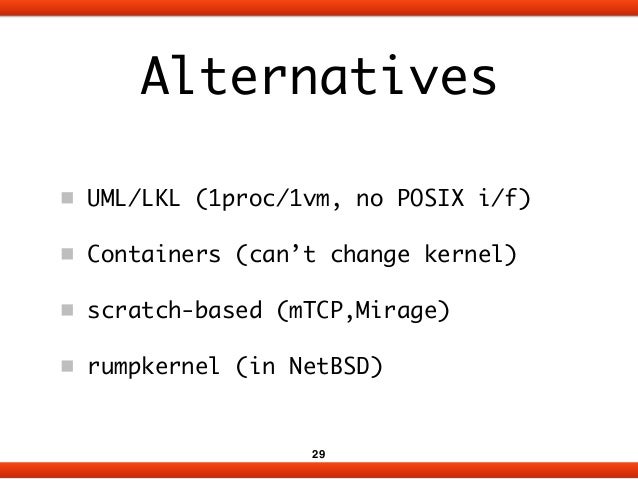

• 29. Alternatives UML/LKL (1proc/1vm, no POSIX i/f) Containers (can’t change kernel) scratch-based (mTCP,Mirage) rumpkernel (in NetBSD) 29

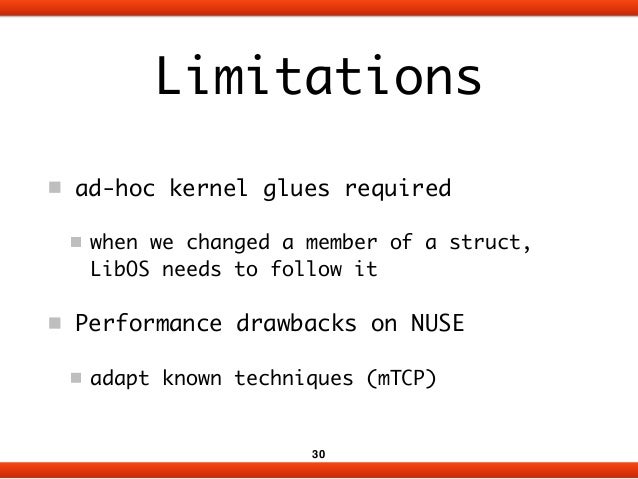

• 30. Limitations ad-hoc kernel glues required when we changed a member of a struct, LibOS needs to follow it Performance drawbacks on NUSE adapt known techniques (mTCP) 30

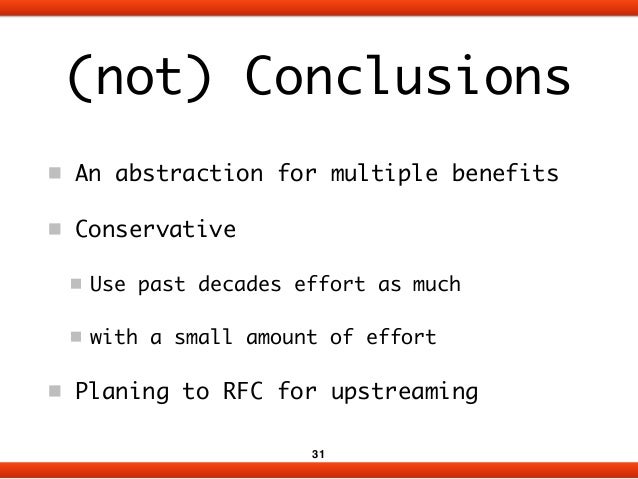

• 31. (not) Conclusions An abstraction for multiple benefits Conservative Use past decades effort as much with a small amount of effort Planing to RFC for upstreaming 31
• 32. github: https://github.com/libos-nuse/net- next-nuse DCE: http://bit.ly/ns-3-dce twitter: @thehajime 32
• 33. Backups

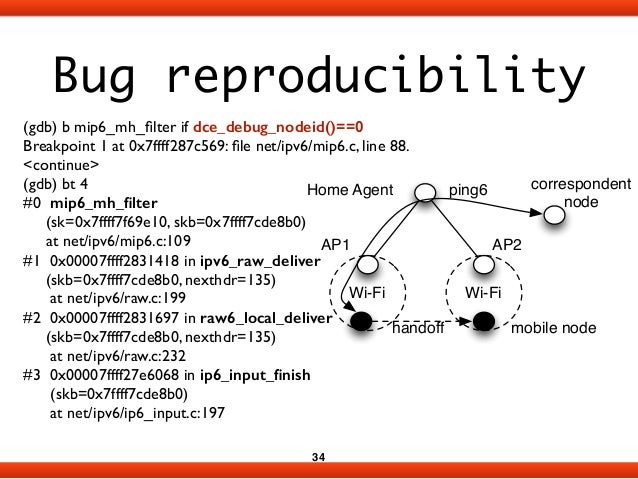

• 34. Bug reproducibility 34 Wi-Fi Wi-Fi Home Agent AP1 AP2 handoff ping6 mobile node correspondent node (gdb) b mip6_mh_filter if dce_debug_nodeid()==0
 Breakpoint 1 at 0x7ffff287c569: file net/ipv6/mip6.c, line 88. <continue> (gdb) bt 4 #0  mip6_mh_filter (sk=0x7ffff7f69e10, skb=0x7ffff7cde8b0) at net/ipv6/mip6.c:109 #1  0x00007ffff2831418 in ipv6_raw_deliver (skb=0x7ffff7cde8b0, nexthdr=135)
 at net/ipv6/raw.c:199 #2  0x00007ffff2831697 in raw6_local_deliver (skb=0x7ffff7cde8b0, nexthdr=135)
 at net/ipv6/raw.c:232 #3  0x00007ffff27e6068 in ip6_input_finish (skb=0x7ffff7cde8b0) at net/ipv6/ip6_input.c:197

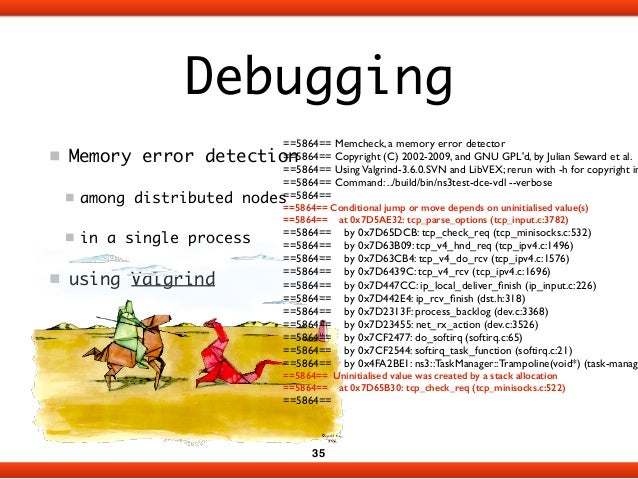

• 35. Debugging Memory error detection among distributed nodes in a single process using Valgrind ! ! 35 ==5864== Memcheck, a memory error detector ==5864== Copyright (C) 2002-2009, and GNU GPL'd, by Julian Seward et al. ==5864== UsingValgrind-3.6.0.SVN and LibVEX; rerun with -h for copyright in ==5864== Command: ../build/bin/ns3test-dce-vdl --verbose ==5864== ==5864== Conditional jump or move depends on uninitialised value(s) ==5864== at 0x7D5AE32: tcp_parse_options (tcp_input.c:3782) ==5864== by 0x7D65DCB: tcp_check_req (tcp_minisocks.c:532) ==5864== by 0x7D63B09: tcp_v4_hnd_req (tcp_ipv4.c:1496) ==5864== by 0x7D63CB4: tcp_v4_do_rcv (tcp_ipv4.c:1576) ==5864== by 0x7D6439C: tcp_v4_rcv (tcp_ipv4.c:1696) ==5864== by 0x7D447CC: ip_local_deliver_finish (ip_input.c:226) ==5864== by 0x7D442E4: ip_rcv_finish (dst.h:318) ==5864== by 0x7D2313F: process_backlog (dev.c:3368) ==5864== by 0x7D23455: net_rx_action (dev.c:3526) ==5864== by 0x7CF2477: do_softirq (softirq.c:65) ==5864== by 0x7CF2544: softirq_task_function (softirq.c:21) ==5864== by 0x4FA2BE1: ns3::TaskManager::Trampoline(void*) (task-manage ==5864== Uninitialised value was created by a stack allocation ==5864== at 0x7D65B30: tcp_check_req (tcp_minisocks.c:522) ==5864==

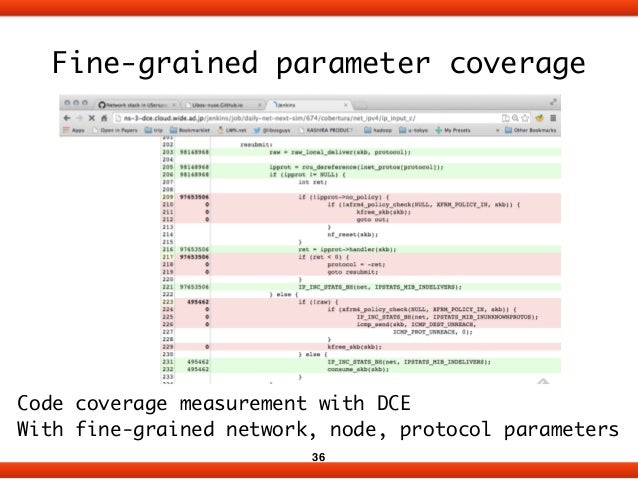

• 36. Fine-grained parameter coverage 36 Code coverage measurement with DCE With fine-grained network, node, protocol parameters

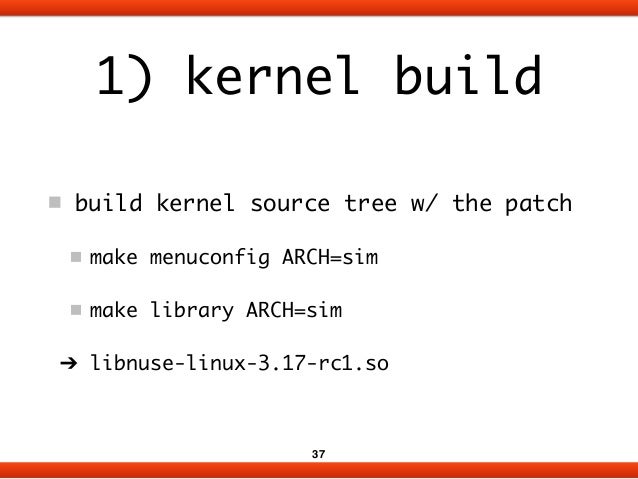

• 37. 1) kernel build build kernel source tree w/ the patch make menuconfig ARCH=sim make library ARCH=sim ➔ libnuse-linux-3.17-rc1.so 37

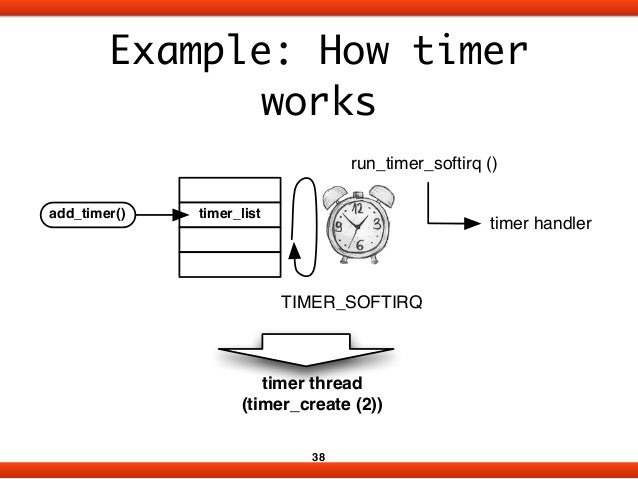

• 38. Example: How timer works 38 add_timer() TIMER_SOFTIRQ timer_list run_timer_softirq () timer handler timer thread (timer_create (2))

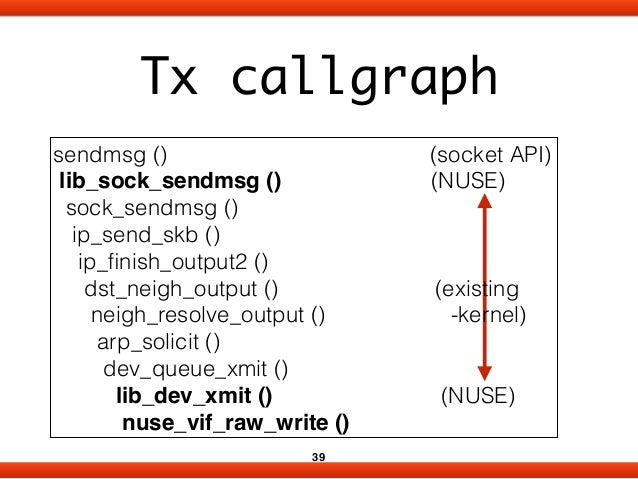

• 39. Tx callgraph 39 sendmsg () (socket API) lib_sock_sendmsg () (NUSE) sock_sendmsg () ip_send_skb () ip_finish_output2 () dst_neigh_output () (existing neigh_resolve_output () -kernel) arp_solicit () dev_queue_xmit () lib_dev_xmit () (NUSE) nuse_vif_raw_write ()
