  • 1. Putting Together World's Best Data Processing Research with Python Copyright 2014 Shiroyagi Corporation. All rights reserved. Akira Shibata, PhD Shiroyagi Corporation
  • 2. Who am I Akira Shibata, PhD. TW: @punkphysicist CEO, Shiroyagi Corporation (shiroyagi.co.jp) Kamelio: Personalised News Curation Kamect: Contents Discovery Platform 2004 - 2010: Data Scientist @ NYU Statistical data modelling @ LHC, CERN 2010 - 2013 Boston Consulting Group Copyright 2014 Shiroyagi Corporation. All rights reserved. 2
  • 3. Copyright 2014 Shiroyagi Corporation. All rights reserved. 3

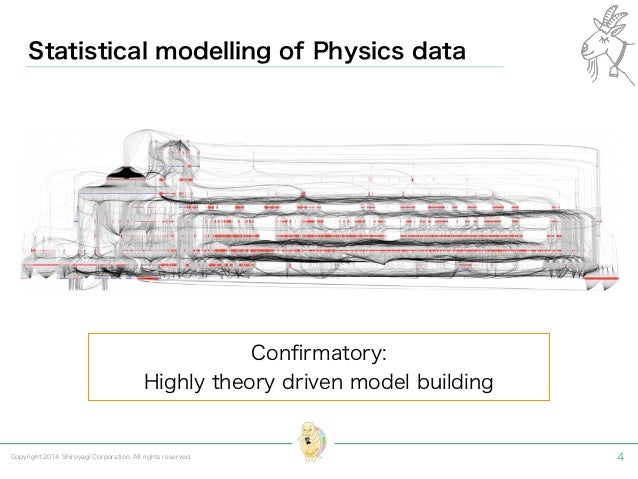

  • 4. Statistical modelling of Physics data Confirmatory: Highly theory driven model building Copyright 2014 Shiroyagi Corporation. All rights reserved. 4

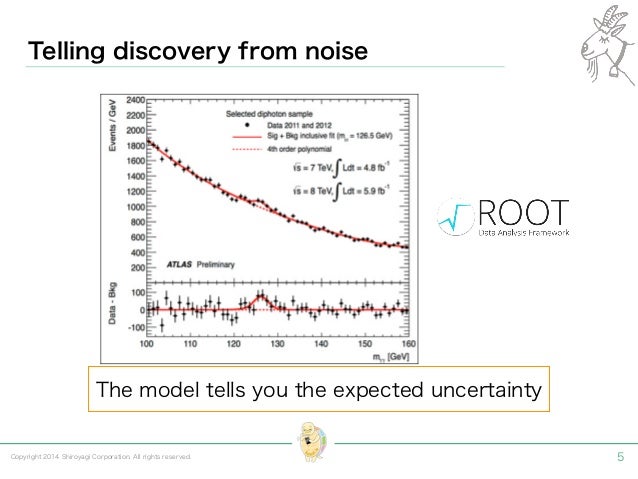

  • 5. Telling discovery from noise The model tells you the expected uncertainty Copyright 2014 Shiroyagi Corporation. All rights reserved. 5
  • 6. Copyright 2014 Shiroyagi Corporation. All rights reserved. 6
  • 7. Copyright 2014 Shiroyagi Corporation. All rights reserved. 7
  • 8. Copyright 2014 Shiroyagi Corporation. All rights reserved. 8
  • 9. Copyright 2014 Shiroyagi Corporation. All rights reserved. 9
  • 10. Copyright 2014 Shiroyagi Corporation. All rights reserved. 10

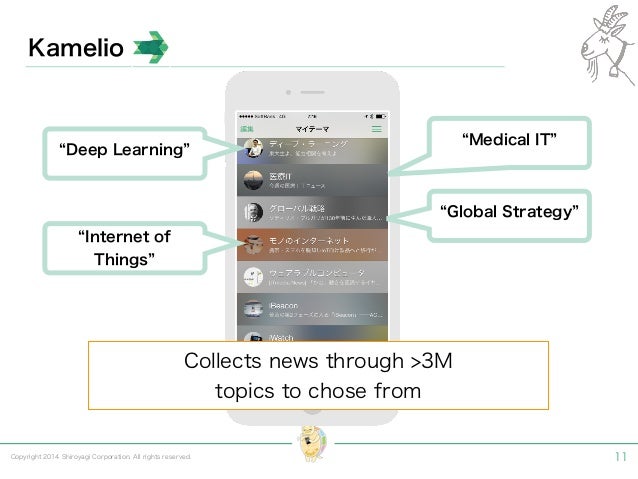

  • 11. Kamelio “Deep Learning” “Internet of Things” “Medical IT” “Global Strategy” Collects news through >3M topics to chose from Copyright 2014 Shiroyagi Corporation. All rights reserved. 11

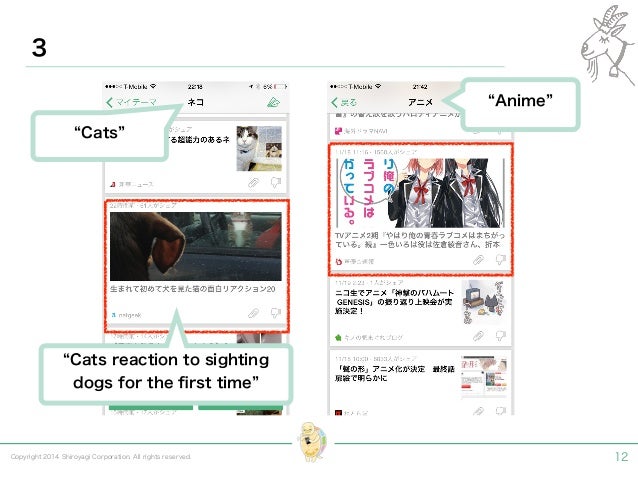

  • 12. ３ “Cats” “Anime” “Cats reaction to sighting dogs for the first time” Copyright 2014 Shiroyagi Corporation. All rights reserved. 12

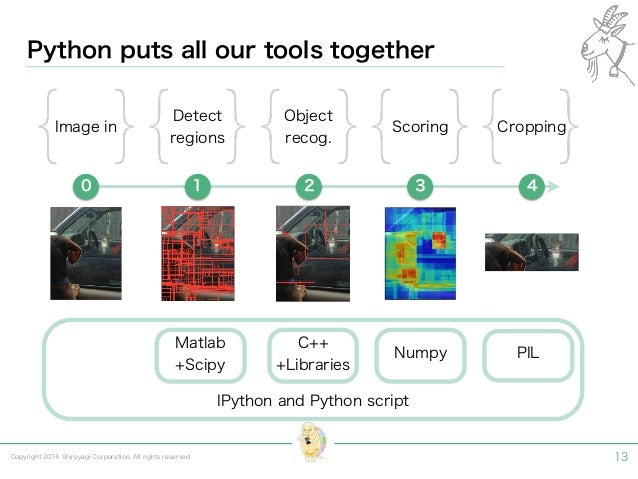

  • 13. Python puts all our tools together Image in Detect regions Object recog. Scoring Cropping 0 1 2 3 4 Matlab +Scipy C++ +Libraries Numpy PIL IPython and Python script Copyright 2014 Shiroyagi Corporation. All rights reserved. 13

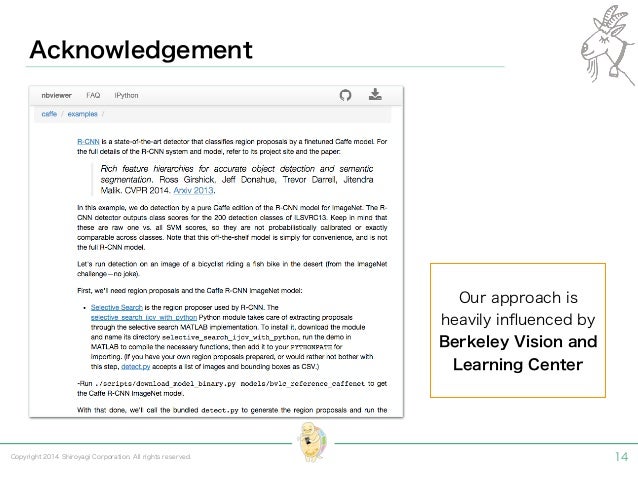

  • 14. Our approach is heavily influenced by Berkeley Vision and Learning Center Acknowledgement Copyright 2014 Shiroyagi Corporation. All rights reserved. 14

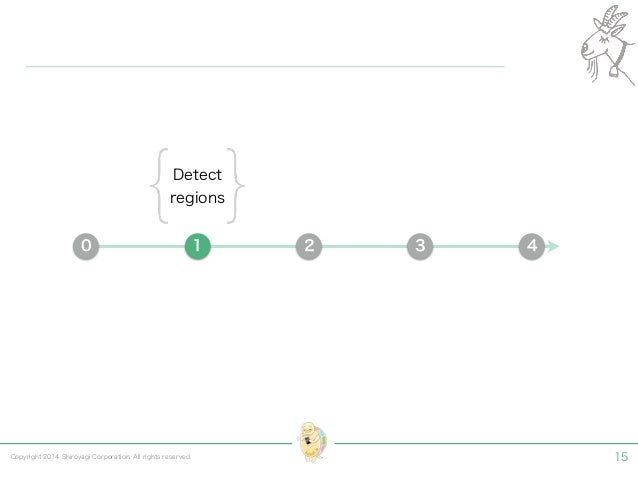

  • 15. Detect regions 0 1 2 3 4 Copyright 2014 Shiroyagi Corporation. All rights reserved. 15
  • 16. Region detection: Telling where to look at How do we find regions to feed into object recognition? Default strategy was to look at the center 1 Copyright 2014 Shiroyagi Corporation. All rights reserved. 16

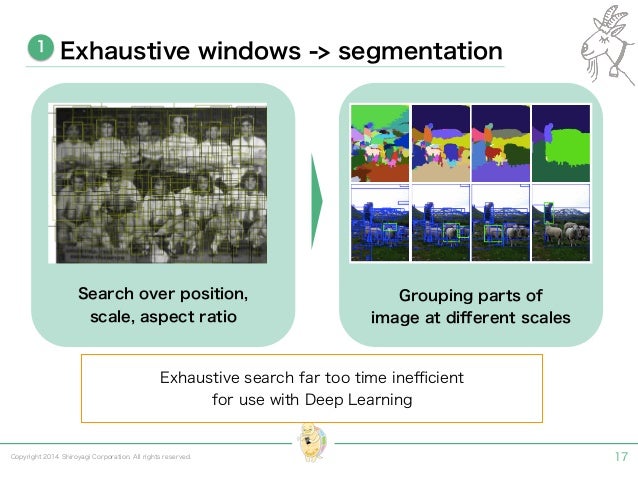

  • 17. Exhaustive windows -> segmentation Search over position, scale, aspect ratio Grouping parts of image at different scales Exhaustive search far too time inefficient for use with Deep Learning 1 Copyright 2014 Shiroyagi Corporation. All rights reserved. 17

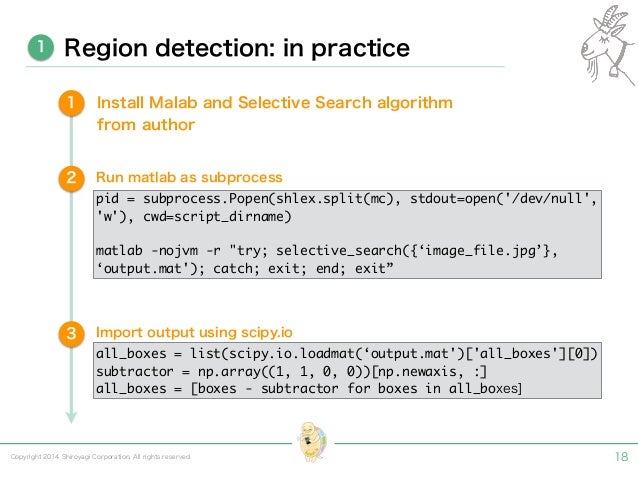

  • 18. 1 Region detection: in practice Install Malab and Selective Search algorithm from author Run matlab as subprocess pid = subprocess.Popen(shlex.split(mc), stdout=open('/dev/null', 'w'), cwd=script_dirname) matlab -nojvm -r "try; selective_search({‘image_file.jpg’}, ‘output.mat'); catch; exit; end; exit” 1 2 3 Import output using scipy.io all_boxes = list(scipy.io.loadmat(‘output.mat')['all_boxes'][0]) subtractor = np.array((1, 1, 0, 0))[np.newaxis, :] all_boxes = [boxes - subtractor for boxes in all_boxes] Copyright 2014 Shiroyagi Corporation. All rights reserved. 18

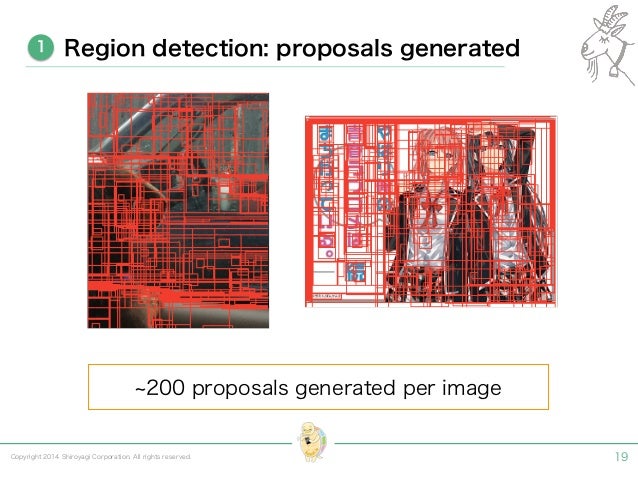

  • 19. 1 Region detection: proposals generated ~200 proposals generated per image Copyright 2014 Shiroyagi Corporation. All rights reserved. 19

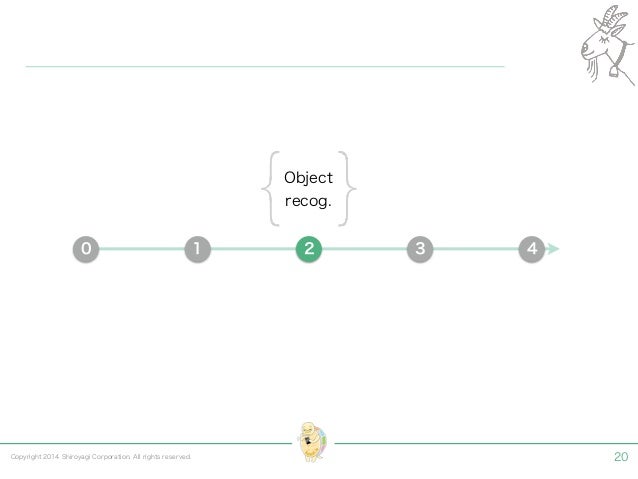

  • 20. Object recog. 0 1 2 3 4 Copyright 2014 Shiroyagi Corporation. All rights reserved. 20
  • 21. Object recognition Deep blue beat Kasparov at chess in 1997… 2 Copyright 2014 Shiroyagi Corporation. All rights reserved. 21

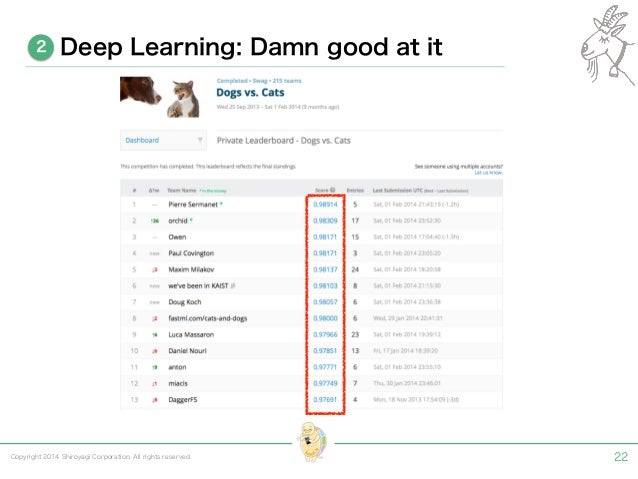

  • 22. 2 Deep Learning: Damn good at it Copyright 2014 Shiroyagi Corporation. All rights reserved. 22

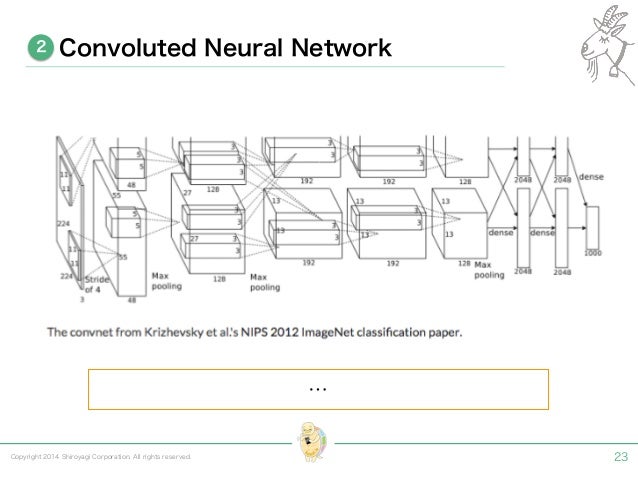

  • 23. 2 Convoluted Neural Network … Copyright 2014 Shiroyagi Corporation. All rights reserved. 23

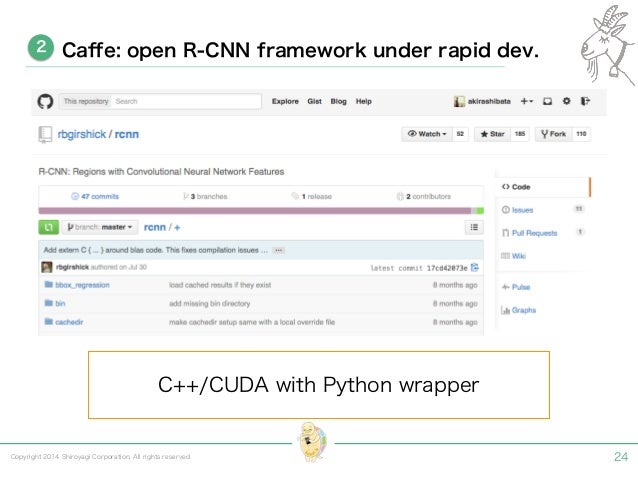

  • 24. Caffe: open R-CNN framework under rapid dev. C++/CUDA with Python wrapper 2 Copyright 2014 Shiroyagi Corporation. All rights reserved. 24

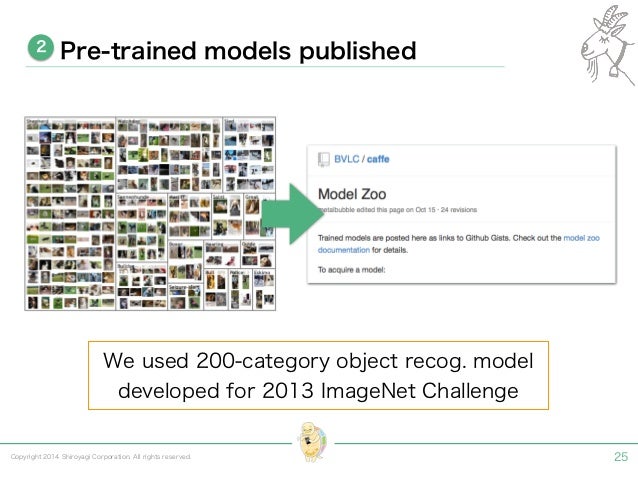

  • 25. Pre-trained models published We used 200-category object recog. model developed for 2013 ImageNet Challenge 2 Copyright 2014 Shiroyagi Corporation. All rights reserved. 25

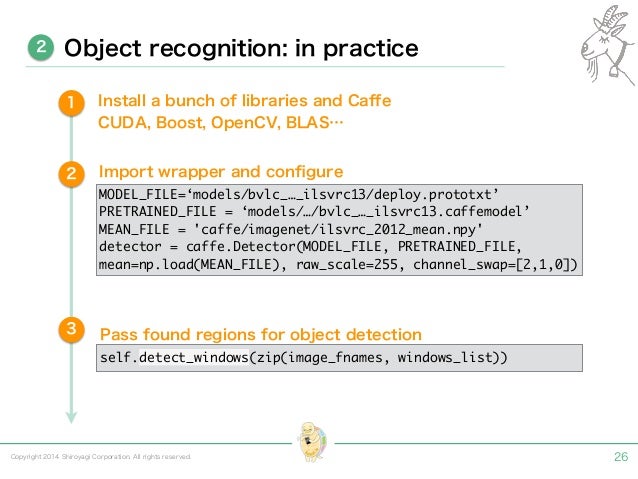

  • 26. 2 Object recognition: in practice Install a bunch of libraries and Caffe CUDA, Boost, OpenCV, BLAS… Import wrapper and configure MODEL_FILE=‘models/bvlc_…_ilsvrc13/deploy.prototxt’ PRETRAINED_FILE = ‘models/…/bvlc_…_ilsvrc13.caffemodel’ MEAN_FILE = 'caffe/imagenet/ilsvrc_2012_mean.npy' detector = caffe.Detector(MODEL_FILE, PRETRAINED_FILE, mean=np.load(MEAN_FILE), raw_scale=255, channel_swap=[2,1,0]) 1 2 3 Pass found regions for object detection self.detect_windows(zip(image_fnames, windows_list)) Copyright 2014 Shiroyagi Corporation. All rights reserved. 26

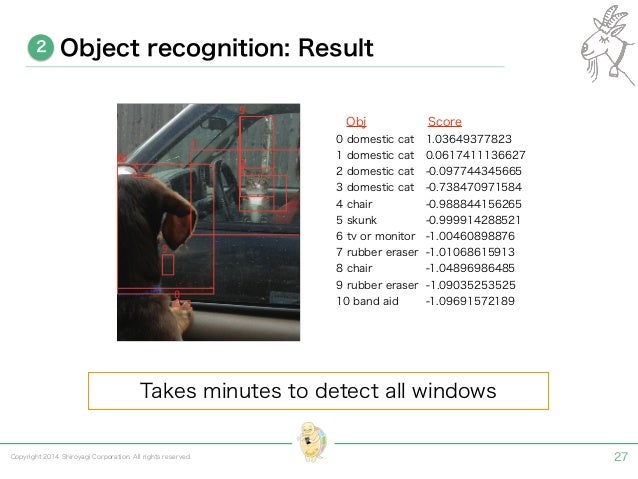

  • 27. 2 Object recognition: Result Obj Score 0 domestic cat 1.03649377823 1 domestic cat 0.0617411136627 2 domestic cat -0.097744345665 3 domestic cat -0.738470971584 4 chair -0.988844156265 5 skunk -0.999914288521 6 tv or monitor -1.00460898876 7 rubber eraser -1.01068615913 8 chair -1.04896986485 9 rubber eraser -1.09035253525 10 band aid -1.09691572189 Takes minutes to detect all windows Copyright 2014 Shiroyagi Corporation. All rights reserved. 27

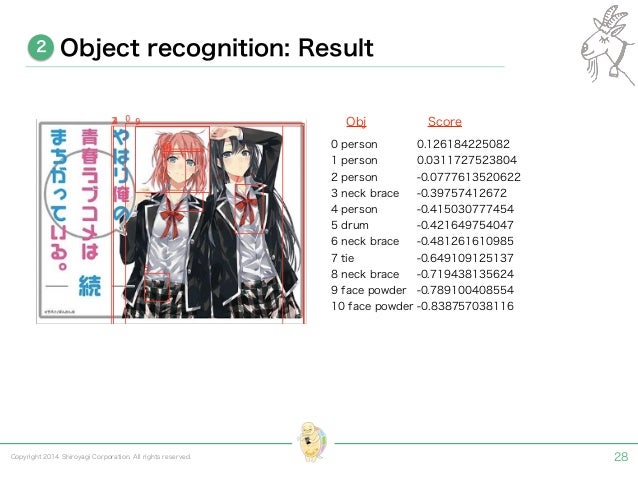

  • 28. 2 Object recognition: Result Obj Score 0 person 0.126184225082 1 person 0.0311727523804 2 person -0.0777613520622 3 neck brace -0.39757412672 4 person -0.415030777454 5 drum -0.421649754047 6 neck brace -0.481261610985 7 tie -0.649109125137 8 neck brace -0.719438135624 9 face powder -0.789100408554 10 face powder -0.838757038116 Copyright 2014 Shiroyagi Corporation. All rights reserved. 28
  • 29. Scoring 0 1 2 3 4 Copyright 2014 Shiroyagi Corporation. All rights reserved. 29

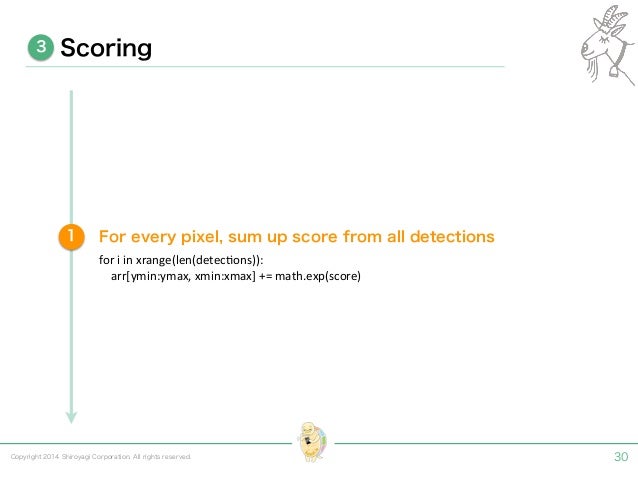

  • 30. 3 Scoring 1 For every pixel, sum up score from all detections for i in xrange(len(detec0ons)): arr[ymin:ymax, xmin:xmax] += math.exp(score) Copyright 2014 Shiroyagi Corporation. All rights reserved. 30

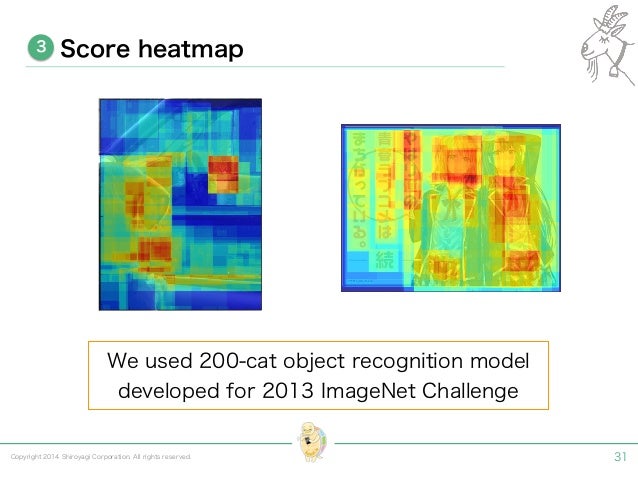

  • 31. Score heatmap We used 200-cat object recognition model developed for 2013 ImageNet Challenge 3 Copyright 2014 Shiroyagi Corporation. All rights reserved. 31

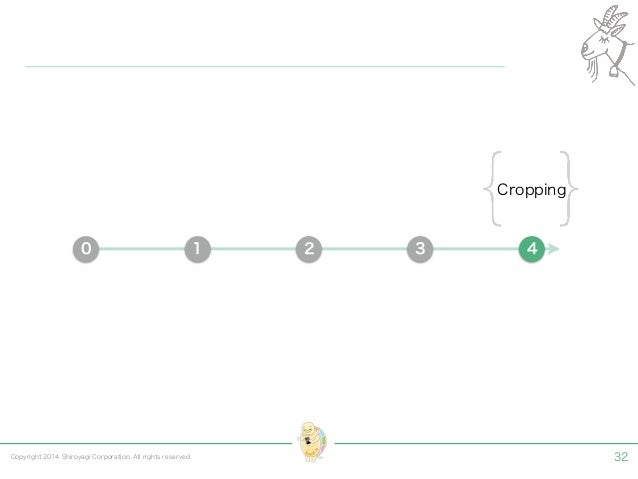

  • 32. Cropping 0 1 2 3 4 Copyright 2014 Shiroyagi Corporation. All rights reserved. 32

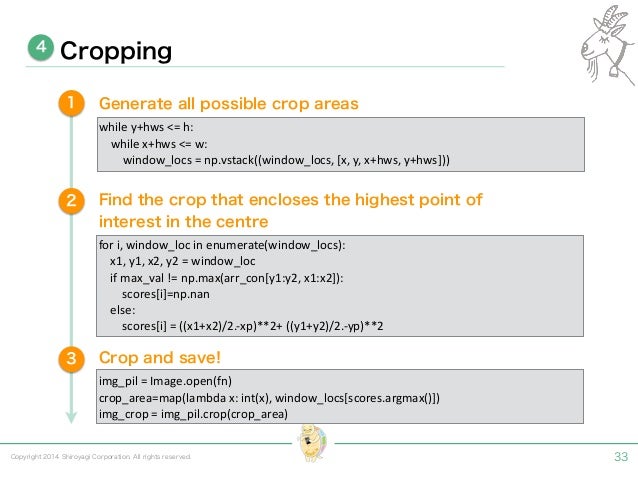

  • 33. 4 Cropping Generate all possible crop areas while y+hws <= h: while x+hws <= w: window_locs = np.vstack((window_locs, [x, y, x+hws, y+hws])) Find the crop that encloses the highest point of interest in the centre for i, window_loc in enumerate(window_locs): x1, y1, x2, y2 = window_loc if max_val != np.max(arr_con[y1:y2, x1:x2]): scores[i]=np.nan else: scores[i] = ((x1+x2)/2.-­‐xp)**2+ ((y1+y2)/2.-­‐yp)**2 1 2 3 Crop and save! img_pil = Image.open(fn) crop_area=map(lambda x: int(x), window_locs[scores.argmax()]) img_crop = img_pil.crop(crop_area) Copyright 2014 Shiroyagi Corporation. All rights reserved. 33
  • 34. 4 Finally Copyright 2014 Shiroyagi Corporation. All rights reserved. 34
  • 35. Future improvements Fast face/human detection Aspect detection: square or rectangle? Object weighting Magnification Unseen object Copyright 2014 Shiroyagi Corporation. All rights reserved. 35
