Guaranteeing Memory Safety in Rust

1. Rust Nicholas Matsakis Mozilla Research

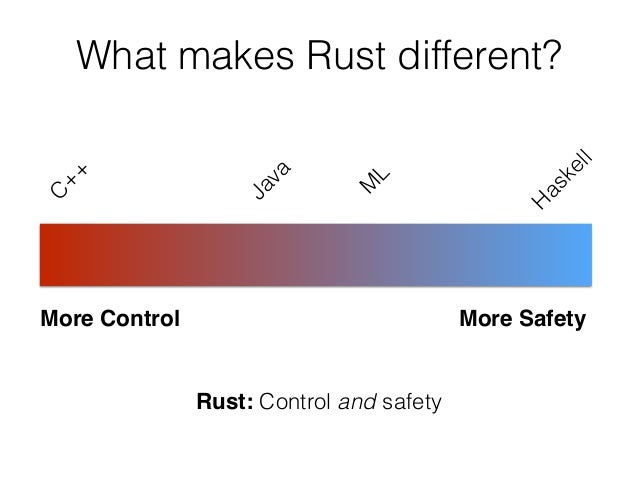

2. What makes Rust different? C++ Haskell Java ML More Control More Safety Rust: Control and safety

3. Why Mozilla? Browsers need control. Browsers need safety. Servo: Next-generation browser built in Rust.

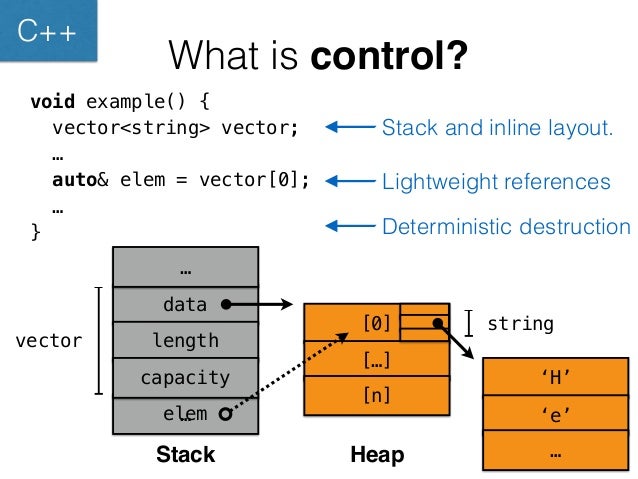

4. What is control? void example() { vector<string> vector; … auto& elem = vector[0]; … } Stack and inline layout. Lightweight references Deterministic destruction [0] string el…em vector data length capacity […] [n] … ‘H’ ‘e’ … Stack Heap C++

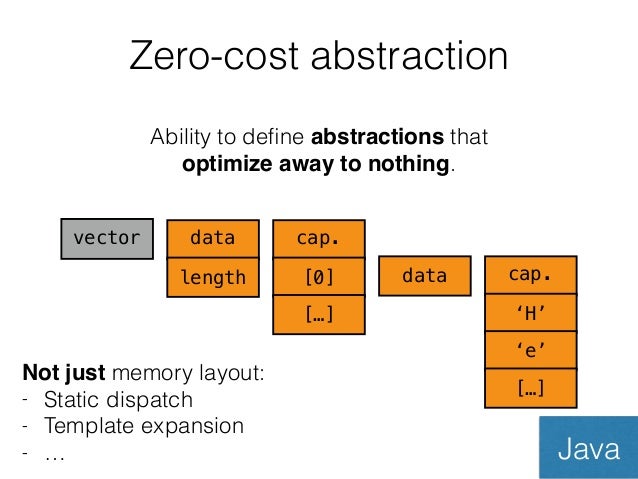

5. Zero-cost abstraction Ability to define abstractions that optimize away to nothing. vector data length cap. [0] […] data cap. ‘H’ ‘e’ […] Not just memory layout: - Static dispatch - Template expansion - … Java

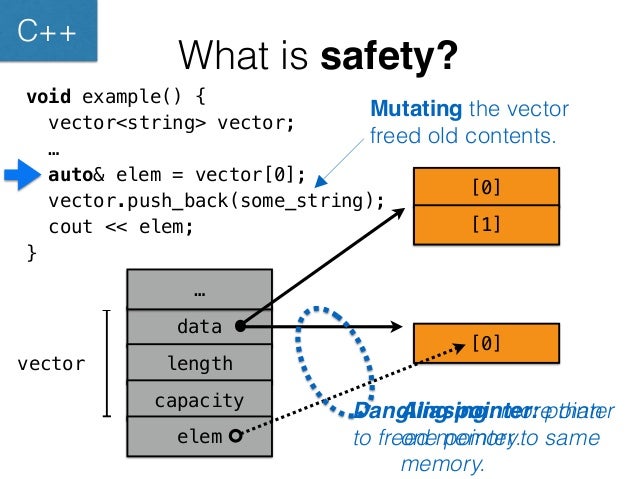

6. What is safety? void example() { vector<string> vector; … auto& elem = vector[0]; vector.push_back(some_string); cout << elem; } vector data length capacity [0] … [0] [1] elem Aliasing: more than one pointer to same memory. Dangling pointer: pointer to freed memory. C++ Mutating the vector freed old contents.

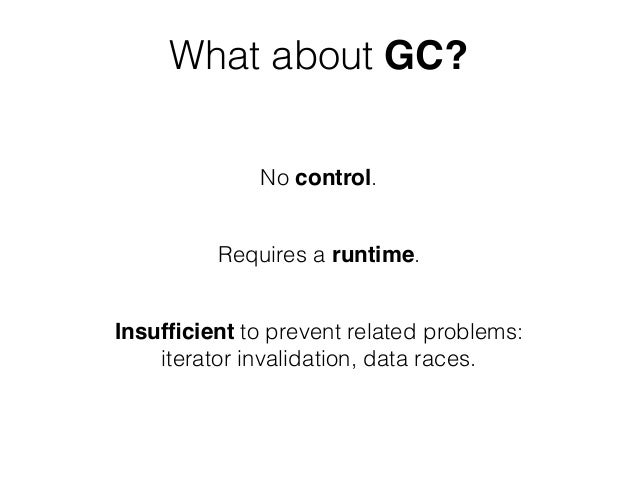

7. What about GC? No control. Requires a runtime. Insufficient to prevent related problems: iterator invalidation, data races.

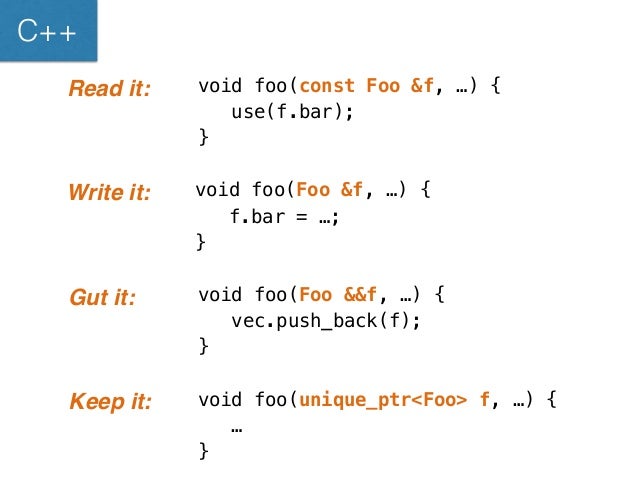

8. void foo(Foo &&f, …) { vec.push_back(f); } C++ Gut it: void foo(const Foo &f, …) { use(f.bar); } Read it: void foo(Foo &f, …) { f.bar = …; } Write it: void foo(unique_ptr<Foo> f, …) { … } Keep it:

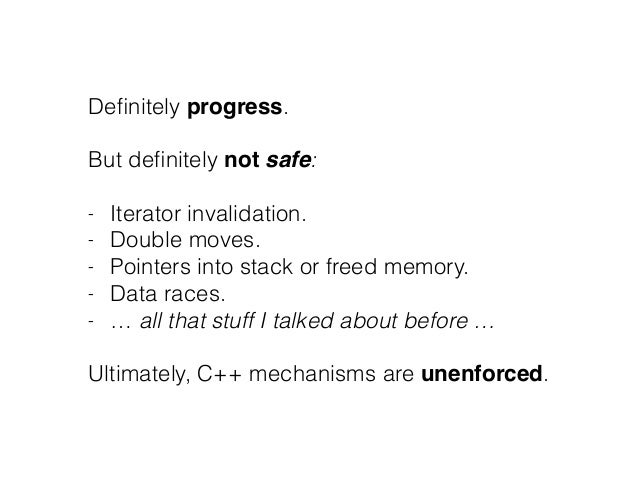

9. Definitely progress. ! But definitely not safe: ! - Iterator invalidation. - Double moves. - Pointers into stack or freed memory. - Data races. - … all that stuff I talked about before … ! Ultimately, C++ mechanisms are unenforced.

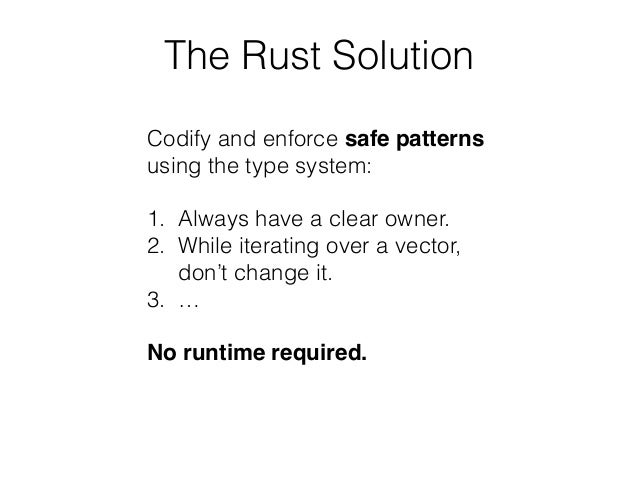

10. The Rust Solution Codify and enforce safe patterns using the type system: ! 1. Always have a clear owner. 2. While iterating over a vector, don’t change it. 3. … ! No runtime required.

11. Credit where it is due Rust borrows liberally from other great languages: C++, Haskell, ML/Ocaml, Cyclone, Erlang, Java, C#, … Rust has an active, amazing community. ❤

12. The Rust type system

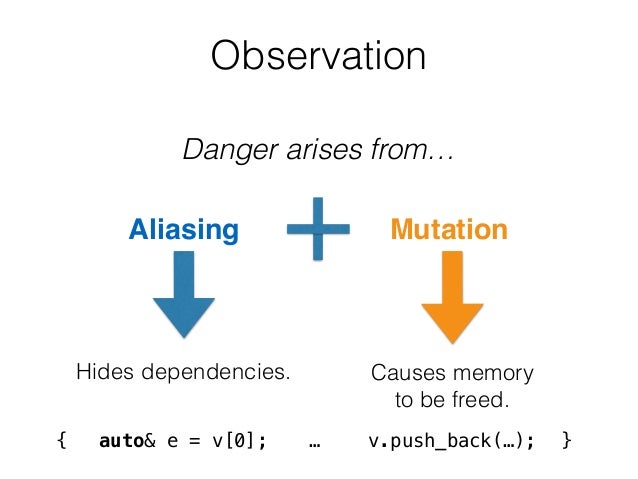

13. Observation Danger arises from… Aliasing Mutation Hides dependencies. Causes memory to be freed. { auto& e = v[0]; … v.push_back(…); }

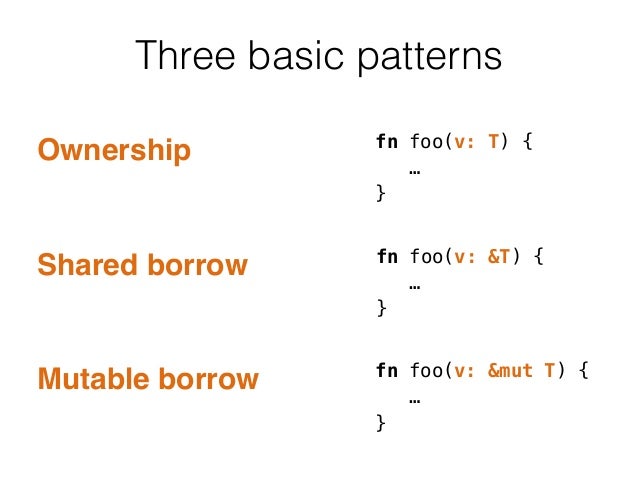

14. Three basic patterns fn foo(v: T) { … } Ownership fn foo(v: &T) { … } Shared borrow fn foo(v: &mut T) { … } Mutable borrow

15. Ownership! ! n. The act, state, or right of possessing something.

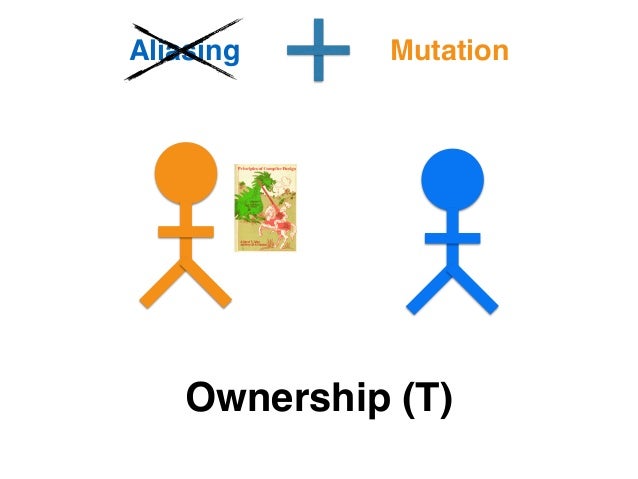

16. Aliasing Mutation Ownership (T)

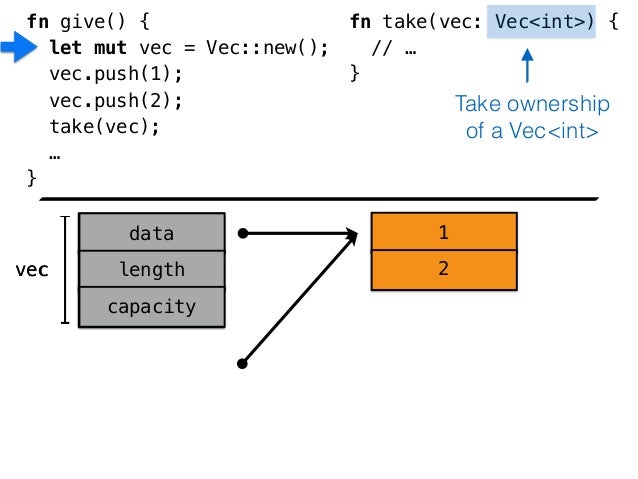

17. vec data length capacity 1 2 fn give() { let mut vec = Vec::new(); vec.push(1); vec.push(2); take(vec); … } fn take(vec: Vec<int>) { // … } ! Take ownership ! of a Vec<int> !

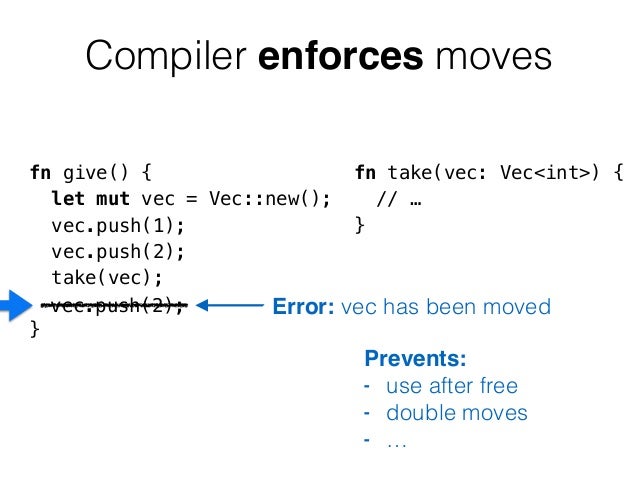

18. Compiler enforces moves fn give() { let mut vec = Vec::new(); vec.push(1); vec.push(2); take(vec); vec.… push(2); } fn take(vec: Vec<int>) { // … } ! ! Error: ve! c has been moved Prevents: - use after free - double moves - …

19. Borrow! ! v. To receive something with the promise of returning it.

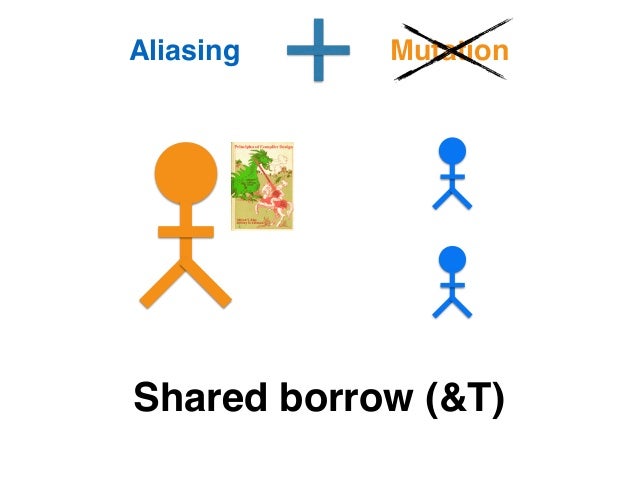

20. Aliasing Mutation Shared borrow (&T)

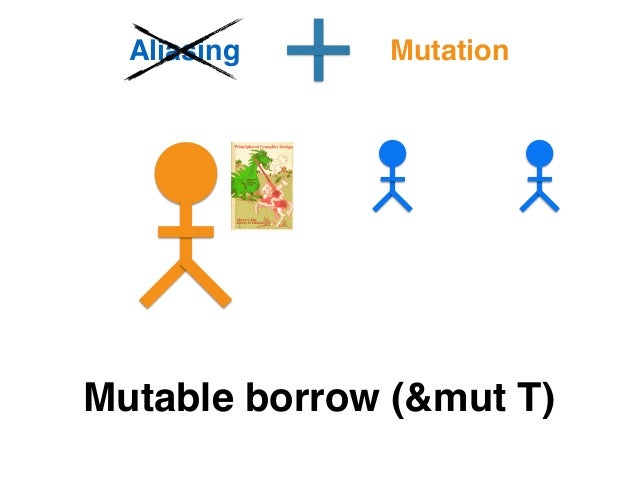

21. Aliasing Mutation Mutable borrow (&mut T)

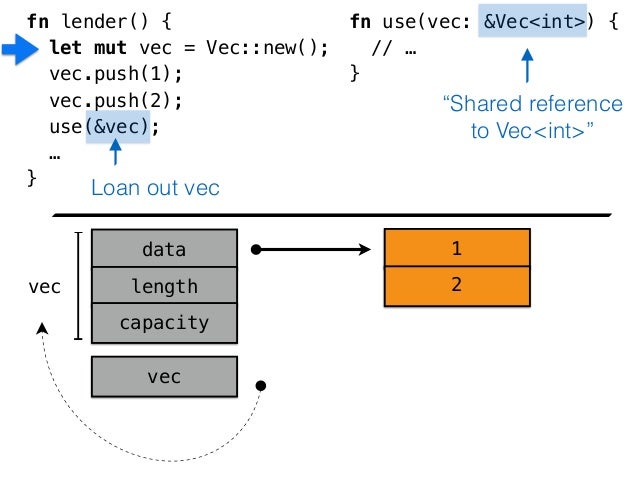

22. fn lender() { let mut vec = Vec::new(); vec.push(1); vec.push(2); use(&vec); … } fn use(vec: &Vec<int>) { // … } ! ! ! 1 data length capacity vec 2 vec “Shared reference to Vec<int>” Loan out vec

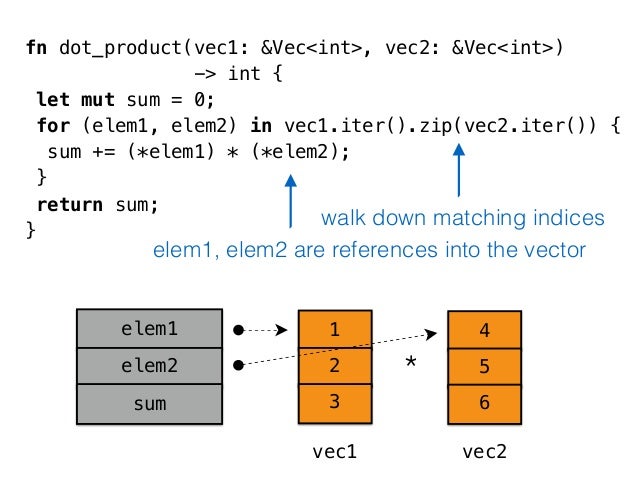

23. fn dot_product(vec1: &Vec<int>, vec2: &Vec<int>) elem1 elem2 sum -> int { let mut sum = 0; for (elem1, elem2) in vec1.iter().zip(vec2.iter()) { sum += (*elem1) * (*elem2); } return sum; } walk down matching indices elem1, elem2 are references into the vector 1 2 3 4 5 6 * vec1 vec2

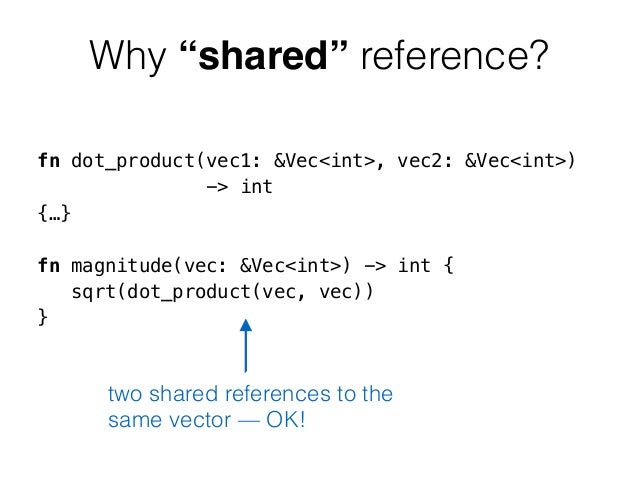

24. Why “shared” reference? fn dot_product(vec1: &Vec<int>, vec2: &Vec<int>) -> int {…} ! fn magnitude(vec: &Vec<int>) -> int { sqrt(dot_product(vec, vec)) } two shared references to the same vector — OK!

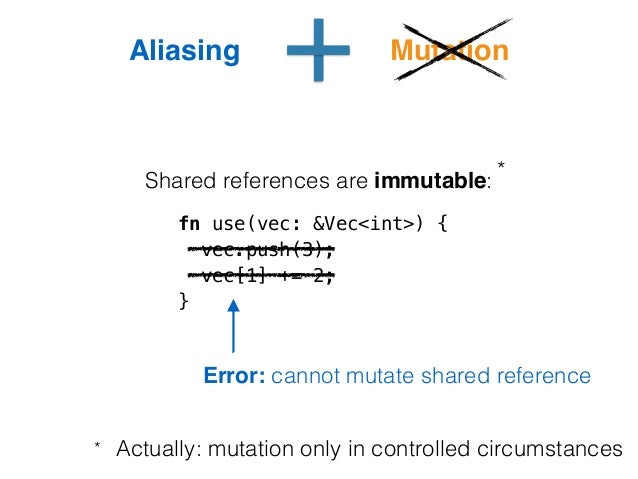

25. Aliasing Mutation Shared references are immutable: fn use(vec: &Vec<int>) { vec.push(3); vec[1] += 2; } * Error: cannot mutate shared reference * Actually: mutation only in controlled circumstances

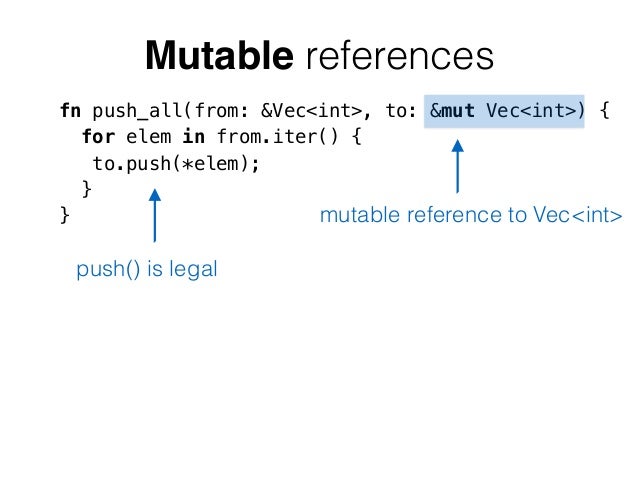

26. Mutable references fn push_all(from: &Vec<int>, to: &mut Vec<int>) { for elem in from.iter() { to.push(*elem); } } mutable reference to Vec<int> push() is legal

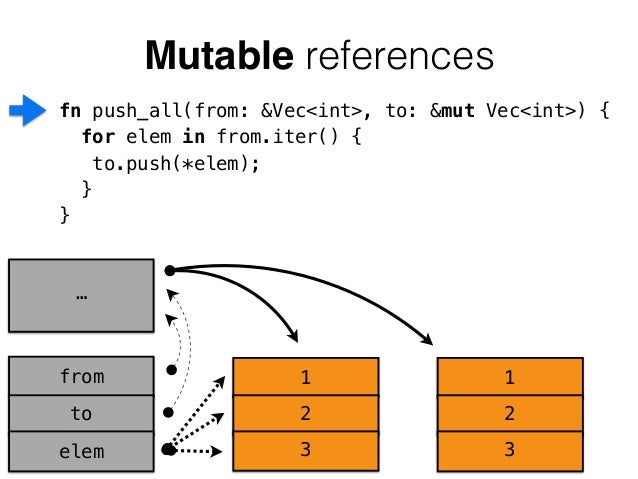

27. Mutable references fn push_all(from: &Vec<int>, to: &mut Vec<int>) { for elem in from.iter() { 1 2 3 to.push(*elem); } } from to elem 1 2 3 …

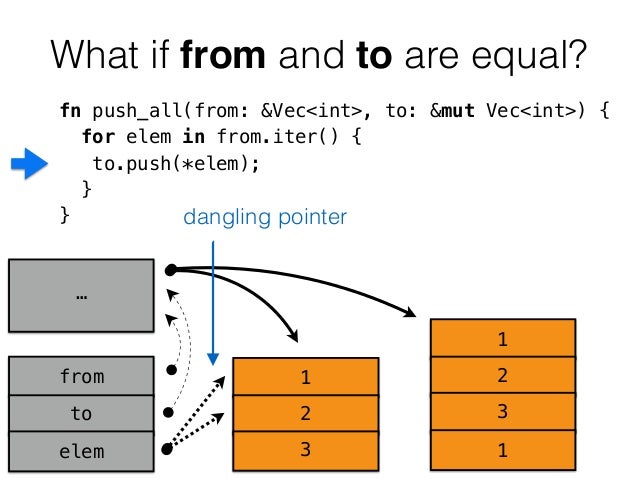

28. What if from and to are equal? fn push_all(from: &Vec<int>, to: &mut Vec<int>) { for elem in from.iter() { 1 2 3 from to elem 1 2 3 … 1 to.push(*elem); } } dangling pointer

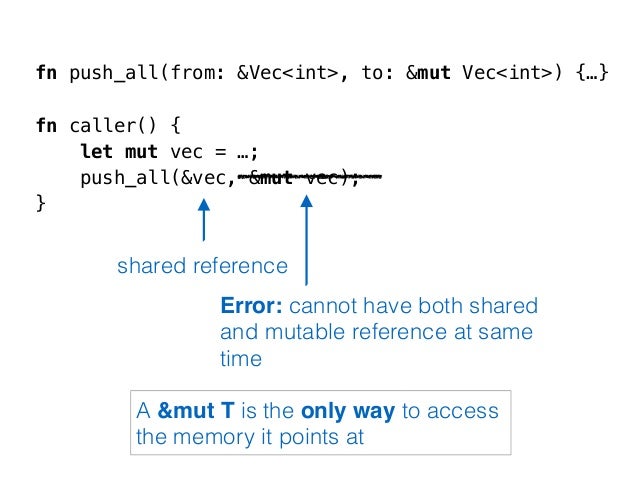

29. fn push_all(from: &Vec<int>, to: &mut Vec<int>) {…} ! fn caller() { let mut vec = …; push_all(&vec, &mut vec); } shared reference Error: cannot have both shared and mutable reference at same time A &mut T is the only way to access the memory it points at

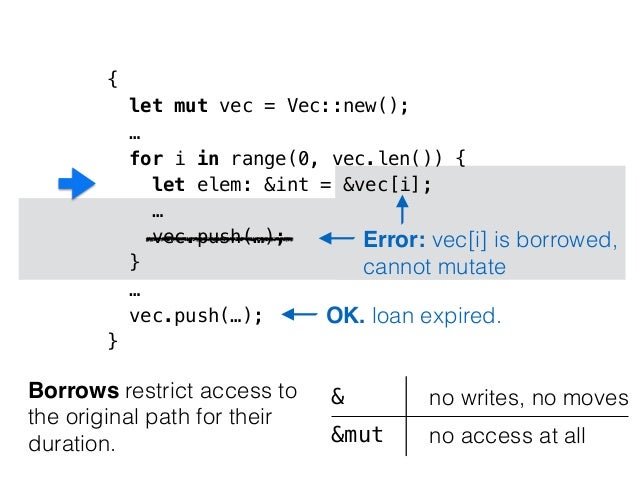

30. { let mut vec = Vec::new(); … for i in range(0, vec.len()) { let elem: &int = &vec[i]; … vec.push(…); } … vec.push(…); } Borrows restrict access to the original path for their duration. Error: vec[i] is borrowed, cannot mutate OK. loan expired. & &mut no writes, no moves no access at all

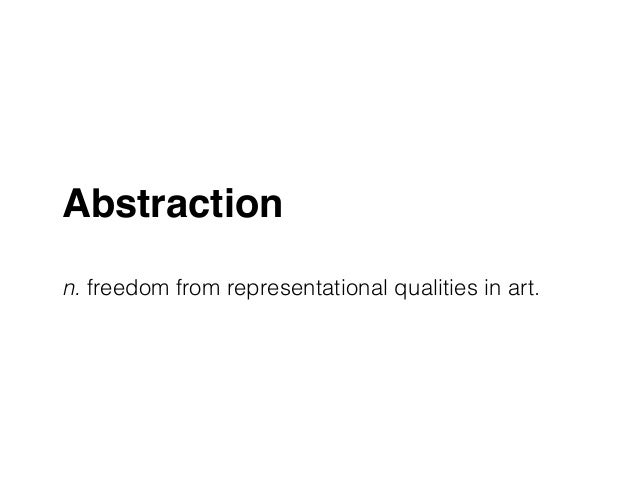

31. Abstraction! ! n. freedom from representational qualities in art.

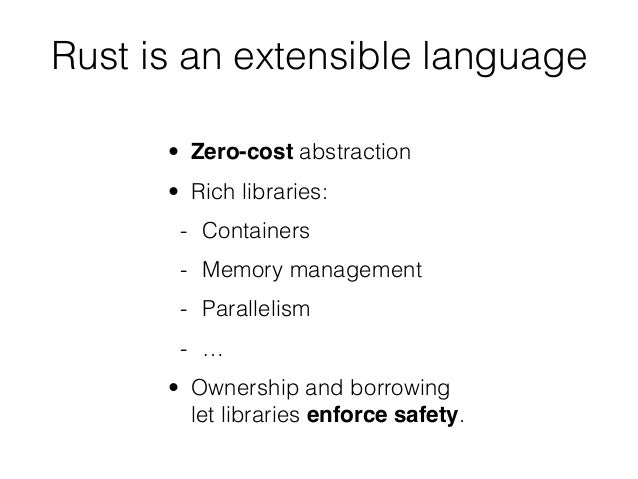

32. Rust is an extensible language • Zero-cost abstraction • Rich libraries: - Containers - Memory management - Parallelism - … • Ownership and borrowing let libraries enforce safety.

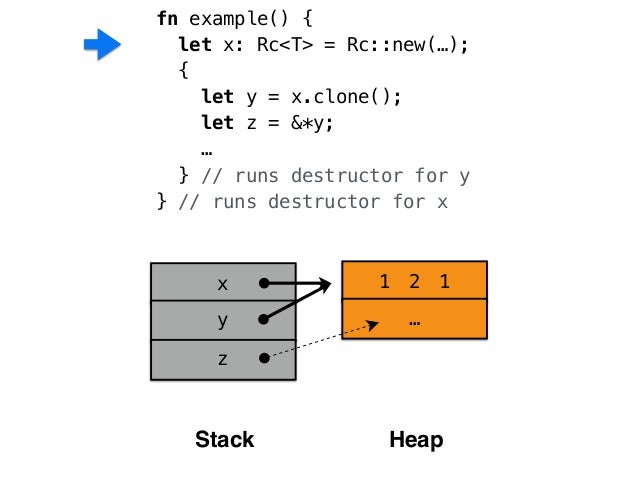

33. fn example() { let x: Rc<T> = Rc::new(…); { let y = x.clone(); let z = &*y; … } // runs destructor for y } // runs destructor for x x 1 [0] y 2 1 … z Stack Heap

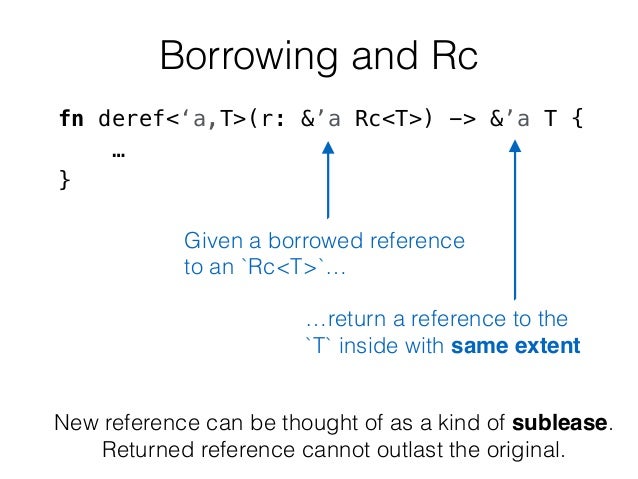

34. Borrowing and Rc fn deref<‘a,T>(r: &’a Rc<T>) -> &’a T { … } Given a borrowed reference to an `Rc<T>`… …return a reference to the `T` inside with same extent New reference can be thought of as a kind of sublease. Returned reference cannot outlast the original.

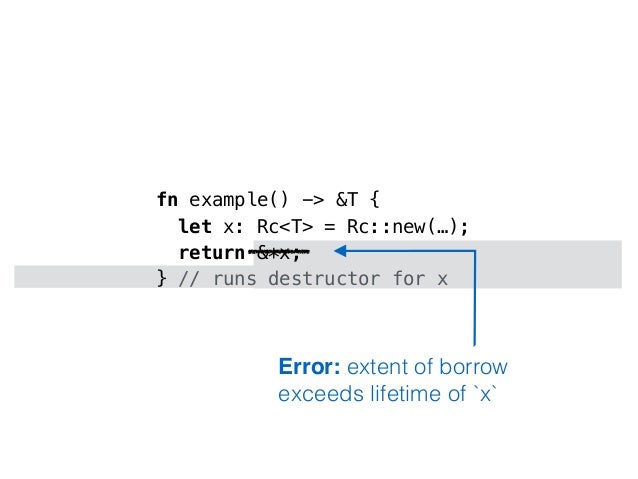

35. fn example() -> &T { let x: Rc<T> = Rc::new(…); return &*x; } // runs destructor for x Error: extent of borrow exceeds lifetime of `x`

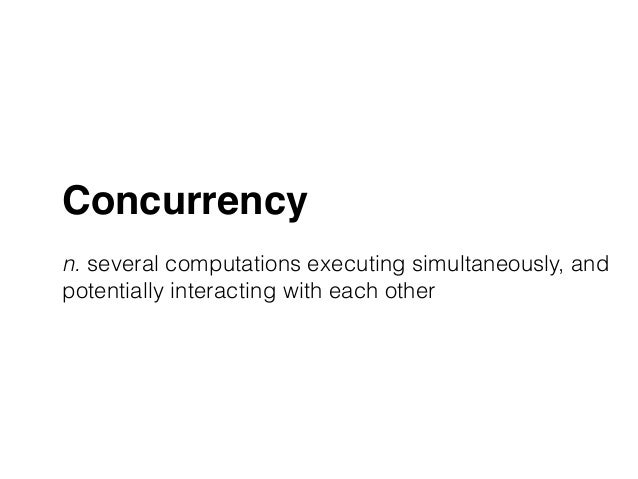

36. Concurrency! ! n. several computations executing simultaneously, and potentially interacting with each other

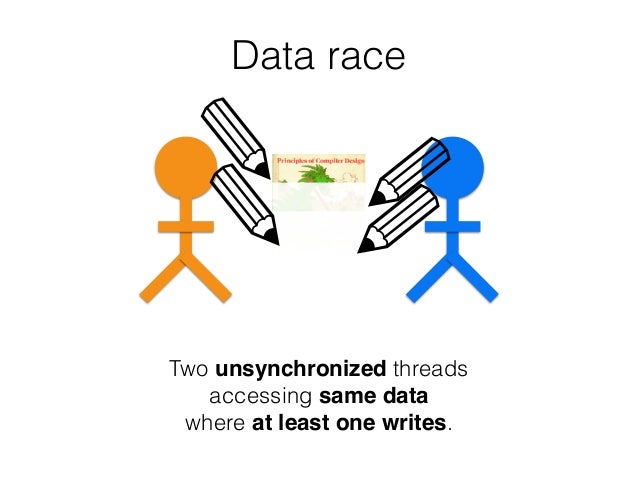

37. Data race ✎ ✎ ✎ ✎ Two unsynchronized threads accessing same data! where at least one writes.

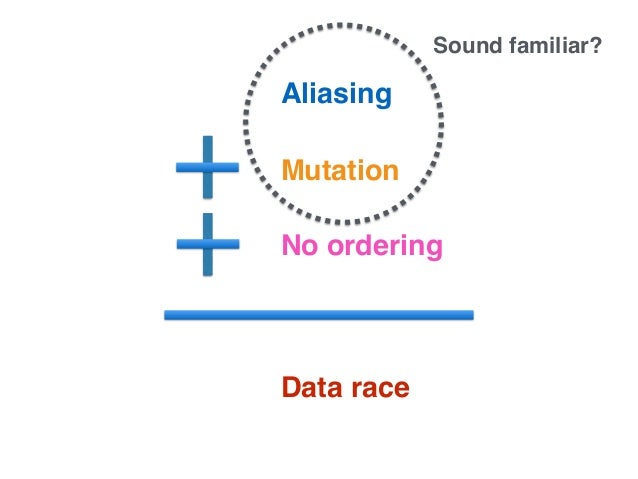

38. Aliasing Mutation No ordering Data race Sound familiar?

39. Messaging! (ownership)

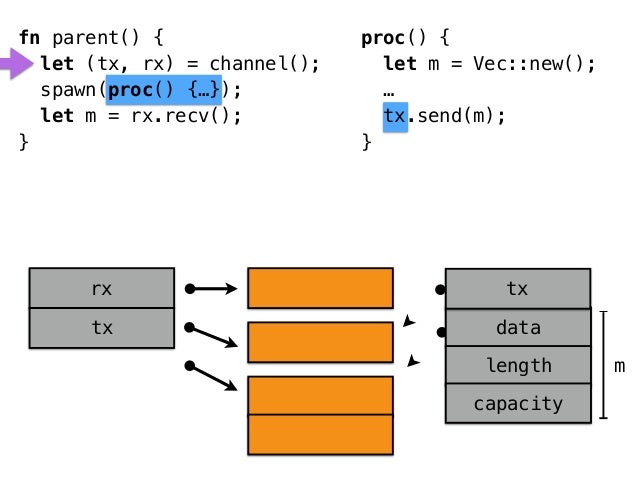

40. data length capacity fn parent() { let (tx, rx) = channel(); spawn(proc() {…}); let m = rx.recv(); } proc() { let m = Vec::new(); … tx.send(m); } rx tx tx m

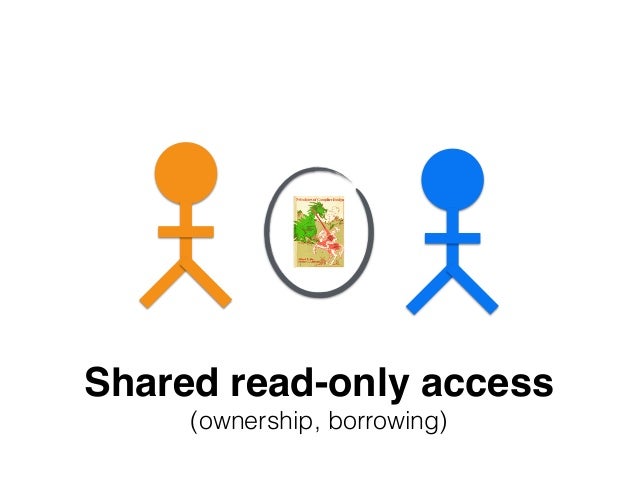

41. Shared read-only access! (ownership, borrowing)

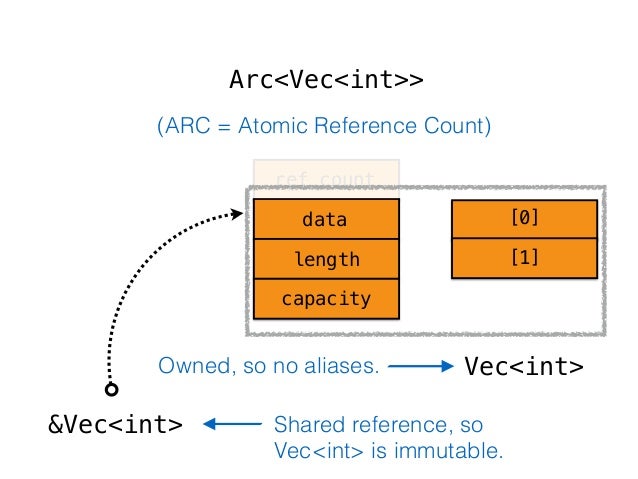

42. Arc<Vec<int>> (ARC = Atomic Reference Count) Owned, so no aliases. Vec<int> &Vec<int> ref_count data length capacity [0] [1] Shared reference, so Vec<int> is immutable.

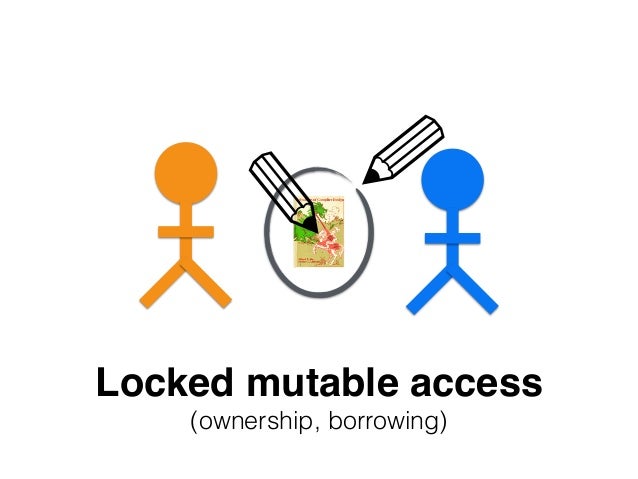

43. ✎ ✎ Locked mutable access! (ownership, borrowing)

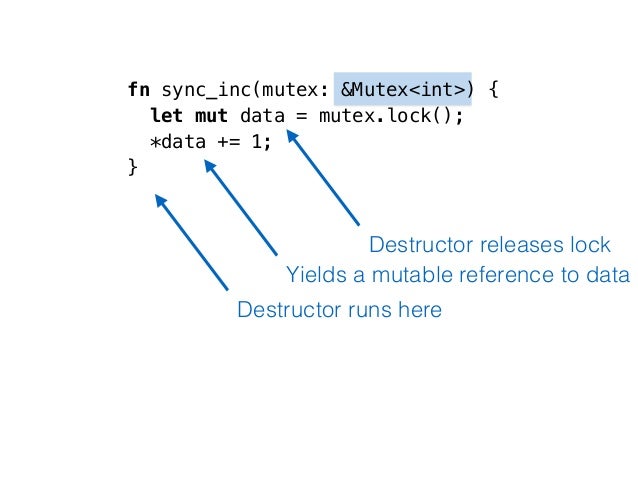

44. fn sync_inc(mutex: &Mutex<int>) { let mut data = mutex.lock(); *data += 1; } Destructor releases lock Yields a mutable reference to data Destructor runs here

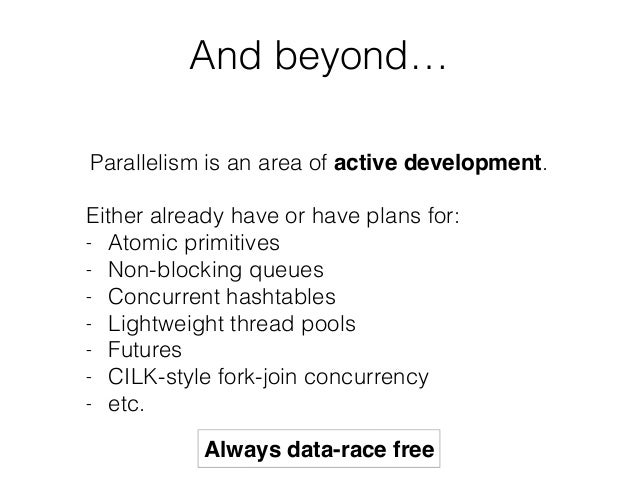

45. And beyond… Parallelism is an area of active development. ! Either already have or have plans for: - Atomic primitives - Non-blocking queues - Concurrent hashtables - Lightweight thread pools - Futures - CILK-style fork-join concurrency - etc. Always data-race free

46. Parallel! ! adj. occurring or existing at the same time

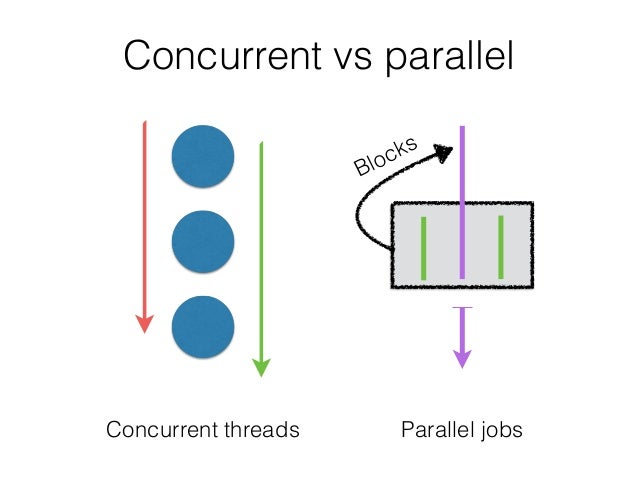

47. Concurrent vs parallel Blocks Concurrent threads Parallel jobs

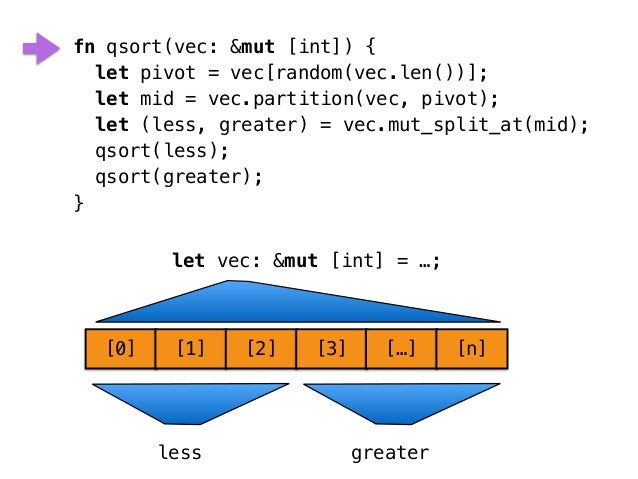

48. fn qsort(vec: &mut [int]) { let pivot = vec[random(vec.len())]; let mid = vec.partition(vec, pivot); let (less, greater) = vec.mut_split_at(mid); qsort(less); qsort(greater); } let vec: &mut [int] = …; [0] [1] [2] [3] […] [n] less greater

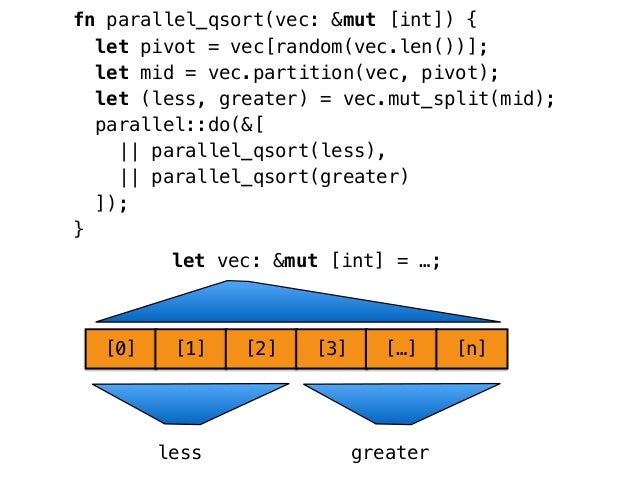

49. fn parallel_qsort(vec: &mut [int]) { let pivot = vec[random(vec.len())]; let mid = vec.partition(vec, pivot); let (less, greater) = vec.mut_split(mid); parallel::do(&[ || parallel_qsort(less), || parallel_qsort(greater) ]); } let vec: &mut [int] = …; [0] [1] [2] [3] […] [n] less greater

50. Unsafe! ! adj. not safe; hazardous

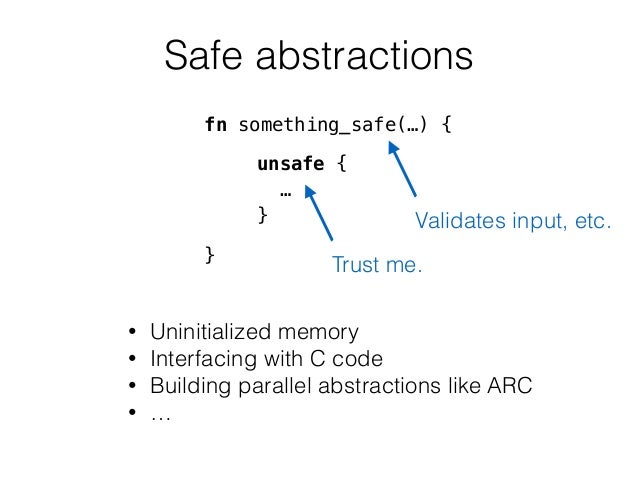

51. Safe abstractions fn something_safe(…) { ! unsafe { ! … ! } ! } Validates input, etc. Trust me. • Uninitialized memory • Interfacing with C code • Building parallel abstractions like ARC • …

52. Status of Rust “Rapidly stabilizing.”! ! ! Goal for 1.0: - Stable syntax, core type system - Minimal set of core libraries

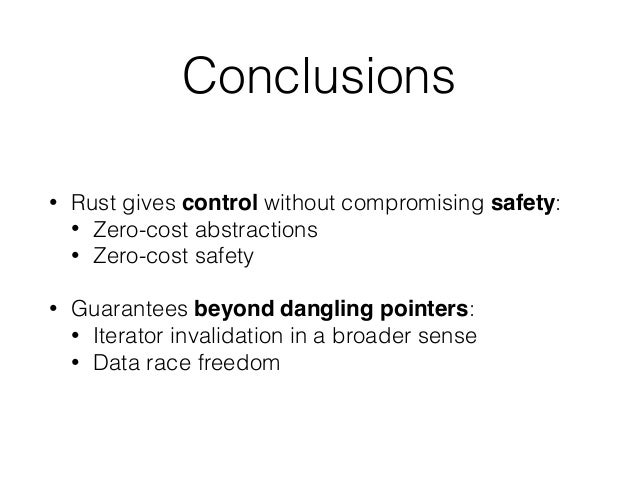

53. Conclusions • Rust gives control without compromising safety: • Zero-cost abstractions • Zero-cost safety • Guarantees beyond dangling pointers: • Iterator invalidation in a broader sense • Data race freedom
