Understanding SLAB in Linux Kernel

1. Understanding SLAB in Linux Kernel Haifeng Li August 23, 2013

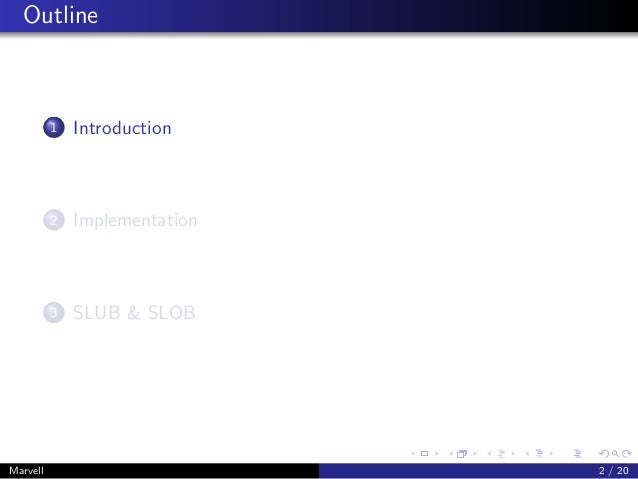

2. Outline 1 2 Implementation 3 Marvell Introduction SLUB & SLOB 2 / 20

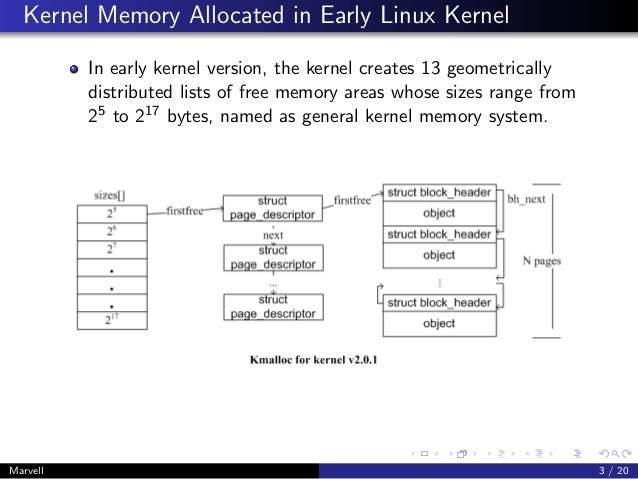

3. Kernel Memory Allocated in Early Linux Kernel In early kernel version, the kernel creates 13 geometrically distributed lists of free memory areas whose sizes range from 25 to 217 bytes, named as general kernel memory system. Marvell 3 / 20

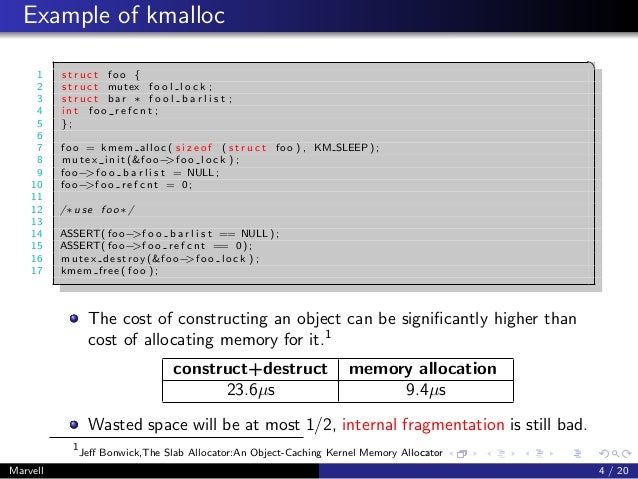

4. Example of kmalloc ¤ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 s t r u c t foo { s t r u c t mutex f o o l l o c k ; s t r u c t bar ∗ f o o l b a r l i s t ; int foo refcnt ; }; f o o = k m e m a l l o c ( s i z e o f ( s t r u c t f o o ) , KM SLEEP ) ; m u t e x i n i t (& f o o− o o l o c k ) ; >f f o o− o o b a r l i s t = NULL ; >f f o o− o o r e f c n t = 0 ; >f /∗ u s e f o o ∗/ ASSERT( f o o− o o b a r l i s t == NULL ) ; >f ASSERT( f o o− o o r e f c n t == 0 ) ; >f m u t e x d e s t r o y (& f o o− o o l o c k ) ; >f kmem free ( foo ) ; The cost of constructing an object can be signiﬁcantly higher than cost of allocating memory for it.1 construct+destruct 23.6µs memory allocation 9.4µs Wasted space will be at most 1/2, internal fragmentation is still bad. 1 Marvell Jeﬀ Bonwick,The Slab Allocator:An Object-Caching Kernel Memory Allocator 4 / 20

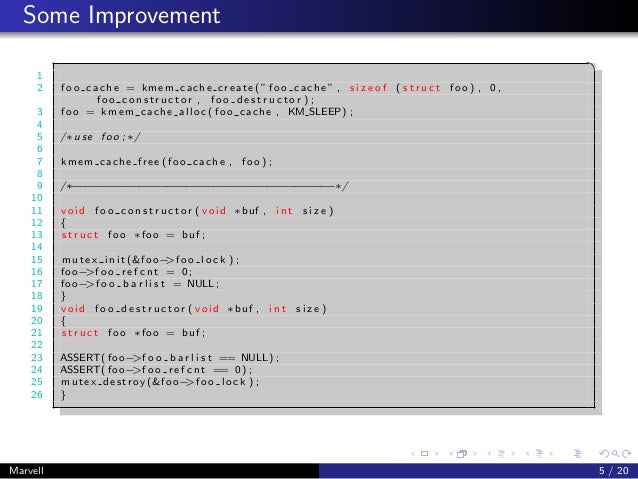

5. Some Improvement ¤ 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 Marvell foo cache = kmem cache create ( ” foo cache ” , s i z e o f ( s t r u c t foo ) , 0 , foo constructor , foo destructor ) ; f o o = k m e m c a c h e a l l o c ( f o o c a c h e , KM SLEEP ) ; /∗ u s e f o o ; ∗/ kmem cache free ( foo cache , foo ) ; /∗ − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − − −∗/ v o i d f o o c o n s t r u c t o r ( v o i d ∗buf , i n t { s t r u c t foo ∗foo = buf ; m u t e x i n i t (& f o o− o o l o c k ) ; >f f o o− o o r e f c n t = 0 ; >f f o o− o o b a r l i s t = NULL ; >f } v o i d f o o d e s t r u c t o r ( v o i d ∗buf , i n t { s t r u c t foo ∗foo = buf ; size ) size ) ASSERT( f o o− o o b a r l i s t == NULL) ; >f ASSERT( f o o− o o r e f c n t == 0 ) ; >f m u t e x d e s t r o y (& f o o− o o l o c k ) ; >f } 5 / 20

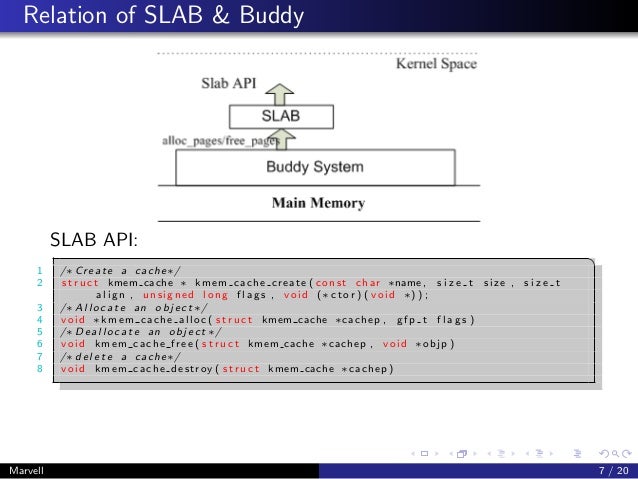

6. What is SLAB What is it? It is a pool based on Buddy subsystem for Kernel. It consists of many sub-pool, which should be created by hand. SLAB may like this: Marvell 6 / 20

7. Relation of SLAB & Buddy SLAB API: 1 2 3 4 5 6 7 8 Marvell /∗ C r e a t e a c a c h e ∗/ s t r u c t kmem cache ∗ k m e m c a c h e c r e a t e ( c o n s t c h a r ∗name , s i z e t s i z e , a l i g n , u n s i g n e d l o n g f l a g s , v o i d (∗ c t o r ) ( v o i d ∗) ) ; /∗ A l l o c a t e an o b j e c t ∗/ v o i d ∗ k m e m c a c h e a l l o c ( s t r u c t kmem cache ∗cache p , g f p t f l a g s ) /∗ D e a l l o c a t e an o b j e c t ∗/ v o i d k m e m c a c h e f r e e ( s t r u c t kmem cache ∗cache p , v o i d ∗ o b j p ) /∗ d e l e t e a c a c h e ∗/ v o i d k m e m c a c h e d e s t r o y ( s t r u c t kmem cache ∗ c a c h e p ) ¤ size t 7 / 20

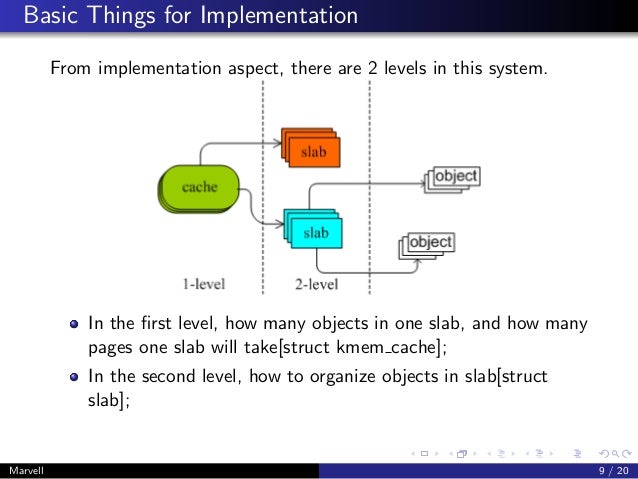

9. Basic Things for Implementation From implementation aspect, there are 2 levels in this system. In the ﬁrst level, how many objects in one slab, and how many pages one slab will take[struct kmem cache]; In the second level, how to organize objects in slab[struct slab]; Marvell 9 / 20

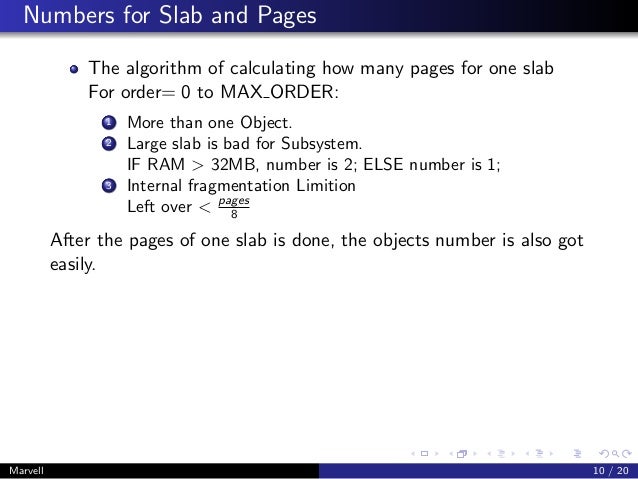

10. Numbers for Slab and Pages The algorithm of calculating how many pages for one slab For order= 0 to MAX ORDER: 1 2 3 More than one Object. Large slab is bad for Subsystem. IF RAM > 32MB, number is 2; ELSE number is 1; Internal fragmentation Limition Left over < pages 8 After the pages of one slab is done, the objects number is also got easily. Marvell 10 / 20

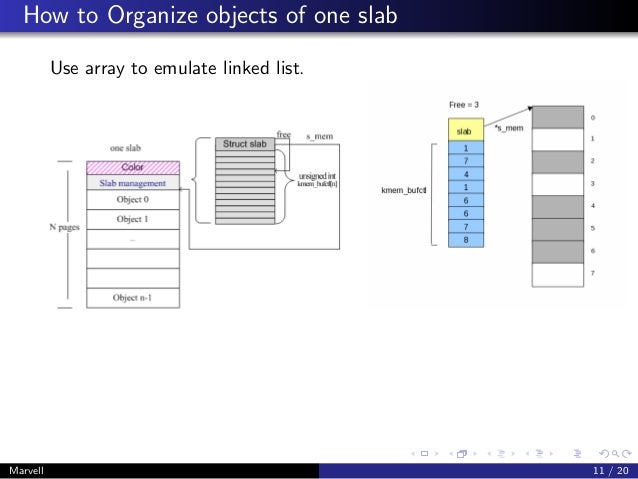

11. How to Organize objects of one slab Use array to emulate linked list. Marvell 11 / 20

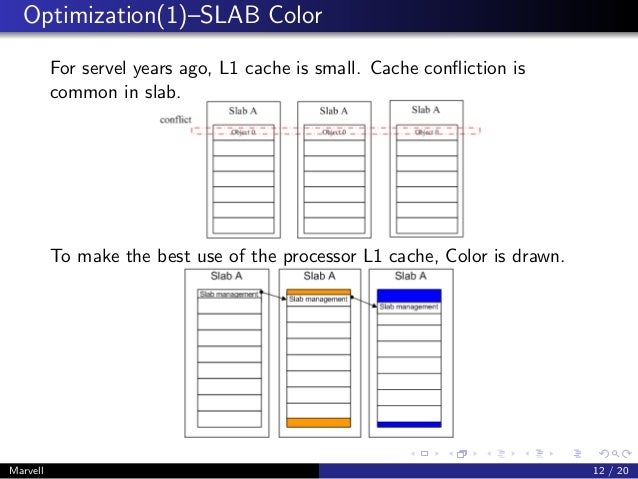

12. Optimization(1)–SLAB Color For servel years ago, L1 cache is small. Cache conﬂiction is common in slab. To make the best use of the processor L1 cache, Color is drawn. Marvell 12 / 20

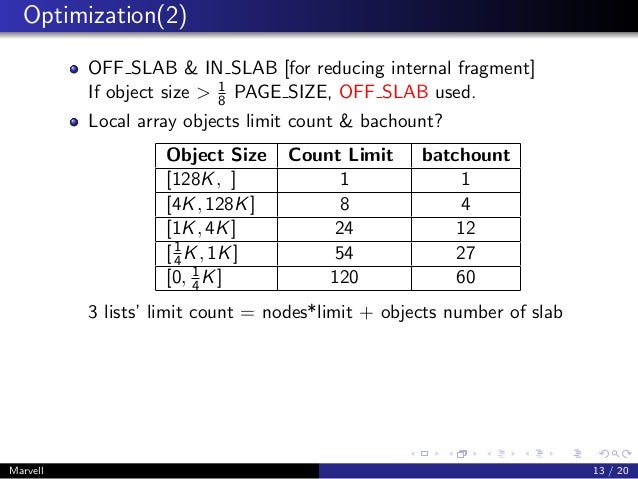

13. Optimization(2) OFF SLAB & IN SLAB [for reducing internal fragment] If object size > 1 PAGE SIZE, OFF SLAB used. 8 Local array objects limit count & bachount? Object Size [128K , ] [4K , 128K ] [1K , 4K ] [ 1 K , 1K ] 4 [0, 1 K ] 4 Count Limit 1 8 24 54 120 batchount 1 4 12 27 60 3 lists’ limit count = nodes*limit + objects number of slab Marvell 13 / 20

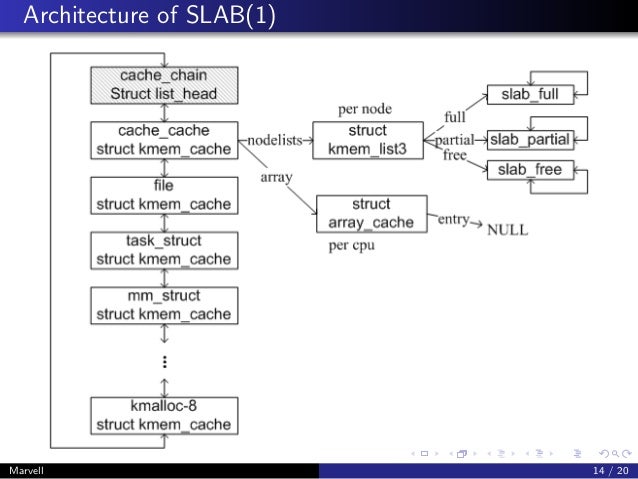

14. Architecture of SLAB(1) Marvell 14 / 20

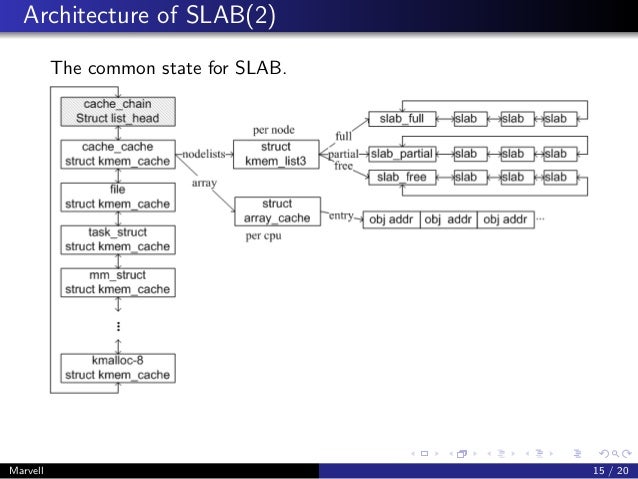

15. Architecture of SLAB(2) The common state for SLAB. Marvell 15 / 20

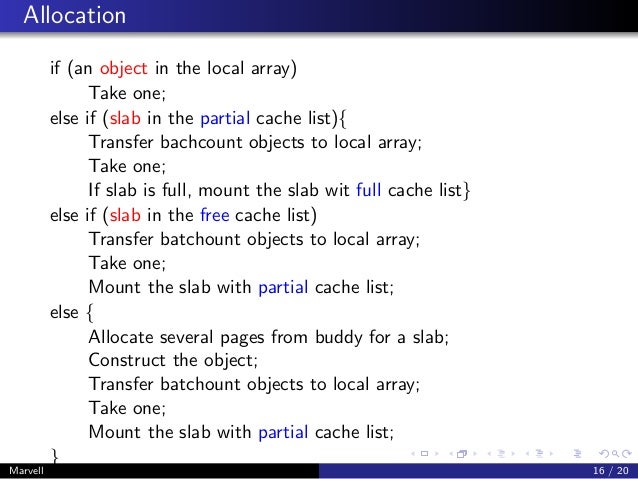

16. Allocation if (an object in the local array) Take one; else if (slab in the partial cache list){ Transfer bachcount objects to local array; Take one; If slab is full, mount the slab wit full cache list} else if (slab in the free cache list) Transfer batchount objects to local array; Take one; Mount the slab with partial cache list; else { Allocate several pages from buddy for a slab; Construct the object; Transfer batchount objects to local array; Take one; Mount the slab with partial cache list; } Marvell 16 / 20

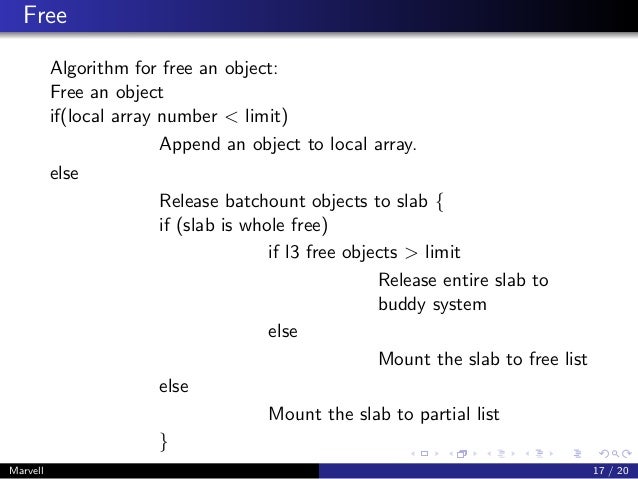

17. Free Algorithm for free an object: Free an object if(local array number < limit) Append an object to local array. else Release batchount objects to slab { if (slab is whole free) if l3 free objects > limit Release entire slab to buddy system else Mount the slab to free list else Mount the slab to partial list } Marvell 17 / 20

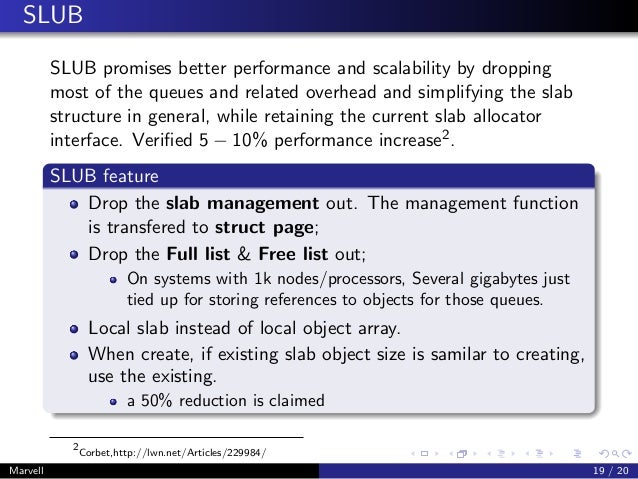

19. SLUB SLUB promises better performance and scalability by dropping most of the queues and related overhead and simplifying the slab structure in general, while retaining the current slab allocator interface. Veriﬁed 5 − 10% performance increase2 . SLUB feature Drop the slab management out. The management function is transfered to struct page; Drop the Full list & Free list out; On systems with 1k nodes/processors, Several gigabytes just tied up for storing references to objects for those queues. Local slab instead of local object array. When create, if existing slab object size is samilar to creating, use the existing. a 50% reduction is claimed 2 Marvell Corbet,http://lwn.net/Articles/229984/ 19 / 20

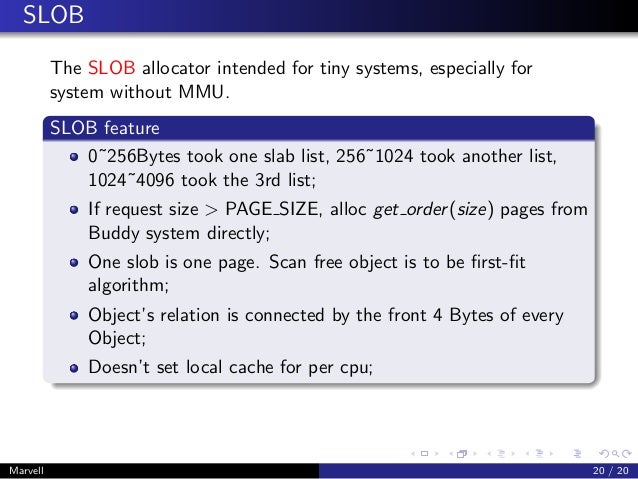

20. SLOB The SLOB allocator intended for tiny systems, especially for system without MMU. SLOB feature 0˜256Bytes took one slab list, 256˜1024 took another list, 1024˜4096 took the 3rd list; If request size > PAGE SIZE, alloc get order (size) pages from Buddy system directly; One slob is one page. Scan free object is to be ﬁrst-ﬁt algorithm; Object’s relation is connected by the front 4 Bytes of every Object; Doesn’t set local cache for per cpu; Marvell 20 / 20
