H2O - the optimized HTTP server Presentation Transcript

  • 1. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. H2O the optimized HTTP server DeNA Co., Ltd. Kazuho Oku 1

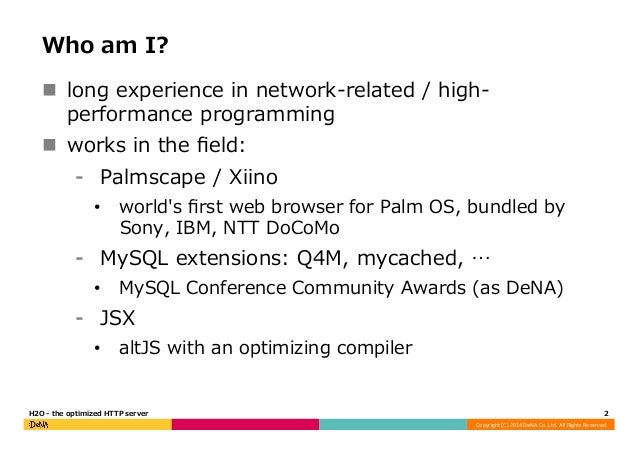

  • 2. Who am I? n long experience in network-‐‑‒related / high-‐‑‒ performance programming n works in the field: ⁃ Palmscape / Xiino • world's first web browser for Palm OS, bundled by Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Sony, IBM, NTT DoCoMo ⁃ MySQL extensions: Q4M, mycached, … • MySQL Conference Community Awards (as DeNA) ⁃ JSX • altJS with an optimizing compiler H2O -‐‑‒ the optimized HTTP server2

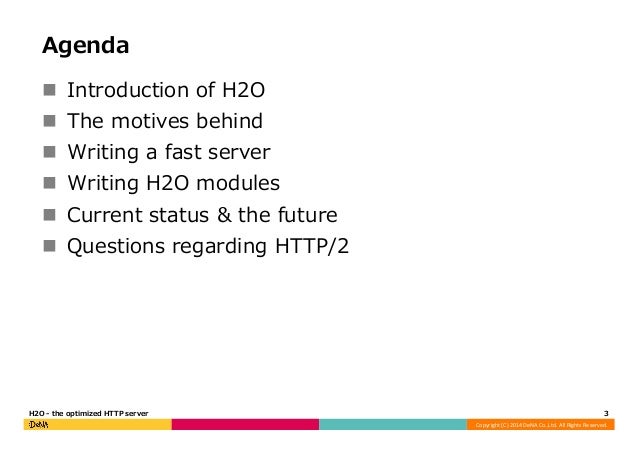

  • 3. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Agenda n Introduction of H2O n The motives behind n Writing a fast server n Writing H2O modules n Current status & the future n Questions regarding HTTP/2 H2O -‐‑‒ the optimized HTTP server3

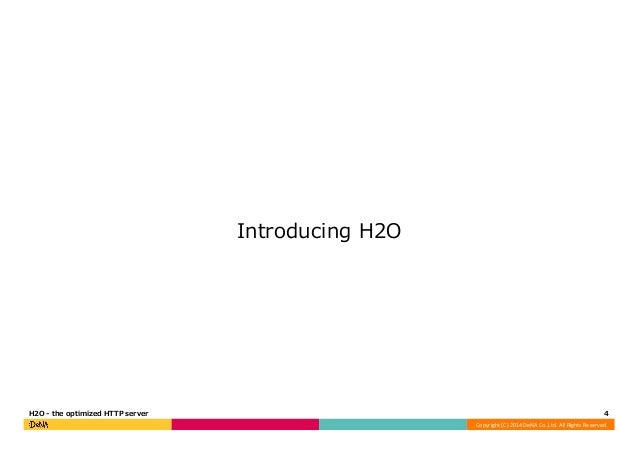

  • 4. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Introducing H2O H2O -‐‑‒ the optimized HTTP server4
  • 5. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. H2O – the umbrella project n h2o – the standalone HTTP server ⁃ libh2o – can be used as a library as well n picohttpparser – the HTTP/1 parser n picotest – TAP-‐‑‒compatible testing library n qrintf – C preprocessor for optimizing s(n)printf n yoml – DOM-‐‑‒like wrapper for libyaml github.com/h2o H2O -‐‑‒ the optimized HTTP server5
  • 6. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. h2o n the standalone HTTP server n protocols: ⁃ HTTP/1.x ⁃ HTTP/2 • via Upgrade, NPN, ALPN, direct ⁃ WebSocket (uses wslay) ⁃ with SSL support (uses OpenSSL) n modules: ⁃ file (static files), reverse-‐‑‒proxy, reproxy, deflate n configuration using yaml H2O -‐‑‒ the optimized HTTP server6
  • 7. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. libh2o n h2o is also available as a library n event loop can be selected ⁃ libuv ⁃ h2o's embedded event loop n configurable via API and/or yaml ⁃ dependency to libyaml is optional H2O -‐‑‒ the optimized HTTP server7
  • 8. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Modular design n library layer: ⁃ memory, string, socket, timeout, event-‐‑‒loop, http1client, … n protocol layer: ⁃ http1, http2, websocket, loopback n handlers: ⁃ file, reverse-‐‑‒proxy n output filters: ⁃ chunked-‐‑‒encoder, deflate, reproxy n loggers: ⁃ access-‐‑‒log H2O -‐‑‒ the optimized HTTP server8
  • 9. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Testing n two levels of testing for better quality ⁃ essential for keeping the protocol implementations and module-‐‑‒level API apart n unit-‐‑‒testing ⁃ every module has (can have) it's own unit-‐‑‒test ⁃ tests run using the loopback protocol handler • module-‐‑‒level unit-‐‑‒tests do not depend on the protocol n end-‐‑‒to-‐‑‒end testing ⁃ spawns the server and connect via network ⁃ uses nghttp2 H2O -‐‑‒ the optimized HTTP server9
  • 10. Internals n uses h2o_buf_t (pair of [char*, size_̲t]) is used to represent data ⁃ common header names are interned into tokens • those defined in HPACK static_̲table + α n mostly zero-‐‑‒copy n incoming data allocated using: malloc, realloc, mmap Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. ⁃ requires 64-‐‑‒bit arch for heavy use n uses writev for sending data H2O -‐‑‒ the optimized HTTP server10
  • 11. 6 bytes 1,024 bytes 10,240 bytes 6 bytes 1,024 bytes 10,240 bytes 6 bytes 1,024 bytes 10,240 bytes 6 bytes 1,024 bytes 10,240 bytes HTTP/1 (local; osx) HTTP/1 (local; linux) HTTP/1 (remote; linux) HTTPS/1 (remote; linux) Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Fast 120,000 100,000 80,000 60,000 40,000 20,000 0 Requests / second.core nginx-­‐1.7.7 h2o Note: used MacBook Pro Early 2014 (Core i7@2.4GHz), Amazon EC2 cc2.8xlarge, no logging H2O -‐‑‒ the optimized HTTP server11
  • 12. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Why is it fast? Why should it be fast? H2O -‐‑‒ the optimized HTTP server12
  • 13. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. It all started with PSGI/Plack n PSGI/Plack is the WSGI/Rack for Perl n on Sep 7th 2010: ⁃ first commit to github.com/plack/Plack ⁃ I asked: why ever use FastCGI? • at the time, HTTP was believed to be slow, and FastCGI is necessary ⁃ the other choice was to use Apache+mod_̲perl ⁃ I proposed: • write a fast HTTP parser in C, and use it from Perl • get rid of specialized protocols / tightly-‐‑‒coupled legacy servers ⁃ for ease of dev., H2O -‐‑‒ the optimized HTTP server deploy., admin.13
  • 14. So I wrote HTTP::Parser::XS and picohttpparser. H2O -‐‑‒ the optimized HTTP server14 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
  • 15. How fast is picohttpparser? n 10x faster than http-‐‑‒parser according to 3p bench. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. ⁃ github.com/fukamachi/fast-‐‑‒http HTTP Parser Performance Comparison 329,033 3,162,745 3,500,000 3,000,000 2,500,000 2,000,000 1,500,000 1,000,000 500,000 0 hYp-­‐parser@5fd51fd picohYpparser@56975cd requests / second H2O -‐‑‒ the optimized HTTP server15
  • 16. HTTP::Parser::XS n the de-‐‑‒facto HTTP parser used by PSGI/Plack Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. ⁃ PSGI/Plack is the WSGI/Rack for Perl n modern Perl-‐‑‒based services rarely use FastCGI or mod_̲perl n the application servers used (Starlet, Starman, etc.) speak HTTP using HTTP::Parser::XS ⁃ application servers can be and in fact are written in Perl, since the slow part is handled by HTTP::Parser::XS n picohttpparser is the C-‐‑‒based backend of HTTP::Parser::XS H2O -‐‑‒ the optimized HTTP server16
  • 17. The lessons learned n using one protocol (HTTP) everywhere reduces the TCO ⁃ easier to develop, debug, test, monitor, administer ⁃ popular protocols tend to be better designed & implemented thanks to the competition Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. n similar transition happens everywhere ⁃ WAP has been driven out by HTTP & HTML ⁃ we rarely use FTP these days H2O -‐‑‒ the optimized HTTP server17
  • 18. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. but HTTP is not yet used everywhere n web browser ⁃ HTTP/1 is used now, transiting to HTTP/2 n SOA / microservices ⁃ HTTP/1 is used now • harder to transit to HTTP/2 since many proglangs use blocking I/O ⁃ other protocols coexist: RDBMS, memcached, … • are they the next target of HTTP (like FastCGI?) n IoT • MQTT is emerging H2O -‐‑‒ the optimized HTTP server18
  • 19. So I decided to write H2O n in July 2014 n life of the developers becomes easier if all the services use HTTP n but for the purpose, it seems like we need to raise the bar (of performance) ⁃ or other protocols may emerge / continue to be used n now (at the time of transition to HTTP/2) might be a good moment to start a performance race between HTTP implementers H2O -‐‑‒ the optimized HTTP server19 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
  • 20. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Writing a fast server H2O -‐‑‒ the optimized HTTP server20
  • 21. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Two things to be aware of n characteristics of a fast program 1. executes less instructions • speed is a result of simplicity, not complexity 2. causes less pipeline hazards • minimum number of conditional branches / indirect calls • use branch-‐‑‒predictor-‐‑‒friendly logic ⁃ e.g. "conditional branch exists, but it is taken 95%" H2O -‐‑‒ the optimized HTTP server21
  • 22. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. H2O -‐‑‒ design principles n do it right ⁃ local bottlenecks can be fixed afterwards ⁃ large-‐‑‒scale design issues are hard to notice / fix n do it simple ⁃ as explained ⁃ provide / use hooks only at high-‐‑‒level • hooks exist for: protocol, generator, filter, logger H2O -‐‑‒ the optimized HTTP server22
  • 23. The performance pitfalls n many server implementations spend CPU cycles in the following areas: Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. ⁃ memory allocation ⁃ parsing input ⁃ stringifying output and logs ⁃ timeout handling H2O -‐‑‒ the optimized HTTP server23
  • 24. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Memory allocation H2O -‐‑‒ the optimized HTTP server24
  • 25. Memory allocation in H2O n uses region-‐‑‒based memory management Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. ⁃ "memory pool" of Apache n strategy: ⁃ memory block is assigned to the Request object ⁃ small allocations returns portions of the block ⁃ memory is never returned to the block ⁃ The entire memory block gets freed when the Request object is destroyed H2O -‐‑‒ the optimized HTTP server25
  • 26. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Memory allocation in H2O (cont'd) n malloc (of small chunks) void *h2o_mempool_alloc(h2o_mempool_t *pool, size_t sz)! {! (snip)! void *ret = pool->chunks->bytes + pool->chunks->offset;! pool->chunks->offset += sz;! return ret;! } ! n free ⁃ no code (as explained) H2O -‐‑‒ the optimized HTTP server26
  • 27. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Parsing input H2O -‐‑‒ the optimized HTTP server27
  • 28. Parsing input n HTTP/1 request parser may or may not be a bottleneck, depending on its performance ⁃ if the parser is capable of handling 1M reqs/sec, then it will spend 10% of time if the server handles 100K reqs/sec. 3,500,000 3,000,000 2,500,000 2,000,000 1,500,000 1,000,000 500,000 H2O -‐‑‒ the optimized HTTP server28 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. 329,033 3,162,745 0 hYp-­‐parser@5fd51fd picohYpparser@56975cd requests / second HTTP/1 Parser Performance Comparison
  • 29. Parsing input (cont'd) n it's good to know the logical upper-‐‑‒bound ⁃ or we might try to optimize something that can no more be faster Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. n Q. How fast could a text parser be? H2O -‐‑‒ the optimized HTTP server29
  • 30. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Q. How fast could a text server be? Answer: around 1GB/sec. is a good target ⁃ since any parser needs to read every byte and execute a conditional branch depending on the value • # of instructions: 1 load + 1 inc + 1 test + 1 conditional branch • would likely take several CPU cycles (even if superscalar) • unless we use SIMD instructions H2O -‐‑‒ the optimized HTTP server30
  • 31. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Parsing input n What's wrong with this parser? for (; s != end; ++s) {! int ch = *s;! switch (ctx.state) {! case AAA:! if (ch == ' ')! ctx.state = BBB;! break;! case BBB:! ...! }! H2O -‐‑‒ the optimized HTTP server31
  • 32. Parsing input (cont'd) n never write a character-‐‑‒level state machine if performance matters Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. for (; s != end; ++s) {! int ch = *s;! switch (ctx.state) { // ß executed for every char! case AAA:! if (ch == ' ')! ctx.state = BBB;! break;! case BBB:! ...! }! H2O -‐‑‒ the optimized HTTP server32
  • 33. Parsing input fast n each state should consume a sequence of bytes Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. while (s != end) {! switch (ctx.state) {! case AAA:! do {! if (*s++ == ' ') {! ctx.state = BBB;! break;! }! } while (s != end);! break;! case BBB:! ... H2O -‐‑‒ the optimized HTTP server33
  • 34. Stateless parsing n stateless in the sense that no state value exists ⁃ stateless parsers are generally faster than stateful parsers, since it does not have state -‐‑‒ a variable used for a conditional branch n HTTP/1 parsing can be stateless since the request-‐‑‒ line and the headers arrive in a single packet (in most cases) ⁃ and even if they did not, it is easy to check if the end-‐‑‒of-‐‑‒headers has arrived (by looking for CR-‐‑‒ LF-‐‑‒CR-‐‑‒LF) and then parse the input • this countermeasure is essential to handle the Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Slowloris attack H2O -‐‑‒ the optimized HTTP server34
  • 35. picohttpparser is stateless n states are the execution contexts (instead of being a variable) const char* parse_request(const char* buf, const char* buf_end, …)! {! /* parse request line */! ADVANCE_TOKEN(*method, *method_len);! ++buf;! ADVANCE_TOKEN(*path, *path_len);! ++buf;! if ((buf = parse_http_version(buf, buf_end, minor_version, ret)) == NULL)! return NULL;! EXPECT_CHAR('015');! EXPECT_CHAR('012');! return parse_headers(buf, buf_end, headers, num_headers, max_headers, …);! }!  H2O -‐‑‒ the optimized HTTP server35 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
  • 36. loop exists within a function (≒state) n the code looks for the end of the header value #define IS_PRINTABLE(c) ((unsigned char)(c) - 040u < 0137u)! ! static const char* get_token_to_eol(const char* buf, const char* buf_end, …! {! Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. while (likely(buf_end - buf >= 8)) {! #define DOIT() if (unlikely(! IS_PRINTABLE(*buf))) goto NonPrintable; ++buf! DOIT(); DOIT(); DOIT(); DOIT();! DOIT(); DOIT(); DOIT(); DOIT();! #undef DOIT! continue;! NonPrintable:! if ((likely((uchar)*buf < '040') && likely(*buf != '011'))! || unlikely(*buf == '177'))! goto FOUND_CTL;! } H2O -‐‑‒ the optimized HTTP server36
  • 37. The hottest loop of picohttpparser (cont'd) n after compilation, uses 4 instructions per char movzbl (%r9), %r11d! movl %r11d, %eax! addl $-32, %eax! cmpl $94, %eax! ja LBB5_5! movzbl 1(%r9), %r11d // load char! leal -32(%r11), %eax // subtract! cmpl $94, %eax // and check if is printable! ja LBB5_4 // if not, break! movzbl 2(%r9), %r11d // load next char! leal -32(%r11), %eax // subtract! cmpl $94, %eax // and check if is printable! ja LBB5_15 // if not, break! movzbl 3(%r9), %r11d // load next char! … H2O -‐‑‒ the optimized HTTP server37 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
  • 38. strlen vs. picoh?pparser strlen (simple) picohYpparser@56975cd Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. strlen vs. picohttparser n not as fast as strlen, but close size_t strlen(const char *s) {! const char *p = s;! for (; *p != '0'; ++p)! ;! return p - s;! }! n ! not much room !  left for further optimization (wo. using SIMD insns.)! !  0.90 0.80 0.70 0.60 0.50 0.40 0.30 0.20 0.10 0.00 bytes / clock H2O -‐‑‒ the optimized HTTP server38
  • 39. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. picohttpparser is small and simple $ wc picohttpparser.?! 376 1376 10900 picohttpparser.c! 62 333 2225 picohttpparser.h! 438 1709 13125 total! $ ! ! n good example of do-‐‑‒it-‐‑‒simple-‐‑‒for-‐‑‒speed approach ⁃ H2O (incl. the HTTP/2 parser) is designed using the approach H2O -‐‑‒ the optimized HTTP server39
  • 40. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Stringification H2O -‐‑‒ the optimized HTTP server40
  • 41. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Stringification n HTTP/1 responses are in strings sprintf(buf, "HTTP/1.%d %d %srn", …)! n s(n)printf is known to be slow ⁃ but the interface is great ⁃ it's tiresome to write like: p = strappend_s(p, "HTTP/1.");! p = strappend_n(p, minor_version);! *p++ = ' ';! P = strappend_n(p, status);! *p++ = ' ';! p = strappend_s(p, reason);! p = strappend_s(p, "rn"); H2O -‐‑‒ the optimized HTTP server41
  • 42. Stringification (cont'd) n stringification is important for HTTP/2 servers too ⁃ many elements still need to be stringified • headers (status, date, last-‐‑‒modified, etag, …) • access log (IP address, date, # of bytes, …) H2O -‐‑‒ the optimized HTTP server42 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
  • 43. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Why is s(n)printf slow? n it's a state machine ⁃ interprets the format string (e.g. "hello: %s") at runtime n it uses the locale ⁃ not for all types of variables, but… n it uses varargs n it's complicated ⁃ sprintf may parse a number when used for stringifying a number sprintf(buf, "%11d", status)! H2O -‐‑‒ the optimized HTTP server43
  • 44. How should we optimize s(n)printf? n by compiling the format string at compile-‐‑‒time ⁃ instead of interpreting it at runtime ⁃ possible since the supplied format string is almost always a string literal Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. n and that's qrintf H2O -‐‑‒ the optimized HTTP server44
  • 45. qrintf n qrintf is a preprocessor that rewrites s(n)printf invocations to set of functions calls specialized to each format string n qrintf-‐‑‒gcc is a wrapper of GCC that Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. ⁃ first applies the GCC preprocessor ⁃ then applies the qrintf preprocessor ⁃ then calls the GCC compiler n similar wrapper could be implemented for Clang ⁃ but it's a bit harder ⁃ help wanted! H2O -‐‑‒ the optimized HTTP server45
  • 46. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Example // original code (248 nanoseconds)! snprintf(buf, sizeof(buf), "%u.%u.%u.%u", ! (addr >> 24) & 0xff, (addr >> 16) & 0xff, (addr >> 8) & 0xff, addr & 0xff);! ! // after preprocessed by qrintf (21.5 nanoseconds)! _qrintf_chk_finalize(! _qrintf_chk_u(_qrintf_chk_c(! _qrintf_chk_u(_qrintf_chk_c(! _qrintf_chk_u(_qrintf_chk_c(! _qrintf_chk_u(! _qrintf_chk_init(buf, sizeof(buf)), (addr >> 24) & 0xff),! '.'), (addr >> 16) & 0xff),! '.'), (addr >> 8) & 0xff),! '.'), addr & 0xff)); H2O -‐‑‒ the optimized HTTP server46
  • 47. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Performance impact on H2O n 20% performance gain ⁃ gcc: 82,900 reqs/sec ⁃ qrintf-‐‑‒gcc: 99,200 reqs/sec. n benchmark condition: ⁃ 6-‐‑‒byte file GET over HTTP/1.1 ⁃ access logging to /dev/null H2O -‐‑‒ the optimized HTTP server47
  • 48. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Timeout handling H2O -‐‑‒ the optimized HTTP server48
  • 49. Timeout handling by the event loops n most event loops use balanced trees to handle timeouts ⁃ so that timeout events can be triggered fast ⁃ cons. is that it takes time to set the timeouts n in case of HTTP, timeout should be set at least once per request ⁃ otherwise the server cannot close a stale connection H2O -‐‑‒ the optimized HTTP server49 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
  • 50. Timeout requirements of a HTTP server n much more set than triggered ⁃ is set more than once per request ⁃ most requests succeed before timeout Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. n the timeout values are uniform ⁃ e.g. request timeout for every connection would be the same (or i/o timeout or whatever) n balanced-‐‑‒tree does not seem like a good approach ⁃ any other choice? H2O -‐‑‒ the optimized HTTP server50
  • 51. Use pre-‐‑‒sorted link-‐‑‒list n H2O maintains a linked-‐‑‒list for each timeout configuration ⁃ request timeout has its own linked-‐‑‒list, i/o timeout has its own, … Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. n how to set the timeout: ⁃ timeout entry is inserted at the end of the linked-‐‑‒ list • thus the list is naturally sorted n how the timeouts get triggered: ⁃ H2O iterates from the start of each linked-‐‑‒list, and triggers those that have timed-‐‑‒out H2O -‐‑‒ the optimized HTTP server51
  • 52. note: N: number of ]meout entries, M: number of ]meout configura]ons, trigger performance of list of linked-­‐list can Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Comparison Chart OperaAon (frequency in HTTPD)Balanced-­‐treeList of linked-­‐list set (high)O(log N)O(1) clear (high)O(log N)O(1) trigger (low)O(1)O(M) be reduced to O(1) H2O -‐‑‒ the optimized HTTP server52
  • 53. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Miscellaneous H2O -‐‑‒ the optimized HTTP server53
  • 54. Miscellaneous n the entire stack of H2O is carefully designed (for simplicity and for performance) ⁃ for example, the built-‐‑‒in event loop of H2O (which is the default for h2o), is faster than libuv 0 10,000 20,000 30,000 40,000 50,000 60,000 70,000 80,000 H2O -‐‑‒ the optimized HTTP server54 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. 6 bytes 4,096 bytes requests / sec.core size of content Benchmark: libuv vs. internal libuv-­‐network-­‐and-­‐file@7876f53 libuv-­‐network-­‐only@da85742 internal (master@a5d1105)
  • 55. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Writing H2O modules H2O -‐‑‒ the optimized HTTP server55
  • 56. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Module types of H2O n handler ⁃ generates the contents • e.g. file handler, proxy handler n filter ⁃ modifies the content • e.g. chunked encoder, deflate ⁃ can be chained n logger H2O -‐‑‒ the optimized HTTP server56
  • 57. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Writing a "hello world" handler static int on_req(h2o_handler_t *self, h2o_req_t *req) {! static h2o_generator_t generator = {};! static h2o_buf_t body = H2O_STRLIT("hello worldn");! if (! h2o_memis(req->method.base, req->method.len, H2O_STRLIT("GET")))! return -1;! req->res.status = 200;! req->res.reason = "OK";! h2o_add_header(&req->pool, &req->res.headers, H2O_TOKEN_CONTENT_TYPE,! H2O_STRLIT("text/plain"));! h2o_start_response(req, &generator);! h2o_send(req, &body, 1, 1);! return 0;! }! ! h2o_handler_t *handler = h2o_create_handler( host_config, sizeof(*handler));! handler->on_req = on_req; H2O -‐‑‒ the optimized HTTP server57
  • 58. The handler API /**! * called by handlers to set the generator! * @param req the request! * @param generator the generator! */! void h2o_start_response(h2o_req_t *req, h2o_generator_t *generator);! /**! * called by the generators to send output! * note: generator should close the resources opened by itself after sending the final chunk (i.e. calling the function with is_final set to true)! * @param req the request! * @param bufs an array of buffers! * @param bufcnt length of the buffers array! * @param is_final if the output is final! */! void h2o_send(h2o_req_t *req, h2o_buf_t *bufs, size_t bufcnt, int is_final);!  H2O -‐‑‒ the optimized HTTP server58 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
  • 59. The handler API (cont'd) /**! * an object that generates a response.! * The object is typically constructed by handlers that call h2o_start_response.! */! typedef struct st_h2o_generator_t {! /**! * called by the core to request new data to be pushed via h2o_send! */! void (*proceed)(struct st_h2o_generator_t *self, h2o_req_t *req);! /**! * called by the core when there is a need to terminate the response! */! void (*stop)(struct st_h2o_generator_t *self, h2o_req_t *req);! Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. } h2o_generator_t;!  H2O -‐‑‒ the optimized HTTP server59
  • 60. Module examples n Simple examples exist in the examples/ dir n lib/chunked.c is a good example of the filter API H2O -‐‑‒ the optimized HTTP server60 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
  • 61. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Current Status & the Future H2O -‐‑‒ the optimized HTTP server61
  • 62. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Development Status n core ⁃ mostly feature complete n protocol ⁃ http/1 – mostly feature complete ⁃ http/2 – interoperable n modules ⁃ file – complete ⁃ proxy – interoperable • name resolution is blocking • does not support keep-‐‑‒alive H2O -‐‑‒ the optimized HTTP server62
  • 63. HTTP/2 status of H2O n interoperable, but some parts are missing Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. ⁃ HPACK resize ⁃ priority handling n priority handling is essential for HTTP/2 ⁃ without, HTTP/2 is slower than HTTP/1 L n need to tweak performance ⁃ SSL-‐‑‒related code is not yet optimized • first benchmark was taken last Saturday J H2O -‐‑‒ the optimized HTTP server63
  • 64. HTTP/2 over TLS benchmark n need to fix the dropdown, likely caused by: ⁃ H2O uses writev to gather data into a single socket op., but OpenSSL does not provide scatter-‐‑‒gather I/O 120,000 100,000 80,000 60,000 40,000 20,000 H2O -‐‑‒ the optimized HTTP server64 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. 0 6 bytes 1,024 bytes 10,240 bytes HTTPS/2 (remote; linux) nghYpd h2o ⁃ in H2O, every file handler has its own buffer and pushes content to the protocol layer • nghttpd pulls instead, which is more memory-‐‑‒ efficient / no need
  • 65. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Goal of the project n to become the best HTTP/2 server ⁃ with excellent performance in serving static files / as a reverse proxy • note: picohttpserver and other libraries are also used in the reverse proxy implementation n to become the favored HTTP server library ⁃ esp. for server products ⁃ to widen the acceptance of HTTP protocol even more H2O -‐‑‒ the optimized HTTP server65
  • 66. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Help wanted n looking for contributors in all areas ⁃ addition of modules might be the easiest, since it would not interfere with the development of the core / protocol layer ⁃ examples, docs, tests are also welcome n it's easy to start ⁃ since the code-‐‑‒base is young and simple Subsystemwc –l (incl. unit-­‐tests) Core2,334 Library1,856 Socket & event loop1,771 HTTP/1 (incl. picohYpparser)886 HTTP/22,507 Modules1,906 Server573 H2O -‐‑‒ the optimized HTTP server66
  • 67. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Questions regarding HTTP/2 H2O -‐‑‒ the optimized HTTP server67
  • 68. Sorry, I do not have much to talk n since it is a well-‐‑‒designed protocol n and in terms of performance, apparently binary protocols are easier to implement than a text protocol J ⁃ there's a efficient algorithm for the static Huffman decoder • @tatsuhiro-‐‑‒t implemented it, I copied Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. n OTOH I have some questions re HTTP/2 H2O -‐‑‒ the optimized HTTP server68
  • 69. Q. would there be a max-‐‑‒open-‐‑‒files issue? n according to the draft, recommended value of MAX_̲CONCURRENT_̲STREAMS is >= 100 n if max-‐‑‒connections is 1024, it would mean that the max fd would be above 10k ⁃ on linux, the default (NR_̲OPEN) is 1,048,576 and is adjustable ⁃ but on other OS? n H2O by default limits the number of in-‐‑‒flight requests internally to 16 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. ⁃ the value is configurable H2O -‐‑‒ the optimized HTTP server69
  • 70. Q. good way to determine the window size? n initial window size (64k) might be too small to saturate the avaiable bandwidth depending on the latency ⁃ but for responsiveness we would not want the value to be too high ⁃ is there any recommendation on how we should tune the variable? H2O -‐‑‒ the optimized HTTP server70 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
  • 71. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Q. should we continue to use CDN? n HTTP/2 has priority control ⁃ CDN and primary website would use different TCP connection • means that priority control would not work bet. CDN and the primary website n should we better serve all the asset files from the primary website? H2O -‐‑‒ the optimized HTTP server71
  • 72. Never hide the Server header n name and version info. is essential for interoperability ⁃ many (if not all) webapps use the User-‐‑‒Agent value to evade bugs ⁃ used to be same at the HTTP/1 layer in the early days n there will be interoperability problems bet. HTTP/2 impls. ⁃ the Server header is essential for implementing workarounds n some believe that hiding the header improves security ⁃ we should speak that they are wrong; that security-‐‑‒by-‐‑‒ obscurity does not work on the Net, and hiding the value harms interoperability and the adoption of HTTP/ 2 H2O -‐‑‒ the optimized HTTP server72 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
  • 73. Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved. Summary H2O -‐‑‒ the optimized HTTP server73
  • 74. Summary n H2O is an optimized HTTP server implementation ⁃ with neat design to support both HTTP/1 and HTTP/2 ⁃ is still very young • lots of areas to work on! • incl. improving the HTTP/2 support n help wanted! Let's write the HTTPD of the future! H2O -‐‑‒ the optimized HTTP server74 Copyright (C) 2014 DeNA Co.,Ltd. All Rights Reserved.
