Apache HBase Performance Tuning

Transcript

• 1. HBase Tuning Performance and Correctness Lars Hofhansl Principal Architect, Salesforce (10 years!) HBase, Phoenix Committer, PMC Apache Incubator PMC Apache Foundation Member http://hadoop-hbase.blogspot.com/
• 2. Boring Topic Experiment with Colorful Slides

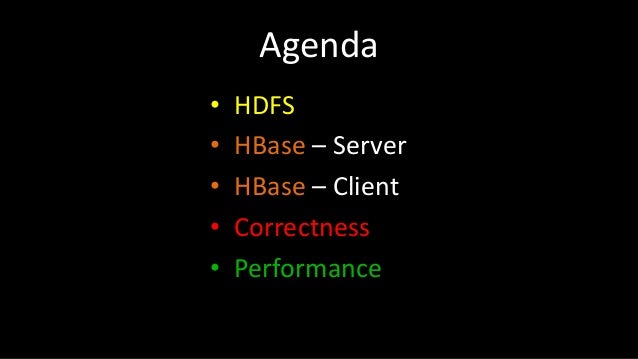

• 3. Agenda • HDFS • HBase – Server • HBase – Client • Correctness • Performance

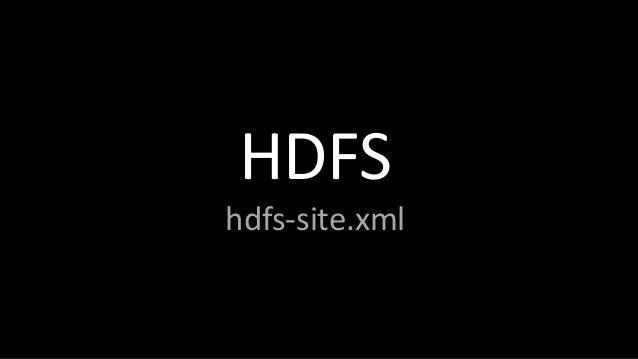

• 4. HDFS hdfs-site.xml

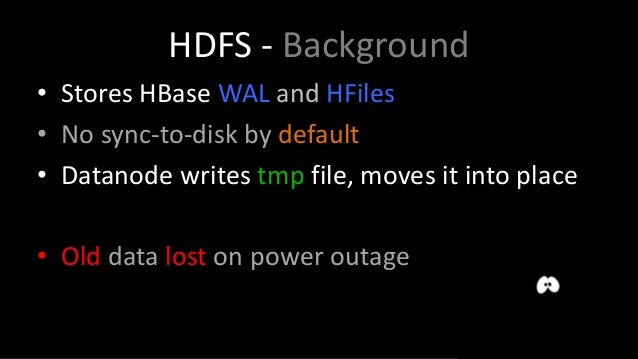

• 5. HDFS - Background • Stores HBase WAL and HFiles • No sync-to-disk by default • Datanode writes tmp file, moves it into place • Old data lost on power outage

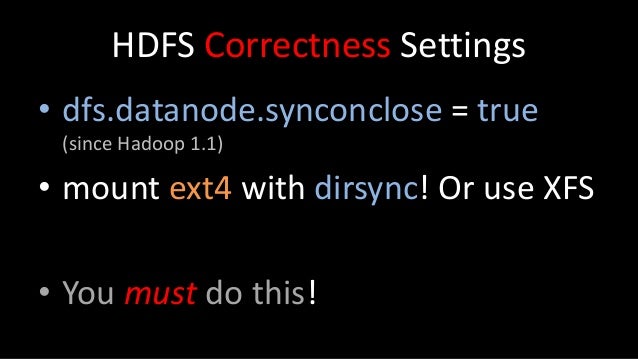

• 6. HDFS Correctness Settings • dfs.datanode.synconclose = true (since Hadoop 1.1) • mount ext4 with dirsync! Or use XFS • You must do this!

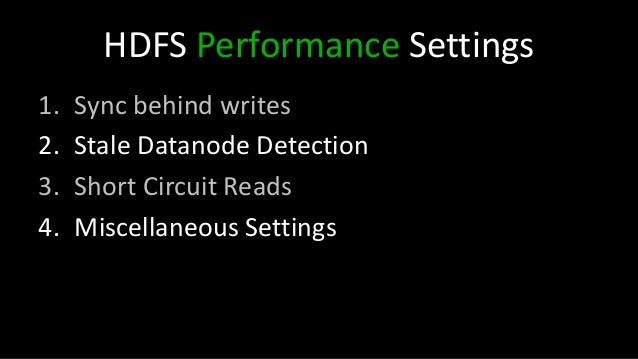

• 7. HDFS Performance Settings 1. Sync behind writes 2. Stale Datanode Detection 3. Short Circuit Reads 4. Miscellaneous Settings

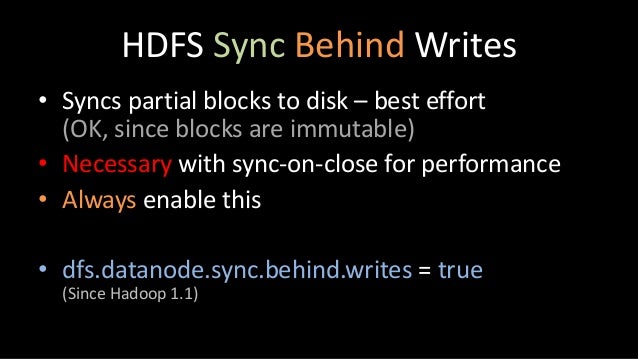

• 8. HDFS Sync Behind Writes • Syncs partial blocks to disk – best effort (OK, since blocks are immutable) • Necessary with sync-on-close for performance • Always enable this • dfs.datanode.sync.behind.writes = true (Since Hadoop 1.1)

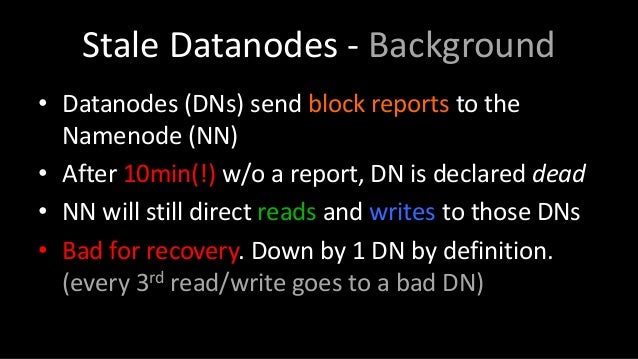

• 9. Stale Datanodes - Background • Datanodes (DNs) send block reports to the Namenode (NN) • After 10min(!) w/o a report, DN is declared dead • NN will still direct reads and writes to those DNs • Bad for recovery. Down by 1 DN by definition. (every 3rd read/write goes to a bad DN)

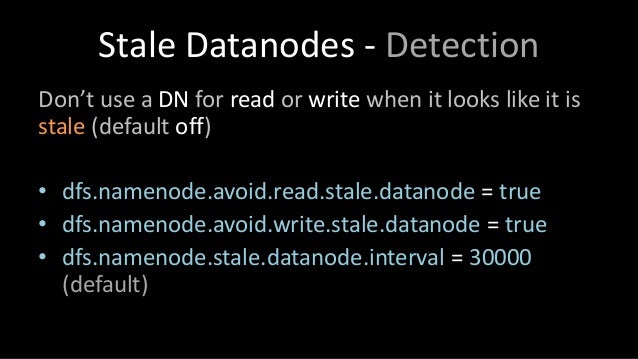

• 10. Stale Datanodes - Detection Don’t use a DN for read or write when it looks like it is stale (default off) • dfs.namenode.avoid.read.stale.datanode = true • dfs.namenode.avoid.write.stale.datanode = true • dfs.namenode.stale.datanode.interval = 30000 (default)

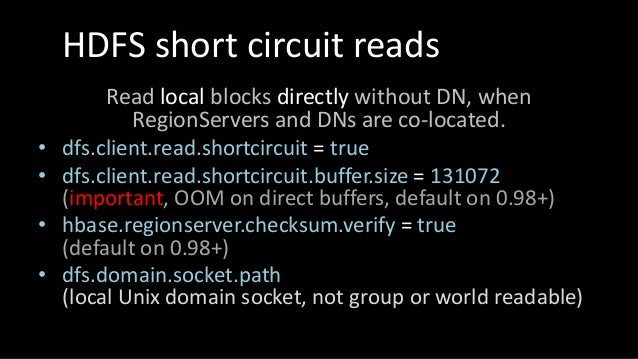

• 11. HDFS short circuit reads Read local blocks directly without DN, when RegionServers and DNs are co-located. • dfs.client.read.shortcircuit = true • dfs.client.read.shortcircuit.buffer.size = 131072 (important, OOM on direct buffers, default on 0.98+) • hbase.regionserver.checksum.verify = true (default on 0.98+) • dfs.domain.socket.path (local Unix domain socket, not group or world readable)
• 12. Misc HDFS tips Keep DN running with some failed disks • dfs.datanode.failed.volumes.tolerated = <N> (tolerate losing this many disks) Distribute data across disks at a DN • dfs.datanode.fsdataset.volume.choosing.policy = AvailableSpaceVolumeChoosingPolicy (HDFS-1804 hit drives with more space with higher probability for writes when free space differs by more than 10GB by default)

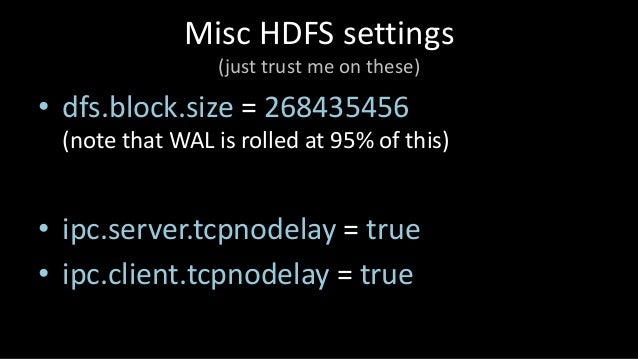

• 13. Misc HDFS settings (just trust me on these) • dfs.block.size = 268435456 (note that WAL is rolled at 95% of this) • ipc.server.tcpnodelay = true • ipc.client.tcpnodelay = true

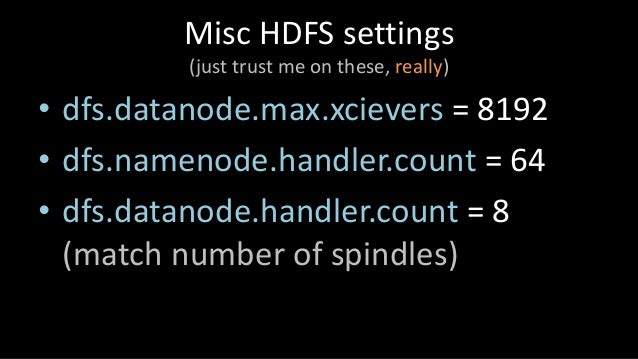

• 14. Misc HDFS settings (just trust me on these, really) • dfs.datanode.max.xcievers = 8192 • dfs.namenode.handler.count = 64 • dfs.datanode.handler.count = 8 (match number of spindles)

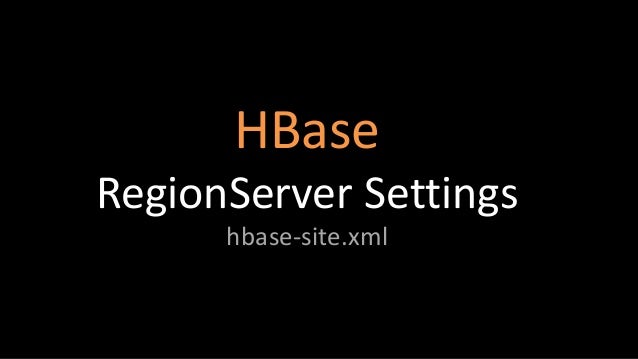

• 15. HBase RegionServer Settings hbase-site.xml
• 16. Compactions

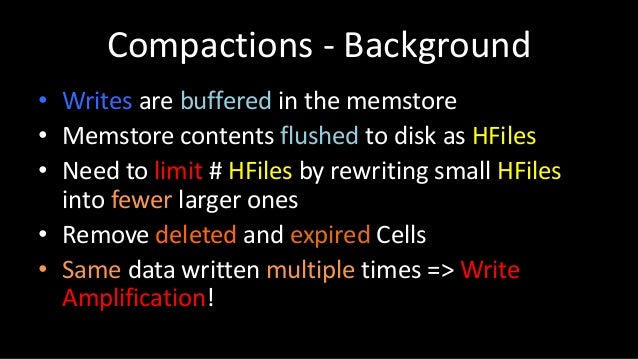

• 17. Compactions - Background • Writes are buffered in the memstore • Memstore contents flushed to disk as HFiles • Need to limit # HFiles by rewriting small HFiles into fewer larger ones • Remove deleted and expired Cells • Same data written multiple times => Write Amplification!

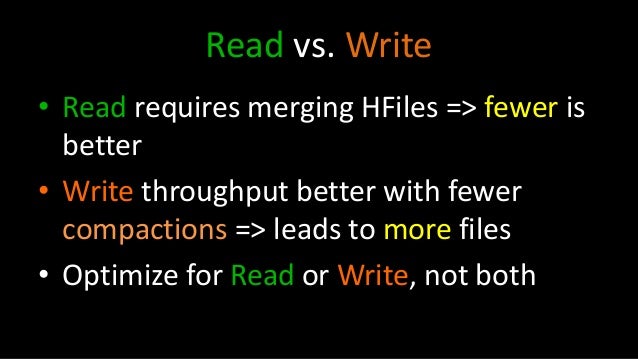

• 18. Read vs. Write • Read requires merging HFiles => fewer is better • Write throughput better with fewer compactions => leads to more files • Optimize for Read or Write, not both

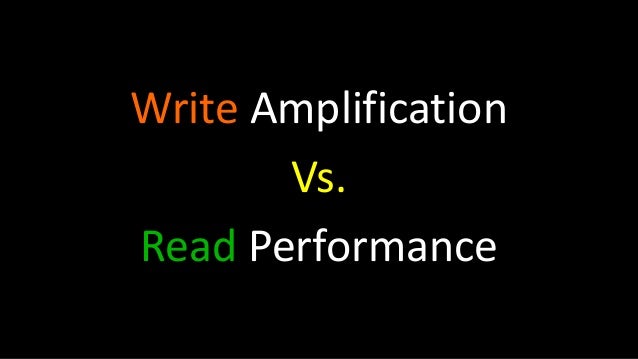

• 19. Write Amplification Vs. Read Performance

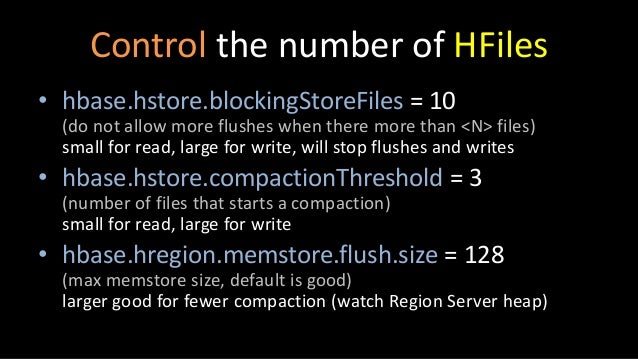

• 20. Control the number of HFiles • hbase.hstore.blockingStoreFiles = 10 (do not allow more flushes when there more than <N> files) small for read, large for write, will stop flushes and writes • hbase.hstore.compactionThreshold = 3 (number of files that starts a compaction) small for read, large for write • hbase.hregion.memstore.flush.size = 128 (max memstore size, default is good) larger good for fewer compaction (watch Region Server heap)

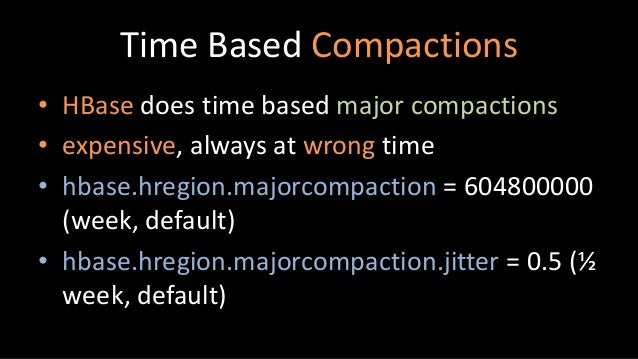

• 21. Time Based Compactions • HBase does time based major compactions • expensive, always at wrong time • hbase.hregion.majorcompaction = 604800000 (week, default) • hbase.hregion.majorcompaction.jitter = 0.5 (½ week, default)

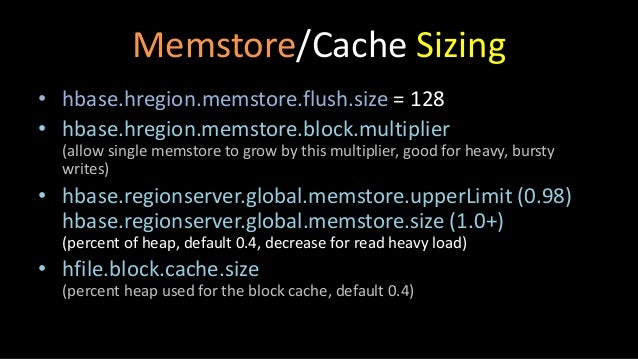

• 22. Memstore/Cache Sizing • hbase.hregion.memstore.flush.size = 128 • hbase.hregion.memstore.block.multiplier (allow single memstore to grow by this multiplier, good for heavy, bursty writes) • hbase.regionserver.global.memstore.upperLimit (0.98) hbase.regionserver.global.memstore.size (1.0+) (percent of heap, default 0.4, decrease for read heavy load) • hfile.block.cache.size (percent heap used for the block cache, default 0.4)

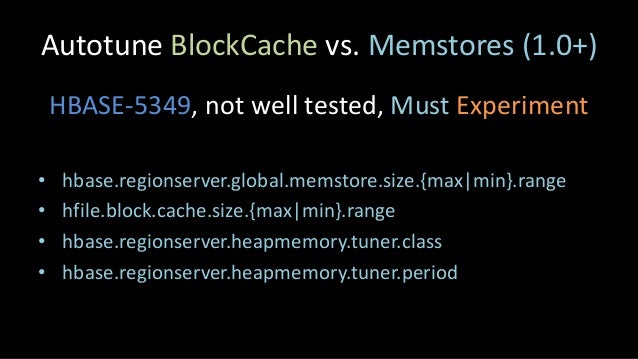

• 23. Autotune BlockCache vs. Memstores (1.0+) HBASE-5349, not well tested, Must Experiment • hbase.regionserver.global.memstore.size.{max|min}.range • hfile.block.cache.size.{max|min}.range • hbase.regionserver.heapmemory.tuner.class • hbase.regionserver.heapmemory.tuner.period

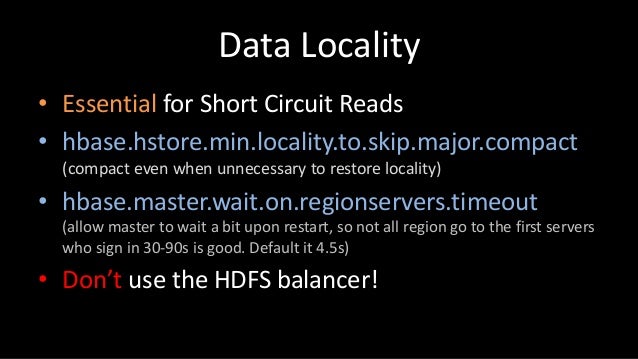

• 24. Data Locality • Essential for Short Circuit Reads • hbase.hstore.min.locality.to.skip.major.compact (compact even when unnecessary to restore locality) • hbase.master.wait.on.regionservers.timeout (allow master to wait a bit upon restart, so not all region go to the first servers who sign in 30-90s is good. Default it 4.5s) • Don’t use the HDFS balancer!

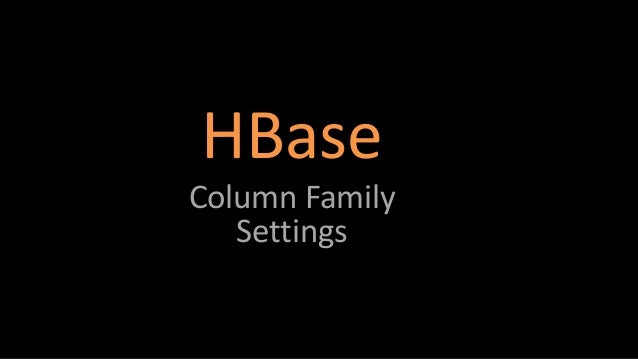

• 25. HBase Column Family Settings

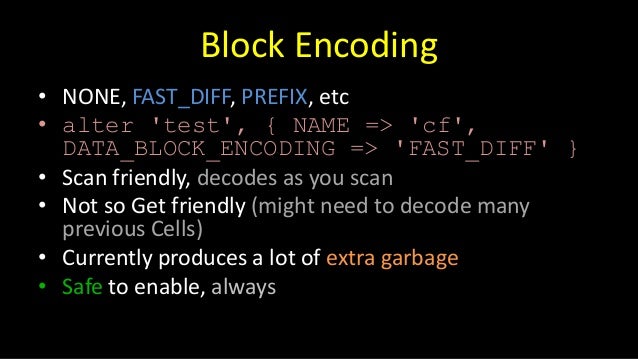

• 26. Block Encoding • NONE, FAST_DIFF, PREFIX, etc • alter 'test', { NAME => 'cf', DATA_BLOCK_ENCODING => 'FAST_DIFF' } • Scan friendly, decodes as you scan • Not so Get friendly (might need to decode many previous Cells) • Currently produces a lot of extra garbage • Safe to enable, always

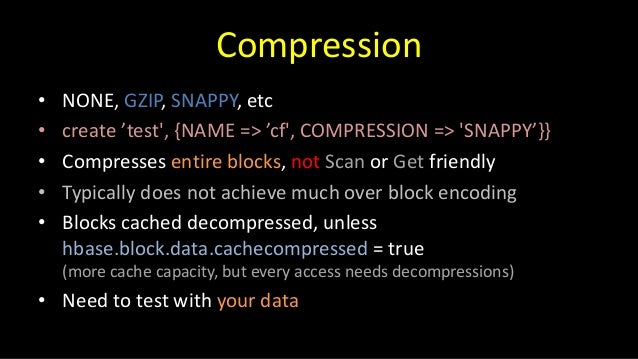

• 27. Compression • NONE, GZIP, SNAPPY, etc • create ’test', {NAME => ’cf', COMPRESSION => 'SNAPPY’}} • Compresses entire blocks, not Scan or Get friendly • Typically does not achieve much over block encoding • Blocks cached decompressed, unless hbase.block.data.cachecompressed = true (more cache capacity, but every access needs decompressions) • Need to test with your data

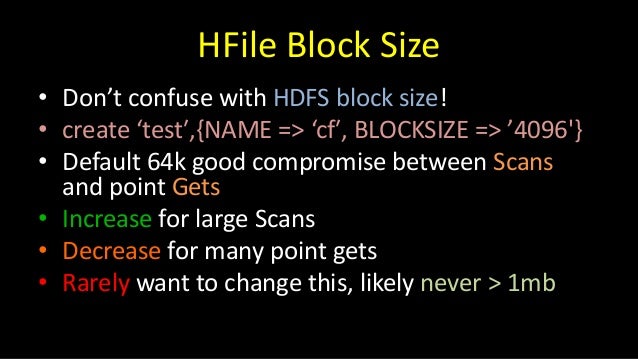

• 28. HFile Block Size • Don’t confuse with HDFS block size! • create ‘test′,{NAME => ‘cf′, BLOCKSIZE => ’4096'} • Default 64k good compromise between Scans and point Gets • Increase for large Scans • Decrease for many point gets • Rarely want to change this, likely never > 1mb
• 29. RegionServer - Garbage Collection (source: http://www.everystockphoto.com)

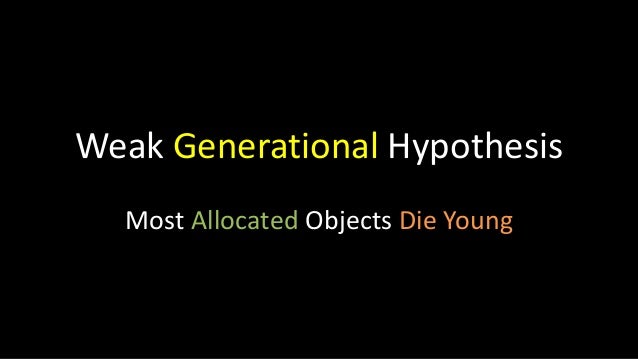

• 30. Weak Generational Hypothesis Most Allocated Objects Die Young

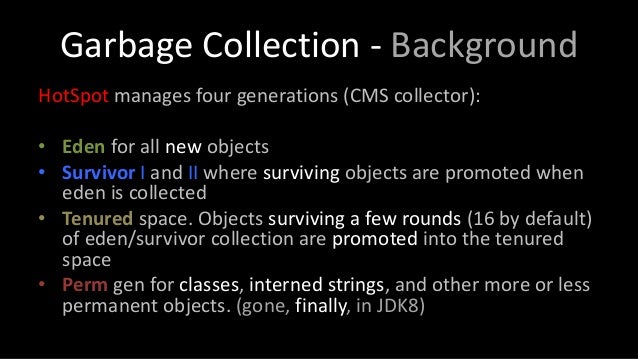

• 31. Garbage Collection - Background HotSpot manages four generations (CMS collector): • Eden for all new objects • Survivor I and II where surviving objects are promoted when eden is collected • Tenured space. Objects surviving a few rounds (16 by default) of eden/survivor collection are promoted into the tenured space • Perm gen for classes, interned strings, and other more or less permanent objects. (gone, finally, in JDK8)

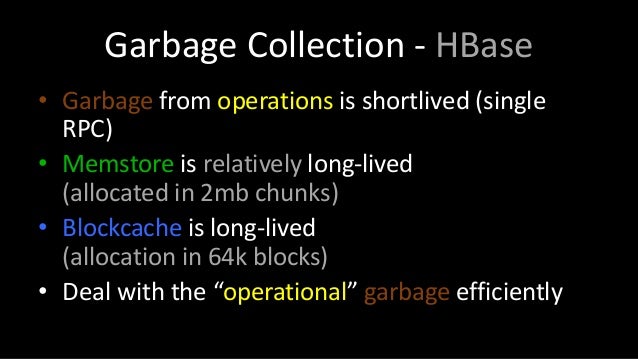

• 32. Garbage Collection - HBase • Garbage from operations is shortlived (single RPC) • Memstore is relatively long-lived (allocated in 2mb chunks) • Blockcache is long-lived (allocation in 64k blocks) • Deal with the “operational” garbage efficiently

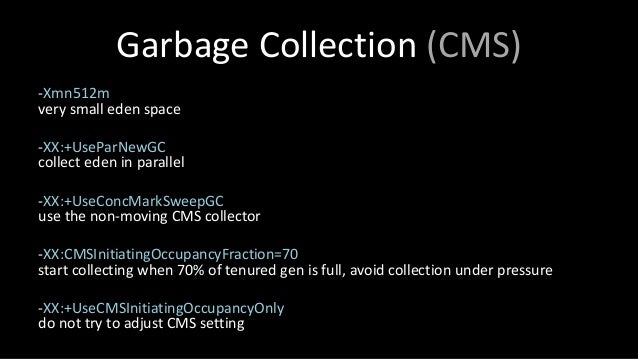

• 33. Garbage Collection (CMS) -Xmn512m very small eden space -XX:+UseParNewGC collect eden in parallel -XX:+UseConcMarkSweepGC use the non-moving CMS collector -XX:CMSInitiatingOccupancyFraction=70 start collecting when 70% of tenured gen is full, avoid collection under pressure -XX:+UseCMSInitiatingOccupancyOnly do not try to adjust CMS setting

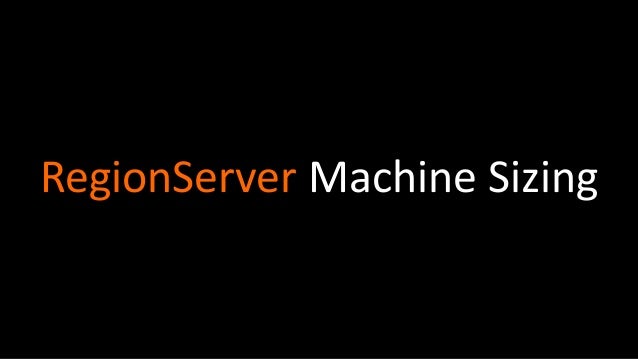

• 34. RegionServer Machine Sizing

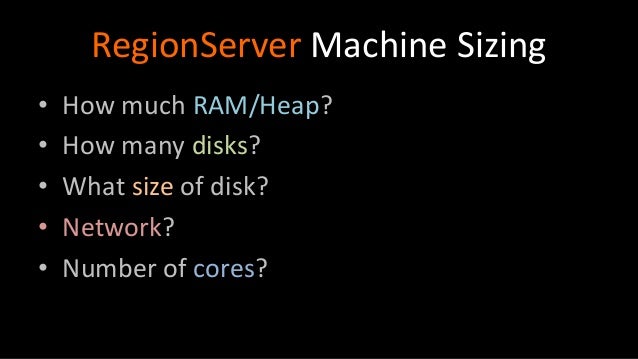

• 35. RegionServer Machine Sizing • How much RAM/Heap? • How many disks? • What size of disk? • Network? • Number of cores?

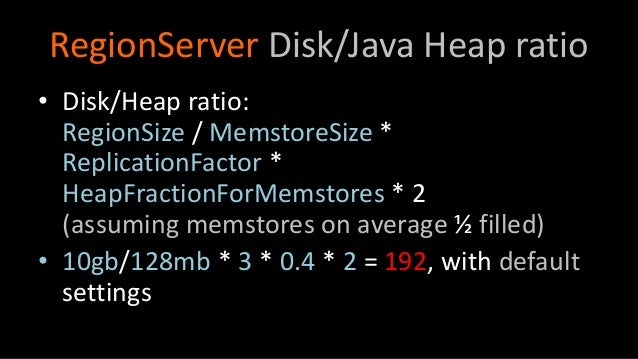

• 36. RegionServer Disk/Java Heap ratio • Disk/Heap ratio: RegionSize / MemstoreSize * ReplicationFactor * HeapFractionForMemstores * 2 (assuming memstores on average ½ filled) • 10gb/128mb * 3 * 0.4 * 2 = 192, with default settings

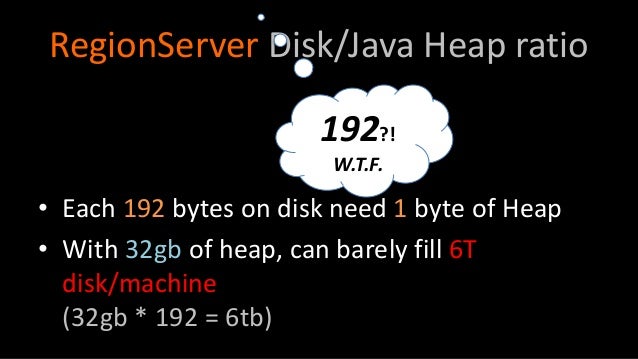

• 37. RegionServer Disk/Java Heap ratio • Each 192 bytes on disk need 1 byte of Heap • With 32gb of heap, can barely fill 6T disk/machine (32gb * 192 = 6tb) 192?! W.T.F.

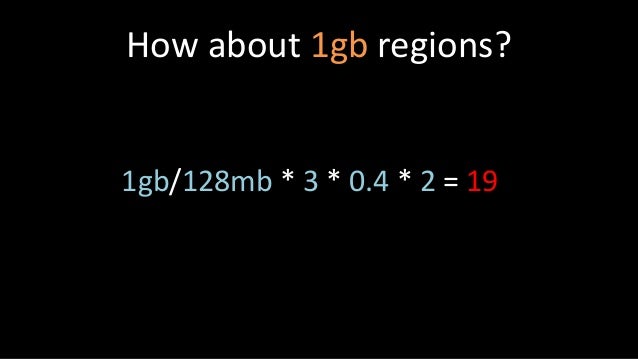

• 38. How about 1gb regions? 1gb/128mb * 3 * 0.4 * 2 = 19
• 39. (source: http://www.everystockphoto.com)

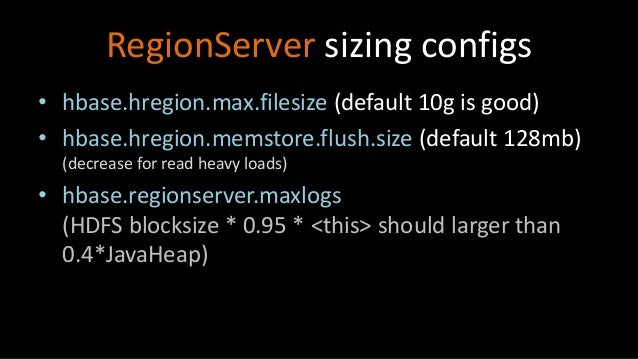

• 40. RegionServer sizing configs • hbase.hregion.max.filesize (default 10g is good) • hbase.hregion.memstore.flush.size (default 128mb) (decrease for read heavy loads) • hbase.regionserver.maxlogs (HDFS blocksize * 0.95 * <this> should larger than 0.4*JavaHeap)

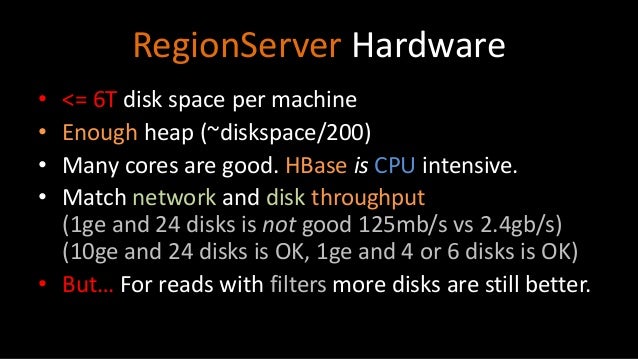

• 41. RegionServer Hardware • <= 6T disk space per machine • Enough heap (~diskspace/200) • Many cores are good. HBase is CPU intensive. • Match network and disk throughput (1ge and 24 disks is not good 125mb/s vs 2.4gb/s) (10ge and 24 disks is OK, 1ge and 4 or 6 disks is OK) • But… For reads with filters more disks are still better.

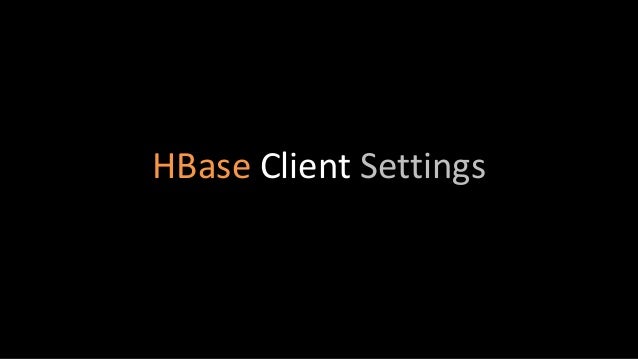

• 42. HBase Client Settings

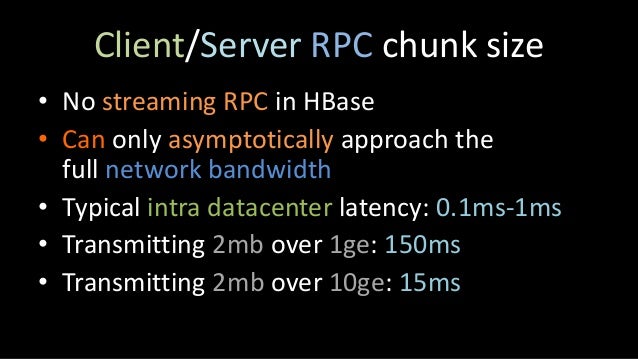

• 43. Client/Server RPC chunk size • No streaming RPC in HBase • Can only asymptotically approach the full network bandwidth • Typical intra datacenter latency: 0.1ms-1ms • Transmitting 2mb over 1ge: 150ms • Transmitting 2mb over 10ge: 15ms
• 44. 2mb chunks between Client and Server are good But, how Should I do that?

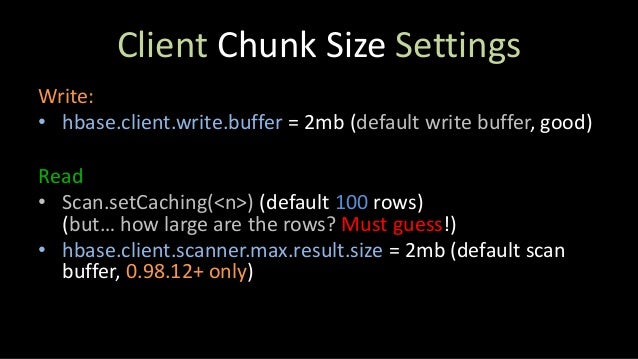

• 45. Client Chunk Size Settings Write: • hbase.client.write.buffer = 2mb (default write buffer, good) Read • Scan.setCaching(<n>) (default 100 rows) (but… how large are the rows? Must guess!) • hbase.client.scanner.max.result.size = 2mb (default scan buffer, 0.98.12+ only)

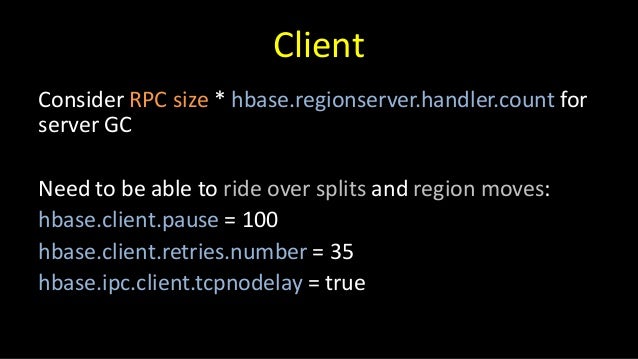

• 46. Client Consider RPC size * hbase.regionserver.handler.count for server GC Need to be able to ride over splits and region moves: hbase.client.pause = 100 hbase.client.retries.number = 35 hbase.ipc.client.tcpnodelay = true
• 47. Replication (trust me) • hbase.zookeeper.useMulti = true (needs ZK 3.4) this one is important for correctness Other defaults are good: • replication.sleep.before.failover = 30000 • replication.source.maxretriesmultiplier = 300 • replication.source.ratio = 0.10

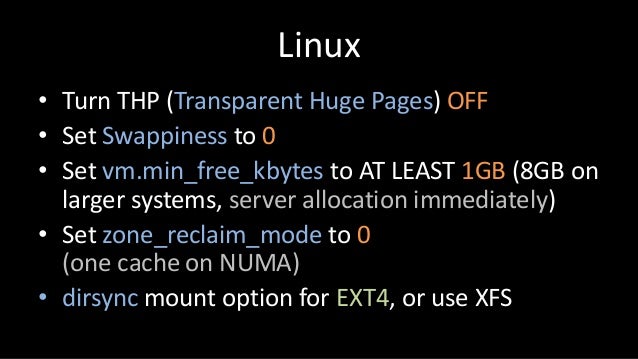

• 48. Linux • Turn THP (Transparent Huge Pages) OFF • Set Swappiness to 0 • Set vm.min_free_kbytes to AT LEAST 1GB (8GB on larger systems, server allocation immediately) • Set zone_reclaim_mode to 0 (one cache on NUMA) • dirsync mount option for EXT4, or use XFS

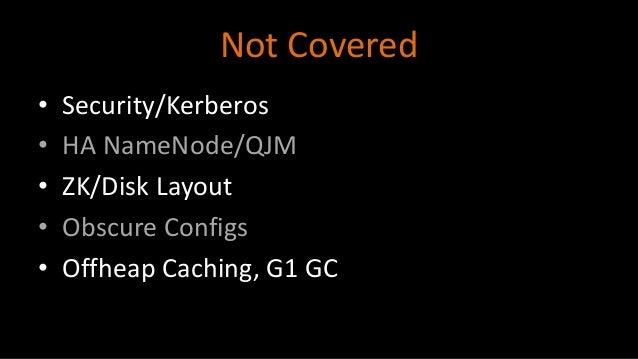

• 49. Not Covered • Security/Kerberos • HA NameNode/QJM • ZK/Disk Layout • Obscure Configs • Offheap Caching, G1 GC
• 50. (source: http://www.morguefile.com)
• 51. TL;DR: • Enable HDFS Sync on close, Sync behind writes • Mount EXT4 with dirsync • Enabled Stale Datanode detection • Tune HBase read vs. write load • Set HFile block size for your load • Get RPC Client/Server chunk size right
• 52. Thank You! http://hadoop-hbase.blogspot.com/
